TPEF::TPEFRelocSectionReader Class Reference

#include <TPEFRelocSectionReader.hh>

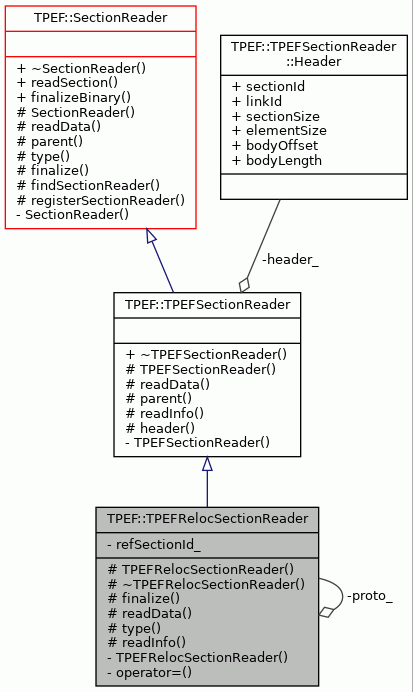

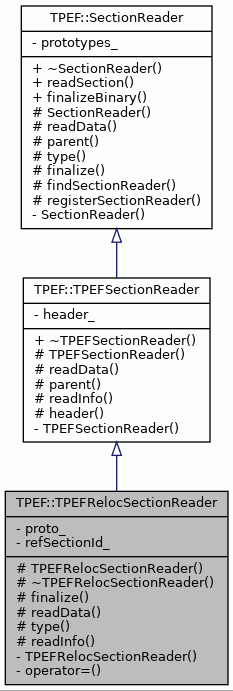

Inheritance diagram for TPEF::TPEFRelocSectionReader:

Collaboration diagram for TPEF::TPEFRelocSectionReader:

Protected Member Functions
	TPEFRelocSectionReader ()
virtual	~TPEFRelocSectionReader ()
virtual void	finalize (Section *section) const
virtual void	readData (BinaryStream &stream, Section *section) const
virtual Section::SectionType	type () const
void	readInfo (BinaryStream &stream, Section *sect) const
Protected Member Functions inherited from TPEF::TPEFSectionReader
	TPEFSectionReader ()
virtual BinaryReader *	parent () const
Protected Member Functions inherited from TPEF::SectionReader
	SectionReader ()

Private Member Functions
	TPEFRelocSectionReader (const TPEFRelocSectionReader &)
	Copying not allowed. More...
TPEFRelocSectionReader &	operator= (TPEFRelocSectionReader &)
	Assignment not allowed. More...

Static Private Attributes
static TPEFRelocSectionReader	proto_
	Prototype instance of TPEFRelocSectionReader to be registered to SectionReader. More...
static SectionId	refSectionId_ = 0
	Section id of last referenced section. More...

Additional Inherited Members
Public Types inherited from TPEF::SectionReader
typedef BinaryReader::Length	Length
Public Member Functions inherited from TPEF::TPEFSectionReader
virtual	~TPEFSectionReader ()
Public Member Functions inherited from TPEF::SectionReader
virtual	~SectionReader ()
Static Public Member Functions inherited from TPEF::SectionReader
static void	readSection (BinaryStream &stream, Section *section, BinaryReader *reader)
static void	finalizeBinary (Binary *binaryToFinalize, BinaryReader *reader)
Static Protected Member Functions inherited from TPEF::TPEFSectionReader
static const Header &	header ()
Static Protected Member Functions inherited from TPEF::SectionReader
static const SectionReader *	findSectionReader (const Section::SectionType type, const BinaryReader *bReader)
static void	registerSectionReader (const SectionReader *sReader)

Detailed Description

Reads relocation section from TPEF binary file.

Definition at line 47 of file TPEFRelocSectionReader.hh.

Constructor & Destructor Documentation

TPEFRelocSectionReader() [1/2]

TPEF::TPEFRelocSectionReader::TPEFRelocSectionReader ( )

protected

Constructor.

Registers itself to SectionReader.

Definition at line 77 of file TPEFRelocSectionReader.cc.

                                               : TPEFSectionReader() {
    SectionReader::registerSectionReader(this);
}

References TPEF::SectionReader::registerSectionReader().

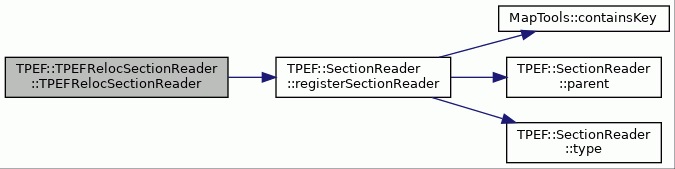

Here is the call graph for this function:

~TPEFRelocSectionReader()

TPEF::TPEFRelocSectionReader::~TPEFRelocSectionReader ( )

protectedvirtual

Destructor.

Definition at line 84 of file TPEFRelocSectionReader.cc.

                                                {
}

TPEFRelocSectionReader() [2/2]

TPEF::TPEFRelocSectionReader::TPEFRelocSectionReader ( const TPEFRelocSectionReader &  )

private

Copying not allowed.

Member Function Documentation

finalize()

void TPEF::TPEFRelocSectionReader::finalize ( Section *  section ) const

protectedvirtual

Finalizer method for TPEF relocation sections.

Resolves destination fields of relocation elements.

Parameters

section

Section to finalize.

Reimplemented from TPEF::SectionReader.

Definition at line 182 of file TPEFRelocSectionReader.cc.

                                                       {

    Section *refSection =
        dynamic_cast<RelocSection*>(section)->referencedSection();

    TPEFReader* tpefReader = dynamic_cast<TPEFReader*>(parent());

    for (Word i = 0; i < section->elementCount(); i++) {

        RelocElement *elem =
            dynamic_cast<RelocElement*>(section->element(i));

        assert(elem->location() != NULL);

        // file offset of destination element to find
        AddressImage address = 0;

        // should we dig up code or data section
        if (refSection->isCodeSection()) {

            // value of immediate element, is an address to that element,
            // which to immediate refers
            ImmediateElement *imm =
                dynamic_cast<ImmediateElement*>(elem->location());

            // relocation must have Immediate or Chunk element as location
            assert(imm != NULL);
            assert(imm->length() <= sizeof(address));

            // read destination address of relocation
            unsigned int neededBits = MathTools::requiredBits(imm->word());
            if (neededBits > elem->size()) {
                throw OutOfRange(
                    __FILE__, __LINE__, __func__,
                    (boost::format(
                        "Destination address width %d of relocation is "
                        "bigger than the field size %d.")
                     % neededBits % elem->size()).str());
            }

            address = imm->word();


        } else if (refSection->type() == Section::ST_DATA) {

            try {
                DataSection *dataSect =
                    dynamic_cast<DataSection*>(refSection);

                int startIndex =
                    dataSect->chunkToMAUIndex(
                        dynamic_cast<Chunk*>(elem->location()));

                int mauSize = dataSect->aSpace()->MAU();

                // BE
                for (int i = 0; i < elem->size() / mauSize; i++) {
                    address = address << mauSize;
                    address = address |  dataSect->MAU(startIndex+i);
                }

            } catch (const OutOfRange &e) {
                bool requestedChunkWasOutOfRange = false;
                assert(requestedChunkWasOutOfRange);
            }

        } else if (refSection->type() == Section::ST_LEDATA) {

            try {
                LEDataSection *dataSect =
                    dynamic_cast<LEDataSection*>(refSection);

                int startIndex =
                    dataSect->chunkToMAUIndex(
                        dynamic_cast<Chunk*>(elem->location()));

                int mauSize = dataSect->aSpace()->MAU();

                // LE
                for (int i = 0; i < elem->size() / mauSize; i++) {
                    address |= (dataSect->MAU(startIndex+i) << (mauSize*i));
                }

            } catch (const OutOfRange &e) {
                bool requestedChunkWasOutOfRange = false;
                assert(requestedChunkWasOutOfRange);
            }



        } else {
            bool referencedSectionMustBeEitherCodeOrData = false;
            assert(referencedSectionMustBeEitherCodeOrData);
        }

        // if unresolved relocation leave destination to undefined
        if (tpefReader->aSpaceSection()->isUndefined(elem->aSpace())) {
            continue;
        }

        // absolute address depending on relocation type and value
        AddressImage absoluteAddress =
            Locator::absoluteAddress(address, elem->type());

        // here we need to resolve section of section referenced
        // by value of location
        Section *destSection =
            tpefReader->sectionOfAddress(elem->aSpace(), absoluteAddress);

        assert(destSection != NULL);

        // do the magic!

        // find section identification code
        SectionId destSectionId =
            SafePointer::sectionKeyFor(destSection).sectionId();

        SectionOffset sectOffsetOfElement;

         // if code section check instructionsize and encoding from
        // refSection...
        if (destSection->isCodeSection()) {
            CodeSection *codeSection =
                dynamic_cast<CodeSection*>(destSection);

            // find instruction number of absolute address
            Word instructionNumber =
                absoluteAddress - codeSection->startingAddress();

            // every index is stored for every instruction element that is
            // start of instruction
            SectionIndexKey sectIndexKey(destSectionId, instructionNumber);
            elem->setDestination(CREATE_SAFEPOINTER(sectIndexKey));

        } else {

            Word mauInBytes =
                static_cast<Word>(
                    ceil(static_cast<double>(elem->aSpace()->MAU()) /
                         static_cast<double>(BYTE_BITWIDTH)));

            // else find just section offset
            sectOffsetOfElement =
                (absoluteAddress - destSection->startingAddress()) *
                mauInBytes;

            SectionOffsetKey sectOffKey(destSectionId, sectOffsetOfElement);
            elem->setDestination(CREATE_SAFEPOINTER(sectOffKey));
        }
    }
}

References __func__, TPEF::Locator::absoluteAddress(), TPEF::RelocElement::aSpace(), TPEF::Section::aSpace(), TPEF::TPEFReader::aSpaceSection(), assert, BYTE_BITWIDTH, TPEF::RawSection::chunkToMAUIndex(), TPEF::Section::element(), TPEF::Section::elementCount(), TPEF::Section::isCodeSection(), TPEF::ASpaceSection::isUndefined(), TPEF::ImmediateElement::length(), TPEF::RelocElement::location(), TPEF::ASpaceElement::MAU(), TPEF::DataSection::MAU(), TPEF::TPEFSectionReader::parent(), MathTools::requiredBits(), TPEF::ReferenceManager::SectionKey::sectionId(), TPEF::ReferenceManager::SafePointer::sectionKeyFor(), TPEF::TPEFReader::sectionOfAddress(), TPEF::RelocElement::setDestination(), TPEF::RelocElement::size(), TPEF::Section::ST_DATA, TPEF::Section::ST_LEDATA, TPEF::Section::startingAddress(), TPEF::RelocElement::type(), TPEF::Section::type(), and TPEF::ImmediateElement::word().

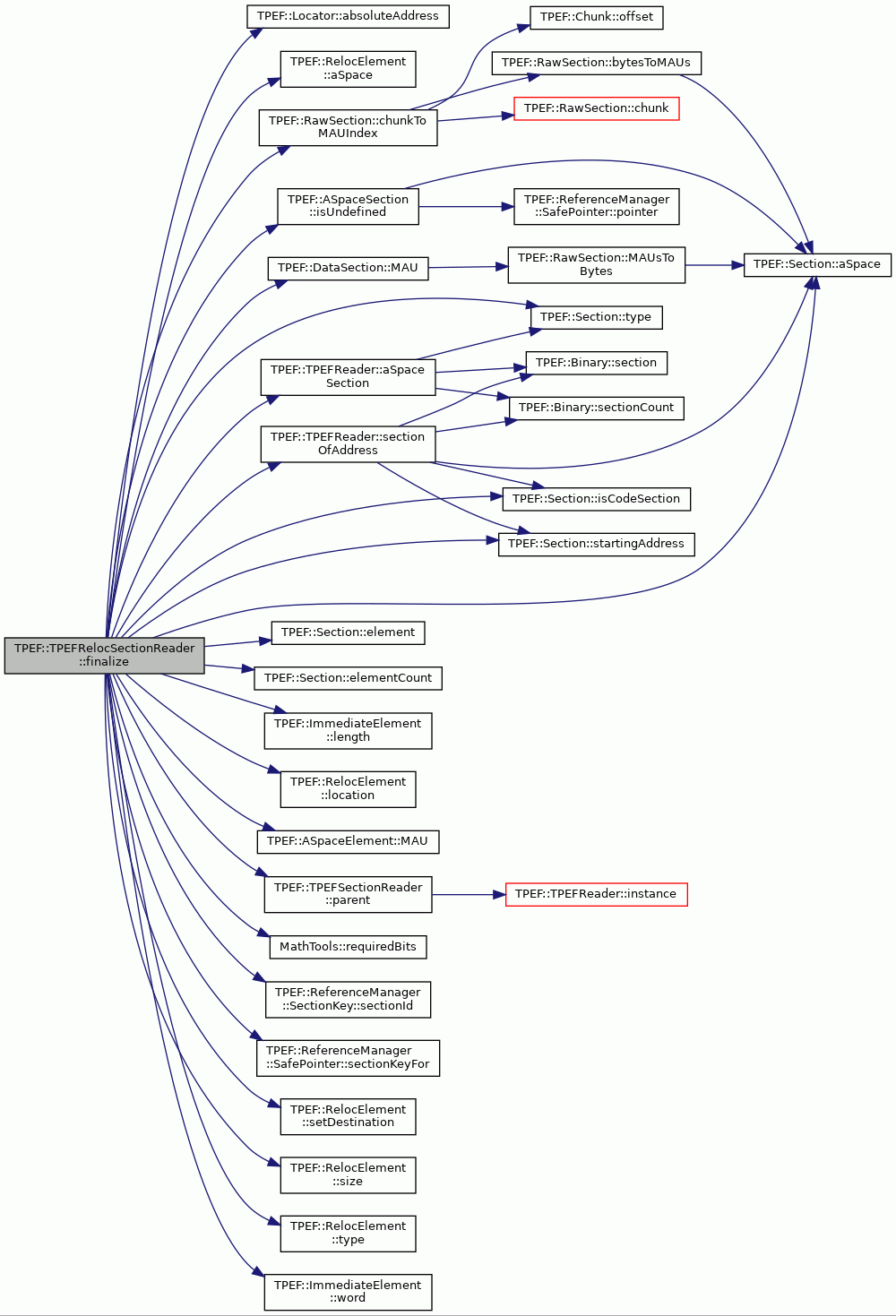

Here is the call graph for this function:

operator=()

TPEFRelocSectionReader& TPEF::TPEFRelocSectionReader::operator= ( TPEFRelocSectionReader &  )

private

Assignment not allowed.

readData()

void TPEF::TPEFRelocSectionReader::readData ( BinaryStream &  stream, Section *  section  ) const

protectedvirtual

Reads section data from TPEF binary file.

Parameters

stream	Stream to be read from.
section	Section where the information is to be stored.

Exceptions

UnreachableStream	If reading of section fails.
KeyAlreadyExists	Key was in use when trying to register object.
EndOfFile	If end of file were reached while it shouldn't.
OutOfRange	Some of read values were out of range.
WrongSubclass	Some class couldn't do what it was asked for.
UnexpectedValue	Ift here was unexpected value when reading.

Reimplemented from TPEF::TPEFSectionReader.

Definition at line 110 of file TPEFRelocSectionReader.cc.

                                                                             {
    // base classes implementation must be called with these.
    TPEFSectionReader::readData(stream, section);

    RelocSection* relocSection = dynamic_cast<RelocSection*>(section);
    assert(relocSection != NULL);

    // check that link section is defined properly
    assert(header().linkId != 0);

    if (!section->noBits()) {

        // store start of first element
        SectionOffset elementStart = header().bodyOffset;
        SectionIndex id = 0;

        while (elementStart + header().elementSize <=
               header().bodyOffset + header().bodyLength) {

            RelocElement *elem = new RelocElement();

            SectionIndexKey sectionIndexKey(header().sectionId, id);
            SafePointer::addObjectReference(sectionIndexKey, elem);

            // r_offset is source element section offset
            Word rOffset =  stream.readWord();
            SectionOffsetKey sKey(refSectionId_, rOffset);
            elem->setLocation(CREATE_SAFEPOINTER(sKey));

            // r_symbol
            Word rSymbol = stream.readWord();
            SectionIndexKey indexKey(header().linkId, rSymbol);
            elem->setSymbol(CREATE_SAFEPOINTER(indexKey));

            // r_type
            Byte rType = stream.readByte();
            elem->setType(
                static_cast<RelocElement::RelocType>(
                    rType&TPEFHeaders::STF_RELOCATION_TYPE_MASK));

            elem->setChunked(rType & TPEFHeaders::STF_CHUNK);

            // r_asp
            Byte rASP = stream.readByte();
            SectionIndexKey aSpaceIndexKey(
                dynamic_cast<TPEFReader*>(parent())->aSpaceId(), rASP);
            elem->setASpace(CREATE_SAFEPOINTER(aSpaceIndexKey));

            // r_size
            elem->setSize(stream.readByte());

            // r_bitpos skipped for now
            elem->setBitOffset(stream.readByte());

            section->addElement(elem);

            elementStart += header().elementSize;
            stream.setReadPosition(elementStart);

            id++;
        }
    }
}

References TPEF::Section::addElement(), TPEF::ReferenceManager::SafePointer::addObjectReference(), assert, TPEF::TPEFSectionReader::Header::bodyOffset, TPEF::TPEFSectionReader::Header::elementSize, TPEF::TPEFSectionReader::header(), TPEF::Section::noBits(), TPEF::TPEFSectionReader::parent(), TPEF::BinaryStream::readByte(), TPEF::TPEFSectionReader::readData(), TPEF::BinaryStream::readWord(), refSectionId_, TPEF::RelocElement::setASpace(), TPEF::RelocElement::setBitOffset(), TPEF::RelocElement::setChunked(), TPEF::RelocElement::setLocation(), TPEF::BinaryStream::setReadPosition(), TPEF::RelocElement::setSize(), TPEF::RelocElement::setSymbol(), TPEF::RelocElement::setType(), TPEF::TPEFHeaders::STF_CHUNK, and TPEF::TPEFHeaders::STF_RELOCATION_TYPE_MASK.

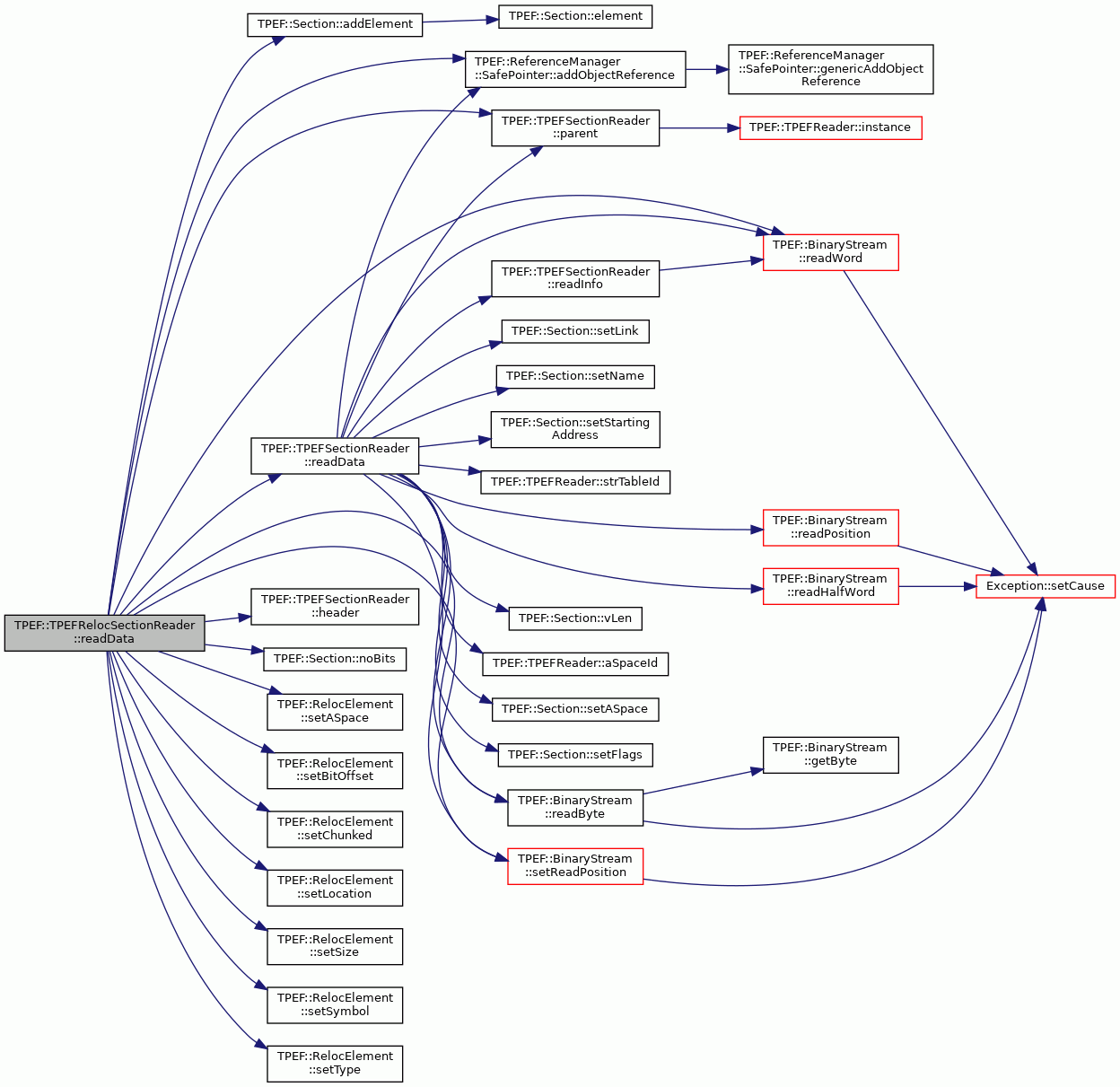

Here is the call graph for this function:

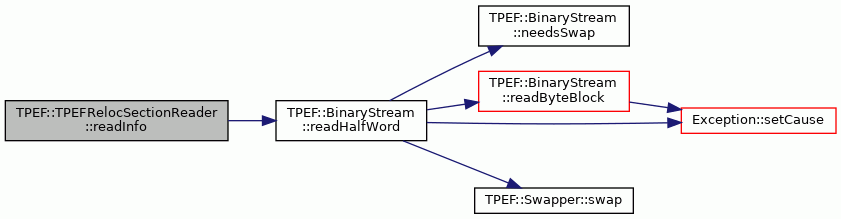

readInfo()

void TPEF::TPEFRelocSectionReader::readInfo ( BinaryStream &  stream, Section *  sect  ) const

protectedvirtual

Reads info field of section header.

Read position of stream will be moved 4 bytes forward.

Parameters

stream	Stream where from info word is read.
section	Reloc section whose info field is read.

Reimplemented from TPEF::TPEFSectionReader.

Definition at line 343 of file TPEFRelocSectionReader.cc.

                                                      {

    // referenced section identifier is in first 2 bytes of info field
    refSectionId_ = stream.readHalfWord();

    if (refSectionId_ != 0) {
        SectionKey sKey(refSectionId_);
        dynamic_cast<RelocSection*>(sect)->setReferencedSection(
            CREATE_SAFEPOINTER(sKey));
    } else {
        bool referencedSectionOfRelocationMustNotBeNullSection = false;
        assert(referencedSectionOfRelocationMustNotBeNullSection);
    }

    // skip rest 2 of 4 bytes
    stream.readHalfWord();
}

References assert, TPEF::BinaryStream::readHalfWord(), and refSectionId_.

Here is the call graph for this function:

type()

Section::SectionType TPEF::TPEFRelocSectionReader::type ( ) const

protectedvirtual

Returns the type of section which the reader can read.

Returns

The type of section which reader can read.

Implements TPEF::SectionReader.

Definition at line 93 of file TPEFRelocSectionReader.cc.

                                   {
    return Section::ST_RELOC;
}

References TPEF::Section::ST_RELOC.

Member Data Documentation

proto_

TPEFRelocSectionReader TPEF::TPEFRelocSectionReader::proto_

staticprivate

Prototype instance of TPEFRelocSectionReader to be registered to SectionReader.

Definition at line 68 of file TPEFRelocSectionReader.hh.

refSectionId_

SectionId TPEF::TPEFRelocSectionReader::refSectionId_ = 0

staticprivate

Section id of last referenced section.

Definition at line 71 of file TPEFRelocSectionReader.hh.

Referenced by readData(), and readInfo().

---

The documentation for this class was generated from the following files:

• TPEFRelocSectionReader.hh
• TPEFRelocSectionReader.cc
