TPEF::TPEFResourceSectionWriter Class Reference

#include <TPEFResourceSectionWriter.hh>

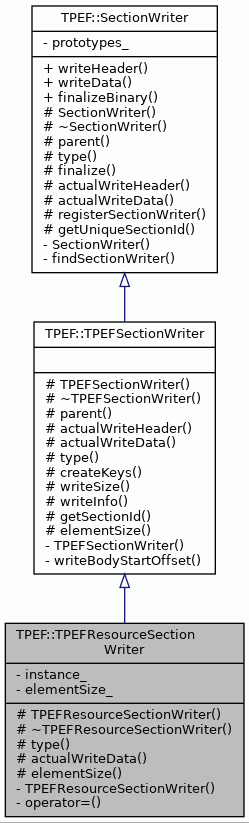

Inheritance diagram for TPEF::TPEFResourceSectionWriter:

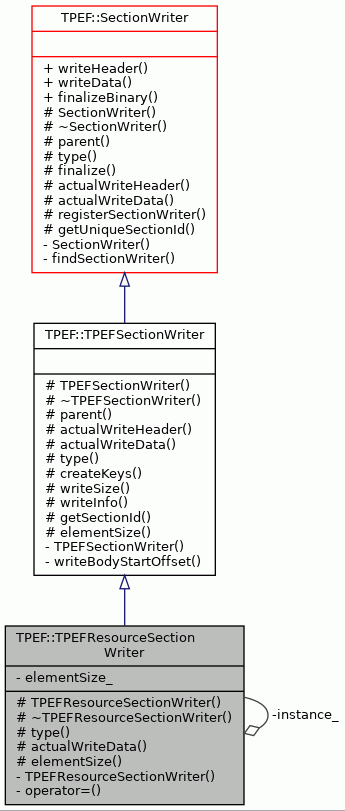

Collaboration diagram for TPEF::TPEFResourceSectionWriter:

Protected Member Functions
	TPEFResourceSectionWriter ()
virtual	~TPEFResourceSectionWriter ()
virtual Section::SectionType	type () const
virtual void	actualWriteData (BinaryStream &stream, const Section *section) const
virtual Word	elementSize (const Section *section) const
Protected Member Functions inherited from TPEF::TPEFSectionWriter
	TPEFSectionWriter ()
virtual	~TPEFSectionWriter ()
virtual const BinaryWriter &	parent () const
virtual void	actualWriteHeader (BinaryStream &stream, const Section *sect) const
virtual void	createKeys (const Section *sect) const
virtual void	writeSize (BinaryStream &stream, const Section *sect) const
virtual void	writeInfo (BinaryStream &stream, const Section *sect) const
virtual SectionId	getSectionId () const
Protected Member Functions inherited from TPEF::SectionWriter
	SectionWriter ()
virtual	~SectionWriter ()
virtual void	finalize (BinaryStream &stream, Section *section) const

Private Member Functions
	TPEFResourceSectionWriter (const TPEFResourceSectionWriter &)
	Copying not allowed. More...
TPEFResourceSectionWriter	operator= (const TPEFResourceSectionWriter &)
	Assignment not allowed. More...

Static Private Attributes
static const TPEFResourceSectionWriter	instance_
	An unique instance of class. More...
static const Word	elementSize_ = 11
	The fixed size element. More...

Additional Inherited Members
Static Public Member Functions inherited from TPEF::SectionWriter
static void	writeHeader (BinaryStream &stream, const Section *sect, const BinaryWriter *writer)
static void	writeData (BinaryStream &stream, const Section *sect, const BinaryWriter *writer)
static void	finalizeBinary (BinaryStream &stream, const Binary *binaryToFinalize, const BinaryWriter *writer)
Static Protected Member Functions inherited from TPEF::SectionWriter
static void	registerSectionWriter (const SectionWriter *sWriter)
static SectionId	getUniqueSectionId ()

Detailed Description

Writes TPEF Processor Resource Table section to stream.

Definition at line 46 of file TPEFResourceSectionWriter.hh.

Constructor & Destructor Documentation

TPEFResourceSectionWriter() [1/2]

TPEF::TPEFResourceSectionWriter::TPEFResourceSectionWriter ( )

protected

Constructor.

Registers itself to SectionWriter.

Definition at line 62 of file TPEFResourceSectionWriter.cc.

                                                     :
    TPEFSectionWriter() {
    registerSectionWriter(this);
}

References TPEF::SectionWriter::registerSectionWriter().

Here is the call graph for this function:

~TPEFResourceSectionWriter()

TPEF::TPEFResourceSectionWriter::~TPEFResourceSectionWriter ( )

protectedvirtual

Destructor.

Definition at line 70 of file TPEFResourceSectionWriter.cc.

                                                      {
}

TPEFResourceSectionWriter() [2/2]

TPEF::TPEFResourceSectionWriter::TPEFResourceSectionWriter ( const TPEFResourceSectionWriter &  )

private

Copying not allowed.

Member Function Documentation

actualWriteData()

void TPEF::TPEFResourceSectionWriter::actualWriteData ( BinaryStream &  stream, const Section *  sect  ) const

protectedvirtual

Writes the data of the section in to stream.

Parameters

stream	The stream to be written to.
sect	The section to be written.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 90 of file TPEFResourceSectionWriter.cc.

                               {

    FileOffset startOffset = stream.writePosition();

    // file offset to body of section
    SafePointer::addObjectReference(
        FileOffsetKey(startOffset), sect->element(0));

    // set for checking multiple items
    std::multiset<
        std::pair<HalfWord, ResourceElement::ResourceType> > checkMultiple;

    for (Word i = 0; i < sect->elementCount(); i++) {
        ResourceElement* elem =
            dynamic_cast<ResourceElement*>(sect->element(i));

        assert(elem != NULL);

        // identification codes of resources must be unique among all
        // resources of the same type
        std::pair<HalfWord, ResourceElement::ResourceType>
            pairToFind(elem->id(), elem->type());

        // TODO: check that OP, SR and PORT share the same id space and don't
        // collide

        if (checkMultiple.find(pairToFind) != checkMultiple.end()) {
            bool multipleResourcesWithSameIdAndType = false;
            assert(multipleResourcesWithSameIdAndType);
        } else {
            checkMultiple.insert(pairToFind);
        }

        stream.writeHalfWord(elem->id());
        stream.writeByte(static_cast<Byte>(elem->type()));

        assert(elem->name() != NULL);

        SectionOffsetReplacer replacer(elem->name());
        replacer.resolve();

        stream.writeWord(elem->info());
    }
    SectionSizeReplacer::setSize(sect, stream.writePosition() - startOffset);
}

References TPEF::ReferenceManager::SafePointer::addObjectReference(), assert, TPEF::Section::element(), TPEF::Section::elementCount(), TPEF::ResourceElement::id(), TPEF::ResourceElement::info(), TPEF::ResourceElement::name(), TPEF::ValueReplacer::resolve(), TPEF::SectionSizeReplacer::setSize(), TPEF::ResourceElement::type(), TPEF::BinaryStream::writeByte(), TPEF::BinaryStream::writeHalfWord(), TPEF::BinaryStream::writePosition(), and TPEF::BinaryStream::writeWord().

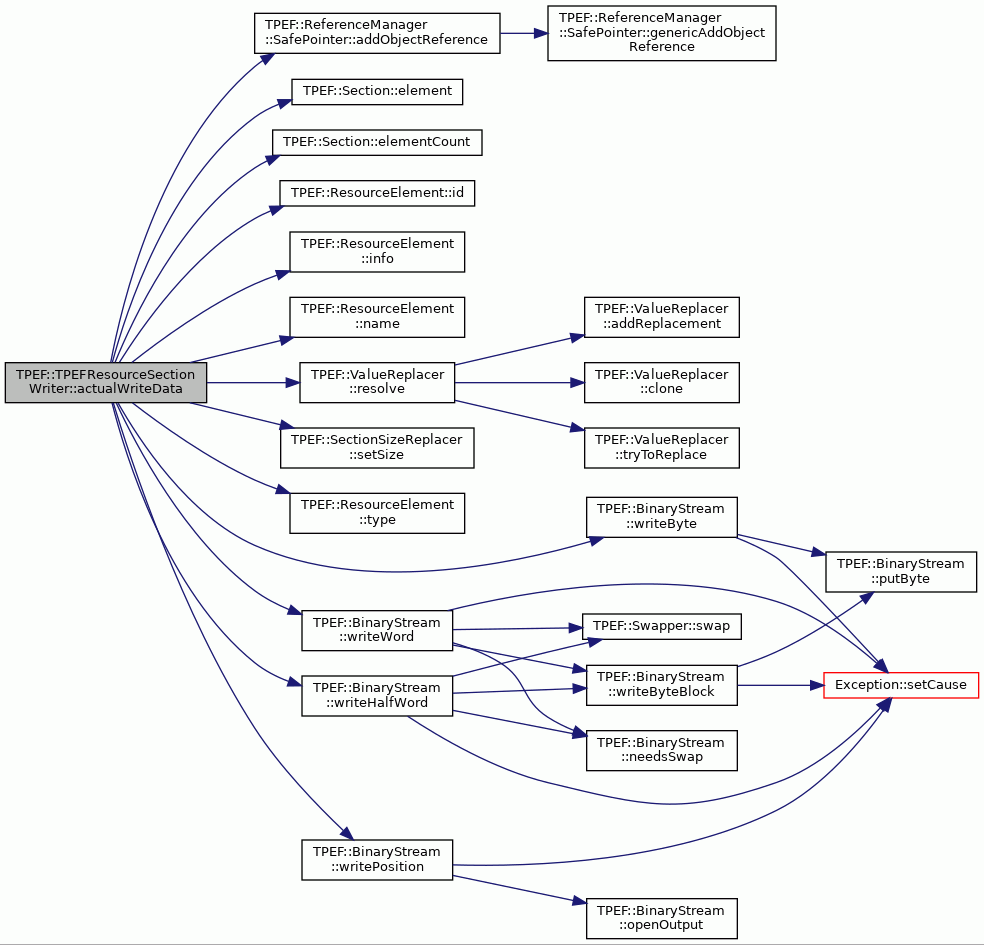

Here is the call graph for this function:

elementSize()

Word TPEF::TPEFResourceSectionWriter::elementSize ( const Section *  section ) const

protectedvirtual

Returns the fixed size length of section elements.

Returns

The fixed size length of section elements.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 144 of file TPEFResourceSectionWriter.cc.

                                                             {
    return elementSize_;
}

References elementSize_.

operator=()

TPEFResourceSectionWriter TPEF::TPEFResourceSectionWriter::operator= ( const TPEFResourceSectionWriter &  )

private

Assignment not allowed.

type()

Section::SectionType TPEF::TPEFResourceSectionWriter::type ( ) const

protectedvirtual

Returns the section type this writer can write.

Returns

The section type writer can write.

Implements TPEF::TPEFSectionWriter.

Definition at line 79 of file TPEFResourceSectionWriter.cc.

                                      {
    return Section::ST_MR;
}

References TPEF::Section::ST_MR.

Member Data Documentation

elementSize_

const Word TPEF::TPEFResourceSectionWriter::elementSize_ = 11

staticprivate

The fixed size element.

Definition at line 69 of file TPEFResourceSectionWriter.hh.

Referenced by elementSize().

instance_

const TPEFResourceSectionWriter TPEF::TPEFResourceSectionWriter::instance_

staticprivate

An unique instance of class.

Definition at line 67 of file TPEFResourceSectionWriter.hh.

---

The documentation for this class was generated from the following files:

• TPEFResourceSectionWriter.hh
• TPEFResourceSectionWriter.cc
