#include <OperationTriggeredFormat.hh>

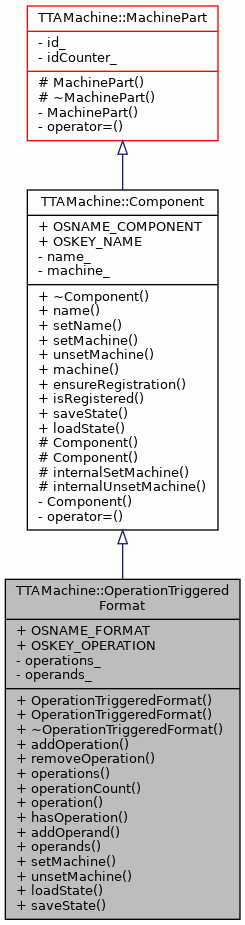

Inheritance diagram for TTAMachine::OperationTriggeredFormat:

Collaboration diagram for TTAMachine::OperationTriggeredFormat:

Public Member Functions
	OperationTriggeredFormat (const std::string &name, Machine &owner)

	OperationTriggeredFormat (const ObjectState *state, Machine &owner)

virtual	~OperationTriggeredFormat ()

void	addOperation (const std::string &op)

void	removeOperation (const std::string &op)

int	operationCount () const

std::string	operationAtIndex (int index) const

bool	hasOperation (const std::string &opName) const

void	addOperand (OperationTriggeredOperand &operand)

std::vector< OperationTriggeredOperand * >	operands () const

virtual void	setMachine (Machine &machine)

virtual void	unsetMachine ()

virtual void	loadState (const ObjectState *state)

virtual ObjectState *	saveState () const

Public Member Functions inherited from TTAMachine::Component
virtual	~Component ()

virtual TCEString	name () const

virtual void	setName (const std::string &name)

virtual Machine *	machine () const

virtual void	ensureRegistration (const Component &component) const

virtual bool	isRegistered () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_FORMAT = "ota-format"

static const std::string	OSKEY_OPERATION = "ota-operation"

Static Public Attributes inherited from TTAMachine::Component
static const std::string	OSNAME_COMPONENT = "component"
	ObjectState name for component.

static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for the name of the component.

Private Attributes
std::vector< std::string >	operations_

std::vector< OperationTriggeredOperand * >	operands_

Additional Inherited Members
Protected Member Functions inherited from TTAMachine::Component
	Component (const std::string &name)

	Component (const ObjectState *state)

void	internalSetMachine (Machine &machine)

void	internalUnsetMachine ()

Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()

virtual	~MachinePart ()

Detailed Description

Definition at line 44 of file OperationTriggeredFormat.hh.

Constructor & Destructor Documentation

◆ OperationTriggeredFormat() [1/2]

TTAMachine::OperationTriggeredFormat::OperationTriggeredFormat	(	const std::string &	name,
		Machine &	owner
	)

The constructor.

Registers the operation code encoding to the parent binary encoding automatically.

Parameters

parent The parent OperationTriggeredFormat.

Definition at line 56 of file OperationTriggeredFormat.cc.

    : Component(name) {
    setMachine(owner);
}

References setMachine().

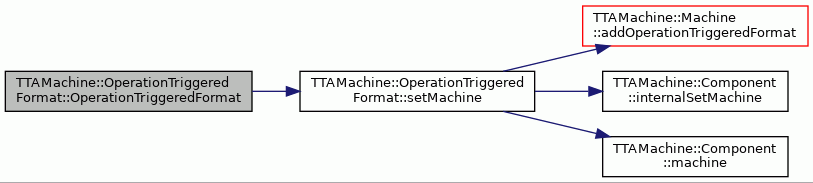

Here is the call graph for this function:

◆ OperationTriggeredFormat() [2/2]

TTAMachine::OperationTriggeredFormat::OperationTriggeredFormat	(	const ObjectState *	state,
		Machine &	owner
	)

The constructor

Loads the state of the operation code encoding from the given ObjectState tree

Parameters

state	The ObjectState tree
parent	The parent binary encoding map

Exceptions

ObjectStateLoadingException If an error occurs while loading the state.

Definition at line 74 of file OperationTriggeredFormat.cc.

    : Component(state) {
    const std::string procName =
        "OperationTriggeredFormat::OperationTriggeredFormat";
    try {
        setMachine(owner);
    } catch (const ComponentAlreadyExists&) {
        MOMTextGenerator textGenerator;
        boost::format errorMsg =
            textGenerator.text(MOMTextGenerator::TXT_IT_EXISTS_BY_NAME);
        errorMsg % name();
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, errorMsg.str());
    }
    try {
        loadState(state);
    } catch (const ObjectStateLoadingException&) {
        unsetMachine();
        throw;
    }
}

References loadState(), TTAMachine::Component::name(), setMachine(), Texts::TextGenerator::text(), MOMTextGenerator::TXT_IT_EXISTS_BY_NAME, and unsetMachine().

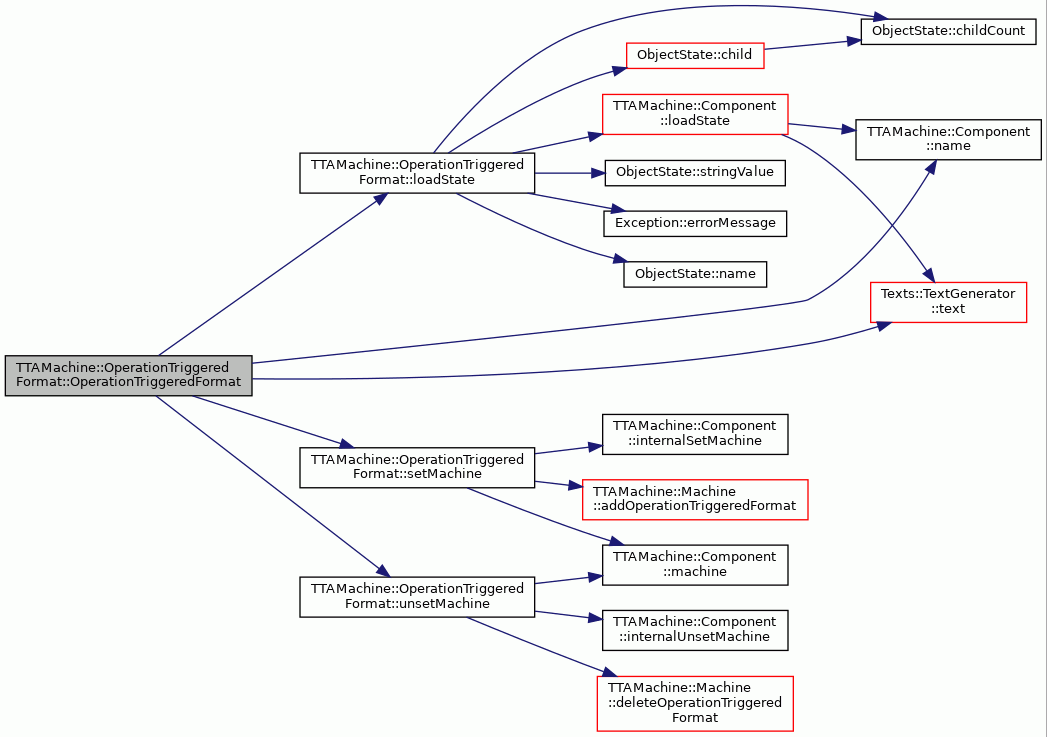

Here is the call graph for this function:

◆ ~OperationTriggeredFormat()

TTAMachine::OperationTriggeredFormat::~OperationTriggeredFormat ( )

virtual

Destructor.

Definition at line 100 of file OperationTriggeredFormat.cc.

                                                    {
    for (unsigned int i = 0; i < operands_.size(); i++) {
        delete operands_.at(i);
    }
    unsetMachine();
}

References operands_, and unsetMachine().

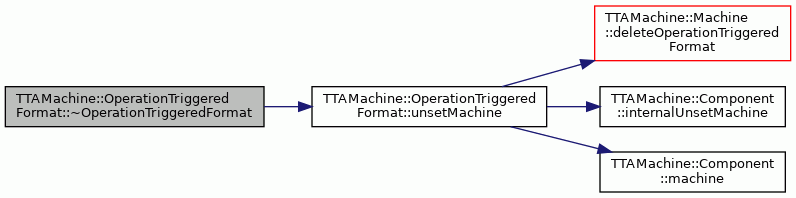

Here is the call graph for this function:

Member Function Documentation

◆ addOperand()

void TTAMachine::OperationTriggeredFormat::addOperand ( OperationTriggeredOperand & operand )

Definition at line 151 of file OperationTriggeredFormat.cc.

                                                                  {
    operands_.push_back(&op);
}

References operands_.

Referenced by TTAMachine::OperationTriggeredOperand::OperationTriggeredOperand(), and TTAMachine::OperationTriggeredOperand::OperationTriggeredOperand().

◆ addOperation()

void TTAMachine::OperationTriggeredFormat::addOperation ( const std::string & op )

Definition at line 108 of file OperationTriggeredFormat.cc.

                                                          {
    operations_.push_back(op);
}

References operations_.

Referenced by OTAOperationDialog::onOK().

◆ hasOperation()

bool TTAMachine::OperationTriggeredFormat::hasOperation ( const std::string & opName ) const

Definition at line 136 of file OperationTriggeredFormat.cc.

                                                                    {
    for (const std::string& op : operations_) {
        if (op == opName) {
            return true;
        }
    }
    return false;
}

References operations_.

Referenced by OTAOperationDialog::addRISCVBaseOperations(), OTAOperationDialog::onOK(), and OTAOperationDialog::TransferDataToWindow().

◆ loadState()

void TTAMachine::OperationTriggeredFormat::loadState ( const ObjectState * state )

virtual

Loads the name of the component from the given ObjectState instance.

Parameters

state The ObjectState instance.

Exceptions

ObjectStateLoadingException If the machine already contains same type of component with the same name.

Reimplemented from TTAMachine::Component.

Definition at line 185 of file OperationTriggeredFormat.cc.

                                                            {
    operations_.clear();
    operands_.clear();
    const std::string procName = "OperationTriggeredOperand::loadState";

    ObjectState* newState = new ObjectState(*state);

    if (newState->name() != OSNAME_FORMAT) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }
    Component::loadState(newState);
    try {
        for (int i = 0; i < newState->childCount(); i++) {
            ObjectState* child = newState->child(i);
            if (child->name() == OperationTriggeredOperand::OSNAME_OPERAND) {
                new OperationTriggeredOperand(child, *this);
            } else if (
                child->name() == OperationTriggeredFormat::OSKEY_OPERATION) {
                operations_.push_back(child->stringValue());
            }
        }
    } catch (const Exception& exception) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, exception.errorMessage());
    }
    delete newState;
}

References ObjectState::child(), ObjectState::childCount(), Exception::errorMessage(), TTAMachine::Component::loadState(), ObjectState::name(), operands_, operations_, OSKEY_OPERATION, OSNAME_FORMAT, TTAMachine::OperationTriggeredOperand::OSNAME_OPERAND, and ObjectState::stringValue().

Referenced by OperationTriggeredFormat().

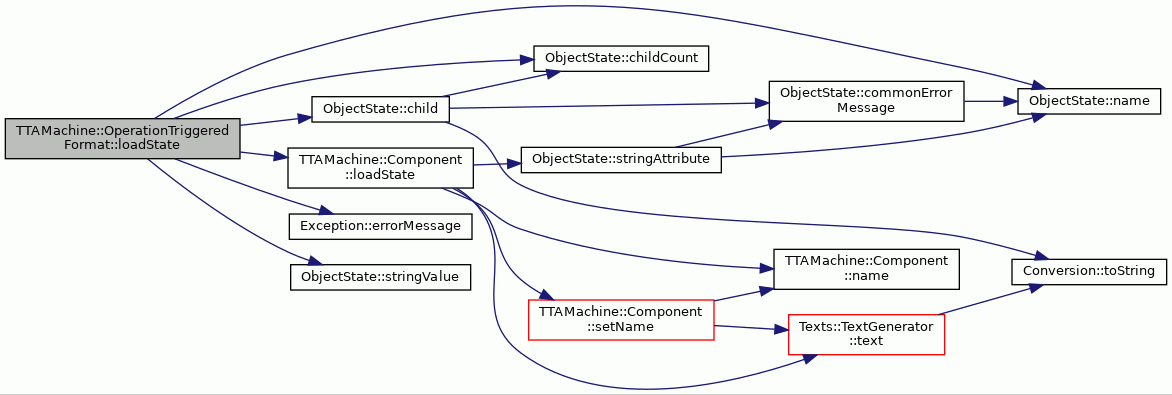

Here is the call graph for this function:

◆ operands()

std::vector< OperationTriggeredOperand * > TTAMachine::OperationTriggeredFormat::operands ( ) const

Definition at line 146 of file OperationTriggeredFormat.cc.

                                         {
    return operands_;
}

References operands_.

◆ operationAtIndex()

std::string TTAMachine::OperationTriggeredFormat::operationAtIndex ( int index ) const

Definition at line 127 of file OperationTriggeredFormat.cc.

                                                          {
    if (index > operationCount() - 1) {
        const std::string msg = "Operation index out of range.";
        throw OutOfRange(__FILE__, __LINE__, __func__, msg);
    }
    return operations_.at(index);
}

References __func__, operationCount(), and operations_.

Referenced by BEMGenerator::addRiscvFormat(), and OTAFormatListDialog::updateOperationList().

Here is the call graph for this function:

◆ operationCount()

int TTAMachine::OperationTriggeredFormat::operationCount ( ) const

Definition at line 122 of file OperationTriggeredFormat.cc.

                                               {
    return operations_.size();
}

References operations_.

Referenced by BEMGenerator::addRiscvFormat(), operationAtIndex(), and OTAFormatListDialog::updateOperationList().

◆ removeOperation()

void TTAMachine::OperationTriggeredFormat::removeOperation ( const std::string & op )

Definition at line 113 of file OperationTriggeredFormat.cc.

                                                             {
    for (unsigned int i = 0; i < operations_.size(); i++) {
        if (operations_.at(i) == op) {
            operations_.erase(operations_.begin() + i);
        }
    }
}

References operations_.

Referenced by OTAFormatListDialog::onDeleteOperation().

◆ saveState()

ObjectState * TTAMachine::OperationTriggeredFormat::saveState ( ) const

virtual

Saves the state of the operation code encoding to an ObjectState tree.

Returns: The newly created ObjectState tree.

Reimplemented from TTAMachine::Component.

Definition at line 221 of file OperationTriggeredFormat.cc.

                                          {
    ObjectState* state = Component::saveState();
    state->setName(OSNAME_FORMAT);
    for (unsigned int i = 0; i < operands_.size(); i++) {
        ObjectState* operandObject = operands_.at(i)->saveState();
        state->addChild(operandObject);
    }
    for (unsigned int i = 0; i < operations_.size(); i++) {
        ObjectState* operationObject = new ObjectState(OSKEY_OPERATION);
        operationObject->setValue(operations_.at(i));
        state->addChild(operationObject);
    }

    return state;
}

References ObjectState::addChild(), operands_, operations_, OSKEY_OPERATION, OSNAME_FORMAT, TTAMachine::Component::saveState(), ObjectState::setName(), and ObjectState::setValue().

Here is the call graph for this function:

◆ setMachine()

void TTAMachine::OperationTriggeredFormat::setMachine ( Machine & machine )

virtual

Adds the OperationTriggeredFormat to the given machine.

Parameters

machine Machine to which the OperationTriggeredFormat Format is added.

Exceptions

ComponentAlreadyExists If there already is another OperationTriggeredFormat Format by the same name or another empty OperationTriggeredFormat Format in the given machine.

Implements TTAMachine::Component.

Definition at line 165 of file OperationTriggeredFormat.cc.

                                                     {
    machine.addOperationTriggeredFormat(*this);
    internalSetMachine(machine);
}

References TTAMachine::Machine::addOperationTriggeredFormat(), TTAMachine::Component::internalSetMachine(), and TTAMachine::Component::machine().

Referenced by OperationTriggeredFormat(), and OperationTriggeredFormat().

Here is the call graph for this function:

◆ unsetMachine()

void TTAMachine::OperationTriggeredFormat::unsetMachine ( )

virtual

Removes the OperationTriggeredFormat Format from its machine.

The OperationTriggeredFormat Format is also deleted because it cannot be alone. It must be registered to a machine.

Implements TTAMachine::Component.

Definition at line 177 of file OperationTriggeredFormat.cc.

                                       {
    Machine* mach = machine();
    assert(mach != NULL);
    internalUnsetMachine();
    mach->deleteOperationTriggeredFormat(*this);
}
