#include <DataDefinition.hh>

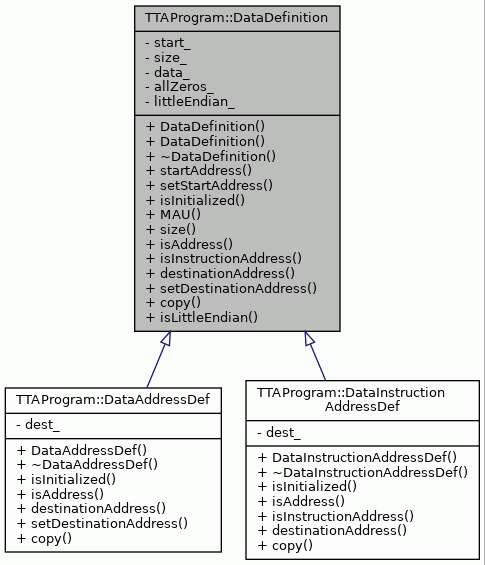

Inheritance diagram for TTAProgram::DataDefinition:

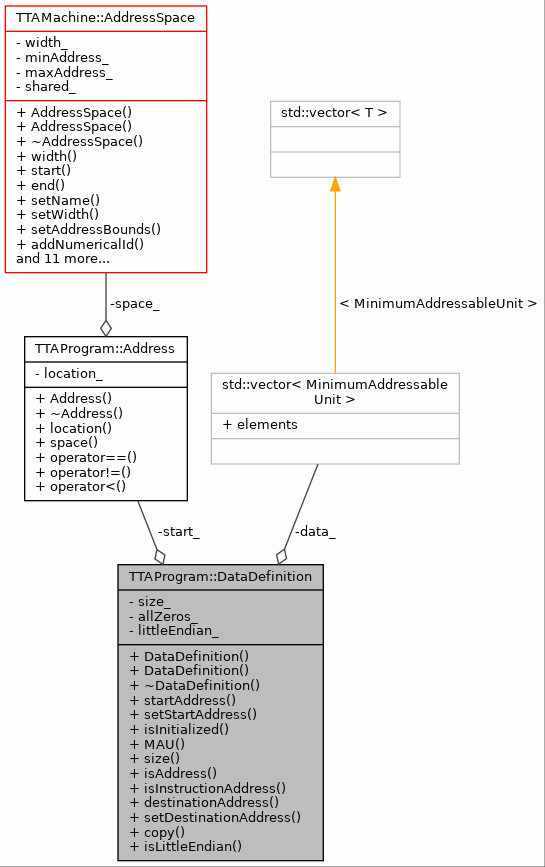

Collaboration diagram for TTAProgram::DataDefinition:

Public Member Functions
	DataDefinition (Address start, int size, bool littleEndian, MinimumAddressableUnit *initData=NULL, bool allZeros=false)

	DataDefinition (Address start, const std::vector< MinimumAddressableUnit > &initData, bool littleEndian)

virtual	~DataDefinition ()

virtual Address	startAddress () const

virtual void	setStartAddress (Address start)

virtual bool	isInitialized () const

virtual MinimumAddressableUnit	MAU (int index) const

virtual int	size () const

virtual bool	isAddress () const

virtual bool	isInstructionAddress () const

virtual Address	destinationAddress () const

virtual void	setDestinationAddress (Address dest)

virtual DataDefinition *	copy () const

bool	isLittleEndian () const

Private Attributes
Address	start_
	Start address of definition.

int	size_
	Size of uninitialized data definition.

std::vector< MinimumAddressableUnit > *	data_
	Init data of definition.

bool	allZeros_
	Is all the data zeros? (In this case data_ is null)

bool	littleEndian_

Detailed Description

Describes characteristics of an initialized or uninitialized memory area.

Definition at line 52 of file DataDefinition.hh.

Constructor & Destructor Documentation

◆ DataDefinition() [1/2]

TTAProgram::DataDefinition::DataDefinition	(	Address	start,
		int	size,
		bool	littleEndian,
		MinimumAddressableUnit *	initData = `NULL`,
		bool	allZeros = `false`
	)

Creates data area definition.

Parameters

start	Starting address of definition.
size	Number of MAUs that area represents.
initData	Table of initialization data if initialized definition.

Exceptions

OutOfRange In case the initialization data contains data that do not fit in a MAU.

Definition at line 52 of file DataDefinition.cc.

    : start_(start),
      size_(size),
      allZeros_(allZeros),
      littleEndian_(littleEndian) {
    if (initData != NULL) {
        data_ = new std::vector<MinimumAddressableUnit>(size);
        for (int i = 0 ; i < size; i++) {
            const int mauBits = start.space().width();
            const MinimumAddressableUnit mau = initData[i];
            if (MathTools::requiredBits(mau) > mauBits) {
                if (MathTools::requiredBitsSigned(mau) > mauBits) {
                    throw OutOfRange(
                        __FILE__, __LINE__, __func__,
                        "The given value does not fit to the MAU of address "
                        "space.");
                }
            }


            (*data_)[i] = mau;
        }
    } else {
        data_ = NULL;
    }
}

References __func__, data_, MathTools::requiredBits(), MathTools::requiredBitsSigned(), size(), TTAProgram::Address::space(), and TTAMachine::AddressSpace::width().

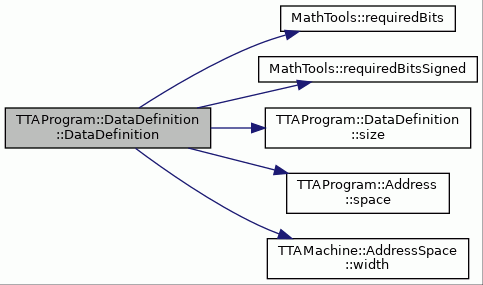

Here is the call graph for this function:

◆ DataDefinition() [2/2]

TTAProgram::DataDefinition::DataDefinition	(	Address	start,
		const std::vector< MinimumAddressableUnit > &	initData,
		bool	littleEndian
	)

Creates initialized data area definition.

Parameters

start	Starting address of definition.
initData	Initialization data.

Exceptions

OutOfRange In case the initialization data contains data that do not fit in a MAU.

Definition at line 89 of file DataDefinition.cc.

    : start_(start), allZeros_(false), littleEndian_(littleEndian) {
    // check that the MAUs are not too large for the address space
    for (std::size_t i = 0 ; i < initData.size(); i++) {
        const int mauBits = start.space().width();
        const MinimumAddressableUnit mau = initData[i];

        if (MathTools::requiredBits(mau) > mauBits) {

            if (MathTools::requiredBitsSigned(mau) > mauBits) {
                throw OutOfRange(
                    __FILE__, __LINE__, __func__,
                    "The given value does not fit to the MAU of address "
                    "space.");
            }
        }
    }

    data_ = new std::vector<MinimumAddressableUnit>(initData);
    size_ = data_->size();
}

References __func__, data_, MathTools::requiredBits(), MathTools::requiredBitsSigned(), size_, TTAProgram::Address::space(), and TTAMachine::AddressSpace::width().

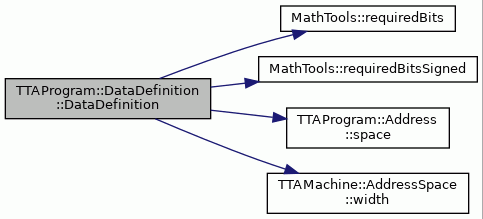

Here is the call graph for this function:

◆ ~DataDefinition()

TTAProgram::DataDefinition::~DataDefinition ( )

virtual

Frees all the init data if there is any.

Definition at line 116 of file DataDefinition.cc.

                                {
    if (data_ != NULL) {
        delete data_;
        data_ = NULL;
    }
}

References data_.

Member Function Documentation

◆ copy()

DataDefinition * TTAProgram::DataDefinition::copy ( ) const

virtual

POM style copy constructor, which supports dynamic binding.

Returns: Copy of the object.

Reimplemented in TTAProgram::DataAddressDef, and TTAProgram::DataInstructionAddressDef.

Definition at line 262 of file DataDefinition.cc.

                                           {
    DataDefinition* newDef = NULL;

    if (allZeros_) {
        newDef = new DataDefinition(start_, size_, littleEndian_, NULL, true);
    } else if (isInitialized()) {
        newDef = new DataDefinition(start_, *data_, littleEndian_);
    } else {
        newDef = new DataDefinition(start_, size_, littleEndian_);
    }

    return newDef;
}

References allZeros_, data_, isInitialized(), littleEndian_, size_, and start_.

Referenced by TTAProgram::DataMemory::copy(), and TTAProgram::Program::copyDataMemoriesFrom().

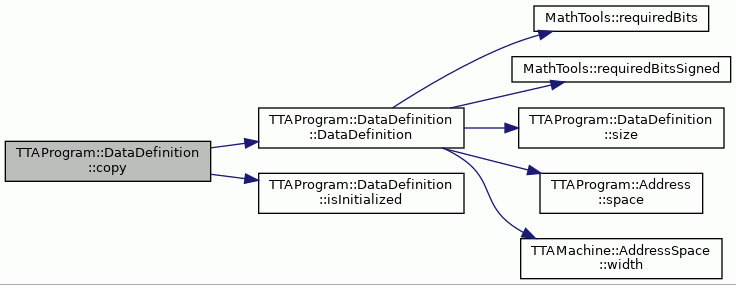

Here is the call graph for this function:

◆ destinationAddress()

Address TTAProgram::DataDefinition::destinationAddress ( ) const

virtual

Returns address where to initialization data refers.

Returns: Address where to initialization data refers.

Reimplemented in TTAProgram::DataAddressDef, and TTAProgram::DataInstructionAddressDef.

Definition at line 241 of file DataDefinition.cc.

                                         {
    throw WrongSubclass(
        __FILE__, __LINE__, __func__,
        "Data definition does not contain an address reference.");
}

References __func__.

Referenced by ControlFlowGraph::computeLeadersFromRelocations(), TTAProgram::Program::copyDataMemoriesFrom(), TTAProgram::ProgramWriter::createDataSections(), llvm::LLVMTCEBuilder::deleteDeadProcedures(), MAU(), and TTAProgram::Program::replaceUniversalAddressSpaces().

◆ isAddress()

bool TTAProgram::DataDefinition::isAddress ( ) const

virtual

Returns true if init data of definition contains an address.

Returns: True if init data of definition contains an address.

Reimplemented in TTAProgram::DataAddressDef, and TTAProgram::DataInstructionAddressDef.

Definition at line 221 of file DataDefinition.cc.

                                {
    return false;
}

Referenced by TTAProgram::ProgramWriter::createDataSections(), MAU(), and TTAProgram::Program::replaceUniversalAddressSpaces().

◆ isInitialized()

bool TTAProgram::DataDefinition::isInitialized ( ) const

virtual

Returns true if data definition contains initialization data.

Returns: True if data definition contains initialization data.

Reimplemented in TTAProgram::DataAddressDef, and TTAProgram::DataInstructionAddressDef.

Definition at line 144 of file DataDefinition.cc.

                                    {
    return allZeros_ || (data_ != NULL);
}

References allZeros_, and data_.

Referenced by copy(), TTAProgram::ProgramWriter::createDataSections(), POMDisassembler::dataDefDescription(), SimulatorFrontend::initializeDataMemories(), main(), and MAU().

◆ isInstructionAddress()

bool TTAProgram::DataDefinition::isInstructionAddress ( ) const

virtual

Returns true if init data of definition contains an instruction address.

Returns: True if init data of definition contains an instruction address.

Reimplemented in TTAProgram::DataInstructionAddressDef.

Definition at line 231 of file DataDefinition.cc.

                                           {
    return false;
}

Referenced by ControlFlowGraph::computeLeadersFromRelocations(), TTAProgram::Program::copyDataMemoriesFrom(), and TTAProgram::Program::replaceUniversalAddressSpaces().

◆ isLittleEndian()

bool TTAProgram::DataDefinition::isLittleEndian ( ) const

inline

Definition at line 78 of file DataDefinition.hh.

78{ return littleEndian_; }

References littleEndian_.

Referenced by TTAProgram::DataAddressDef::copy().

◆ MAU()

MinimumAddressableUnit TTAProgram::DataDefinition::MAU ( int index ) const

virtual

Returns one MAU of initialization values from requested index.

Parameters

index Index of the MAU whic is returned.

Returns: One MAU of initialization values from requested index.

Definition at line 155 of file DataDefinition.cc.

                                   {
    assert(index < size());

    if (isAddress()) {
        if (littleEndian_) {
            index = size() - index -1;
        }

        MinimumAddressableUnit retVal = destinationAddress().location();

        // how many bits should be masked out
        int maskBits = index * startAddress().space().width();

        // how many bits is the whole area definition
        int totalAreaDefBits = size() * startAddress().space().width();

        // how many bits of the data definition should not be masked out
        int remainingBits = totalAreaDefBits - maskBits;

        // how many bits is value that is stored as a address
        int addressBits = sizeof(retVal) * BYTE_BITWIDTH;

        // how many bits will be masked from start of address
        int addressMaskBits = addressBits - remainingBits;

        // mask out bits if needed
        if (addressMaskBits >= 0) {
            retVal = retVal << addressMaskBits;
        } else {
            retVal = retVal >> (-addressMaskBits);
        }

        // align MAU bits to right
        retVal = retVal >> (addressBits - startAddress().space().width());

        // return MAU
        return retVal;

    } else if(allZeros_) {
        return 0;
    } else if (isInitialized()) {
        return (*data_)[index];

    } else {
        throw NotAvailable(
            __FILE__, __LINE__, __func__,
            "Definition does not contain initialisation data.");
    }
}

References __func__, allZeros_, assert, BYTE_BITWIDTH, data_, destinationAddress(), isAddress(), isInitialized(), littleEndian_, TTAProgram::Address::location(), size(), TTAProgram::Address::space(), startAddress(), and TTAMachine::AddressSpace::width().

Referenced by TTAProgram::ProgramWriter::createDataSections(), POMDisassembler::dataDefDescription(), SimulatorFrontend::initializeDataMemories(), and main().

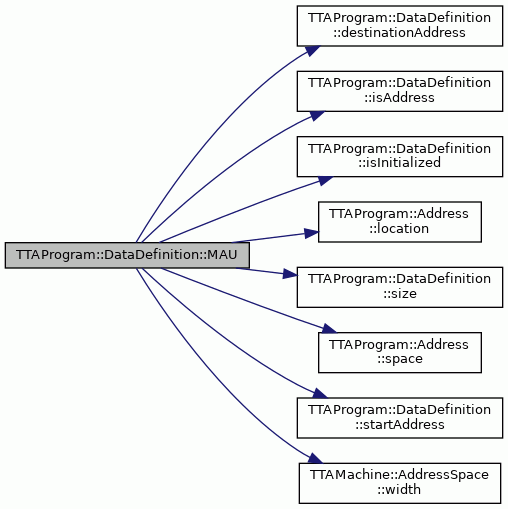

Here is the call graph for this function:

◆ setDestinationAddress()

void TTAProgram::DataDefinition::setDestinationAddress ( Address dest )

virtual

Set new destination address for the data definition.

Reimplemented in TTAProgram::DataAddressDef.

Definition at line 251 of file DataDefinition.cc.

                                             {
    throw WrongSubclass(
        __FILE__, __LINE__, __func__,
        "Data definition does not refer to a data address.");
}

References __func__.

Referenced by TTAProgram::Program::replaceUniversalAddressSpaces().

◆ setStartAddress()

void TTAProgram::DataDefinition::setStartAddress ( Address start )

virtual

Definition at line 134 of file DataDefinition.cc.

                                             {
    start_ = start;
}

References start_.

Referenced by TTAProgram::DataMemory::setAddressSpace().

◆ size()

int TTAProgram::DataDefinition::size ( ) const

virtual

Returns the number of MAUs represented by definition.

Returns: The number of MAUs represented by definition.

Definition at line 211 of file DataDefinition.cc.

                           {
    return size_;
}

References size_.

Referenced by StaticProgramAnalyzer::addProgram(), TTAProgram::DataAddressDef::copy(), TTAProgram::Program::copyDataMemoriesFrom(), TTAProgram::TPEFProgramFactory::createDataMemories(), TTAProgram::ProgramWriter::createDataSections(), llvm::LLVMTCEBuilder::createFPDataDefinition(), llvm::LLVMTCEBuilder::createGlobalValueDataDefinition(), llvm::LLVMTCEBuilder::createIntDataDefinition(), POMDisassembler::dataDefDescription(), TTAProgram::DataMemory::dataDefinition(), DataDefinition(), TTAProgram::DataMemory::dataDefinitionCount(), TTAProgram::DataMemory::dataDefinitionsEnd(), SimulatorFrontend::initializeDataMemories(), main(), and MAU().

◆ startAddress()

Address TTAProgram::DataDefinition::startAddress ( ) const

virtual

Returns start address of data definition.

Returns: Start address of data definition.

Definition at line 129 of file DataDefinition.cc.

                                   {
    return start_;
}

References start_.

Referenced by TTAProgram::DataMemory::addDataDefinition(), StaticProgramAnalyzer::addProgram(), TTAProgram::DataAddressDef::copy(), TTAProgram::Program::copyDataMemoriesFrom(), TTAProgram::TPEFProgramFactory::createDataMemories(), TTAProgram::ProgramWriter::createDataSections(), TTAProgram::DataMemory::dataDefinition(), TTAProgram::DataMemory::dataDefinitionsEnd(), POMDisassembler::disassembleProgram(), SimulatorFrontend::initializeDataMemories(), main(), MAU(), and TTAProgram::DataMemory::setAddressSpace().

Member Data Documentation

◆ allZeros_

bool TTAProgram::DataDefinition::allZeros_

private

Is all the data zeros? (In this case data_ is null)

Definition at line 91 of file DataDefinition.hh.

Referenced by copy(), isInitialized(), and MAU().

◆ data_

std::vector<MinimumAddressableUnit>* TTAProgram::DataDefinition::data_

private

Init data of definition.

Definition at line 88 of file DataDefinition.hh.

Referenced by copy(), DataDefinition(), DataDefinition(), isInitialized(), MAU(), and ~DataDefinition().

◆ littleEndian_

bool TTAProgram::DataDefinition::littleEndian_

private

Definition at line 93 of file DataDefinition.hh.

Referenced by copy(), isLittleEndian(), and MAU().

◆ size_

int TTAProgram::DataDefinition::size_

private

Size of uninitialized data definition.

Definition at line 85 of file DataDefinition.hh.

Referenced by copy(), DataDefinition(), and size().

◆ start_

Address TTAProgram::DataDefinition::start_

private

Start address of definition.

Definition at line 82 of file DataDefinition.hh.

Referenced by copy(), setStartAddress(), and startAddress().

The documentation for this class was generated from the following files:

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DataDefinition() [1/2]

◆ DataDefinition() [2/2]

◆ ~DataDefinition()

Member Function Documentation

◆ copy()

◆ destinationAddress()

◆ isAddress()

◆ isInitialized()

◆ isInstructionAddress()

◆ isLittleEndian()

◆ MAU()

◆ setDestinationAddress()

◆ setStartAddress()

◆ size()

◆ startAddress()

Member Data Documentation

◆ allZeros_

◆ data_

◆ littleEndian_

◆ size_

◆ start_
