#include <TerminalLaneIDImmediate.hh>

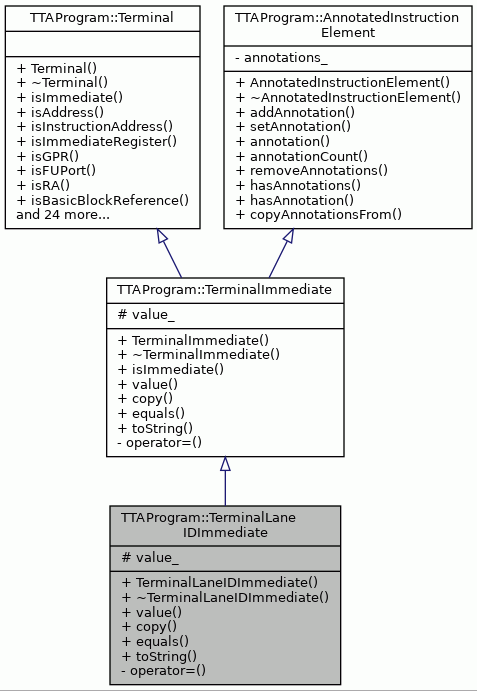

Inheritance diagram for TTAProgram::TerminalLaneIDImmediate:

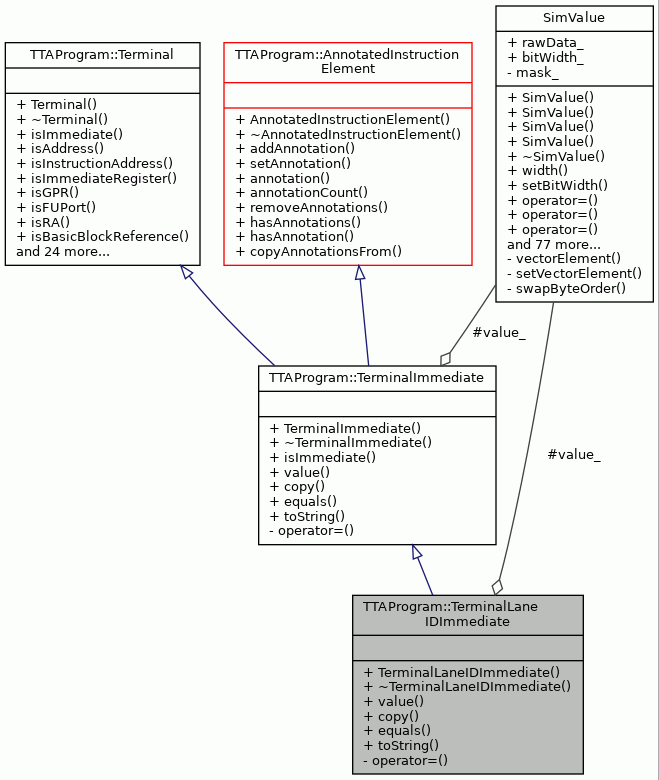

Collaboration diagram for TTAProgram::TerminalLaneIDImmediate:

Public Member Functions
	TerminalLaneIDImmediate (SimValue value)

virtual	~TerminalLaneIDImmediate ()

virtual SimValue	value () const

virtual Terminal *	copy () const

virtual bool	equals (const Terminal &other) const

virtual TCEString	toString () const

Public Member Functions inherited from TTAProgram::TerminalImmediate
	TerminalImmediate (SimValue value)

virtual	~TerminalImmediate ()

virtual bool	isImmediate () const

Public Member Functions inherited from TTAProgram::Terminal
	Terminal ()

virtual	~Terminal ()

virtual bool	isAddress () const

virtual bool	isInstructionAddress () const

virtual bool	isImmediateRegister () const

virtual bool	isGPR () const

virtual bool	isFUPort () const

virtual bool	isRA () const

virtual bool	isBasicBlockReference () const

virtual bool	isProgramOperationReference () const

virtual bool	isCodeSymbolReference () const

virtual bool	isUniversalMachineRegister () const

virtual Address	address () const

virtual const InstructionReference &	instructionReference () const

virtual InstructionReference &	instructionReference ()

virtual const TTAMachine::RegisterFile &	registerFile () const

virtual const TTAMachine::ImmediateUnit &	immediateUnit () const

virtual const TTAMachine::FunctionUnit &	functionUnit () const

virtual const BasicBlock &	basicBlock () const

virtual int	index () const

virtual bool	isOpcodeSetting () const

virtual bool	isTriggering () const

virtual Operation &	operation () const

virtual Operation &	hintOperation () const

virtual int	operationIndex () const

virtual const TTAMachine::Port &	port () const

virtual void	setIndex (int index)

virtual void	setInstructionReference (InstructionReference ref)

bool	operator== (const Terminal &other) const

Public Member Functions inherited from TTAProgram::AnnotatedInstructionElement
	AnnotatedInstructionElement ()

	~AnnotatedInstructionElement ()

void	addAnnotation (const ProgramAnnotation &annotation)

void	setAnnotation (const ProgramAnnotation &annotation)

ProgramAnnotation	annotation (int index, ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

int	annotationCount (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

void	removeAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID)

bool	hasAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

bool	hasAnnotation (ProgramAnnotation::Id id, const TCEString &data) const

void	copyAnnotationsFrom (const AnnotatedInstructionElement &other)

Protected Attributes
SimValue	value_
	Value of the inline immediate. More...

Protected Attributes inherited from TTAProgram::TerminalImmediate
SimValue	value_
	Value of the inline immediate. More...

Private Member Functions
TerminalLaneIDImmediate &	operator= (const TerminalLaneIDImmediate &)
	Assignment not allowed. More...

Detailed Description

Represents a special inline immediate that is fixed to the lane id of the scheduled move in a clustered/SMMT machine.

Definition at line 45 of file TerminalLaneIDImmediate.hh.

Constructor & Destructor Documentation

◆ TerminalLaneIDImmediate()

TTAProgram::TerminalLaneIDImmediate::TerminalLaneIDImmediate ( SimValue lane )

The constructor.

Parameters

value The value of the inline immediate.

Definition at line 46 of file TerminalLaneIDImmediate.cc.

                                                               :
     TerminalImmediate(lane) {
 }

Referenced by copy().

◆ ~TerminalLaneIDImmediate()

TTAProgram::TerminalLaneIDImmediate::~TerminalLaneIDImmediate ( )

virtual

The destructor.

Definition at line 53 of file TerminalLaneIDImmediate.cc.

53 {

54 }

Member Function Documentation

◆ copy()

Terminal * TTAProgram::TerminalLaneIDImmediate::copy ( ) const

virtual

Creates an exact copy of the terminal and returns it.

Returns: A copy of the terminal.

Reimplemented from TTAProgram::TerminalImmediate.

Definition at line 73 of file TerminalLaneIDImmediate.cc.

                                     {
     return new TerminalLaneIDImmediate(value_);
 }

References TerminalLaneIDImmediate(), and value_.

Here is the call graph for this function:

◆ equals()

bool TTAProgram::TerminalLaneIDImmediate::equals ( const Terminal & other ) const

virtual

Checks if terminals are equal.

Parameters

other Terminal to compare.

Returns: true if terminals are equal.

Reimplemented from TTAProgram::TerminalImmediate.

Definition at line 84 of file TerminalLaneIDImmediate.cc.

                                                            {

     if (dynamic_cast<const TerminalLaneIDImmediate*>(&other) ==
         NULL) {
         return false;
     }
     return value() == other.value();
 }

References value(), and TTAProgram::Terminal::value().

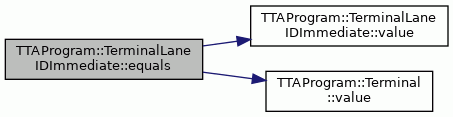

Here is the call graph for this function:

◆ operator=()

TerminalLaneIDImmediate& TTAProgram::TerminalLaneIDImmediate::operator= ( const TerminalLaneIDImmediate & )

private

Assignment not allowed.

◆ toString()

TCEString TTAProgram::TerminalLaneIDImmediate::toString ( ) const

virtual

Reimplemented from TTAProgram::TerminalImmediate.

Definition at line 94 of file TerminalLaneIDImmediate.cc.

                                         {
     DisassemblyImmediate* disasm =
         POMDisassembler::createInlineImmediate(*this, false);
     TCEString dis = disasm->toString();
     delete disasm;
     return dis;
 }

References POMDisassembler::createInlineImmediate(), and DisassemblyImmediate::toString().

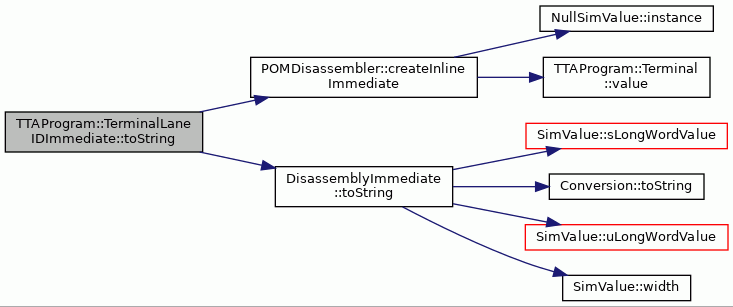

Here is the call graph for this function:

◆ value()

SimValue TTAProgram::TerminalLaneIDImmediate::value ( ) const

virtual

Returns the value of the inline immediate.

Returns: The value of the inline immediate.

Exceptions

WrongSubclass never.

Reimplemented from TTAProgram::TerminalImmediate.

Definition at line 63 of file TerminalLaneIDImmediate.cc.

                                      {
     return value_;
 }

References value_.

Referenced by equals().

Member Data Documentation

◆ value_

SimValue TTAProgram::TerminalLaneIDImmediate::value_

protected

Value of the inline immediate.

Definition at line 63 of file TerminalLaneIDImmediate.hh.

Referenced by copy(), and value().

The documentation for this class was generated from the following files:
