TTAProgram::BasicBlock Class Reference

#include <BasicBlock.hh>

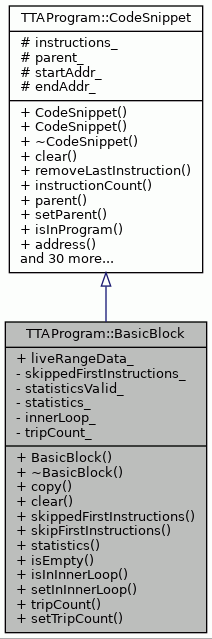

Inheritance diagram for TTAProgram::BasicBlock:

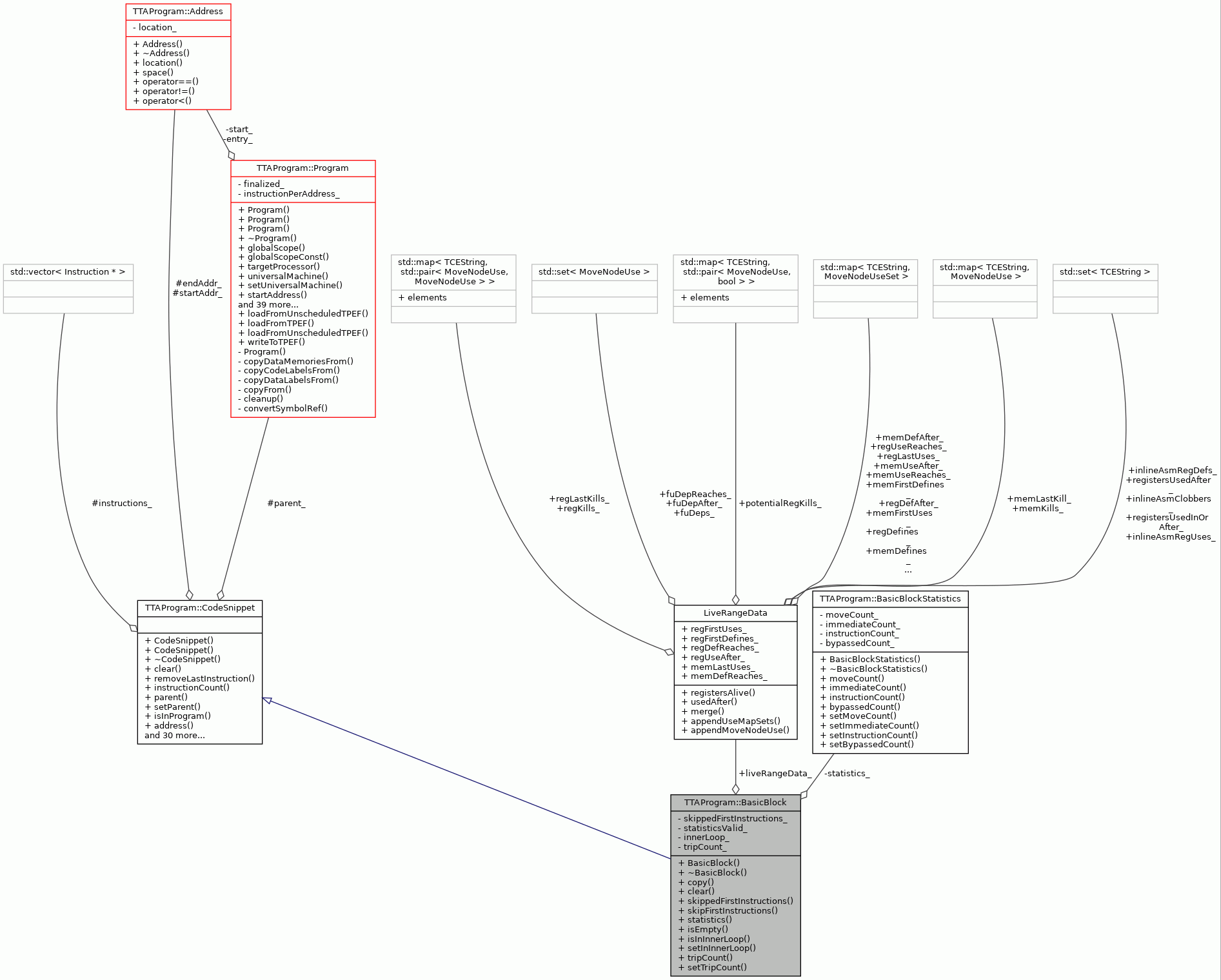

Collaboration diagram for TTAProgram::BasicBlock:

Public Member Functions
	BasicBlock (int startAddress=0)
virtual	~BasicBlock ()
BasicBlock *	copy () const
virtual void	clear ()
int	skippedFirstInstructions () const
void	skipFirstInstructions (int count)
const BasicBlockStatistics &	statistics ()
bool	isEmpty ()
bool	isInInnerLoop () const
	returns true in case the BB is known to be inside an inner loop More...
void	setInInnerLoop (bool inner=true)
unsigned	tripCount () const
	in case the BB is inside a loop and trip count is known, returns it, otherwise returns 0 More...
void	setTripCount (unsigned count)
Public Member Functions inherited from TTAProgram::CodeSnippet
	CodeSnippet ()
	CodeSnippet (const TTAProgram::Address &start)
virtual	~CodeSnippet ()
virtual void	removeLastInstruction ()
virtual int	instructionCount () const
virtual Program &	parent () const
virtual void	setParent (Program &prog)
virtual bool	isInProgram () const
virtual Address	address (const Instruction &ins) const
virtual Address	startAddress () const
virtual void	setStartAddress (Address start)
virtual Address	endAddress () const
virtual void	setEndAddress (Address end)
virtual Instruction &	firstInstruction () const
virtual Instruction &	instructionAt (UIntWord address) const
virtual Instruction &	instructionAtIndex (int index) const
virtual Instruction &	operator[] (size_t index) const
virtual bool	hasNextInstruction (const Instruction &ins) const
virtual Instruction &	nextInstruction (const Instruction &ins) const
virtual Instruction &	previousInstruction (const Instruction &ins) const
virtual Instruction &	lastInstruction () const
virtual void	addFront (Instruction *ins)
virtual void	add (Instruction *ins)
virtual void	insertAfter (const Instruction &pos, Instruction *ins)
virtual void	insertBefore (const Instruction &pos, Instruction *ins)
virtual void	remove (Instruction &ins)
virtual void	deleteInstructionAt (InstructionAddress address)
virtual void	prepend (const CodeSnippet &cs)
virtual void	prepend (CodeSnippet *cs)
virtual void	append (const CodeSnippet &cs)
virtual void	append (CodeSnippet *cs)
virtual void	insertBefore (const Instruction &pos, const CodeSnippet &cs)
virtual void	insertBefore (const Instruction &pos, CodeSnippet *cs)
virtual void	insertAfter (const Instruction &pos, const CodeSnippet &cs)
virtual void	insertAfter (const Instruction &pos, CodeSnippet *cs)
bool	hasReturn () const
virtual std::string	disassembly () const
virtual std::string	toString () const

Public Attributes
LiveRangeData *	liveRangeData_

Private Attributes
int	skippedFirstInstructions_
bool	statisticsValid_
BasicBlockStatistics	statistics_
bool	innerLoop_
unsigned	tripCount_

Additional Inherited Members
Protected Types inherited from TTAProgram::CodeSnippet
typedef std::vector< Instruction * >	InsList
	List of instructions. More...
typedef InsList::iterator	InsIter
	Iterator for the instruction list. More...
Protected Attributes inherited from TTAProgram::CodeSnippet
InsList	instructions_
	The instructions in this procedure. More...
Program *	parent_
	The parent program of the procedure. More...
Address	startAddr_
	The start (lowest) address of the procedure. More...
Address	endAddr_
	The highest address of the procedure. More...

Detailed Description

Represents contents and information of one basic block.

A basic block is defined as an ordered sequence of adjacent instructions in which only the first can be target of jump and only the last one (save jump delay slots) can contain jumps.

Note

Instructions that contain function calls are control flow barriers also. For now they split basic blocks into two, with special type of edge connecting them.

Definition at line 85 of file BasicBlock.hh.

Constructor & Destructor Documentation

BasicBlock()

BasicBlock::BasicBlock

(

int

startAddress = 0

)

Constructor.

Definition at line 49 of file BasicBlock.cc.

                                       :
    CodeSnippet(Address(startAddress,
                        TTAMachine::NullAddressSpace::instance())),
    liveRangeData_(NULL),
    skippedFirstInstructions_(0),
    statisticsValid_(false), innerLoop_(false), tripCount_(0) {
}

Referenced by copy().

~BasicBlock()

BasicBlock::~BasicBlock ( )

virtual

To prevent compiler warning of virtual destructor.

Definition at line 60 of file BasicBlock.cc.

                        {
}

Member Function Documentation

clear()

void BasicBlock::clear ( )

virtual

Trigger recorded statistics about BB invalid and calls clear of code snippet.

Reimplemented from TTAProgram::CodeSnippet.

Definition at line 152 of file BasicBlock.cc.

                  {
    statisticsValid_ = false;
    CodeSnippet::clear();
}

References TTAProgram::CodeSnippet::clear(), and statisticsValid_.

Referenced by BasicBlockPass::copyRMToBB().

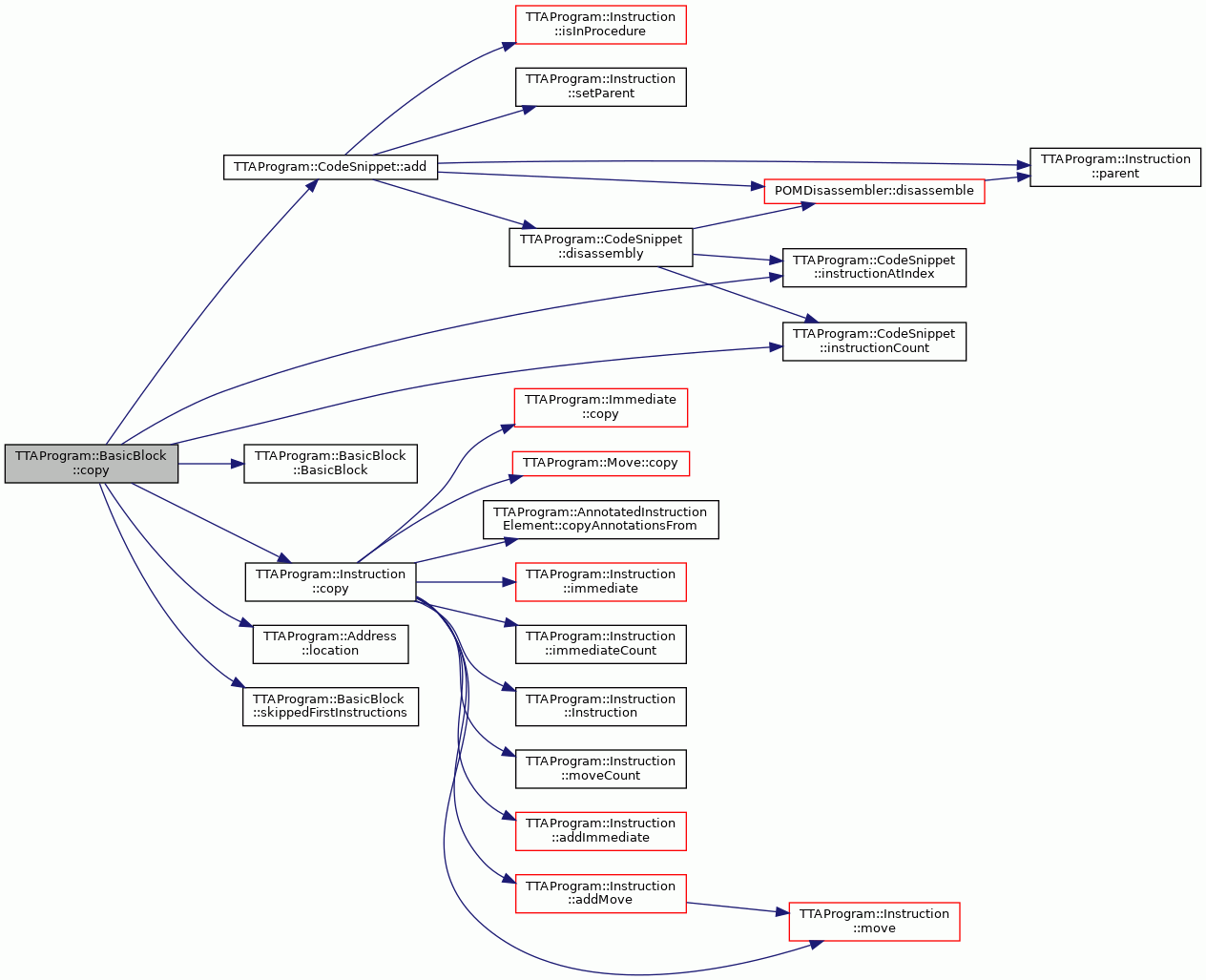

Here is the call graph for this function:

copy()

BasicBlock * BasicBlock::copy ( ) const

virtual

Creates a deep copy of the basic block.

Reimplemented from TTAProgram::CodeSnippet.

Definition at line 67 of file BasicBlock.cc.

                       {

    BasicBlock* newBB = new BasicBlock(startAddr_.location());
    if (instructionCount() > 0) {
        for (int i = skippedFirstInstructions(); i < instructionCount(); i++) {
            newBB->add(instructionAtIndex(i).copy());
        }
    }
    return newBB;
}

References TTAProgram::CodeSnippet::add(), BasicBlock(), TTAProgram::Instruction::copy(), TTAProgram::CodeSnippet::instructionAtIndex(), TTAProgram::CodeSnippet::instructionCount(), TTAProgram::Address::location(), skippedFirstInstructions(), and TTAProgram::CodeSnippet::startAddr_.

Here is the call graph for this function:

isEmpty()

bool TTAProgram::BasicBlock::isEmpty ( )

inline

Definition at line 98 of file BasicBlock.hh.

                   {
        return skippedFirstInstructions() == instructionCount();
    }

References TTAProgram::CodeSnippet::instructionCount(), and skippedFirstInstructions().

Referenced by ControlFlowGraph::optimizeBBOrdering().

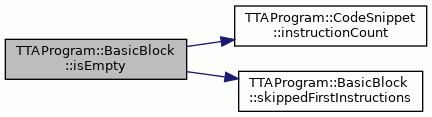

Here is the call graph for this function:

isInInnerLoop()

bool TTAProgram::BasicBlock::isInInnerLoop ( ) const

inline

returns true in case the BB is known to be inside an inner loop

Definition at line 103 of file BasicBlock.hh.

{ return innerLoop_; }

References innerLoop_.

Referenced by BasicBlockPass::copyRMToBB(), and BBSchedulerController::executeDDGPass().

setInInnerLoop()

void TTAProgram::BasicBlock::setInInnerLoop ( bool  inner = true )

inline

Definition at line 104 of file BasicBlock.hh.

{ innerLoop_ = inner; }

References innerLoop_.

Referenced by llvm::LLVMTCEIRBuilder::buildTCECFG(), and ControlFlowGraph::createBlock().

setTripCount()

void TTAProgram::BasicBlock::setTripCount ( unsigned  count )

inline

Definition at line 109 of file BasicBlock.hh.

{ tripCount_ = count; }

References tripCount_.

Referenced by llvm::LLVMTCEIRBuilder::buildTCECFG(), ControlFlowGraph::createBlock(), and BBSchedulerController::handleBasicBlock().

skipFirstInstructions()

void BasicBlock::skipFirstInstructions

(

int

count

)

Sets n first instructions of this BB to be skipped instructions, ie. instructions that do not logically belong here but are here because cannot have been removed without messing soem data structures (liek RM bookkeeping)

Parameters

count

number of instructions to mark as skipped instructions

Definition at line 98 of file BasicBlock.cc.

                                                {
    skippedFirstInstructions_ = count;
}

References skippedFirstInstructions_.

Referenced by ControlFlowGraph::optimizeBBOrdering(), and CopyingDelaySlotFiller::updateFTBBAndCfg().

skippedFirstInstructions()

int BasicBlock::skippedFirstInstructions

(

)

const

Returns the count of instructions in the beginning of this BB that should not be copied out from this BB, ie. logically don't belong here but are here because they cannot have been removed without messing some data structures (like RM bookkeeping)

Returns

count of first instructions to skip

Definition at line 88 of file BasicBlock.cc.

                                           {
    return skippedFirstInstructions_;
}

References skippedFirstInstructions_.

Referenced by ControlFlowGraph::buildMBBFromBB(), copy(), ProcedurePass::copyCfgToProcedure(), ControlFlowGraph::copyToProcedure(), CopyingDelaySlotFiller::fillDelaySlots(), CopyingDelaySlotFiller::findJumpImmediate(), isEmpty(), BasicBlockNode::maximumSize(), ControlFlowGraph::mergeNodes(), LoopPrologAndEpilogBuilder::moveJumpDestination(), ControlFlowGraph::splitBB(), PostpassOperandSharer::tryRemoveOperandWrite(), and CopyingDelaySlotFiller::updateJumpsAndCfg().

statistics()

const BasicBlockStatistics & BasicBlock::statistics

(

)

Updates and returns the statistics about Basic Block

Returns

refrence to structure with information about basic block

Definition at line 111 of file BasicBlock.cc.

                       {
    // hack, statistics should be cached when all the operations that
    // could change the moves in instructions are taken care of.
    statisticsValid_ = false;
    if (statisticsValid_) {
        return statistics_;
    } else {
        statistics_.setMoveCount(0);
        statistics_.setImmediateCount(0);
        statistics_.setInstructionCount(instructionCount());
        statistics_.setBypassedCount(0);
        for (int i = 0; i < instructionCount(); i++) {
            int newMoveCount =
                instructionAtIndex(i).moveCount() + statistics_.moveCount();
            statistics_.setMoveCount(newMoveCount);
            int newImmCount =
                instructionAtIndex(i).immediateCount() +
                statistics_.immediateCount();
            statistics_.setImmediateCount(newImmCount);
            for (int j = 0;
                j < instructionAtIndex(i).moveCount();
                j++) {
                TTAProgram::Move& tempMove =
                    instructionAtIndex(i).move(j);
                if (tempMove.source().isFUPort() &&
                    tempMove.destination().isFUPort()) {
                    int newBypassCount = statistics_.bypassedCount() + 1;
                    statistics_.setBypassedCount(newBypassCount);
                }
            }
        }
        statisticsValid_ = true;
        return statistics_;
    }
}

References TTAProgram::BasicBlockStatistics::bypassedCount(), TTAProgram::Move::destination(), TTAProgram::BasicBlockStatistics::immediateCount(), TTAProgram::Instruction::immediateCount(), TTAProgram::CodeSnippet::instructionAtIndex(), TTAProgram::CodeSnippet::instructionCount(), TTAProgram::Terminal::isFUPort(), TTAProgram::Instruction::move(), TTAProgram::BasicBlockStatistics::moveCount(), TTAProgram::Instruction::moveCount(), TTAProgram::BasicBlockStatistics::setBypassedCount(), TTAProgram::BasicBlockStatistics::setImmediateCount(), TTAProgram::BasicBlockStatistics::setInstructionCount(), TTAProgram::BasicBlockStatistics::setMoveCount(), TTAProgram::Move::source(), statistics_, and statisticsValid_.

Referenced by BasicBlockNode::statistics().

Here is the call graph for this function:

tripCount()

unsigned TTAProgram::BasicBlock::tripCount ( ) const

inline

in case the BB is inside a loop and trip count is known, returns it, otherwise returns 0

Definition at line 108 of file BasicBlock.hh.

{ return tripCount_; }

References tripCount_.

Referenced by BasicBlockPass::copyRMToBB(), and BBSchedulerController::handleBasicBlock().

Member Data Documentation

innerLoop_

bool TTAProgram::BasicBlock::innerLoop_

private

Definition at line 119 of file BasicBlock.hh.

Referenced by isInInnerLoop(), and setInInnerLoop().

liveRangeData_

LiveRangeData* TTAProgram::BasicBlock::liveRangeData_

Definition at line 111 of file BasicBlock.hh.

Referenced by InlineAsmParser::addLiveRangeData(), DataDependenceGraphBuilder::build(), DataDependenceGraphBuilder::clearUnneededBookkeeping(), DataDependenceGraphBuilder::constructIndividualBB(), BFRegCopy::createAntidepsForReg(), RegisterCopyAdder::createAntidepsForReg(), DataDependenceGraphBuilder::createTriggerDependencies(), BasicBlockPass::executeDDGPass(), BBSchedulerController::handleBasicBlock(), DataDependenceGraphBuilder::initializeBBStates(), RegisterRenamer::initializeFreeRegisters(), ControlFlowGraph::mergeNodes(), DataDependenceGraphBuilder::processEntryNode(), DataDependenceGraphBuilder::processMemUse(), DataDependenceGraphBuilder::processMemWrite(), DataDependenceGraphBuilder::processRegUse(), DataDependenceGraphBuilder::processRegWrite(), RegisterRenamer::renameLiveRange(), BF2Scheduler::revertBBLiveRangeBookkeepingForDestination(), BF2Scheduler::revertBBLiveRangeBookkeepingForSource(), RegisterRenamer::revertedRenameToRegister(), BFRenameLiveRange::setFirstDefsAndUses(), BFRenameLiveRange::setIncomingDeps(), BFRenameLiveRange::setOutgoingDeps(), BFRenameLiveRange::setRegDefsAndLastUses(), DataDependenceGraphBuilder::setSucceedingPredepsForBB(), ControlFlowGraph::splitBasicBlockAtIndex(), BFRenameLiveRange::undoSetFirstDefsAndUses(), BFRenameLiveRange::undoSetRegDefsAndLastUses(), BFRenameLiveRange::unsetIncomingDeps(), BFRenameLiveRange::unsetOutgoingDeps(), RegisterRenamer::updateAntiEdgesFromLRTo(), DataDependenceGraphBuilder::updateBB(), DataDependenceGraphBuilder::updateMemAndFuAliveAfter(), DataDependenceGraphBuilder::updateMemUse(), DataDependenceGraphBuilder::updateMemWrite(), DataDependenceGraphBuilder::updatePreceedingRegistersUsedAfter(), DataDependenceGraphBuilder::updateRegistersAliveAfter(), DataDependenceGraphBuilder::updateRegistersUsedInOrAfter(), DataDependenceGraph::updateRegUse(), and DataDependenceGraph::updateRegWrite().

skippedFirstInstructions_

int TTAProgram::BasicBlock::skippedFirstInstructions_

private

Definition at line 115 of file BasicBlock.hh.

Referenced by skipFirstInstructions(), and skippedFirstInstructions().

statistics_

BasicBlockStatistics TTAProgram::BasicBlock::statistics_

private

Definition at line 117 of file BasicBlock.hh.

Referenced by statistics().

statisticsValid_

bool TTAProgram::BasicBlock::statisticsValid_

private

Definition at line 116 of file BasicBlock.hh.

Referenced by clear(), and statistics().

tripCount_

unsigned TTAProgram::BasicBlock::tripCount_

private

Definition at line 120 of file BasicBlock.hh.

Referenced by setTripCount(), and tripCount().

---

The documentation for this class was generated from the following files:

• BasicBlock.hh
• BasicBlock.cc
