#include <TerminalProgramOperation.hh>

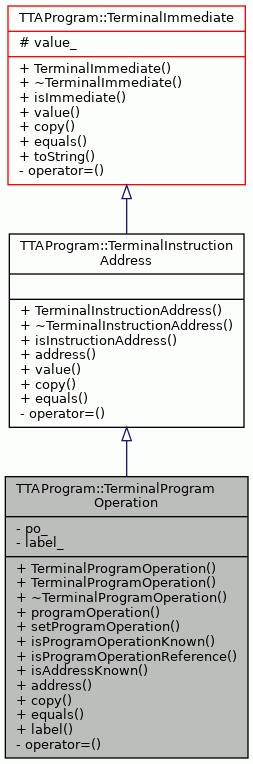

Inheritance diagram for TTAProgram::TerminalProgramOperation:

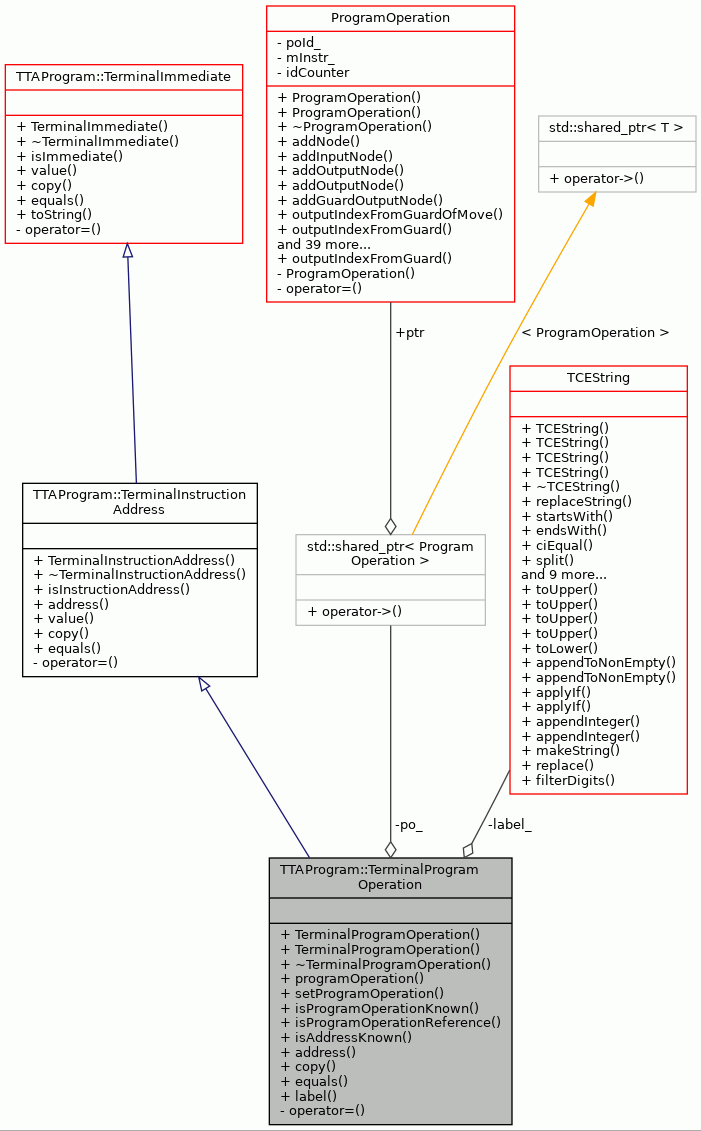

Collaboration diagram for TTAProgram::TerminalProgramOperation:

Public Member Functions
	TerminalProgramOperation (TCEString instructionLabel)

	TerminalProgramOperation (ProgramOperationPtr po)

virtual	~TerminalProgramOperation ()

ProgramOperationPtr	programOperation () const

void	setProgramOperation (ProgramOperationPtr po)

bool	isProgramOperationKnown () const

bool	isProgramOperationReference () const

bool	isAddressKnown () const

virtual Address	address () const

virtual Terminal *	copy () const

virtual bool	equals (const Terminal &other) const

TCEString	label () const

Public Member Functions inherited from TTAProgram::TerminalInstructionAddress
	TerminalInstructionAddress ()

virtual	~TerminalInstructionAddress ()

bool	isInstructionAddress () const

SimValue	value () const

Public Member Functions inherited from TTAProgram::TerminalImmediate
	TerminalImmediate (SimValue value)

virtual	~TerminalImmediate ()

virtual bool	isImmediate () const

virtual TCEString	toString () const

Public Member Functions inherited from TTAProgram::Terminal
	Terminal ()

virtual	~Terminal ()

virtual bool	isAddress () const

virtual bool	isImmediateRegister () const

virtual bool	isGPR () const

virtual bool	isFUPort () const

virtual bool	isRA () const

virtual bool	isBasicBlockReference () const

virtual bool	isCodeSymbolReference () const

virtual bool	isUniversalMachineRegister () const

virtual const InstructionReference &	instructionReference () const

virtual InstructionReference &	instructionReference ()

virtual const TTAMachine::RegisterFile &	registerFile () const

virtual const TTAMachine::ImmediateUnit &	immediateUnit () const

virtual const TTAMachine::FunctionUnit &	functionUnit () const

virtual const BasicBlock &	basicBlock () const

virtual int	index () const

virtual bool	isOpcodeSetting () const

virtual bool	isTriggering () const

virtual Operation &	operation () const

virtual Operation &	hintOperation () const

virtual int	operationIndex () const

virtual const TTAMachine::Port &	port () const

virtual void	setIndex (int index)

virtual void	setInstructionReference (InstructionReference ref)

bool	operator== (const Terminal &other) const

Public Member Functions inherited from TTAProgram::AnnotatedInstructionElement
	AnnotatedInstructionElement ()

	~AnnotatedInstructionElement ()

void	addAnnotation (const ProgramAnnotation &annotation)

void	setAnnotation (const ProgramAnnotation &annotation)

ProgramAnnotation	annotation (int index, ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

int	annotationCount (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

void	removeAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID)

bool	hasAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

bool	hasAnnotation (ProgramAnnotation::Id id, const TCEString &data) const

void	copyAnnotationsFrom (const AnnotatedInstructionElement &other)

Private Member Functions
TerminalProgramOperation &	operator= (const TerminalProgramOperation &)
	Assignment not allowed. More...

Private Attributes
ProgramOperationPtr	po_
	The referred PO. The pointer can be copied, e.g. to DDG. More...

TCEString	label_

Additional Inherited Members
Protected Attributes inherited from TTAProgram::TerminalImmediate
SimValue	value_
	Value of the inline immediate. More...

Detailed Description

Represents an inline immediate that refers to a program operation (a set of moves constituting a single execution of an operation in the program).

The returned instruction address is the one of the trigger move of the tracked ProgramOperation. This class is used to refer to the location of an another ProgramOperation strictly (not wanting to refer to the beginning of a BB).

Definition at line 51 of file TerminalProgramOperation.hh.

Constructor & Destructor Documentation

◆ TerminalProgramOperation() [1/2]

TTAProgram::TerminalProgramOperation::TerminalProgramOperation ( TCEString label )

Constructs an incomplete TerminalProgramOperation.

This can be used when a TerminalProgramOperation might point to an non-existing PO during builing of the program.

Parameters

label A textual label of the target PO. Should be used later to find the correct PO.

Definition at line 62 of file TerminalProgramOperation.cc.

                      :
     TerminalInstructionAddress(), label_(label) {
 }

Referenced by copy().

◆ TerminalProgramOperation() [2/2]

TTAProgram::TerminalProgramOperation::TerminalProgramOperation ( ProgramOperationPtr po )

The constructor.

Parameters

po	The ProgramOperation to track.

Definition at line 48 of file TerminalProgramOperation.cc.

                                         :
     TerminalInstructionAddress(), po_(po) {
 }

◆ ~TerminalProgramOperation()

TTAProgram::TerminalProgramOperation::~TerminalProgramOperation ( )

virtual

The destructor.

Definition at line 71 of file TerminalProgramOperation.cc.

71 {

72 }

Member Function Documentation

◆ address()

Address TTAProgram::TerminalProgramOperation::address ( ) const

virtual

Returns the instruction address of the trigger move in the tracked ProgramOperation.

Returns 0 in case the target PO is not in a program, thus its address is not known.

Implements TTAProgram::TerminalInstructionAddress.

Definition at line 82 of file TerminalProgramOperation.cc.

                                         {
     assert(isAddressKnown());
     return po_->triggeringMove()->move().parent().address();
 }

References assert, isAddressKnown(), and po_.

Here is the call graph for this function:

◆ copy()

Terminal * TTAProgram::TerminalProgramOperation::copy ( ) const

virtual

Creates an exact copy of the terminal and returns it.

Implements TTAProgram::TerminalInstructionAddress.

Definition at line 99 of file TerminalProgramOperation.cc.

                                      {
     TerminalProgramOperation* newObj = new TerminalProgramOperation(po_);
     newObj->label_ = this->label_;
     return newObj;
 }

References label_, po_, and TerminalProgramOperation().

Here is the call graph for this function:

◆ equals()

bool TTAProgram::TerminalProgramOperation::equals ( const Terminal & other ) const

virtual

Checks if terminals are equal.

Implements TTAProgram::TerminalInstructionAddress.

Definition at line 109 of file TerminalProgramOperation.cc.

                                                             {

     if (!other.isInstructionAddress()) {
         return false;
     }
     return &dynamic_cast<const TerminalProgramOperation&>(other).po_ ==
         &this->po_;
 }

References TTAProgram::Terminal::isInstructionAddress(), and po_.

Here is the call graph for this function:

◆ isAddressKnown()

bool TTAProgram::TerminalProgramOperation::isAddressKnown ( ) const

Definition at line 88 of file TerminalProgramOperation.cc.

                                                {
     return isProgramOperationKnown() &&
         po_->triggeringMove() != NULL &&
         po_->triggeringMove()->move().isInInstruction() &&
         po_->triggeringMove()->move().parent().isInProcedure();
 }

References isProgramOperationKnown(), and po_.

Referenced by address().

Here is the call graph for this function:

◆ isProgramOperationKnown()

bool TTAProgram::TerminalProgramOperation::isProgramOperationKnown ( ) const

inline

Definition at line 65 of file TerminalProgramOperation.hh.

                                          {
         return po_.get() != NULL;
     }

References po_.

Referenced by llvm::LLVMTCEBuilder::fixProgramOperationReferences(), and isAddressKnown().

◆ isProgramOperationReference()

bool TTAProgram::TerminalProgramOperation::isProgramOperationReference ( ) const

inlinevirtual

Reimplemented from TTAProgram::Terminal.

Definition at line 69 of file TerminalProgramOperation.hh.

69 { return true; }

◆ label()

TCEString TTAProgram::TerminalProgramOperation::label ( ) const

inline

Definition at line 77 of file TerminalProgramOperation.hh.

77 { return label_; }

References label_.

Referenced by ControlFlowGraph::buildMBBFromBB(), and llvm::LLVMTCEBuilder::fixProgramOperationReferences().

◆ operator=()

TerminalProgramOperation& TTAProgram::TerminalProgramOperation::operator= ( const TerminalProgramOperation & )

private

Assignment not allowed.

◆ programOperation()

ProgramOperationPtr TTAProgram::TerminalProgramOperation::programOperation ( ) const

inline

Definition at line 57 of file TerminalProgramOperation.hh.

                                                  {
         return po_;
     }

References po_.

Referenced by ControlFlowGraph::buildMBBFromBB().

◆ setProgramOperation()

void TTAProgram::TerminalProgramOperation::setProgramOperation ( ProgramOperationPtr po )

inline

Definition at line 61 of file TerminalProgramOperation.hh.

                                                      {
         po_ = po;
     }

References po_.

Referenced by llvm::LLVMTCEBuilder::fixProgramOperationReferences().

Member Data Documentation

◆ label_

TCEString TTAProgram::TerminalProgramOperation::label_

private

Definition at line 84 of file TerminalProgramOperation.hh.

Referenced by copy(), and label().

◆ po_

ProgramOperationPtr TTAProgram::TerminalProgramOperation::po_

private

The referred PO. The pointer can be copied, e.g. to DDG.

Definition at line 83 of file TerminalProgramOperation.hh.

Referenced by address(), copy(), equals(), isAddressKnown(), isProgramOperationKnown(), programOperation(), and setProgramOperation().

The documentation for this class was generated from the following files:
