#include <TestHDBCmdLineOptions.hh>

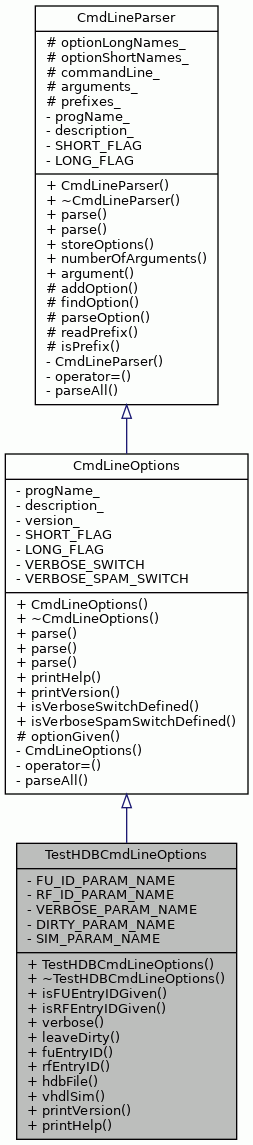

Inheritance diagram for TestHDBCmdLineOptions:

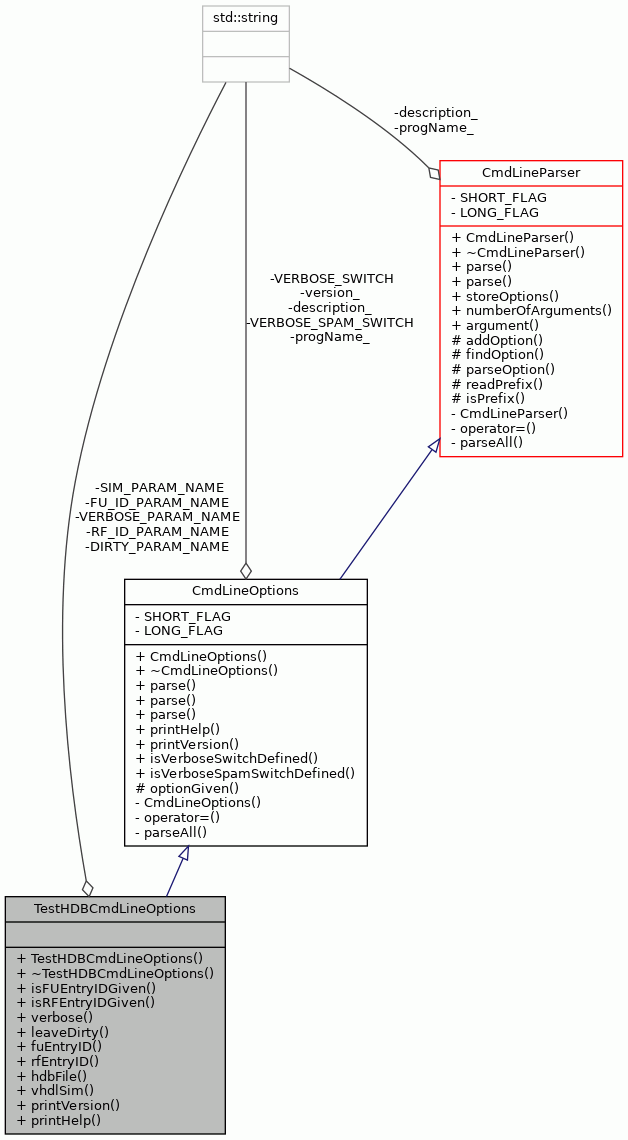

Collaboration diagram for TestHDBCmdLineOptions:

Public Member Functions
	TestHDBCmdLineOptions ()

	~TestHDBCmdLineOptions ()

bool	isFUEntryIDGiven () const

bool	isRFEntryIDGiven () const

bool	verbose () const

bool	leaveDirty () const

int	fuEntryID () const

int	rfEntryID () const

std::string	hdbFile () const

std::string	vhdlSim () const

virtual void	printVersion () const

virtual void	printHelp () const

Public Member Functions inherited from CmdLineOptions
	CmdLineOptions (std::string description, std::string version="")

virtual	~CmdLineOptions ()

void	parse (char *argv[], int argc)

void	parse (std::string argv[], int argc)

void	parse (std::vector< std::string > argv)

virtual bool	isVerboseSwitchDefined () const

virtual bool	isVerboseSpamSwitchDefined () const

Public Member Functions inherited from CmdLineParser
	CmdLineParser (std::string description)

virtual	~CmdLineParser ()

virtual void	storeOptions (Options &options)

virtual int	numberOfArguments () const

virtual std::string	argument (int index) const

Static Private Attributes
static const std::string	FU_ID_PARAM_NAME = "fuid"
	Long name of the FUentryID parameter. More...

static const std::string	RF_ID_PARAM_NAME = "rfid"
	Long name of the RFentryID parameter. More...

static const std::string	VERBOSE_PARAM_NAME = "verbose"
	Long name of verbose output parameter. More...

static const std::string	DIRTY_PARAM_NAME = "leave-dirty"
	Long name of leave dirty parameter. More...

static const std::string	SIM_PARAM_NAME = "simulator"
	Long name of VHDL simulator parameter. More...

Additional Inherited Members
Protected Member Functions inherited from CmdLineOptions
bool	optionGiven (std::string key) const

Protected Member Functions inherited from CmdLineParser
void	addOption (CmdLineOptionParser *opt)

CmdLineOptionParser *	findOption (std::string name) const

bool	parseOption (std::string option, std::string &name, std::string &arguments, std::string &prefix, bool &hasArgument) const

bool	readPrefix (std::string &option, std::string &prefix, bool &longOption) const

bool	isPrefix (std::string name) const

Protected Attributes inherited from CmdLineParser
std::map< std::string, CmdLineOptionParser * >	optionLongNames_
	Database for holding options with their long names as a key. More...

std::map< std::string, CmdLineOptionParser * >	optionShortNames_
	Database for holding options with their short names as a key. More...

std::vector< std::string >	commandLine_
	Command line is stored here. More...

std::vector< std::string >	arguments_
	Command line arguments are stored here. More...

std::vector< std::string >	prefixes_
	Legal prefixes are stored here. More...

Detailed Description

Definition at line 39 of file TestHDBCmdLineOptions.hh.

Constructor & Destructor Documentation

◆ TestHDBCmdLineOptions()

TestHDBCmdLineOptions::TestHDBCmdLineOptions ( )

The constructor.

Definition at line 48 of file TestHDBCmdLineOptions.cc.

                                             : CmdLineOptions("") {
     IntegerCmdLineOptionParser* fuEntryID =
         new IntegerCmdLineOptionParser(
             FU_ID_PARAM_NAME, "Entry id of FU component to be tested. If this"
             " is and RF ID are not defined whole HDB will be tested.", "f");
     addOption(fuEntryID);
     IntegerCmdLineOptionParser* rfEntryID =
         new IntegerCmdLineOptionParser(
             RF_ID_PARAM_NAME, "Entry id of RF component to be tested. If this"
             " is and FU ID are not defined whole HDB will be tested.", "r");
     addOption(rfEntryID);
     BoolCmdLineOptionParser* verbose =
         new BoolCmdLineOptionParser(
             VERBOSE_PARAM_NAME, "Enable verbose output", "v");
     addOption(verbose);
     BoolCmdLineOptionParser* dirty =
         new BoolCmdLineOptionParser(
             DIRTY_PARAM_NAME, "Don't delete created files", "d");
     addOption(dirty);
     StringCmdLineOptionParser* simulator =
         new StringCmdLineOptionParser(
             SIM_PARAM_NAME, "HDL simulator used to simulate testbench. "
             "Accepted values are 'ghdl' and 'modelsim'. Default is ghdl",
             "s");
     addOption(simulator);
 }

References CmdLineParser::addOption(), DIRTY_PARAM_NAME, FU_ID_PARAM_NAME, fuEntryID(), RF_ID_PARAM_NAME, rfEntryID(), SIM_PARAM_NAME, verbose(), and VERBOSE_PARAM_NAME.

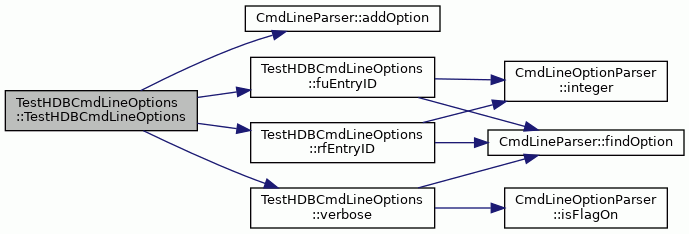

Here is the call graph for this function:

◆ ~TestHDBCmdLineOptions()

TestHDBCmdLineOptions::~TestHDBCmdLineOptions ( )

The destructor.

Definition at line 78 of file TestHDBCmdLineOptions.cc.

78 {

79 }

Member Function Documentation

◆ fuEntryID()

int TestHDBCmdLineOptions::fuEntryID ( ) const

Returns FU entryID

Returns: The FU entryID

Definition at line 126 of file TestHDBCmdLineOptions.cc.

                                            {
     CmdLineOptionParser* option = findOption(FU_ID_PARAM_NAME);
     return option->integer();
 }

References CmdLineParser::findOption(), FU_ID_PARAM_NAME, and CmdLineOptionParser::integer().

Referenced by TestHDBCmdLineOptions().

Here is the call graph for this function:

◆ hdbFile()

std::string TestHDBCmdLineOptions::hdbFile ( ) const

Returns HDB file name

Returns: The HDB file name

Definition at line 147 of file TestHDBCmdLineOptions.cc.

                                                {
     return argument(numberOfArguments());
 }

References CmdLineParser::argument(), and CmdLineParser::numberOfArguments().

Here is the call graph for this function:

◆ isFUEntryIDGiven()

bool TestHDBCmdLineOptions::isFUEntryIDGiven ( ) const

Returns information whether this option was given

Returns: Is FU entryID defined

Definition at line 86 of file TestHDBCmdLineOptions.cc.

                                                    {
     CmdLineOptionParser* option = findOption(FU_ID_PARAM_NAME);
     return option->isDefined();
 }

References CmdLineParser::findOption(), FU_ID_PARAM_NAME, and CmdLineOptionParser::isDefined().

Here is the call graph for this function:

◆ isRFEntryIDGiven()

bool TestHDBCmdLineOptions::isRFEntryIDGiven ( ) const

Returns information whether this option was given

Returns: Is RF entryID defined

Definition at line 96 of file TestHDBCmdLineOptions.cc.

                                                    {
     CmdLineOptionParser* option = findOption(RF_ID_PARAM_NAME);
     return option->isDefined();
 }

References CmdLineParser::findOption(), CmdLineOptionParser::isDefined(), and RF_ID_PARAM_NAME.

Here is the call graph for this function:

◆ leaveDirty()

bool TestHDBCmdLineOptions::leaveDirty ( ) const

Returns information whether this option was given

Returns: Is leave dirty defined

Definition at line 116 of file TestHDBCmdLineOptions.cc.

                                              {
     CmdLineOptionParser* option = findOption(DIRTY_PARAM_NAME);
     return option->isFlagOn();
 }

References DIRTY_PARAM_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Here is the call graph for this function:

◆ printHelp()

void TestHDBCmdLineOptions::printHelp ( ) const

virtual

Prints help of the application.

Reimplemented from CmdLineOptions.

Definition at line 172 of file TestHDBCmdLineOptions.cc.

                                             {
     printVersion();
     std::cout << "Usage: testhdb <options> HDB-file" << std::endl;
     CmdLineOptions::printHelp();
 }

References CmdLineOptions::printHelp(), and printVersion().

Here is the call graph for this function:

◆ printVersion()

void TestHDBCmdLineOptions::printVersion ( ) const

virtual

Prints the version of the application.

Implements CmdLineOptions.

Definition at line 164 of file TestHDBCmdLineOptions.cc.

                                                {
     std::cout << "testhdb - HDB test utility "
               << Application::TCEVersionString() << std::endl;
 }

References Application::TCEVersionString().

Referenced by printHelp().

Here is the call graph for this function:

◆ rfEntryID()

int TestHDBCmdLineOptions::rfEntryID ( ) const

Returns RF entryID

Returns: The RF entryID

Definition at line 136 of file TestHDBCmdLineOptions.cc.

                                            {
     CmdLineOptionParser* option = findOption(RF_ID_PARAM_NAME);
     return option->integer();
 }

References CmdLineParser::findOption(), CmdLineOptionParser::integer(), and RF_ID_PARAM_NAME.

Referenced by TestHDBCmdLineOptions().

Here is the call graph for this function:

◆ verbose()

bool TestHDBCmdLineOptions::verbose ( ) const

Returns information whether this option was given

Returns: Is verbose output defined

Definition at line 106 of file TestHDBCmdLineOptions.cc.

                                           {
     CmdLineOptionParser* option = findOption(VERBOSE_PARAM_NAME);
     return option->isFlagOn();
 }

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and VERBOSE_PARAM_NAME.

Referenced by TestHDBCmdLineOptions().

Here is the call graph for this function:

◆ vhdlSim()

std::string TestHDBCmdLineOptions::vhdlSim ( ) const

Returns HDL simulator to be used

Returns: The HDL simulator name

Definition at line 156 of file TestHDBCmdLineOptions.cc.

                                                {
     CmdLineOptionParser* option = findOption(SIM_PARAM_NAME);
     return option->String();
 }

References CmdLineParser::findOption(), SIM_PARAM_NAME, and CmdLineOptionParser::String().

Here is the call graph for this function:

Member Data Documentation

◆ DIRTY_PARAM_NAME

const std::string TestHDBCmdLineOptions::DIRTY_PARAM_NAME = "leave-dirty"

staticprivate

Long name of leave dirty parameter.

Definition at line 71 of file TestHDBCmdLineOptions.hh.

Referenced by leaveDirty(), and TestHDBCmdLineOptions().

◆ FU_ID_PARAM_NAME

const std::string TestHDBCmdLineOptions::FU_ID_PARAM_NAME = "fuid"

staticprivate

Long name of the FUentryID parameter.

Definition at line 65 of file TestHDBCmdLineOptions.hh.

Referenced by fuEntryID(), isFUEntryIDGiven(), and TestHDBCmdLineOptions().

◆ RF_ID_PARAM_NAME

const std::string TestHDBCmdLineOptions::RF_ID_PARAM_NAME = "rfid"

staticprivate

Long name of the RFentryID parameter.

Definition at line 67 of file TestHDBCmdLineOptions.hh.

Referenced by isRFEntryIDGiven(), rfEntryID(), and TestHDBCmdLineOptions().

◆ SIM_PARAM_NAME

const std::string TestHDBCmdLineOptions::SIM_PARAM_NAME = "simulator"

staticprivate

Long name of VHDL simulator parameter.

Definition at line 73 of file TestHDBCmdLineOptions.hh.

Referenced by TestHDBCmdLineOptions(), and vhdlSim().

◆ VERBOSE_PARAM_NAME

const std::string TestHDBCmdLineOptions::VERBOSE_PARAM_NAME = "verbose"

staticprivate

Long name of verbose output parameter.

Definition at line 69 of file TestHDBCmdLineOptions.hh.

Referenced by TestHDBCmdLineOptions(), and verbose().

The documentation for this class was generated from the following files:
