AddressSpaceDialog Class Reference

#include <AddressSpaceDialog.hh>

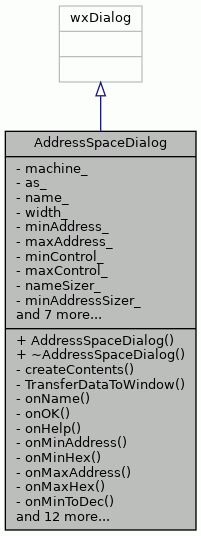

Inheritance diagram for AddressSpaceDialog:

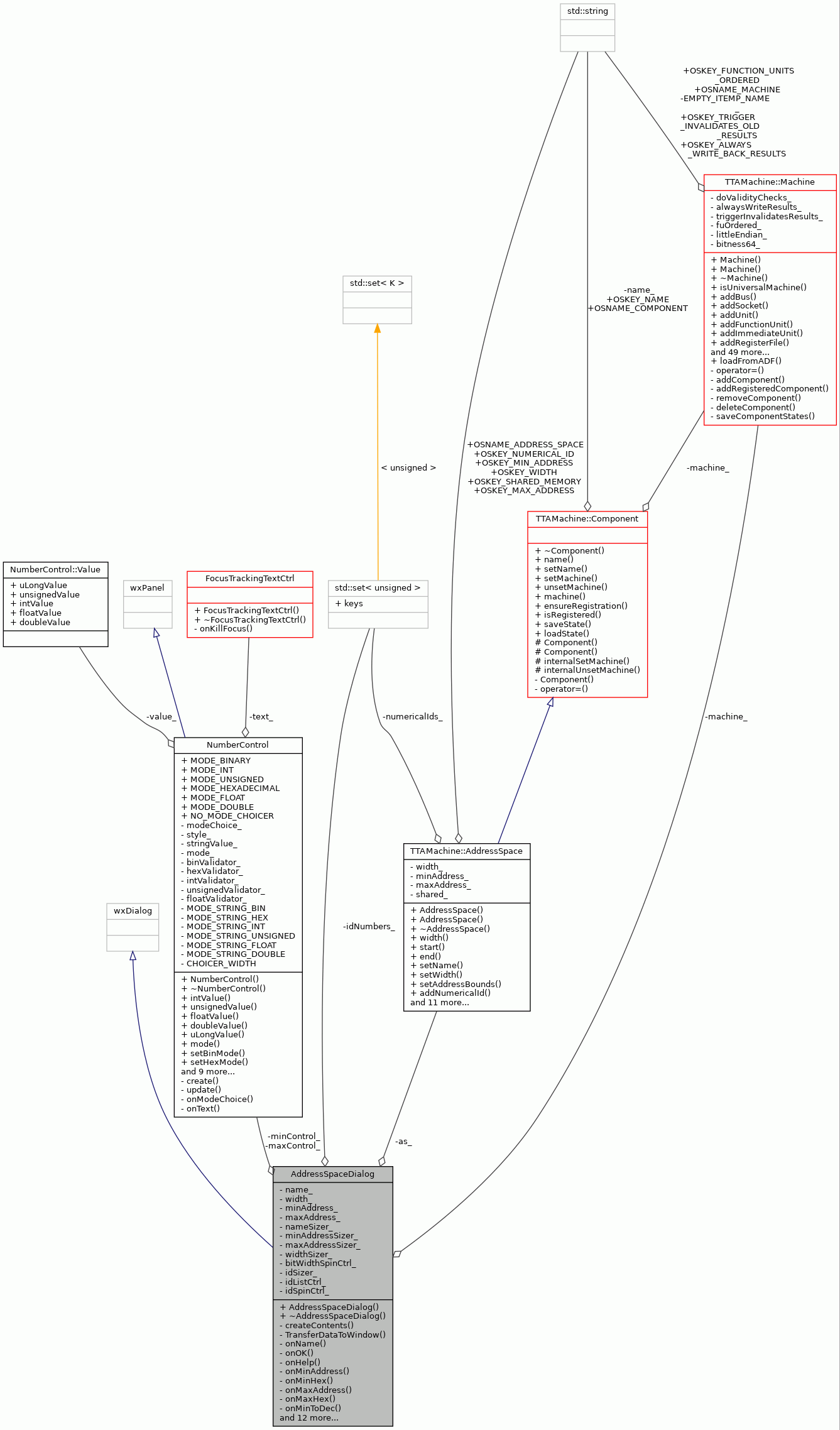

Collaboration diagram for AddressSpaceDialog:

Public Member Functions
	AddressSpaceDialog (wxWindow *parent, TTAMachine::Machine *machine, TTAMachine::AddressSpace *addressSpace)
	~AddressSpaceDialog ()

Private Types
enum	{   ID_NAME = 10000 , ID_WIDTH , ID_MIN_ADDRESS , ID_MAX_ADDRESS ,   ID_BIT_WIDTH , ID_ID_LIST , ID_SPIN_ID , ID_ADD_ID ,   ID_DELETE_ID , ID_RADIO_MIN_DEC , ID_RADIO_MIN_HEX , ID_RADIO_MAX_DEC ,   ID_RADIO_MAX_HEX , ID_TEXT , ID_LINE , ID_HELP }

Private Member Functions
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
virtual bool	TransferDataToWindow ()
void	onName (wxCommandEvent &event)
void	onOK (wxCommandEvent &event)
void	onHelp (wxCommandEvent &event)
void	onMinAddress (wxCommandEvent &event)
void	onMinHex (wxCommandEvent &event)
void	onMaxAddress (wxCommandEvent &event)
void	onMaxHex (wxCommandEvent &event)
void	onMinToDec (wxCommandEvent &event)
void	onMinToHex (wxCommandEvent &event)
void	onMaxToDec (wxCommandEvent &event)
void	onMaxToHex (wxCommandEvent &event)
void	onBitWidth (wxSpinEvent &event)
void	onBitWidthText (wxCommandEvent &event)
void	onAddId (wxCommandEvent &event)
void	onDeleteId (wxCommandEvent &event)
void	onSpinId (wxSpinEvent &event)
void	onIdListSelection (wxListEvent &event)
void	updateIdLists ()
bool	isFreeId (unsigned id) const
void	setTexts ()

Private Attributes
TTAMachine::Machine *	machine_
	Machine containing all the address spaces.
TTAMachine::AddressSpace *	as_
	Address space to modify with the dialog.
wxString	name_
	Name of the address space.
int	width_
	The bit width of the minimum addressable word.
wxString	minAddress_
	The lowest address in the address space.
wxString	maxAddress_
	The highest address in the address space.
NumberControl *	minControl_
	Widget for the lowest address hex value.
NumberControl *	maxControl_
	Widget for the highest address hex value.
wxStaticBoxSizer *	nameSizer_
	Boxsizer containing the name widget.
wxStaticBoxSizer *	minAddressSizer_
	Boxsizer containing the min-address widget.
wxStaticBoxSizer *	maxAddressSizer_
	Boxsizer containing the max-address widget.
wxStaticBoxSizer *	widthSizer_
	Boxsizer containing the width widget.
wxSpinCtrl *	bitWidthSpinCtrl_
	SpinCtrl containing the bit width of the max-address.
wxStaticBoxSizer *	idSizer_
	Boxsizer containing the address space id widget.
wxListCtrl *	idListCtrl_
	List control containing the address space ids.
wxSpinCtrl *	idSpinCtrl_
	SpinCtrl containing an address space id.
std::set< unsigned >	idNumbers_
	Container for unique id numbers.

Detailed Description

Dialog for editing address space properties.

Definition at line 50 of file AddressSpaceDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ID_NAME
ID_WIDTH
ID_MIN_ADDRESS
ID_MAX_ADDRESS
ID_BIT_WIDTH
ID_ID_LIST
ID_SPIN_ID
ID_ADD_ID
ID_DELETE_ID
ID_RADIO_MIN_DEC
ID_RADIO_MIN_HEX
ID_RADIO_MAX_DEC
ID_RADIO_MAX_HEX
ID_TEXT
ID_LINE
ID_HELP

Definition at line 123 of file AddressSpaceDialog.hh.

         {
        ID_NAME = 10000,
        ID_WIDTH,
        ID_MIN_ADDRESS,
        ID_MAX_ADDRESS,
        ID_BIT_WIDTH,

        ID_ID_LIST,
        ID_SPIN_ID,
        ID_ADD_ID,
        ID_DELETE_ID,

        ID_RADIO_MIN_DEC,
        ID_RADIO_MIN_HEX,
        ID_RADIO_MAX_DEC,
        ID_RADIO_MAX_HEX,
        ID_TEXT,
        ID_LINE,
        ID_HELP
    };

Constructor & Destructor Documentation

AddressSpaceDialog()

AddressSpaceDialog::AddressSpaceDialog	(	wxWindow *	parent,
		TTAMachine::Machine *	machine,
		TTAMachine::AddressSpace *	addressSpace
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
addressSpace	The address space to be modified with the dialog.

Definition at line 82 of file AddressSpaceDialog.cc.

                               :
    wxDialog(parent, -1, _T(""), wxDefaultPosition),
    machine_(machine),
    as_(addressSpace),
    name_(_T("")),
    width_(ModelConstants::DEFAULT_WIDTH),
    nameSizer_(NULL),
    minAddressSizer_(NULL),
    maxAddressSizer_(NULL),
    widthSizer_(NULL) {

    createContents(this, true, true);

    // disable conditional buttons initially
    FindWindow(wxID_OK)->Disable();
    FindWindow(ID_DELETE_ID)->Disable();

    // set validators for dialog controls
    FindWindow(ID_NAME)->SetValidator(
        wxTextValidator(wxFILTER_ASCII, &name_));
    FindWindow(ID_WIDTH)->SetValidator(
        wxGenericValidator(&width_));

    // set min and max adress spin button ranges
    minControl_ = dynamic_cast<NumberControl*>(FindWindow(ID_MIN_ADDRESS));
    maxControl_ = dynamic_cast<NumberControl*>(FindWindow(ID_MAX_ADDRESS));

    bitWidthSpinCtrl_ = dynamic_cast<wxSpinCtrl*>(FindWindow(ID_BIT_WIDTH));

    // set widget texts
    setTexts();

    TransferDataToWindow();

    FindWindow(ID_NAME)->SetFocus();
}

~AddressSpaceDialog()

AddressSpaceDialog::~AddressSpaceDialog

(

)

The Destructor.

Definition at line 126 of file AddressSpaceDialog.cc.

                                        {
}

Member Function Documentation

createContents()

wxSizer * AddressSpaceDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog window contents.

This method was generated with wxDesigner, thus the ugly code and too long lines.

Returns

Main sizer of the created contents.

Parameters

parent	The dialog window.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Definition at line 494 of file AddressSpaceDialog.cc.

                                                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxFlexGridSizer *item1 = new wxFlexGridSizer( 2, 0, 0 );

    wxStaticBox *item3 = new wxStaticBox( parent, -1, wxT("Name:") );
    wxStaticBoxSizer *item2 = new wxStaticBoxSizer( item3, wxVERTICAL );
    nameSizer_ = item2;

    wxTextCtrl *item4 = new wxTextCtrl(parent, ID_NAME, wxT(""), wxDefaultPosition, wxSize(160,-1), 0);
    item2->Add( item4, 0, wxGROW|wxALL, 5 );

    item1->Add( item2, 0, wxGROW|wxALL, 5 );

    wxStaticBox *item6 = new wxStaticBox( parent, -1, wxT("Min-Address") );
    wxStaticBoxSizer *item5 = new wxStaticBoxSizer( item6, wxVERTICAL );
    minAddressSizer_ = item5;

    NumberControl* item7 = new NumberControl(parent, ID_MIN_ADDRESS, wxDefaultPosition, wxSize(180, -1), (NumberControl::MODE_UNSIGNED | NumberControl::MODE_HEXADECIMAL));
    wxASSERT( item7 );
    item5->Add( item7, 0, wxALIGN_CENTER|wxALL, 5 );

    item1->Add( item5, 0, wxGROW|wxALL, 5 );

    wxStaticBox *item9 = new wxStaticBox( parent, -1, wxT("Width:") );
    wxStaticBoxSizer *item8 = new wxStaticBoxSizer( item9, wxVERTICAL );
    widthSizer_ = item8;

    wxSpinCtrl *item10 = new wxSpinCtrl(parent, ID_WIDTH, wxT("1"), wxDefaultPosition, wxSize(-1,-1), 0, 1, 10000, 1, wxT("Spin"));
    item8->Add( item10, 0, wxGROW|wxALL, 5 );

    item1->Add( item8, 0, wxGROW|wxALL, 5 );

    wxStaticBox *item12 = new wxStaticBox( parent, -1, wxT("Max-Address") );
    wxStaticBoxSizer *item11 = new wxStaticBoxSizer( item12, wxVERTICAL );
    maxAddressSizer_ = item11;

    NumberControl* item13 = new NumberControl(parent, ID_MAX_ADDRESS, wxDefaultPosition, wxSize(180, -1), (NumberControl::MODE_UNSIGNED | NumberControl::MODE_HEXADECIMAL));
    wxASSERT( item13 );
    item11->Add( item13, 0, wxALIGN_CENTER|wxALL, 5 );

    wxBoxSizer *bitSizer = new wxBoxSizer(wxHORIZONTAL);

    wxStaticText *bitText = new wxStaticText(parent, -1, wxT("Bits:"));
    bitSizer->Add( bitText, 0, wxGROW|wxALL, 5 );

    wxSpinCtrl *bitWidth = new wxSpinCtrl( parent, ID_BIT_WIDTH, wxT("1"), wxDefaultPosition, wxSize(-1,-1), 0, 1, 10000, 1);
    bitSizer->Add( bitWidth, 0, wxGROW|wxALL, 5 );

    item11->Add( bitSizer, 0, wxGROW|wxALL, 5 );

    item1->Add( item11, 0, wxGROW|wxALL, 5 );

    // address space id box
    wxStaticBox *itemIdBox = new wxStaticBox(parent, -1, wxT("ID number:"));
    wxStaticBoxSizer *itemIdSizer = new wxStaticBoxSizer(itemIdBox,
                                                          wxHORIZONTAL);
    idSizer_ = itemIdSizer;

    wxListCtrl *itemIdListCtrl = new wxListCtrl( parent, ID_ID_LIST,
                                                 wxDefaultPosition,
                                                 wxSize(100,120),
                                                 wxLC_REPORT|wxSUNKEN_BORDER );
    idSizer_->Add( itemIdListCtrl, 0, wxALIGN_CENTER|wxALL, 5 );
    idListCtrl_ = itemIdListCtrl;
    idListCtrl_->InsertColumn(0, _("ID"));

    wxBoxSizer *sizerOnRight = new wxBoxSizer(wxVERTICAL);

    wxSpinCtrl *itemIdSpinCtrl = new wxSpinCtrl( parent, ID_SPIN_ID, wxT("0"), wxDefaultPosition, wxSize(-1,-1), 0, 0, 2147483647, 1, wxT("Spin") );
    sizerOnRight->Add( itemIdSpinCtrl, 0, wxGROW|wxALL, 5 );
    idSpinCtrl_ = itemIdSpinCtrl;

    wxButton *addButton = new wxButton( parent, ID_ADD_ID, wxT("Add"), wxDefaultPosition, wxDefaultSize, 0 );
    sizerOnRight->Add( addButton, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *deleteButton = new wxButton( parent, ID_DELETE_ID, wxT("Delete"), wxDefaultPosition, wxDefaultSize, 0 );
    sizerOnRight->Add( deleteButton, 0, wxALIGN_CENTER|wxALL, 5 );

    idSizer_->Add( sizerOnRight, 0, wxALIGN_CENTER|wxALL, 5 );
    item1->Add( idSizer_, 0, wxGROW|wxALL, 5 );

    assert (idSizer_ != NULL);
    assert (idListCtrl_ != NULL);
    assert (idSpinCtrl_ != NULL);
    // end of address space id box

    item0->Add( item1, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticLine *item14 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item14, 0, wxGROW|wxALL, 5 );

    wxGridSizer *item15 = new wxGridSizer( 2, 0, 0 );

    wxButton *item16 = new wxButton( parent, ID_HELP, wxT("&Help"), wxDefaultPosition, wxDefaultSize, 0 );
    item15->Add( item16, 0, wxALL, 5 );

    wxBoxSizer *item17 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item18 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item17->Add( item18, 0, wxALIGN_CENTER, 5 );

    wxButton *item19 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item17->Add( item19, 0, wxALIGN_CENTER|wxALL, 5 );

    item15->Add( item17, 0, wxALL, 5 );

    item0->Add( item15, 0, wxGROW, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References assert, ID_ADD_ID, ID_BIT_WIDTH, ID_DELETE_ID, ID_HELP, ID_ID_LIST, ID_LINE, ID_MAX_ADDRESS, ID_MIN_ADDRESS, ID_NAME, ID_SPIN_ID, ID_WIDTH, idListCtrl_, idSizer_, idSpinCtrl_, maxAddressSizer_, minAddressSizer_, NumberControl::MODE_HEXADECIMAL, NumberControl::MODE_UNSIGNED, nameSizer_, and widthSizer_.

isFreeId()

bool AddressSpaceDialog::isFreeId ( unsigned  id ) const

private

Checks if given id is already reserved by some address space

Parameters

id	Number that should be checked against reserved ids

Definition at line 450 of file AddressSpaceDialog.cc.

                                              {
    assert (machine_ != NULL);
    std::set<unsigned>::iterator it;

    // check id numbers reserved by this address space
    it = idNumbers_.find(id);
    if (it != idNumbers_.end()) {
        return false;
    }

    Machine::AddressSpaceNavigator asNavigator =
    machine_->addressSpaceNavigator();

    // check other address spaces
    for (int i = 0; i < asNavigator.count(); i++) {
        AddressSpace* as = asNavigator.item(i);

        // ignore address space owned by this because data might be old
        if (as != as_) {
            std::set<unsigned> ids = as->numericalIds();
            it = ids.find(id);
            if (it != ids.end()) {
                return false;
            }
        }
    }

    // the id is free
    return true;
}

References TTAMachine::Machine::addressSpaceNavigator(), as_, assert, TTAMachine::Machine::Navigator< ComponentType >::count(), idNumbers_, TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, and TTAMachine::AddressSpace::numericalIds().

Referenced by onAddId(), and onSpinId().

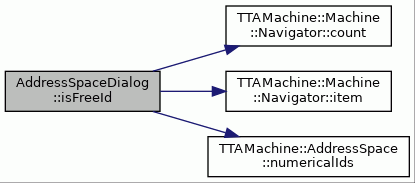

Here is the call graph for this function:

onAddId()

void AddressSpaceDialog::onAddId ( wxCommandEvent &  event )

private

Adds a new id number for the address space.

Definition at line 366 of file AddressSpaceDialog.cc.

                                             {
    // current number in spin field
    unsigned spinId = static_cast<unsigned>(idSpinCtrl_->GetValue());

    // existing entry found from some address space
    if (!isFreeId(spinId)) {
        return;
    }

    // no conflict, make a new entry for the current value in the spin field
    idNumbers_.insert(spinId);
    updateIdLists();

    // disable add button for added id number
    FindWindow(ID_ADD_ID)->Disable();
}

References ID_ADD_ID, idNumbers_, idSpinCtrl_, isFreeId(), and updateIdLists().

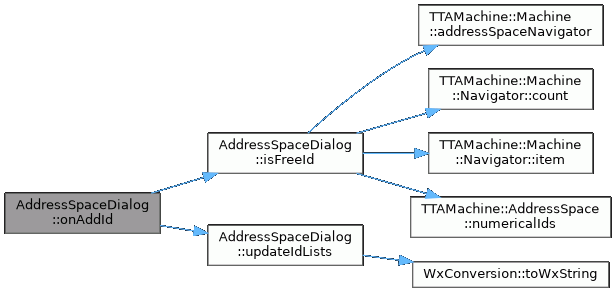

Here is the call graph for this function:

onBitWidth()

void AddressSpaceDialog::onBitWidth ( wxSpinEvent &  event )

private

Reads the range from bitWidth spin-button and updates min- and max ranges.

Definition at line 351 of file AddressSpaceDialog.cc.

                                           {

    unsigned maxAddress = static_cast<unsigned>(
        pow(2, bitWidthSpinCtrl_->GetValue()) - 1u);
    maxControl_->setValue(maxAddress);

    wxCommandEvent dummy;
    onMaxAddress(dummy);
    onMinAddress(dummy);
}

References bitWidthSpinCtrl_, dummy, maxControl_, onMaxAddress(), onMinAddress(), and NumberControl::setValue().

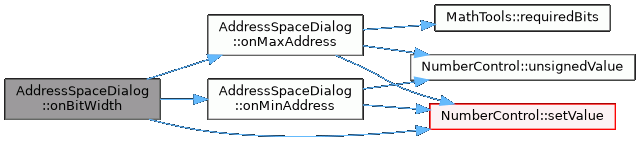

Here is the call graph for this function:

onBitWidthText()

void AddressSpaceDialog::onBitWidthText ( wxCommandEvent &  event )

private

Reads the range from bitWidth spin-button and updates min- and max ranges.

Definition at line 342 of file AddressSpaceDialog.cc.

                                                  {
    //wxSpinEvent dummy;
    //onBitWidth(dummy);
}

onDeleteId()

void AddressSpaceDialog::onDeleteId ( wxCommandEvent &  event )

private

Deletes selected id number(s) from the address space.

Definition at line 387 of file AddressSpaceDialog.cc.

                                                {
    long itemIndex = -1;

    // loop through all selected ids
    for (int i = 0; i < idListCtrl_->GetSelectedItemCount(); ++i) {
        itemIndex = idListCtrl_->GetNextItem(
            itemIndex, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);

        // get numerical value of the id and erase it from the address space
        if (itemIndex >= 0) {
            wxString idText = idListCtrl_->GetItemText(itemIndex);
            long id;
            if (idText.ToLong(&id)) {
                idNumbers_.erase(id);
            }
        }
    }

    updateIdLists();

    wxSpinEvent dummy1;
    onSpinId(dummy1);
    wxListEvent dummy2;
    onIdListSelection(dummy2);
}

References idListCtrl_, idNumbers_, onIdListSelection(), onSpinId(), and updateIdLists().

Here is the call graph for this function:

onHelp()

void AddressSpaceDialog::onHelp ( wxCommandEvent &  event )

private

onIdListSelection()

void AddressSpaceDialog::onIdListSelection ( wxListEvent &  event )

private

Sets state of delete button depending on whether items are selected

Definition at line 436 of file AddressSpaceDialog.cc.

                                                    {
    if (idListCtrl_->GetSelectedItemCount() < 1) {
        FindWindow(ID_DELETE_ID)->Disable();
    } else {
        FindWindow(ID_DELETE_ID)->Enable();
    }
}

References ID_DELETE_ID, and idListCtrl_.

Referenced by onDeleteId().

onMaxAddress()

void AddressSpaceDialog::onMaxAddress ( wxCommandEvent &  event )

private

Sets the range of the MaxAddress spin-button.

Definition at line 330 of file AddressSpaceDialog.cc.

                                                {
    if (maxControl_->unsignedValue() <= minControl_->unsignedValue()) {
        maxControl_->setValue(minControl_->unsignedValue() + 1);
    }
    int bitWidth = MathTools::requiredBits(maxControl_->unsignedValue());
    bitWidthSpinCtrl_->SetValue(bitWidth);
}

References bitWidthSpinCtrl_, maxControl_, minControl_, MathTools::requiredBits(), NumberControl::setValue(), and NumberControl::unsignedValue().

Referenced by onBitWidth(), and TransferDataToWindow().

Here is the call graph for this function:

onMaxHex()

void AddressSpaceDialog::onMaxHex ( wxCommandEvent &  event )

private

onMaxToDec()

void AddressSpaceDialog::onMaxToDec ( wxCommandEvent &  event )

private

onMaxToHex()

void AddressSpaceDialog::onMaxToHex ( wxCommandEvent &  event )

private

onMinAddress()

void AddressSpaceDialog::onMinAddress ( wxCommandEvent &  event )

private

Sets the range of the MaxAddress spin-button.

Definition at line 319 of file AddressSpaceDialog.cc.

                                                {
    if (minControl_->unsignedValue() >= maxControl_->unsignedValue()) {
        minControl_->setValue(maxControl_->unsignedValue() - 1);
    }
}

References maxControl_, minControl_, NumberControl::setValue(), and NumberControl::unsignedValue().

Referenced by onBitWidth(), and TransferDataToWindow().

Here is the call graph for this function:

onMinHex()

void AddressSpaceDialog::onMinHex ( wxCommandEvent &  event )

private

onMinToDec()

void AddressSpaceDialog::onMinToDec ( wxCommandEvent &  event )

private

onMinToHex()

void AddressSpaceDialog::onMinToHex ( wxCommandEvent &  event )

private

onName()

void AddressSpaceDialog::onName ( wxCommandEvent &  event )

private

Checks whether the name field is empty, and disables OK button of the dialog if it is.

Definition at line 302 of file AddressSpaceDialog.cc.

                                          {
    if (!TransferDataFromWindow()) {
        assert(false);
    }
    wxString trimmedName = name_.Trim(false).Trim(true);
    if (trimmedName == _T("")) {
        FindWindow(wxID_OK)->Disable();
    } else {
        FindWindow(wxID_OK)->Enable();
    }
}

References assert, and name_.

onOK()

void AddressSpaceDialog::onOK ( wxCommandEvent &  event )

private

Validates input in the controls, and updates the AddressSpace.

Definition at line 226 of file AddressSpaceDialog.cc.

                                        {

    if (!Validate()) {
        return;
    }

    if (!TransferDataFromWindow()) {
        return;
    }

    string trimmedName =
    WxConversion::toString(name_.Trim(false).Trim(true));

    // Check the name validity.
    if (!MachineTester::isValidComponentName(trimmedName)) {
        ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
        format message =
            prodeTexts->text(ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME);
        InformationDialog warning(
            this, WxConversion::toWxString(message.str()));
        warning.ShowModal();
        return;
    }

    if (trimmedName != as_->name()) {

        // Check that the new address space name is unique among
        // all address spaces in the machine.
    Machine::AddressSpaceNavigator navigator =
        as_->machine()->addressSpaceNavigator();
        for (int i = 0; i < navigator.count(); i++) {
            string asName = navigator.item(i)->name();
            if (trimmedName == asName) {
                ProDeTextGenerator* prodeTexts =
                    ProDeTextGenerator::instance();
                format message =
                    prodeTexts->text(ProDeTextGenerator::MSG_ERROR_SAME_NAME);
                format an_as = prodeTexts->text(
                    ProDeTextGenerator::COMP_AN_ADDRESS_SPACE);
                format machine =
                    prodeTexts->text(ProDeTextGenerator::COMP_MACHINE);
                format as =
                    prodeTexts->text(ProDeTextGenerator::COMP_ADDRESS_SPACE);
                message % trimmedName % an_as.str() % machine.str() % as.str();
                WarningDialog warning(
                    this, WxConversion::toWxString(message.str()));
                warning.ShowModal();
                return;
            }
        }
    }

    as_->setName(trimmedName);
    as_->setWidth(width_);
    unsigned int minAddr = minControl_->unsignedValue();
    unsigned int maxAddr = maxControl_->unsignedValue();
    as_->setAddressBounds(minAddr, maxAddr);

    if (!as_->setNumericalIds(idNumbers_)) {
        ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
        format message =
            prodeTexts->text(ProDeTextGenerator::MSG_ERROR_ID_EXISTS);
        InformationDialog dialog(
            this, WxConversion::toWxString(message.str()));
        dialog.ShowModal();
    }

    EndModal(wxID_OK);
}

References TTAMachine::Machine::addressSpaceNavigator(), as_, ProDeTextGenerator::COMP_ADDRESS_SPACE, ProDeTextGenerator::COMP_AN_ADDRESS_SPACE, ProDeTextGenerator::COMP_MACHINE, TTAMachine::Machine::Navigator< ComponentType >::count(), idNumbers_, ProDeTextGenerator::instance(), MachineTester::isValidComponentName(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), machine, maxControl_, minControl_, ProDeTextGenerator::MSG_ERROR_ID_EXISTS, ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME, ProDeTextGenerator::MSG_ERROR_SAME_NAME, TTAMachine::Component::name(), name_, TTAMachine::AddressSpace::setAddressBounds(), TTAMachine::AddressSpace::setName(), TTAMachine::AddressSpace::setNumericalIds(), TTAMachine::AddressSpace::setWidth(), Texts::TextGenerator::text(), WxConversion::toString(), WxConversion::toWxString(), NumberControl::unsignedValue(), and width_.

Here is the call graph for this function:

onSpinId()

void AddressSpaceDialog::onSpinId ( wxSpinEvent &  event )

private

Sets state of add button depending on whether the number in spin input already exists in some address space

Definition at line 418 of file AddressSpaceDialog.cc.

                                           {
    // current number in spin field
    unsigned spinId = static_cast<unsigned>(idSpinCtrl_->GetValue());

    // no conflict found, enable add button
    if (isFreeId(spinId)) {
        FindWindow(ID_ADD_ID)->Enable();
        return;
    }

    // the number is already reserved, disable add button
    FindWindow(ID_ADD_ID)->Disable();
}

References ID_ADD_ID, idSpinCtrl_, and isFreeId().

Referenced by onDeleteId(), and TransferDataToWindow().

Here is the call graph for this function:

setTexts()

void AddressSpaceDialog::setTexts ( )

private

Sets texts for widgets.

Definition at line 134 of file AddressSpaceDialog.cc.

                             {
    GUITextGenerator* generator = GUITextGenerator::instance();
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();

    // Dialog title
    format fmt = prodeTexts->text(
        ProDeTextGenerator::TXT_ADDRESS_SPACE_DIALOG_TITLE);
    SetTitle(WxConversion::toWxString(fmt.str()));

    // buttons
    WidgetTools::setLabel(generator, FindWindow(wxID_OK),
                          GUITextGenerator::TXT_BUTTON_OK);

    WidgetTools::setLabel(generator, FindWindow(wxID_CANCEL),
                          GUITextGenerator::TXT_BUTTON_CANCEL);

    WidgetTools::setLabel(generator, FindWindow(ID_HELP),
                          GUITextGenerator::TXT_BUTTON_HELP);

    WidgetTools::setLabel(generator, FindWindow(ID_ADD_ID),
                          GUITextGenerator::TXT_BUTTON_ADD_DIALOG);

    WidgetTools::setLabel(generator, FindWindow(ID_DELETE_ID),
                          GUITextGenerator::TXT_BUTTON_DELETE);

    // box sizer label
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_LABEL_NAME);
    WidgetTools::setWidgetLabel(nameSizer_, fmt.str());

    fmt = prodeTexts->text(ProDeTextGenerator::TXT_LABEL_MAU);
    WidgetTools::setWidgetLabel(widthSizer_, fmt.str());

    fmt = prodeTexts->text(ProDeTextGenerator::TXT_ADDRESS_SPACE_MIN_ADDRESS);
    WidgetTools::setWidgetLabel(minAddressSizer_, fmt.str());

    fmt = prodeTexts->text(ProDeTextGenerator::TXT_ADDRESS_SPACE_MAX_ADDRESS);
    WidgetTools::setWidgetLabel(maxAddressSizer_, fmt.str());
}

References ID_ADD_ID, ID_DELETE_ID, ID_HELP, GUITextGenerator::instance(), ProDeTextGenerator::instance(), maxAddressSizer_, minAddressSizer_, nameSizer_, WidgetTools::setLabel(), WidgetTools::setWidgetLabel(), Texts::TextGenerator::text(), WxConversion::toWxString(), ProDeTextGenerator::TXT_ADDRESS_SPACE_DIALOG_TITLE, ProDeTextGenerator::TXT_ADDRESS_SPACE_MAX_ADDRESS, ProDeTextGenerator::TXT_ADDRESS_SPACE_MIN_ADDRESS, GUITextGenerator::TXT_BUTTON_ADD_DIALOG, GUITextGenerator::TXT_BUTTON_CANCEL, GUITextGenerator::TXT_BUTTON_DELETE, GUITextGenerator::TXT_BUTTON_HELP, GUITextGenerator::TXT_BUTTON_OK, ProDeTextGenerator::TXT_LABEL_MAU, ProDeTextGenerator::TXT_LABEL_NAME, and widthSizer_.

Here is the call graph for this function:

TransferDataToWindow()

bool AddressSpaceDialog::TransferDataToWindow ( )

privatevirtual

Transfers data from the AddressSpace object to the dialog widgets.

Returns

false, if an error occured in the transfer, true otherwise.

Definition at line 180 of file AddressSpaceDialog.cc.

                                         {

    name_ = WxConversion::toWxString(as_->name());
    width_ = as_->width();

    minControl_->setValue(as_->start());
    maxControl_->setValue(as_->end());
    //minControl_->setRange(0, as_->end() - 1);
    //maxControl_->setRange(as_->start() + 1, 0xFFFFFFFF);

    idNumbers_ = as_->numericalIds();
    updateIdLists();

    // wxWidgets GTK1 version seems to bug with spincontrol validators.
    // The widget value has to be set manually.
    dynamic_cast<wxSpinCtrl*>(FindWindow(ID_WIDTH))->SetValue(width_);

    wxCommandEvent dummy;
    onMaxAddress(dummy);
    onMinAddress(dummy);

    wxSpinEvent dummySpin;
    onSpinId(dummySpin);

    return wxWindow::TransferDataToWindow();
}

References as_, dummy, TTAMachine::AddressSpace::end(), ID_WIDTH, idNumbers_, maxControl_, minControl_, TTAMachine::Component::name(), name_, TTAMachine::AddressSpace::numericalIds(), onMaxAddress(), onMinAddress(), onSpinId(), NumberControl::setValue(), TTAMachine::AddressSpace::start(), WxConversion::toWxString(), updateIdLists(), TTAMachine::AddressSpace::width(), and width_.

Here is the call graph for this function:

updateIdLists()

void AddressSpaceDialog::updateIdLists ( )

private

Updates the id lists.

Definition at line 211 of file AddressSpaceDialog.cc.

                                  {
    assert (idListCtrl_ != NULL);
    idListCtrl_->DeleteAllItems();

    for (std::set<unsigned>::iterator it = idNumbers_.begin();
         it != idNumbers_.end(); ++it) {
        idListCtrl_->InsertItem(
            static_cast<long>(*it), WxConversion::toWxString(*it));
    }
}

References assert, idListCtrl_, idNumbers_, and WxConversion::toWxString().

Referenced by onAddId(), onDeleteId(), and TransferDataToWindow().

Here is the call graph for this function:

Member Data Documentation

as_

TTAMachine::AddressSpace* AddressSpaceDialog::as_

private

Address space to modify with the dialog.

Definition at line 87 of file AddressSpaceDialog.hh.

Referenced by isFreeId(), onOK(), and TransferDataToWindow().

bitWidthSpinCtrl_

wxSpinCtrl* AddressSpaceDialog::bitWidthSpinCtrl_

private

SpinCtrl containing the bit width of the max-address.

Definition at line 110 of file AddressSpaceDialog.hh.

Referenced by onBitWidth(), and onMaxAddress().

idListCtrl_

wxListCtrl* AddressSpaceDialog::idListCtrl_

private

List control containing the address space ids.

Definition at line 115 of file AddressSpaceDialog.hh.

Referenced by createContents(), onDeleteId(), onIdListSelection(), and updateIdLists().

idNumbers_

std::set<unsigned> AddressSpaceDialog::idNumbers_

private

Container for unique id numbers.

Definition at line 120 of file AddressSpaceDialog.hh.

Referenced by isFreeId(), onAddId(), onDeleteId(), onOK(), TransferDataToWindow(), and updateIdLists().

idSizer_

wxStaticBoxSizer* AddressSpaceDialog::idSizer_

private

Boxsizer containing the address space id widget.

Definition at line 113 of file AddressSpaceDialog.hh.

Referenced by createContents().

idSpinCtrl_

wxSpinCtrl* AddressSpaceDialog::idSpinCtrl_

private

SpinCtrl containing an address space id.

Definition at line 117 of file AddressSpaceDialog.hh.

Referenced by createContents(), onAddId(), and onSpinId().

machine_

TTAMachine::Machine* AddressSpaceDialog::machine_

private

Machine containing all the address spaces.

Definition at line 85 of file AddressSpaceDialog.hh.

Referenced by isFreeId().

maxAddress_

wxString AddressSpaceDialog::maxAddress_

private

The highest address in the address space.

Definition at line 95 of file AddressSpaceDialog.hh.

maxAddressSizer_

wxStaticBoxSizer* AddressSpaceDialog::maxAddressSizer_

private

Boxsizer containing the max-address widget.

Definition at line 106 of file AddressSpaceDialog.hh.

Referenced by createContents(), and setTexts().

maxControl_

NumberControl* AddressSpaceDialog::maxControl_

private

Widget for the highest address hex value.

Definition at line 99 of file AddressSpaceDialog.hh.

Referenced by onBitWidth(), onMaxAddress(), onMinAddress(), onOK(), and TransferDataToWindow().

minAddress_

wxString AddressSpaceDialog::minAddress_

private

The lowest address in the address space.

Definition at line 93 of file AddressSpaceDialog.hh.

minAddressSizer_

wxStaticBoxSizer* AddressSpaceDialog::minAddressSizer_

private

Boxsizer containing the min-address widget.

Definition at line 104 of file AddressSpaceDialog.hh.

Referenced by createContents(), and setTexts().

minControl_

NumberControl* AddressSpaceDialog::minControl_

private

Widget for the lowest address hex value.

Definition at line 97 of file AddressSpaceDialog.hh.

Referenced by onMaxAddress(), onMinAddress(), onOK(), and TransferDataToWindow().

name_

wxString AddressSpaceDialog::name_

private

Name of the address space.

Definition at line 89 of file AddressSpaceDialog.hh.

Referenced by onName(), onOK(), and TransferDataToWindow().

nameSizer_

wxStaticBoxSizer* AddressSpaceDialog::nameSizer_

private

Boxsizer containing the name widget.

Definition at line 102 of file AddressSpaceDialog.hh.

Referenced by createContents(), and setTexts().

width_

int AddressSpaceDialog::width_

private

The bit width of the minimum addressable word.

Definition at line 91 of file AddressSpaceDialog.hh.

Referenced by onOK(), and TransferDataToWindow().

widthSizer_

wxStaticBoxSizer* AddressSpaceDialog::widthSizer_

private

Boxsizer containing the width widget.

Definition at line 108 of file AddressSpaceDialog.hh.

Referenced by createContents(), and setTexts().

---

The documentation for this class was generated from the following files:

• AddressSpaceDialog.hh
• AddressSpaceDialog.cc
