TTAMachine::Component Class Reference

#include <MachinePart.hh>

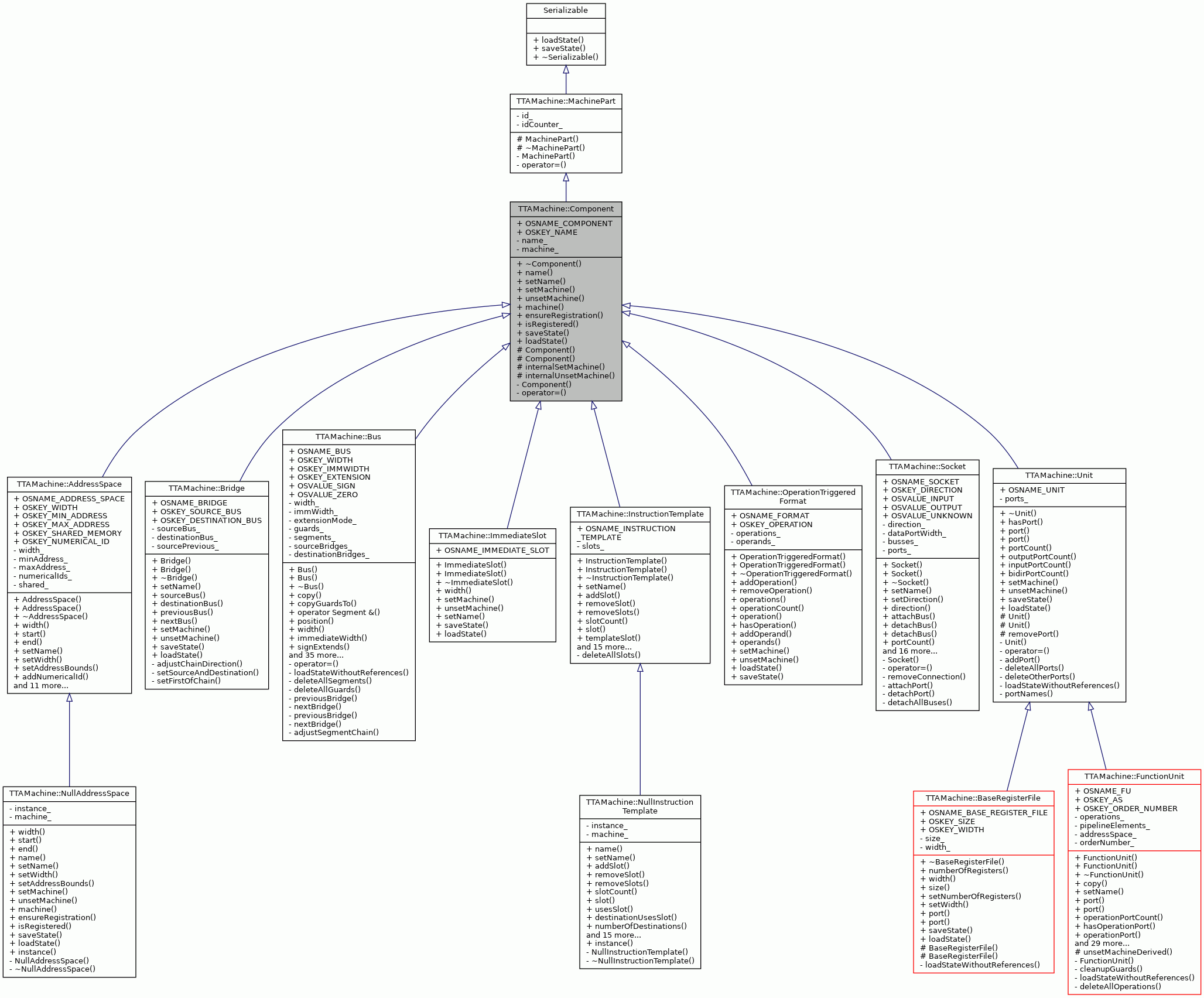

Inheritance diagram for TTAMachine::Component:

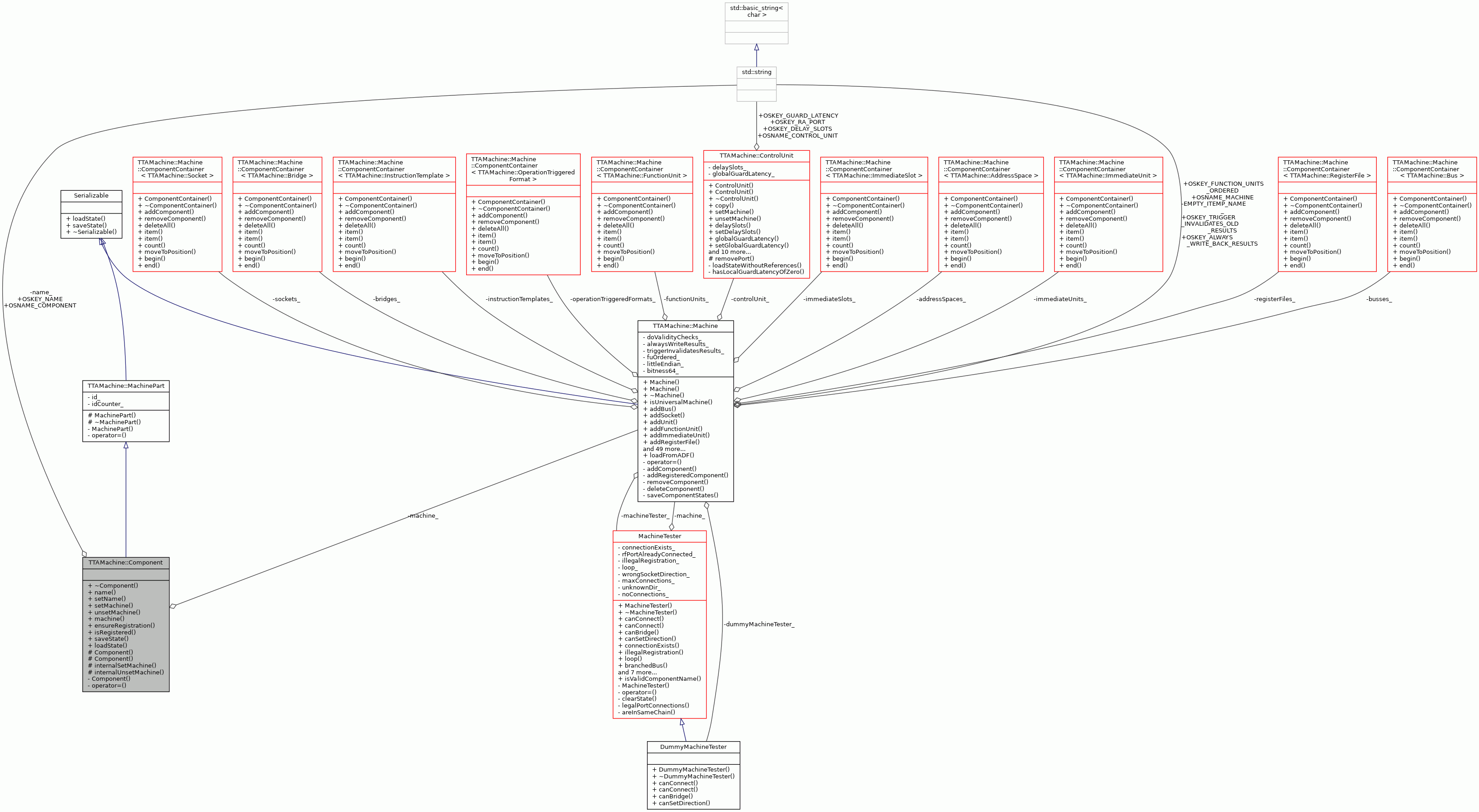

Collaboration diagram for TTAMachine::Component:

Classes
class	ComponentNameComparator

Public Member Functions
virtual	~Component ()
virtual TCEString	name () const
virtual void	setName (const std::string &name)
virtual void	setMachine (Machine &machine)=0
virtual void	unsetMachine ()=0
virtual Machine *	machine () const
virtual void	ensureRegistration (const Component &component) const
virtual bool	isRegistered () const
virtual ObjectState *	saveState () const
virtual void	loadState (const ObjectState *state)
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_COMPONENT = "component"
	ObjectState name for component.
static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for the name of the component.

Protected Member Functions
	Component (const std::string &name)
	Component (const ObjectState *state)
void	internalSetMachine (Machine &machine)
void	internalUnsetMachine ()
Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()
virtual	~MachinePart ()

Private Member Functions
	Component (const Component &)
	Copying forbidden.
Component &	operator= (const Component &)
	Assingment forbidden.

Private Attributes
std::string	name_
	Name of the component.
Machine *	machine_
	Machine to which the component is registered.

Detailed Description

Abstract base class for top-level machine components.

Top-level machine components, like Bus and Socket, are independently defined parts of a target machine. Components can be registered to (or unregistered from) a Machine.

Definition at line 90 of file MachinePart.hh.

Constructor & Destructor Documentation

~Component()

TTAMachine::Component::~Component ( )

virtual

Destructor.

Definition at line 115 of file MachinePart.cc.

                      {
}

Component() [1/3]

TTAMachine::Component::Component ( const std::string &  name )

protected

Constructor.

Parameters

name	Name of the component.

Exceptions

InvalidName

If the given name is not a valid name for a component.

Definition at line 82 of file MachinePart.cc.

    : MachinePart(), name_(name), machine_(NULL) {
    if (!MachineTester::isValidComponentName(name)) {
        const string procName = "Component::Component";
        MOMTextGenerator textGen;
        format errorMsg = textGen.text(MOMTextGenerator::TXT_INVALID_NAME);
        errorMsg % name;
        throw InvalidName(__FILE__, __LINE__, procName, errorMsg.str());
    }
}

References MachineTester::isValidComponentName(), name(), Texts::TextGenerator::text(), and MOMTextGenerator::TXT_INVALID_NAME.

Here is the call graph for this function:

Component() [2/3]

TTAMachine::Component::Component ( const ObjectState *  state )

protected

Constructor.

Loads the name from the given ObjectState object.

Parameters

state

The ObjectState instance from which the name is loaded.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Definition at line 102 of file MachinePart.cc.

                                             : MachinePart(), machine_(NULL) {
    try {
        setName(state->stringAttribute(OSKEY_NAME));
    } catch (const Exception& e) {
        string procName = "Component::Component";
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, e.errorMessage());
    }
}

References Exception::errorMessage(), OSKEY_NAME, setName(), and ObjectState::stringAttribute().

Here is the call graph for this function:

Component() [3/3]

TTAMachine::Component::Component ( const Component &  )

private

Copying forbidden.

Member Function Documentation

ensureRegistration()

void TTAMachine::Component::ensureRegistration ( const Component &  component ) const

virtual

Ensures that the component is registered to the same machine as the given component.

Parameters

component

The component.

Exceptions

IllegalRegistration

If the components are not registered to the same machine.

Reimplemented in TTAMachine::NullAddressSpace, TTAMachine::NullInstructionTemplate, and TTAMachine::NullRegisterFile.

Definition at line 163 of file MachinePart.cc.

                                                              {
    if (machine() == NULL || machine() != component.machine()) {
        const string procName = "Component::ensureRegistration";
        throw IllegalRegistration(__FILE__, __LINE__, procName);
    }
}

References machine().

Referenced by TTAMachine::InstructionTemplate::addSlot(), TTAMachine::Socket::attachBus(), TTAMachine::Port::attachSocket(), TTAMachine::Segment::attachSocket(), TTAMachine::Bridge::Bridge(), TTAMachine::PortGuard::PortGuard(), TTAMachine::RegisterGuard::RegisterGuard(), and TTAMachine::FunctionUnit::setAddressSpace().

Here is the call graph for this function:

internalSetMachine()

void TTAMachine::Component::internalSetMachine ( Machine &  machine )

protected

Referenced by TTAMachine::AddressSpace::setMachine(), TTAMachine::Bridge::setMachine(), TTAMachine::Bus::setMachine(), TTAMachine::ControlUnit::setMachine(), TTAMachine::Socket::setMachine(), TTAMachine::Unit::setMachine(), TTAMachine::ImmediateSlot::setMachine(), TTAMachine::InstructionTemplate::setMachine(), and TTAMachine::OperationTriggeredFormat::setMachine().

internalUnsetMachine()

void TTAMachine::Component::internalUnsetMachine ( )

protected

Referenced by TTAMachine::AddressSpace::unsetMachine(), TTAMachine::Bridge::unsetMachine(), TTAMachine::Bus::unsetMachine(), TTAMachine::ImmediateSlot::unsetMachine(), TTAMachine::InstructionTemplate::unsetMachine(), TTAMachine::OperationTriggeredFormat::unsetMachine(), TTAMachine::Socket::unsetMachine(), and TTAMachine::Unit::unsetMachine().

isRegistered()

bool TTAMachine::Component::isRegistered ( ) const

virtual

Returns true if the component is registered to a machine, otherwise false.

Returns

True if the component is registered to a machine, otherwise false.

Reimplemented in TTAMachine::NullAddressSpace, TTAMachine::NullInstructionTemplate, and TTAMachine::NullRegisterFile.

Definition at line 177 of file MachinePart.cc.

                              {
    return (machine_ != NULL);
}

References machine_.

Referenced by TTAMachine::Bridge::loadState(), TTAMachine::FunctionUnit::loadState(), TTAMachine::Socket::loadState(), TTAMachine::Bus::position(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), TTAMachine::Socket::setDirection(), TTAMachine::ControlUnit::setGlobalGuardLatency(), TTAMachine::RegisterFile::setGuardLatency(), TTAMachine::AddressSpace::setMachine(), TTAMachine::AddressSpace::unsetMachine(), and TTAMachine::ControlUnit::unsetMachine().

loadState()

void TTAMachine::Component::loadState ( const ObjectState *  state )

virtual

Loads the name of the component from the given ObjectState instance.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the machine already contains same type of component with the same name.

Implements Serializable.

Reimplemented in TTAMachine::AddressSpace, TTAMachine::BaseRegisterFile, TTAMachine::Bridge, TTAMachine::Bus, TTAMachine::ControlUnit, TTAMachine::FunctionUnit, TTAMachine::ImmediateSlot, TTAMachine::ImmediateUnit, TTAMachine::InstructionTemplate, TTAMachine::NullAddressSpace, TTAMachine::NullInstructionTemplate, TTAMachine::NullRegisterFile, TTAMachine::OperationTriggeredFormat, TTAMachine::RegisterFile, TTAMachine::Socket, TTAMachine::Unit, UnboundedRegisterFile, and UniversalFunctionUnit.

Definition at line 205 of file MachinePart.cc.

                                             {
    const string procName = "Component::loadState";

    try {
        string name = state->stringAttribute(OSKEY_NAME);
        setName(name);
    } catch (const KeyNotFound& e) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    } catch (const ComponentAlreadyExists& e) {
        MOMTextGenerator textGenerator;
        format text = textGenerator.text(
            MOMTextGenerator::TXT_SAME_NAME);
        text % state->stringAttribute(OSKEY_NAME);
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, text.str());
    } catch (const InvalidName& e) {
        MOMTextGenerator textGenerator;
        format text = textGenerator.text(
            MOMTextGenerator::TXT_INVALID_NAME);
        text % state->stringAttribute(OSKEY_NAME);
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, text.str());
    }
}

References name(), OSKEY_NAME, setName(), ObjectState::stringAttribute(), Texts::TextGenerator::text(), MOMTextGenerator::TXT_INVALID_NAME, and MOMTextGenerator::TXT_SAME_NAME.

Referenced by TTAMachine::AddressSpace::loadState(), TTAMachine::Bridge::loadState(), TTAMachine::ImmediateSlot::loadState(), TTAMachine::InstructionTemplate::loadState(), TTAMachine::OperationTriggeredFormat::loadState(), TTAMachine::Socket::loadState(), and TTAMachine::Bus::loadStateWithoutReferences().

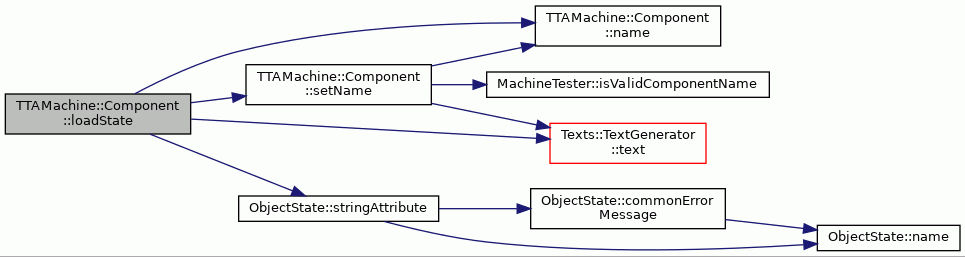

Here is the call graph for this function:

machine()

virtual Machine * TTAMachine::Component::machine ( ) const

virtual

Reimplemented in TTAMachine::NullAddressSpace, TTAMachine::NullInstructionTemplate, and TTAMachine::NullRegisterFile.

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), OTAOperationDialog::addRISCVBaseOperations(), TTAMachine::InstructionTemplate::addSlot(), TTAMachine::Bridge::adjustChainDirection(), ImmediateAnalyzer::analyzeImmediateCapabilitiesForOperation(), TTAMachine::Socket::attachBus(), TTAMachine::Port::attachSocket(), TTAMachine::Port::attachSocket(), TTAMachine::Segment::attachSocket(), FullyConnectedCheck::attachSocketToAllBusses(), TTAMachine::Bridge::Bridge(), ControlFlowGraph::buildMBBFromBB(), MachineConnectivityCheck::busConnectedToAnyFU(), MachineConnectivityCheck::busConnectedToDestination(), DefaultICDecoderEstimator::busParameters(), CycleLookBackSoftwareBypasser::bypassNode(), MachineTester::canBridge(), MachineTester::canConnect(), MachineTester::canConnect(), MachineInfo::canEncodeImmediateInteger(), ProDePortEditPolicy::canHandle(), ProDeSegmentEditPolicy::canHandle(), ProDeSocketEditPolicy::canHandle(), MachineConnectivityCheck::canTransportImmediate(), MachineConnectivityCheck::canTransportImmediate(), MachineConnectivityCheck::canWriteAllImmediates(), TTAMachine::FunctionUnit::cleanupGuards(), TTAMachine::FUPort::cleanupGuards(), FullyConnectedCheck::connectFUPort(), FullyConnectedCheck::connectIUPort(), FullyConnectedCheck::connectRFPort(), FullyConnectedCheck::connectSpecialRegisterPort(), ADFCombiner::copyGuards(), POMDisassembler::createFUPort(), POMDisassembler::createGuard(), TTAProgram::TPEFProgramFactory::createInstruction(), POMDisassembler::createRegister(), FullyConnectedCheck::createSocket(), TTAMachine::RegisterFile::deleteGuards(), POMDisassembler::disassemble(), CopyComponent::Do(), UniversalFunctionUnit::ensureInputPorts(), UniversalFunctionUnit::ensureOutputPorts(), ensureRegistration(), MachineConnectivityCheck::findRoutes(), MachineConnectivityCheck::fromRfConnected(), TTAProgram::TPEFResourceUpdater::functionUnit(), TTAProgram::TPEFResourceUpdater::functionUnitPort(), TTAProgram::Move::guardLatency(), TTAMachine::ControlUnit::hasLocalGuardLatencyOfZero(), MachineConnectivityCheck::immBits(), MachineConnectivityCheck::isConnectedToDifferentlyConnectedRFs(), isInstructionMemory(), TTAMachine::RegisterFile::isUsedAsGuard(), TTAMachine::Bridge::loadState(), TTAMachine::FunctionUnit::loadState(), TTAMachine::PortGuard::loadState(), TTAMachine::RegisterGuard::loadState(), TTAMachine::InstructionTemplate::loadState(), TTAMachine::Socket::loadState(), BusDialog::onAddFUGuard(), BusDialog::onAddRFGuard(), SocketDialog::onAttach(), BusDialog::onOK(), SocketDialog::onOK(), AddressSpaceDialog::onOK(), FUDialog::onOK(), GCUDialog::onOK(), IUDialog::onOK(), IUPortDialog::onOK(), RFDialog::onOK(), TemplateSlotDialog::onOK(), FUDialog::onSetAddressSpace(), FUPortDialog::onSocketChoice(), RFPortDialog::onSocketChoice(), SRPortDialog::onSocketChoice(), TTAMachine::Bus::position(), TTAProgram::TPEFResourceUpdater::registerFile(), TTAMachine::RegisterGuard::RegisterGuard(), ImmInfo::registerImmediateLoadWidth(), ControlFlowGraph::removeJumpToTarget(), TTAProgram::Program::replaceUniversalAddressSpaces(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), DataDependenceGraph::sanityCheck(), SocketDialog::segment(), FUGuardDialog::selectedFU(), RFGuardDialog::selectedRF(), TTAMachine::Machine::setBusPosition(), TTAMachine::Socket::setDirection(), TTAMachine::Bridge::setFirstOfChain(), TTAMachine::Machine::setGlobalControl(), TTAMachine::ControlUnit::setGlobalGuardLatency(), TTAMachine::RegisterFile::setGuardLatency(), TTAMachine::ImmediateSlot::setMachine(), TTAMachine::InstructionTemplate::setMachine(), TTAMachine::OperationTriggeredFormat::setMachine(), TTAMachine::AddressSpace::setName(), TTAMachine::Bridge::setName(), TTAMachine::Bus::setName(), TTAMachine::FunctionUnit::setName(), TTAMachine::ImmediateSlot::setName(), TTAMachine::InstructionTemplate::setName(), TTAMachine::RegisterFile::setName(), TTAMachine::Socket::setName(), TTAMachine::AddressSpace::setNumericalIds(), FullyConnectedCheck::socketAttachedToAllBusses(), BEMGenerator::sourceBridge(), BEMGenerator::sourceBridgeCount(), TTAMachine::InstructionTemplate::supportedWidth(), TTAProgram::Program::targetProcessor(), MachineConnectivityCheck::toRfConnected(), FUGuardDialog::TransferDataToWindow(), OTAOperationDialog::TransferDataToWindow(), RFGuardDialog::TransferDataToWindow(), TemplateSlotDialog::TransferDataToWindow(), TTAMachine::Machine::unsetGlobalControl(), TTAMachine::AddressSpace::unsetMachine(), TTAMachine::Bridge::unsetMachine(), TTAMachine::Bus::unsetMachine(), TTAMachine::ControlUnit::unsetMachine(), TTAMachine::FunctionUnit::unsetMachine(), TTAMachine::ImmediateSlot::unsetMachine(), TTAMachine::InstructionTemplate::unsetMachine(), TTAMachine::OperationTriggeredFormat::unsetMachine(), TTAMachine::RegisterFile::unsetMachine(), TTAMachine::Socket::unsetMachine(), TTAMachine::Unit::unsetMachine(), FUDialog::updateAddressSpaceChoice(), GCUDialog::updateAddressSpaceChoice(), SocketDialog::updateConnected(), IUPortDialog::updateSocket(), FUPortDialog::updateSockets(), RFPortDialog::updateSockets(), SRPortDialog::updateSockets(), IUDialog::updateTemplateList(), and TTAMachine::ImmediateSlot::width().

name()

TCEString TTAMachine::Component::name ( ) const

virtual

Returns the name of the component.

Returns

Name of the component.

Reimplemented in TTAMachine::NullInstructionTemplate, TTAMachine::NullRegisterFile, and TTAMachine::NullAddressSpace.

Definition at line 125 of file MachinePart.cc.

                      {
    return name_;
}

References name_.

Referenced by MemorySystem::addAddressSpace(), ADFCombiner::addAddressSpaces(), ProGe::NetlistGenerator::addBaseRFToNetlist(), CodeCompressorPlugin::addBitsForDestinationField(), CodeCompressorPlugin::addBitsForDstRegisterField(), CodeCompressorPlugin::addBitsForGuardField(), CodeCompressorPlugin::addBitsForMoveSlot(), CodeCompressorPlugin::addBitsForSourceField(), TTAMachine::Machine::addBus(), ADFCombiner::addBuses(), MachineResourceModifier::addBusesByAmount(), llvm::LLVMTCEBuilder::addCandidateLSUAnnotations(), RegisterCopyAdder::addCandidateSetAnnotations(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), SimpleICOptimizer::addConnections(), BEMGenerator::addEncodings(), BEMGenerator::addEncodings(), BEMGenerator::addEncodings(), BEMGenerator::addEncodings(), ProGe::NetlistGenerator::addFUExternalPortsToNetlist(), TTAMachine::Machine::addFunctionUnit(), ADFCombiner::addFunctionUnits(), ProGe::NetlistGenerator::addFUToNetlist(), DefaultICGenerator::addICToNetlist(), TTAMachine::Machine::addImmediateSlot(), BEMGenerator::addLongImmDstRegisterFields(), TTAProgram::Instruction::addMove(), TTAMachine::FunctionUnit::addPipelineElement(), BEMGenerator::addPortCodes(), MachineStateBuilder::addPortToFU(), TTAMachine::AddressSpace::AddressSpace(), OTAOperationDialog::addRISCVBaseOperations(), BEMGenerator::addRiscvFormat(), BEMGenerator::addSocketCodeTables(), ImmediateGenerator::addSplitInsTemplate(), BEMGenerator::addTopLevelFields(), MachineStateBuilder::addVirtualOpcodeSettingPortsToFU(), TTAMachine::Bus::adjustSegmentChain(), BusBroker::allAvailableResources(), InputFUBroker::allAvailableResources(), OutputFUBroker::allAvailableResources(), BF2Scheduler::allocateFunctionUnits(), TDGen::analyzeMachineRegisters(), ResourceConstraintAnalyzer::analyzeMoveNode(), TDGen::analyzeRegisters(), BFOptimization::assign(), ITemplateBroker::assign(), BFOptimization::assignCopyToPrologEpilog(), MachineStateBuilder::bindPortsToOperands(), TTAMachine::Bridge::Bridge(), MachineTestReporter::bridgingError(), MoveNodeGroupBuilder::build(), SimulationController::buildFUResourceConflictDetectors(), MachineStateBuilder::buildMachineState(), BusBroker::buildResources(), InputFUBroker::buildResources(), InputPSocketBroker::buildResources(), IUBroker::buildResources(), OutputFUBroker::buildResources(), OutputPSocketBroker::buildResources(), DefaultDecoderGenerator::busCntrlSignalPinOfSocket(), MachineConnectivityCheck::busConnectedToAnyFU(), DefaultDecoderGenerator::busMuxCntrlSignal(), DefaultICGenerator::busMuxControlPort(), DefaultICGenerator::busMuxDataPort(), DefaultICGenerator::busMuxEnablePort(), DefaultDecoderGenerator::busMuxEnableSignal(), DefaultICGenerator::busMuxEntityName(), DefaultICGenerator::busSignal(), CompiledSimSymbolGenerator::busSymbol(), ProGe::NetlistGenerator::calculateAddressWidth(), UtilizationStats::calculateForInstruction(), BFOptimization::canAssign(), FullyConnectedCheck::check(), OperationBindingCheck::check(), ProgrammabilityValidator::checkBooleanRegister(), POMValidator::checkConnectivity(), BEMValidator::checkDestinationField(), IDFValidator::checkFUImplementations(), BEMValidator::checkGuardField(), BEMValidator::checkImmediateControlField(), CopyingDelaySlotFiller::checkImmediatesAfter(), BEMValidator::checkImmediateSlot(), IDFValidator::checkIUImplementations(), ProGe::ProcessorGenerator::checkIULatencies(), BEMValidator::checkLImmDstRegisterFields(), POMValidator::checkLongImmediates(), BEMValidator::checkMoveSlot(), FUValidator::checkOperandBindings(), FUValidator::checkOperations(), IDFValidator::checkRFImplementations(), BEMValidator::checkSocketCodeTable(), BEMValidator::checkSourceField(), MinimalOpSetCheck::checkWithIgnore(), MachineResourceManager::codeAddressSpace(), CopyingDelaySlotFiller::collectMoves(), SimulatorFrontend::compareState(), DefaultDecoderGenerator::completeDecoderBlock(), Component(), ConflictDetectionCodeGenerator::ConflictDetectionCodeGenerator(), CompiledSimSymbolGenerator::conflictDetectorSymbol(), ADFCombiner::connectPorts(), ADFCombiner::connectRegisterFiles(), ADFCombiner::connectVectorLSU(), DataDependenceGraphBuilder::constructIndividualFromInlineAsmBB(), ADFCombiner::copyGuards(), BasicBlockPass::copyRMToBB(), MemoryGenerator::corePortName(), RegisterQuantityCheck::countIntRegisters(), TTAProgram::ProgramWriter::createASpaceElement(), TTAProgram::ProgramWriter::createBinary(), TTAProgram::ProgramWriter::createCodeSection(), BlocksTranslator::CreateConnection(), TTAProgram::ProgramWriter::createDataSections(), FUFactory::createEditPart(), GCUFactory::createEditPart(), IUFactory::createEditPart(), RFFactory::createEditPart(), FUGen::createExternalInterfaces(), POMDisassembler::createFUPort(), POMDisassembler::createGuard(), POMDisassembler::createImmediateRegister(), POMDisassembler::createInstruction(), ADFCombiner::createPortsAndSockets(), POMDisassembler::createRegister(), FullyConnectedCheck::createSocket(), FUTestbenchGenerator::createStimulus(), CompiledSimSymbolGenerator::DAMemorySymbol(), TTAProgram::DataMemory::dataDefinition(), TTAProgram::Program::dataMemory(), POMDisassembler::dataSectionDescription(), LLVMTCECmdLineOptions::dataStartAddress(), ConflictDetectionCodeGenerator::detectConflicts(), POMDisassembler::disassemble(), POMDisassembler::disassemble(), ProximBusDetailsCmd::Do(), ProximFUDetailsCmd::Do(), ProximFUPortDetailsCmd::Do(), ProximIUDetailsCmd::Do(), ProximRFDetailsCmd::Do(), ProximSocketDetailsCmd::Do(), PasteComponentCmd::Do(), MoveNodeDuplicator::duplicateMove(), llvm::LLVMTCEBuilder::emitLongjmp(), llvm::LLVMTCEBuilder::emitMove(), llvm::LLVMTCEBuilder::emitOperationMacro(), llvm::LLVMTCEBuilder::emitSetjmp(), CodeCompressorPlugin::encodeFUTerminal(), CodeCompressorPlugin::encodeIUTerminal(), CodeCompressorPlugin::encodeRFTerminal(), TTAProgram::TerminalAddress::equals(), TTAProgram::TerminalRegister::equals(), InterpolatingRFEstimator::estimateArea(), InterpolatingFUEstimator::estimateArea(), InterpolatingRFEstimator::estimateEnergy(), StrictMatchRFEstimator::estimateEnergy(), InterpolatingFUEstimator::estimateEnergy(), StrictMatchFUEstimator::estimateEnergy(), DefaultICDecoderEstimator::estimateICDelayOfPath(), DefaultICDecoderEstimator::estimateICEnergy(), InterpolatingRFEstimator::estimateMaximumComputationDelay(), InterpolatingFUEstimator::estimateMaximumComputationDelay(), InterpolatingFUEstimator::estimatePortReadDelay(), InterpolatingRFEstimator::estimatePortReadDelay(), InterpolatingFUEstimator::estimatePortWriteDelay(), InterpolatingRFEstimator::estimatePortWriteDelay(), InfoBussesCommand::execute(), InfoPortsCommand::execute(), InfoFunitsCommand::execute(), InfoProcCommand::execute(), InfoStatsCommand::execute(), BlocksConnectIC::explore(), VectorLSGenerator::explore(), VLIWConnectIC::explore(), TTAProgram::TPEFProgramFactory::findAddressSpace(), CostEstimator::Estimator::findAllICPaths(), SimulatorFrontend::findBooleanRegister(), ProGe::RV32MicroCodeGenerator::findBusWidths(), ProgrammabilityValidator::findConnections(), ProGe::NetlistGenerator::findCorrespondingPort(), AutoSelectImplementationsDialog::findFUImplementations(), TTAProgram::TPEFProgramFactory::findFunctionUnit(), ProgrammabilityValidator::findGlobalConnectionRegister(), DefaultDecoderGenerator::findGuard(), DefaultDecoderGenerator::findGuard(), TTAProgram::TPEFProgramFactory::findGuard(), RegisterQuantityCheck::findGuardRegisters(), TTAProgram::TPEFProgramFactory::findInstrTemplate(), AutoSelectImplementationsDialog::findIUImplementations(), MachineInfo::findLockUnits(), AlmaIFIntegrator::findMemories(), ControlFlowGraph::findNextIndex(), SimulatorFrontend::findPort(), TTAProgram::TPEFProgramFactory::findPort(), MachineConnectivityCheck::findPossibleDestinationPorts(), MachineConnectivityCheck::findPossibleSourcePorts(), AutoSelectImplementationsDialog::findRFImplementations(), TTAProgram::ProgramWriter::findSection(), SimulatorFrontend::finishSimulation(), MinimalOpSetCheck::fix(), RegisterCopyAdder::fixDDGEdgesInTempReg(), RegisterCopyAdder::fixDDGEdgesInTempRegChainImmediate(), ComponentImplementationSelector::fuImplementations(), TTAProgram::TPEFResourceUpdater::functionUnit(), CostEstimator::Estimator::functionUnitArea(), CostEstimator::Estimator::functionUnitEnergy(), MachineResourceManager::functionUnitID(), CostEstimator::Estimator::functionUnitMaximumComputationDelay(), CostEstimator::Estimator::functionUnitPortReadDelay(), MachineResourceManager::functionUnitPortResource(), CostEstimator::Estimator::functionUnitPortWriteDelay(), ProGeTestBenchGenerator::generate(), CompiledSimCodeGenerator::generateAddFUResult(), CompiledSimCodeGenerator::generateLoadTrigger(), CompiledSimCodeGenerator::generateStoreTrigger(), ProximBusEditPolicy::getCommand(), ProximFUEditPolicy::getCommand(), ProximIUEditPolicy::getCommand(), ProximRFEditPolicy::getCommand(), ProximSocketEditPolicy::getCommand(), ProDeBridgeEditPolicy::getCommand(), ProDeBusEditPolicy::getCommand(), ProDeFUEditPolicy::getCommand(), ProDeGCUEditPolicy::getCommand(), ProDeIUEditPolicy::getCommand(), ProDeRFEditPolicy::getCommand(), ProDeSocketEditPolicy::getCommand(), CopyingDelaySlotFiller::getMove(), CompiledSimCodeGenerator::guardPipelineTopSymbol(), DefaultDecoderGenerator::guardPortName(), DataDependenceGraph::guardRenamed(), RFAccessTracker::handleEvent(), ProcessorImplementationWindow::handleSelectFUImplementation(), ProcessorImplementationWindow::handleSelectIUImplementation(), ProcessorImplementationWindow::handleSelectRFImplementation(), MemorySystem::hasMemory(), TTAMachine::FunctionUnit::hasOperation(), UniversalFunctionUnit::hasOperation(), TTAMachine::FunctionUnit::hasOperationLowercase(), TTAMachine::FunctionUnit::hasOperationPort(), TTAMachine::FunctionUnit::hasPipelineElement(), TTAMachine::Unit::hasPort(), TTAMachine::Bus::hasSegment(), TTAMachine::ControlUnit::hasSpecialRegisterPort(), TTAMachine::ImmediateSlot::ImmediateSlot(), CodeCompressorPlugin::immediateTerminal(), TTAProgram::TPEFResourceUpdater::immediateUnit(), ProGe::NetlistGenerator::immediateUnitWritePort(), MachineResourceManager::indexResource(), llvm::LLVMTCEBuilder::initDataSections(), SimulatorFrontend::initializeDataMemories(), SimulatorFrontend::initializeMemorySystem(), MachineResourceManager::initResourceSection(), TTAMachine::InstructionTemplate::InstructionTemplate(), CodeCompressorPlugin::instructionTemplate(), RegisterCopyAdder::isAllowedUnit(), TTAMachine::FunctionUnit::isArchitectureEqual(), BusBroker::isAvailable(), LLVMTCECmdLineOptions::isDataStartAddressSet(), ProgramOperation::isLegalFU(), MoveNode::isSourceReg(), ComponentImplementationSelector::iuImplementations(), TTAMachine::ExecutionPipeline::latency(), ListCompareFunction(), PlatformIntegrator::loadFUExternalPorts(), ProximRegisterWindow::loadImmediateUnit(), ProximMemoryWindow::loadMemory(), ProximMemoryWindow::loadProgramMemory(), ProximRegisterWindow::loadRegisterFile(), TTAMachine::Bridge::loadState(), TTAMachine::ExecutionPipeline::loadState(), TTAMachine::FunctionUnit::loadState(), TTAMachine::PortGuard::loadState(), TTAMachine::RegisterGuard::loadState(), TTAMachine::HWOperation::loadState(), TTAMachine::InstructionTemplate::loadState(), loadState(), TTAMachine::Port::loadState(), TTAMachine::Socket::loadState(), TTAMachine::Bus::loadStateWithoutReferences(), TTAMachine::FUPort::loadStateWithoutReferences(), CostEstimator::Estimator::longestPath(), main(), MemorySystem::memory(), MemorySystem::memory(), MemorySystem::memoryConst(), ProGe::NetlistGenerator::netlistBlock(), ProGe::NetlistGenerator::netlistPort(), OTAOperationDialog::numberOfInputs(), OTAOperationDialog::numberOfOutputs(), BlockImplementationDialog::onHDBSelection(), BusDialog::onOK(), SocketDialog::onOK(), AddressSpaceDialog::onOK(), FUDialog::onOK(), GCUDialog::onOK(), IUDialog::onOK(), RFDialog::onOK(), RFGuardDialog::onOK(), TemplateSlotDialog::onOK(), DefaultDecoderGenerator::opcode(), TTAProgram::TPEFResourceUpdater::operand(), TTAMachine::FunctionUnit::operation(), UniversalFunctionUnit::operation(), CompiledSimSymbolGenerator::operationContextSymbol(), TTAMachine::FunctionUnit::operationLowercase(), TTAMachine::FunctionUnit::operationPort(), CompiledSimSymbolGenerator::operationSymbol(), TTAMachine::OperationTriggeredFormat::OperationTriggeredFormat(), BFLateBypass::operator()(), BFLateBypassGuard::operator()(), BFPushAntidepDown::operator()(), BFScheduleBU::operator()(), BFScheduleTD::operator()(), BFShareOperandWithScheduled::operator()(), BFEarlyGuardBypass::operator()(), TTAMachine::Component::ComponentNameComparator::operator()(), TTAMachine::PipelineElement::Comparator::operator()(), FUTestbenchGenerator::parseFuPorts(), TTAMachine::FunctionUnit::pipelineElement(), TTAMachine::Port::Port(), TTAMachine::BaseRegisterFile::port(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::port(), TTAMachine::PortGuard::PortGuard(), CompiledSimSymbolGenerator::portSymbol(), BF2Scheduler::preAllocateFunctionUnits(), BF2Scheduler::preAllocateFunctionUnitsInner(), ProgrammabilityValidator::printConnection(), ImmediateGenerator::printImmediateTemplates(), printLatexAddressSpaceDescription(), printLatexFunctionUnitDescription(), ProgrammabilityValidator::printNotConnectedSockets(), SimProgramBuilder::processBidirTerminal(), DataDependenceGraphBuilder::processGuard(), SimProgramBuilder::processInstruction(), SimProgramBuilder::processMove(), SimProgramBuilder::processSourceTerminal(), ProgrammabilityValidator::profile(), CodeCompressorPlugin::programImmediate(), ProGe::ProGeUI::readImemParameters(), PlatformIntegrator::readLsuParameters(), FUTestbenchGenerator::readValuesFromOutPorts(), TTAProgram::TPEFResourceUpdater::registerFile(), CostEstimator::Estimator::registerFileArea(), CostEstimator::Estimator::registerFileEnergy(), MachineResourceManager::registerFileID(), CostEstimator::Estimator::registerFileMaximumComputationDelay(), llvm::LLVMTCEIRBuilder::registerFileName(), CostEstimator::Estimator::registerFilePortReadDelay(), CostEstimator::Estimator::registerFilePortWriteDelay(), TTAMachine::RegisterGuard::RegisterGuard(), DisassemblyRegister::registerName(), ProximPortWindow::reinitialize(), BF2Scheduler::releasePortForOp(), SimpleICOptimizer::removeAllConnections(), ConnectionSweeper::removeConnection(), ImmediateGenerator::removeInsTemplate(), RegisterRenamer::renameLiveRange(), BF2Scheduler::reservePreallocatedFUs(), ResourceMapper::resourceOf(), BFUnscheduleFromBody::returnOriginal(), BFUnscheduleMove::returnOriginal(), BFShareOperandLate::revert(), ComponentImplementationSelector::rfImplementations(), TTAMachine::AddressSpace::saveState(), TTAMachine::Bridge::saveState(), TTAMachine::ControlUnit::saveState(), TTAMachine::FunctionUnit::saveState(), TTAMachine::PortGuard::saveState(), TTAMachine::RegisterGuard::saveState(), saveState(), TTAMachine::Port::saveState(), ProgrammabilityValidator::searchMissingRFConnections(), TTAMachine::Bus::segment(), ComponentImplementationSelector::selectFUs(), ComponentImplementationSelector::selectIUs(), ComponentImplementationSelector::selectRFs(), TTAMachine::Socket::setDirection(), TTAMachine::Machine::setGlobalControl(), SimControlLanguageCommand::setMemoryAddress(), TTAMachine::AddressSpace::setName(), TTAMachine::Bridge::setName(), TTAMachine::Bus::setName(), TTAMachine::FunctionUnit::setName(), TTAMachine::HWOperation::setName(), TTAMachine::ImmediateSlot::setName(), TTAMachine::ImmediateUnit::setName(), TTAMachine::InstructionTemplate::setName(), setName(), TTAMachine::RegisterFile::setName(), TTAMachine::Socket::setName(), BFOptimization::setPrologDstFUAnno(), BFOptimization::setPrologSrcFUAnno(), BusBroker::setupResourceLinks(), MemorySystem::shareMemoriesWith(), DefaultICGenerator::simmSignal(), DefaultICGenerator::simmSocket(), TTAMachine::ExecutionPipeline::slack(), MachineTestReporter::socketDirectionSettingError(), MachineTestReporter::socketPortConnectionError(), MachineTestReporter::socketSegmentConnectionError(), TTAMachine::ControlUnit::specialRegisterPort(), BFRegCopyAfter::splitMove(), BFRegCopyBefore::splitMove(), SimulatorFrontend::state(), ConnectionSweeper::sweepBypasses(), ConnectionSweeper::sweepRFs(), CompiledSimSymbolGenerator::targetMemorySymbol(), TTAProgram::ProgramWriter::terminalResource(), ProGe::RV32MicroCodeGenerator::throwInputPortError(), ProGe::RV32MicroCodeGenerator::throwOutputPortError(), ProGe::RV32MicroCodeGenerator::throwTriggeringPortError(), EntryKeyDataFunctionUnit::toString(), TTAProgram::TerminalRegister::toString(), CostEstimator::Estimator::totalAreaOfFunctionUnits(), CostEstimator::Estimator::totalAreaOfRegisterFiles(), CostEstimator::Estimator::totalEnergyOfFunctionUnits(), CostEstimator::Estimator::totalEnergyOfRegisterFiles(), AddressSpaceDialog::TransferDataToWindow(), BusDialog::TransferDataToWindow(), FUDialog::TransferDataToWindow(), FUGuardDialog::TransferDataToWindow(), GCUDialog::TransferDataToWindow(), IUDialog::TransferDataToWindow(), OTAOperationDialog::TransferDataToWindow(), RFGuardDialog::TransferDataToWindow(), TemplateSlotDialog::TransferDataToWindow(), PreOptimizer::tryToOptimizeAddressReg(), ITemplateBroker::unassignImmediate(), TTAMachine::UnconditionalGuard::UnconditionalGuard(), BFLateBypass::undoOnlyMe(), BFLateBypassGuard::undoOnlyMe(), BFRescheduleMove::undoOnlyMe(), BFUnscheduleFromBody::unscheduleOriginal(), BFUnscheduleMove::unscheduleOriginal(), TTAMachine::Bus::unsetMachine(), TTAMachine::ImmediateSlot::unsetMachine(), ProximPortWindow::update(), FUDialog::updateAddressSpaceChoice(), GCUDialog::updateAddressSpaceChoice(), AddressSpacesDialog::updateASList(), SocketDialog::updateConnected(), CompiledSimCodeGenerator::updateDeclaredSymbolsList(), BusDialog::updateGuardLists(), TemplateListDialog::updateSlotList(), IUPortDialog::updateSocket(), FUPortDialog::updateSockets(), RFPortDialog::updateSockets(), SRPortDialog::updateSockets(), RFDialog::updateWidgets(), ProgrammabilityValidator::validate(), ProgrammabilityValidator::validate(), OTAOperationDialog::validFormatName(), TTAMachine::ImmediateSlot::width(), DefaultDecoderGenerator::writeBusControlRulesOfOutputSocket(), DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus(), DefaultDecoderGenerator::writeControlRegisterMappings(), DefaultDecoderGenerator::writeControlRulesOfFUInputPort(), DefaultDecoderGenerator::writeControlRulesOfFUOutputPort(), DefaultDecoderGenerator::writeControlRulesOfRFReadPort(), DefaultDecoderGenerator::writeControlRulesOfRFWritePort(), DefaultDecoderGenerator::writeFUCntrlSignals(), DefaultDecoderGenerator::writeGlockMapping(), FUTestbenchGenerator::writeInputPortStimulus(), DefaultDecoderGenerator::writeInstructionTemplateProcedures(), DefaultICGenerator::writeInterconnectionNetwork(), DefaultDecoderGenerator::writeLongImmediateWriteProcess(), DefaultDecoderGenerator::writeRFCntrlSignals(), DefaultDecoderGenerator::writeRFSRAMDecodingProcess(), DefaultDecoderGenerator::writeRulesForSourceControlSignals(), DefaultDecoderGenerator::writeSimmDataSignal(), DefaultDecoderGenerator::writeSocketCntrlSignals(), DefaultDecoderGenerator::writeSquashSignalGenerationProcess(), DefaultDecoderGenerator::writeSquashSignals(), DefaultDecoderGenerator::writeSquashSignalSubstitution(), and DataDependenceGraph::writeToXMLFile().

operator=()

Component & TTAMachine::Component::operator= ( const Component &  )

private

Assingment forbidden.

saveState()

ObjectState * TTAMachine::Component::saveState ( ) const

virtual

Creates a new ObjectState instance and saves the name of the component into it.

Returns

The newly created ObjectState instance.

Implements Serializable.

Reimplemented in TTAMachine::AddressSpace, TTAMachine::BaseRegisterFile, TTAMachine::Bridge, TTAMachine::Bus, TTAMachine::ControlUnit, TTAMachine::FunctionUnit, TTAMachine::ImmediateSlot, TTAMachine::ImmediateUnit, TTAMachine::InstructionTemplate, TTAMachine::NullAddressSpace, TTAMachine::NullInstructionTemplate, TTAMachine::NullRegisterFile, TTAMachine::OperationTriggeredFormat, TTAMachine::RegisterFile, TTAMachine::Socket, and TTAMachine::Unit.

Definition at line 189 of file MachinePart.cc.

                           {
    ObjectState* state = new ObjectState(OSNAME_COMPONENT);
    state->setAttribute(OSKEY_NAME, name());
    return state;
}

References name(), OSKEY_NAME, OSNAME_COMPONENT, and ObjectState::setAttribute().

Referenced by CopyComponent::Do(), TTAMachine::Bridge::saveState(), TTAMachine::Bus::saveState(), TTAMachine::ImmediateSlot::saveState(), TTAMachine::InstructionTemplate::saveState(), TTAMachine::OperationTriggeredFormat::saveState(), TTAMachine::Socket::saveState(), and TTAMachine::Unit::saveState().

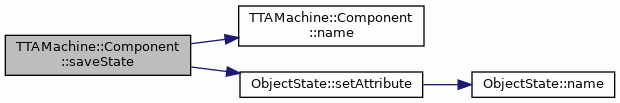

Here is the call graph for this function:

setMachine()

virtual void TTAMachine::Component::setMachine ( Machine &  machine )

pure virtual

Registers component into given Machine.

Parameters

machine

A Machine.

Implemented in TTAMachine::AddressSpace, TTAMachine::Bridge, TTAMachine::Bus, TTAMachine::ControlUnit, TTAMachine::NullRegisterFile, TTAMachine::Socket, TTAMachine::Unit, TTAMachine::NullAddressSpace, TTAMachine::ImmediateSlot, TTAMachine::InstructionTemplate, TTAMachine::NullInstructionTemplate, and TTAMachine::OperationTriggeredFormat.

setName()

void TTAMachine::Component::setName ( const std::string &  name )

virtual

Sets the name of the component.

Parameters

name	The new name.

Exceptions

ComponentAlreadExists	Sub class implementations may throw the exception if there exists another component by the same name in the machine already.
InvalidName	If the given name is not a valid name for a component.

Reimplemented in TTAMachine::AddressSpace, TTAMachine::Bridge, TTAMachine::Bus, TTAMachine::FunctionUnit, TTAMachine::ImmediateSlot, TTAMachine::ImmediateUnit, TTAMachine::InstructionTemplate, TTAMachine::NullInstructionTemplate, TTAMachine::NullRegisterFile, TTAMachine::RegisterFile, TTAMachine::Socket, UnboundedRegisterFile, and TTAMachine::NullAddressSpace.

Definition at line 142 of file MachinePart.cc.

                                        {
    if (!MachineTester::isValidComponentName(name)) {
        const string procName = "Component::setName";
        MOMTextGenerator textGen;
        format errorMsg = textGen.text(MOMTextGenerator::TXT_INVALID_NAME);
        errorMsg % name;
        throw InvalidName(__FILE__, __LINE__, procName, errorMsg.str());
    }

    name_ = name;
}

References MachineTester::isValidComponentName(), name(), name_, Texts::TextGenerator::text(), and MOMTextGenerator::TXT_INVALID_NAME.

Referenced by Component(), loadState(), TTAMachine::AddressSpace::setName(), TTAMachine::Bridge::setName(), TTAMachine::Bus::setName(), TTAMachine::FunctionUnit::setName(), TTAMachine::ImmediateSlot::setName(), TTAMachine::ImmediateUnit::setName(), TTAMachine::InstructionTemplate::setName(), TTAMachine::RegisterFile::setName(), and TTAMachine::Socket::setName().

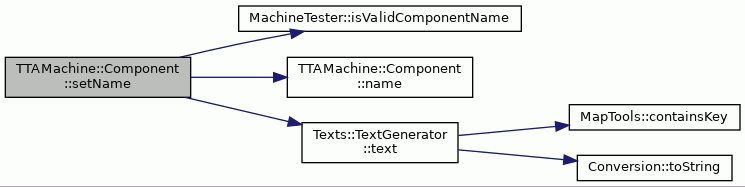

Here is the call graph for this function:

unsetMachine()

virtual void TTAMachine::Component::unsetMachine ( )

pure virtual

Removes component from its current Machine.

Implemented in TTAMachine::AddressSpace, TTAMachine::Bridge, TTAMachine::Bus, TTAMachine::ControlUnit, TTAMachine::FunctionUnit, TTAMachine::ImmediateSlot, TTAMachine::ImmediateUnit, TTAMachine::InstructionTemplate, TTAMachine::NullAddressSpace, TTAMachine::NullInstructionTemplate, TTAMachine::NullRegisterFile, TTAMachine::OperationTriggeredFormat, TTAMachine::RegisterFile, TTAMachine::Socket, and TTAMachine::Unit.

Referenced by TTAMachine::ImmediateUnit::unsetMachine(), and TTAMachine::RegisterFile::unsetMachine().

Member Data Documentation

machine_

Machine* TTAMachine::Component::machine_

private

Machine to which the component is registered.

Definition at line 155 of file MachinePart.hh.

Referenced by isRegistered().

name_

std::string TTAMachine::Component::name_

private

Name of the component.

Definition at line 153 of file MachinePart.hh.

Referenced by name(), and setName().

OSKEY_NAME

const string TTAMachine::Component::OSKEY_NAME = "name"

static

ObjectState attribute key for the name of the component.

Definition at line 137 of file MachinePart.hh.

Referenced by ADFSerializer::addressSpaceToMachine(), ADFSerializer::bridgeToMachine(), ADFSerializer::busToMachine(), Component(), ADFSerializer::controlUnitToMachine(), ADFSerializer::functionUnitToMachine(), ADFSerializer::immediateUnitToMachine(), ADFSerializer::instructionTemplateToMachine(), ADFSerializer::instructionTemplateToMDF(), TTAMachine::Machine::loadState(), loadState(), ADFSerializer::registerFileToMachine(), TTAMachine::AddressSpace::saveState(), saveState(), and ADFSerializer::socketToMachine().

OSNAME_COMPONENT

const string TTAMachine::Component::OSNAME_COMPONENT = "component"

static

ObjectState name for component.

Definition at line 135 of file MachinePart.hh.

Referenced by saveState().

---

The documentation for this class was generated from the following files:

• MachinePart.hh
• MachinePart.cc
