BackTraceCommand Class Reference

#include <BackTraceCommand.hh>

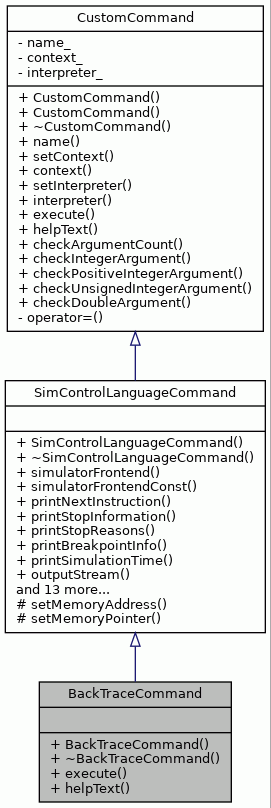

Inheritance diagram for BackTraceCommand:

Collaboration diagram for BackTraceCommand:

Public Member Functions
	BackTraceCommand ()
virtual	~BackTraceCommand ()
virtual bool	execute (const std::vector< DataObject > &arguments)
virtual std::string	helpText () const
Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)
virtual	~SimControlLanguageCommand ()
SimulatorFrontend &	simulatorFrontend ()
const SimulatorFrontend &	simulatorFrontendConst ()
virtual void	printNextInstruction ()
virtual void	printStopInformation ()
virtual void	printStopReasons ()
virtual bool	printBreakpointInfo (unsigned int breakpointHandle)
virtual void	printSimulationTime ()
virtual std::ostream &	outputStream ()
bool	checkSimulationInitialized ()
bool	checkSimulationNotAlreadyRunning ()
bool	checkSimulationStopped ()
bool	checkSimulationEnded ()
bool	checkProgramLoaded ()
bool	checkMachineLoaded ()
InstructionAddress	parseInstructionAddressExpression (const std::string &expression)
TTAProgram::Address	parseDataAddressExpression (const std::string &expression)
bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)
bool	askConditionFromUser (TclConditionScript &target)
bool	askExpressionFromUser (ExpressionScript &target)
bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)
void	setErrorMessage (const TCEString &errorMsg)
Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)
	CustomCommand (const CustomCommand &cmd)
virtual	~CustomCommand ()
std::string	name () const
void	setContext (InterpreterContext *context)
InterpreterContext *	context () const
void	setInterpreter (ScriptInterpreter *si)
ScriptInterpreter *	interpreter () const
bool	checkArgumentCount (int argumentCount, int minimum, int maximum)
bool	checkIntegerArgument (const DataObject &argument)
bool	checkPositiveIntegerArgument (const DataObject &argument)
bool	checkUnsignedIntegerArgument (const DataObject &argument)
bool	checkDoubleArgument (const DataObject &argument)

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)
bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the back trace command of the Simulator Control Language.

Definition at line 47 of file BackTraceCommand.hh.

Constructor & Destructor Documentation

BackTraceCommand()

BackTraceCommand::BackTraceCommand

(

)

Definition at line 40 of file BackTraceCommand.cc.

                                   : SimControlLanguageCommand("bt") {
}

~BackTraceCommand()

BackTraceCommand::~BackTraceCommand ( )

virtual

Definition at line 43 of file BackTraceCommand.cc.

                                    {
}

Member Function Documentation

execute()

bool BackTraceCommand::execute ( const std::vector< DataObject > &  arguments )

virtual

Implements CustomCommand.

Definition at line 47 of file BackTraceCommand.cc.

                                                                {
    if (!checkArgumentCount(arguments.size() - 1, 0, 0)) {
        return false;
    }

    if (!checkSimulationStopped()) {
        return false;
    }

    SimulatorInterpreterContext& interpreterContext =
        dynamic_cast<SimulatorInterpreterContext&>(interpreter()->context());

    SimulatorFrontend& simulatorFrontend =
        interpreterContext.simulatorFrontend();

    if (simulatorFrontend.callHistoryLength() == 0) {
        setErrorMessage(
            "Call history logging not enabled.\n"
            "Use 'setting call_history_length' to enable.");
        return false;
    }

    const CallPathTracker& cpt = simulatorFrontend.callPathTracker();

#if 0
    // move this to a separate call_path command or similar
    const CallPathTracker::ProcedureTransferQueue& callHistory =
        cpt.transfers();

    for (CallPathTracker::ProcedureTransferQueue::const_iterator i =
             callHistory.begin(); i != callHistory.end(); ++i) {
        CallPathTracker::ProcedureTransfer tr = *i;
        TCEString procName =
            dynamic_cast<const TTAProgram::Procedure&>(
                simulatorFrontend.program().instructionAt(tr.address).
                parent()).name();
        if (tr.isEntry) {
            outputStream()
                << "called ";
        } else {
            outputStream()
                << "returned to ";
        }
        outputStream()
            << procName << "@" << tr.sourceAddress << std::endl;
    }
#endif

    const CallPathTracker::ProcedureTransferQueue& calls =
        cpt.backTrace();
    int callLevel = 0;
    CallPathTracker::ProcedureTransferQueue::const_iterator i =
        calls.begin();
    for (; i != calls.end(); ++i) {
        CallPathTracker::ProcedureTransfer tr = *i;
        TCEString procName =
            dynamic_cast<const TTAProgram::Procedure&>(
                simulatorFrontend.program().instructionAt(tr.address).
                parent()).name();
        assert(tr.isEntry);
        outputStream()
            << "#" << callLevel << " called "
            << procName << "@" << tr.sourceAddress << std::endl;
        ++callLevel;
    }

    return true;
}

References CallPathTracker::ProcedureTransfer::address, assert, CallPathTracker::backTrace(), SimulatorFrontend::callHistoryLength(), SimulatorFrontend::callPathTracker(), CustomCommand::checkArgumentCount(), SimControlLanguageCommand::checkSimulationStopped(), ScriptInterpreter::context(), TTAProgram::Program::instructionAt(), CustomCommand::interpreter(), CallPathTracker::ProcedureTransfer::isEntry, CustomCommand::name(), SimControlLanguageCommand::outputStream(), SimulatorFrontend::program(), SimControlLanguageCommand::setErrorMessage(), SimControlLanguageCommand::simulatorFrontend(), SimulatorInterpreterContext::simulatorFrontend(), CallPathTracker::ProcedureTransfer::sourceAddress, and CallPathTracker::transfers().

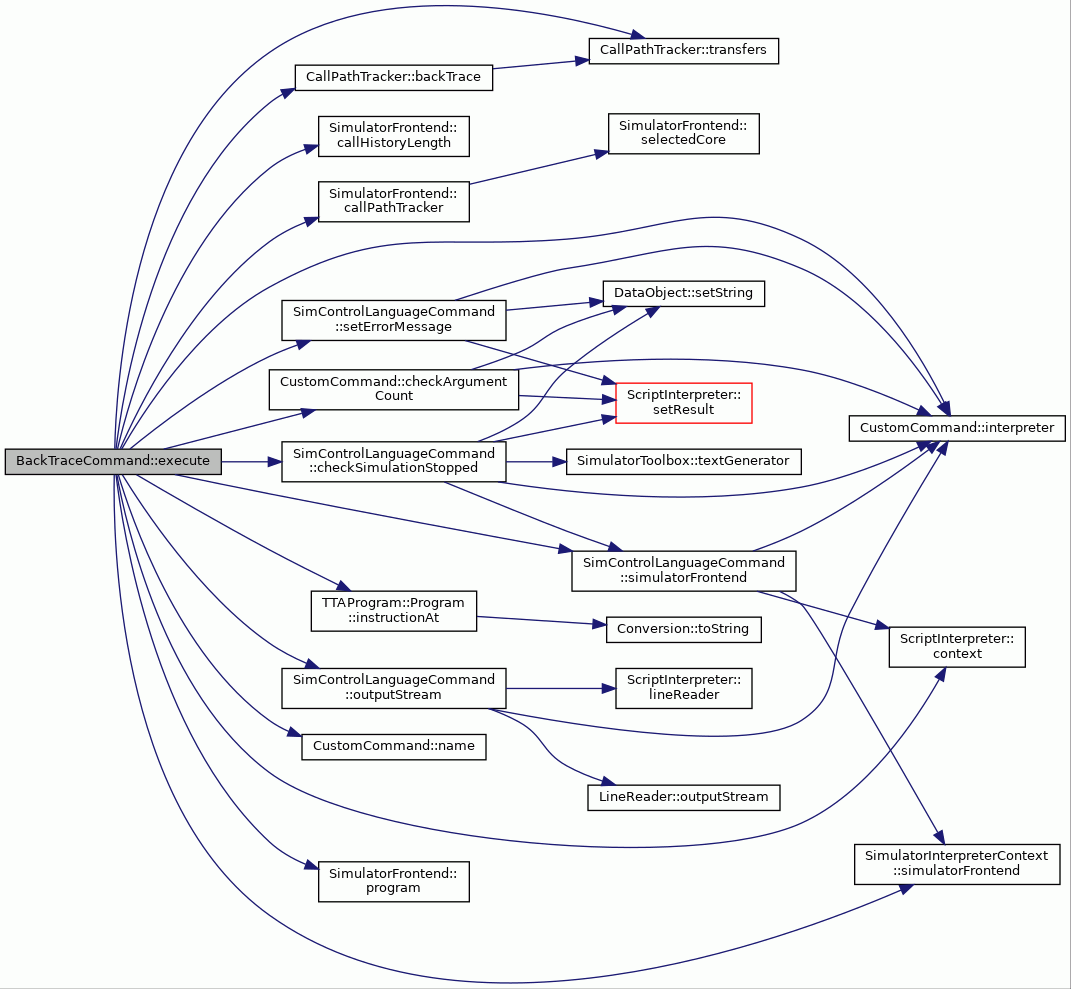

Here is the call graph for this function:

helpText()

std::string BackTraceCommand::helpText ( ) const

virtual

Implements CustomCommand.

Definition at line 117 of file BackTraceCommand.cc.

                                 {
    return std::string(
        "Prints the current call stack (back trace).\n"
        "Requires call history saving to be on.\n"
        "See 'setting call_history_length'.");
}

---

The documentation for this class was generated from the following files:

• BackTraceCommand.hh
• BackTraceCommand.cc
