CustomCommand Class Reference

#include <CustomCommand.hh>

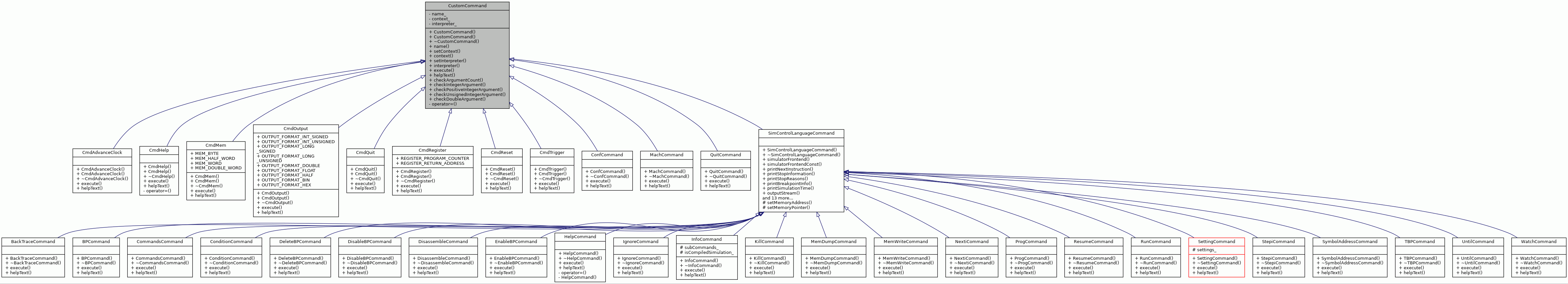

Inheritance diagram for CustomCommand:

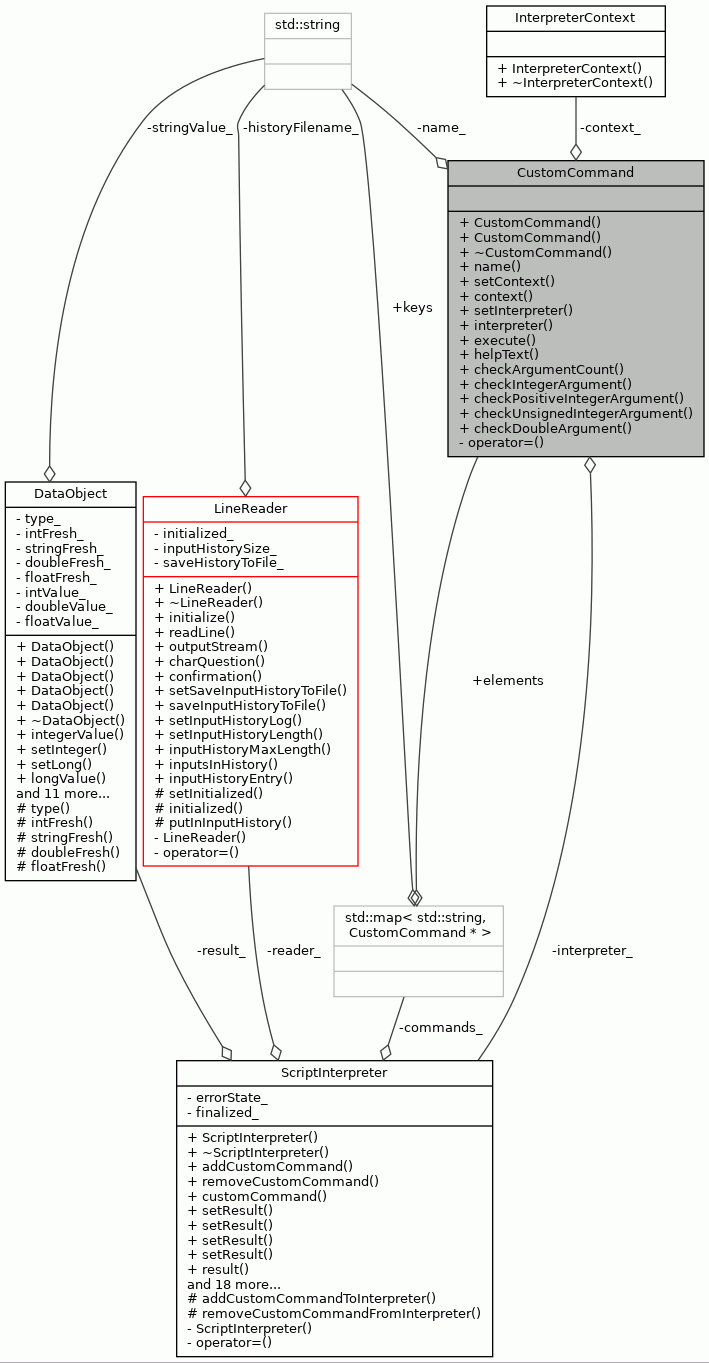

Collaboration diagram for CustomCommand:

Public Member Functions
	CustomCommand (std::string name)
	CustomCommand (const CustomCommand &cmd)
virtual	~CustomCommand ()
std::string	name () const
void	setContext (InterpreterContext *context)
InterpreterContext *	context () const
void	setInterpreter (ScriptInterpreter *si)
ScriptInterpreter *	interpreter () const
virtual bool	execute (const std::vector< DataObject > &arguments)=0
virtual std::string	helpText () const =0
bool	checkArgumentCount (int argumentCount, int minimum, int maximum)
bool	checkIntegerArgument (const DataObject &argument)
bool	checkPositiveIntegerArgument (const DataObject &argument)
bool	checkUnsignedIntegerArgument (const DataObject &argument)
bool	checkDoubleArgument (const DataObject &argument)

Private Member Functions
CustomCommand &	operator= (const CustomCommand &)
	Assignment not allowed.

Private Attributes
std::string	name_
	The name of the command.
InterpreterContext *	context_
	Context of the command.
ScriptInterpreter *	interpreter_
	Interpreter for the command.

Detailed Description

Abstract base class for all CustomCommands for Interpreter.

CustomCommand is a user defined command designed for a particular task.

Definition at line 54 of file CustomCommand.hh.

Constructor & Destructor Documentation

CustomCommand() [1/2]

CustomCommand::CustomCommand ( std::string  name )

explicit

Constructor.

Parameters

name	The name of the command.

Definition at line 48 of file CustomCommand.cc.

                                           :
    name_(name), context_(NULL), interpreter_(NULL) {
}

CustomCommand() [2/2]

CustomCommand::CustomCommand

(

const CustomCommand &

cmd

)

Copy Constructor.

Parameters

cmd	CustomCommand to be copied.

Definition at line 57 of file CustomCommand.cc.

                                                     :
    name_(cmd.name()), context_(cmd.context()),
    interpreter_(cmd.interpreter()) {
}

~CustomCommand()

CustomCommand::~CustomCommand ( )

virtual

Destructor.

Definition at line 66 of file CustomCommand.cc.

                              {
}

Member Function Documentation

checkArgumentCount()

bool CustomCommand::checkArgumentCount	(	int	argumentCount,
		int	minimum,
		int	maximum
	)

Checks if the count of arguments fits between the given minimum and maximum arguments.

If the count of arguments is wrong, sets the error message and returns false.

Parameters

argumentCount	The count of the arguments.
minimum	Minimum amount of arguments.
maximum	Maximum amount of arguments.

Returns

True if the count of arguments is valid.

Definition at line 82 of file CustomCommand.cc.

                 {

    if (argumentCount < minimum) {
        DataObject* result = new DataObject();
        result->setString("Not enough arguments.");
        interpreter()->setResult(result);
        return false;
    } else if (argumentCount > maximum) {
        DataObject* result = new DataObject();
        result->setString("Too many arguments.");
        interpreter()->setResult(result);
        return false;
    }
    return true;
}

References interpreter(), ScriptInterpreter::setResult(), and DataObject::setString().

Referenced by BackTraceCommand::execute(), CommandsCommand::execute(), ConditionCommand::execute(), DisableBPCommand::execute(), DisassembleCommand::execute(), EnableBPCommand::execute(), HelpCommand::execute(), IgnoreCommand::execute(), InfoCommand::execute(), KillCommand::execute(), MemDumpCommand::execute(), MemWriteCommand::execute(), NextiCommand::execute(), QuitCommand::execute(), ResumeCommand::execute(), SettingCommand::execute(), StepiCommand::execute(), SymbolAddressCommand::execute(), UntilCommand::execute(), and WatchCommand::execute().

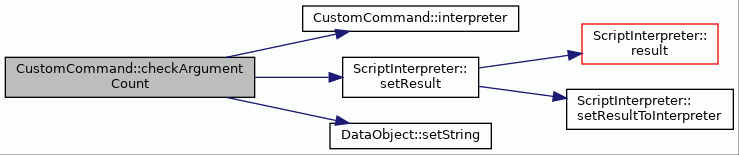

Here is the call graph for this function:

checkDoubleArgument()

bool CustomCommand::checkDoubleArgument

(

const DataObject &

argument

)

Checks if the given argument is a valid double

If the argument is not double, sets the error message and returns false.

Parameters

argument

The argument to check.

Returns

True if argument is double.

Definition at line 195 of file CustomCommand.cc.

                                                             {
    try {
        argument.doubleValue();
    } catch (const NumberFormatException&) {
        DataObject* result = new DataObject();
        result->setString("Argument not double as expected.");
        interpreter()->setResult(result);
        return false;
    }
    return true;
}

References DataObject::doubleValue(), interpreter(), ScriptInterpreter::setResult(), and DataObject::setString().

Referenced by StepiCommand::execute().

Here is the call graph for this function:

checkIntegerArgument()

bool CustomCommand::checkIntegerArgument

(

const DataObject &

argument

)

Checks if the given argument is an integer.

If argument is not integer, sets the error message and returns false.

Parameters

argument

The argument to check.

Returns

True if argument is integer.

Definition at line 110 of file CustomCommand.cc.

                                                              {
    try {
        argument.integerValue();
    } catch (const NumberFormatException&) {
        DataObject* result = new DataObject();
        result->setString("Argument not integer as expected.");
        interpreter()->setResult(result);
        return false;
    }
    return true;
}

References DataObject::integerValue(), interpreter(), ScriptInterpreter::setResult(), and DataObject::setString().

Referenced by ConditionCommand::execute().

Here is the call graph for this function:

checkPositiveIntegerArgument()

bool CustomCommand::checkPositiveIntegerArgument

(

const DataObject &

argument

)

Checks if the given argument is a positive integer (zero is included).

If argument is not positive integer, sets the error message and returns false. Note that this function assumes that the value range is that of an 'int', i.e., the maximum positive value is less than that of an 'unsigned int'.

Parameters

argument

The argument to check.

Returns

True if argument is integer.

Definition at line 134 of file CustomCommand.cc.

                                                                      {
    bool argumentOk = false;
    try {
        argumentOk = (argument.integerValue() >= 0);

    } catch (const NumberFormatException&) {
        argumentOk = false;
    }

    if (!argumentOk) {
        DataObject* result = new DataObject();
        result->setString("Argument not positive integer as expected.");
        interpreter()->setResult(result);
        return false;
    }

    return true;
}

References DataObject::integerValue(), interpreter(), ScriptInterpreter::setResult(), and DataObject::setString().

Referenced by CommandsCommand::execute(), IgnoreCommand::execute(), NextiCommand::execute(), ResumeCommand::execute(), and SimControlLanguageCommand::verifyBreakpointHandles().

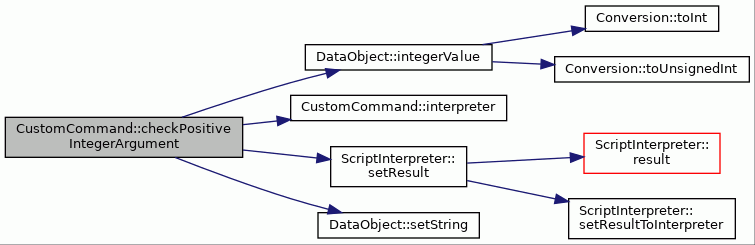

Here is the call graph for this function:

checkUnsignedIntegerArgument()

bool CustomCommand::checkUnsignedIntegerArgument

(

const DataObject &

argument

)

Checks if the given argument is an unsigned integer.

If argument is not unsigned integer, sets the error message and returns false. This function assumes that the value range of the argument is that of an 'unsigned int'.

Parameters

argument

The argument to check.

Returns

True if argument is integer.

Definition at line 164 of file CustomCommand.cc.

                                                                      {

    try {
        if (argument.stringValue().size() > 0) {
            // ensure the first char is a digit, not a '-'
            if (isdigit(argument.stringValue().at(0))) {
                // this should throw NumberFormatException if the argument
                // cannot be converted to an int
                argument.integerValue();
                return true;
            }
        }
    } catch (const NumberFormatException&) {
    }

    // some of the checks failed, it's not an unsigned int
    DataObject* result = new DataObject();
    result->setString("Argument not positive integer as expected.");
    interpreter()->setResult(result);
    return false;
}

References DataObject::integerValue(), interpreter(), ScriptInterpreter::setResult(), DataObject::setString(), and DataObject::stringValue().

Referenced by MemDumpCommand::execute().

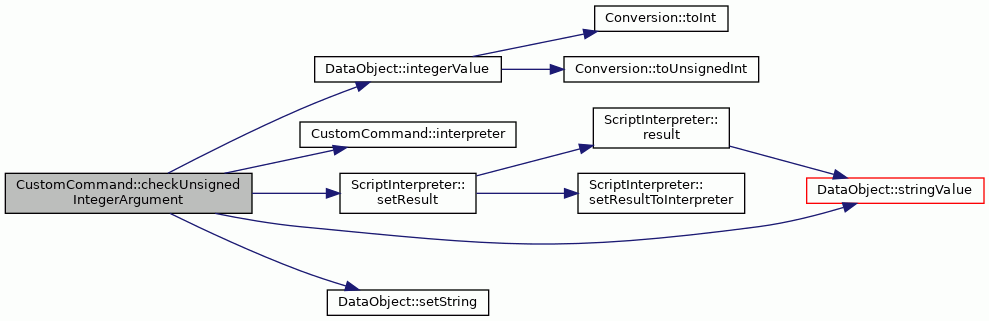

Here is the call graph for this function:

context()

InterpreterContext * CustomCommand::context

(

)

const

Referenced by CmdTrigger::execute(), CmdReset::execute(), CmdOutput::execute(), CmdRegister::execute(), CmdMem::execute(), CmdAdvanceClock::execute(), and CmdOutput::helpText().

execute()

virtual bool CustomCommand::execute ( const std::vector< DataObject > &  arguments )

pure virtual

Implemented in CmdHelp, BackTraceCommand, BPCommand, CommandsCommand, ConditionCommand, ConfCommand, DeleteBPCommand, DisableBPCommand, DisassembleCommand, EnableBPCommand, HelpCommand, IgnoreCommand, InfoCommand, KillCommand, MachCommand, MemDumpCommand, MemWriteCommand, NextiCommand, ProgCommand, QuitCommand, ResumeCommand, RunCommand, SettingCommand, StepiCommand, SymbolAddressCommand, TBPCommand, UntilCommand, WatchCommand, CmdTrigger, CmdReset, CmdQuit, CmdOutput, CmdRegister, CmdMem, and CmdAdvanceClock.

Referenced by TclInterpreter::customCommandRedirector(), and SimpleScriptInterpreter::interpret().

helpText()

virtual std::string CustomCommand::helpText ( ) const

pure virtual

Implemented in CmdHelp, BackTraceCommand, BPCommand, CommandsCommand, ConditionCommand, ConfCommand, DeleteBPCommand, DisableBPCommand, DisassembleCommand, EnableBPCommand, HelpCommand, IgnoreCommand, InfoCommand, KillCommand, MachCommand, MemDumpCommand, MemWriteCommand, NextiCommand, ProgCommand, QuitCommand, ResumeCommand, RunCommand, SettingCommand, StepiCommand, SymbolAddressCommand, TBPCommand, UntilCommand, WatchCommand, CmdTrigger, CmdReset, CmdQuit, CmdOutput, CmdRegister, CmdMem, and CmdAdvanceClock.

Referenced by CmdHelp::execute(), and HelpCommand::execute().

interpreter()

ScriptInterpreter * CustomCommand::interpreter

(

)

const

Referenced by SimControlLanguageCommand::askConditionFromUser(), SimControlLanguageCommand::askExpressionFromUser(), checkArgumentCount(), checkDoubleArgument(), checkIntegerArgument(), SimControlLanguageCommand::checkMachineLoaded(), checkPositiveIntegerArgument(), SimControlLanguageCommand::checkProgramLoaded(), SimControlLanguageCommand::checkSimulationEnded(), SimControlLanguageCommand::checkSimulationInitialized(), SimControlLanguageCommand::checkSimulationNotAlreadyRunning(), SimControlLanguageCommand::checkSimulationStopped(), checkUnsignedIntegerArgument(), CmdHelp::execute(), BackTraceCommand::execute(), CommandsCommand::execute(), ConditionCommand::execute(), ConfCommand::execute(), DeleteBPCommand::execute(), DisassembleCommand::execute(), HelpCommand::execute(), IgnoreCommand::execute(), InfoRegistersCommand::execute(), InfoImmediatesCommand::execute(), InfoRegFilesCommand::execute(), InfoIunitsCommand::execute(), InfoBussesCommand::execute(), InfoPortsCommand::execute(), InfoSegmentsCommand::execute(), InfoFunitsCommand::execute(), InfoProcCommand::execute(), InfoStatsCommand::execute(), InfoProgramCommand::execute(), InfoCommand::execute(), KillCommand::execute(), MachCommand::execute(), MemDumpCommand::execute(), MemWriteCommand::execute(), ProgCommand::execute(), QuitCommand::execute(), SettingCommand::execute(), SymbolAddressCommand::execute(), CmdTrigger::execute(), CmdReset::execute(), CmdQuit::execute(), CmdOutput::execute(), CmdRegister::execute(), CmdMem::execute(), CmdAdvanceClock::execute(), CmdOutput::helpText(), SimControlLanguageCommand::outputStream(), SimControlLanguageCommand::parseBreakpoint(), SimControlLanguageCommand::parseDataAddressExpression(), SimControlLanguageCommand::parseInstructionAddressExpression(), SimControlLanguageCommand::printBreakpointInfo(), SimControlLanguageCommand::setErrorMessage(), SimControlLanguageCommand::setMemoryPointer(), SimControlLanguageCommand::simulatorFrontend(), and SimControlLanguageCommand::verifyBreakpointHandles().

name()

std::string CustomCommand::name

(

)

const

Referenced by ScriptInterpreter::addCustomCommand(), TclInterpreter::addCustomCommandToInterpreter(), BackTraceCommand::execute(), and TclInterpreter::removeCustomCommandFromInterpreter().

operator=()

CustomCommand & CustomCommand::operator= ( const CustomCommand &  )

private

Assignment not allowed.

setContext()

void CustomCommand::setContext

(

InterpreterContext *

context

)

setInterpreter()

void CustomCommand::setInterpreter

(

ScriptInterpreter *

si

)

Referenced by ScriptInterpreter::addCustomCommand().

Member Data Documentation

context_

InterpreterContext* CustomCommand::context_

private

Context of the command.

Definition at line 85 of file CustomCommand.hh.

interpreter_

ScriptInterpreter* CustomCommand::interpreter_

private

Interpreter for the command.

Definition at line 87 of file CustomCommand.hh.

name_

std::string CustomCommand::name_

private

The name of the command.

Definition at line 83 of file CustomCommand.hh.

---

The documentation for this class was generated from the following files:

• CustomCommand.hh
• CustomCommand.cc
