#include <BridgeFactory.hh>

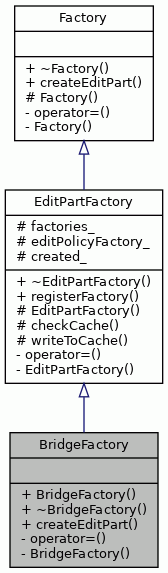

Inheritance diagram for BridgeFactory:

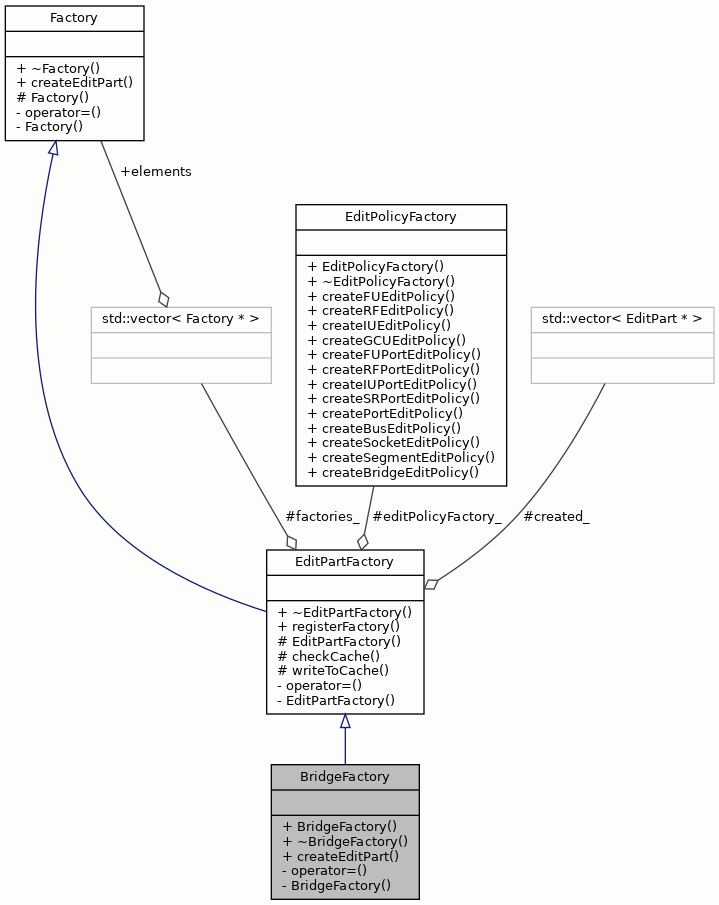

Collaboration diagram for BridgeFactory:

Public Member Functions
	BridgeFactory (EditPolicyFactory &editPolicyFactory)

virtual	~BridgeFactory ()

virtual EditPart *	createEditPart (TTAMachine::MachinePart *component)

Public Member Functions inherited from EditPartFactory
virtual	~EditPartFactory ()

void	registerFactory (Factory *factory)

Public Member Functions inherited from Factory
virtual	~Factory ()

Private Member Functions
BridgeFactory &	operator= (BridgeFactory &old)
	Assignment not allowed.

	BridgeFactory (BridgeFactory &old)
	Copying not allowed.

Additional Inherited Members
Protected Member Functions inherited from EditPartFactory
	EditPartFactory (EditPolicyFactory &editPolicyFactory)

EditPart *	checkCache (const TTAMachine::MachinePart *component) const

void	writeToCache (EditPart *editPart)

Protected Member Functions inherited from Factory
	Factory ()

Protected Attributes inherited from EditPartFactory
std::vector< Factory * >	factories_
	Registered factories.

EditPolicyFactory &	editPolicyFactory_
	Factory which creates edit policies for edit parts.

Static Protected Attributes inherited from EditPartFactory
static std::vector< EditPart * >	created_
	Container for already created EditParts.

Detailed Description

Factory for creating bridge EditParts corresponding to a given Machine Bridge object.

Definition at line 45 of file BridgeFactory.hh.

Constructor & Destructor Documentation

◆ BridgeFactory() [1/2]

BridgeFactory::BridgeFactory ( EditPolicyFactory & editPolicyFactory )

The Constructor.

Definition at line 50 of file BridgeFactory.cc.

                                                                :
    EditPartFactory(editPolicyFactory) {

    registerFactory(new BusFactory(editPolicyFactory));
}

References EditPartFactory::registerFactory().

Here is the call graph for this function:

◆ ~BridgeFactory()

BridgeFactory::~BridgeFactory ( )

virtual

The Destructor.

Definition at line 59 of file BridgeFactory.cc.

59 {

60}

◆ BridgeFactory() [2/2]

BridgeFactory::BridgeFactory ( BridgeFactory & old )

private

Copying not allowed.

Member Function Documentation

◆ createEditPart()

EditPart * BridgeFactory::createEditPart ( TTAMachine::MachinePart * component )

virtual

Returns an EditPart corresponding to a bridge.

Parameters

component Bridge of which to create the EditPart.

Returns: NULL if the parameter is not an instance of the Bridge class.

Implements Factory.

Definition at line 70 of file BridgeFactory.cc.

                                                    {

    Bridge* bridge = dynamic_cast<Bridge*>(component);

    if (bridge != NULL) {

    ConnectionEditPart* bridgeEditPart = new ConnectionEditPart();

    bridgeEditPart->setModel(bridge);
    BridgeFigure* fig = new BridgeFigure();
    bridgeEditPart->setFigure(fig);

    vector<Factory*>::const_iterator iter;

    for (iter = factories_.begin(); iter != factories_.end(); iter++) {

        EditPart* busEditPart = (*iter)->createEditPart(
        (MachinePart*)bridge->sourceBus());

        if (busEditPart != NULL) {
        bridgeEditPart->setSource(busEditPart);
        bridgeEditPart->setTarget(
            (*iter)->createEditPart(
            (MachinePart*)bridge->destinationBus()));
        break;
        }
    }

    assert(bridgeEditPart->target() != NULL &&
           bridgeEditPart->source() != NULL);

    bridgeEditPart->setSelectable(true);

    EditPolicy* editPolicy = editPolicyFactory_.createBridgeEditPolicy();
    if (editPolicy != NULL) {
        bridgeEditPart->installEditPolicy(editPolicy);
    }

    return bridgeEditPart;

    } else {
    return NULL;
    }
}

References assert, EditPolicyFactory::createBridgeEditPolicy(), TTAMachine::Bridge::destinationBus(), EditPartFactory::editPolicyFactory_, EditPartFactory::factories_, EditPart::installEditPolicy(), EditPart::setFigure(), EditPart::setModel(), EditPart::setSelectable(), ConnectionEditPart::setSource(), ConnectionEditPart::setTarget(), ConnectionEditPart::source(), TTAMachine::Bridge::sourceBus(), and ConnectionEditPart::target().

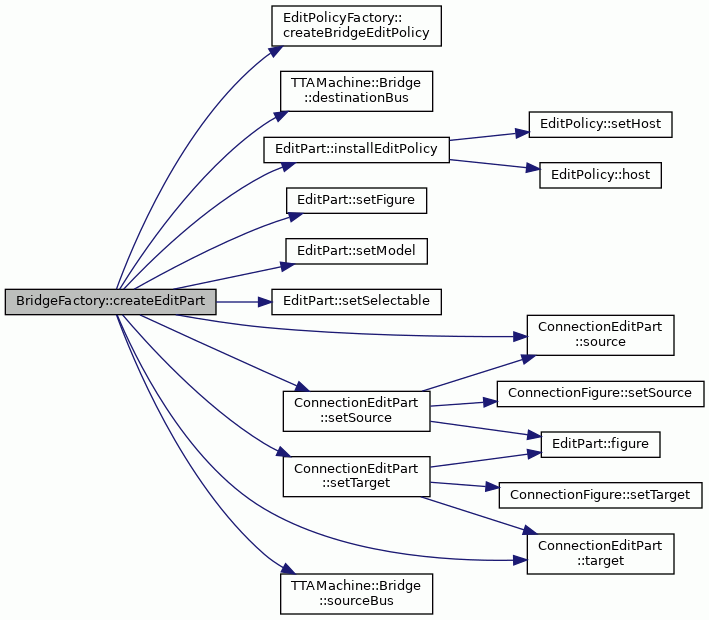

Here is the call graph for this function:

◆ operator=()

BridgeFactory & BridgeFactory::operator= ( BridgeFactory & old )

private

Assignment not allowed.

The documentation for this class was generated from the following files:
