#include <Bridge.hh>

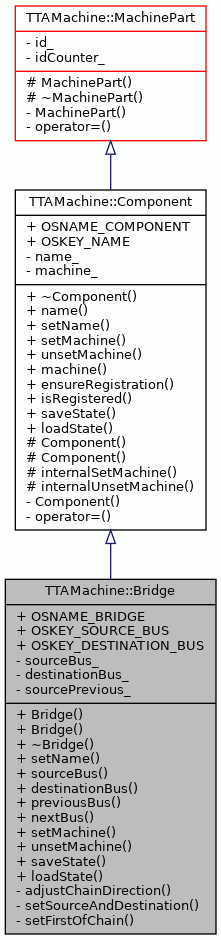

Inheritance diagram for TTAMachine::Bridge:

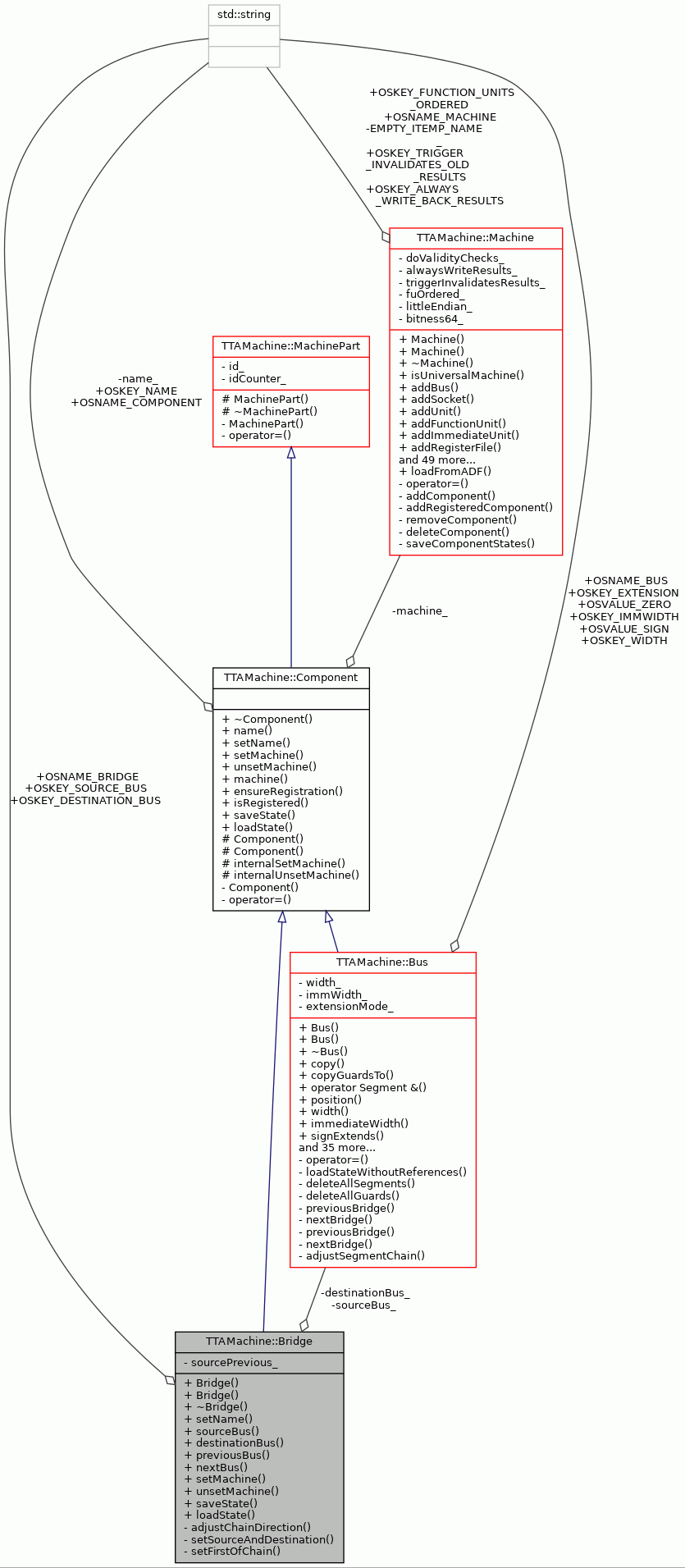

Collaboration diagram for TTAMachine::Bridge:

Public Member Functions
	Bridge (const std::string &name, Bus &sourceBus, Bus &destinationBus)

	Bridge (const ObjectState *state, Machine &mach)

virtual	~Bridge ()

virtual void	setName (const std::string &name)

Bus *	sourceBus () const

Bus *	destinationBus () const

Bus *	previousBus () const

Bus *	nextBus () const

virtual void	setMachine (Machine &mach)

virtual void	unsetMachine ()

virtual ObjectState *	saveState () const

virtual void	loadState (const ObjectState *state)

Public Member Functions inherited from TTAMachine::Component
virtual	~Component ()

virtual TCEString	name () const

virtual Machine *	machine () const

virtual void	ensureRegistration (const Component &component) const

virtual bool	isRegistered () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_BRIDGE = "bridge"
	ObjectState name for bridge.

static const std::string	OSKEY_SOURCE_BUS = "source"
	ObjectState attribute key for source bus name.

static const std::string	OSKEY_DESTINATION_BUS = "destination"
	ObjectState attribute key for destination bus name.

Static Public Attributes inherited from TTAMachine::Component
static const std::string	OSNAME_COMPONENT = "component"
	ObjectState name for component.

static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for the name of the component.

Private Member Functions
void	adjustChainDirection (const Bus &sourceBus, const Bus &destinationBus)

void	setSourceAndDestination (Bus &sourceBus, Bus &destination)

Static Private Member Functions
static void	setFirstOfChain (const Bus &bus)

Private Attributes
Bus *	sourceBus_
	Source bus.

Bus *	destinationBus_
	Destination bus.

bool	sourcePrevious_
	Indicates which of the buses is previous and next.

Additional Inherited Members
Protected Member Functions inherited from TTAMachine::Component
	Component (const std::string &name)

	Component (const ObjectState *state)

void	internalSetMachine (Machine &machine)

void	internalUnsetMachine ()

Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()

virtual	~MachinePart ()

Detailed Description

Represents a bridge in the machine.

Definition at line 51 of file Bridge.hh.

Constructor & Destructor Documentation

◆ Bridge() [1/2]

TTAMachine::Bridge::Bridge	(	const std::string &	name,
		Bus &	sourceBus,
		Bus &	destinationBus
	)

Constructor.

Parameters

name	Name of the bridge.
sourceBus	Bus from which the bridge reads data.
destinationBus	Bus to which the bridge writes data.

Exceptions

IllegalRegistration	If the given source and destination buses are not registered to the same machine.
ComponentAlreadyExists	If there is another bridge by the same name in the machine which contains the source and destination buses.
IllegalConnectivity	If the bridge cannot be created because it would violate a connectivity constraint.
IllegalParameters	If the given buses are the same instance.
InvalidName	If the given name is not a valid component name.

Definition at line 74 of file Bridge.cc.

    : Component(name), sourceBus_(NULL), destinationBus_(NULL) {
    const string procName = "Bridge::Bridge";

    if (&sourceBus == &destinationBus) {
        throw IllegalParameters(__FILE__, __LINE__, procName);
    }

    sourceBus.ensureRegistration(destinationBus);
    MachineTester& tester = sourceBus.machine()->machineTester();
    if (!tester.canBridge(sourceBus, destinationBus)) {
        string errorMsg = MachineTestReporter::bridgingError(
            sourceBus, destinationBus, tester);
        throw IllegalConnectivity(__FILE__, __LINE__, procName, errorMsg);
    }

    setMachine(*sourceBus.machine());
    setSourceAndDestination(sourceBus, destinationBus);
}

References MachineTestReporter::bridgingError(), MachineTester::canBridge(), destinationBus(), TTAMachine::Component::ensureRegistration(), TTAMachine::Component::machine(), TTAMachine::Machine::machineTester(), setMachine(), setSourceAndDestination(), and sourceBus().

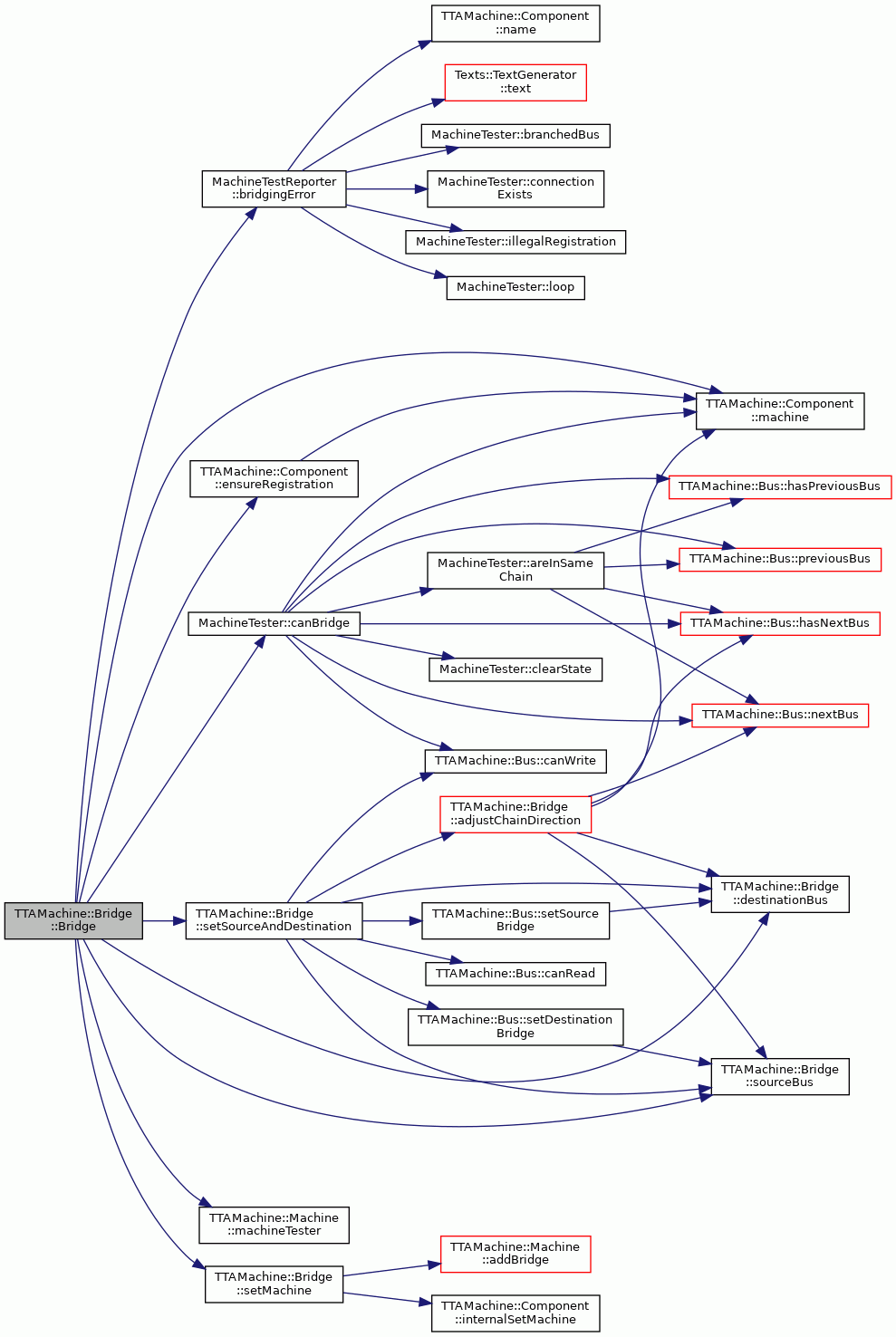

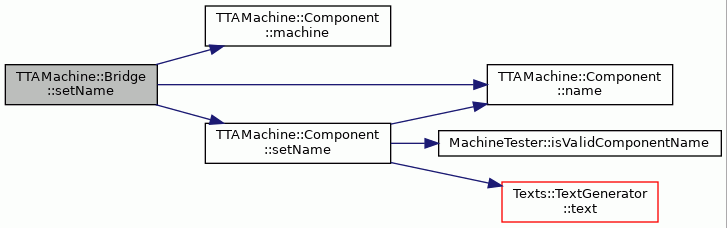

Here is the call graph for this function:

◆ Bridge() [2/2]

TTAMachine::Bridge::Bridge	(	const ObjectState *	state,
		Machine &	mach
	)

Constructor.

Creates a skeleton objects with name only. This constructor should be used by Machine::loadState only. Do not use this constructor.

Parameters

state	The ObjectState instance.
mach	The machine to which the bridge belongs.

Exceptions

ObjectStateLoadingException If the machine already has a bridge by the same name as the coming name of this bridge or if the ObjectState instance is invalid.

Definition at line 107 of file Bridge.cc.

    : Component(state), sourceBus_(NULL), destinationBus_(NULL) {
    Machine::BridgeNavigator bridgeNav = mach.bridgeNavigator();

    if (!bridgeNav.hasItem(name())) {
        setMachine(mach);
    } else {
        MOMTextGenerator textGenerator;
        format errorMsg = textGenerator.text(MOMTextGenerator::
                                             TXT_BRIDGE_EXISTS_BY_SAME_NAME);
        errorMsg % name();
        string procName = "Bridge::Bridge";
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                          errorMsg.str());
    }
}

References TTAMachine::Machine::bridgeNavigator(), TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Component::name(), setMachine(), and Texts::TextGenerator::text().

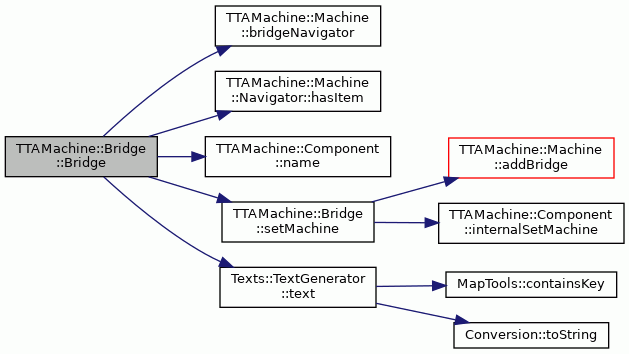

Here is the call graph for this function:

◆ ~Bridge()

TTAMachine::Bridge::~Bridge ( )

virtual

Destructor.

Definition at line 127 of file Bridge.cc.

                {
    unsetMachine();
}

References unsetMachine().

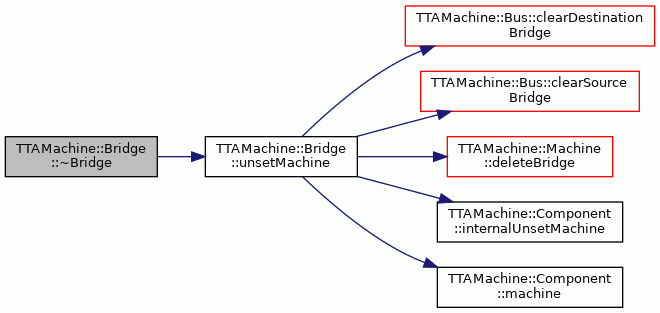

Here is the call graph for this function:

Member Function Documentation

◆ adjustChainDirection()

void TTAMachine::Bridge::adjustChainDirection	(	const Bus &	sourceBus,
		const Bus &	destinationBus
	)

private

Adjusts the direction of the bus chain (next/previous).

When two bus chains are joined by a new bridge the direction of the destination side chain may have to be changed to verify that the direction of the new longer chain does not change in the middle of the chain. That is, if the source bus of the new bridge is the last of its chain and the destination bus of the new bridge is also the last, the direction of the destination side chain has to be changed such that the destination bus will become the first bus of its chain.

Parameters

sourceBus	The new source side bus.
destinationBus	The new destination side bus.

Definition at line 327 of file Bridge.cc.

                               {

    Machine* mach = sourceBus.machine();
    Machine::BridgeNavigator bridgeNav = mach->bridgeNavigator();

    // if another bridge joining the buses is found, see the direction
    // from that bridge
    for (int i = 0; i < bridgeNav.count(); i++) {
        Bridge* bridge = bridgeNav.item(i);
        if (bridge->sourceBus() == &destinationBus &&
            bridge->destinationBus() == &sourceBus) {
            if (bridge->previousBus() == &sourceBus) {
                sourcePrevious_ = true;
            } else {
                sourcePrevious_ = false;
            }
            return;
        }
    }

    // change the direction of the bus chain containing destinationBus if
    // needed
    if (!sourceBus.hasNextBus()) {
        sourcePrevious_ = true;
        setFirstOfChain(destinationBus);
    } else {
        sourcePrevious_ = false;
        // find the bus that should be the first bus of destination side
        // chain
        const Bus* otherEnd = &destinationBus;
        while (otherEnd->hasNextBus()) {
            otherEnd = otherEnd->nextBus();
        }
        if (otherEnd != &destinationBus) {
            setFirstOfChain(*otherEnd);
        }
    }
}

References TTAMachine::Machine::bridgeNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), destinationBus(), TTAMachine::Bus::hasNextBus(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), TTAMachine::Bus::nextBus(), previousBus(), setFirstOfChain(), sourceBus(), and sourcePrevious_.

Referenced by setSourceAndDestination().

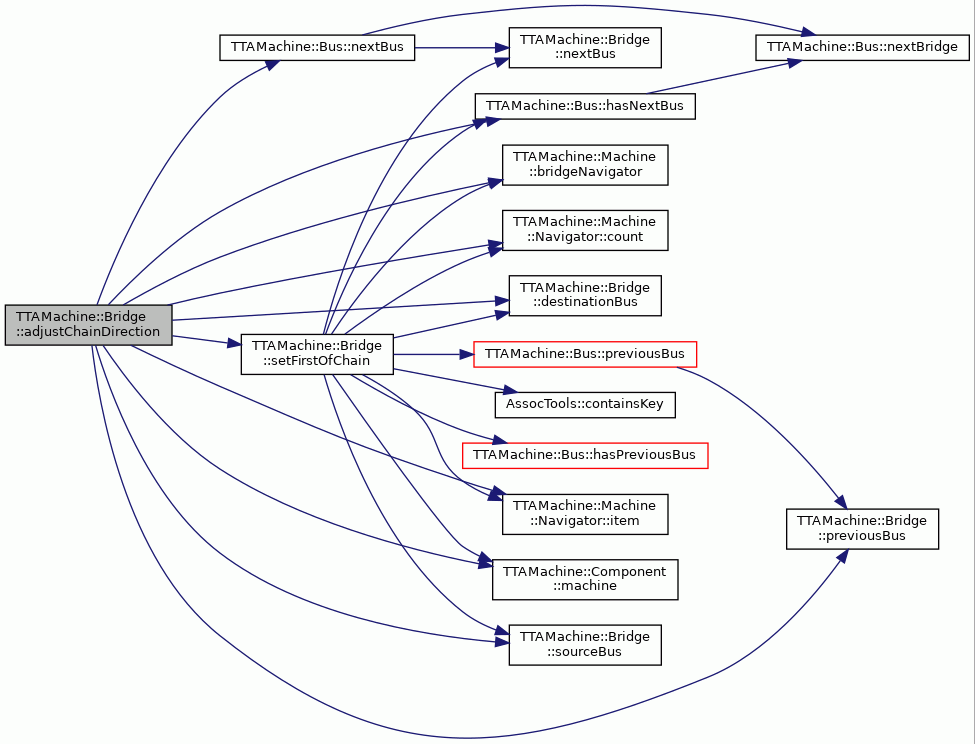

Here is the call graph for this function:

◆ destinationBus()

Bus * TTAMachine::Bridge::destinationBus ( ) const

Referenced by adjustChainDirection(), Bridge(), BEMValidator::checkSourceField(), TTAMachine::Bus::clearSourceBridge(), MachineEditPartFactory::connected(), BridgeFactory::createEditPart(), loadState(), setFirstOfChain(), setSourceAndDestination(), TTAMachine::Bus::setSourceBridge(), BEMGenerator::sourceBridge(), and BEMGenerator::sourceBridgeCount().

◆ loadState()

void TTAMachine::Bridge::loadState ( const ObjectState * state )

virtual

Loads its state from the given ObjectState instance.

If the bridge is already joining two buses, the function will not work and ObjectStateLoadingException is thrown. This method works only if the bridge was created by the constructor with ObjectState argument.

Parameters

state The ObjectState instance.

Exceptions

ObjectStateLoadingException If the machine already a bridge by the same name as the coming name of this bridge or if creating references fails or if the given ObjectState instance is invalid.

Reimplemented from TTAMachine::Component.

Definition at line 264 of file Bridge.cc.

                                          {
    const string procName = "Bridge::loadState";

    if (state->name() != OSNAME_BRIDGE) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }
    if (sourceBus() != NULL || destinationBus() != NULL) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    Component::loadState(state);

    try {
        string sourceBusName = state->stringAttribute(OSKEY_SOURCE_BUS);
        string destinationBusName =
            state->stringAttribute(OSKEY_DESTINATION_BUS);

        assert(isRegistered());
        Machine::BusNavigator busNav = machine()->busNavigator();
        Bus* source;
        Bus* destination;
        try {
            source = busNav.item(sourceBusName);
            destination = busNav.item(destinationBusName);
        } catch (InstanceNotFound& e) {
            MOMTextGenerator textGenerator;
            format errorMsg = textGenerator.text(
                MOMTextGenerator::TXT_BRIDGE_UNKNOWN_SRC_OR_DST);
            errorMsg % name();
            throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                              errorMsg.str());
        }
        MachineTester& tester = machine()->machineTester();
        if (tester.canBridge(*source, *destination)) {
            setSourceAndDestination(*source, *destination);
        } else {
            string errorMsg = MachineTestReporter::bridgingError(
                *source, *destination, tester);
            throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                              errorMsg);
        }

    } catch(Exception& e) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                          e.errorMessage());
    }
}

References assert, MachineTestReporter::bridgingError(), TTAMachine::Machine::busNavigator(), MachineTester::canBridge(), destinationBus(), Exception::errorMessage(), TTAMachine::Component::isRegistered(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::loadState(), TTAMachine::Component::machine(), TTAMachine::Machine::machineTester(), TTAMachine::Component::name(), ObjectState::name(), OSKEY_DESTINATION_BUS, OSKEY_SOURCE_BUS, OSNAME_BRIDGE, setSourceAndDestination(), sourceBus(), ObjectState::stringAttribute(), Texts::TextGenerator::text(), and MOMTextGenerator::TXT_BRIDGE_UNKNOWN_SRC_OR_DST.

Referenced by TTAMachine::Machine::loadState().

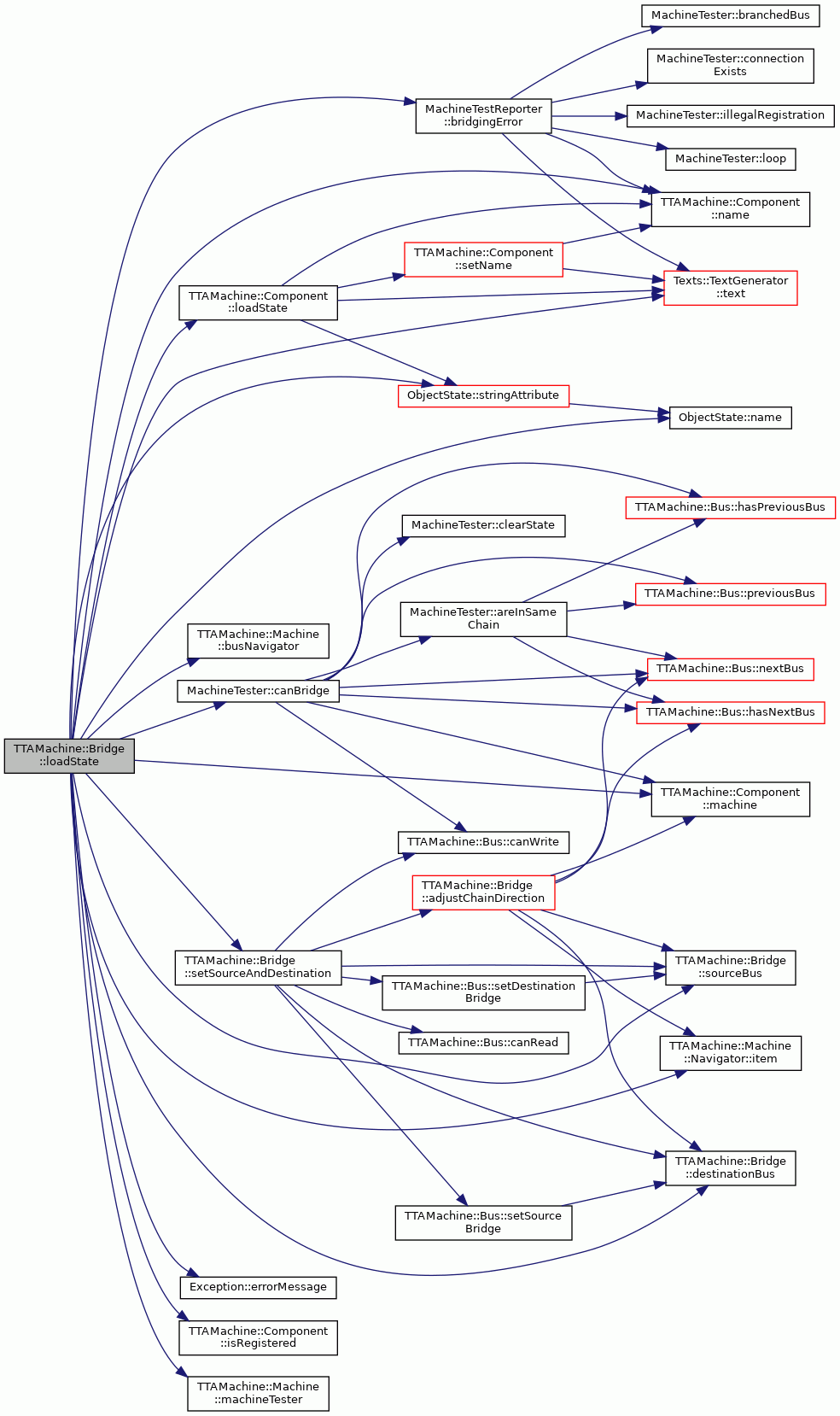

Here is the call graph for this function:

◆ nextBus()

Bus * TTAMachine::Bridge::nextBus ( ) const

Returns the next bus from location point of view.

Returns: The next bus.

Definition at line 179 of file Bridge.cc.

                      {
    if (sourcePrevious_) {
        return destinationBus_;
    } else {
        return sourceBus_;
    }
}

References destinationBus_, sourceBus_, and sourcePrevious_.

Referenced by TTAMachine::Bus::nextBus(), TTAMachine::Bus::previousBridge(), and setFirstOfChain().

◆ previousBus()

Bus * TTAMachine::Bridge::previousBus ( ) const

Returns the previous bus from location point of view.

Returns: The previous bus.

Definition at line 164 of file Bridge.cc.

                          {
    if (sourcePrevious_) {
        return sourceBus_;
    } else {
        return destinationBus_;
    }
}

References destinationBus_, sourceBus_, and sourcePrevious_.

Referenced by adjustChainDirection(), TTAMachine::Bus::nextBridge(), and TTAMachine::Bus::previousBus().

◆ saveState()

ObjectState * TTAMachine::Bridge::saveState ( ) const

virtual

Saves the contents to an ObjectState object.

Returns: The newly created ObjectState object.

Reimplemented from TTAMachine::Component.

Definition at line 238 of file Bridge.cc.

                        {
    ObjectState* bridge = Component::saveState();
    bridge->setName(OSNAME_BRIDGE);
    string sourceBusName = sourceBus_->name();
    string destinationBusName = destinationBus_->name();
    bridge->setAttribute(OSKEY_SOURCE_BUS, sourceBusName);
    bridge->setAttribute(OSKEY_DESTINATION_BUS, destinationBusName);
    return bridge;
}

References destinationBus_, TTAMachine::Component::name(), OSKEY_DESTINATION_BUS, OSKEY_SOURCE_BUS, OSNAME_BRIDGE, TTAMachine::Component::saveState(), ObjectState::setAttribute(), ObjectState::setName(), and sourceBus_.

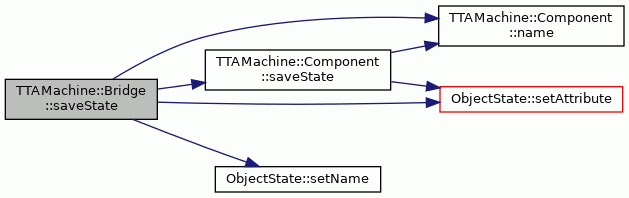

Here is the call graph for this function:

◆ setFirstOfChain()

void TTAMachine::Bridge::setFirstOfChain ( const Bus & bus )

staticprivate

Sets the given bus to the first bus of the bus chain.

That is, changes the direction of the chain if the given bus is currently the last bus of the chain. The given bus must be at the end of chain.

Parameters

bus	The bus to be set to the first bus of the chain.

Definition at line 400 of file Bridge.cc.

                                      {

    assert(!(bus.hasPreviousBus() && bus.hasNextBus()));

    if (bus.hasNextBus()) {
        // if the bus is already the first
        return;
    } else {
        const Bus* observable = &bus;

        // collect the buses of the chain to set
        set<const Bus*> busesInChain;
        busesInChain.insert(observable);
        while (observable->hasPreviousBus()) {
            observable = observable->previousBus();
            busesInChain.insert(observable);
        }

        Machine::BridgeNavigator bridgeNav =
            bus.machine()->bridgeNavigator();
        // change (next/previous) direction of each bridge that is joining
        // a bus in the set
        for (int i = 0; i < bridgeNav.count(); i++) {
            Bridge* bridge = bridgeNav.item(i);
            // Source bus or destination bus is NULL only if the bridge
            // was created from ObjectState. Then calling nextBus() is
            // illegal because sourcePrevious_ member is not initialized.
            if (bridge->sourceBus() != NULL &&
                bridge->destinationBus() != NULL &&
                AssocTools::containsKey(busesInChain, bridge->nextBus())) {
                bridge->sourcePrevious_ = !bridge->sourcePrevious_;
            }
        }
    }
}

References assert, TTAMachine::Machine::bridgeNavigator(), AssocTools::containsKey(), TTAMachine::Machine::Navigator< ComponentType >::count(), destinationBus(), TTAMachine::Bus::hasNextBus(), TTAMachine::Bus::hasPreviousBus(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), nextBus(), TTAMachine::Bus::previousBus(), sourceBus(), and sourcePrevious_.

Referenced by adjustChainDirection().

Here is the call graph for this function:

◆ setMachine()

void TTAMachine::Bridge::setMachine ( Machine & mach )

virtual

Registers the bridge to a machine.

Parameters

mach	Machine to which the bridge is going to be registered.

Exceptions

ComponentAlreadyExists If the given machine already has another bridge by the same name.

Implements TTAMachine::Component.

Definition at line 196 of file Bridge.cc.

                                {
    mach.addBridge(*this);
    internalSetMachine(mach);
}

References TTAMachine::Machine::addBridge(), and TTAMachine::Component::internalSetMachine().

Referenced by Bridge(), and Bridge().

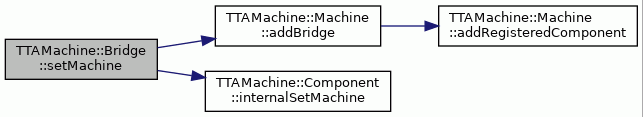

Here is the call graph for this function:

◆ setName()

void TTAMachine::Bridge::setName ( const std::string & name )

virtual

Sets the name of the bridge.

Parameters

name	Name of the bridge.

Exceptions

ComponentAlreadyExists	If a bridge with the given name is already in the same machine.
InvalidName	If the given name is not a valid component name.

Reimplemented from TTAMachine::Component.

Definition at line 141 of file Bridge.cc.

                                  {
    if (name == this->name()) {
        return;
    }

    if (machine() != NULL) {
        if (machine()->bridgeNavigator().hasItem(name)) {
            string procName = "Bridge::setName";
            throw ComponentAlreadyExists(__FILE__, __LINE__, procName);
        } else {
            Component::setName(name);
        }
    } else {
        Component::setName(name);
    }
}

References TTAMachine::Component::machine(), TTAMachine::Component::name(), and TTAMachine::Component::setName().

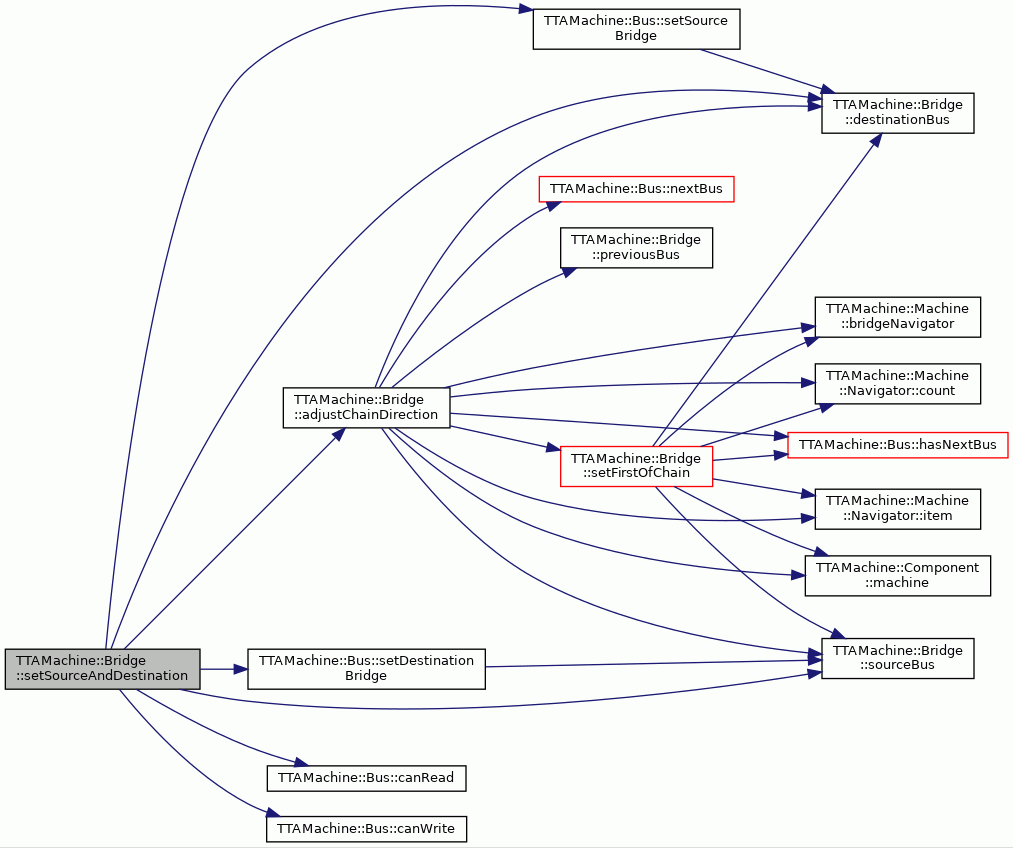

Here is the call graph for this function:

◆ setSourceAndDestination()

void TTAMachine::Bridge::setSourceAndDestination	(	Bus &	sourceBus,
		Bus &	destinationBus
	)

private

Sets the source and destination buses of the bridge.

The bridge must not have source and destination buses before calling this method.

Parameters

sourceBus	The source bus.
destinationBus	The destination bus.

Definition at line 379 of file Bridge.cc.

                                                                   {
    assert(sourceBus_ == NULL && destinationBus_ == NULL);
    assert(!sourceBus.canWrite(destinationBus));
    assert(!destinationBus.canRead(sourceBus));
    adjustChainDirection(sourceBus, destinationBus);
    sourceBus.setDestinationBridge(*this);
    destinationBus.setSourceBridge(*this);
    sourceBus_ = &sourceBus;
    destinationBus_ = &destinationBus;
}

References adjustChainDirection(), assert, TTAMachine::Bus::canRead(), TTAMachine::Bus::canWrite(), destinationBus(), destinationBus_, TTAMachine::Bus::setDestinationBridge(), TTAMachine::Bus::setSourceBridge(), sourceBus(), and sourceBus_.

Referenced by Bridge(), and loadState().

Here is the call graph for this function:

◆ sourceBus()

Bus * TTAMachine::Bridge::sourceBus ( ) const

Referenced by adjustChainDirection(), Bridge(), TTAMachine::Bus::clearDestinationBridge(), MachineEditPartFactory::connected(), BridgeFactory::createEditPart(), loadState(), TTAMachine::Bus::setDestinationBridge(), setFirstOfChain(), and setSourceAndDestination().

◆ unsetMachine()

void TTAMachine::Bridge::unsetMachine ( )

virtual

Removes registration of the bridge from its current machine.

The bridge is deleted because it cannot be unregistered from the machine.

Implements TTAMachine::Component.

Definition at line 207 of file Bridge.cc.

                     {

    assert(machine() != NULL);

    Bus* oldSource = sourceBus_;
    Bus* oldDestination = destinationBus_;
    sourceBus_ = NULL;
    destinationBus_ = NULL;

    if (oldSource != NULL) {
        // may be NULL if loading the state from ObjectState has failed
        oldSource->clearDestinationBridge(*this);
    }

    if (oldDestination != NULL) {
        // may be NULL if loading the state from ObjectState has failed
        oldDestination->clearSourceBridge(*this);
    }

    Machine* mach = machine();
    internalUnsetMachine();
    mach->deleteBridge(*this);
}

References assert, TTAMachine::Bus::clearDestinationBridge(), TTAMachine::Bus::clearSourceBridge(), TTAMachine::Machine::deleteBridge(), destinationBus_, TTAMachine::Component::internalUnsetMachine(), TTAMachine::Component::machine(), and sourceBus_.

Referenced by ~Bridge().

Here is the call graph for this function:

Member Data Documentation

◆ destinationBus_

Bus* TTAMachine::Bridge::destinationBus_

private

Destination bus.

Definition at line 86 of file Bridge.hh.

Referenced by nextBus(), previousBus(), saveState(), setSourceAndDestination(), and unsetMachine().

◆ OSKEY_DESTINATION_BUS

const string TTAMachine::Bridge::OSKEY_DESTINATION_BUS = "destination"

static

ObjectState attribute key for destination bus name.

Definition at line 74 of file Bridge.hh.

Referenced by ADFSerializer::bridgeToMachine(), ADFSerializer::bridgeToMDF(), loadState(), and saveState().

◆ OSKEY_SOURCE_BUS

const string TTAMachine::Bridge::OSKEY_SOURCE_BUS = "source"

static

ObjectState attribute key for source bus name.

Definition at line 72 of file Bridge.hh.

Referenced by ADFSerializer::bridgeToMachine(), ADFSerializer::bridgeToMDF(), loadState(), and saveState().

◆ OSNAME_BRIDGE

const string TTAMachine::Bridge::OSNAME_BRIDGE = "bridge"

static

ObjectState name for bridge.

Definition at line 70 of file Bridge.hh.

Referenced by ADFSerializer::bridgeToMachine(), ADFSerializer::convertToMDFFormat(), loadState(), TTAMachine::Machine::loadState(), and saveState().

◆ sourceBus_

Bus* TTAMachine::Bridge::sourceBus_

private

Source bus.

Definition at line 84 of file Bridge.hh.

Referenced by nextBus(), previousBus(), saveState(), setSourceAndDestination(), and unsetMachine().

◆ sourcePrevious_

bool TTAMachine::Bridge::sourcePrevious_

private

Indicates which of the buses is previous and next.

Definition at line 88 of file Bridge.hh.

Referenced by adjustChainDirection(), nextBus(), previousBus(), and setFirstOfChain().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Bridge() [1/2]

◆ Bridge() [2/2]

◆ ~Bridge()

Member Function Documentation

◆ adjustChainDirection()

◆ destinationBus()

◆ loadState()

◆ nextBus()

◆ previousBus()

◆ saveState()

◆ setFirstOfChain()

◆ setMachine()

◆ setName()

◆ setSourceAndDestination()

◆ sourceBus()

◆ unsetMachine()

Member Data Documentation

◆ destinationBus_

◆ OSKEY_DESTINATION_BUS

◆ OSKEY_SOURCE_BUS

◆ OSNAME_BRIDGE

◆ sourceBus_

◆ sourcePrevious_
