#include <ConditionCommand.hh>

Inheritance diagram for ConditionCommand:

Collaboration diagram for ConditionCommand:

Public Member Functions
	ConditionCommand ()

virtual	~ConditionCommand ()

virtual bool	execute (const std::vector< DataObject > &arguments)

virtual std::string	helpText () const

Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)

virtual	~SimControlLanguageCommand ()

SimulatorFrontend &	simulatorFrontend ()

const SimulatorFrontend &	simulatorFrontendConst ()

virtual void	printNextInstruction ()

virtual void	printStopInformation ()

virtual void	printStopReasons ()

virtual bool	printBreakpointInfo (unsigned int breakpointHandle)

virtual void	printSimulationTime ()

virtual std::ostream &	outputStream ()

bool	checkSimulationInitialized ()

bool	checkSimulationNotAlreadyRunning ()

bool	checkSimulationStopped ()

bool	checkSimulationEnded ()

bool	checkProgramLoaded ()

bool	checkMachineLoaded ()

InstructionAddress	parseInstructionAddressExpression (const std::string &expression)

TTAProgram::Address	parseDataAddressExpression (const std::string &expression)

bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)

bool	askConditionFromUser (TclConditionScript &target)

bool	askExpressionFromUser (ExpressionScript &target)

bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)

void	setErrorMessage (const TCEString &errorMsg)

Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)

	CustomCommand (const CustomCommand &cmd)

virtual	~CustomCommand ()

std::string	name () const

void	setContext (InterpreterContext *context)

InterpreterContext *	context () const

void	setInterpreter (ScriptInterpreter *si)

ScriptInterpreter *	interpreter () const

bool	checkArgumentCount (int argumentCount, int minimum, int maximum)

bool	checkIntegerArgument (const DataObject &argument)

bool	checkPositiveIntegerArgument (const DataObject &argument)

bool	checkUnsignedIntegerArgument (const DataObject &argument)

bool	checkDoubleArgument (const DataObject &argument)

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)

bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the "condition" command of the Simulator Control Language.

Definition at line 47 of file ConditionCommand.hh.

Constructor & Destructor Documentation

◆ ConditionCommand()

ConditionCommand::ConditionCommand ( )

Constructor.

Sets the name of the command to the base class.

Definition at line 52 of file ConditionCommand.cc.

                                   :
    SimControlLanguageCommand("condition") {
}

◆ ~ConditionCommand()

ConditionCommand::~ConditionCommand ( )

virtual

Destructor.

Does nothing.

Definition at line 61 of file ConditionCommand.cc.

61 {

62}

Member Function Documentation

◆ execute()

bool ConditionCommand::execute ( const std::vector< DataObject > & arguments )

virtual

Executes the "condition" command.

Modifies conditions of breakpoints.

Parameters

arguments The handle of the breakpoint of which condition to modify.

Returns: True in case simulation is initialized and arguments are ok.

Exceptions

NumberFormatException Is never thrown by this command.

Todo:: Use the count for the step.

Implements CustomCommand.

Definition at line 75 of file ConditionCommand.cc.

                                                                {
    if (!checkArgumentCount(arguments.size() - 1, 1, 1)) {
        return false;
    }

    if (!checkSimulationStopped()) {
        if (!checkSimulationInitialized()) {
            return false;
        }
    }

    if (arguments.size() == 2) {
        if  (!checkIntegerArgument(arguments[1])) {
            return false;
        }
        const int breakpointHandle = arguments[1].integerValue();
        try {
            StopPointManager& stopPointManager =
                simulatorFrontend().stopPointManager();
            stopPointManager.stopPointWithHandleConst(breakpointHandle);

            TclConditionScript condition(NULL, "");
            if (!askConditionFromUser(condition)) {
                return false;
            }
            assert(condition.script().size() > 0);
            if (condition.script().at(0) == "1") {
                stopPointManager.removeCondition(breakpointHandle);
            } else {
                stopPointManager.setCondition(breakpointHandle, condition);
            }
            printBreakpointInfo(breakpointHandle);
        } catch (const InstanceNotFound&) {
            interpreter()->setError(
                SimulatorToolbox::textGenerator().text(
                    Texts::TXT_BREAKPOINT_NOT_FOUND).str());
            return false;
        }


    }
    return true;
}

References SimControlLanguageCommand::askConditionFromUser(), assert, CustomCommand::checkArgumentCount(), CustomCommand::checkIntegerArgument(), SimControlLanguageCommand::checkSimulationInitialized(), SimControlLanguageCommand::checkSimulationStopped(), CustomCommand::interpreter(), SimControlLanguageCommand::printBreakpointInfo(), StopPointManager::removeCondition(), TclConditionScript::script(), StopPointManager::setCondition(), ScriptInterpreter::setError(), SimControlLanguageCommand::simulatorFrontend(), SimulatorFrontend::stopPointManager(), StopPointManager::stopPointWithHandleConst(), SimulatorToolbox::textGenerator(), and Texts::TXT_BREAKPOINT_NOT_FOUND.

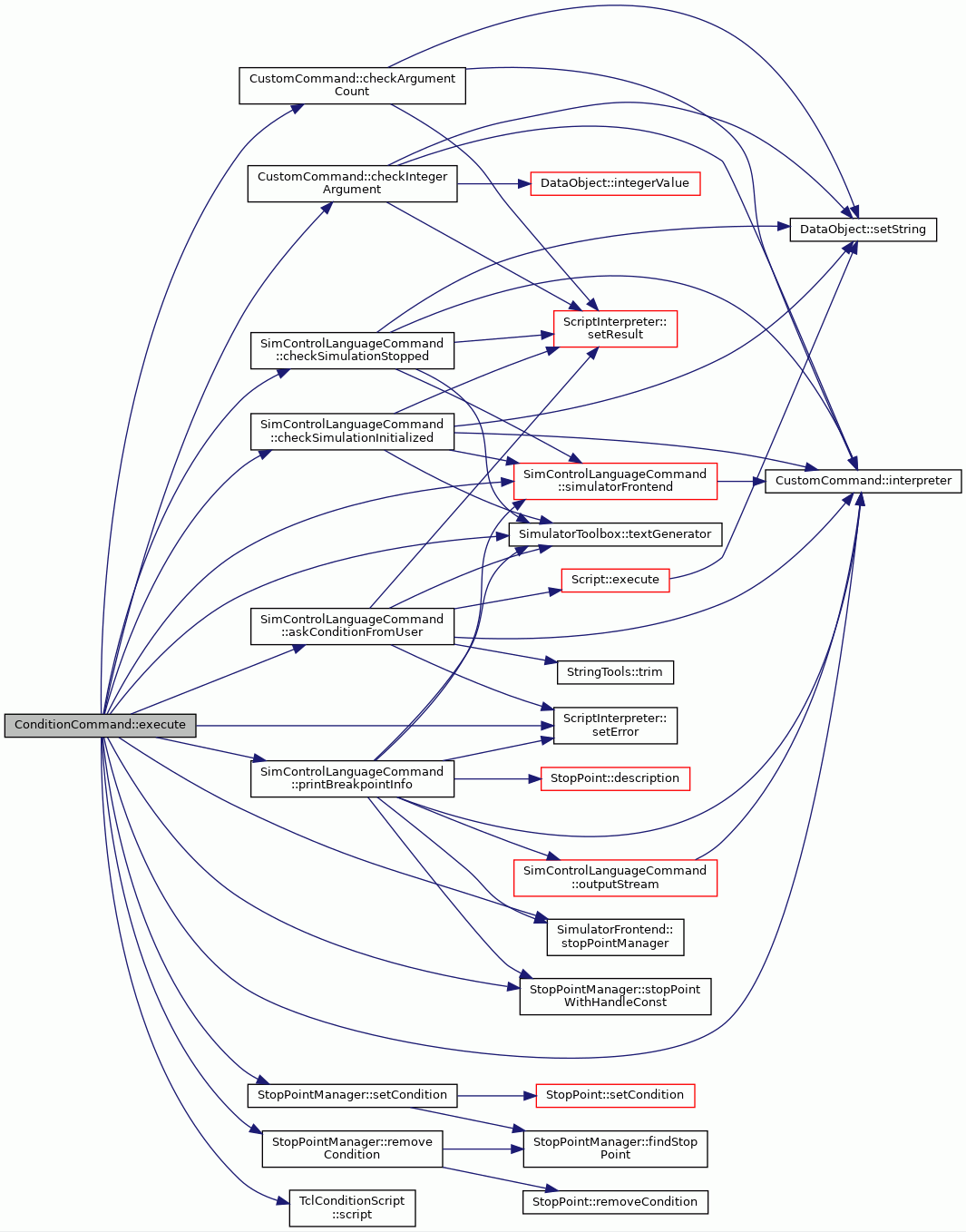

Here is the call graph for this function:

◆ helpText()

std::string ConditionCommand::helpText ( ) const

virtual

Returns the help text for this command.

Help text is searched from SimulatorTextGenerator.

Returns: The help text.

Todo:: Use SimulatorTextGenerator to get the help text.

Implements CustomCommand.

Definition at line 128 of file ConditionCommand.cc.

                                 {
    return SimulatorToolbox::textGenerator().text(
        Texts::TXT_INTERP_HELP_CONDITION).str();
}

References Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_INTERP_HELP_CONDITION.

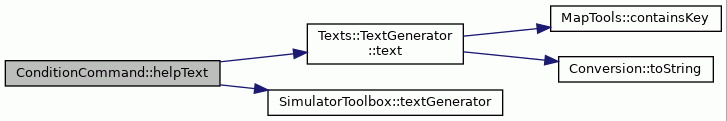

Here is the call graph for this function:

The documentation for this class was generated from the following files:
