ControlDependenceEdge Class Reference

#include <ControlDependenceEdge.hh>

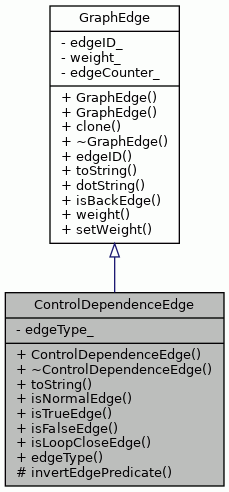

Inheritance diagram for ControlDependenceEdge:

Collaboration diagram for ControlDependenceEdge:

Public Types
enum	CDGEdgeType { CDEP_EDGE_NORMAL , CDEP_EDGE_TRUE , CDEP_EDGE_FALSE , CDEP_EDGE_LOOPCLOSE }

Public Member Functions
	ControlDependenceEdge (CDGEdgeType edgeType=CDEP_EDGE_NORMAL)
virtual	~ControlDependenceEdge ()
TCEString	toString () const
bool	isNormalEdge () const
bool	isTrueEdge () const
bool	isFalseEdge () const
bool	isLoopCloseEdge () const
CDGEdgeType	edgeType () const
Public Member Functions inherited from GraphEdge
	GraphEdge ()
	GraphEdge (const GraphEdge &edge)
virtual GraphEdge *	clone () const
virtual	~GraphEdge ()
virtual int	edgeID () const
virtual TCEString	dotString () const
virtual bool	isBackEdge () const
int	weight () const
void	setWeight (int w)

Protected Member Functions
void	invertEdgePredicate ()

Private Attributes
CDGEdgeType	edgeType_

Friends
class	ProgramDependenceGraph

Detailed Description

Edge of the control dependence graph (control dependence edge). Each edge implies control dependency.

Definition at line 44 of file ControlDependenceEdge.hh.

Member Enumeration Documentation

CDGEdgeType

enum ControlDependenceEdge::CDGEdgeType

Enumerator
CDEP_EDGE_NORMAL
CDEP_EDGE_TRUE
CDEP_EDGE_FALSE
CDEP_EDGE_LOOPCLOSE

Definition at line 47 of file ControlDependenceEdge.hh.

                     {
        CDEP_EDGE_NORMAL,
        CDEP_EDGE_TRUE,
        CDEP_EDGE_FALSE,
        CDEP_EDGE_LOOPCLOSE};

Constructor & Destructor Documentation

ControlDependenceEdge()

ControlDependenceEdge::ControlDependenceEdge ( CDGEdgeType  edgeType = CDEP_EDGE_NORMAL )

inline

Definition at line 53 of file ControlDependenceEdge.hh.

                                                 :
        edgeType_(edgeType) {}

~ControlDependenceEdge()

ControlDependenceEdge::~ControlDependenceEdge ( )

virtual

Definition at line 37 of file ControlDependenceEdge.cc.

{}

Member Function Documentation

edgeType()

CDGEdgeType ControlDependenceEdge::edgeType ( ) const

inline

Definition at line 64 of file ControlDependenceEdge.hh.

{ return edgeType_; }

References edgeType_.

invertEdgePredicate()

void ControlDependenceEdge::invertEdgePredicate ( )

protected

Inverts the predicate of the edge

Todo:

this should be handled better, after the ownership of CDG is moved into the PDG or so

Definition at line 64 of file ControlDependenceEdge.cc.

                                          {
    if (isNormalEdge()) {
        return;
    }
    if (isTrueEdge()) {
        edgeType_ = CDEP_EDGE_FALSE;
    } else {
        edgeType_ = CDEP_EDGE_TRUE;
    }
}

References CDEP_EDGE_FALSE, CDEP_EDGE_TRUE, edgeType_, isNormalEdge(), and isTrueEdge().

Referenced by ProgramDependenceGraph::removeGuardedJump().

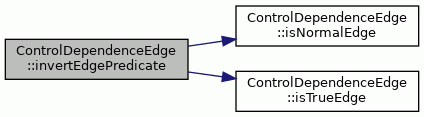

Here is the call graph for this function:

isFalseEdge()

bool ControlDependenceEdge::isFalseEdge ( ) const

inline

Definition at line 62 of file ControlDependenceEdge.hh.

{ return edgeType_ == CDEP_EDGE_FALSE; }

References CDEP_EDGE_FALSE, and edgeType_.

Referenced by ProgramDependenceEdge::dotString(), ControlDependenceGraph::eliminateMultipleOutputs(), and toString().

isLoopCloseEdge()

bool ControlDependenceEdge::isLoopCloseEdge ( ) const

inline

Definition at line 63 of file ControlDependenceEdge.hh.

{ return edgeType_ == CDEP_EDGE_LOOPCLOSE;}

References CDEP_EDGE_LOOPCLOSE, and edgeType_.

Referenced by ProgramDependenceEdge::ProgramDependenceEdge(), and toString().

isNormalEdge()

bool ControlDependenceEdge::isNormalEdge ( ) const

inline

Definition at line 60 of file ControlDependenceEdge.hh.

{ return edgeType_ == CDEP_EDGE_NORMAL; }

References CDEP_EDGE_NORMAL, and edgeType_.

Referenced by invertEdgePredicate().

isTrueEdge()

bool ControlDependenceEdge::isTrueEdge ( ) const

inline

Definition at line 61 of file ControlDependenceEdge.hh.

{ return edgeType_ == CDEP_EDGE_TRUE; }

References CDEP_EDGE_TRUE, and edgeType_.

Referenced by ProgramDependenceEdge::dotString(), ControlDependenceGraph::eliminateMultipleOutputs(), invertEdgePredicate(), and toString().

toString()

TCEString ControlDependenceEdge::toString ( ) const

virtual

Returns a predicate of edge as string.

Returns

The value of edge - true, false, neutral

Reimplemented from GraphEdge.

Definition at line 44 of file ControlDependenceEdge.cc.

                                      {
    TCEString label = "";
    if (isTrueEdge()) {
        label += "True";
    }
    if (isFalseEdge()) {
        label += "False";
    }
    if (isLoopCloseEdge()) {
        label += "Close";
    }
    return label;
}

References isFalseEdge(), isLoopCloseEdge(), and isTrueEdge().

Referenced by ProgramDependenceEdge::toString().

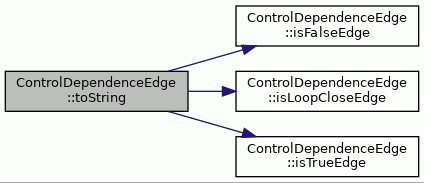

Here is the call graph for this function:

Friends And Related Symbol Documentation

ProgramDependenceGraph

friend class ProgramDependenceGraph

friend

Definition at line 46 of file ControlDependenceEdge.hh.

Member Data Documentation

edgeType_

CDGEdgeType ControlDependenceEdge::edgeType_

private

Definition at line 69 of file ControlDependenceEdge.hh.

Referenced by edgeType(), invertEdgePredicate(), isFalseEdge(), isLoopCloseEdge(), isNormalEdge(), and isTrueEdge().

---

The documentation for this class was generated from the following files:

• ControlDependenceEdge.hh
• ControlDependenceEdge.cc
