#include <ProgramDependenceGraph.hh>

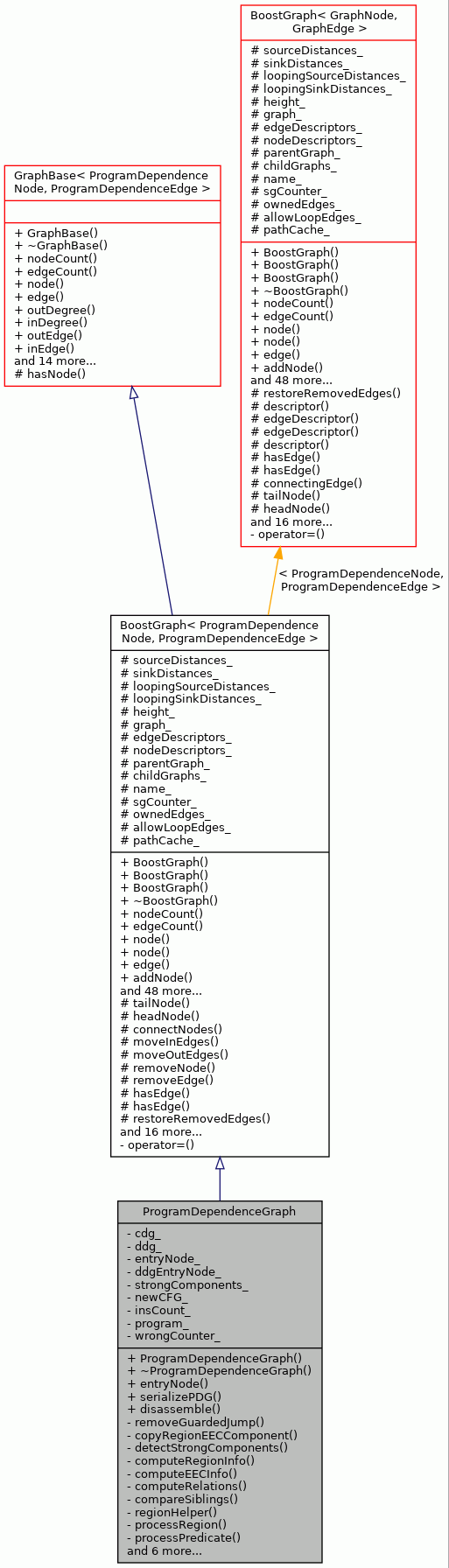

Inheritance diagram for ProgramDependenceGraph:

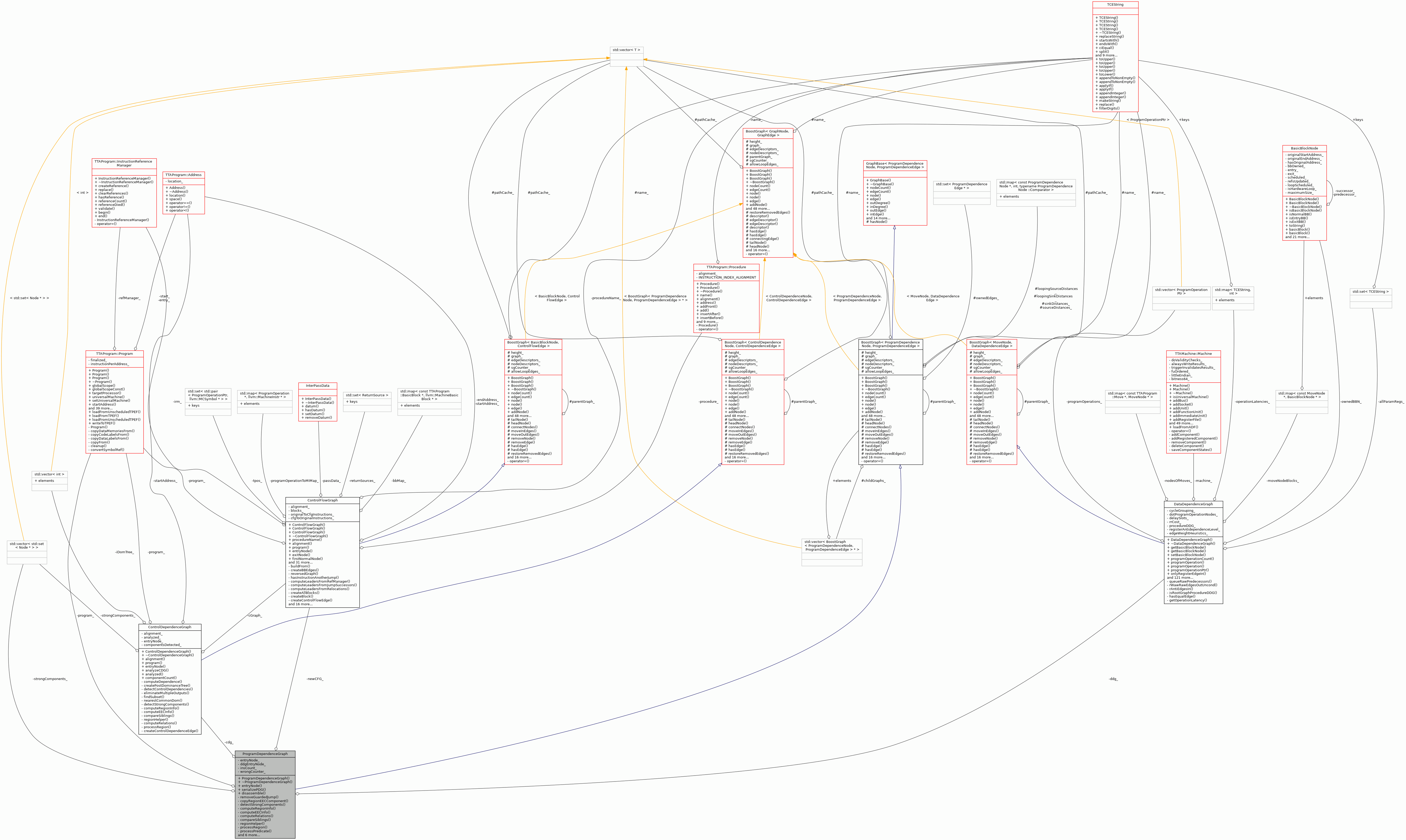

Collaboration diagram for ProgramDependenceGraph:

Classes
struct	BackCFGFilter

struct	BackFilter
	Filter away back edges. More...

struct	CDGFilter
	Filter control dependence edges only. More...

class	label_writer

struct	SubgraphTypeTest
	Filter nodes of subgraph only. More...

Public Types
enum	CompareResult { A_BEFORE_B , B_BEFORE_A , ANY_ORDER , UNORDERABLE , ERROR }

Public Types inherited from BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >
typedef std::set< ProgramDependenceNode *, typename GraphNode::Comparator >	NodeSet

typedef std::set< ProgramDependenceEdge *, typename GraphEdge::Comparator >	EdgeSet

typedef ProgramDependenceNode	Node
	The (base) node type managed by this graph.

typedef ProgramDependenceEdge	Edge
	The (base) edge type managed by this graph.

Public Types inherited from GraphBase< GraphNode, GraphEdge >
typedef std::set< GraphNode *, typename GraphNode::Comparator >	NodeSet

typedef std::set< GraphEdge *, typename GraphEdge::Comparator >	EdgeSet

typedef GraphNode	Node
	Node type of this graph (possibly, a base class).

typedef GraphEdge	Edge
	Edge type of this graph (possibly, a base class).

Public Member Functions

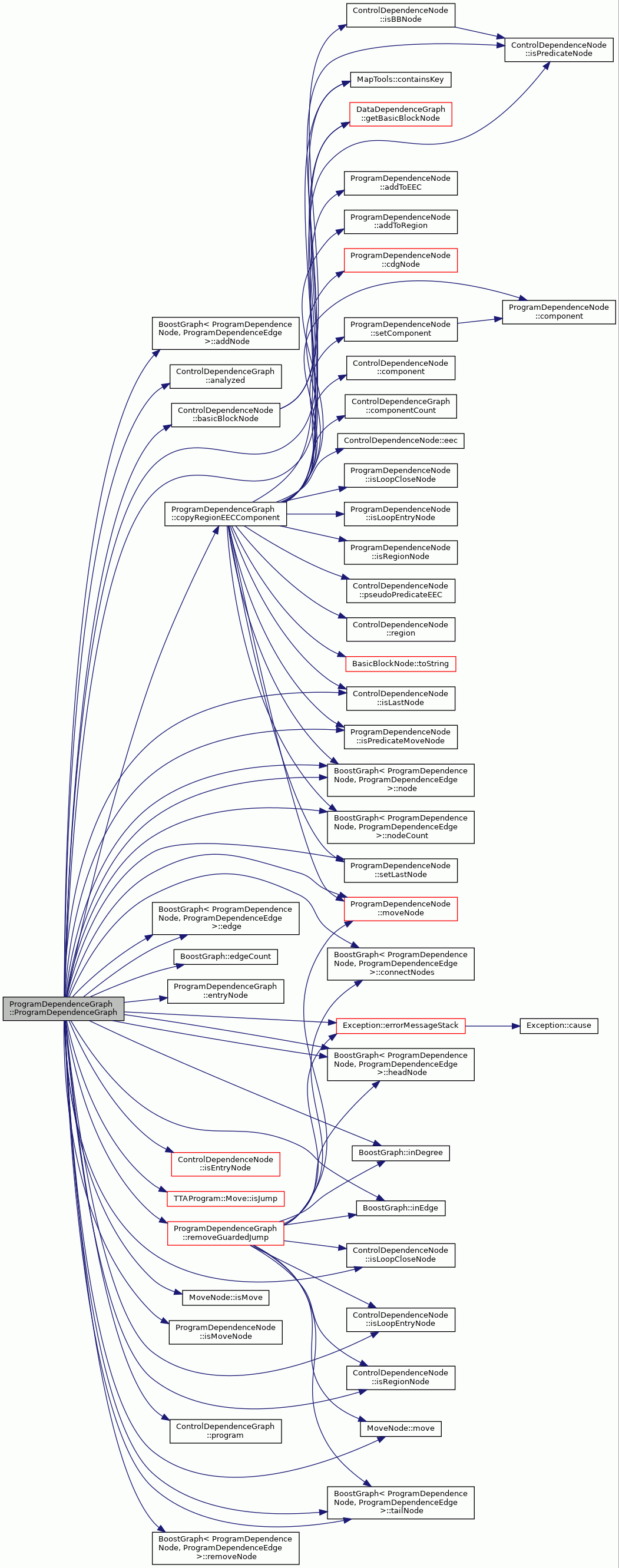

	ProgramDependenceGraph (ControlDependenceGraph &cdg, DataDependenceGraph &ddg)

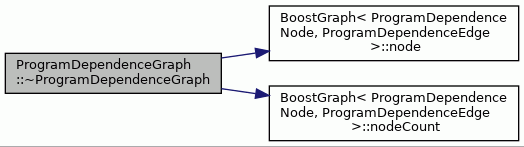

virtual	~ProgramDependenceGraph ()

ProgramDependenceNode &	entryNode () const

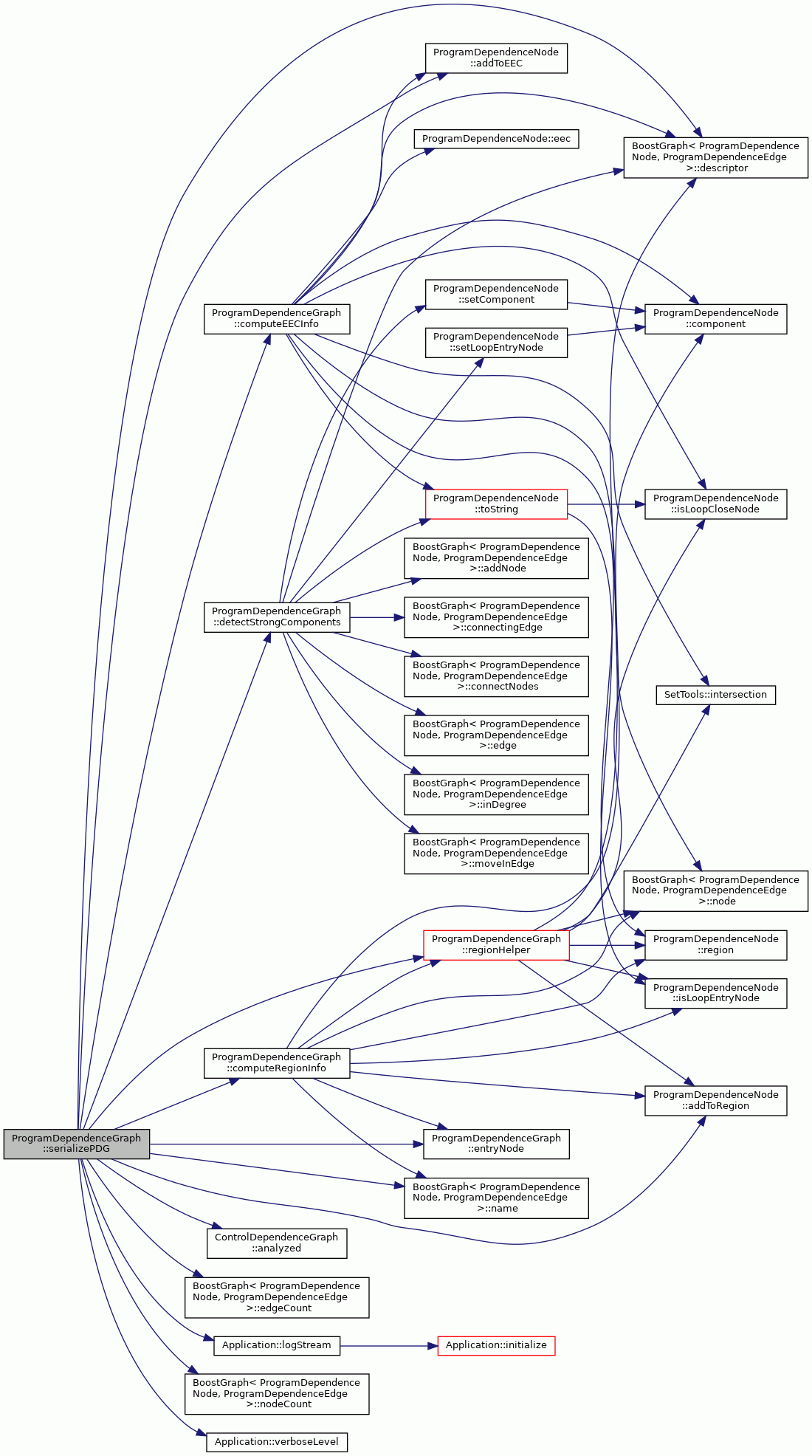

bool	serializePDG ()

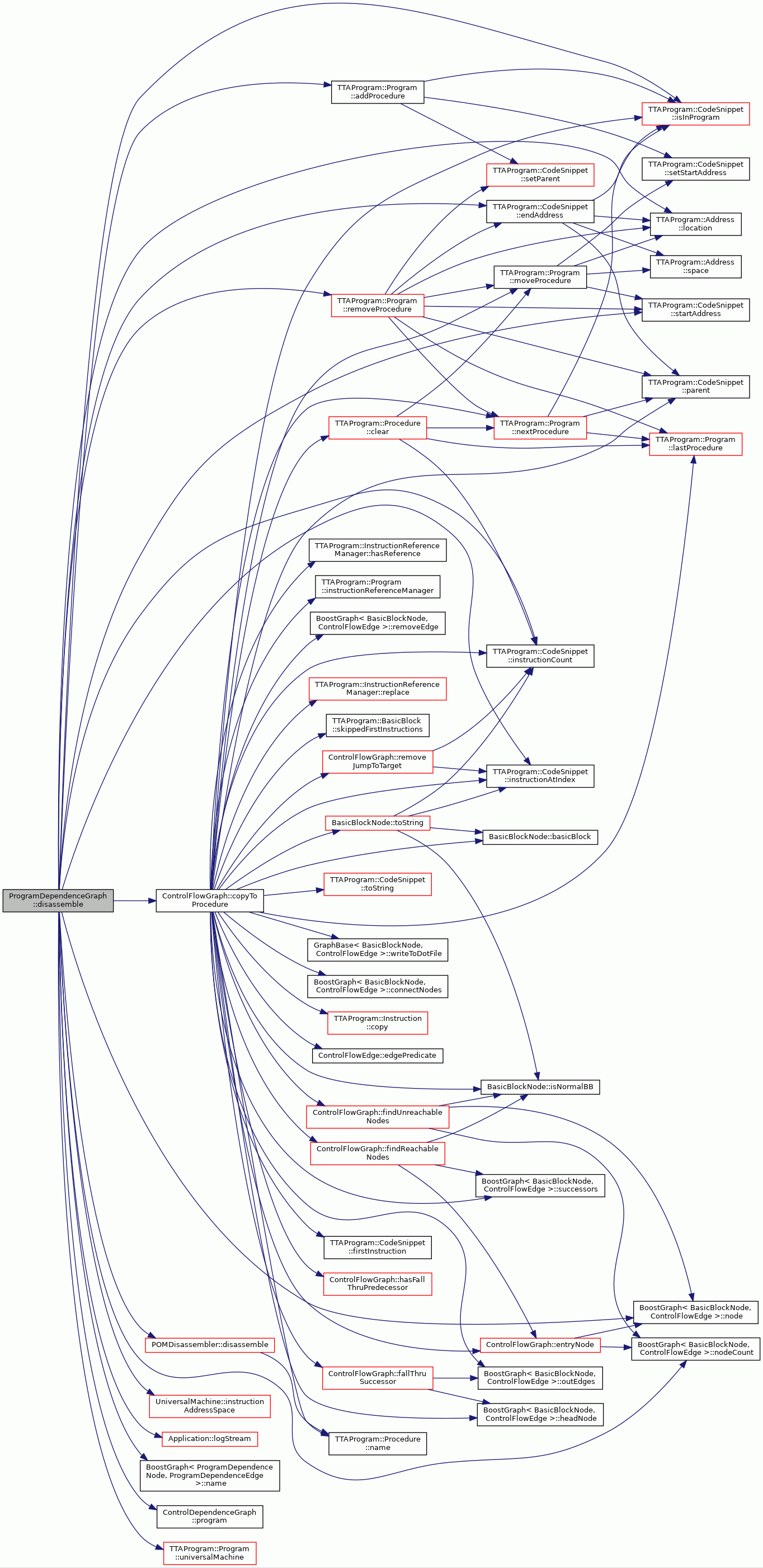

void	disassemble () const

Public Member Functions inherited from BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >
	BoostGraph (bool allowLoopEdges=true)

	BoostGraph (const TCEString &name, bool allowLoopEdges=true)

	BoostGraph (const BoostGraph &other, bool allowLoopEdges=true)

	~BoostGraph ()

int	nodeCount () const

int	edgeCount () const

Node &	node (const int index) const

Node &	node (const int index, bool cacheResult) const

virtual Edge &	edge (const int index) const

virtual void	addNode (Node &node)

virtual Edge &	outEdge (const Node &node, const int index) const

virtual Edge &	inEdge (const Node &node, const int index) const

virtual EdgeSet	outEdges (const Node &node) const

virtual EdgeSet	inEdges (const Node &node) const

virtual EdgeSet	rootGraphOutEdges (const Node &node) const

virtual EdgeSet	rootGraphInEdges (const Node &node) const

virtual Edge &	rootGraphInEdge (const Node &node, const int index) const

virtual Edge &	rootGraphOutEdge (const Node &node, const int index) const

virtual int	rootGraphInDegree (const Node &node) const

virtual int	rootGraphOutDegree (const Node &node) const

virtual int	outDegree (const Node &node) const

virtual int	inDegree (const Node &node) const

virtual Node &	tailNode (const Edge &edge) const

virtual Node &	headNode (const Edge &edge) const

virtual void	connectNodes (const Node &nTail, const Node &nHead, Edge &e)

virtual void	disconnectNodes (const Node &nTail, const Node &nHead)

virtual void	moveInEdges (const Node &source, const Node &destination)

virtual void	moveOutEdges (const Node &source, const Node &destination)

virtual void	moveInEdge (const Node &source, const Node &destination, Edge &edge, const Node *tail=NULL, bool childs=false)

virtual void	moveOutEdge (const Node &source, const Node &destination, Edge &edge, const Node *head=NULL, bool childs=false)

virtual void	copyInEdge (const Node &destination, Edge &edge, const Node *tail=NULL)

virtual void	copyOutEdge (const Node &destination, Edge &edge, const Node *head=NULL)

virtual void	removeNode (Node &node)

virtual void	removeEdge (Edge &e)

virtual void	dropNode (Node &node)

virtual void	dropEdge (Edge &edge)

virtual bool	hasEdge (const Node &nTail, const Node &nHead) const

virtual NodeSet	rootNodes () const
	useful utility functions

virtual NodeSet	sinkNodes () const

virtual NodeSet	successors (const Node &node, bool ignoreBackEdges=false, bool ignoreForwardEdges=false) const

virtual NodeSet	predecessors (const Node &node, bool ignoreBackEdges=false, bool ignoreForwardEdges=false) const

int	maxPathLength (const ProgramDependenceNode &node) const

int	maxSinkDistance (const ProgramDependenceNode &node) const

int	maxSourceDistance (const ProgramDependenceNode &node) const

bool	isInCriticalPath (const ProgramDependenceNode &node) const

int	height () const

void	findAllPaths () const

void	detachSubgraph (BoostGraph &subGraph)

BoostGraph *	parentGraph ()

BoostGraph *	rootGraph ()

const BoostGraph *	rootGraph () const

bool	hasNode (const Node &) const

virtual const TCEString &	name () const

void	setName (const TCEString &newName)

bool	hasPath (ProgramDependenceNode &src, const ProgramDependenceNode &dest) const

void	restoreNodeFromParent (ProgramDependenceNode &node)

bool	detectIllegalCycles () const

EdgeSet	connectingEdges (const Node &nTail, const Node &nHead) const

Public Member Functions inherited from GraphBase< GraphNode, GraphEdge >
	GraphBase ()

virtual	~GraphBase ()

virtual int	outDegree (const Node &node) const =0

virtual int	inDegree (const Node &node) const =0

virtual Edge &	outEdge (const Node &node, const int index) const =0

virtual Edge &	inEdge (const Node &node, const int index) const =0

virtual EdgeSet	outEdges (const Node &node) const =0

virtual EdgeSet	inEdges (const Node &node) const =0

virtual Node &	tailNode (const Edge &edge) const =0

virtual Node &	headNode (const Edge &edge) const =0

virtual bool	hasEdge (const Node &nTail, const Node &nHead) const =0

virtual EdgeSet	connectingEdges (const Node &nTail, const Node &nHead) const =0

virtual TCEString	dotString () const

virtual void	writeToDotFile (const TCEString &fileName) const

virtual void	addNode (Node &node)=0

virtual void	removeNode (Node &node)=0

virtual void	removeEdge (Edge &e)=0

virtual void	connectNodes (const Node &nTail, const Node &nHead, Edge &e)=0

virtual void	disconnectNodes (const Node &nTail, const Node &nHead)=0

Private Types
typedef std::map< const ControlDependenceNode , ProgramDependenceNode , ControlDependenceNode::Comparator >	ControlToProgram

typedef std::map< const BasicBlockNode , ControlDependenceNode , BasicBlockNode::Comparator >	BBToCD

typedef std::map< const MoveNode , ProgramDependenceNode , MoveNode::Comparator >	MoveNodeToPDGNode

typedef std::map< const ControlDependenceNode , std::vector< Node > >	MovesInCD

typedef boost::filtered_graph< Graph, CDGFilter< Graph > >	FilteredCDG
	Type of filtered graph with CD edges only.

typedef boost::graph_traits< FilteredCDG >::in_edge_iterator	FilteredInEdgeIter
	Few types to work with filtered graph.

typedef boost::graph_traits< FilteredCDG >::out_edge_iterator	FilteredOutEdgeIter

typedef boost::graph_traits< FilteredCDG >::vertex_descriptor	FilteredVertexDescriptor

typedef std::pair< FilteredInEdgeIter, FilteredInEdgeIter >	FilteredInEdgePair

typedef std::pair< FilteredOutEdgeIter, FilteredOutEdgeIter >	FilteredOutEdgePair

typedef std::map< NodeDescriptor, int >	PDGOrderMap
	Stores data to compute post order relation on CDG and strong components.

typedef boost::associative_property_map< PDGOrderMap >	PDGOrder

typedef std::map< NodeDescriptor, NodeDescriptor >	DescriptorMap
	Storage for relations between nodes.

typedef boost::associative_property_map< DescriptorMap >	Descriptors

typedef std::map< NodeDescriptor, boost::default_color_type >	ColorMap
	Storage for color property used by dfs.

typedef boost::associative_property_map< ColorMap >	Color

typedef boost::filtered_graph< Graph, BackFilter< Graph >, SubgraphTypeTest< NodeSet, Graph > >	Subgraph

typedef boost::filtered_graph< Graph, BackCFGFilter< Graph > >	CFGSubgraph

Private Member Functions

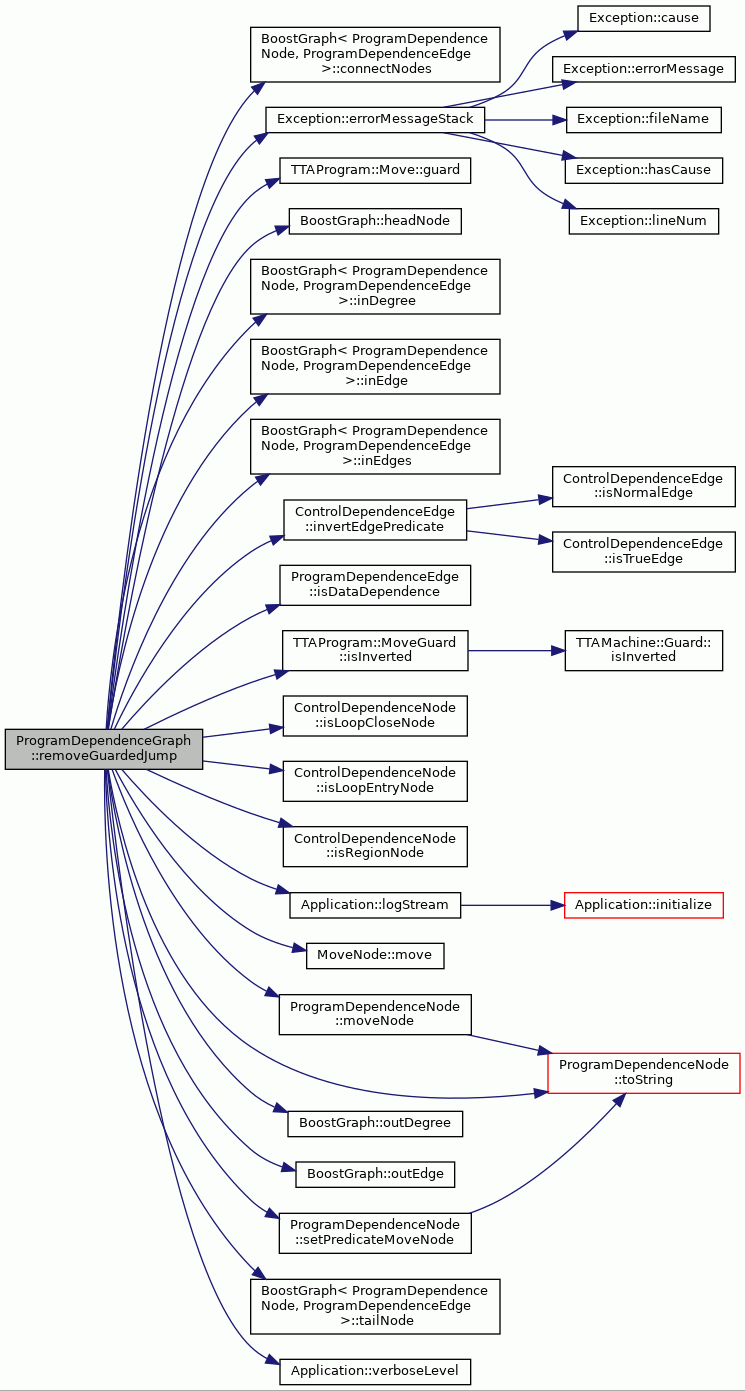

void	removeGuardedJump (ControlToProgram &, ProgramDependenceNode &, ControlDependenceNode &)

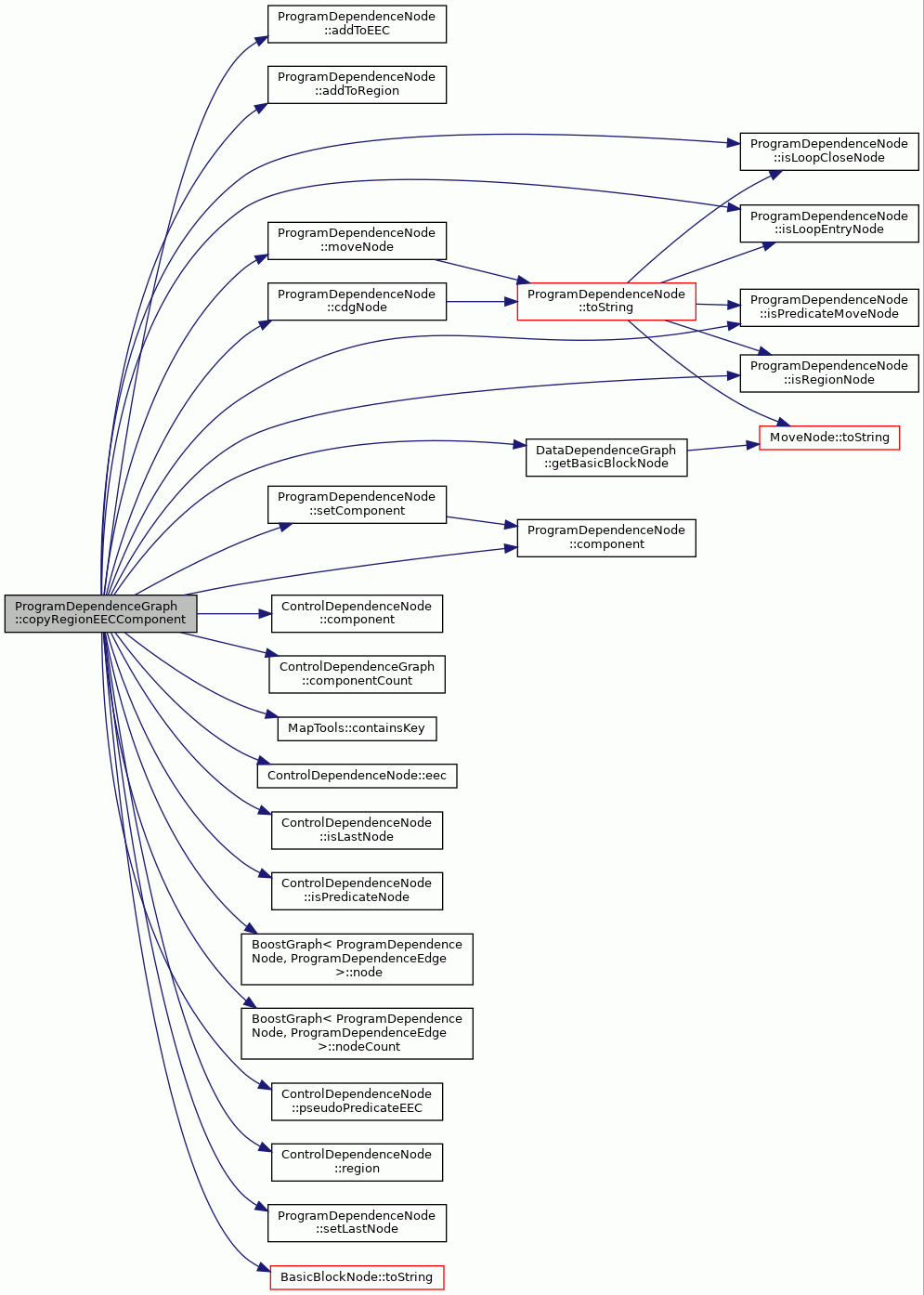

void	copyRegionEECComponent (ControlToProgram &, BBToCD &, MoveNodeToPDGNode &, MovesInCD &)

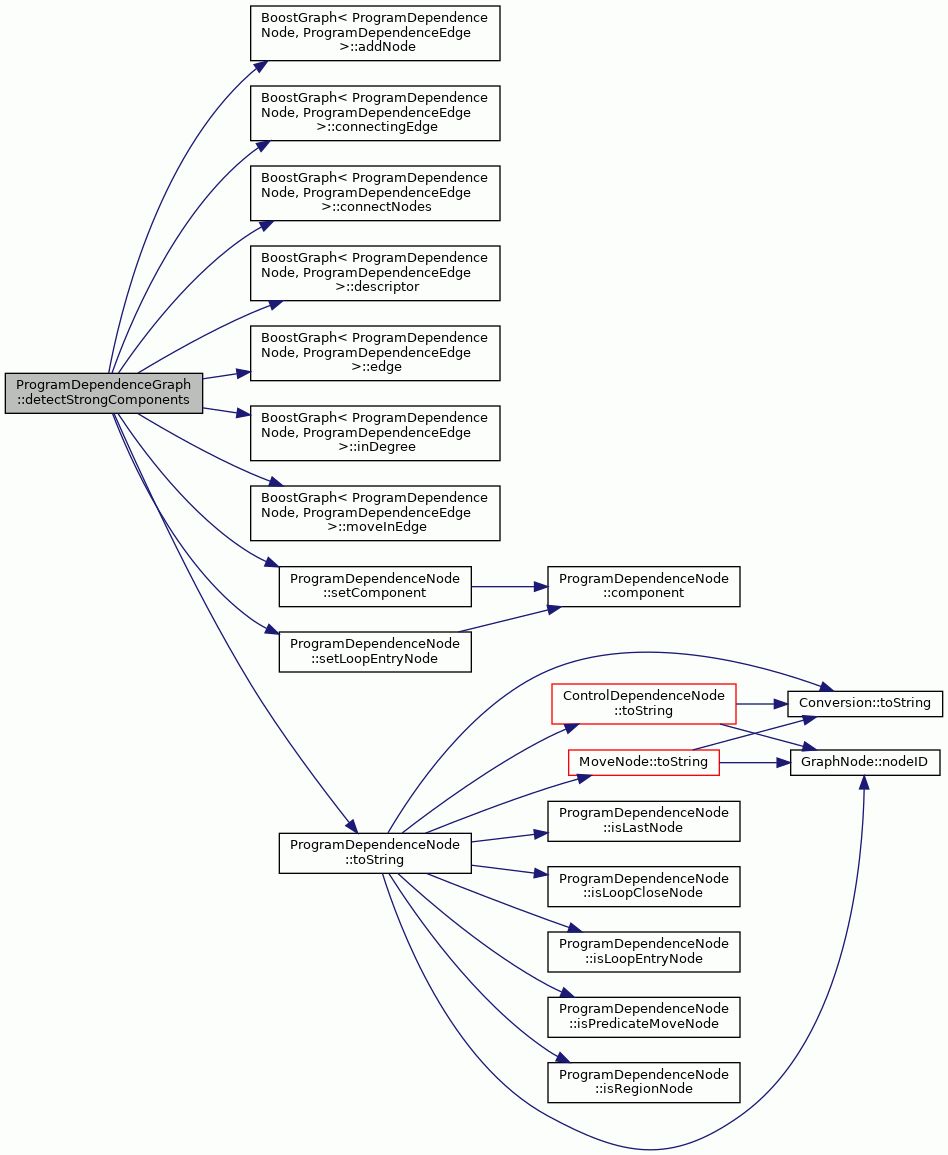

int	detectStrongComponents (PDGOrderMap &components, DescriptorMap &roots, FilteredCDG &filteredCDG)

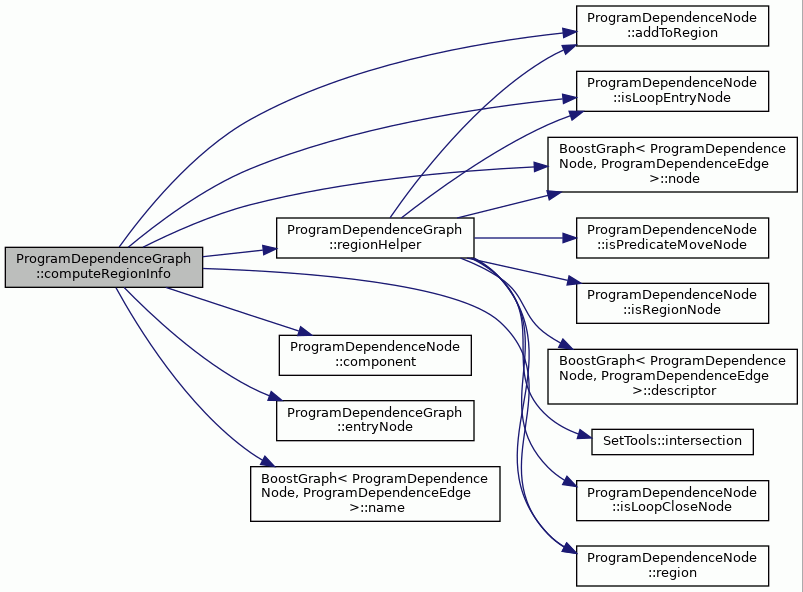

void	computeRegionInfo (const PDGOrderMap &orderMap, FilteredCDG &filteredCDG)

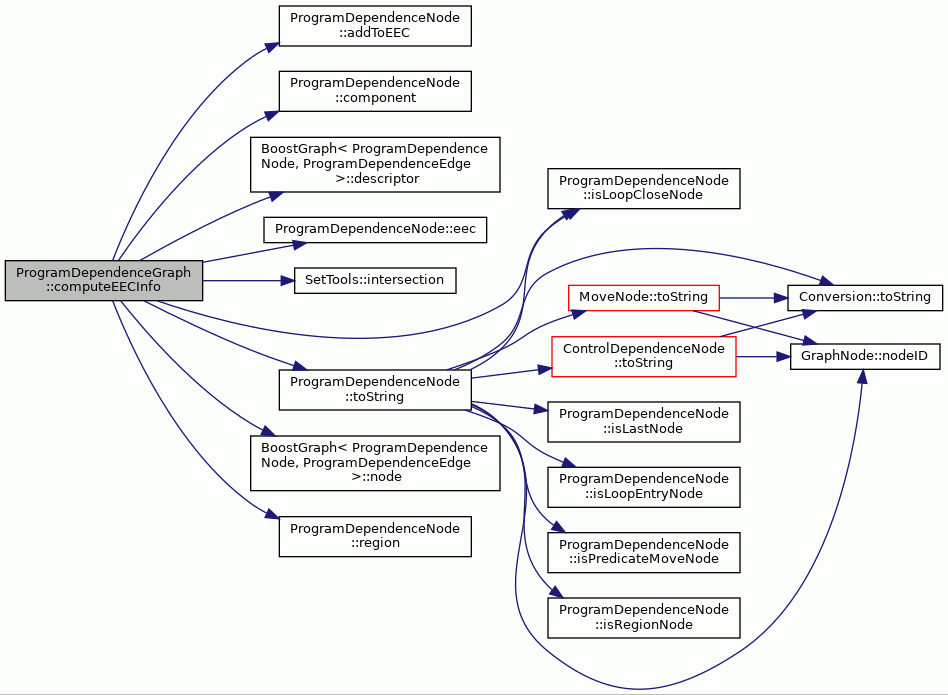

void	computeEECInfo (const PDGOrderMap &orderMap, FilteredCDG &filteredCDG)

void	computeRelations (const PDGOrderMap &orderMap, FilteredCDG &filteredCDG)

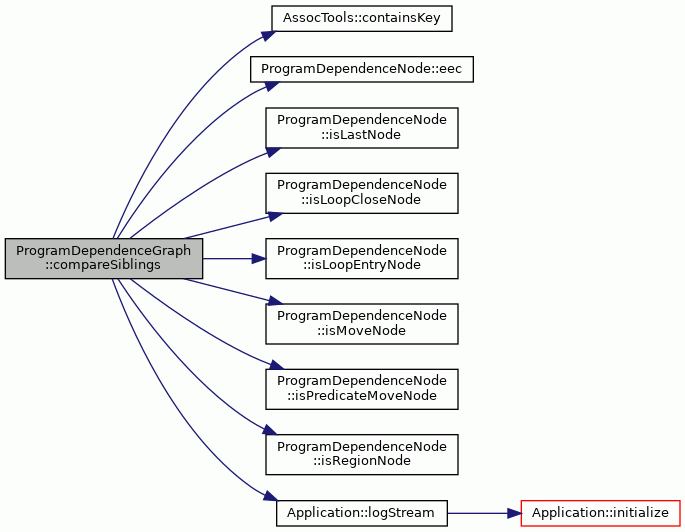

CompareResult	compareSiblings (Node a, Node b)

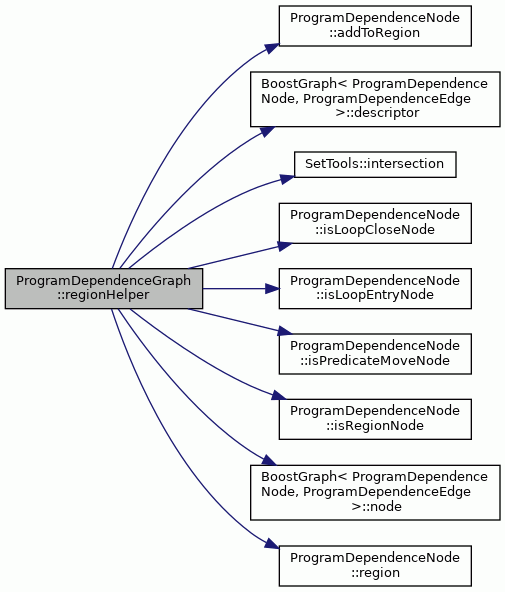

void	regionHelper (Node *node, FilteredCDG &filteredCDG, Node::NodesInfo &finalNodesInfo)

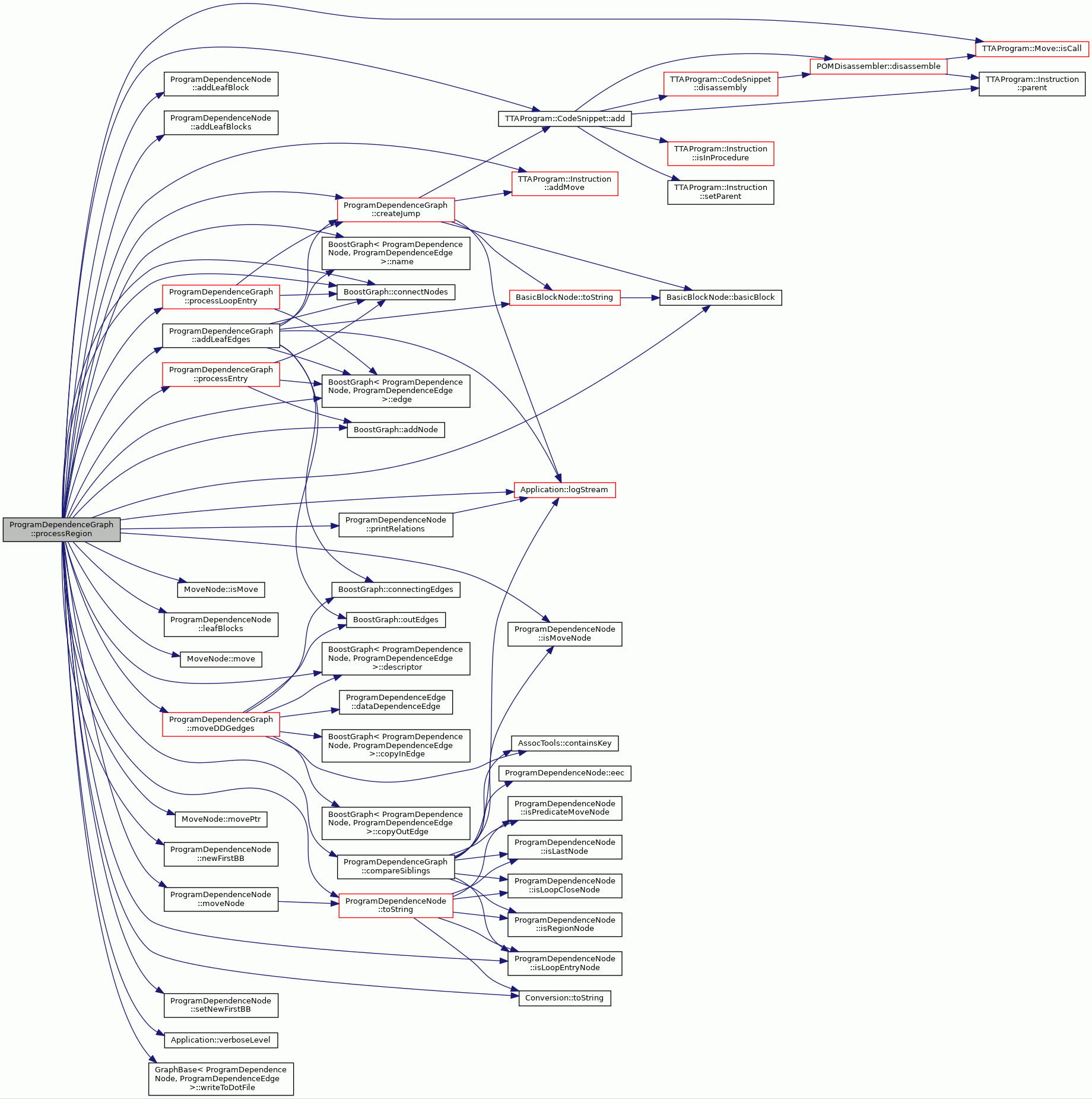

void	processRegion (Node *region, FilteredCDG &filteredCDG)

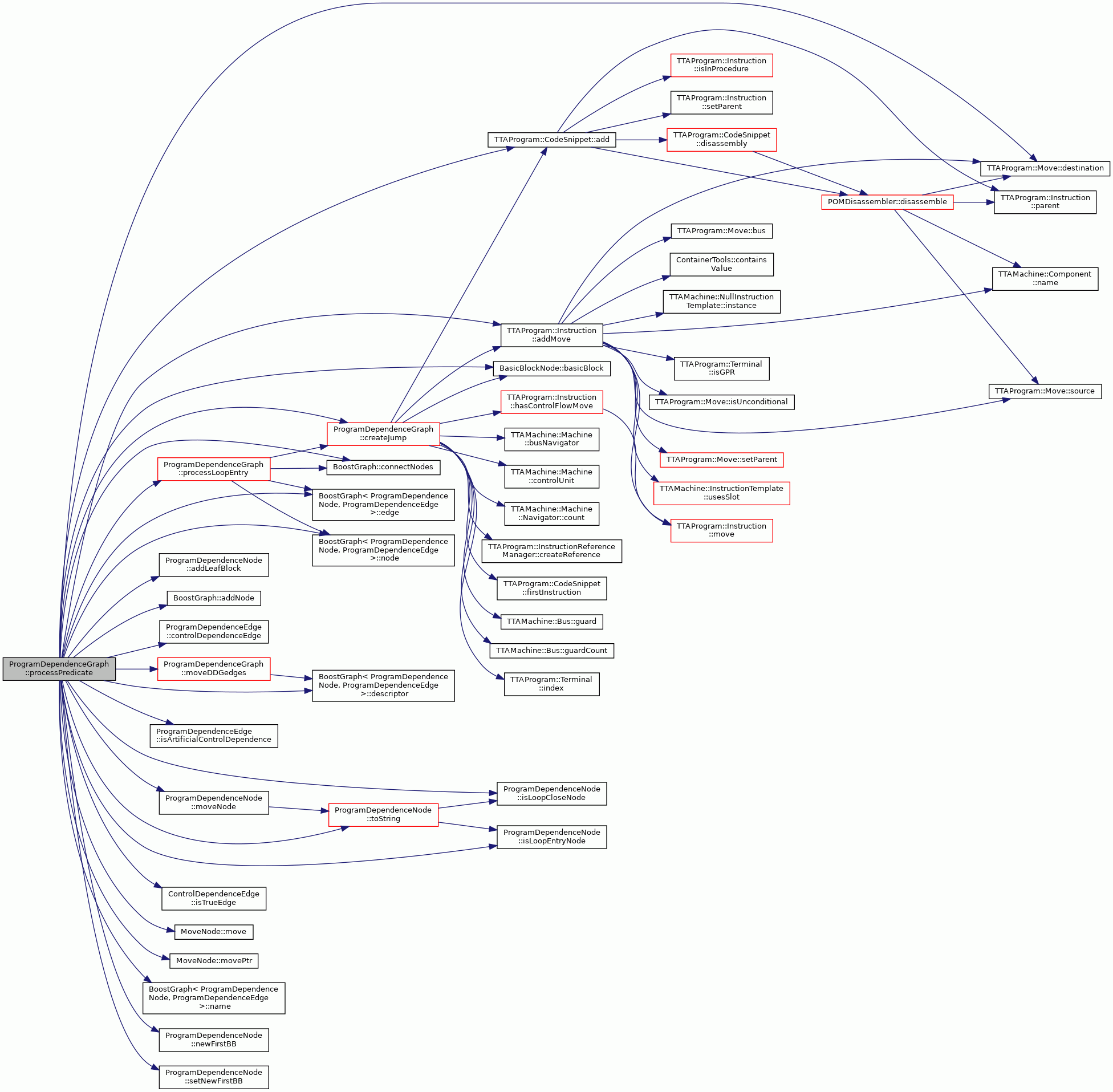

void	processPredicate (Node *predicate, FilteredCDG &filteredCDG)

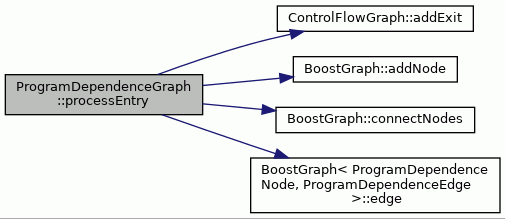

void	processEntry (BasicBlockNode *firstBB)

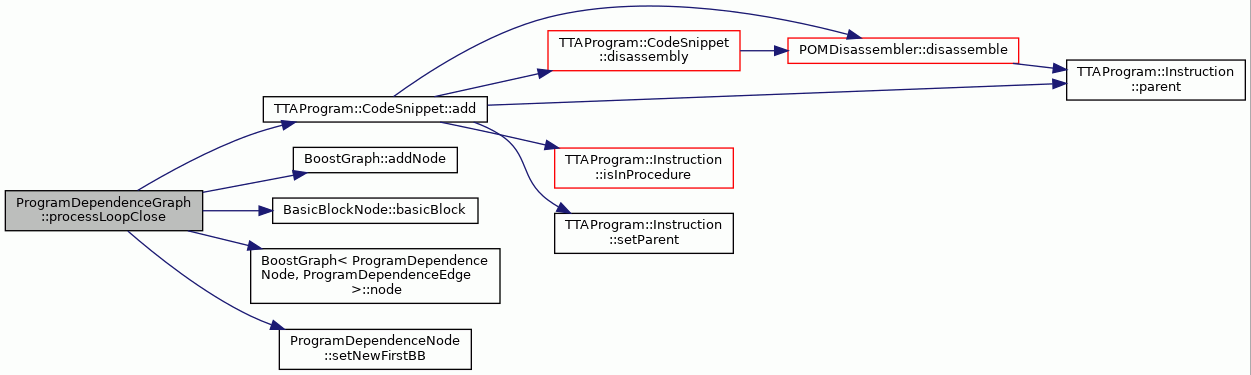

void	processLoopClose (Node *node)

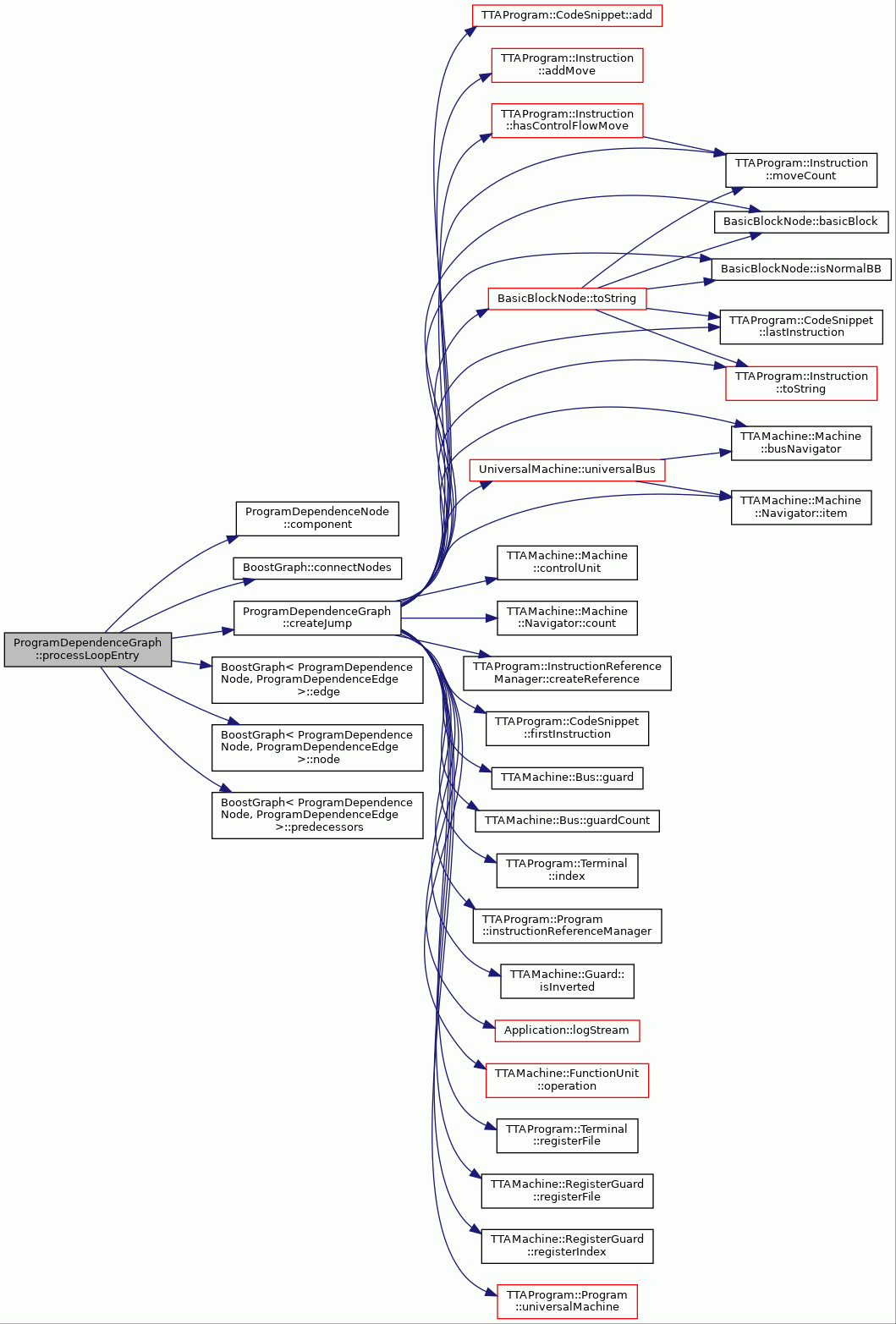

void	processLoopEntry (Node node, BasicBlockNode bb)

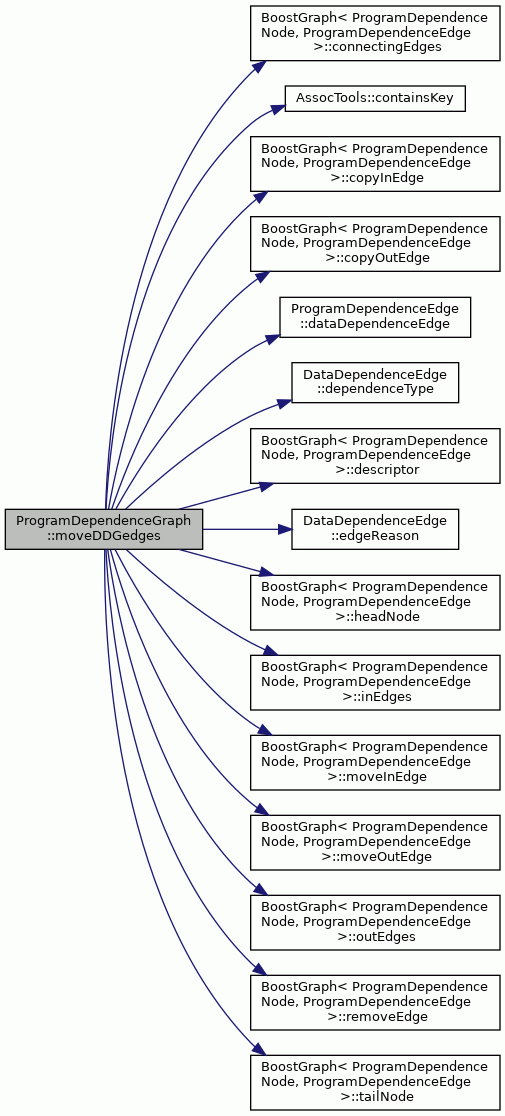

void	moveDDGedges (Node &root, NodeSet &subgraphNodes, FilteredCDG &filteredCDG)

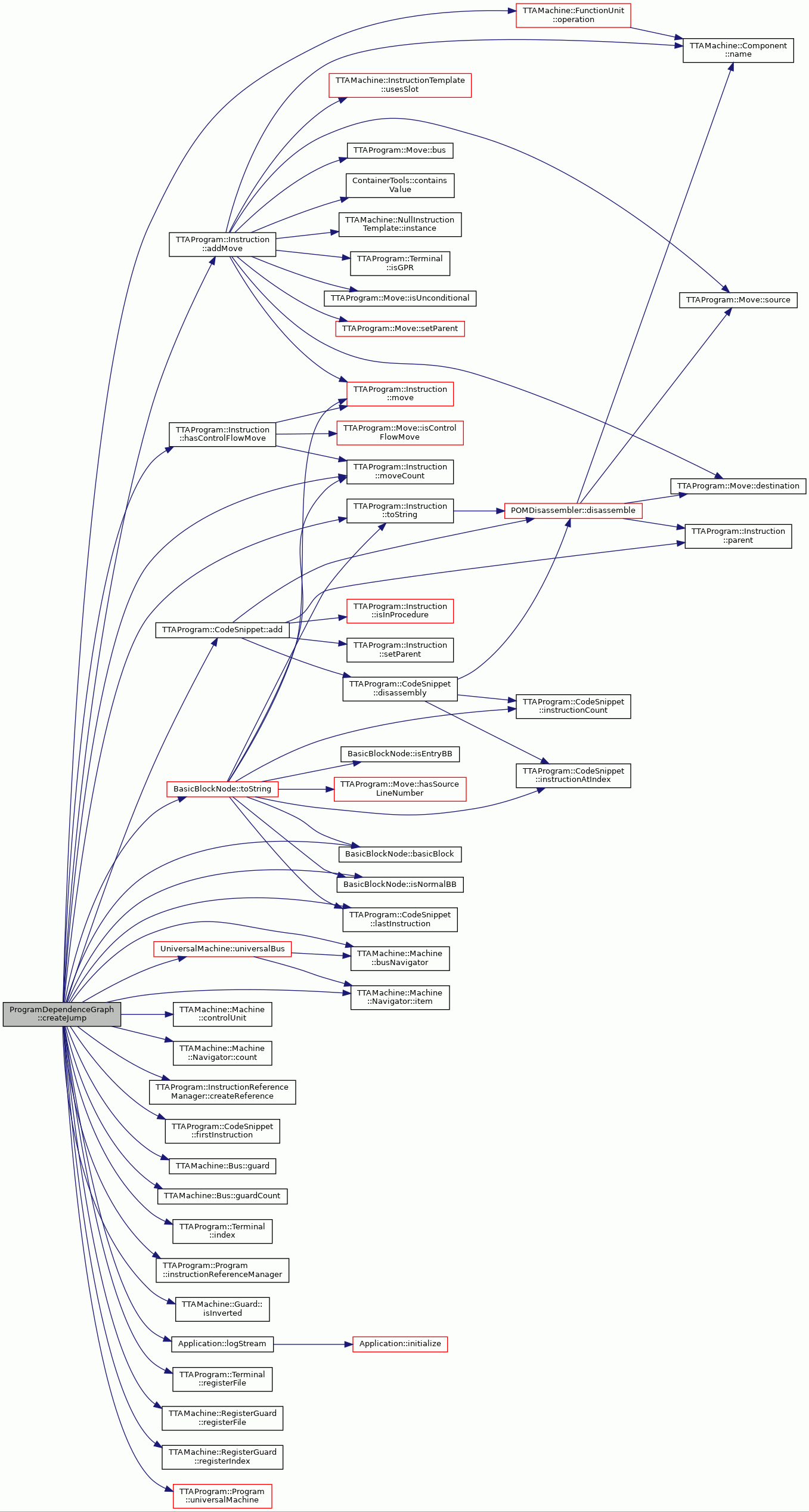

void	createJump (BasicBlockNode from, BasicBlockNode to, TTAProgram::Terminal *guardReg=NULL, ControlFlowEdge::CFGEdgePredicate predicate=ControlFlowEdge::CFLOW_EDGE_NORMAL)

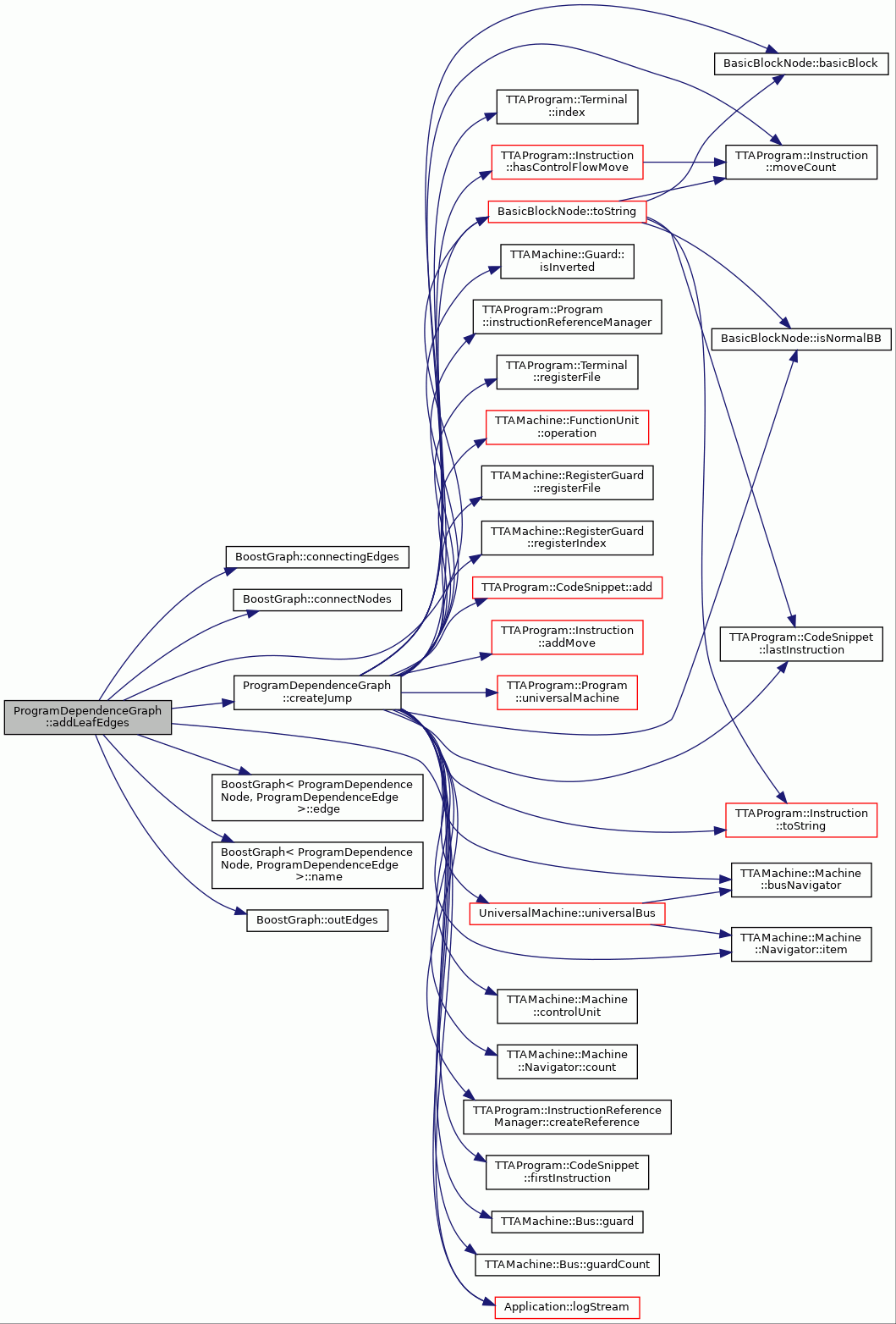

void	addLeafEdges (std::vector< BasicBlockNode * > leafs, BasicBlockNode *bb)

Private Attributes
const ControlDependenceGraph *	cdg_
	Stores original control dependence graph.

const DataDependenceGraph *	ddg_
	Stores original data dependence graph.

Node *	entryNode_
	Stores pointer to entry node of the PDG graph.

Node *	ddgEntryNode_
	Stored reference to PDG equivalent of DDG ENTRYNODE.

std::vector< std::set< Node * > >	strongComponents_
	stores nodes present in each of the found components

ControlFlowGraph *	newCFG_
	Newly created control flow graph.

int	insCount_
	Counts new instructions when creating basic blocks.

TTAProgram::Program *	program_
	Original Program object, to get instruction reference manager.

int	wrongCounter_

Additional Inherited Members
Protected Types inherited from BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >
typedef std::set< RemovedEdgeDatum >	RemovedEdgeMap

typedef boost::adjacency_list< boost::listS, boost::vecS, boost::bidirectionalS, Node , Edge >	Graph
	Internal graph type, providing actual graph-like operations. This type definition relies on bundled properties of boost library, which need the host compiler to support partial template specialisation.

typedef boost::graph_traits< Graph >	GraphTraits
	Traits characterising the internal graph type.

typedef GraphTraits::out_edge_iterator	OutEdgeIter
	Output edge iterator type.

typedef GraphTraits::in_edge_iterator	InEdgeIter
	Input edge iterator type.

typedef GraphTraits::edge_iterator	EdgeIter
	Iterator type for the list of all edges in the graph.

typedef GraphTraits::vertex_iterator	NodeIter
	Iterator type for the list of all nodes in the graph.

typedef GraphTraits::edge_descriptor	EdgeDescriptor
	Type with which edges of the graph are seen internally.

typedef GraphTraits::vertex_descriptor	NodeDescriptor
	Type with which nodes of the graph are seen internally.

typedef hash_map< const Edge *, EdgeDescriptor, GraphHashFunctions >	EdgeDescMap

typedef hash_map< const Node *, NodeDescriptor, GraphHashFunctions >	NodeDescMap

typedef std::vector< std::vector< int > >	PathCache

Protected Member Functions inherited from BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >
Node &	tailNode (const Edge &edge, const NodeDescriptor &headNode) const

Node &	headNode (const Edge &edge, const NodeDescriptor &tailNode) const

virtual void	connectNodes (const Node &nTail, const Node &nHead, Edge &e, GraphBase< ProgramDependenceNode, ProgramDependenceEdge > *modifier, bool creatingSG=false)

void	moveInEdges (const Node &source, const Node &destination, BoostGraph *modifierGraph)

virtual void	moveOutEdges (const Node &source, const Node &destination, BoostGraph *modifierGraph)

virtual void	removeNode (Node &node, BoostGraph *modifierGraph)

virtual void	removeEdge (Edge &e, const ProgramDependenceNode tailNode, const ProgramDependenceNode headNode, BoostGraph *modifierGraph=NULL)

bool	hasEdge (const Node &nTail, const Node &nHead, const Edge &edge) const

bool	hasEdge (const Edge &edge, const Node nTail=NULL, const Node nHead=NULL) const

void	restoreRemovedEdges (RemovedEdgeMap removedEdges)

EdgeDescriptor	descriptor (const Edge &e) const

NodeDescriptor	descriptor (const Node &n) const

EdgeDescriptor	edgeDescriptor (const NodeDescriptor &tailNode, const Edge &e) const

EdgeDescriptor	edgeDescriptor (const Edge &e, const NodeDescriptor &headNode) const

EdgeDescriptor	connectingEdge (const Node &nTail, const Node &nHead) const

void	replaceNodeWithLastNode (ProgramDependenceNode &dest)

void	calculatePathLengths () const

void	calculatePathLengthsFast () const

void	calculateSinkDistance (const ProgramDependenceNode &node, int len, bool looping=false) const

void	calculateSourceDistances (const ProgramDependenceNode *startNode=NULL, int startingLength=0, bool looping=false) const

void	calculatePathLengthsOnConnect (const ProgramDependenceNode &nTail, const ProgramDependenceNode &nHead, ProgramDependenceEdge &e)

void	sinkDistDecreased (const ProgramDependenceNode &n) const

void	sourceDistDecreased (const ProgramDependenceNode &n) const

virtual int	edgeWeight (ProgramDependenceEdge &e, const ProgramDependenceNode &n) const

void	clearDescriptorCache (EdgeSet edges)

void	constructSubGraph (BoostGraph &subGraph, NodeSet &nodes)

Protected Member Functions inherited from GraphBase< GraphNode, GraphEdge >
virtual bool	hasNode (const Node &) const =0

Protected Attributes inherited from BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >
std::unordered_map< const ProgramDependenceNode *, int >	sourceDistances_

std::unordered_map< const ProgramDependenceNode *, int >	sinkDistances_

std::unordered_map< const ProgramDependenceNode *, int >	loopingSourceDistances_

std::unordered_map< const ProgramDependenceNode *, int >	loopingSinkDistances_

int	height_

Graph	graph_
	The internal graph structure.

EdgeDescMap	edgeDescriptors_

NodeDescMap	nodeDescriptors_

BoostGraph< ProgramDependenceNode, ProgramDependenceEdge > *	parentGraph_

std::vector< BoostGraph< ProgramDependenceNode, ProgramDependenceEdge > * >	childGraphs_

TCEString	name_

int	sgCounter_

std::set< Edge * >	ownedEdges_

bool	allowLoopEdges_

PathCache *	pathCache_

Detailed Description

Definition at line 51 of file ProgramDependenceGraph.hh.

Member Typedef Documentation

◆ BBToCD

typedef std::map<const BasicBlockNode*, ControlDependenceNode*, BasicBlockNode::Comparator> ProgramDependenceGraph::BBToCD

private

Definition at line 76 of file ProgramDependenceGraph.hh.

◆ CFGSubgraph

typedef boost::filtered_graph<Graph,BackCFGFilter<Graph> > ProgramDependenceGraph::CFGSubgraph

private

Definition at line 162 of file ProgramDependenceGraph.hh.

◆ Color

typedef boost::associative_property_map<ColorMap> ProgramDependenceGraph::Color

private

Definition at line 116 of file ProgramDependenceGraph.hh.

◆ ColorMap

typedef std::map<NodeDescriptor, boost::default_color_type > ProgramDependenceGraph::ColorMap

private

Storage for color property used by dfs.

Definition at line 115 of file ProgramDependenceGraph.hh.

◆ ControlToProgram

typedef std::map<const ControlDependenceNode*, ProgramDependenceNode*, ControlDependenceNode::Comparator> ProgramDependenceGraph::ControlToProgram

private

Definition at line 74 of file ProgramDependenceGraph.hh.

◆ DescriptorMap

typedef std::map<NodeDescriptor, NodeDescriptor> ProgramDependenceGraph::DescriptorMap

private

Storage for relations between nodes.

Definition at line 112 of file ProgramDependenceGraph.hh.

◆ Descriptors

typedef boost::associative_property_map<DescriptorMap> ProgramDependenceGraph::Descriptors

private

Definition at line 113 of file ProgramDependenceGraph.hh.

◆ FilteredCDG

typedef boost::filtered_graph<Graph, CDGFilter<Graph> > ProgramDependenceGraph::FilteredCDG

private

Type of filtered graph with CD edges only.

Definition at line 96 of file ProgramDependenceGraph.hh.

◆ FilteredInEdgeIter

typedef boost::graph_traits<FilteredCDG>::in_edge_iterator ProgramDependenceGraph::FilteredInEdgeIter

private

Few types to work with filtered graph.

Definition at line 99 of file ProgramDependenceGraph.hh.

◆ FilteredInEdgePair

typedef std::pair<FilteredInEdgeIter, FilteredInEdgeIter> ProgramDependenceGraph::FilteredInEdgePair

private

Definition at line 105 of file ProgramDependenceGraph.hh.

◆ FilteredOutEdgeIter

typedef boost::graph_traits<FilteredCDG>::out_edge_iterator ProgramDependenceGraph::FilteredOutEdgeIter

private

Definition at line 101 of file ProgramDependenceGraph.hh.

◆ FilteredOutEdgePair

typedef std::pair<FilteredOutEdgeIter, FilteredOutEdgeIter> ProgramDependenceGraph::FilteredOutEdgePair

private

Definition at line 107 of file ProgramDependenceGraph.hh.

◆ FilteredVertexDescriptor

typedef boost::graph_traits<FilteredCDG>::vertex_descriptor ProgramDependenceGraph::FilteredVertexDescriptor

private

Definition at line 103 of file ProgramDependenceGraph.hh.

◆ MoveNodeToPDGNode

typedef std::map<const MoveNode*, ProgramDependenceNode*, MoveNode::Comparator> ProgramDependenceGraph::MoveNodeToPDGNode

private

Definition at line 78 of file ProgramDependenceGraph.hh.

◆ MovesInCD

typedef std::map<const ControlDependenceNode*, std::vector<Node*> > ProgramDependenceGraph::MovesInCD

private

Definition at line 80 of file ProgramDependenceGraph.hh.

◆ PDGOrder

typedef boost::associative_property_map<PDGOrderMap> ProgramDependenceGraph::PDGOrder

private

Definition at line 110 of file ProgramDependenceGraph.hh.

◆ PDGOrderMap

typedef std::map<NodeDescriptor, int> ProgramDependenceGraph::PDGOrderMap

private

Stores data to compute post order relation on CDG and strong components.

Definition at line 109 of file ProgramDependenceGraph.hh.

◆ Subgraph

typedef boost::filtered_graph< Graph, BackFilter<Graph>, SubgraphTypeTest<NodeSet, Graph> > ProgramDependenceGraph::Subgraph

private

Definition at line 149 of file ProgramDependenceGraph.hh.

Member Enumeration Documentation

◆ CompareResult

enum ProgramDependenceGraph::CompareResult

Enumerator
A_BEFORE_B
B_BEFORE_A
ANY_ORDER
UNORDERABLE
ERROR

Definition at line 55 of file ProgramDependenceGraph.hh.

                       {
        A_BEFORE_B, // Subgraph A must be scheduled before subgraph B
        B_BEFORE_A, // vice verse
        ANY_ORDER,  // Any order is acceptable
        UNORDERABLE, // Can not be ordered, needs additional predicate
        ERROR      // Relation can not be determined! This is error
    };

Constructor & Destructor Documentation

◆ ProgramDependenceGraph()

ProgramDependenceGraph::ProgramDependenceGraph	(	ControlDependenceGraph &	cdg,
		DataDependenceGraph &	ddg
	)

Constructor. Build Program Dependence Graph from Control and Data Dependence graphs.

Parameters

cdg	Control Dependence Graph of procedure
ddg	Data Dependence Graph of procedure

Ignore unconditional jumps

Found dummy entry node of ddg, connect it to entry node of pdg as well.

If CDG already has analysis of Region and EEC done, just copy results

Definition at line 93 of file ProgramDependenceGraph.cc.

                              :
    BoostGraph<ProgramDependenceNode,ProgramDependenceEdge>(cdg.name()),
    cdg_(&cdg),
    ddg_(&ddg),
    entryNode_(NULL),
    ddgEntryNode_(NULL),
    insCount_(0),
    wrongCounter_(0) {

    ControlToProgram cNodePNode;
    BBToCD BBNodeCDNode;
    MoveNodeToPDGNode movePD;
    MovesInCD moveToCD;
    program_ = cdg.program();

    // Creates PDG node for each region node of CDG
    for (int i = 0; i < cdg.nodeCount(); i++) {
        ControlDependenceNode& cnode = cdg.node(i);
        if (cnode.isRegionNode()
            || cnode.isEntryNode()
            || cnode.isLoopEntryNode()
            || cnode.isLoopCloseNode()) {

            ProgramDependenceNode::NodeType type =
                ProgramDependenceNode::PDG_NODE_REGION;
            if (cnode.isLoopCloseNode()) {
                type = ProgramDependenceNode::PDG_NODE_LOOPCLOSE;
            }
            if (cnode.isLoopEntryNode()) {
                type = ProgramDependenceNode::PDG_NODE_LOOPENTRY;
            }

            ProgramDependenceNode* newNode = new
                ProgramDependenceNode(cnode, type);
            if (cnode.isLastNode()) {
                newNode->setLastNode();
            }
            addNode(*newNode);
            cNodePNode.insert(
                std::pair<ControlDependenceNode*, ProgramDependenceNode*>(
                    &cnode, newNode));
            if (cnode.isEntryNode()) {
                BBNodeCDNode.insert(
                    std::pair<BasicBlockNode*, ControlDependenceNode*>(
                        cnode.basicBlockNode(), &cnode));
                entryNode_ = newNode;
            }
        } else {
            BBNodeCDNode.insert(
                std::pair<BasicBlockNode*, ControlDependenceNode*>(
                    cnode.basicBlockNode(), &cnode));
        }
    }
    assert(entryNode_ != NULL && "Entry node of the graph was not defined!");
    // Copies edges between region nodes of CDG into the PDG
    for (int i = 0; i < cdg.edgeCount(); i++) {
        ControlDependenceEdge& edge = cdg.edge(i);
        ControlDependenceNode* headNode;
        ControlDependenceNode* tailNode;
        headNode = &cdg.headNode(edge);
        tailNode = &cdg.tailNode(edge);
         // CDG predicate node is special type of BB node with 2 outgoing
         // edges
        // Entry node is special kind of BB, which we are also interested in
        // here
        if (!headNode->isBBNode()
            && !headNode->isPredicateNode()
            && (!tailNode->isBBNode() || tailNode->isEntryNode())
            && !tailNode->isPredicateNode()) {
            // headNode is one with arrow in boost graphs
            ProgramDependenceNode* sourceNode;
            ProgramDependenceNode* targetNode;
            try {
               sourceNode = MapTools::valueForKey<ProgramDependenceNode*>(
                   cNodePNode, tailNode);
               targetNode = MapTools::valueForKey<ProgramDependenceNode*>(
                   cNodePNode, headNode);
            } catch (const Exception& e) {
                  throw InvalidData(
                     __FILE__, __LINE__, __func__, e.errorMessageStack());
            }
            ProgramDependenceEdge* pEdge;
            pEdge = new ProgramDependenceEdge(edge);
            connectNodes(*sourceNode, *targetNode, *pEdge);
        }
    }

    // Add each MoveNode of DDG also to PDG
    for (int i = 0; i < ddg.nodeCount(); i++) {
        Node* newNode = NULL;
        Node::NodeType typeOfNode = Node::PDG_NODE_MOVE;
        // Guarded jumps and calls becomes predicates
        MoveNode& node = ddg.node(i);
        if (node.isMove() &&
            node.move().isControlFlowMove() &&
            !node.move().isUnconditional()) {
            typeOfNode =  Node::PDG_NODE_PREDICATE;
        } else if (node.isMove() &&
            node.move().isControlFlowMove() &&
            node.move().isJump() &&
            !node.move().isReturn()){
            /// Ignore unconditional jumps
            continue;
        }
        newNode = new ProgramDependenceNode(node, typeOfNode);
        addNode(*newNode);
        if(!node.isMove()) {
            ddgEntryNode_ = newNode;
        }
        movePD.insert(std::pair<MoveNode*, ProgramDependenceNode*>(
            &node, newNode));
    }

    // Add the edges between MoveNodes in DDG
    for (int j = 0; j < ddg.edgeCount(); j++) {
        ProgramDependenceNode* pSource = NULL;
        ProgramDependenceNode* pTarget = NULL;
        DataDependenceEdge& edge = ddg.edge(j);
        if (!MapTools::containsKey(movePD, &ddg.tailNode(edge))) {
            continue;
        }
        pSource = MapTools::valueForKey<ProgramDependenceNode*>(
            movePD, &ddg.tailNode(edge));
        if (!MapTools::containsKey(movePD, &ddg.headNode(edge))) {
            continue;
        }
        pTarget = MapTools::valueForKey<ProgramDependenceNode*>(
            movePD, &ddg.headNode(edge));
        ProgramDependenceEdge* pEdge;
        pEdge = new  ProgramDependenceEdge(edge);
        connectNodes(*pSource, *pTarget, *pEdge);
    }

    // edges between region nodes and move nodes
    for (int i = 0; i < ddg.nodeCount(); i++) {
        // Some jumps were not copied so we skip them when adding edges
        MoveNode& node = ddg.node(i);
        if (!MapTools::containsKey(movePD, &node)) {
            continue;
        }

        BasicBlockNode* b = NULL;
        b = &ddg.getBasicBlockNode(node);
        ControlDependenceNode* cNode = NULL;
        if (!MapTools::containsKey(BBNodeCDNode, b)) {
            throw InvalidData(
                __FILE__, __LINE__, __func__,
                "No Control Dependence Node for Basic Block Node!");
        }
         try {
            cNode = MapTools::valueForKey<ControlDependenceNode*>(
                BBNodeCDNode, b);
        } catch (const Exception& e) {
            throw InvalidData(
                __FILE__, __LINE__, __func__, e.errorMessageStack());
        }

        ProgramDependenceNode* pNode = NULL;
        try {
            pNode = MapTools::valueForKey<ProgramDependenceNode*>(
                movePD, &node);
        } catch (const Exception& e) {
            throw InvalidData(
                __FILE__, __LINE__, __func__, e.errorMessageStack());
        }
        if (pNode->isMoveNode() && pNode->moveNode().isMove() == false) {
            /// Found dummy entry node of ddg, connect it to entry node of
            /// pdg as well.
            ControlDependenceEdge* cdgEdge = new ControlDependenceEdge();
            ProgramDependenceEdge* pEdge = new ProgramDependenceEdge(*cdgEdge);
            connectNodes(entryNode(), *pNode, *pEdge);
            continue;
        }
        if (!MapTools::containsKey(moveToCD, cNode)) {
            std::vector<Node*> tmp;
            tmp.push_back(pNode);
            moveToCD[cNode] = tmp;
        } else {
            std::vector<Node*> tmp = moveToCD[cNode];
            tmp.push_back(pNode);
            moveToCD[cNode] = tmp;
        }
        // For each MoveNode, find in which Basic Block it was
        // and all input edges that went into CDG for given Basic Block
        // are also added to the MoveNode
        for (int j = 0; j < cdg.inDegree(*cNode); j++) {
            ControlDependenceNode* source;
            source = &cdg.tailNode(cdg.inEdge(*cNode, j));
            if (source->isRegionNode()
                || source->isEntryNode()
                || source->isLoopEntryNode()
                || source->isLoopCloseNode()) {
                ProgramDependenceEdge* pEdge;
                pEdge = new
                    ProgramDependenceEdge(cdg.inEdge(*cNode, j));
                ProgramDependenceNode* pSource = NULL;
                try {
                    pSource = MapTools::valueForKey<ProgramDependenceNode*>(
                        cNodePNode, source);
                } catch (const Exception& e) {
                    throw InvalidData(
                        __FILE__, __LINE__, __func__, e.errorMessageStack());
                }
                connectNodes(*pSource, *pNode, *pEdge);
            } else {
                abortWithError("The source of control dependence is not\
                    region node!");
            }
        }
        if (pNode->isPredicateMoveNode() &&
            pNode->moveNode().move().isJump()){
            removeGuardedJump(cNodePNode, *pNode, *cNode);
            removeNode(*pNode);
        }
    }
    /// If CDG already has analysis of Region and EEC done, just copy
    /// results
    if (cdg.analyzed()) {
        copyRegionEECComponent(cNodePNode, BBNodeCDNode, movePD, moveToCD);
    }
}

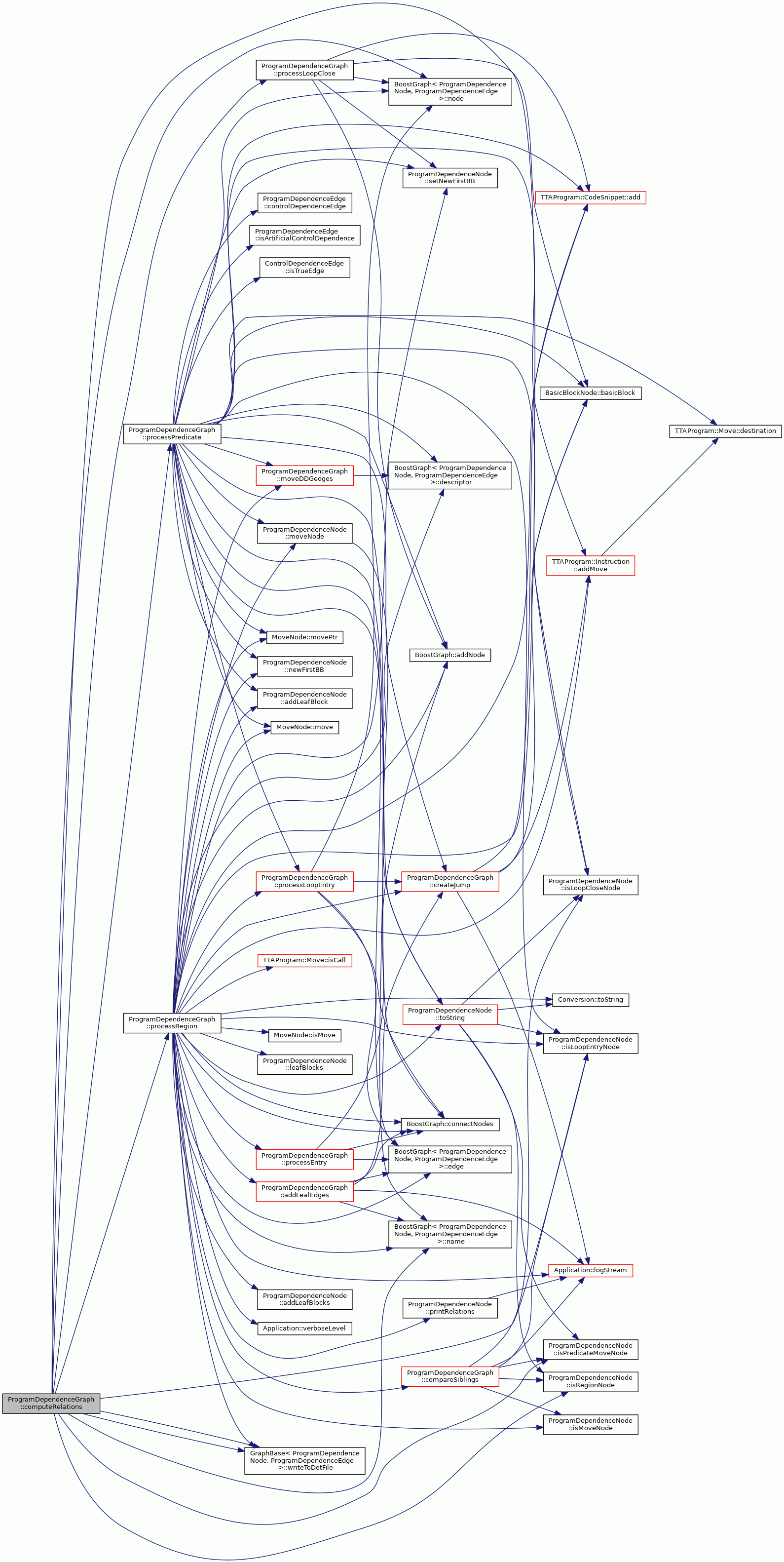

Here is the call graph for this function:

◆ ~ProgramDependenceGraph()

ProgramDependenceGraph::~ProgramDependenceGraph ( )

virtual

Definition at line 75 of file ProgramDependenceGraph.cc.

                                                {
    // Boost destructor will delete nodes from graph
    for (int i = 0; i < nodeCount(); i++) {
        Node* n = &node(i);
        delete n;
    }
    for (unsigned int i = 0; i < strongComponents_.size(); i++) {
        strongComponents_[i].clear();
    }
    strongComponents_.clear();
}

References BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::nodeCount(), and strongComponents_.

Here is the call graph for this function:

Member Function Documentation

◆ addLeafEdges()

void ProgramDependenceGraph::addLeafEdges	(	std::vector< BasicBlockNode * >	leafBlocks,
		BasicBlockNode *	bb
	)

private

Add edges from 'leaf' blocks of a subgraph to the basic block

Parameters

leafBlocks	vector of basic blocks to add
bb	Basic block to which the edges will point to

One previously tested was predicate or region we have to add edges from all of their leafs to this block

Predicate had only one outgoing edge, we add second with inverse value

Definition at line 1866 of file ProgramDependenceGraph.cc.

                        {
    for (unsigned int i = 0; i < leafBlocks.size(); i++) {
        /// One previously tested was predicate or region
        /// we have to add edges from all of their leafs to this block
        ControlFlowGraph::EdgeSet edges =
            newCFG_->outEdges(*leafBlocks[i]);
        ControlFlowEdge::CFGEdgePredicate predicate =
            ControlFlowEdge::CFLOW_EDGE_NORMAL;
        /// Predicate had only one outgoing edge, we add second with
        /// inverse value
        for(ControlFlowGraph::EdgeSet::iterator cfe = edges.begin();
            cfe != edges.end(); cfe++) {
            if ((*cfe)->isTrueEdge()) {
                predicate = ControlFlowEdge::CFLOW_EDGE_FALSE;
                break;
            }
            if ((*cfe)->isFalseEdge()) {
                predicate = ControlFlowEdge::CFLOW_EDGE_TRUE;
                break;
            }
        }
        if (newCFG_->connectingEdges(*leafBlocks[i], *bb).size() == 0) {
            ControlFlowEdge* edge = new ControlFlowEdge(predicate);
            Application::logStream() << (boost::format(
            "Adding leaf edge from %s to %s in %s\n")
            % leafBlocks[i]->toString() % bb->toString() % name()).str();
            newCFG_->connectNodes(*leafBlocks[i], *bb, *edge);
            std::cerr << "Adding for leaf edges" << std::endl;
            createJump(leafBlocks[i], bb);
        }
    }
    leafBlocks.clear();
}

References ControlFlowEdge::CFLOW_EDGE_FALSE, ControlFlowEdge::CFLOW_EDGE_NORMAL, ControlFlowEdge::CFLOW_EDGE_TRUE, BoostGraph< GraphNode, GraphEdge >::connectingEdges(), BoostGraph< GraphNode, GraphEdge >::connectNodes(), createJump(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::edge(), Application::logStream(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::name(), newCFG_, BoostGraph< GraphNode, GraphEdge >::outEdges(), and BasicBlockNode::toString().

Referenced by processRegion().

Here is the call graph for this function:

◆ compareSiblings()

ProgramDependenceGraph::CompareResult ProgramDependenceGraph::compareSiblings	(	Node *	a,
		Node *	b
	)

private

Compare sibling nodes and determines their ordering relation based on eec information. In addition, nodes marked as lastNode are always ordered later in case ANY_ORDER is available.

Parameters

a	First node to compare
b	Second node to compare

Returns: value determining relation

Both a and b are simple statements, order is given by data dependencies no need to test eec info

Find nodes relations in eec

FIXME: Unique region node rule is broken when creating loop entry nodes (removing loop back edge) and creating new region for incoming edges into loop entry - there can be another region which already has same set of dependencies and loop entry was supposed to be child of that, but was not. Problem with detection of subsets of dependencies when creating region nodes!

Definition at line 927 of file ProgramDependenceGraph.cc.

                                                        {
    bool AinA = false;
    bool BinB = false;
    bool BinA = false;
    bool AinB = false;

#ifdef AVOID_COMPILER_WARNINGS_REMOVE_THESE_LINES
    bool extra = false;
    if (a->isPredicateMoveNode() || b->isPredicateMoveNode()) {
        extra = true;
    }
#endif
    /// Both a and b are simple statements, order is given by data dependencies
    /// no need to test eec info
    if (a->isMoveNode() && b->isMoveNode()
        && !a->isPredicateMoveNode() && !b->isPredicateMoveNode()) {
        return ANY_ORDER;
    }
    /// Find nodes relations in eec
    if (AssocTools::containsKey(a->eec(), a)) {
        AinA = true;
    }
    if (AssocTools::containsKey(b->eec(), b)) {
        BinB = true;
    }
    if (AssocTools::containsKey(a->eec(), b)) {
        BinA = true;
    }
    if (AssocTools::containsKey(b->eec(), a)) {
        AinB = true;
    }
    //std::cerr << "AinA=" << AinA << ", BinB=" << BinB <<", AinB=" << AinB
      // << ", BinA=" << BinA << std::endl;
    if ((a->isLoopEntryNode() || a->isPredicateMoveNode())
        && (b->isMoveNode() && !b->isPredicateMoveNode())
        && AinA == true) {
        if (a->isLastNode()) {
            return B_BEFORE_A;
        }
        return ANY_ORDER;
    }
    if ((b->isLoopEntryNode() || b->isPredicateMoveNode())
        && (a->isMoveNode() && !a->isPredicateMoveNode())
        && BinB == true) {
        if (b->isLastNode()) {
            return A_BEFORE_B;
        }
        return ANY_ORDER;
    }
    if ((a->isLoopEntryNode() || a->isPredicateMoveNode())
        && (b->isLoopEntryNode() || b->isPredicateMoveNode())
        && AinA == true && BinB == true) {
        if (a->isLastNode()) {
            return B_BEFORE_A;
        }
        if (b->isLastNode()) {
            return A_BEFORE_B;
        }
        return ANY_ORDER;
    }
    if ((a->isLoopEntryNode() || a->isPredicateMoveNode())
        && (b->isMoveNode() && !b->isPredicateMoveNode())
        && AinA == false) {
        return B_BEFORE_A;
    }
    if ((b->isLoopEntryNode() || b->isPredicateMoveNode())
        && (a->isMoveNode() && !a->isPredicateMoveNode())
        && BinB == false) {
        return A_BEFORE_B;
    }
    if ((a->isLoopEntryNode() || a->isPredicateMoveNode())
        && (b->isLoopEntryNode() || b->isPredicateMoveNode())
        && AinA == false && BinB == true) {
        return B_BEFORE_A;
    }
    if ((b->isLoopEntryNode() || b->isPredicateMoveNode())
        && (a->isLoopEntryNode() || a->isPredicateMoveNode())
        && AinA == true && BinB == false) {
        return A_BEFORE_B;
    }
    if ((a->isLoopEntryNode() || a->isPredicateMoveNode())
        && (b->isLoopEntryNode() || b->isPredicateMoveNode())
        && AinA == false && BinB == false) {
        //std::cerr << "\tUnorderable 1" << std::endl;
        return UNORDERABLE;
    }
    if ((a->isRegionNode() && AinB == true)
        && (b->isMoveNode() ||
            b->isLoopEntryNode() ||
            b->isPredicateMoveNode())){
        return B_BEFORE_A;
    }
    if ((b->isRegionNode() && BinA == true)
        && (a->isMoveNode() ||
            a->isLoopEntryNode() ||
            a->isPredicateMoveNode())){
        return A_BEFORE_B;
    }
    if ((a->isRegionNode() && AinB == false)
        && (b->isLoopEntryNode() || b->isPredicateMoveNode())
        && AinB == false) {
        //std::cerr << "\tUnorderable 2" << std::endl;
        return UNORDERABLE;
    }
    if ((b->isRegionNode() && BinA == false)
        && (a->isLoopEntryNode() || a->isPredicateMoveNode())
        && BinA == false) {
        //std::cerr << "\tUnorderable 3" << std::endl;
        return UNORDERABLE;
    }
    if ((a->isRegionNode() && AinB == false)
        && (b->isRegionNode() && BinA == true)) {
        return B_BEFORE_A;
    }
    if ((b->isRegionNode() && BinA == false)
        && (a->isRegionNode() && AinB == true)) {
        return A_BEFORE_B;
    }
    if ((a->isRegionNode() && AinB == false)
        && (b->isRegionNode() && BinA == false)) {
        return UNORDERABLE;
    }
    if ((a->isLoopCloseNode() && AinB == true)
        && (b->isMoveNode() || b->isPredicateMoveNode() || b->isLoopEntryNode()
            || b->isRegionNode())) {
        return B_BEFORE_A;
    }
    if ((b->isLoopCloseNode() && BinA == true)
        && (a->isMoveNode() || a->isPredicateMoveNode() || a->isLoopEntryNode()
            || a->isRegionNode())) {
        return A_BEFORE_B;
    }
    if ((a->isLoopCloseNode() && AinB == false)
        && (b->isPredicateMoveNode() || b->isLoopEntryNode()
            || b->isRegionNode())) {
        //std::cerr << "\tUnorderable 5" << std::endl;
        return UNORDERABLE;
    }
    if ((b->isLoopCloseNode() && BinA == false)
        && (a->isPredicateMoveNode() || a->isLoopEntryNode()
            || a->isRegionNode())) {
        //std::cerr << "\tUnorderable 6" << std::endl;
        return UNORDERABLE;
    }
    /// FIXME:
    /// Unique region node rule is broken when creating loop
    /// entry nodes (removing loop back edge) and creating new region for
    /// incoming edges into loop entry - there can be another region
    /// which already has same set of dependencies and loop entry was
    /// supposed to be child of that, but was not. Problem with detection
    /// of subsets of dependencies when creating region nodes!
    if ((a->isRegionNode() && AinB == true)
        && (b->isRegionNode() && BinA == true)) {
        Application::logStream() << (boost::format(
            "Found two regions with identical control dependencies. "
            "Known issue with CDG detection not reusing regions.\n")).str();
        if (a->isLastNode()) {
            return B_BEFORE_A;
        }
        if (b->isLastNode()) {
            return A_BEFORE_B;
        }
        return ANY_ORDER;
    }
    return ERROR;
}

References A_BEFORE_B, ANY_ORDER, B_BEFORE_A, AssocTools::containsKey(), ProgramDependenceNode::eec(), ERROR, ProgramDependenceNode::isLastNode(), ProgramDependenceNode::isLoopCloseNode(), ProgramDependenceNode::isLoopEntryNode(), ProgramDependenceNode::isMoveNode(), ProgramDependenceNode::isPredicateMoveNode(), ProgramDependenceNode::isRegionNode(), Application::logStream(), and UNORDERABLE.

Referenced by processRegion().

Here is the call graph for this function:

◆ computeEECInfo()

void ProgramDependenceGraph::computeEECInfo	(	const PDGOrderMap &	orderMap,
		FilteredCDG &	filteredCDG
	)

private

Compute the "eec" information for each node of graph. EEC is used to determine order in which sibling subgraphs needs to be scheduled in resulting cfg.

"eec" of node X is set of nodes that will be executed in case any of the nodes in subgraph of X will be executed.

Parameters

orderMap post order map of PDG graph, nodes augmented with "region" information, "eec" information will be added.

eec already exists, skip

Found close node, eec(node) == intersection of all close nodes of same loop region(node) (close node is as leaf node)

Close nodes eec must be empty before we get here

Found leaf node, eec(node) == region(node)

Not a leaf node, eec(x) = intersection(eec(children(x)) \ children(x)

Definition at line 814 of file ProgramDependenceGraph.cc.

                              {

    int mapSize = orderMap.size();

    for (int i = 0; i < mapSize; i++) {
        NodeDescriptor des =
            MapTools::keyForValue<NodeDescriptor>(
            orderMap, i);
        Node* node = graph_[des];
         /// eec already exists, skip
         if (node->eec().size() > 0) {
            continue;
         }
        /// Found close node, eec(node) == intersection of all close
        /// nodes of same loop region(node) (close node is as leaf node)
        if (node->isLoopCloseNode() && node->eec().size() == 0) {
           std::vector<Node*> closeNodes;
           std::set<Node*> component = strongComponents_[node->component()];
          // collect all loop close nodes of same loop
           for (std::set<Node*>::iterator si = component.begin();
                si != component.end(); si++) {
                if ((*si)->isLoopCloseNode()) {
                    closeNodes.push_back(*si);
                } else if ((*si)->isRegionNode()
                    || (*si)->isPredicateMoveNode()) {
                    (*si)->setLastNode();
                }
           }
           Node::NodesInfo finalInfo;
           Node::NodesInfo storeResult;
           finalInfo.insert(node->region().begin(),node->region().end());
           for (unsigned int i = 0; i < closeNodes.size(); i++) {
               SetTools::intersection(
                    finalInfo, closeNodes[i]->region(), storeResult);
               finalInfo.swap(storeResult);
               storeResult.clear();
            }
            // add intersection of all region info to each close node in loop
            for (unsigned j = 0; j < closeNodes.size(); j++) {
                Node* result = closeNodes[j];
                /// Close nodes eec must be empty before we get here
                if(result->eec().size() != 0) {
                    TCEString msg = (boost::format(
                        "Close node %s in %s already has eec!\n")
                        % result->toString() % node->toString()).str();
                    throw ModuleRunTimeError(__FILE__, __LINE__, __func__, msg);
                }
                for (Node::NodesInfo::iterator k = finalInfo.begin();
                    k != finalInfo.end(); k++) {
                    result->addToEEC(**k);
               }
            }

         } else if (boost::out_degree(descriptor(*node), filteredCDG) == 0) {
            /// Found leaf node, eec(node) == region(node)
            Node::NodesInfo regionX = node->region();
            for (Node::NodesInfo::iterator t = regionX.begin();
                 t != regionX.end(); t++) {
                     node->addToEEC( **t);
                 }
        } else {
            /// Not a leaf node,
            /// eec(x) = intersection(eec(children(x)) \ children(x)
            Node::NodesInfo childNodes;
            FilteredOutEdgePair edges =
                boost::out_edges(descriptor(*node), filteredCDG);
            for (FilteredOutEdgeIter ei = edges.first;
                ei != edges.second;
                ++ei) {
                Node* testedNode = filteredCDG[boost::target(*ei, filteredCDG)];
                childNodes.insert(testedNode);
            }
            Node::NodesInfo finalEEC;

            // Fill in candidate set with data from first successor
            finalEEC.insert(
               (*(childNodes.begin()))->eec().begin(),
               (*(childNodes.begin()))->eec().end());
            // compute intersection of successors eec
            for(Node::NodesInfo::iterator j = childNodes.begin();
               j != childNodes.end(); j++ ) {
               Node::NodesInfo storeResult;
               SetTools::intersection(finalEEC, (*j)->eec(), storeResult);
               finalEEC.swap(storeResult);
               storeResult.clear();
            }
            std::vector<Node*> result(finalEEC.size(), NULL);
            // compute set difference, returns iterator pointing to
            // .end() of the result
            std::vector<Node*>::iterator resultEnd =
               std::set_difference(finalEEC.begin(), finalEEC.end(),
                  childNodes.begin(), childNodes.end(), result.begin());
            // push resulting eec into the node eec info
            for (std::vector<Node*>::iterator t = result.begin();
               t != resultEnd; t++) {
               node->addToEEC(**t);
            }
        }
    }
}

References __func__, ProgramDependenceNode::addToEEC(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::descriptor(), ProgramDependenceNode::eec(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::graph_, SetTools::intersection(), MapTools::keyForValue(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node(), strongComponents_, ProgramDependenceNode::toString(), and GraphNode::toString().

Referenced by serializePDG().

Here is the call graph for this function:

◆ computeRegionInfo()

void ProgramDependenceGraph::computeRegionInfo	(	const PDGOrderMap &	orderMap,
		FilteredCDG &	cdg
	)

private

Compute the "region" information for each node of graph. Region is used to compute "eec" to determine order in which sibling subgraphs will be in resulting cfg.

"Region" of node X is set of nodes that will be executed in case is X executed.

Parameters

orderMap	post order map of PDG graph, nodes will be augmented with "region" information.
cdg	Program Dependence Graph filtered to us only control dependence edges.

Compute "region" information using reverse post-order processing Node descriptors in filtered graph are identical to original graph we only care about edge filtering here

For non loop entry nodes, simply compute region info and store it in the node

for loop entry node, find all other entry nodes of the same loop (component) final region info will be intersection of region info from all the entry nodes in the same loop it will be same for all the nodes too (they are reachable)

Check if node is loop entry node of tested component

for every entry node of the loop compute region info

Definition at line 742 of file ProgramDependenceGraph.cc.

                     {

    int mapSize = orderMap.size();
    if (mapSize == 0) {
        throw ModuleRunTimeError(__FILE__, __LINE__, __func__,
            "No nodes in CDG graph for " + name() + "!");
    }
    /// Compute "region" information using reverse post-order processing
    /// Node descriptors in filtered graph are identical to original graph
    /// we only care about edge filtering here
    for (int i = mapSize -1 ; i >= 0 ; i--) {
        NodeDescriptor des =
            MapTools::keyForValue<NodeDescriptor>(orderMap,i);
        Node* node = graph_[des];
        if (!node->isLoopEntryNode()) {
            /// For non loop entry nodes, simply compute region info
            /// and store it in the node
            Node::NodesInfo finalNodesInfo;
            regionHelper(node, cdg, finalNodesInfo);
            for (Node::NodesInfo::iterator k = finalNodesInfo.begin();
                k != finalNodesInfo.end(); k++) {
                node->addToRegion(**k);
            }

        } else if (node->region().size() == 0) {
            /// for loop entry node, find all other entry nodes
            /// of the same loop (component)
            /// final region info will be intersection of region info from
            /// all the entry nodes in the same loop
            /// it will be same for all the nodes too (they are reachable)
            std::vector<Node*> entries;
            std::set<Node*> component = strongComponents_[node->component()];
            for (std::set<Node*>::iterator si = component.begin();
                si != component.end(); si++) {
                /// Check if node is loop entry node of tested component
                if ((*si)->isLoopEntryNode(node->component())) {
                    entries.push_back(*si);
                }
            }
            Node::NodesInfo finalNodesInfo;
            for (unsigned int i = 0; i < entries.size(); i++) {
                /// for every entry node of the loop compute region info
                Node* entryNode = entries[i];
                regionHelper(entryNode, cdg, finalNodesInfo);
            }
            for (unsigned j = 0; j < entries.size(); j++) {
                Node* result = entries[j];
                for (Node::NodesInfo::iterator k = finalNodesInfo.begin();
                    k != finalNodesInfo.end();
                    k++) {
                    result->addToRegion(**k);
                }
            }
        }
    }
}

References __func__, ProgramDependenceNode::addToRegion(), entryNode(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::graph_, MapTools::keyForValue(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::name(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node(), regionHelper(), and strongComponents_.

Referenced by serializePDG().

Here is the call graph for this function:

◆ computeRelations()

void ProgramDependenceGraph::computeRelations	(	const PDGOrderMap &	orderMap,
		FilteredCDG &	filteredCDG
	)

private

Computes relation between every pair of nodes in a graph that has common parent.

Parameters

orderMap Post order map of a graph @parem filteredCDG Filtered PDG with only control dependence edges

Process nodes in post order, guarantees child region/loopEntry/predicate nodes will be processed before their parent

MoveNodes are skipped here, they are always children of region

Definition at line 1452 of file ProgramDependenceGraph.cc.

                              {

    /// Process nodes in post order, guarantees child region/loopEntry/predicate
    /// nodes will be processed before their parent
    int mapSize = orderMap.size();

    cdg_->writeToDotFile(name() + "_originalCDG.dot");

    newCFG_ = new ControlFlowGraph(name(), program_);
    for (int i = 0; i < mapSize; i++) {
        NodeDescriptor des =
            MapTools::keyForValue<NodeDescriptor>(
            orderMap, i);
        Node* node = graph_[des];
        /// MoveNodes are skipped here, they are always children of region
        if (node->isRegionNode()
            || node->isLoopEntryNode()) {
            processRegion(node, filteredCDG);
            continue;
        }
        if (node->isPredicateMoveNode()){
            processPredicate(node, filteredCDG);
            continue;
        }
        if (node->isLoopCloseNode()) {
            processLoopClose(node);
            continue;
        }
    }
    newCFG_->writeToDotFile(name() + "_newCFG.dot");
    writeToDotFile(name() + "_newPDG.dot");

}

References cdg_, BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::graph_, MapTools::keyForValue(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::name(), newCFG_, BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node(), processLoopClose(), processPredicate(), processRegion(), program_, and GraphBase< GraphNode, GraphEdge >::writeToDotFile().

Here is the call graph for this function:

◆ copyRegionEECComponent()

void ProgramDependenceGraph::copyRegionEECComponent	(	ControlToProgram &	cDNodeToPNode,
		BBToCD &	bBlockToCDNode,
		MoveNodeToPDGNode &	,
		MovesInCD &	moveToCD
	)

private

Copies Region and EEC information from CDG nodes to PDG. Only used if "preprocessing" is done via CDG analysis. Copies also component members.

Parameters

cDNodeToPNode	Map between CDG nodes and PDG nodes
bBlockToCDNode	Map between basic blocks and CDG nodes
moveToPNode	Map between move nodes and their PDG equivalents
moveToCD	Map between CDG node and all PDG equivalents of it's content

Find source of region and eec. In case node is move or predicate have to find parent CDG node

No region or eec info in entry

For non basic block/predicate nodes, we copied them so they will also be in 'region' and 'eec'. Set component info for nodes that are part of loop as well

If cdg node is basic block or predicate, all moves inside will be part of same component

If destination in 'region' is CDG node, add it

If destination in 'region' is BB, add all the moves in it

We have node which was in predicate basic block but is not the actual predicate move node. We have to copy "shadow" eec information

any other type of node should have same eec information as it's CDG counterpart or basic block it belonged to

If node was in predicate basic block and is predicate we also test if it is lastNode and set info

Definition at line 1631 of file ProgramDependenceGraph.cc.

                         {

    int componentCount = cdg_->componentCount();
    strongComponents_.resize(componentCount);

    for (int i = 0; i < nodeCount(); i++) {
        ProgramDependenceNode* node = graph_[i];
        ControlDependenceNode* cNode = NULL;

        /// Find source of region and eec. In case node is move or predicate
        /// have to find parent CDG node
        if (node == entryNode_) {
            /// No region or eec info in entry
            continue;
        }
        if (node->isRegionNode()
            || node->isLoopEntryNode()
            || node->isLoopCloseNode()) {
            /// For non basic block/predicate nodes, we copied them so
            /// they will also be in 'region' and 'eec'.
            /// Set component info for nodes that are part of loop as well
            cNode = &node->cdgNode();
            if (cNode->component() != -1) {
                node->setComponent(cNode->component());
                strongComponents_[node->component()].insert(node);
            }
        } else {
            const BasicBlockNode* BB =
                &ddg_->getBasicBlockNode(node->moveNode());
            if (MapTools::containsKey(bBlockToCDNode, BB)) {
                cNode =
                    MapTools::valueForKey<ControlDependenceNode*>(
                        bBlockToCDNode, BB);
            } else {
                throw InvalidData(__FILE__, __LINE__, __func__,
                    "No CD node for basic block!" + BB->toString());
            }
            /// If cdg node is basic block or predicate, all moves inside
            /// will be part of same component
            if (cNode->component() != -1) {
                std::vector<Node*> nodesInBB = moveToCD[cNode];
                int currentComponent = cNode->component();
                for (unsigned int i = 0; i < nodesInBB.size(); i++) {
                    strongComponents_[currentComponent].insert(
                        nodesInBB[i]);
                    nodesInBB[i]->setComponent(currentComponent);
                }
            }
        }

        ControlDependenceNode::NodesInfo rInfo = cNode->region();
        for (ControlDependenceNode::NodesInfo::iterator iter = rInfo.begin();
            iter != rInfo.end();
            iter++) {
            /// If destination in 'region' is CDG node, add it
            if ((*iter)->isRegionNode()
                || (*iter)->isLoopCloseNode()
                || (*iter)->isLoopEntryNode()) {
                Node* target = cDNodeToPNode[*iter];
                node->addToRegion(*target);
            } else {
                /// If destination in 'region' is BB, add all the moves in it
                std::vector<Node*> nodesInBB = moveToCD[*iter];
                for (unsigned int i = 0; i < nodesInBB.size(); i++) {
                    node->addToRegion(*nodesInBB[i]);
                }
            }
        }
        ControlDependenceNode::NodesInfo eecInfo;
        if (cNode->isPredicateNode() && !node->isPredicateMoveNode()) {
            /// We have node which was in predicate basic block but is not
            /// the actual predicate move node.
            /// We have to copy "shadow" eec information
            eecInfo = cNode->pseudoPredicateEEC();
        } else {
            /// any other type of node should have same eec information as it's
            /// CDG counterpart or basic block it belonged to
            eecInfo = cNode->eec();
            /// If node was in predicate basic block and is predicate we also
            /// test if it is lastNode and set info
            if (cNode->isPredicateNode()
                && node->isPredicateMoveNode()
                && cNode->isLastNode()) {
                node->setLastNode();
            }
        }
        for (ControlDependenceNode::NodesInfo::iterator iter =
            eecInfo.begin(); iter != eecInfo.end(); iter++) {
            if ((*iter)->isRegionNode()
                || (*iter)->isLoopCloseNode()
                || (*iter)->isLoopEntryNode()) {
                Node* target = cDNodeToPNode[*iter];
                node->addToEEC(*target);
            } else {
                std::vector<Node*> nodesInBB = moveToCD[*iter];
                for (unsigned int i = 0; i < nodesInBB.size(); i++) {
                    node->addToEEC(*nodesInBB[i]);
                }
            }
        }
    }
}

References __func__, cdg_, ControlDependenceNode::component(), ControlDependenceGraph::componentCount(), MapTools::containsKey(), ddg_, ControlDependenceNode::eec(), entryNode_, DataDependenceGraph::getBasicBlockNode(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::graph_, ControlDependenceNode::isLastNode(), ControlDependenceNode::isPredicateNode(), MapTools::keyForValue(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::nodeCount(), ControlDependenceNode::pseudoPredicateEEC(), ControlDependenceNode::region(), strongComponents_, and BasicBlockNode::toString().

Referenced by ProgramDependenceGraph().

Here is the call graph for this function:

◆ createJump()

void ProgramDependenceGraph::createJump	(	BasicBlockNode *	from,
		BasicBlockNode *	to,
		TTAProgram::Terminal *	guardReg = `NULL`,
		ControlFlowEdge::CFGEdgePredicate	predicate = `ControlFlowEdge::CFLOW_EDGE_NORMAL`
	)

private

If reference already exists, just return it

Definition at line 2003 of file ProgramDependenceGraph.cc.

                                              {
    return;
    if (from->isNormalBB() && to->isNormalBB()
       //&& !from->basicBlock().lastInstruction().hasControlFlowMove()
       ) {
        if (from->basicBlock().lastInstruction().hasControlFlowMove()) {
            Application::logStream() << "\tMove already has CF " <<
                from->basicBlock().lastInstruction().toString() << std::endl;
        }
        Application::logStream() << (boost::format(
            "Creating jump from %s to %s\n")
            % from->toString() % to->toString()).str();
        TTAProgram::InstructionReferenceManager& manager =
            program_->instructionReferenceManager();
        /// If reference already exists, just return it
        TTAProgram::InstructionReference ref =
            manager.createReference(to->basicBlock().firstInstruction());

        TTAMachine::HWOperation* hwOp =
            program_->universalMachine().controlUnit()->operation("jump");

        TTAProgram::TerminalFUPort* jump1Terminal =
            new TTAProgram::TerminalFUPort(*hwOp, 1);

        TTAProgram::Terminal* jump0Terminal =
            new TTAProgram::TerminalInstructionReference(ref);

        auto jumpMove = std::make_shared<TTAProgram::Move>(
                    jump0Terminal, jump1Terminal,
                    program_->universalMachine().universalBus());

        if (predicate == ControlFlowEdge::CFLOW_EDGE_TRUE) {
            TTAMachine::Machine::BusNavigator busNav =
                program_->universalMachine().busNavigator();
            for (int i = 0; i < busNav.count(); i++) {
                TTAMachine::Bus* bus = busNav.item(i);
                for (int i = 0; i < bus->guardCount(); i++) {
                    TTAMachine::RegisterGuard* regGuard =
                        dynamic_cast<TTAMachine::RegisterGuard*>(bus->guard(i));
                    if (regGuard != NULL &&
                        regGuard->registerFile() == &guardReg->registerFile() &&
                        regGuard->registerIndex() == (int)guardReg->index()) {
                        jumpMove->setGuard(
                            new TTAProgram::MoveGuard(*regGuard));
                        break;
                    }
                }
            }
        } else if (predicate == ControlFlowEdge::CFLOW_EDGE_FALSE) {
            TTAMachine::Machine::BusNavigator busNav =
                program_->universalMachine().busNavigator();
            for (int i = 0; i < busNav.count(); i++) {
                TTAMachine::Bus* bus = busNav.item(i);
                for (int i = 0; i < bus->guardCount(); i++) {
                    TTAMachine::RegisterGuard* regGuard =
                        dynamic_cast<TTAMachine::RegisterGuard*>(bus->guard(i));
                    if (regGuard != NULL &&
                        regGuard->registerFile() == &guardReg->registerFile() &&
                        regGuard->registerIndex() == (int)guardReg->index() &&
                        regGuard->isInverted() == true) {
                        jumpMove->setGuard(
                            new TTAProgram::MoveGuard(*regGuard));
                        break;
                    }
                }
            }
        }

        TTAProgram::Instruction* inst = &from->basicBlock().lastInstruction();
        if (inst->moveCount() > 0) {
            inst = new TTAProgram::Instruction();
            from->basicBlock().add(inst);
        }
        std::cerr << " before result " << inst->toString() << std::endl;
        inst->addMove(jumpMove);
        std::cerr << " after result " << inst->toString() << std::endl;
    } else {
        Application::logStream() << (boost::format(
            "Failed to add jump for %s %s, %s, %s\n")
            % from->toString() % to->toString() %
            from->basicBlock().lastInstruction().toString() %
            to->basicBlock().firstInstruction().toString()).str();
    }
}

References TTAProgram::CodeSnippet::add(), TTAProgram::Instruction::addMove(), BasicBlockNode::basicBlock(), TTAMachine::Machine::busNavigator(), ControlFlowEdge::CFLOW_EDGE_FALSE, ControlFlowEdge::CFLOW_EDGE_TRUE, TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAProgram::InstructionReferenceManager::createReference(), TTAProgram::CodeSnippet::firstInstruction(), TTAMachine::Bus::guard(), TTAMachine::Bus::guardCount(), TTAProgram::Instruction::hasControlFlowMove(), TTAProgram::Terminal::index(), TTAProgram::Program::instructionReferenceManager(), TTAMachine::Guard::isInverted(), BasicBlockNode::isNormalBB(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAProgram::CodeSnippet::lastInstruction(), Application::logStream(), TTAProgram::Instruction::moveCount(), TTAMachine::FunctionUnit::operation(), program_, TTAMachine::RegisterGuard::registerFile(), TTAProgram::Terminal::registerFile(), TTAMachine::RegisterGuard::registerIndex(), BasicBlockNode::toString(), TTAProgram::Instruction::toString(), UniversalMachine::universalBus(), and TTAProgram::Program::universalMachine().

Referenced by addLeafEdges(), processLoopEntry(), processPredicate(), and processRegion().

Here is the call graph for this function:

◆ detectStrongComponents()

int ProgramDependenceGraph::detectStrongComponents	(	PDGOrderMap &	components,
		DescriptorMap &	roots,
		FilteredCDG &	cdg
	)

private

Detects all strong components of a PDG graph (loops). Strong components are maximal sets of nodes that are reachable from each other. Each node is member of some component. If it is not in loop then node is components of it's own. Augments graph with loop entry and close nodes. Works iteratively, first detects maximal component, then proceeds to ones that are "embedded".

Parameters

components	After return contains for each node number of component to which node belongs
roots	After return contains for each node a node that is root of component to which node belongs

Returns: returns number of components in a graph

Will repeat until all the strong components will be found Including weirdly nested :-)

Node count will change with addition of close nodes

If the number of components is identical to number of nodes there are no loops in graph

Add to strong components only those which are loops Store them as Node*, use of descriptors is not possible due to later addition of Nodes which will invalidate descriptors

Detects all loop entry nodes Stores Nodes which are identified as loop entry nodes together with number to which loop they belong

for each entry node, collect edges that points to it from outside the loop, deals only with newly added components

tail of the edge is not inside component it is external edge making this node loop entry

Several nodes points to loop entry node we create dummy region node to collect those edges

Adds close nodes for each loop entry node Node and Edge descriptors are invalidated here!

Create one "close" node for each loop entry

Close node is also part of component

Redirect edges to loop entry from inside the loop to loop close node. Collect edges that needs redirecting

store edges that will have to be moved

Actually redirect edges

Back edge will be added later, after all loops are found

Close node is also added to unfiltered pdg, as well as edges so we can test it directly there and not on filtered graph

In case loop entry has multiple incoming edges outside loop, we add new region to group them together This can be also on original pdg, no need to use filtered version

Creates new artificial region node without equivalent one in CDG

Add edges from close nodes to their respective loop entries

Definition at line 532 of file ProgramDependenceGraph.cc.

                      {

    std::vector<std::pair<Node*, Node*> >  backEdges;
    int componentCount = 0;
    int currentComponents = 0;
    int numberOfNodes = 0;

    /// Will repeat until all the strong components will be found
    /// Including weirdly nested :-)
    do {
        PDGOrder componentOrder(components);
        Descriptors componentRoots(roots);
        currentComponents = 0;
        /// Node count will change with addition of close nodes
        numberOfNodes = boost::num_vertices(cdg);
        currentComponents =  boost::strong_components(
            cdg, componentOrder, boost::root_map(componentRoots));

        // for each component add vector of nodes that belongs to it
        std::vector<std::set<Node*> >  componentVector;
        componentVector.resize(componentCount + currentComponents);

        /// If the number of components is identical to number of nodes
        /// there are no loops in graph
        if (currentComponents == numberOfNodes) {
            componentCount = strongComponents_.size();
            break;
        }

        /// Add to strong components only those which are loops
        /// Store them as Node*, use of descriptors is not possible
        /// due to later addition of Nodes which will invalidate
        /// descriptors
        for (PDGOrderMap::iterator iterA = components.begin();
            iterA != components.end(); iterA ++) {
                Node* cNode = cdg[(*iterA).first];
                componentVector[(*iterA).second].insert(cNode);
        }
        for (unsigned int i = componentCount; i < componentVector.size(); i++){
            if (componentVector[i].size() > 1) {
                std::set<Node*>& vector = componentVector[i];
                std::set<Node*> ref;
                int componentsSize = strongComponents_.size();
                for (std::set<Node*>::iterator iterB = vector.begin();
                    iterB != vector.end();
                    iterB++) {
                    ref.insert(*iterB);
                    // Set component number
                    if ((*iterB)->component() == -1){
                        (*iterB)->setComponent(componentsSize);
                    }
                }
                strongComponents_.push_back(ref);
            }
        }

        /// Detects all loop entry nodes
        /// Stores Nodes which are identified as loop entry nodes
        /// together with number to which loop they belong
        std::vector<std::pair<Node*,int> > newEntry;
        /// for each entry node, collect edges that points to it from outside
        /// the loop, deals only with newly added components
        std::map<Node*, std::vector<Node*> >  incomingToEntry;
        for (unsigned int i = componentCount;
            i < strongComponents_.size();
            i++) {
            std::set<Node*>& nodes = strongComponents_[i];
            for (std::set<Node*>::iterator iterD = nodes.begin();
                iterD != nodes.end();
                iterD++) {

                FilteredVertexDescriptor vec;
                vec = descriptor(**iterD);
                FilteredInEdgePair edges = boost::in_edges(vec, cdg);
                for (FilteredInEdgeIter ei = edges.first;
                    ei != edges.second;
                    ++ei) {

                    Node* testedNode = cdg[boost::source(*ei, cdg)];
                    if (nodes.find(testedNode) == nodes.end()) {
                        /// tail of the edge is not inside component
                        /// it is external edge making this node loop entry
                        if (!(*iterD)->isLoopEntryNode(i)) {
                            (*iterD)->setLoopEntryNode(i);
                            newEntry.push_back(
                                std::pair<Node*,int>(*iterD,i));
                            incomingToEntry[*iterD].push_back(testedNode);
                        } else {
                        /// Several nodes points to loop entry node
                        /// we create dummy region node to collect those
                        /// edges
                            incomingToEntry[*iterD].push_back(testedNode);
                        }
                    }
                }
            }
        }

        /// Adds close nodes for each loop entry node
        /// Node and Edge descriptors are invalidated here!
        for (unsigned int j = 0; j < newEntry.size(); j++) {
            Node* loopNode = newEntry[j].first;
            std::set<Node*>& nodes =
                strongComponents_[newEntry[j].second];
            /// Create one "close" node for each loop entry
            Node* close = new Node(Node::PDG_NODE_LOOPCLOSE);
            close->setComponent(newEntry[j].second);
            addNode(*close);

            /// Close node is also part of component
            strongComponents_[newEntry[j].second].insert(close);

            FilteredVertexDescriptor vec;
            vec = descriptor(*loopNode);
            FilteredInEdgePair edges = boost::in_edges(vec, cdg);
            std::vector<Edge*> storeEdges;
            /// Redirect edges to loop entry from inside the loop
            /// to loop close node. Collect edges that needs redirecting
            for (FilteredInEdgeIter ei = edges.first;
                ei != edges.second;
                ++ei) {
                Node* sourceNode = cdg[boost::source(*ei, cdg)];
                if (nodes.find(sourceNode) != nodes.end()){
                    /// store edges that will have to be moved
                    Edge* edge = cdg[*ei];
                    storeEdges.push_back(edge);
                }
            }
            /// Actually redirect edges
            for (unsigned int counter = 0;
                counter < storeEdges.size();
                counter++) {
                moveInEdge(*loopNode, *close, *storeEdges[counter]);
            }
            /// Back edge will be added later, after all loops are found
            backEdges.push_back(
                std::pair<Node*, Node*>(close, loopNode));

            /// Close node is also added to unfiltered pdg, as well as edges
            /// so we can test it directly there and not on filtered graph
            if (inDegree(*close) == 0) {
                TCEString msg = "Close node for loop entry node ";
                msg += loopNode->toString() + " was not connected!";
                throw ModuleRunTimeError(__FILE__, __LINE__, __func__, msg);
            }
            /// In case loop entry has multiple incoming edges
            /// outside loop, we add new region to group them together
            /// This can be also on original pdg, no need to use filtered
            /// version
            std::vector<Node*> tmp =
                MapTools::valueForKey<std::vector<Node*> >(
                    incomingToEntry, loopNode);
            if (tmp.size() > 1) {
                /// Creates new artificial region node without equivalent
                /// one in CDG
                Node* collect = new Node();
                addNode(*collect);
                for (unsigned int i = 0; i < tmp.size(); i++) {
                    Node* input = tmp[i];
                    EdgeDescriptor ed = connectingEdge(*input, *loopNode);
                    Edge* e = graph_[ed];
                    moveInEdge(*loopNode, *collect, *e);
                }
                ProgramDependenceEdge* pdgEdge =
                    new ProgramDependenceEdge();
                connectNodes(*collect, *loopNode, *pdgEdge);
            }
        }
        newEntry.clear();
        componentCount = strongComponents_.size();
   } while (true);

    /// Add edges from close nodes to their respective loop entries
    for (unsigned int i = 0; i < backEdges.size(); i++) {
        ProgramDependenceEdge* pdgEdge =
            new ProgramDependenceEdge(
                ProgramDependenceEdge::PDG_EDGE_LOOP_CLOSE);
        connectNodes(*backEdges[i].first, *backEdges[i].second, *pdgEdge);
    }

#if 0
    for (unsigned int i = 0; i < strongComponents_.size() ; i++) {
        std::cerr << "\tComponent: " << i << std::endl;
        for (std::set<Node*>::iterator iter = strongComponents_[i].begin();
             iter != strongComponents_[i].end(); iter++) {
            std::cerr << "\t\t" << (*iter)->toString() << std::endl;
        }
        std::cerr << std::endl;
    }
#endif
    return componentCount;
}

Referenced by serializePDG().

Here is the call graph for this function:

◆ disassemble()

void ProgramDependenceGraph::disassemble ( ) const

Definition at line 1948 of file ProgramDependenceGraph.cc.

                                          {
#if 0
    BackCFGFilter<ControlFlowGraph> backCFGFilter(*newCFG_);
    /// Create filtered graph
    CFGSubgraph  sub = CFGSubgraph(*newCFG_, backCFGFilter);
    /// Sort nodes of subgraph topologically
    std::vector<ControlFlowGraph::NodeDescriptor> sorted;
    try {
        boost::topological_sort(*newCFG_, std::back_inserter(sorted));
    } catch (...) {
        Application::logStream() << (boost::format(
            "CFG %s can not be topologically sorted\n")
            % name()).str();
    }
    for (std::vector<ControlFlowGraph::NodeDescriptor>::reverse_iterator iter =
        sorted.rbegin();
        iter != sorted.rend(); iter++) {
        BasicBlockNode* node = newCFG_[*iter];
        if (node->isNormalBB()) {
            Application::logStream() <<
                POMDIsassembler::disassemble(node->basicBlock());
        }
    }

    Application::logStream() << (boost::format(
        "Trying out %s with node count %d\n")
        % name() % newCFG_->nodeCount()).str();
    TTAMachine::AddressSpace& space =
        cdg_->program()->universalMachine().instructionAddressSpace();
    TTAProgram::Procedure newProc(name(), space, 0);
    Application::logStream() << "Is in program " << newProc.isInProgram() <<
            std::endl;
    cdg_->program()->addProcedure(&newProc);
    newCFG_->copyToProcedure(newProc);
    //newCFG_->updateReferencesFromProcToCfg();
    Application::logStream() << "Procedure copied" <<
            std::endl;
    Application::logStream() << " start " << newProc.startAddress().location()
            << " end " << newProc.endAddress().location() << std::endl;
    //Application::logStream() <<
      //  POMDisassembler::disassemble(newProc);
    cdg_->program()->removeProcedure(newProc);
    int count = newProc.instructionCount();
    for (int i = 0; i < count; i++) {
        Application::logStream() << (boost::format(
        "%s\n")
        % POMDisassembler::disassemble(newProc.instructionAtIndex(i),1)).str();
    }
    //ControlFlowGraph testCFG(newProc);
    //testCFG.writeToDotFile(name() + "_testCFG.dot");
    //delete newCFG_;
#endif
}

References TTAProgram::Program::addProcedure(), cdg_, ControlFlowGraph::copyToProcedure(), POMDisassembler::disassemble(), TTAProgram::CodeSnippet::endAddress(), UniversalMachine::instructionAddressSpace(), TTAProgram::CodeSnippet::instructionAtIndex(), TTAProgram::CodeSnippet::instructionCount(), TTAProgram::CodeSnippet::isInProgram(), TTAProgram::Address::location(), Application::logStream(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::name(), newCFG_, BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node(), BoostGraph< GraphNode, GraphEdge >::nodeCount(), ControlDependenceGraph::program(), TTAProgram::Program::removeProcedure(), TTAProgram::CodeSnippet::startAddress(), sub, and TTAProgram::Program::universalMachine().

Here is the call graph for this function:

◆ entryNode()

ProgramDependenceNode & ProgramDependenceGraph::entryNode ( ) const

Returns entry node of the graph.

Returns: Entry node

Definition at line 1099 of file ProgramDependenceGraph.cc.

                                        {
    if (entryNode_ == NULL ) {
        throw ModuleRunTimeError(
            __FILE__, __LINE__, __func__,
            "Trying to get entry node before it was defined!");
    }
    return *entryNode_;
}

References __func__, and entryNode_.

Referenced by computeRegionInfo(), ProgramDependenceGraph(), and serializePDG().

◆ moveDDGedges()

void ProgramDependenceGraph::moveDDGedges	(	Node &	root,
		NodeSet &	subgraphNodes,
		FilteredCDG &	filteredCDG
	)

private

Helper method to move/copy DDG edges that connected subraph nodes with rest of the graph to the root node of subgraph

Parameters

rootNode	Root node of subgraph
subgraphNodes	Nodes of the subgraph to test
filteredCDG	Filtered cdg graph, containing only control dependence nodes

Do not process root of a subtree, it is child of other node and will be processed later

Test if target is region, predicate or loop node, those prefer copies

gets incoming control dependence edges of node more then one edge means node is reachable from several places

Deal with incoming edges

No need to deal with control dependence edges or data dependence that had been "fixed" - meaning they are between nodes of same subtree (including edges between root of subtree and child node)

Edges with identical properties already exists no need to copy or move, just remove edge

Creates copy of edge from outside subgraph to root of the graph

Edge is duplicate of already existing dependence

Moves edge from outside the subgraph to target root

Edge between nodes in subtree

Deal with outgoing edges

No need to deal with control dependence edges or data dependence that had been "fixed" - meaning they are between nodes of same subtree (including edges between root of subtree and child node)

Edges with identical properties already exists no need to copy or move, just remove edge

Creates copy of edge from outside subgraph to root of the graph if such edge does not exists

Edge is duplicate of already existing dependence

Moves edge from outside the subgraph to target root

Edge between nodes in subtree

Definition at line 1498 of file ProgramDependenceGraph.cc.

                              {

    for (NodeSet::iterator iter = subgraphNodes.begin();
        iter != subgraphNodes.end();
        iter++) {
        /// Do not process root of a subtree, it is child of other node
        /// and will be processed later
        if ((*iter) == &root) {
            continue;
        }
        /// Test if target is region, predicate or loop node,
        /// those prefer copies
        bool copyInsteadOfMove = false;
        if (!(*iter)->isMoveNode()) {
            /// gets incoming control dependence edges of node
            /// more then one edge means node is reachable from several places
            int parentCount = boost::in_degree(descriptor(**iter), filteredCDG);
            if (parentCount > 1) {
                copyInsteadOfMove = true;
            }
        }
        /// Deal with incoming edges
        EdgeSet inputs = inEdges(**iter);
        for (EdgeSet::iterator ein = inputs.begin();
            ein != inputs.end();
            ein++) {
            /// No need to deal with control dependence edges or data dependence
            /// that had been "fixed" - meaning they are between nodes of same
            /// subtree (including edges between root of subtree and child node)
            if (!(*ein)->isDataDependence() || (*ein)->fixed()) {
                continue;
            }
            Node* tail = &tailNode(**ein);
            if (!AssocTools::containsKey(subgraphNodes, tail)) {
                Edge* testedEdge = *ein;
                EdgeSet inputEdges = connectingEdges(*tail, root);
                bool duplicateEdge = false;
                for (EdgeSet::iterator testIter = inputEdges.begin();
                    testIter != inputEdges.end();
                    testIter ++) {
                    if (!(*testIter)->isDataDependence()) {
                        continue;
                    }
                    if ((testedEdge->dataDependenceEdge().dependenceType() ==
                        (*testIter)->dataDependenceEdge().dependenceType())
                        &&
                        (testedEdge->dataDependenceEdge().edgeReason() ==
                        (*testIter)->dataDependenceEdge().edgeReason())) {
                        /// Edges with identical properties already exists
                        /// no need to copy or move, just remove edge
                        duplicateEdge = true;
                    }
                }
                if (copyInsteadOfMove && !duplicateEdge) {
                    /// Creates copy of edge from outside subgraph
                    /// to root of the graph
                    copyInEdge(root, **ein, tail);
                } else if (duplicateEdge) {
                    /// Edge is duplicate of already existing dependence
                    removeEdge(**ein);
                } else {
                    /// Moves edge from outside the subgraph to target root
                    moveInEdge(**iter, root, **ein);
                }
            } else {
                /// Edge between nodes in subtree
                (*ein)->setFixed();
            }
        }
        /// Deal with outgoing edges
        EdgeSet outputs = outEdges(**iter);
        for (EdgeSet::iterator eout = outputs.begin();
            eout != outputs.end();
            eout++) {
            /// No need to deal with control dependence edges or data dependence
            /// that had been "fixed" - meaning they are between nodes of same
            /// subtree (including edges between root of subtree and child node)
            if (!(*eout)->isDataDependence() || (*eout)->fixed()) {
                continue;
            }
            Node* head = &headNode(**eout);
            if (!AssocTools::containsKey(subgraphNodes, head)) {
                Edge* testedEdge = *eout;
                EdgeSet outputEdges = connectingEdges(root, *head);
                bool duplicateEdge = false;
                for (EdgeSet::iterator testIter = outputEdges.begin();
                    testIter != outputEdges.end();
                    testIter ++) {
                    if (!(*testIter)->isDataDependence()) {
                        continue;
                    }
                    if ((testedEdge->dataDependenceEdge().dependenceType() ==
                        (*testIter)->dataDependenceEdge().dependenceType())
                        &&
                        (testedEdge->dataDependenceEdge().edgeReason() ==
                        (*testIter)->dataDependenceEdge().edgeReason())) {
                        /// Edges with identical properties already exists
                        /// no need to copy or move, just remove edge
                        duplicateEdge = true;
                    }
                }
                if (copyInsteadOfMove && !duplicateEdge) {
                    /// Creates copy of edge from outside subgraph
                    /// to root of the graph if such edge does not exists
                    copyOutEdge(root, **eout, head);
                } else if (duplicateEdge) {
                    /// Edge is duplicate of already existing dependence
                    removeEdge(**eout);
                } else {
                    /// Moves edge from outside the subgraph to target root
                    moveOutEdge(**iter, root, **eout);
                }
            } else {
                /// Edge between nodes in subtree
                (*eout)->setFixed();
            }
        }
    }
}

Referenced by processPredicate(), and processRegion().

Here is the call graph for this function:

◆ processEntry()

void ProgramDependenceGraph::processEntry ( BasicBlockNode * firstBB )

private

When entry node is found during serialization, the artificial Entry and Exit nodes are added to CFG. There is added edge from Entry to first BB and All leaf nodes will have edge to the exit.

Definition at line 1744 of file ProgramDependenceGraph.cc.

                                                           {
    BasicBlockNode* newEntry = new BasicBlockNode(0, 0, true, false);
    newCFG_->addNode(*newEntry);
    ControlFlowEdge* edge = new ControlFlowEdge();
    newCFG_->connectNodes(*newEntry, *firstBB, *edge);
    newCFG_->addExit();
//     Application::logStream() << (boost::format(
//     "Create new Entry %s for %s\n")
//     % newEntry->toString() % firstBB->toString()).str();
}

References ControlFlowGraph::addExit(), BoostGraph< GraphNode, GraphEdge >::addNode(), BoostGraph< GraphNode, GraphEdge >::connectNodes(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::edge(), and newCFG_.

Referenced by processRegion().

Here is the call graph for this function:

◆ processLoopClose()

void ProgramDependenceGraph::processLoopClose ( Node * node )

private

Add empty instruction, actual jump move will be created when we process corresponding loop entry

Definition at line 1903 of file ProgramDependenceGraph.cc.

                                                   {
    TTAProgram::BasicBlock* block = new TTAProgram::BasicBlock(insCount_);
    BasicBlockNode* bb = new BasicBlockNode(*block);
    newCFG_->addNode(*bb);
    TTAProgram::Instruction* newIns = new TTAProgram::Instruction();
    /// Add empty instruction, actual jump move will be created when
    /// we process corresponding loop entry
    bb->basicBlock().add(newIns);
    insCount_++;
    node->setNewFirstBB(bb);
    /*NodeSet predecessorsNodes = predecessors(*node);
    for (NodeSet::iterator iter = predecessorsNodes.begin();
        iter != predecessorsNodes.end(); iter++) {
        (*iter)->setLastNode();
    }*/
/*    Application::logStream() << (boost::format(
        "Creating BB %s for loop close %s")
        % bb->toString() % node->toString()).str();*/
}

References TTAProgram::CodeSnippet::add(), BoostGraph< GraphNode, GraphEdge >::addNode(), BasicBlockNode::basicBlock(), insCount_, newCFG_, and BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node().

Referenced by computeRelations().

Here is the call graph for this function:

◆ processLoopEntry()

void ProgramDependenceGraph::processLoopEntry	(	Node *	node,
		BasicBlockNode *	bb
	)

private

Add edge from loop close node to corresponding loop entry

Definition at line 1924 of file ProgramDependenceGraph.cc.

                                                                       {
    /// Add edge from loop close node to corresponding loop entry
    if (bb == NULL) {
        return;
    }
    NodeSet inputs = predecessors(*node);
    for(NodeSet::iterator ni = inputs.begin(); ni != inputs.end();
        ni++) {
        if((*ni)->isLoopCloseNode()
            && (*ni)->newFirstBB() != NULL
            && (*ni)->component() == node->component()) {
/*            Application::logStream() << "Adding loop edge "
            << (*ni)->newFirstBB()->toString() << " to "
            << bb->toString() << std::endl;*/
            ControlFlowEdge* edge = new ControlFlowEdge();
            edge->setBackEdge();
            newCFG_->connectNodes(*(*ni)->newFirstBB(), *bb, *edge);
            std::cerr << "Adding for loop entry" << std::endl;
            createJump((*ni)->newFirstBB(), bb);
        }
    }
}

References BoostGraph< GraphNode, GraphEdge >::connectNodes(), createJump(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::edge(), newCFG_, BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node(), and BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::predecessors().

Referenced by processPredicate(), and processRegion().

Here is the call graph for this function:

◆ processPredicate()

void ProgramDependenceGraph::processPredicate	(	Node *	predicate,
		FilteredCDG &	filteredCDG
	)

private

Process predicate node of the graph.

Add edges from predicate to one or two child region nodes and fill in next basic block with last BB of first child region and fall through BB with last BB of second child (if exists), otherwise predicate BB itself. Also moves DDG edges between child nodes and out of subtree to point to predicate for topological sorting of region where predicate itself belongs.

Parameters

predicate	Predicate node to process
filteredCDG	Filtered graph from where we get child nodes of predicate

Get all child nodes of predicate node

Store all child nodes, we will need to collect all edges to and from subgraph rooted by predicate

Create basic block with predicate, it will be also first to execute

In case one of branches had only single absolute jump to "exit" of procedure, there is no child basic block

One of the outgoing edges is missing, we will have to add edge from predicate itself to next BB

Move/copy edges between nodes "inside" subgraph and nodes outside the subgraph

Definition at line 1768 of file ProgramDependenceGraph.cc.

                              {

    /// Get all child nodes of predicate node
    NodeDescriptor nodeDes = descriptor(*predicate);
    FilteredOutEdgePair edges = boost::out_edges(nodeDes, filteredCDG);
    /// Store all child nodes, we will need to collect all edges
    /// to and from subgraph rooted by predicate
    NodeSet subgraphNodes;
    subgraphNodes.insert(predicate);
    /// Create basic block with predicate, it will be also first to
    /// execute
    TTAProgram::BasicBlock* block = new TTAProgram::BasicBlock(insCount_);
    BasicBlockNode* bb = new BasicBlockNode(*block);
//     Application::logStream() << (boost::format(
//     "Create new Predicate BB %s for %s\n")
//     % bb->toString() % predicate->toString()).str();

    newCFG_->addNode(*bb);
    TTAProgram::Instruction* newIns = new TTAProgram::Instruction();
    newIns->addMove(predicate->moveNode().movePtr());
    TTAProgram::Terminal& guardReg =
        predicate->moveNode().move().destination();

    bb->basicBlock().add(newIns);
    insCount_++;
    predicate->setNewFirstBB(bb);

    bool hasTrue = false;
    bool hasFalse = false;
    for (FilteredOutEdgeIter ei1 = edges.first;
        ei1 != edges.second;
        ++ei1) {
        Edge* edge = graph_[*ei1];
        if (edge->isArtificialControlDependence()) {
            continue;
        }
        NodeDescriptor des = boost::target(*ei1, filteredCDG);
        Node* node = graph_[des];
        subgraphNodes.insert(node);

        /// In case one of branches had only single
        /// absolute jump to "exit" of procedure, there
        /// is no child basic block
        if(node->newFirstBB() != NULL) {
            ControlFlowEdge::CFGEdgePredicate predicateValue =
                ControlFlowEdge::CFLOW_EDGE_NORMAL;
            if (edge->controlDependenceEdge().isTrueEdge()) {
                predicateValue = ControlFlowEdge::CFLOW_EDGE_TRUE;
                hasTrue = true;
            } else {
                predicateValue = ControlFlowEdge::CFLOW_EDGE_FALSE;
                hasFalse = true;
            }
            ControlFlowEdge *newEdge = new ControlFlowEdge(predicateValue);
/*            Application::logStream() << (boost::format(
            "Adding edge for predicate %s to %s in %s\n")
            % bb->toString() % node->newFirstBB()->toString() % name()).str();*/
            newCFG_->connectNodes(
                *bb, *node->newFirstBB(), *newEdge);
            std::cerr << "Adding for predicate" << std::endl;
            createJump(bb, node->newFirstBB(), &guardReg, predicateValue);
            //predicate->addLeafBlocks(node->leafBlocks());
        } else {
            if(boost::out_degree(des, filteredCDG) != 0) {
                TCEString msg = (boost::format(
                    "Found a node without first BB set. %s for predicate %s"
                    " in procedure %s\n")
                    % node->toString() % predicate->toString() % name()).str();
                throw InvalidData(__FILE__, __LINE__, __func__, msg);
            }
        }
        if (node->isLoopCloseNode()) {
            assert(node->newFirstBB() != NULL);
            //predicate->setLastNode();
        }
        if (node->isLoopEntryNode()) {
            processLoopEntry(node, node->newFirstBB());
        }
    }
    /// One of the outgoing edges is missing, we will have to add edge
    /// from predicate itself to next BB
    if (!(hasTrue && hasFalse)) {
        predicate->addLeafBlock(bb);
    }
    /// Move/copy edges between nodes "inside" subgraph and nodes outside the
    /// subgraph
    moveDDGedges(*predicate, subgraphNodes, filteredCDG);
}

References __func__, TTAProgram::CodeSnippet::add(), ProgramDependenceNode::addLeafBlock(), TTAProgram::Instruction::addMove(), BoostGraph< GraphNode, GraphEdge >::addNode(), assert, BasicBlockNode::basicBlock(), ControlFlowEdge::CFLOW_EDGE_FALSE, ControlFlowEdge::CFLOW_EDGE_NORMAL, ControlFlowEdge::CFLOW_EDGE_TRUE, BoostGraph< GraphNode, GraphEdge >::connectNodes(), createJump(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::descriptor(), TTAProgram::Move::destination(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::edge(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::graph_, insCount_, MoveNode::move(), moveDDGedges(), ProgramDependenceNode::moveNode(), MoveNode::movePtr(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::name(), newCFG_, BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node(), processLoopEntry(), ProgramDependenceNode::setNewFirstBB(), ProgramDependenceNode::toString(), and GraphNode::toString().

Referenced by computeRelations().

Here is the call graph for this function:

◆ processRegion()

void ProgramDependenceGraph::processRegion	(	Node *	regionNode,
		FilteredCDG &	filteredCDG
	)

private

"Sorts" all the child nodes of a region in topological order based on their control and data dependencies.

Parameters

regionNode	Region/Predicate node who's child nodes to process
filteredCDG	Control Dependence subraph

Get all child nodes of region node

Store all child nodes, we will need to collect all edges to and from subgraph rooted by region

node1 will be compared against all the other previously untested nodes

Test relation between siblings, should never return ERROR!

Move/copy edges between nodes "inside" subgraph and nodes outside the subgraph

Add actual control dependence edges for serialization

Nodes of subgraph without it's root

No loop close edges or DDG loop edges

Create filtered graph

Sort nodes of subgraph topologically

In case topological sort fails with graph not being DAG Write it out

It is first block so we add it as new first also to parent

There was some previous node tested, we have to add edges

Previously, statements created single basic block so we add edge from that to this one

If previous block ended with call we add CALL type of edge

clear lastBB, the edge was already added

leafs were processed, this node should have some leafs as well

if we got this far, lastBB should be NULL

Accessed node is loop entry, we add edge from corresponding loop close node to it.

We found single statement, time to add it to basic block

Time to create new BB

We just created first BB for children of region so we set it as first BB

Previous BB ended with CALL, so we link it to new one with call edge

Block just created is current lastBB

Leaf blocks were added, we can clear them

Definition at line 1198 of file ProgramDependenceGraph.cc.

                              {

    /// Get all child nodes of region node
    NodeDescriptor nodeDes = descriptor(*regionNode);
    FilteredOutEdgePair edges = boost::out_edges(nodeDes, filteredCDG);
    /// Store all child nodes, we will need to collect all edges
    /// to and from subgraph rooted by region
    NodeSet subgraphNodes;
    subgraphNodes.insert(regionNode);
    std::vector<std::pair<Node*, Node*> > newEdges;
    std::vector<std::pair<Node*, Node*> > unorderable;
    for (FilteredOutEdgeIter ei1 = edges.first;
        ei1 != edges.second;
        ++ei1) {
        NodeDescriptor des = boost::target(*ei1, filteredCDG);
        Node* node1 = graph_[des];
        subgraphNodes.insert(node1);

        /// node1 will be compared against all the other previously untested
        /// nodes
        FilteredOutEdgeIter ei2 = ei1;
        ei2++;
        for (; ei2 != edges.second; ++ei2) {
            Node* node2 = graph_[boost::target(*ei2, filteredCDG)];
            /// Test relation between siblings, should never return ERROR!
            CompareResult result = compareSiblings(node1, node2);
            switch(result) {
                case ERROR:
                    if(Application::verboseLevel() > 0) {
                        writeToDotFile(name() + "_pdg_broken.dot");
                        node1->printRelations();
                        node2->printRelations();
                    }
                    throw ModuleRunTimeError(
                        __FILE__, __LINE__, __func__,
                        (boost::format(
                            "Ordering error for A='%s' and B='%s'")
                            % node1->toString() % node2->toString()).str());
                case A_BEFORE_B:
                    newEdges.push_back(std::pair<Node*, Node*>(node1, node2));
                    break;
                case B_BEFORE_A:
                    newEdges.push_back(std::pair<Node*, Node*>(node2, node1));
                    break;
                case UNORDERABLE:
                    if(Application::verboseLevel() >= 0) {
                        Application::logStream() << (boost::format(
                            "Nodes (%s) and (%s) can not "
                            "be put into any order.\n")
                            % node1->toString()% node2->toString()).str();
                    }
                    unorderable.push_back(
                        std::pair<Node*, Node*>(node1, node2));
                    break;
                case ANY_ORDER:
                    break;
            }

        }
    }
    /// Move/copy edges between nodes "inside" subgraph and nodes outside the
    /// subgraph
    moveDDGedges(*regionNode, subgraphNodes, filteredCDG);
    /// Add actual control dependence edges for serialization
    for (unsigned int i = 0; i < newEdges.size(); i++) {
        ProgramDependenceEdge* direction = new ProgramDependenceEdge();
        connectNodes(*newEdges[i].first, *newEdges[i].second, *direction);
    }
    newEdges.clear();
    //return;
    /// Nodes of subgraph without it's root
    SubgraphTypeTest<NodeSet, Graph> subgraph(
        regionNode, subgraphNodes, graph_);
    /// No loop close edges or DDG loop edges
    BackFilter<Graph> backFilter(graph_);
    /// Create filtered graph
    Subgraph  sub = Subgraph(graph_, backFilter, subgraph);
    /// Sort nodes of subgraph topologically
    std::vector<NodeDescriptor> sorted;
    try {
        boost::topological_sort(sub, std::back_inserter(sorted));
    } catch (boost::not_a_dag & x) {
        /// In case topological sort fails with graph not being DAG
        /// Write it out
        label_writer<Graph> lb(graph_);
        TCEString outName =
            name() + Conversion::toString(wrongCounter_) + "_notDAG.dot";
        wrongCounter_++;
        std::ofstream output(outName.c_str());
        boost::write_graphviz(output, sub,lb,lb);

        Application::logStream() << (boost::format(
            "Topological sort of %s(%s) failed.\n"
            "Most likely loop is present.\n")
            % name() % regionNode->toString()).str();
        return;
    } catch (...) {
       Application::logStream() << (boost::format(
            "Topological sort of %s(%s) failed.\n"
            "Most likely loop is present.\n")
            % name() % regionNode->toString()).str();
        return;
    }

    BasicBlockNode* lastBB = NULL;
    std::vector<BasicBlockNode*> leafBlocks;
    bool changeBB = false;

    for (std::vector<NodeDescriptor>::reverse_iterator iter = sorted.rbegin();
        iter != sorted.rend(); iter++) {
        Node* accessedNode = graph_[*iter];
        BasicBlockNode* bb = NULL;

        if(accessedNode->newFirstBB() != NULL) {
            // Child node is region or predicate and already has BBs
            // we will just link them
            bb = accessedNode->newFirstBB();
            if (regionNode->newFirstBB() == NULL) {
                assert(leafBlocks.size() == 0 && lastBB == NULL);
                /// It is first block so we add it as new first also to parent
                regionNode->setNewFirstBB(bb);
            }
            /// There was some previous node tested, we have to add edges
            if (lastBB != NULL) {
                assert(leafBlocks.size() == 0);
                /// Previously, statements created single basic block
                /// so we add edge from that to this one
                ControlFlowEdge* edge = NULL;
                /// If previous block ended with call we add CALL type of edge
                if (changeBB == true) {
                    changeBB = false;
                    edge = new
                        ControlFlowEdge(ControlFlowEdge::CFLOW_EDGE_NORMAL,
                        ControlFlowEdge::CFLOW_EDGE_CALL);
                } else {
                    edge = new ControlFlowEdge();
                }
/*                Application::logStream() << (boost::format(
                "Adding edge from lastBB %s to %s in %s\n")
                % lastBB->toString() % bb->toString() % name()).str();*/
                newCFG_->connectNodes(*lastBB, *bb, *edge);
                std::cerr << "Adding for lastBB != NULL" << std::endl;
                createJump(lastBB, bb);
                /// clear lastBB, the edge was already added
/*                Application::logStream() << (boost::format(
                "\tChanged lastbb from %s to NULL\n")
                % lastBB->toString()).str();*/
                lastBB = NULL;
                leafBlocks.clear();
            }
/*            Application::logStream() << (boost::format(
            "\tStart adding leaf blocks for %s in region %s with bb %s\n")
            % accessedNode->toString() % regionNode->toString()
            % bb->toString()).str();*/
            addLeafEdges(leafBlocks, bb);
            /// leafs were processed, this node should have some leafs as well
            leafBlocks.clear();
            leafBlocks = accessedNode->leafBlocks();
            /// if we got this far, lastBB should be NULL
            assert(lastBB == NULL);
            /// Accessed node is loop entry, we add edge from corresponding
            /// loop close node to it.
            if (accessedNode->isLoopEntryNode()) {
                processLoopEntry(accessedNode, bb);
            }
        } else {
            /// We found single statement, time to add it to basic block
            if (lastBB == NULL || changeBB == true) {
                /// Time to create new BB
                TTAProgram::BasicBlock* block =
                    new TTAProgram::BasicBlock(insCount_);
                insCount_++;
                bb = new BasicBlockNode(*block);
/*                Application::logStream() << (boost::format(
                "Create new BB %s in %s for %s\n")
                % bb->toString() % regionNode->toString() %
                    accessedNode->toString()).str();*/
                newCFG_->addNode(*bb);
                if (regionNode->newFirstBB() == NULL) {
                    /// We just created first BB for children of region
                    /// so we set it as first BB
                    regionNode->setNewFirstBB(bb);
                }
                /// Previous BB ended with CALL, so we link it to new one
                /// with call edge
                if (changeBB == true && lastBB != NULL) {
                    changeBB = false;
                    ControlFlowEdge* edge = new ControlFlowEdge(
                        ControlFlowEdge::CFLOW_EDGE_NORMAL,
                        ControlFlowEdge::CFLOW_EDGE_CALL);
                    newCFG_->connectNodes(*lastBB, *bb, *edge);
                    assert(leafBlocks.size() == 0);
                }
                /// Block just created is current lastBB
/*                Application::logStream() << (boost::format(
                "\tChanged lastbb to %s\n")
                %bb->toString()).str();*/
                lastBB = bb;
                }
            }
            if(accessedNode->isMoveNode()
                && accessedNode->moveNode().isMove()) {
                TTAProgram::Instruction* newIns =
                    new TTAProgram::Instruction();
                newIns->addMove(accessedNode->moveNode().movePtr());
                lastBB->basicBlock().add(newIns);
                insCount_++;
                if (accessedNode->moveNode().move().isCall()) {
                    changeBB = true;
                }
                if (leafBlocks.size() > 0) {
/*                    Application::logStream() << (boost::format(
                    "\tStart adding leaf blocks: %s in region %s with bb %s\n")
                    % accessedNode->toString() % regionNode->toString()
                    % bb->toString()).str();*/
                    addLeafEdges(leafBlocks, bb);
                    /// Leaf blocks were added, we can clear them
                    leafBlocks.clear();
            } else {
                if (Application::verboseLevel() > 2) {
                    Application::logStream() <<
                    (boost::format(" Undetected case! %s inside %s\n")
                    % accessedNode->toString() % regionNode->toString()
                    ).str();
                }
            }
        }
    }
    if (leafBlocks.size() > 0) {
        regionNode->addLeafBlocks(leafBlocks);
        leafBlocks.clear();
    }
    if (lastBB != NULL) {
/*        Application::logStream() << (boost::format(
        "Add last bb %s as a leaf to %s\n")
        % lastBB->toString() % regionNode->toString()).str();*/
        regionNode->addLeafBlock(lastBB);
    }
    if(regionNode == entryNode_) {
        processEntry(regionNode->newFirstBB());
    }
    unorderable.clear();
}

Referenced by computeRelations().

Here is the call graph for this function:

◆ regionHelper()

void ProgramDependenceGraph::regionHelper	(	Node *	node,
		FilteredCDG &	cdg,
		Node::NodesInfo &	finalNodesInfo
	)

private

Helper function to compute actual region information for a node. Called several times for a case when there are loop entry nodes detected.

Parameters

node	Node for which to compute region info
cdg	Filtered PDG graph with only control dependence edges
finalNodesInfo	stores actual computed region info

Find all incoming control dependence edges

There is no Region info for Entry node

If parent's region is not yet computed (should be btw) compute it before continuing.

region(node,parent) == region(parent) U children(parent)

region(node,parent) == region(parent)

fill in final region info with info from first of parents

region(node) = intersection(region(node,parent(node))) for all parents. finalNodesInfo is already initialized from counter 0

Definition at line 1118 of file ProgramDependenceGraph.cc.

                                  {

    NodeDescriptor des = descriptor(*node);
    std::vector<Node::NodesInfo> tmpResult;
    /// Find all incoming control dependence edges
    FilteredInEdgePair edges = boost::in_edges(des, cdg);
    for (FilteredInEdgeIter ei = edges.first;
        ei != edges.second;
        ++ei) {
        Node* previous = cdg[boost::source(*ei, cdg)];
        /// There is no Region info for Entry node
        if (previous->isRegionNode()
            || previous->isLoopEntryNode()) {
            if (previous->region().size() == 0 &&
                ! (previous == entryNode_)) {
                /// If parent's region is not yet computed (should be btw)
                /// compute it before continuing.
                Node::NodesInfo addedNodesInfo;
                regionHelper(previous, cdg, addedNodesInfo);
                for (Node::NodesInfo::iterator k = addedNodesInfo.begin();
                    k != addedNodesInfo.end();
                    k++) {
                    previous->addToRegion(**k);
                }

/*                writeToDotFile(name() + "_broken.dot");
                TCEString msg = "Parent " + previous->toString();
                msg += " of node " + (*iter)->toString();
                msg += " has empty region information!";
                msg += " Procedure has " + Conversion::toString(nodeCount());
                msg += " nodes.";
                throw ModuleRunTimeError(__FILE__, __LINE__, __func__, msg);*/
            }
            /// region(node,parent) == region(parent) U children(parent)
            Node::NodesInfo tmp = previous->region();
            FilteredOutEdgePair edges =
                boost::out_edges(descriptor(*previous), cdg);
            for (FilteredOutEdgeIter ei = edges.first;
                ei != edges.second;
                ++ei) {
                Node* testedNode = cdg[boost::target(*ei, cdg)];
                tmp.insert(testedNode);
            }
            tmpResult.push_back(tmp);
        } else if (previous->isPredicateMoveNode()){
        /// region(node,parent) == region(parent)
            Node::NodesInfo tmp = previous->region();
            tmpResult.push_back(tmp);
        } else {
            assert(previous->isLoopCloseNode());
        }
    }
    /// fill in final region info with info from first of parents
    if (tmpResult.size() > 0) {
        finalNodesInfo.insert(
            tmpResult[0].begin(), tmpResult[0].end());
    }
    /// region(node) = intersection(region(node,parent(node)))
    /// for all parents. finalNodesInfo is already initialized from
    /// counter 0
    for (unsigned int l = 1; l < tmpResult.size(); l++) {
        Node::NodesInfo storeResult;
        SetTools::intersection(
            finalNodesInfo, tmpResult[l], storeResult);
        finalNodesInfo.swap(storeResult);
        storeResult.clear();
    }
}

References ProgramDependenceNode::addToRegion(), assert, BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::descriptor(), entryNode_, SetTools::intersection(), ProgramDependenceNode::isLoopCloseNode(), ProgramDependenceNode::isLoopEntryNode(), ProgramDependenceNode::isPredicateMoveNode(), ProgramDependenceNode::isRegionNode(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::node(), ProgramDependenceNode::region(), and regionHelper().

Referenced by computeRegionInfo(), regionHelper(), and serializePDG().

Here is the call graph for this function:

◆ removeGuardedJump()

void ProgramDependenceGraph::removeGuardedJump	(	ControlToProgram &	cToP,
		ProgramDependenceNode &	pNode,
		ControlDependenceNode &	cNode
	)

private

Remove guarded jumps from the graph, makes guard generating operation a predicated node and fixes the true and false edges in case the jump had inverted guard.

Parameters

cToP	mapping between Control Dependence nodes of original CDG and newly created Program Dependence nodes in PDG.
pNode	Program Dependence Node containing guarded jump
cNode	Control Dependence node which included guarded jump in CDG

This used to be error, but now it possible

All incoming control dependence edges into the predicate node are also incoming edges to the guard, since they were in same block in CDG

Definition at line 327 of file ProgramDependenceGraph.cc.

                                  {

    ProgramDependenceNode* guardSource = NULL;
    bool isInverted = pNode.moveNode().move().guard().isInverted();
    if (inDegree(pNode) != 2) {
        /// This used to be error, but now it possible
        if(Application::verboseLevel() > 0) {
            Application::logStream() << (boost::format(
            "Guarded jump (%s) has inDegree different from 2! Degree =%d.\n")
                % pNode.toString() % inDegree(pNode)).str();
            EdgeSet e = inEdges(pNode);
            for (EdgeSet::iterator ei = e.begin(); ei != e.end(); ei++) {
                Node* n = & tailNode(**ei);
                Application::logStream() << n->toString() << " "
                     << (*ei)->toString() << " ";
            }
        }
    }
    for (int i = 0; i < inDegree(pNode); i++) {
        if (inEdge(pNode,i).isDataDependence()) {
            guardSource = &tailNode(inEdge(pNode,i));
            break;
        }
    }
    if (guardSource == NULL) {
        throw InvalidData(
            __FILE__, __LINE__, __func__,
            "Guarded jump did not have source of guard defined!");
    }
    guardSource->setPredicateMoveNode();
    /// All incoming control dependence edges into the predicate node
    /// are also incoming edges to the guard, since they were in same
    /// block in CDG
    for (int j = 0; j < cdg_->outDegree(cNode); j++) {
        ControlDependenceNode* target;
        target = &cdg_->headNode(cdg_->outEdge(cNode, j));
        if (target->isRegionNode()
            || target->isLoopEntryNode()
            || target->isLoopCloseNode()) {
            ProgramDependenceEdge* pEdge;
            ControlDependenceEdge* newEdge = &cdg_->outEdge(cNode, j);;
            if (isInverted) {
                newEdge->invertEdgePredicate();
            }
            pEdge = new ProgramDependenceEdge(*newEdge);
            ProgramDependenceNode* pTarget;
            try {
                pTarget = MapTools::valueForKey<ProgramDependenceNode*>(
                    cToP, target);
            } catch (const Exception& e) {
                throw InvalidData(
                    __FILE__, __LINE__, __func__, e.errorMessageStack());
            }

            connectNodes(*guardSource, *pTarget, *pEdge);
        } else {
            throw InvalidData(
                __FILE__, __LINE__, __func__,
                "Basic block with guarded jump does not have"
                " Region nodes as control dependent!");
        }
    }
}

Referenced by ProgramDependenceGraph().

Here is the call graph for this function:

◆ serializePDG()

bool ProgramDependenceGraph::serializePDG ( )

Performs serialization of ProgramDependenceGraph, turning it into Control Flow Graph.

Returns: ControlFlowGraph representation of PDG

Exceptions

InvalidData in case serialization of graph is not possible

Created filtered PDG graph containing only control dependence edges

Detect strong components if they were not detected in CDG and transferred

Modifies graph_ with added close nodes and close edges

map to store post order information for all the nodes of a graph

map to store color information during dfs

boost::on_finish_vertex will give us post order numbering

Computes post order of all the nodes in PDG

If not computed on CDG and copied, computes 'region' information for all nodes of a graph

If not computed on CDG and copied, computes 'eec' information for all nodes of a graph

If CDG comes analyzed we need to add region and eec info for dummy ENTRYNODE of DDG. By it's definition, ENTRYNODE is leaf in terms of control dependence, region == eec

Definition at line 401 of file ProgramDependenceGraph.cc.

                                     {

    if (Application::verboseLevel() > DEBUG_LEVEL) {
        Application::logStream() << (boost::format(
            "\tStarting PDG serialization for %s with %d nodes and %d edges.\n")
            % name() % nodeCount() % edgeCount()).str();
    }

    /// Created filtered PDG graph containing only control dependence edges
    CDGFilter<Graph> filter(graph_);
    FilteredCDG  filteredCDG = FilteredCDG(graph_, filter);
    auto timer = std::chrono::steady_clock::now();
    long elapsed = 0;
    /// Detect strong components if they were not detected in CDG and transferred
    if (!cdg_->analyzed()) {
        PDGOrderMap componentMap;
        DescriptorMap rootMap;
        /// Modifies graph_ with added close nodes and close edges
        int componentCount = detectStrongComponents(
            componentMap, rootMap, filteredCDG);
        elapsed = std::chrono::duration_cast<std::chrono::seconds>(
                      std::chrono::steady_clock::now() - timer)
                      .count();
        if (Application::verboseLevel() > DEBUG_LEVEL) {
            Application::logStream() << (boost::format(
            "\t\tStrong components:%d components, %d minutes and %d seconds.\n")
            % componentCount % (elapsed/60) % (elapsed%60)).str();
        }
    }

    /// map to store post order information for all the nodes of a graph
    PDGOrderMap lastMap;
    PDGOrder lastOrder(lastMap);
    /// map to store color information during dfs
    ColorMap colorMap;
    Color colorsDFS(colorMap);
    int fStamp(-1);
    /// boost::on_finish_vertex will give us post order numbering
    boost::time_stamper<PDGOrder, int, boost::on_finish_vertex>
        lastOrderStamper(lastOrder, fStamp);
    timer = std::chrono::steady_clock::now();  // restart
    /// Computes post order of all the nodes in PDG
    boost::depth_first_visit(
        filteredCDG, descriptor(entryNode()),
        boost::make_dfs_visitor(lastOrderStamper), colorsDFS);
    elapsed = std::chrono::duration_cast<std::chrono::seconds>(
                  std::chrono::steady_clock::now() - timer)
                  .count();
    if (Application::verboseLevel() > DEBUG_LEVEL) {
        Application::logStream() << (boost::format(
            "\t\tPost order: %d minutes and %d seconds.\n")
            % (elapsed/60) % (elapsed%60)).str();
    }
    /// If not computed on CDG and copied, computes 'region' information for
    /// all nodes of a graph
    if (!cdg_->analyzed()) {
        timer = std::chrono::steady_clock::now();  // restart
        computeRegionInfo(lastMap, filteredCDG);
        elapsed = std::chrono::duration_cast<std::chrono::seconds>(
                      std::chrono::steady_clock::now() - timer)
                      .count();
        if (Application::verboseLevel() > DEBUG_LEVEL) {
            Application::logStream() << (boost::format(
                "\t\tRegion: %d minutes and %d seconds.\n")
                % (elapsed/60) % (elapsed%60)).str();
        }
        /// If not computed on CDG and copied, computes 'eec' information for
        /// all nodes of a graph
        timer = std::chrono::steady_clock::now();  // restart
        computeEECInfo(lastMap, filteredCDG);
        elapsed = std::chrono::duration_cast<std::chrono::seconds>(
                      std::chrono::steady_clock::now() - timer)
                      .count();
        if (Application::verboseLevel() > DEBUG_LEVEL) {
            Application::logStream() << (boost::format(
                "\t\tEEC: %d minutes and %d seconds.\n")
                % (elapsed/60) % (elapsed%60)).str();
        }
    }

    timer = std::chrono::steady_clock::now();  // restart
    /// If CDG comes analyzed we need to add region and eec info for
    /// dummy ENTRYNODE of DDG. By it's definition, ENTRYNODE is leaf
    /// in terms of control dependence, region == eec
    if(cdg_->analyzed() && ddgEntryNode_ != NULL) {
        Node::NodesInfo finalNodesInfo;
        regionHelper(ddgEntryNode_, filteredCDG, finalNodesInfo);
        for (Node::NodesInfo::iterator k = finalNodesInfo.begin();
            k != finalNodesInfo.end(); k++) {
            ddgEntryNode_->addToRegion(**k);
            ddgEntryNode_->addToEEC(**k);
        }
    }
    return true;
#if 0
    /// Compute actual relations between sibling nodes. Move Data Dependence
    /// edges to root's of subgraph if they connect subgraph with outside
    /// nodes
    ///computeRelations(lastMap, filteredCDG);
    elapsed = static_cast<long>(timer.elapsed());
    if (Application::verboseLevel() > DEBUG_LEVEL) {
        Application::logStream() << (boost::format(
            "\t\tRelations: %d minutes and %d seconds.\n")
            % (elapsed/60) % (elapsed%60)).str();
    }
    if (Application::verboseLevel() > DEBUG_LEVEL) {
        Application::logStream() << (boost::format(
            "Procedure %s has %d nodes and %d edges.\n")
            % name() % nodeCount() % edgeCount()).str();
    }
    //writeToDotFile(name() + "_pdgSerialized.dot");
    //disassemble();
    return true;
#endif
}

References ControlDependenceGraph::analyzed(), cdg_, computeEECInfo(), computeRegionInfo(), ddgEntryNode_, DEBUG_LEVEL, BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::descriptor(), detectStrongComponents(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::edgeCount(), entryNode(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::graph_, Application::logStream(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::name(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::nodeCount(), regionHelper(), and Application::verboseLevel().

Here is the call graph for this function:

Member Data Documentation

◆ cdg_

const ControlDependenceGraph* ProgramDependenceGraph::cdg_

private

Stores original control dependence graph.

Definition at line 220 of file ProgramDependenceGraph.hh.

Referenced by computeRelations(), copyRegionEECComponent(), disassemble(), removeGuardedJump(), and serializePDG().

◆ ddg_

const DataDependenceGraph* ProgramDependenceGraph::ddg_

private

Stores original data dependence graph.

Definition at line 222 of file ProgramDependenceGraph.hh.

Referenced by copyRegionEECComponent().

◆ ddgEntryNode_

Node* ProgramDependenceGraph::ddgEntryNode_

private

Stored reference to PDG equivalent of DDG ENTRYNODE.

Definition at line 226 of file ProgramDependenceGraph.hh.

Referenced by ProgramDependenceGraph(), and serializePDG().

◆ entryNode_

Node* ProgramDependenceGraph::entryNode_

private

Stores pointer to entry node of the PDG graph.

Definition at line 224 of file ProgramDependenceGraph.hh.

Referenced by copyRegionEECComponent(), entryNode(), processRegion(), ProgramDependenceGraph(), and regionHelper().

◆ insCount_

int ProgramDependenceGraph::insCount_

private

Counts new instructions when creating basic blocks.

Definition at line 232 of file ProgramDependenceGraph.hh.

Referenced by processLoopClose(), processPredicate(), and processRegion().

◆ newCFG_

ControlFlowGraph* ProgramDependenceGraph::newCFG_

private

Newly created control flow graph.

Definition at line 230 of file ProgramDependenceGraph.hh.

Referenced by addLeafEdges(), computeRelations(), disassemble(), processEntry(), processLoopClose(), processLoopEntry(), processPredicate(), and processRegion().

◆ program_

TTAProgram::Program* ProgramDependenceGraph::program_

private

Original Program object, to get instruction reference manager.

Definition at line 234 of file ProgramDependenceGraph.hh.

Referenced by computeRelations(), createJump(), and ProgramDependenceGraph().

◆ strongComponents_

std::vector<std::set<Node*> > ProgramDependenceGraph::strongComponents_

private

stores nodes present in each of the found components

Definition at line 228 of file ProgramDependenceGraph.hh.

Referenced by computeEECInfo(), computeRegionInfo(), copyRegionEECComponent(), detectStrongComponents(), and ~ProgramDependenceGraph().

◆ wrongCounter_

int ProgramDependenceGraph::wrongCounter_

private

Definition at line 250 of file ProgramDependenceGraph.hh.

Referenced by processRegion().

The documentation for this class was generated from the following files:
