#include <ControlDependenceNode.hh>

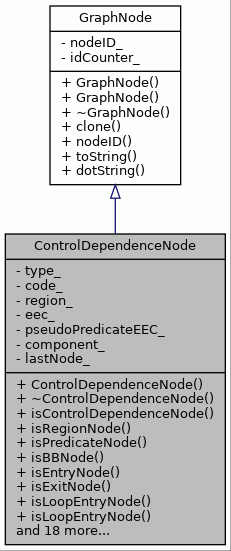

Inheritance diagram for ControlDependenceNode:

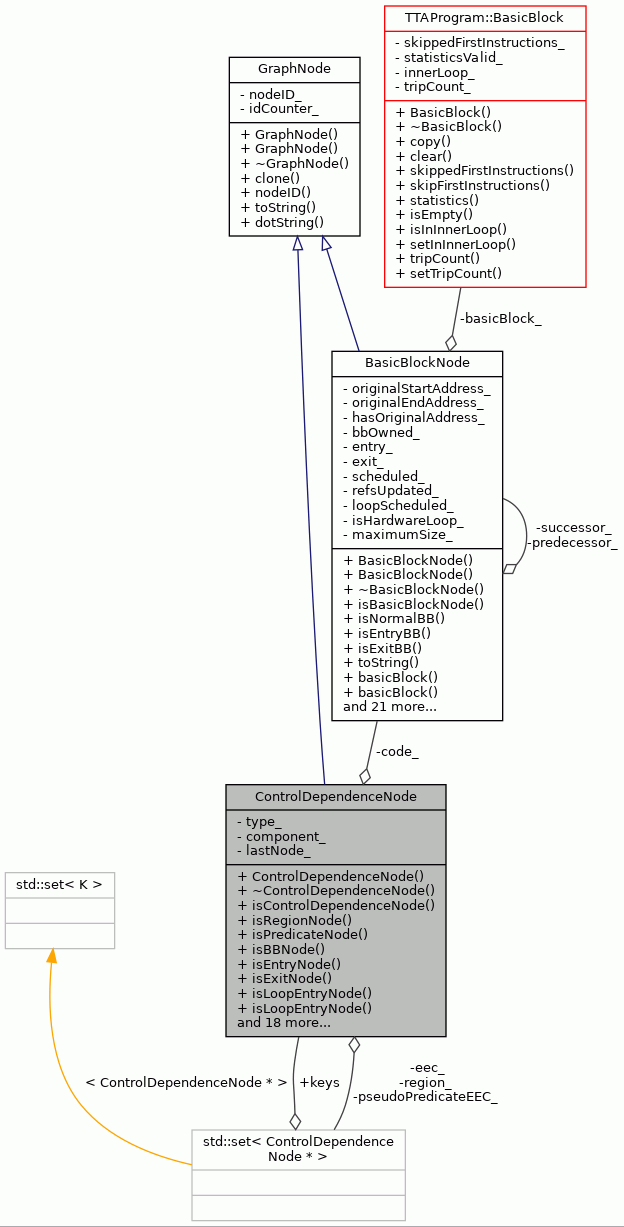

Collaboration diagram for ControlDependenceNode:

Public Types
enum	NodeType { CDEP_NODE_REGION , CDEP_NODE_PREDICATE , CDEP_NODE_BB , CDEP_NODE_LOOPENTRY , CDEP_NODE_LOOPCLOSE }

typedef std::set< ControlDependenceNode * >	NodesInfo
	Storage type for other nodes of same graph needed to define some non graph relations. Duplicit type compared to NodeSet, but that is defined in Graph class.

Public Member Functions
	ControlDependenceNode (const NodeType type=CDEP_NODE_BB, BasicBlockNode *bblock=NULL)

virtual	~ControlDependenceNode ()

bool	isControlDependenceNode () const

bool	isRegionNode () const

bool	isPredicateNode () const

bool	isBBNode () const

bool	isEntryNode () const

bool	isExitNode () const

bool	isLoopEntryNode () const

bool	isLoopEntryNode (int component) const

bool	isLoopCloseNode () const

void	setLoopEntryNode (int component)

void	setComponent (int component)

int	component () const

void	setLastNode ()
	LastNode marks node that must be ordered last compared to it's sibling nodes - Close node of loop.

bool	isLastNode () const

int	instructionCount () const

TTAProgram::Instruction &	instruction (int index) const

BasicBlockNode *	basicBlockNode () const

NodeType	type () const

std::string	toString () const

void	addToRegion (ControlDependenceNode &node)

const NodesInfo &	region ()

void	addToEEC (ControlDependenceNode &node)

const NodesInfo &	eec ()

void	addToPseudoPredicateEEC (ControlDependenceNode &node)

const NodesInfo &	pseudoPredicateEEC ()

void	printRelations () const

Public Member Functions inherited from GraphNode
	GraphNode (int nodeID)

	GraphNode ()

virtual	~GraphNode ()

virtual GraphNode *	clone () const

int	nodeID () const

virtual std::string	dotString () const

Private Attributes
NodeType	type_

BasicBlockNode *	code_

NodesInfo	region_
	Stores "region" information for computing serialization information.

NodesInfo	eec_
	Stores "eec" information for computing serialization information.

NodesInfo	pseudoPredicateEEC_
	Stores "shadow" eec information for predicate basic blocks which can be then copied into PDG for nodes of basic blocks that are not actuall predicate node.

int	component_
	Number of strong component the node belongs to, if any.

bool	lastNode_
	Indicated that the node should be scheduled last from it's siblings Case when node is predicate or region, has close node in it's subgraph and ancestor which is loop entry node.

Detailed Description

Node of the control dependence graph. Each node represents one basic block or region node.

A basic block is defined as an ordered sequence of adjacent instructions in which only the first can be target of jump and ony the last one (save jump delay slots) can contain jumps.

Note: Instructions that contain function calls are control flow bariers also. For now they split basic blocks into two, with special type of edge connecting them.

Definition at line 61 of file ControlDependenceNode.hh.

Member Typedef Documentation

◆ NodesInfo

typedef std::set<ControlDependenceNode*> ControlDependenceNode::NodesInfo

Storage type for other nodes of same graph needed to define some non graph relations. Duplicit type compared to NodeSet, but that is defined in Graph class.

Definition at line 73 of file ControlDependenceNode.hh.

Member Enumeration Documentation

◆ NodeType

enum ControlDependenceNode::NodeType

Enumerator
CDEP_NODE_REGION
CDEP_NODE_PREDICATE
CDEP_NODE_BB
CDEP_NODE_LOOPENTRY
CDEP_NODE_LOOPCLOSE

Definition at line 63 of file ControlDependenceNode.hh.

                  {
        CDEP_NODE_REGION, // Region nodes of CDG
        CDEP_NODE_PREDICATE, // Predicate nodes of CDG
        CDEP_NODE_BB,   // Basic block nodes containing code snippets
        CDEP_NODE_LOOPENTRY, // Region that is loop entry node
        CDEP_NODE_LOOPCLOSE // Region that is loop entry node
    };

Constructor & Destructor Documentation

◆ ControlDependenceNode()

ControlDependenceNode::ControlDependenceNode	(	const NodeType	type = `CDEP_NODE_BB`,
		BasicBlockNode *	bblock = `NULL`
	)

inline

Definition at line 74 of file ControlDependenceNode.hh.

76 :

77 type_(type), code_(bblock), component_(-1), lastNode_(false) {}

ControlDependenceNode::code_

BasicBlockNode * code_

Definition ControlDependenceNode.hh:116

ControlDependenceNode::type_

NodeType type_

Definition ControlDependenceNode.hh:115

ControlDependenceNode::type

NodeType type() const

Definition ControlDependenceNode.cc:202

ControlDependenceNode::component_

int component_

Number of strong component the node belongs to, if any.

Definition ControlDependenceNode.hh:126

ControlDependenceNode::lastNode_

bool lastNode_

Indicated that the node should be scheduled last from it's siblings Case when node is predicate or re...

Definition ControlDependenceNode.hh:130

◆ ~ControlDependenceNode()

ControlDependenceNode::~ControlDependenceNode ( )

virtual

Destructor.

Definition at line 44 of file ControlDependenceNode.cc.

                                              {
    region_.clear();
    eec_.clear();
    pseudoPredicateEEC_.clear();
}

References eec_, pseudoPredicateEEC_, and region_.

Member Function Documentation

◆ addToEEC()

void ControlDependenceNode::addToEEC ( ControlDependenceNode & node )

Add CDG node to "eec" set for computing serialization information

Parameters

node	Control Dependence Node to add to the set

Definition at line 232 of file ControlDependenceNode.cc.

                                                           {
    eec_.insert(&node);
}

References eec_.

Referenced by ControlDependenceGraph::computeEECInfo().

◆ addToPseudoPredicateEEC()

void ControlDependenceNode::addToPseudoPredicateEEC ( ControlDependenceNode & node )

Add CDG node to "pseduo eec" set for computing serialization information case node is predicate basic block. Only actuall predicate move will have predicate eec, rest of moves of basic block needs regular 'leaf' eec computation

Parameters

node	Control Dependence Node to add to the set

Definition at line 257 of file ControlDependenceNode.cc.

                                                                          {
    pseudoPredicateEEC_.insert(&node);
}

References pseudoPredicateEEC_.

◆ addToRegion()

void ControlDependenceNode::addToRegion ( ControlDependenceNode & node )

Add CDG node to "region" set for computing serialization information

Parameters

node	Control Dependence Node to add to the set

Definition at line 212 of file ControlDependenceNode.cc.

                                                              {
    region_.insert(&node);
}

References region_.

Referenced by ControlDependenceGraph::computeRegionInfo(), and ControlDependenceGraph::regionHelper().

◆ basicBlockNode()

BasicBlockNode * ControlDependenceNode::basicBlockNode ( ) const

Returns a basic block refered by the control dependence node

Returns: the Basic block

Definition at line 116 of file ControlDependenceNode.cc.

                                            {
    if (isBBNode() || isPredicateNode()) {
        return code_;
    }
    std::string msg = "Trying to read from non basic block node!";
    throw InvalidData(__FILE__, __LINE__, __func__, msg);
    return NULL;
}

References __func__, code_, isBBNode(), and isPredicateNode().

Referenced by ProgramDependenceGraph::ProgramDependenceGraph().

Here is the call graph for this function:

◆ component()

int ControlDependenceNode::component ( ) const

inline

Definition at line 91 of file ControlDependenceNode.hh.

91{ return component_;}

References component_.

Referenced by ProgramDependenceGraph::copyRegionEECComponent(), isLoopEntryNode(), setComponent(), and setLoopEntryNode().

◆ eec()

const ControlDependenceNode::NodesInfo & ControlDependenceNode::eec ( )

Returns the "eec" set for given node

Returns: the "eec" set for given node

Definition at line 243 of file ControlDependenceNode.cc.

                           {
    return eec_;
}

References eec_.

Referenced by ControlDependenceGraph::compareSiblings(), ControlDependenceGraph::computeEECInfo(), and ProgramDependenceGraph::copyRegionEECComponent().

◆ instruction()

TTAProgram::Instruction & ControlDependenceNode::instruction ( int index ) const

Returns instruction at given index in basic block.

Parameters

index Index of instruction in basic block

Returns: The instruction at given index

Definition at line 56 of file ControlDependenceNode.cc.

                                                  {
    if (!isBBNode()) {
        std::string msg =
            "Trying to read from non basic block node" + toString() + "!";
        throw InvalidData(__FILE__, __LINE__, __func__, msg);
    }
    return code_->basicBlock().instructionAtIndex(index);
}

References __func__, BasicBlockNode::basicBlock(), code_, TTAProgram::CodeSnippet::instructionAtIndex(), isBBNode(), and toString().

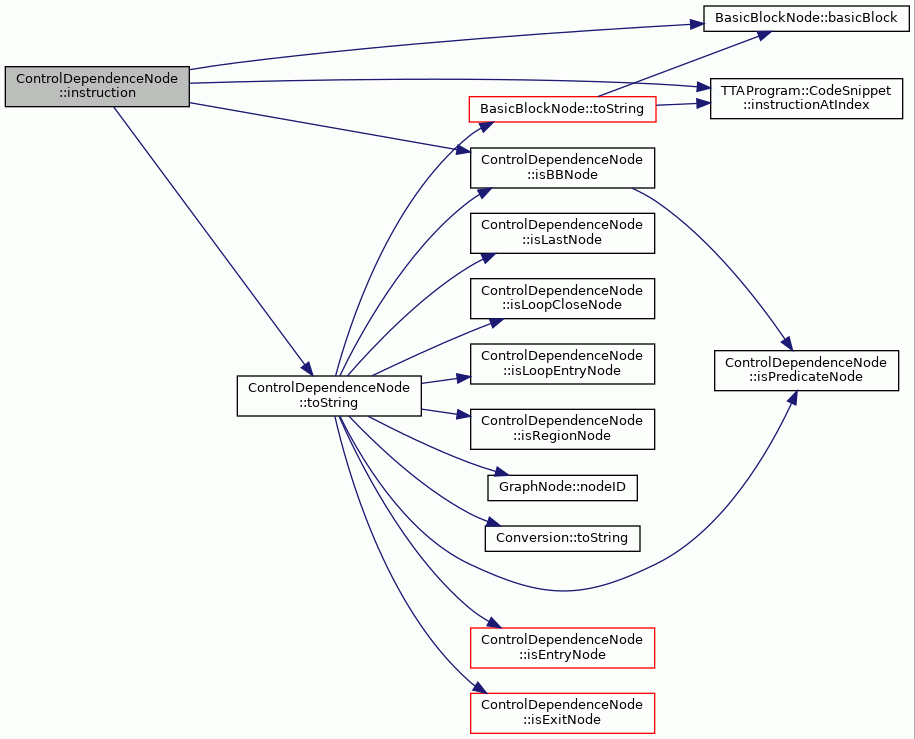

Here is the call graph for this function:

◆ instructionCount()

int ControlDependenceNode::instructionCount ( ) const

Returns number of instructions in basic block

Returns: number of instructions

Definition at line 130 of file ControlDependenceNode.cc.

                                              {
    if (isBBNode()) {
        return code_->basicBlock().instructionCount();
    }
    std::string msg = "Trying to read from non basic block node!";
    throw InvalidData(__FILE__, __LINE__, __func__, msg);
    return 0;
}

References __func__, BasicBlockNode::basicBlock(), code_, TTAProgram::CodeSnippet::instructionCount(), and isBBNode().

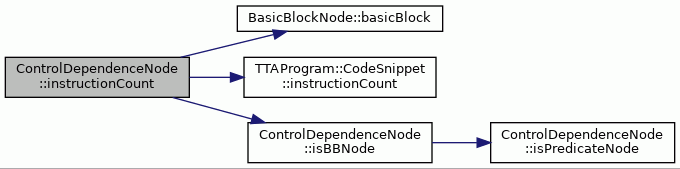

Here is the call graph for this function:

◆ isBBNode()

bool ControlDependenceNode::isBBNode ( ) const

Predicate nodes are BB which ends with conditional jump in CFG

Definition at line 155 of file ControlDependenceNode.cc.

                                      {
    /// Predicate nodes are BB which ends with conditional jump in CFG
    return (type_ == CDEP_NODE_BB) || isPredicateNode();
}

References CDEP_NODE_BB, isPredicateNode(), and type_.

Referenced by basicBlockNode(), ControlDependenceGraph::compareSiblings(), instruction(), instructionCount(), and toString().

Here is the call graph for this function:

◆ isControlDependenceNode()

bool ControlDependenceNode::isControlDependenceNode ( ) const

Definition at line 140 of file ControlDependenceNode.cc.

                                                     {
    return true;
}

◆ isEntryNode()

bool ControlDependenceNode::isEntryNode ( ) const

Definition at line 161 of file ControlDependenceNode.cc.

                                         {
    return type_ == CDEP_NODE_BB && code_->isEntryBB();
}

References CDEP_NODE_BB, code_, BasicBlockNode::isEntryBB(), and type_.

Referenced by ControlDependenceGraph::computeDependence(), ControlDependenceGraph::entryNode(), ProgramDependenceGraph::ProgramDependenceGraph(), ControlDependenceGraph::regionHelper(), setLoopEntryNode(), and toString().

Here is the call graph for this function:

◆ isExitNode()

bool ControlDependenceNode::isExitNode ( ) const

Definition at line 166 of file ControlDependenceNode.cc.

                                        {
    return type_ == CDEP_NODE_BB && code_->isExitBB();
}

References CDEP_NODE_BB, code_, BasicBlockNode::isExitBB(), and type_.

Referenced by ControlDependenceGraph::computeDependence(), and toString().

Here is the call graph for this function:

◆ isLastNode()

bool ControlDependenceNode::isLastNode ( ) const

inline

Definition at line 95 of file ControlDependenceNode.hh.

95{ return lastNode_;}

References lastNode_.

Referenced by ControlDependenceGraph::compareSiblings(), ProgramDependenceGraph::copyRegionEECComponent(), ProgramDependenceGraph::ProgramDependenceGraph(), and toString().

◆ isLoopCloseNode()

bool ControlDependenceNode::isLoopCloseNode ( ) const

Definition at line 181 of file ControlDependenceNode.cc.

                                             {
    return type_ == CDEP_NODE_LOOPCLOSE;
}

References CDEP_NODE_LOOPCLOSE, and type_.

Referenced by ControlDependenceGraph::compareSiblings(), ProgramDependenceGraph::ProgramDependenceGraph(), ControlDependenceGraph::regionHelper(), ProgramDependenceGraph::removeGuardedJump(), and toString().

◆ isLoopEntryNode() [1/2]

bool ControlDependenceNode::isLoopEntryNode ( ) const

Definition at line 171 of file ControlDependenceNode.cc.

                                             {
    return type_ == CDEP_NODE_LOOPENTRY;
}

References CDEP_NODE_LOOPENTRY, and type_.

Referenced by ControlDependenceGraph::compareSiblings(), ProgramDependenceGraph::ProgramDependenceGraph(), ControlDependenceGraph::regionHelper(), ProgramDependenceGraph::removeGuardedJump(), and toString().

◆ isLoopEntryNode() [2/2]

bool ControlDependenceNode::isLoopEntryNode ( int component ) const

Definition at line 176 of file ControlDependenceNode.cc.

                                                          {
    return type_ == CDEP_NODE_LOOPENTRY && component == component_;
}

References CDEP_NODE_LOOPENTRY, component(), component_, and type_.

Here is the call graph for this function:

◆ isPredicateNode()

bool ControlDependenceNode::isPredicateNode ( ) const

Definition at line 150 of file ControlDependenceNode.cc.

                                             {
    return type_ == CDEP_NODE_PREDICATE;
}

References CDEP_NODE_PREDICATE, and type_.

Referenced by basicBlockNode(), ControlDependenceGraph::compareSiblings(), ProgramDependenceGraph::copyRegionEECComponent(), isBBNode(), ControlDependenceGraph::regionHelper(), and toString().

◆ isRegionNode()

bool ControlDependenceNode::isRegionNode ( ) const

Definition at line 145 of file ControlDependenceNode.cc.

                                          {
    return type_ == CDEP_NODE_REGION;
}

References CDEP_NODE_REGION, and type_.

Referenced by ControlDependenceGraph::compareSiblings(), ProgramDependenceGraph::ProgramDependenceGraph(), ControlDependenceGraph::regionHelper(), ProgramDependenceGraph::removeGuardedJump(), setLoopEntryNode(), and toString().

◆ printRelations()

void ControlDependenceNode::printRelations ( ) const

Definition at line 273 of file ControlDependenceNode.cc.

                                            {
    Application::logStream() << "Relations: ";
    for (NodesInfo::const_iterator iter = region_.begin();
        iter != region_.end();
        iter ++) {
        Application::logStream() << (*iter)->toString() << ", ";
    }
    Application::logStream() << std::endl;
    Application::logStream() << "EEC: ";
    for (NodesInfo::const_iterator iter = eec_.begin();
        iter != eec_.end();
        iter ++) {
        Application::logStream() << (*iter)->toString() << ", ";
    }
    Application::logStream() << std::endl;

}

References eec_, Application::logStream(), and region_.

Here is the call graph for this function:

◆ pseudoPredicateEEC()

const ControlDependenceNode::NodesInfo & ControlDependenceNode::pseudoPredicateEEC ( )

Returns the "pseudo eec" set for given node, applicable for predicate nodes

Returns: the "eec" set for given node

Definition at line 268 of file ControlDependenceNode.cc.

                                          {
    return pseudoPredicateEEC_;
}

References pseudoPredicateEEC_.

Referenced by ProgramDependenceGraph::copyRegionEECComponent().

◆ region()

const ControlDependenceNode::NodesInfo & ControlDependenceNode::region ( )

Returns the "region" set for given node

Returns: the "region" set for given node

Definition at line 222 of file ControlDependenceNode.cc.

                              {
    return region_;
}

References region_.

Referenced by ProgramDependenceGraph::copyRegionEECComponent(), and ControlDependenceGraph::regionHelper().

◆ setComponent()

void ControlDependenceNode::setComponent ( int component )

inline

Definition at line 90 of file ControlDependenceNode.hh.

90{ component_ = component;}

References component(), and component_.

Referenced by ControlDependenceGraph::detectStrongComponents().

Here is the call graph for this function:

◆ setLastNode()

void ControlDependenceNode::setLastNode ( )

inline

LastNode marks node that must be ordered last compared to it's sibling nodes - Close node of loop.

Definition at line 94 of file ControlDependenceNode.hh.

94{ lastNode_ = true; }

References lastNode_.

◆ setLoopEntryNode()

void ControlDependenceNode::setLoopEntryNode ( int component )

In case node was previously in other component as regular region, mark it as loop entry of current component

Definition at line 186 of file ControlDependenceNode.cc.

                                                     {
    if (!isRegionNode() && !isEntryNode()) {
        TCEString msg = "Loop entry node \'" + toString();
        msg += "\' is not a Region node!";
        throw InvalidData(
            __FILE__, __LINE__, __func__, msg);
    } else {
        type_ = CDEP_NODE_LOOPENTRY;
    }
    /// In case node was previously in other component as regular
    /// region, mark it as loop entry of current component
    if (component_ != component) {
        component_ = component;
    }
}

References __func__, CDEP_NODE_LOOPENTRY, component(), component_, isEntryNode(), isRegionNode(), toString(), and type_.

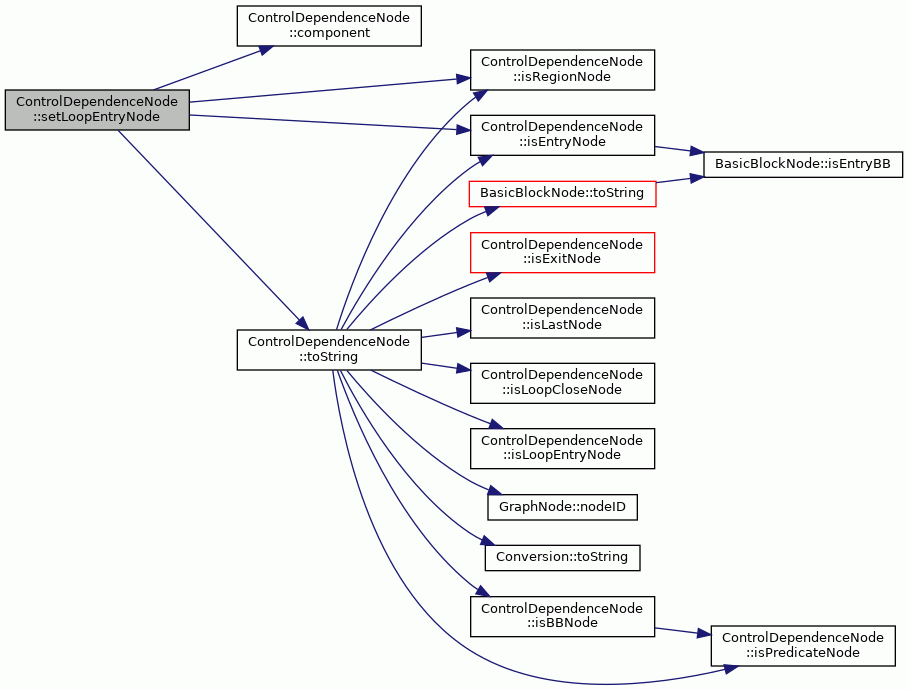

Here is the call graph for this function:

◆ toString()

std::string ControlDependenceNode::toString ( ) const

virtual

Returns the type of basic block as string.

Note: Used in writting graph to .dot file.

Returns: The type of basic block

Reimplemented from GraphNode.

Definition at line 72 of file ControlDependenceNode.cc.

                                      {
   TCEString result = "";
   if (isRegionNode()) {
      result += "Region " + Conversion::toString(nodeID());
      if (isLastNode()) {
          result += "_LAST";
      }
      return result;
   }
   if (isLoopEntryNode()) {
      result += "Loop Entry " + Conversion::toString(nodeID());
      return result;
   }
   if (isEntryNode()) {
      result += "Entry";
      return result;
   }
   if (isLoopCloseNode()) {
      result += "Close " + Conversion::toString(nodeID());
      return result;
   }

   if (isExitNode()) {
      result += "Exit";
      return result;
   }
   if (isPredicateNode()) {
      result += "Predicate(" + code_->toString() +")";
      if (isLastNode()) {
          result += "_LAST";
      }
      return result;
   }
   if (isBBNode()) {
      return code_->toString();
   }
    return result;
}

References code_, isBBNode(), isEntryNode(), isExitNode(), isLastNode(), isLoopCloseNode(), isLoopEntryNode(), isPredicateNode(), isRegionNode(), GraphNode::nodeID(), BasicBlockNode::toString(), and Conversion::toString().

Referenced by ControlDependenceGraph::computeDependence(), ControlDependenceGraph::computeEECInfo(), ControlDependenceGraph::detectStrongComponents(), instruction(), ControlDependenceGraph::processRegion(), ControlDependenceGraph::regionHelper(), setLoopEntryNode(), and ProgramDependenceNode::toString().

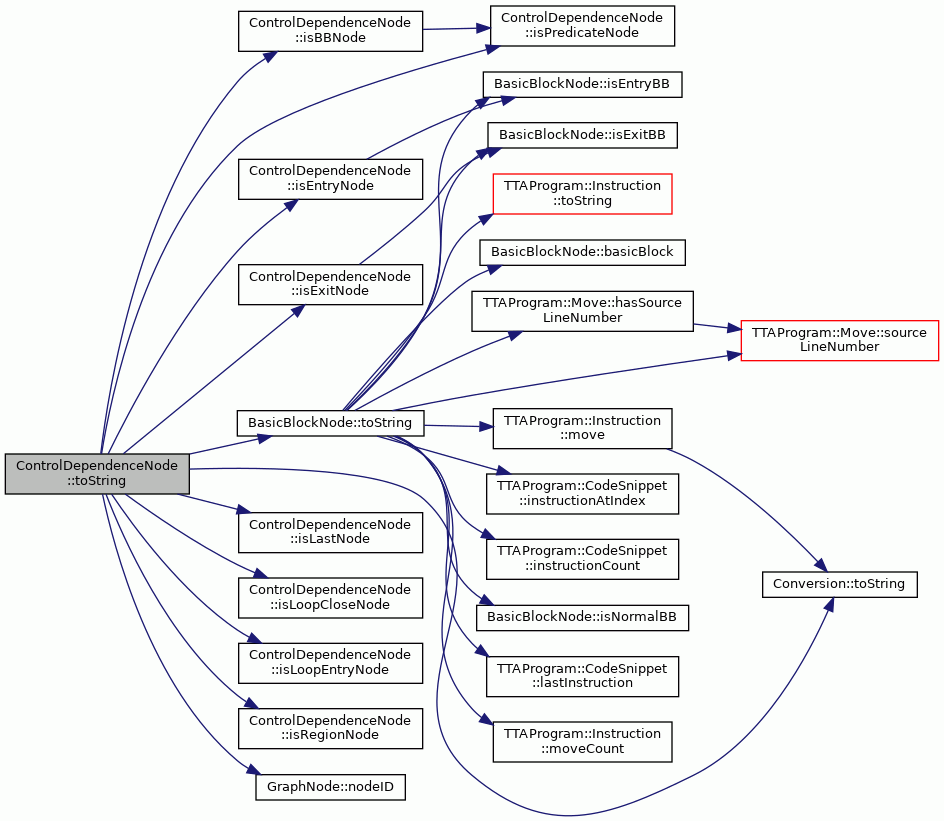

Here is the call graph for this function:

◆ type()

ControlDependenceNode::NodeType ControlDependenceNode::type ( ) const

Definition at line 202 of file ControlDependenceNode.cc.

                                  {
    return type_;
}

References type_.

Member Data Documentation

◆ code_

BasicBlockNode* ControlDependenceNode::code_

private

Definition at line 116 of file ControlDependenceNode.hh.

Referenced by basicBlockNode(), instruction(), instructionCount(), isEntryNode(), isExitNode(), and toString().

◆ component_

int ControlDependenceNode::component_

private

Number of strong component the node belongs to, if any.

Definition at line 126 of file ControlDependenceNode.hh.

Referenced by component(), isLoopEntryNode(), setComponent(), and setLoopEntryNode().

◆ eec_

NodesInfo ControlDependenceNode::eec_

private

Stores "eec" information for computing serialization information.

Definition at line 120 of file ControlDependenceNode.hh.

Referenced by addToEEC(), eec(), printRelations(), and ~ControlDependenceNode().

◆ lastNode_

bool ControlDependenceNode::lastNode_

private

Indicated that the node should be scheduled last from it's siblings Case when node is predicate or region, has close node in it's subgraph and ancestor which is loop entry node.

Definition at line 130 of file ControlDependenceNode.hh.

Referenced by isLastNode(), and setLastNode().

◆ pseudoPredicateEEC_

NodesInfo ControlDependenceNode::pseudoPredicateEEC_

private

Stores "shadow" eec information for predicate basic blocks which can be then copied into PDG for nodes of basic blocks that are not actuall predicate node.

Definition at line 124 of file ControlDependenceNode.hh.

Referenced by addToPseudoPredicateEEC(), pseudoPredicateEEC(), and ~ControlDependenceNode().

◆ region_

NodesInfo ControlDependenceNode::region_

private

Stores "region" information for computing serialization information.

Definition at line 118 of file ControlDependenceNode.hh.

Referenced by addToRegion(), printRelations(), region(), and ~ControlDependenceNode().

◆ type_

NodeType ControlDependenceNode::type_

private

Definition at line 115 of file ControlDependenceNode.hh.

Referenced by isBBNode(), isEntryNode(), isExitNode(), isLoopCloseNode(), isLoopEntryNode(), isLoopEntryNode(), isPredicateNode(), isRegionNode(), setLoopEntryNode(), and type().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ NodesInfo

Member Enumeration Documentation

◆ NodeType

Constructor & Destructor Documentation

◆ ControlDependenceNode()

◆ ~ControlDependenceNode()

Member Function Documentation

◆ addToEEC()

◆ addToPseudoPredicateEEC()

◆ addToRegion()

◆ basicBlockNode()

◆ component()

◆ eec()

◆ instruction()

◆ instructionCount()

◆ isBBNode()

◆ isControlDependenceNode()

◆ isEntryNode()

◆ isExitNode()

◆ isLastNode()

◆ isLoopCloseNode()

◆ isLoopEntryNode() [1/2]

◆ isLoopEntryNode() [2/2]

◆ isPredicateNode()

◆ isRegionNode()

◆ printRelations()

◆ pseudoPredicateEEC()

◆ region()

◆ setComponent()

◆ setLastNode()

◆ setLoopEntryNode()

◆ toString()

◆ type()

Member Data Documentation

◆ code_

◆ component_

◆ eec_

◆ lastNode_

◆ pseudoPredicateEEC_

◆ region_

◆ type_
