Application Class Reference

#include <Application.hh>

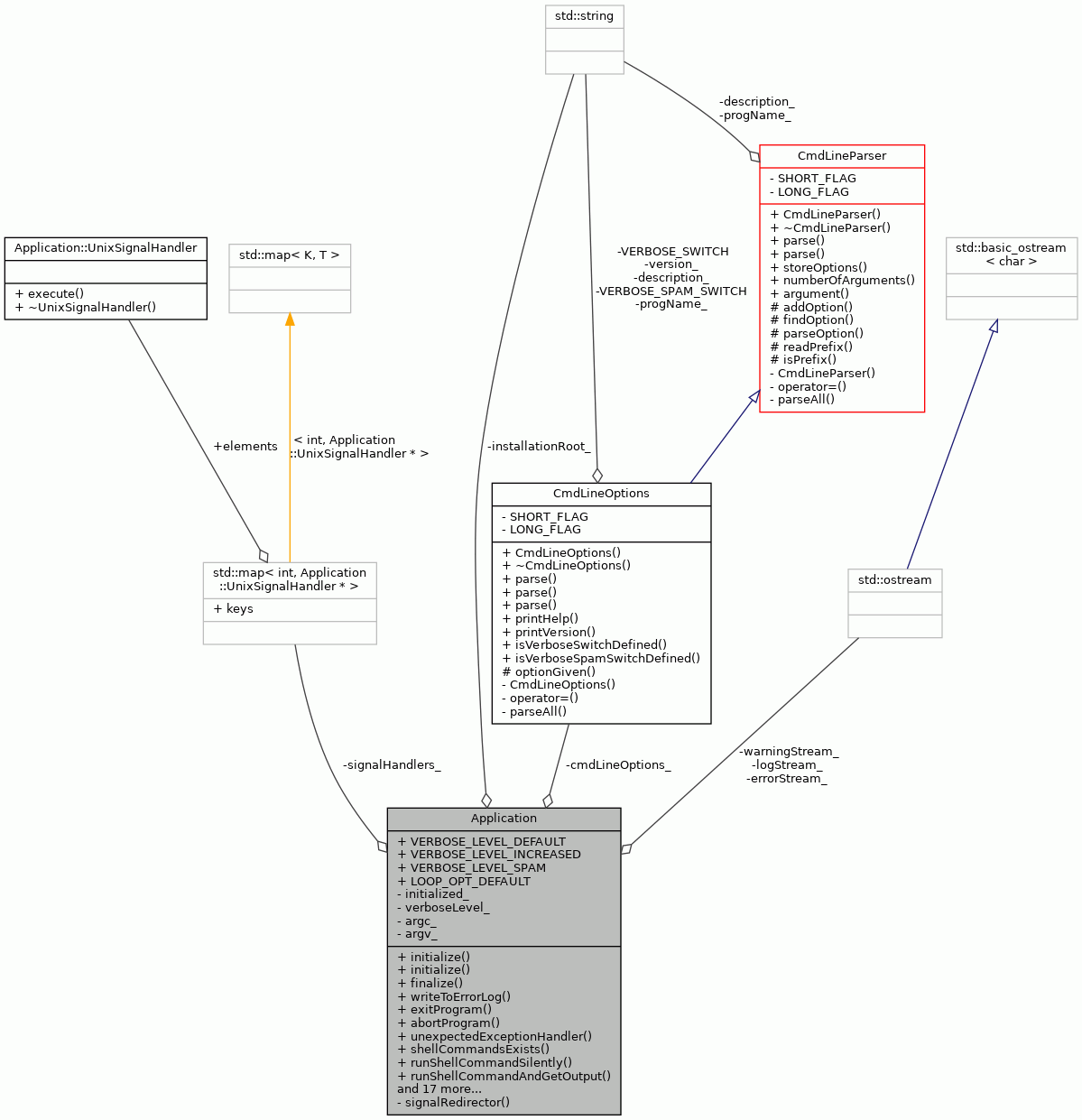

Collaboration diagram for Application:

Classes
class	UnixSignalHandler

Static Public Member Functions
static void	initialize (int argc, char *argv[])
static void	initialize ()
static void	finalize ()
static void	writeToErrorLog (const std::string fileName, const int lineNumber, const std::string functionName, const std::string message, const int neededVerbosity=0)
static void	exitProgram (const int status=EXIT_SUCCESS)
static void	abortProgram () __attribute__((noreturn))
static void	unexpectedExceptionHandler ()
static bool	shellCommandsExists (const std::string &commands)
static int	runShellCommandSilently (const std::string &command)
static int	runShellCommandAndGetOutput (const std::string &command, std::vector< std::string > &outputLines, std::size_t maxOutputLines=DEFAULT_MAX_OUTPUT_LINES, bool includeStdErr=false)
static std::ostream &	logStream ()
static std::ostream &	warningStream ()
static std::ostream &	errorStream ()
static int	verboseLevel ()
static bool	increasedVerbose ()
static bool	spamVerbose ()
static void	setVerboseLevel (const int level=VERBOSE_LEVEL_DEFAULT)
static void	setCmdLineOptions (CmdLineOptions *options_)
static CmdLineOptions *	cmdLineOptions ()
static int	argc ()
static char **	argv ()
static bool	isInstalled ()
static std::string	installationDir ()
static void	setSignalHandler (int signalNum, UnixSignalHandler &handler)
static UnixSignalHandler *	getSignalHandler (int signalNum)
static void	restoreSignalHandler (int signalNum)
static std::string	TCEVersionString ()

Static Public Attributes
static const int	VERBOSE_LEVEL_DEFAULT = 0
	Default verbose level - do not print anything unnecessary.
static const int	VERBOSE_LEVEL_INCREASED = 1
	Increased verbose level - print information about modules etc.
static const int	VERBOSE_LEVEL_SPAM = 2
	More Increased verbose level - spam about ddg heights of loops.
static const bool	LOOP_OPT_DEFAULT = false
	Use Loop Optimizations.

Static Private Member Functions
static void	signalRedirector (int data, siginfo_t *info, void *context)

Static Private Attributes
static bool	initialized_ = false
	True when initialize() is called. Ensures that initialization is done only once.
static std::ostream *	logStream_ = NULL
	The stream for debug logging.
static std::ostream *	errorStream_ = NULL
	The stream for user error notifications.
static std::ostream *	warningStream_ = NULL
	The stream for user error notifications.
static std::map< int, UnixSignalHandler * >	signalHandlers_
	Signal handlers in a map associated by their signal numbers.
static int	verboseLevel_ = Application::VERBOSE_LEVEL_DEFAULT
	Verbose level directs how much output will be printed to console.
static CmdLineOptions *	cmdLineOptions_ = NULL
	Holds command line options passed to program.
static int	argc_
	The original argc and argv given to the main program, if applicable.
static char **	argv_
static std::string	installationRoot_ = ""
	Path to the TCE installation root.

Detailed Description

Definition at line 144 of file Application.hh.

Member Function Documentation

abortProgram()

void Application::abortProgram ( )

static

Exit the program in an abnormal situation.

Definition at line 266 of file Application.cc.

                          {
    abort();
}

Referenced by UniversalMachine::addAddressSpace(), UniversalMachine::addBridge(), UniversalMachine::addBus(), UniversalMachine::addFunctionUnit(), UniversalMachine::addImmediateUnit(), UniversalMachine::addInstructionTemplate(), UniversalFunctionUnit::addPipelineElement(), UniversalMachine::addRegisterFile(), UniversalMachine::addSocket(), UniversalFunctionUnit::addSupportedOperation(), TTAMachine::Socket::attachBus(), SmartHWOperation::bindPort(), ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), TTAMachine::Socket::connection(), UniversalMachine::construct(), TTAProgram::TPEFProgramFactory::createTerminal(), UniversalMachine::deleteAddressSpace(), ADFSerializer::immediateUnitToMachine(), ADFSerializer::immediateUnitToMDF(), initialize(), SmartHWOperation::loadState(), UnboundedRegisterFile::loadState(), UniversalFunctionUnit::loadState(), UniversalFUPort::loadState(), UniversalMachine::loadState(), ADFSerializer::machinePipeline(), ADFSerializer::machineSRPort(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), UniversalMachine::removeBus(), UniversalMachine::removeFunctionUnit(), UniversalMachine::removeRegisterFile(), UniversalMachine::removeSocket(), UniversalMachine::setGlobalControl(), ADFSerializer::setIUExtensionMode(), UnboundedRegisterFile::setMaxReads(), UnboundedRegisterFile::setMaxWrites(), SmartHWOperation::setName(), UnboundedRegisterFile::setName(), UniversalFUPort::setName(), UnboundedRegisterFile::setNumberOfRegisters(), UniversalFUPort::setOpcodeSetting(), UniversalFUPort::setTriggering(), UnboundedRegisterFile::setType(), UnboundedRegisterFile::setWidth(), UniversalFUPort::setWidth(), SmartHWOperation::unbindPort(), TTAMachine::Port::unconnectedSocket(), unexpectedExceptionHandler(), and UniversalMachine::unsetGlobalControl().

argc()

static int Application::argc ( )

inlinestatic

Definition at line 192 of file Application.hh.

{ return argc_; }

References argc_.

Referenced by initialize(), and SimulatorCLI::SimulatorCLI().

argv()

static char ** Application::argv ( )

inlinestatic

Definition at line 193 of file Application.hh.

{ return argv_; }

References argv_.

Referenced by initialize(), and SimulatorCLI::SimulatorCLI().

cmdLineOptions()

CmdLineOptions * Application::cmdLineOptions ( )

static

Definition at line 397 of file Application.cc.

                            {
    return cmdLineOptions_;
}

References cmdLineOptions_.

Referenced by llvm::TCEPassConfig::addPreISel(), BasicBlockScheduler::BasicBlockScheduler(), BBSchedulerController::BBSchedulerController(), BF2Scheduler::BF2Scheduler(), BF2Scheduler::BF2Scheduler(), BFEarlyBypasser::BFEarlyBypasser(), BFLateBypasses::BFLateBypasses(), BFShareOperands::BFShareOperands(), BFShareOperandsLate::BFShareOperandsLate(), BUBasicBlockScheduler::BUBasicBlockScheduler(), llvm::LLVMTCEIRBuilder::compileOptimized(), llvm::TCETargetMachine::createMachine(), CycleLookBackSoftwareBypasser::CycleLookBackSoftwareBypasser(), DataDependenceGraphBuilder::DataDependenceGraphBuilder(), DataDependenceGraphBuilder::DataDependenceGraphBuilder(), llvm::TCERegisterInfo::eliminateFrameIndex(), llvm::TCERegisterInfo::getReservedRegs(), BBSchedulerController::handleBasicBlock(), SimpleIfConverter::handleControlFlowGraph(), PreOptimizer::handleProcedure(), BBSchedulerController::handleProcedure(), llvm::LLVMTCEBuilder::initMembers(), llvm::TCETTIImpl::isHardwareLoopProfitable(), LLVMBackend::LLVMBackend(), DataDependenceGraphBuilder::memoryCategory(), DesignSpaceExplorer::schedule(), SimpleBrokerDirector::SimpleBrokerDirector(), SimpleIfConverter::SimpleIfConverter(), SimulatorCLI::SimulatorCLI(), llvm::TCETargetLowering::TCETargetLowering(), and llvm::LLVMTCEIRBuilder::~LLVMTCEIRBuilder().

errorStream()

std::ostream & Application::errorStream ( )

static

Stream where error messages that should be printed immediately to the user should be written.

Errors are fatal which means the action performed could not be finished.

Usage example: errorStream() << "Compilation error: "...

Returns

A reference to the error stream.

Definition at line 171 of file Application.cc.

                         {
    initialize();
    return *errorStream_;
}

References errorStream_, and initialize().

Referenced by BlocksConnectIC::explore(), VLIWConnectIC::explore(), main(), ConstantTransformer::runOnMachineFunction(), and writeCustomOpMacros().

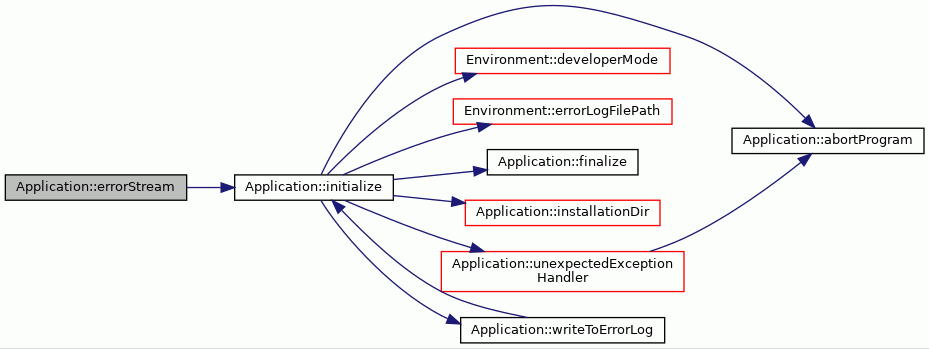

Here is the call graph for this function:

exitProgram()

void Application::exitProgram ( const int  status = EXIT_SUCCESS )

static

Exits the program in a normal situation.

This method must be used when the program terminates due to nominal conditions without returning from main().

Parameters

status

Program's status of exit.

Definition at line 258 of file Application.cc.

                                         {
    exit(status);
}

Referenced by ComponentAdder::addRegisterFiles().

finalize()

void Application::finalize ( )

static

Cleans up the state data used by the application services.

This method is called automatically when program is terminated.

Definition at line 199 of file Application.cc.

                      {

    if (!initialized_) {
        return;
    }

    if (logStream_ != &cerr && logStream_ != &cout && logStream_ != NULL) {
        logStream_->flush();
        delete logStream_;
        logStream_ = NULL;
    }
    delete cmdLineOptions_;
    cmdLineOptions_ = NULL;
    initialized_ = false;
}

References cmdLineOptions_, initialized_, and logStream_.

Referenced by initialize().

getSignalHandler()

Application::UnixSignalHandler * Application::getSignalHandler ( int  signalNum )

static

Returns a pointer to the signal's current handler

In platforms which do not support signals this method always returns NULL.

Returns

a pointer to the signal's current handler

Exceptions

InstanceNotFound

if the signal has not been set a custom handler

Definition at line 445 of file Application.cc.

                                           {
    std::map<int, UnixSignalHandler*>::iterator it =
        signalHandlers_.find(signalNum);
    if (it != signalHandlers_.end()) {
        return it->second;
    } else {
        throw InstanceNotFound(__FILE__, __LINE__, __FUNCTION__);
    }
}

References signalHandlers_.

Referenced by signalRedirector().

increasedVerbose()

static bool Application::increasedVerbose ( )

inlinestatic

Definition at line 179 of file Application.hh.

                                   {
        return verboseLevel() > VERBOSE_LEVEL_DEFAULT;
    }

References VERBOSE_LEVEL_DEFAULT, and verboseLevel().

Referenced by DesignSpaceExplorer::evaluate(), and ProGe::ProGeUI::generateIDF().

Here is the call graph for this function:

initialize() [1/2]

void Application::initialize ( )

static

Initializes the state data needed by the application services.

Definition at line 99 of file Application.cc.

                        {

    // ensure that initialization is done only once per application
    if (initialized_) {
        return;
    }

    // if this is a developer version, we can output debug messages to
    // cerr, in 'distributed version', we'll output the debug messages to
    // a file
    if (Environment::developerMode()) {
        logStream_ = &cerr;
    } else {
        ofstream* fileLog = new ofstream;
        fileLog->open(Environment::errorLogFilePath().c_str(), ios::app);
        if (!fileLog->is_open()) {
            logStream_ = &cerr;
        } else {
            logStream_ = fileLog;
        }
    }

    installationRoot_ = installationDir();

    errorStream_ = &cerr;
    warningStream_ = &cerr;

    // set the unexpected exception callback
    set_unexpected(Application::unexpectedExceptionHandler);

    // register finalization function to be called when exit() is called
    // so Application is finalized automatically on program exit
    if (atexit(Application::finalize) != 0) {
        writeToErrorLog(__FILE__, __LINE__, __FUNCTION__,
            "Application initialization failed.");
        abortProgram();
    }

    initialized_ = true;
}

References abortProgram(), Environment::developerMode(), Environment::errorLogFilePath(), errorStream_, finalize(), initialized_, installationDir(), installationRoot_, logStream_, unexpectedExceptionHandler(), warningStream_, and writeToErrorLog().

Referenced by errorStream(), Script::execute(), initialize(), logStream(), main(), OSEd::OnInit(), Proxim::OnInit(), HDBEditor::OnInit(), ProDe::OnInit(), warningStream(), and writeToErrorLog().

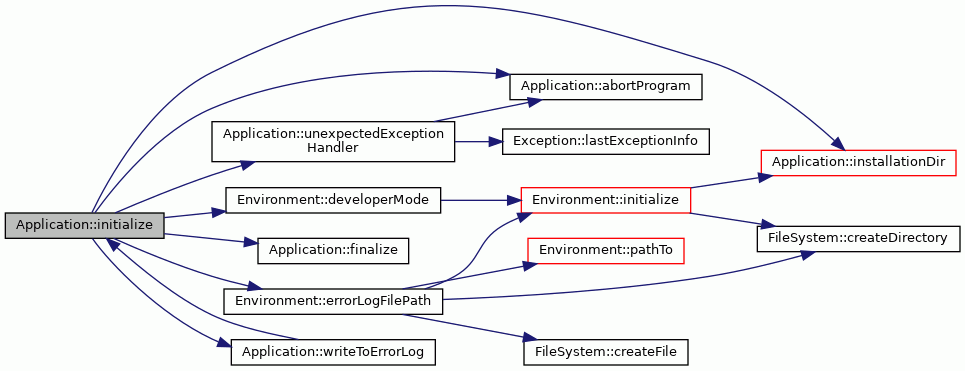

Here is the call graph for this function:

initialize() [2/2]

void Application::initialize ( int  argc, char *  argv[]  )

static

Definition at line 141 of file Application.cc.

                                              {
    Application::initialize();
    argc_ = argc;
    argv_ = argv;
}

References argc(), argc_, argv(), argv_, and initialize().

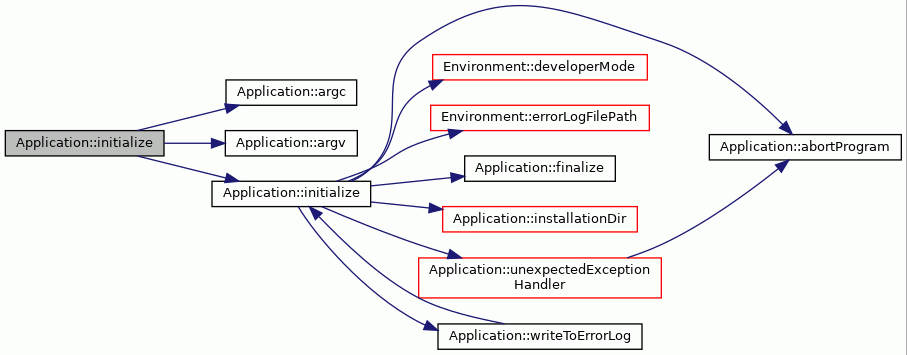

Here is the call graph for this function:

installationDir()

string Application::installationDir ( )

static

Returns the path to TCE installation root

Installation root can be one created by 'make install' or .deb package unpacked to homedir for example. Environment variable TCE_INSTALL_DIR should be set in the second case pointing to that dir where .deb was installed or tce installation manually copied/moved to.

Returns

Path to TCE installation root

Definition at line 537 of file Application.cc.

                             {

    if (installationRoot_ != "") {
        return installationRoot_;
    }

    string userRoot = Environment::environmentVariable("TCE_INSTALL_DIR");

    // .deb check: check if envvar TCE_INSTALL_DIR is set
    // and that dir exists ("icons" dir in our case)
    if (userRoot != "" && FileSystem::fileExists(
        userRoot + "/share/openasip/data/icons")) {
        return userRoot;
    }
    return string(TCE_INSTALLATION_ROOT);
}

References Environment::environmentVariable(), FileSystem::fileExists(), and installationRoot_.

Referenced by OperationBuilder::buildObject(), Environment::codeCompressorPaths(), Environment::confPath(), LLVMBackend::createPlugin(), Environment::defaultSchedulerConf(), Environment::estimatorPluginPaths(), Environment::explorerPluginPaths(), Environment::hdbPaths(), Environment::icDecoderPluginPaths(), Environment::implementationTesterTemplatePaths(), Environment::includeDirPaths(), initialize(), Environment::initialize(), Environment::longHDBPath(), Environment::minimalADF(), Environment::oldGccSchedulerConf(), Environment::osalPaths(), Environment::pdfManual(), Environment::schedulerPluginPaths(), Environment::shortHDBPath(), Environment::tceCompiler(), and Environment::vhdlPaths().

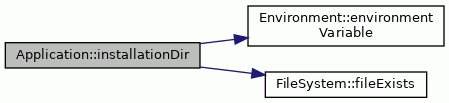

Here is the call graph for this function:

isInstalled()

bool Application::isInstalled ( )

static

Returns true if the application is running from an install path.

Since there is no reliable way to detect this from the binary name or such since TCE can be used as a library, we just assume we are using an installed TCE in case the developer mode is not set.

Definition at line 522 of file Application.cc.

                         {
    return !Environment::developerMode();
}

References Environment::developerMode().

Referenced by OperationBuilder::buildObject(), and main().

Here is the call graph for this function:

logStream()

std::ostream & Application::logStream ( )

static

Allows writing to the log stream with stream operators.

Usage example: logStream() << "Debug output" << i << endl;

Returns

A reference to the log stream.

Definition at line 155 of file Application.cc.

                       {
    initialize();
    return *logStream_;
}

References initialize(), and logStream_.

Referenced by llvm::LLVMTCEBuilder::addCandidateLSUAnnotations(), RegisterCopyAdder::addConnectionRegisterCopies(), LoopPrologAndEpilogBuilder::addEpilogFromRM(), ControlFlowGraph::addExit(), ProgramDependenceGraph::addLeafEdges(), RegisterCopyAdder::addMinimumRegisterCopies(), llvm::LLVMTCEBuilder::addPointerAnnotations(), LoopPrologAndEpilogBuilder::addPrologFromRM(), RegisterCopyAdder::addRegisterCopies(), RegisterCopyAdder::addRegisterCopiesToRRMove(), llvm::LLVMTCEBuilder::addressSpaceById(), MultiLatencyOperationExecutor::advanceClock(), ResourceConstraintAnalyzer::analyze(), PRegionAliasAnalyzer::analyze(), ControlDependenceGraph::analyzeCDG(), TDGen::analyzeMachineRegisters(), ResourceConstraintAnalyzer::analyzeMoveNode(), ResourceConstraintAnalyzer::analyzeRegisterAntideps(), TDGen::analyzeRegisters(), SimpleResourceManager::assign(), MachineInstrDDG::assignPhysReg(), DataDependenceGraphBuilder::build(), LoopPrologAndEpilogBuilder::build(), MoveNodeGroupBuilder::build(), ControlFlowGraph::buildMBBFromBB(), OperationBuilder::buildObject(), llvm::LLVMTCEIRBuilder::buildTCECFG(), SimpleResourceManager::canAssign(), SimpleBrokerDirector::canAssign(), SimpleIfConverter::canConvert(), DataDependenceGraphBuilder::checkAndCreateMemDep(), ProgramDependenceGraph::compareSiblings(), LLVMBackend::compile(), CompiledSimCompiler::compileDirectory(), CompiledSimCompiler::compileFile(), ConflictDetectionCodeGenerator::ConflictDetectionCodeGenerator(), BasicBlockPass::copyRMToBB(), ControlFlowGraph::createControlFlowEdge(), TTAProgram::ProgramWriter::createDataSections(), InstructionDictionary::createDictionary(), ProgramDependenceGraph::createJump(), llvm::LLVMTCEIRBuilder::createMBBReference(), LLVMBackend::createPlugin(), DataDependenceGraphBuilder::createRegisterDeps(), llvm::createTCESchedulerPass(), TTAProgram::TPEFProgramFactory::createTerminal(), DataDependenceGraphBuilder::DataDependenceGraphBuilder(), BasicBlockPass::ddgSnapshot(), llvm::LLVMTCEBuilder::deleteDeadProcedures(), ProgramDependenceGraph::disassemble(), MoveNodeGroup::earliestCycle(), SimpleResourceManager::earliestCycle(), SimpleResourceManager::earliestCycle(), llvm::LLVMTCEBuilder::emitInstruction(), llvm::LLVMTCEBuilder::emitMove(), llvm::LLVMTCEBuilder::emitWriteSP(), StrictMatchRFEstimator::estimateArea(), InterpolatingRFEstimator::estimateArea(), StrictMatchFUEstimator::estimateArea(), InterpolatingFUEstimator::estimateArea(), InterpolatingRFEstimator::estimateEnergy(), StrictMatchRFEstimator::estimateEnergy(), InterpolatingFUEstimator::estimateEnergy(), StrictMatchFUEstimator::estimateEnergy(), StrictMatchRFEstimator::estimateMaximumComputationDelay(), InterpolatingRFEstimator::estimateMaximumComputationDelay(), StrictMatchFUEstimator::estimateMaximumComputationDelay(), InterpolatingFUEstimator::estimateMaximumComputationDelay(), StrictMatchFUEstimator::estimatePortReadDelay(), InterpolatingFUEstimator::estimatePortReadDelay(), StrictMatchRFEstimator::estimatePortReadDelay(), InterpolatingRFEstimator::estimatePortReadDelay(), StrictMatchFUEstimator::estimatePortWriteDelay(), InterpolatingFUEstimator::estimatePortWriteDelay(), StrictMatchRFEstimator::estimatePortWriteDelay(), InterpolatingRFEstimator::estimatePortWriteDelay(), DesignSpaceExplorer::evaluate(), BasicBlockPass::executeDDGPass(), BBSchedulerController::executeDDGPass(), ProgramPass::executeProcedurePass(), CodeSectionCreator::finalize(), CostEstimator::Estimator::findAllICPaths(), CompiledSimCodeGenerator::findBasicBlocks(), ProgramImageGenerator::generateProgramImage(), BBSchedulerController::handleBasicBlock(), CallsToJumps::handleControlFlowGraph(), SimpleIfConverter::handleControlFlowGraph(), BF2Scheduler::handleLoopDDG(), BasicBlockScheduler::handleLoopDDG(), BUBasicBlockScheduler::handleLoopDDG(), llvm::LLVMTCEBuilder::handleMemoryCategoryInfo(), BBSchedulerController::handleProcedure(), BasicBlockScheduler::handleRemovedResultMoves(), CostEstimator::Estimator::icArea(), llvm::LLVMTCEBuilder::initDataSections(), StopPoint::isConditionOK(), SimpleResourceManager::largestCycle(), SimpleResourceManager::latestCycle(), SimpleResourceManager::latestCycle(), llvm::LLVMTCERISCVIntrinsicsLowering::LLVMTCERISCVIntrinsicsLowering(), llvm::LLVMTCEScheduler::LLVMTCEScheduler(), CostEstimator::Estimator::longestPath(), MachineInstrDDG::MachineInstrDDG(), main(), ResourceConstraintAnalyzer::memoryBoundScheduleResourceUsage(), CompiledSimulation::msg(), VirtRegIndependenceGraph::newFalseDepsFromAssign(), BlockImplementationFileDialog::onOK(), MoveSlotDictionary::printDetails(), ControlDependenceNode::printRelations(), ProgramDependenceNode::printRelations(), ControlDependenceGraph::processRegion(), ProgramDependenceGraph::processRegion(), ADFCombiner::readParameters(), ProgramDependenceGraph::removeGuardedJump(), CompiledSimController::reset(), BUBasicBlockScheduler::scheduleInputOperandTempMoves(), BasicBlockScheduler::scheduleOperation(), BUBasicBlockScheduler::scheduleOperation(), DataDependenceGraphBuilder::searchRegisterDeaths(), ProgramDependenceGraph::serializePDG(), SimpleIfConverter::SimpleIfConverter(), SimpleResourceManager::smallestCycle(), MultiLatencyOperationExecutor::startOperation(), SimpleIfConverter::successors(), llvm::TCETargetLowering::TCETargetLowering(), CostEstimator::Estimator::totalAreaOfFunctionUnits(), CostEstimator::Estimator::totalAreaOfRegisterFiles(), SimpleResourceManager::unassign(), TTAProgram::InstructionReferenceManager::validate(), TDGen::verbose(), VirtRegIndependenceGraph::VirtRegIndependenceGraph(), TDGen::writeInstrInfo(), llvm::LLVMTCEBuilder::writeMachineFunction(), llvm::LLVMTCEIRBuilder::writeMachineFunction(), TDGen::writeOperationDef(), and FiniteStateAutomaton::~FiniteStateAutomaton().

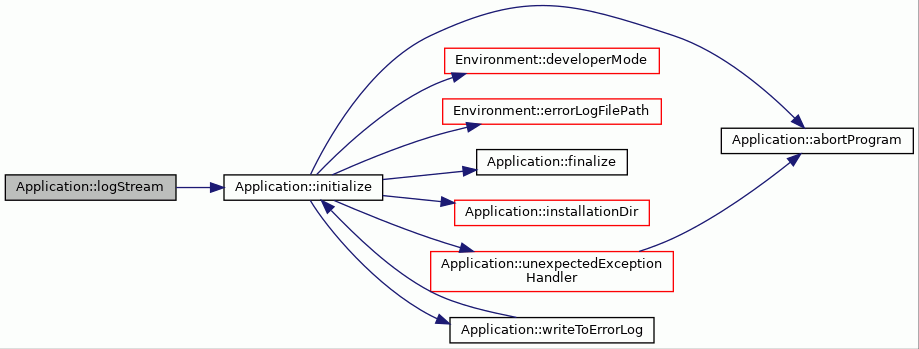

Here is the call graph for this function:

restoreSignalHandler()

void Application::restoreSignalHandler ( int  signalNum )

static

Restores to the signal its original handler

Note in platforms which do not support signals (e.g. Windows), this function does nothing.

Parameters

signalNum

signal number

Definition at line 471 of file Application.cc.

                                               {
    signal(signalNum, SIG_DFL);
    signalHandlers_.erase(signalNum);
}

References signalHandlers_.

Referenced by main().

runShellCommandAndGetOutput()

int Application::runShellCommandAndGetOutput ( const std::string &  command, std::vector< std::string > &  outputLines, std::size_t  maxOutputLines = DEFAULT_MAX_OUTPUT_LINES, bool  includeStdErr = false  )

static

Runs a shell command and captures its output (stdout) in the given vector.

Assumes that the executed program does not block and wait for input.

Parameters

command	Command to execute.
outputLines	Vector to which put the output lines.
maxOutputLines	Maximum lines to capture.

Returns

The return value of the program. -1 if some weird error occured.

Definition at line 338 of file Application.cc.

                        {

    char line[MAX_OUTPUT_LINE_LENGTH];

    // flush all streams to avoid: "...the output from a
    // command opened for writing may become intermingled with that of
    // the original process." (man popen)
    fflush(NULL);

    string shellCommand = command;
    if (includeStdErr) {
        shellCommand += " 2>1";
    }
    FILE* pipe = popen(shellCommand.c_str(), "r");

    while (fgets(line, MAX_OUTPUT_LINE_LENGTH, pipe) == line) {

        if (outputLines.size() < maxOutputLines) {
            outputLines.push_back(string(line));
        }
    }

    int exitStatus = pclose(pipe);

    // see man wait4 for info about macros WIFEXITED and WEXITSTATUS
    if (WIFEXITED(exitStatus)) {
        return WEXITSTATUS(exitStatus);
    }

    return -1;
}

References MAX_OUTPUT_LINE_LENGTH, WEXITSTATUS, and WIFEXITED.

Referenced by OperationBuilder::buildObject(), CompileTools::compileAsC(), GhdlSimulator::compileDesign(), ModelsimSimulator::compileOneFile(), ModelsimSimulator::createWorkDir(), GhdlSimulator::importFile(), DesignSpaceExplorer::schedule(), GhdlSimulator::simulate(), and ModelsimSimulator::simulate().

runShellCommandSilently()

int Application::runShellCommandSilently ( const std::string &  command )

static

Runs a shell command and redirects all output to /dev/null

Parameters

command

Command to execute.

Returns

The return value of the program. -1 if some weird error occurred.

Definition at line 301 of file Application.cc.

                              {

    char line[MAX_OUTPUT_LINE_LENGTH];
    // flush all streams to avoid: "...the output from a
    // command opened for writing may become intermingled with that of
    // the original process." (man popen)
    fflush(NULL);

    std::string fullCommand = command + " 2>&1 ";
    FILE* pipe = popen(fullCommand.c_str(), "r");

    while (fgets(line, MAX_OUTPUT_LINE_LENGTH, pipe) == line) {
        // Drain stdout and stderr data.
    }

    int exitStatus = pclose(pipe);

    // see man wait4 for info about macros WIFEXITED and WEXITSTATUS
    if (WIFEXITED(exitStatus)) {
        return WEXITSTATUS(exitStatus);
    }

    return -1;
}

References MAX_OUTPUT_LINE_LENGTH, WEXITSTATUS, and WIFEXITED.

Referenced by CompileTools::compileAsLLVM(), and shellCommandsExists().

setCmdLineOptions()

void Application::setCmdLineOptions ( CmdLineOptions *  options )

static

Set the command line options instance for the application.

The object becomes owned by Application class. It should be fully built (parsed) before passed to Application.

Definition at line 381 of file Application.cc.

                                                      {

    // delete the possible old instance first
    delete cmdLineOptions_;
    cmdLineOptions_ = options;

    if (options->isVerboseSwitchDefined()) {
        setVerboseLevel(Application::VERBOSE_LEVEL_INCREASED);
    }

    if (options->isVerboseSpamSwitchDefined()) {
        setVerboseLevel(Application::VERBOSE_LEVEL_SPAM);
    }
}

References cmdLineOptions_, CmdLineOptions::isVerboseSpamSwitchDefined(), CmdLineOptions::isVerboseSwitchDefined(), options, setVerboseLevel(), VERBOSE_LEVEL_INCREASED, and VERBOSE_LEVEL_SPAM.

Referenced by llvm::LLVMTCEScheduler::LLVMTCEScheduler(), and main().

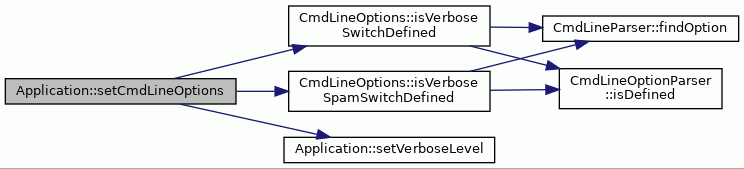

Here is the call graph for this function:

setSignalHandler()

void Application::setSignalHandler ( int  signalNum, UnixSignalHandler &  handler  )

static

Sets a new signal handler for the given signal

Note in platforms which do not support signals (e.g. Windows), this function does nothing.

Parameters

signalNum	signal number
handler	The handler to be set

Definition at line 417 of file Application.cc.

                                                                       {
    signalHandlers_[signalNum] = &handler;

    struct sigaction action;
    action.sa_flags = SA_SIGINFO;
    action.sa_sigaction = signalRedirector;
    // valgrind complains if this is uninitialized
    sigemptyset(&action.sa_mask);
    sigaction(signalNum, &action, NULL);
}

References signalHandlers_, and signalRedirector().

Referenced by main().

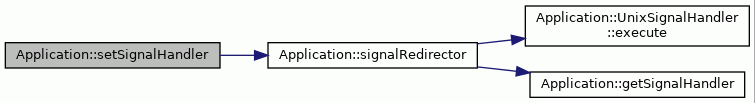

Here is the call graph for this function:

setVerboseLevel()

static void Application::setVerboseLevel ( const int  level = VERBOSE_LEVEL_DEFAULT )

inlinestatic

Definition at line 186 of file Application.hh.

                                                                         {
        verboseLevel_ = level;
    }

References verboseLevel_.

Referenced by GenerateProcessor::generateProcessor(), main(), and setCmdLineOptions().

shellCommandsExists()

bool Application::shellCommandsExists ( const std::string &  commands )

static

Returns true if all commands separated by space are found.

Otherwise return false;

Definition at line 290 of file Application.cc.

                                                          {
    return runShellCommandSilently(std::string("type ") + commands) == 0;
}

References runShellCommandSilently().

Here is the call graph for this function:

signalRedirector()

void Application::signalRedirector ( int  data, siginfo_t *  info, void *  context  )

staticprivate

Redirects the signal received to the current signal handler

Note in platforms which do not support signals (e.g. Windows), this function does nothing.

Parameters

data	Data from the signal.
info	signal information struct
context	signal context

Definition at line 494 of file Application.cc.

                                                                {
    UnixSignalHandler* handler = getSignalHandler(info->si_signo);
    assert(handler != NULL);
    handler->execute(data, info);
}

References assert, Application::UnixSignalHandler::execute(), and getSignalHandler().

Referenced by setSignalHandler().

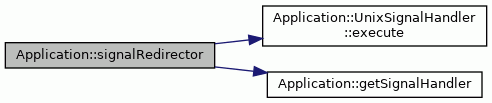

Here is the call graph for this function:

spamVerbose()

static bool Application::spamVerbose ( )

inlinestatic

Definition at line 182 of file Application.hh.

                              {
        return verboseLevel() > VERBOSE_LEVEL_INCREASED;
    }

References VERBOSE_LEVEL_INCREASED, and verboseLevel().

Referenced by ProGe::ProcessorGenerator::generateProcessor(), and InlineAsmParser::substituteAsmString().

Here is the call graph for this function:

TCEVersionString()

std::string Application::TCEVersionString ( )

static

Returns the version string of the TCE build.

This string includes the version control revision (if available), automatically generated during build. This cannot be in headers as it would induce a (almost) complete build of TCE on every revision change.

Definition at line 510 of file Application.cc.

                              {
    return TCE_VERSION_STRING;
}

Referenced by RISCVTDGen::dumpClassDefinitions(), Proxim::OnInit(), LLVMBackend::pluginFilename(), ExplorerCmdLineOptions::printVersion(), LLVMTCECmdLineOptions::printVersion(), SchedulerCmdLineOptions::printVersion(), SimulatorCmdLineOptions::printVersion(), AsmCmdLineOptions::printVersion(), BEMViewerCmdLineOptions::printVersion(), DisasmCmdLineOptions::printVersion(), DictionaryToolCmdLineOptions::printVersion(), DumperCmdLineOptions::printVersion(), EstimatorCmdLineOptions::printVersion(), BuildOpsetOptions::printVersion(), OsalCmdLineOptions::printVersion(), CreateHDBCmdLineOptions::printVersion(), TestHDBCmdLineOptions::printVersion(), MachInfoCmdLineOptions::printVersion(), ProGeCmdLineOptions::printVersion(), and TTAUnitTesterCmdLineOptions::printVersion().

unexpectedExceptionHandler()

void Application::unexpectedExceptionHandler ( )

static

Default callback for unexpected exceptions.

Definition at line 274 of file Application.cc.

                                        {
    *logStream_
        << std::endl
        << "Program aborted because of leaked unexpected exception. "
        << std::endl << std::endl <<
        "Information of the last thrown TCE exception: " << std::endl
        << Exception::lastExceptionInfo() << std::endl;
    abortProgram();
}

References abortProgram(), Exception::lastExceptionInfo(), and logStream_.

Referenced by initialize().

Here is the call graph for this function:

verboseLevel()

static int Application::verboseLevel ( )

inlinestatic

Definition at line 176 of file Application.hh.

                              {
        return verboseLevel_;
    }

References verboseLevel_.

Referenced by llvm::LLVMTCEBuilder::addCandidateLSUAnnotations(), LoopPrologAndEpilogBuilder::addEpilogFromRM(), ControlFlowGraph::addExit(), LoopPrologAndEpilogBuilder::addPrologFromRM(), LoopPrologAndEpilogBuilder::addPrologIntoCfg(), LoopAnalyzer::analyze(), ControlDependenceGraph::analyzeCDG(), TDGen::analyzeMachineRegisters(), ResourceConstraintAnalyzer::analyzeRegisterAntideps(), TDGen::analyzeRegisters(), LoopPrologAndEpilogBuilder::build(), OperationBuilder::buildObject(), FrequencySweepExplorer::callPlugin(), LLVMBackend::compile(), MoveSlotDictionary::compress(), BasicBlockPass::copyRMToBB(), ControlFlowGraph::createControlFlowEdge(), InstructionDictionary::createDictionary(), LLVMBackend::createPlugin(), DataDependenceGraphBuilder::createRegisterDeps(), DataDependenceGraphBuilder::DataDependenceGraphBuilder(), llvm::LLVMTCEBuilder::deleteDeadProcedures(), BasicBlockPass::executeDDGPass(), BBSchedulerController::executeDDGPass(), ProgramPass::executeProcedurePass(), GrowMachine::explore(), FrequencySweepExplorer::explore(), LoopAnalyzer::findInitAndUpdate(), ProgramImageGenerator::generateProgramImage(), BBSchedulerController::handleBasicBlock(), SimpleIfConverter::handleControlFlowGraph(), BF2Scheduler::handleLoopDDG(), BF2Scheduler::handleLoopDDG(), BBSchedulerController::handleProcedure(), CostEstimator::Estimator::icArea(), increasedVerbose(), llvm::LLVMTCEBuilder::initDataSections(), llvm::TCETargetLowering::LowerBuildVector(), llvm::TCETargetLowering::LowerConstant(), llvm::TCETargetLowering::LowerGLOBALADDRESS(), main(), BasicBlockScheduler::printStats(), ControlDependenceGraph::processRegion(), ProgramDependenceGraph::processRegion(), MachineConnectivityCheck::raConnected(), ProgramDependenceGraph::removeGuardedJump(), ConstantTransformer::runOnMachineFunction(), DesignSpaceExplorer::schedule(), BF2ScheduleFront::scheduleFrontFromMove(), DataDependenceGraphBuilder::searchRegisterDeaths(), ProgramDependenceGraph::serializePDG(), SimpleIfConverter::SimpleIfConverter(), spamVerbose(), llvm::TCETargetLowering::TCETargetLowering(), MachineConnectivityCheck::tempRegisterFiles(), CostEstimator::Estimator::totalAreaOfFunctionUnits(), CostEstimator::Estimator::totalAreaOfRegisterFiles(), TDGen::verbose(), TDGen::writeInstrInfo(), llvm::LLVMTCEBuilder::writeMachineFunction(), llvm::LLVMTCEIRBuilder::writeMachineFunction(), and TDGen::writeOperationDef().

warningStream()

std::ostream & Application::warningStream ( )

static

Stream where warning messages that should be printed immediately to the user should be written.

Warnings are non-fatal notifications to the user. The action performed might still be able to be finished.

Usage example: warningStream() << "warning: uninitialized thing "...

Returns

A reference to the warning stream.

Definition at line 188 of file Application.cc.

                           {
    initialize();
    return *warningStream_;
}

References initialize(), and warningStream_.

Referenced by MachineStateBuilder::addPortToFU(), CostEstimator::Estimator::totalAreaOfFunctionUnits(), and CostEstimator::Estimator::totalAreaOfRegisterFiles().

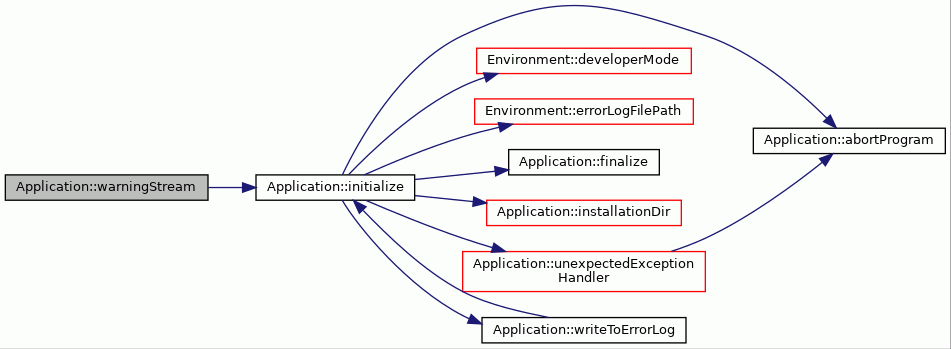

Here is the call graph for this function:

writeToErrorLog()

void Application::writeToErrorLog ( const std::string  fileName, const int  lineNumber, const std::string  functionName, const std::string  message, const int  neededVerbosity = 0  )

static

Records a message into the error log.

Parameters

fileName	Source file of the code where the error occurred.
lineNumber	Source line where the error occurred.
functionName	Function where the error occurred.
message	The error message.

Definition at line 224 of file Application.cc.

                               {

    if (neededVerbosity > verboseLevel_) {
        return;
    }

    if (!initialized_) {
        initialize();
    }

    *logStream_ << fileName << ":" << lineNumber << ": ";

    if (functionName != UNKNOWN_FUNCTION) {
        *logStream_ <<  "In function \'" << functionName << "\': ";
    }

    *logStream_ << message << endl;
}

References initialize(), initialized_, logStream_, UNKNOWN_FUNCTION, and verboseLevel_.

Referenced by UniversalMachine::addAddressSpace(), UniversalMachine::addBridge(), UniversalMachine::addBus(), UniversalMachine::addFunctionUnit(), UniversalMachine::addImmediateUnit(), UniversalMachine::addInstructionTemplate(), UniversalFunctionUnit::addPipelineElement(), UniversalMachine::addRegisterFile(), UniversalMachine::addSocket(), UniversalFunctionUnit::addSupportedOperation(), TTAMachine::Socket::attachBus(), SmartHWOperation::bindPort(), ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), TTAMachine::Socket::connection(), UniversalMachine::construct(), FileSystem::currentWorkingDir(), UniversalMachine::deleteAddressSpace(), ADFSerializer::immediateUnitToMachine(), ADFSerializer::immediateUnitToMDF(), initialize(), SmartHWOperation::loadState(), UnboundedRegisterFile::loadState(), UniversalFunctionUnit::loadState(), UniversalFUPort::loadState(), UniversalMachine::loadState(), ADFSerializer::machinePipeline(), ADFSerializer::machineSRPort(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), UniversalMachine::removeBus(), UniversalMachine::removeFunctionUnit(), UniversalMachine::removeRegisterFile(), UniversalMachine::removeSocket(), ComponentImplementationSelector::selectFUs(), ComponentImplementationSelector::selectIUs(), ComponentImplementationSelector::selectRFs(), UniversalMachine::setGlobalControl(), ADFSerializer::setIUExtensionMode(), UnboundedRegisterFile::setMaxReads(), UnboundedRegisterFile::setMaxWrites(), SmartHWOperation::setName(), UnboundedRegisterFile::setName(), UniversalFUPort::setName(), UnboundedRegisterFile::setNumberOfRegisters(), UniversalFUPort::setOpcodeSetting(), UniversalFUPort::setTriggering(), UnboundedRegisterFile::setType(), UnboundedRegisterFile::setWidth(), UniversalFUPort::setWidth(), SmartHWOperation::unbindPort(), TTAMachine::Port::unconnectedSocket(), UniversalMachine::unsetGlobalControl(), ExecutionTrace::~ExecutionTrace(), ScriptInterpreter::~ScriptInterpreter(), and SQLiteQueryResult::~SQLiteQueryResult().

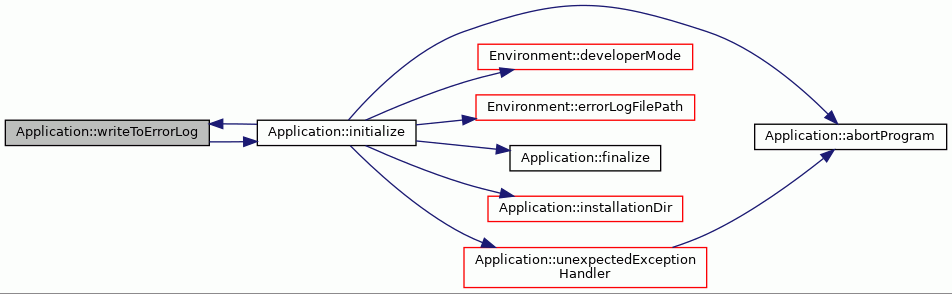

Here is the call graph for this function:

Member Data Documentation

argc_

int Application::argc_

staticprivate

The original argc and argv given to the main program, if applicable.

Definition at line 257 of file Application.hh.

Referenced by argc(), and initialize().

argv_

char ** Application::argv_

staticprivate

Definition at line 258 of file Application.hh.

Referenced by argv(), and initialize().

cmdLineOptions_

CmdLineOptions * Application::cmdLineOptions_ = NULL

staticprivate

Holds command line options passed to program.

Definition at line 254 of file Application.hh.

Referenced by cmdLineOptions(), finalize(), and setCmdLineOptions().

errorStream_

std::ostream * Application::errorStream_ = NULL

staticprivate

The stream for user error notifications.

Definition at line 242 of file Application.hh.

Referenced by errorStream(), and initialize().

initialized_

bool Application::initialized_ = false

staticprivate

True when initialize() is called. Ensures that initialization is done only once.

Definition at line 236 of file Application.hh.

Referenced by finalize(), initialize(), and writeToErrorLog().

installationRoot_

string Application::installationRoot_ = ""

staticprivate

Path to the TCE installation root.

Definition at line 261 of file Application.hh.

Referenced by initialize(), and installationDir().

logStream_

std::ostream * Application::logStream_ = NULL

staticprivate

The stream for debug logging.

Definition at line 239 of file Application.hh.

Referenced by finalize(), initialize(), logStream(), unexpectedExceptionHandler(), and writeToErrorLog().

LOOP_OPT_DEFAULT

const bool Application::LOOP_OPT_DEFAULT = false

static

Use Loop Optimizations.

Definition at line 229 of file Application.hh.

signalHandlers_

std::map< int, Application::UnixSignalHandler * > Application::signalHandlers_

staticprivate

Signal handlers in a map associated by their signal numbers.

Definition at line 248 of file Application.hh.

Referenced by getSignalHandler(), restoreSignalHandler(), and setSignalHandler().

VERBOSE_LEVEL_DEFAULT

const int Application::VERBOSE_LEVEL_DEFAULT = 0

static

Default verbose level - do not print anything unnecessary.

Definition at line 222 of file Application.hh.

Referenced by TDGen::analyzeMachineRegisters(), TDGen::analyzeRegisters(), OperationBuilder::buildObject(), DataDependenceGraphBuilder::createRegisterDeps(), DataDependenceGraphBuilder::DataDependenceGraphBuilder(), increasedVerbose(), DataDependenceGraphBuilder::searchRegisterDeaths(), TDGen::verbose(), TDGen::writeInstrInfo(), and TDGen::writeOperationDef().

VERBOSE_LEVEL_INCREASED

const int Application::VERBOSE_LEVEL_INCREASED = 1

static

Increased verbose level - print information about modules etc.

Definition at line 224 of file Application.hh.

Referenced by GenerateProcessor::generateProcessor(), main(), setCmdLineOptions(), and spamVerbose().

VERBOSE_LEVEL_SPAM

const int Application::VERBOSE_LEVEL_SPAM = 2

static

More Increased verbose level - spam about ddg heights of loops.

Definition at line 226 of file Application.hh.

Referenced by GenerateProcessor::generateProcessor(), and setCmdLineOptions().

verboseLevel_

int Application::verboseLevel_ = Application::VERBOSE_LEVEL_DEFAULT

staticprivate

Verbose level directs how much output will be printed to console.

Definition at line 251 of file Application.hh.

Referenced by setVerboseLevel(), verboseLevel(), and writeToErrorLog().

warningStream_

std::ostream * Application::warningStream_ = NULL

staticprivate

The stream for user error notifications.

Definition at line 245 of file Application.hh.

Referenced by initialize(), and warningStream().

---

The documentation for this class was generated from the following files:

• Application.hh
• Application.cc
