DeleteBPCommand Class Reference

#include <DeleteBPCommand.hh>

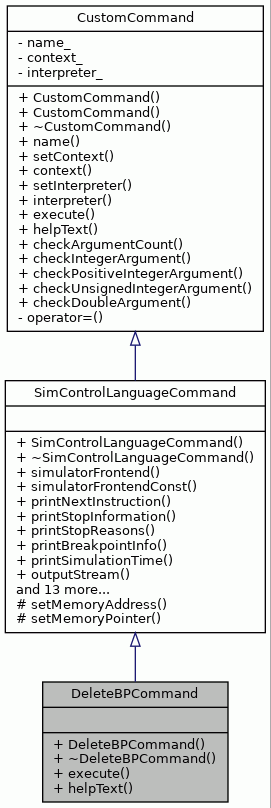

Inheritance diagram for DeleteBPCommand:

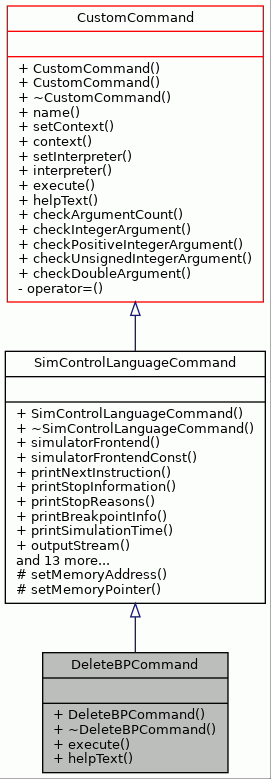

Collaboration diagram for DeleteBPCommand:

Public Member Functions
	DeleteBPCommand ()
virtual	~DeleteBPCommand ()
virtual bool	execute (const std::vector< DataObject > &arguments)
virtual std::string	helpText () const
Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)
virtual	~SimControlLanguageCommand ()
SimulatorFrontend &	simulatorFrontend ()
const SimulatorFrontend &	simulatorFrontendConst ()
virtual void	printNextInstruction ()
virtual void	printStopInformation ()
virtual void	printStopReasons ()
virtual bool	printBreakpointInfo (unsigned int breakpointHandle)
virtual void	printSimulationTime ()
virtual std::ostream &	outputStream ()
bool	checkSimulationInitialized ()
bool	checkSimulationNotAlreadyRunning ()
bool	checkSimulationStopped ()
bool	checkSimulationEnded ()
bool	checkProgramLoaded ()
bool	checkMachineLoaded ()
InstructionAddress	parseInstructionAddressExpression (const std::string &expression)
TTAProgram::Address	parseDataAddressExpression (const std::string &expression)
bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)
bool	askConditionFromUser (TclConditionScript &target)
bool	askExpressionFromUser (ExpressionScript &target)
bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)
void	setErrorMessage (const TCEString &errorMsg)
Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)
	CustomCommand (const CustomCommand &cmd)
virtual	~CustomCommand ()
std::string	name () const
void	setContext (InterpreterContext *context)
InterpreterContext *	context () const
void	setInterpreter (ScriptInterpreter *si)
ScriptInterpreter *	interpreter () const
bool	checkArgumentCount (int argumentCount, int minimum, int maximum)
bool	checkIntegerArgument (const DataObject &argument)
bool	checkPositiveIntegerArgument (const DataObject &argument)
bool	checkUnsignedIntegerArgument (const DataObject &argument)
bool	checkDoubleArgument (const DataObject &argument)

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)
bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the "deletebp" command of the Simulator Control Language.

Definition at line 47 of file DeleteBPCommand.hh.

Constructor & Destructor Documentation

DeleteBPCommand()

DeleteBPCommand::DeleteBPCommand

(

)

Constructor.

Sets the name of the command to the base class.

Definition at line 51 of file DeleteBPCommand.cc.

                                 :
    SimControlLanguageCommand("deletebp") {
}

~DeleteBPCommand()

DeleteBPCommand::~DeleteBPCommand ( )

virtual

Destructor.

Does nothing.

Definition at line 60 of file DeleteBPCommand.cc.

                                  {
}

Member Function Documentation

execute()

bool DeleteBPCommand::execute ( const std::vector< DataObject > &  arguments )

virtual

Executes the "deletebp" command.

Deletes the given breakpoints.

Parameters

arguments

The handle(s) of the breakpoint(s) to delete.

Returns

True in case simulation is initialized and arguments are ok.

Exceptions

NumberFormatException

Is never thrown by this command.

Todo:

Use the count for the step.

Implements CustomCommand.

Definition at line 74 of file DeleteBPCommand.cc.

                                                               {
    if (!checkSimulationStopped()) {
        if (!checkSimulationInitialized()) {
            return false;
        }
    }

    StopPointManager& breakpointManager =
        simulatorFrontend().stopPointManager();
    if (arguments.size() > 1) {
        if (!verifyBreakpointHandles(arguments)) {
            return false;
        }

        // delete the given breakpoints
        for (size_t i = 1; i < arguments.size(); ++i) {
            const unsigned int breakpointHandle = arguments[i].integerValue();
            try {
                breakpointManager.deleteStopPoint(breakpointHandle);
            } catch (const InstanceNotFound&) {
                // user defined the same breakpoint handle twice, let's
                // ignore this
            }
        }
    } else {
        // delete all breakpoints
        if (!interpreter()->lineReader()->confirmation(
                SimulatorToolbox::textGenerator().text(
                    Texts::TXT_CONFIRM_DELETE_ALL_BREAKPOINTS).str())) {
            // user answered "no", command is still considered succesful
            return true;
        }
        breakpointManager.deleteAll();
    }
    return true;
}

References SimControlLanguageCommand::checkSimulationInitialized(), SimControlLanguageCommand::checkSimulationStopped(), StopPointManager::deleteAll(), StopPointManager::deleteStopPoint(), CustomCommand::interpreter(), SimControlLanguageCommand::simulatorFrontend(), SimulatorFrontend::stopPointManager(), SimulatorToolbox::textGenerator(), Texts::TXT_CONFIRM_DELETE_ALL_BREAKPOINTS, and SimControlLanguageCommand::verifyBreakpointHandles().

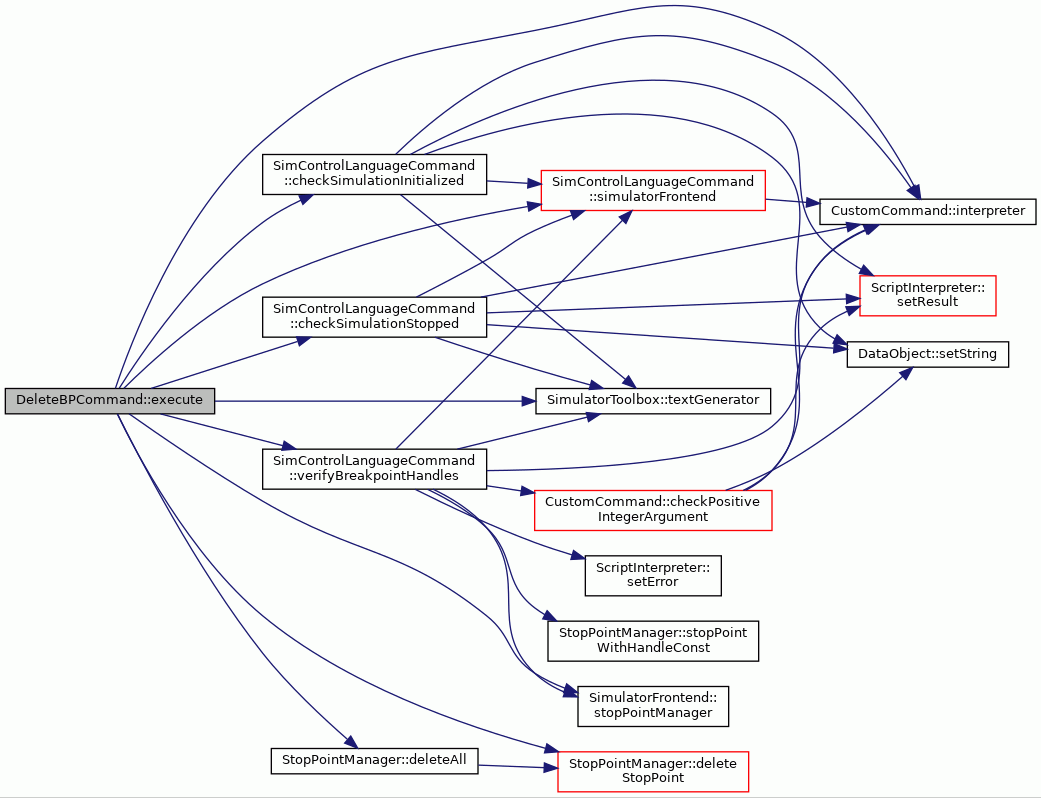

Here is the call graph for this function:

helpText()

std::string DeleteBPCommand::helpText ( ) const

virtual

Returns the help text for this command.

Help text is searched from SimulatorTextGenerator.

Returns

The help text.

Todo:

Use SimulatorTextGenerator to get the help text.

Implements CustomCommand.

Definition at line 120 of file DeleteBPCommand.cc.

                                {
    return SimulatorToolbox::textGenerator().text(
        Texts::TXT_INTERP_HELP_DELETEBP).str();
}

References Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_INTERP_HELP_DELETEBP.

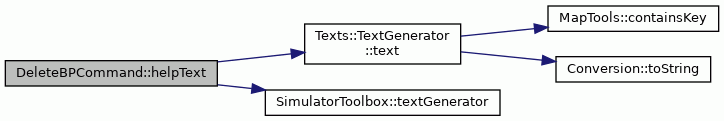

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• DeleteBPCommand.hh
• DeleteBPCommand.cc
