DisassembleCommand Class Reference

#include <DisassembleCommand.hh>

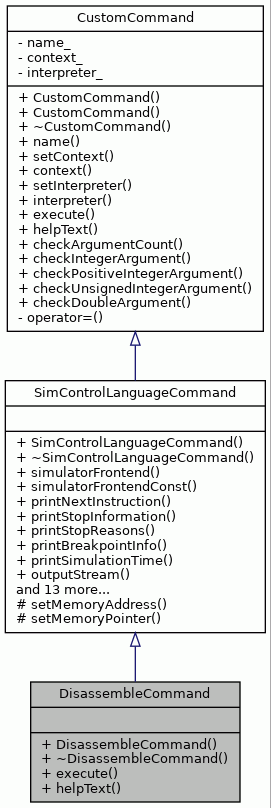

Inheritance diagram for DisassembleCommand:

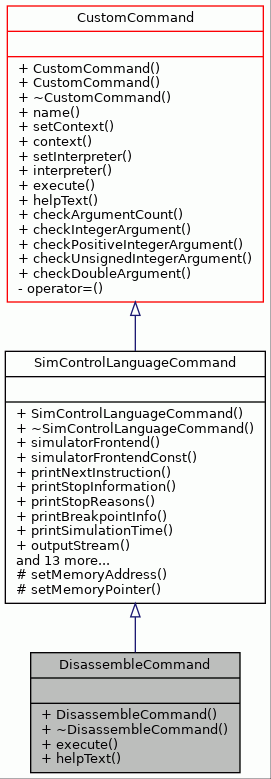

Collaboration diagram for DisassembleCommand:

Public Member Functions
	DisassembleCommand ()
virtual	~DisassembleCommand ()
virtual bool	execute (const std::vector< DataObject > &arguments)
virtual std::string	helpText () const
Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)
virtual	~SimControlLanguageCommand ()
SimulatorFrontend &	simulatorFrontend ()
const SimulatorFrontend &	simulatorFrontendConst ()
virtual void	printNextInstruction ()
virtual void	printStopInformation ()
virtual void	printStopReasons ()
virtual bool	printBreakpointInfo (unsigned int breakpointHandle)
virtual void	printSimulationTime ()
virtual std::ostream &	outputStream ()
bool	checkSimulationInitialized ()
bool	checkSimulationNotAlreadyRunning ()
bool	checkSimulationStopped ()
bool	checkSimulationEnded ()
bool	checkProgramLoaded ()
bool	checkMachineLoaded ()
InstructionAddress	parseInstructionAddressExpression (const std::string &expression)
TTAProgram::Address	parseDataAddressExpression (const std::string &expression)
bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)
bool	askConditionFromUser (TclConditionScript &target)
bool	askExpressionFromUser (ExpressionScript &target)
bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)
void	setErrorMessage (const TCEString &errorMsg)
Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)
	CustomCommand (const CustomCommand &cmd)
virtual	~CustomCommand ()
std::string	name () const
void	setContext (InterpreterContext *context)
InterpreterContext *	context () const
void	setInterpreter (ScriptInterpreter *si)
ScriptInterpreter *	interpreter () const
bool	checkArgumentCount (int argumentCount, int minimum, int maximum)
bool	checkIntegerArgument (const DataObject &argument)
bool	checkPositiveIntegerArgument (const DataObject &argument)
bool	checkUnsignedIntegerArgument (const DataObject &argument)
bool	checkDoubleArgument (const DataObject &argument)

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)
bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the "disassemble" command of the Simulator Control Language.

Definition at line 48 of file DisassembleCommand.hh.

Constructor & Destructor Documentation

DisassembleCommand()

DisassembleCommand::DisassembleCommand

(

)

Constructor.

Sets the name of the command to the base class.

Definition at line 58 of file DisassembleCommand.cc.

                                       :
    SimControlLanguageCommand("disassemble") {
}

~DisassembleCommand()

DisassembleCommand::~DisassembleCommand ( )

virtual

Destructor.

Does nothing.

Definition at line 67 of file DisassembleCommand.cc.

                                        {
}

Member Function Documentation

execute()

bool DisassembleCommand::execute ( const std::vector< DataObject > &  arguments )

virtual

Executes the "disassemble" command.

Prints a range of meory addresses as machine instructions. When two arguments addr1, addr2 are given, addr1 specifies the first address of the range to display, and addr2 specifies the last address (not displayed). If only one argument, addr1, is given, then the function that contains addr1 is disassembled. If no argument is given, the default memory range is the function surrounding the program counter of the selected frame.

Parameters

arguments

The range of instruction memory to disassemble.

Returns

Always true if arguments are valid.

Implements CustomCommand.

Definition at line 84 of file DisassembleCommand.cc.

                                                                  {
    assert(interpreter() != NULL);

    if (!checkArgumentCount(arguments.size() - 1, 0, 2)) {
        return false;
    }

    if (!checkProgramLoaded()) {
        return false;
    }

    SimulatorInterpreterContext& interpreterContext =
        dynamic_cast<SimulatorInterpreterContext&>(interpreter()->context());

    SimulatorFrontend& simFront = interpreterContext.simulatorFrontend();

    int firstAddress = -1;
    int lastAddress = -1;

    const int programLastAddress =
        simFront.program().lastProcedure().endAddress().location() - 1;

    if (arguments.size() > 1) {
        try {
            firstAddress = parseInstructionAddressExpression(
                arguments[1].stringValue());

            if (arguments.size() == 3) {
                lastAddress = parseInstructionAddressExpression(
                    arguments[2].stringValue());
            }
        } catch (const IllegalParameters&) {
            return false;
        }
    }

    if (firstAddress > programLastAddress) {
        firstAddress = programLastAddress;
    }


    for (auto addr : { firstAddress, lastAddress }) {
        try {
            if (addr != -1)
                simFront.program().instructionAt(addr);
        } catch (KeyNotFound& e) {
            interpreter()->setError("No instruction at address "
                + std::to_string(addr) + ".");
            return false;
        }
    }

    if (firstAddress == -1 && lastAddress == -1) {
        firstAddress = simFront.currentProcedure().startAddress().location();
        lastAddress =
            simFront.currentProcedure().lastInstruction().address().location();
    } else if (firstAddress != -1 && lastAddress == -1) {
        const Procedure& procedureAtAddress =
            dynamic_cast<const Procedure&>(
                simFront.program().instructionAt(firstAddress).parent());
        firstAddress = procedureAtAddress.startAddress().location();
        lastAddress =
            procedureAtAddress.lastInstruction().address().location();
    }

    if (lastAddress < 0) {
        lastAddress = 0;
    }

    if (lastAddress > programLastAddress) {
        lastAddress = programLastAddress;
    }

    if (lastAddress < firstAddress) {
        lastAddress = firstAddress;
    }

    try {
        for (; firstAddress <= lastAddress; firstAddress +=
            simFront.program().instructionAt(firstAddress).size()) {
            outputStream() << simFront.disassembleInstruction(firstAddress)
                           << std::endl;
        }
    } catch (KeyNotFound& e) {
        interpreter()->setError("No instruction at address "
            + std::to_string(firstAddress) + ".");
        return false;
    }

    return true;
}

References TTAProgram::Instruction::address(), assert, CustomCommand::checkArgumentCount(), SimControlLanguageCommand::checkProgramLoaded(), ScriptInterpreter::context(), SimulatorFrontend::currentProcedure(), SimulatorFrontend::disassembleInstruction(), TTAProgram::CodeSnippet::endAddress(), TTAProgram::Program::instructionAt(), CustomCommand::interpreter(), TTAProgram::CodeSnippet::lastInstruction(), TTAProgram::Program::lastProcedure(), TTAProgram::Address::location(), SimControlLanguageCommand::outputStream(), TTAProgram::Instruction::parent(), SimControlLanguageCommand::parseInstructionAddressExpression(), SimulatorFrontend::program(), ScriptInterpreter::setError(), SimulatorInterpreterContext::simulatorFrontend(), TTAProgram::Instruction::size(), and TTAProgram::CodeSnippet::startAddress().

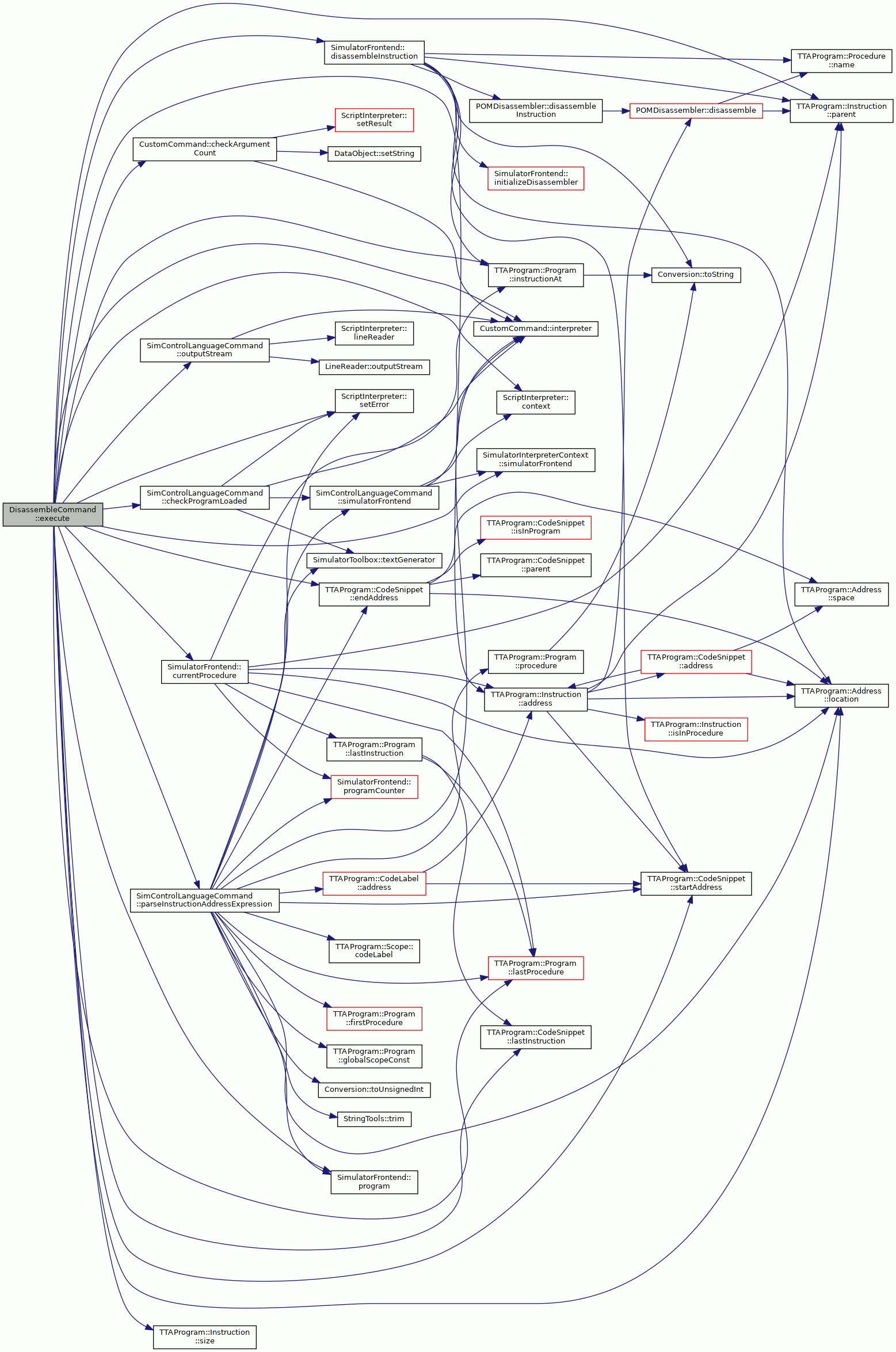

Here is the call graph for this function:

helpText()

std::string DisassembleCommand::helpText ( ) const

virtual

Returns the help text for this command.

Help text is searched from SimulatorTextGenerator.

Returns

The help text.

Todo:

Use SimulatorTextGenerator to get the help text.

Implements CustomCommand.

Definition at line 185 of file DisassembleCommand.cc.

                                   {
    return SimulatorToolbox::textGenerator().text(
        Texts::TXT_INTERP_HELP_DISASSEMBLE).str();
}

References Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_INTERP_HELP_DISASSEMBLE.

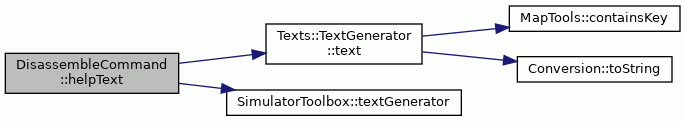

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• DisassembleCommand.hh
• DisassembleCommand.cc
