DisassemblyInstruction Class Reference

#include <DisassemblyInstruction.hh>

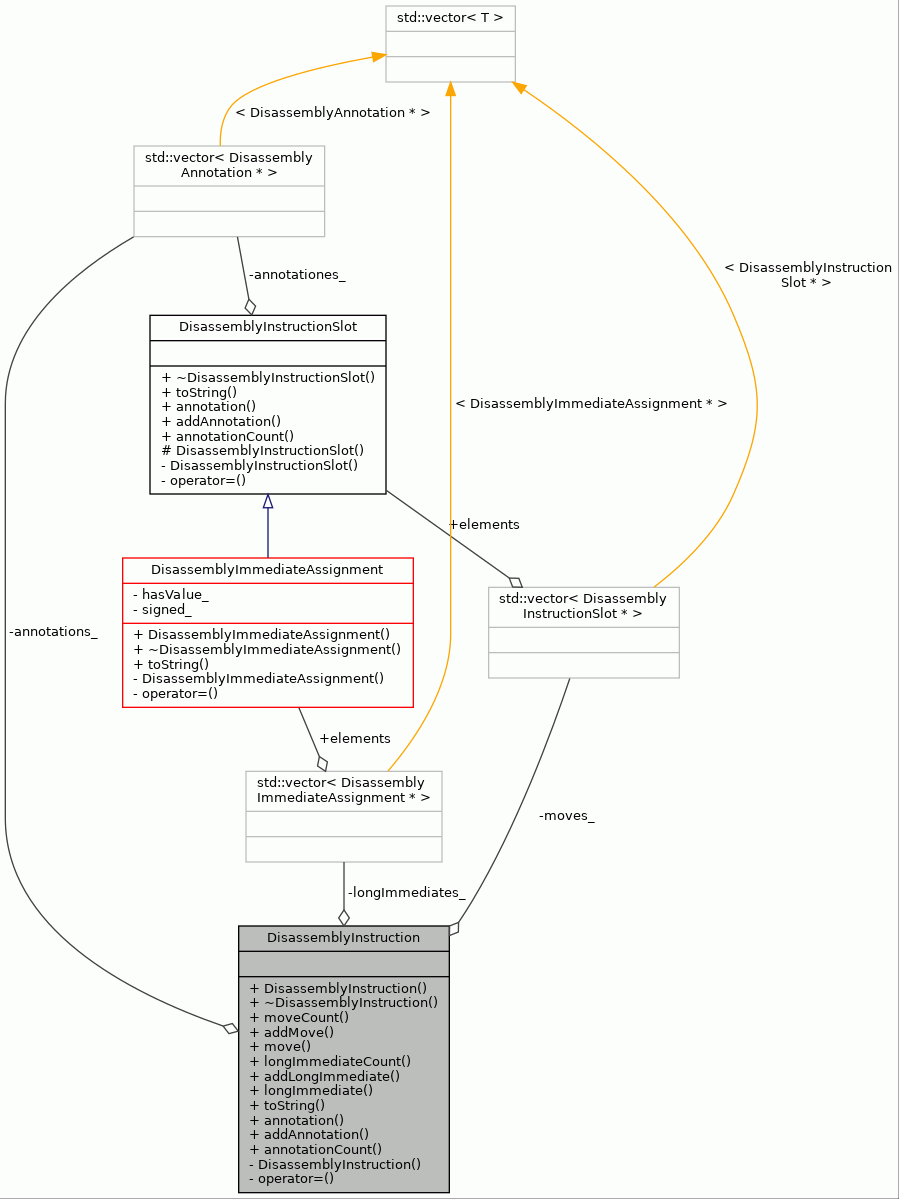

Collaboration diagram for DisassemblyInstruction:

Public Member Functions
	DisassemblyInstruction ()
	~DisassemblyInstruction ()
Word	moveCount () const
void	addMove (DisassemblyInstructionSlot *move)
DisassemblyInstructionSlot &	move (Word index) const
Word	longImmediateCount () const
void	addLongImmediate (DisassemblyImmediateAssignment *longImm)
DisassemblyImmediateAssignment &	longImmediate (Word index) const
std::string	toString () const
DisassemblyAnnotation &	annotation (int index) const
void	addAnnotation (DisassemblyAnnotation *annotation)
int	annotationCount () const

Private Types
typedef std::vector< DisassemblyInstructionSlot * >	MoveTable
	Vector of DisassemblyMoves.
typedef std::vector< DisassemblyImmediateAssignment * >	LongImmediateTable
	Vector of DisassemblyMoves.

Private Member Functions
	DisassemblyInstruction (const DisassemblyInstruction &)
	Copying not allowed.
DisassemblyInstruction	operator= (const DisassemblyInstruction &)
	Assignment not allowed.

Private Attributes
MoveTable	moves_
	List of instruction moves.
LongImmediateTable	longImmediates_
	List of instruction long immediates.
std::vector< DisassemblyAnnotation * >	annotations_
	Annotationes of instruction itself.

Detailed Description

Represents an instruction in the disassembler.

Definition at line 46 of file DisassemblyInstruction.hh.

Member Typedef Documentation

LongImmediateTable

typedef std::vector<DisassemblyImmediateAssignment*> DisassemblyInstruction::LongImmediateTable

private

Vector of DisassemblyMoves.

Definition at line 70 of file DisassemblyInstruction.hh.

MoveTable

typedef std::vector<DisassemblyInstructionSlot*> DisassemblyInstruction::MoveTable

private

Vector of DisassemblyMoves.

Definition at line 67 of file DisassemblyInstruction.hh.

Constructor & Destructor Documentation

DisassemblyInstruction() [1/2]

DisassemblyInstruction::DisassemblyInstruction

(

)

Constructor.

Definition at line 39 of file DisassemblyInstruction.cc.

                                               {
}

~DisassemblyInstruction()

DisassemblyInstruction::~DisassemblyInstruction

(

)

Destructor.

Definition at line 46 of file DisassemblyInstruction.cc.

                                                {
    // Delete all moves of the instruction.
   SequenceTools::deleteAllItems(moves_);
}

References SequenceTools::deleteAllItems(), and moves_.

Here is the call graph for this function:

DisassemblyInstruction() [2/2]

DisassemblyInstruction::DisassemblyInstruction ( const DisassemblyInstruction &  )

private

Copying not allowed.

Member Function Documentation

addAnnotation()

void DisassemblyInstruction::addAnnotation

(

DisassemblyAnnotation *

annotation

)

Adds an annotation to instruction.

Parameters

annotation

Annotation to add.

Definition at line 175 of file DisassemblyInstruction.cc.

                                                                       {
    annotations_.push_back(annotation);
}

References annotation(), and annotations_.

Referenced by TPEFDisassembler::createInstruction().

Here is the call graph for this function:

addLongImmediate()

void DisassemblyInstruction::addLongImmediate

(

DisassemblyImmediateAssignment *

longImm

)

Adds a long immediate to the instruction.

Parameters

longImm

Immediate to be added.

Definition at line 96 of file DisassemblyInstruction.cc.

                                             {

    longImmediates_.push_back(longImm);
}

References longImmediates_.

Referenced by POMDisassembler::createInstruction(), TPEFDisassembler::createInstruction(), and POMDisassembler::disassemble().

addMove()

void DisassemblyInstruction::addMove

(

DisassemblyInstructionSlot *

move

)

Adds a move to the instruction.

Parameters

move	Move to be added.

Definition at line 58 of file DisassemblyInstruction.cc.

                                                                {
    moves_.push_back(move);
}

References move(), and moves_.

Referenced by POMDisassembler::createInstruction(), TPEFDisassembler::createInstruction(), and POMDisassembler::disassemble().

Here is the call graph for this function:

annotation()

DisassemblyAnnotation & DisassemblyInstruction::annotation

(

int

index

)

const

Returns annotation of requested index.

Parameters

index

Index of annotation to return.

Returns

Annotation of requested index.

Definition at line 165 of file DisassemblyInstruction.cc.

                                                  {
    return *(annotations_.at(index));
}

References annotations_.

Referenced by addAnnotation(), and toString().

annotationCount()

int DisassemblyInstruction::annotationCount

(

)

const

Returns the number of annotationes stored for the instruction.

Returns

The number of annotationes stored for the instruction.

Definition at line 185 of file DisassemblyInstruction.cc.

                                              {
    return static_cast<int>(annotations_.size());
}

References annotations_.

Referenced by toString().

longImmediate()

DisassemblyImmediateAssignment & DisassemblyInstruction::longImmediate

(

Word

index

)

const

Returns the long immediate at a given index.

Parameters

index

Index of the long immediate.

Returns

The long immediate at the index.

Exceptions

OutOfRange

If the give index is out of range.

Definition at line 122 of file DisassemblyInstruction.cc.

                                                      {
    if (index >= longImmediateCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
    return *longImmediates_[index];
}

References __func__, longImmediateCount(), and longImmediates_.

Referenced by DisassemblyGridTable::GetValue(), and toString().

Here is the call graph for this function:

longImmediateCount()

Word DisassemblyInstruction::longImmediateCount

(

)

const

Returns number of long immediates in the instruction.

Returns

Instruction's long immediate count.

Definition at line 109 of file DisassemblyInstruction.cc.

                                                 {
    return longImmediates_.size();
}

References longImmediates_.

Referenced by DisassemblyGridTable::GetValue(), longImmediate(), and toString().

move()

DisassemblyInstructionSlot & DisassemblyInstruction::move

(

Word

index

)

const

Returns the isntruction move at a given index.

Parameters

index

Index of the move.

Returns

The move at the index.

Exceptions

OutOfRange

If the give index is out of range.

Definition at line 82 of file DisassemblyInstruction.cc.

                                             {
    if (index >= moveCount()) {
    std::string procName = "DisassemblyInstruction::move";
    throw OutOfRange(__FILE__, __LINE__, procName);
    }
    return *moves_[index];
}

References moveCount(), and moves_.

Referenced by addMove(), DisassemblyGridTable::GetValue(), and toString().

Here is the call graph for this function:

moveCount()

Word DisassemblyInstruction::moveCount

(

)

const

Returns number of moves in the instruction.

Returns

Instruction move count.

Definition at line 69 of file DisassemblyInstruction.cc.

                                        {
    return moves_.size();
}

References moves_.

Referenced by move(), and toString().

operator=()

DisassemblyInstruction DisassemblyInstruction::operator= ( const DisassemblyInstruction &  )

private

Assignment not allowed.

toString()

std::string DisassemblyInstruction::toString

(

)

const

Returns disassembly of the instruction.

Returns

Disassembly of the instruction as a string.

Definition at line 135 of file DisassemblyInstruction.cc.

                                       {
    std::string disassembly;
    for (Word i = 0; i < moveCount(); i++) {
        if (i > 0) {
            disassembly = disassembly + ", ";
        }
        disassembly = disassembly + move(i).toString();
    }

    for (Word i = 0; i < longImmediateCount(); i++) {

        disassembly = disassembly + " " + longImmediate(i).toString();
    }

    for (int i = 0; i < annotationCount(); i++) {
        disassembly += annotation(i).toString();
    }

    disassembly = disassembly + " ;";
    return disassembly;
}

References annotation(), annotationCount(), longImmediate(), longImmediateCount(), move(), moveCount(), DisassemblyAnnotation::toString(), DisassemblyImmediateAssignment::toString(), and DisassemblyInstructionSlot::toString().

Referenced by POMDisassembler::disassemble(), and TPEFDumper::section().

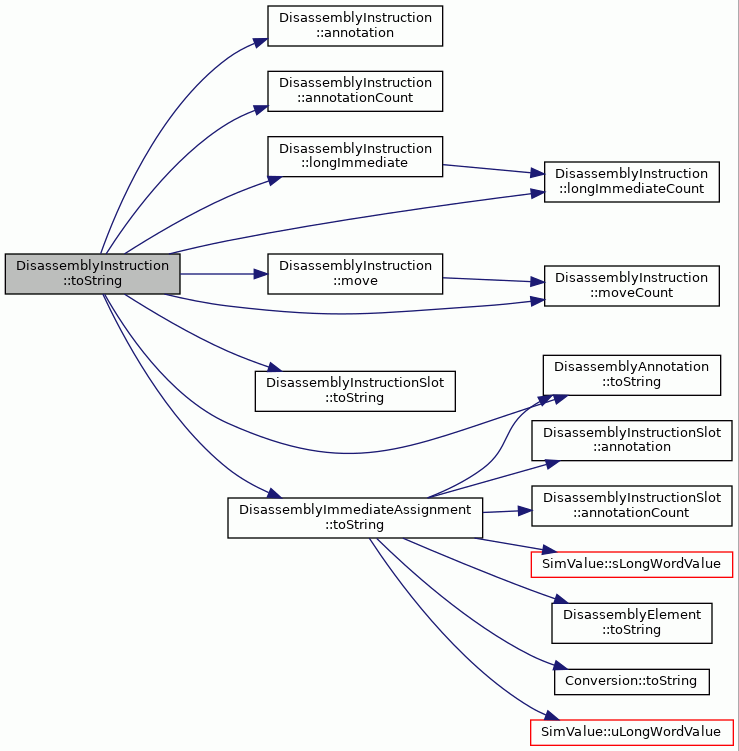

Here is the call graph for this function:

Member Data Documentation

annotations_

std::vector<DisassemblyAnnotation*> DisassemblyInstruction::annotations_

private

Annotationes of instruction itself.

Definition at line 84 of file DisassemblyInstruction.hh.

Referenced by addAnnotation(), annotation(), and annotationCount().

longImmediates_

LongImmediateTable DisassemblyInstruction::longImmediates_

private

List of instruction long immediates.

Definition at line 81 of file DisassemblyInstruction.hh.

Referenced by addLongImmediate(), longImmediate(), and longImmediateCount().

moves_

MoveTable DisassemblyInstruction::moves_

private

List of instruction moves.

Definition at line 78 of file DisassemblyInstruction.hh.

Referenced by addMove(), move(), moveCount(), and ~DisassemblyInstruction().

---

The documentation for this class was generated from the following files:

• DisassemblyInstruction.hh
• DisassemblyInstruction.cc
