#include <DisassemblyMove.hh>

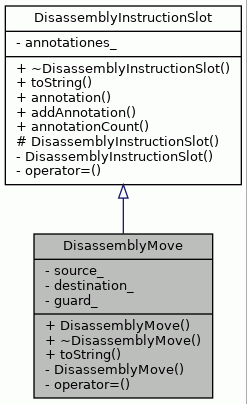

Inheritance diagram for DisassemblyMove:

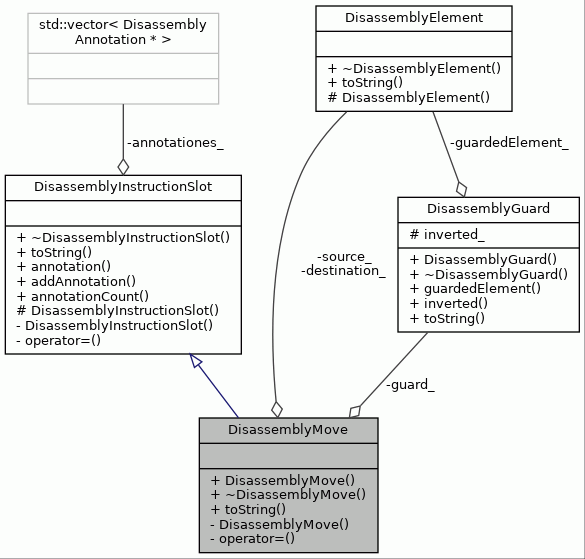

Collaboration diagram for DisassemblyMove:

Public Member Functions
	DisassemblyMove (DisassemblyElement source, DisassemblyElement destination, DisassemblyGuard *guard=NULL)

virtual	~DisassemblyMove ()

virtual std::string	toString () const

Public Member Functions inherited from DisassemblyInstructionSlot
virtual	~DisassemblyInstructionSlot ()

DisassemblyAnnotation &	annotation (int index) const

void	addAnnotation (DisassemblyAnnotation *annotation)

int	annotationCount () const

Private Member Functions
	DisassemblyMove (const DisassemblyMove &)
	Coying not allowed.

DisassemblyMove &	operator= (const DisassemblyMove &)
	Assignment not allowed.

Private Attributes
DisassemblyElement *	source_
	The source of the move.

DisassemblyElement *	destination_
	The destination of the move.

DisassemblyGuard *	guard_
	Possible guard of the move.

Additional Inherited Members
Protected Member Functions inherited from DisassemblyInstructionSlot
	DisassemblyInstructionSlot ()

Detailed Description

Represents a move in the disassembler.

Definition at line 44 of file DisassemblyMove.hh.

Constructor & Destructor Documentation

◆ DisassemblyMove() [1/2]

DisassemblyMove::DisassemblyMove	(	DisassemblyElement *	source,
		DisassemblyElement *	destination,
		DisassemblyGuard *	guard = `NULL`
	)

Creates disassembler of a move.

Parameters

source	The source element of the move.
destination	The destination element of the move.
guard	Move guard, or NULL if the move is not guarded.

Definition at line 44 of file DisassemblyMove.cc.

                            :
    DisassemblyInstructionSlot(),
    source_(source), destination_(destination), guard_(guard) {

}

◆ ~DisassemblyMove()

DisassemblyMove::~DisassemblyMove ( )

virtual

The destructor.

Definition at line 57 of file DisassemblyMove.cc.

                                  {
    delete source_;
    delete destination_;
    if (guard_ != NULL) {
        delete guard_;
        guard_ = NULL;
    }
}

References destination_, guard_, and source_.

◆ DisassemblyMove() [2/2]

DisassemblyMove::DisassemblyMove ( const DisassemblyMove & )

private

Coying not allowed.

Member Function Documentation

◆ operator=()

DisassemblyMove & DisassemblyMove::operator= ( const DisassemblyMove & )

private

Assignment not allowed.

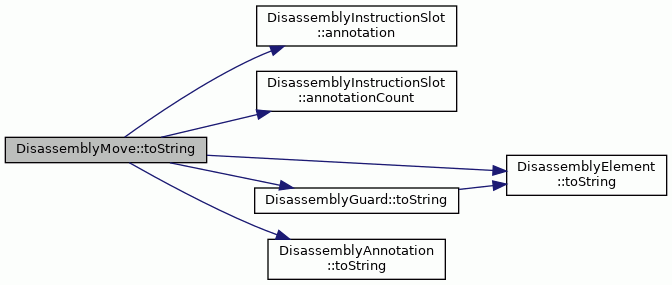

◆ toString()

std::string DisassemblyMove::toString ( ) const

virtual

Disassembles the move.

Returns: Disassembled move as a string.

Implements DisassemblyInstructionSlot.

Definition at line 73 of file DisassemblyMove.cc.

                                {

    std::string disassembly;
    if (guard_ != NULL) {
        disassembly = guard_->toString();
    }

    disassembly =
        disassembly + source_->toString() + " -> " + destination_->toString();

    for (int i = 0; i < annotationCount(); i++) {
        disassembly += annotation(i).toString();
    }

    return disassembly;
}
