EditParameterDialog Class Reference

#include <EditParameterDialog.hh>

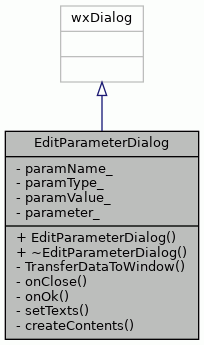

Inheritance diagram for EditParameterDialog:

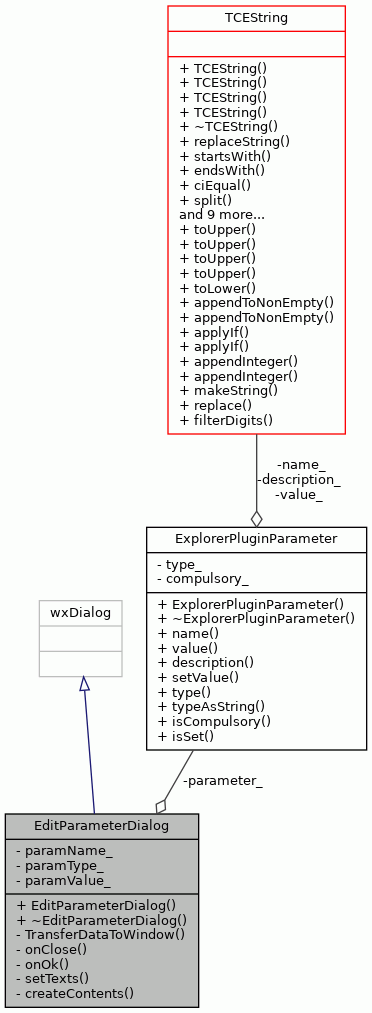

Collaboration diagram for EditParameterDialog:

Public Member Functions
	EditParameterDialog (wxWindow *parent, ExplorerPluginParameter *parameter)
virtual	~EditParameterDialog ()

Private Types
enum	{   ID_TEXT , ID_NAME , ID_TYPE , ID_VALUE ,   ID_OK , ID_CANCEL }

Private Member Functions
virtual bool	TransferDataToWindow ()
void	onClose (wxCommandEvent &event)
void	onOk (wxCommandEvent &event)
void	setTexts ()
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)

Private Attributes
wxStaticText *	paramName_
	name
wxStaticText *	paramType_
	name
wxTextCtrl *	paramValue_
	name
ExplorerPluginParameter *	parameter_

Detailed Description

Explorer plugin call window.

Definition at line 49 of file EditParameterDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ID_TEXT
ID_NAME
ID_TYPE
ID_VALUE
ID_OK
ID_CANCEL

Definition at line 74 of file EditParameterDialog.hh.

         {
        ID_TEXT,
        ID_NAME,
        ID_TYPE,
        ID_VALUE,
        ID_OK,
        ID_CANCEL
    };

Constructor & Destructor Documentation

EditParameterDialog()

EditParameterDialog::EditParameterDialog	(	wxWindow *	parent,
		ExplorerPluginParameter *	parameter
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
addressSpace	The address space to be modified with the dialog.

Definition at line 72 of file EditParameterDialog.cc.

                                       :
    wxDialog(parent, -1, _T(""), wxDefaultPosition), parameter_(parameter)
    {
    createContents(this, true, true);

    paramName_ = dynamic_cast<wxStaticText*>(FindWindow(ID_NAME));
    paramType_ = dynamic_cast<wxStaticText*>(FindWindow(ID_TYPE));
    paramValue_ = dynamic_cast<wxTextCtrl*>(FindWindow(ID_VALUE));

    // set widget texts
    setTexts();

    TransferDataToWindow();
}

~EditParameterDialog()

EditParameterDialog::~EditParameterDialog ( )

virtual

The Destructor.

Definition at line 93 of file EditParameterDialog.cc.

                                          {
}

Member Function Documentation

createContents()

wxSizer * EditParameterDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog window contents.

This method was generated with wxDesigner, thus the ugly code and too long lines.

Returns

Main sizer of the created contents.

Parameters

parent	The dialog window.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Definition at line 162 of file EditParameterDialog.cc.

                    {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxBoxSizer *item1 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticText *item2 = new wxStaticText( parent, ID_TEXT, wxT("Parameter Name:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item2, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item3 = new wxStaticText( parent, ID_NAME, wxT("xxxxxxxxxxxxxxx"), wxDefaultPosition, wxSize(150,-1), 0 );
    item1->Add( item3, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item1, 0, wxALL, 5 );

    wxBoxSizer *item4 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticText *item5 = new wxStaticText( parent, ID_TEXT, wxT("Parameter Type:"), wxDefaultPosition, wxDefaultSize, 0 );
    item4->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item6 = new wxStaticText( parent, ID_TYPE, wxT("xxxxxxxxxxxx"), wxDefaultPosition, wxSize(150,-1), 0 );
    item4->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item4, 0, wxALL, 5 );

    wxBoxSizer *item7 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticText *item8 = new wxStaticText( parent, ID_TEXT, wxT("Value:"), wxDefaultPosition, wxDefaultSize, 0 );
    item7->Add( item8, 0, wxALIGN_CENTER|wxALL, 5 );

    wxTextCtrl *item9 = new wxTextCtrl( parent, ID_VALUE, wxT(""), wxDefaultPosition, wxSize(110,-1), 0 );
    item7->Add( item9, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item7, 0, wxALIGN_CENTER|wxALL, 5 );

    wxBoxSizer *item10 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item11 = new wxButton( parent, ID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item10->Add( item11, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item12 = new wxButton( parent, ID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item10->Add( item12, 0, wxALL, 5 );

    item0->Add( item10, 0, wxALIGN_CENTER|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_CANCEL, ID_NAME, ID_OK, ID_TEXT, ID_TYPE, and ID_VALUE.

onClose()

void EditParameterDialog::onClose ( wxCommandEvent &  event )

private

Validates input in the controls, and updates the AddressSpace.

Definition at line 131 of file EditParameterDialog.cc.

                                            {
    EndModal(wxID_OK);
}

onOk()

void EditParameterDialog::onOk ( wxCommandEvent &  event )

private

Stores new value set by the user.

Definition at line 140 of file EditParameterDialog.cc.

                                         {

    std::string value = WxConversion::toString(paramValue_->GetValue());

    parameter_->setValue(value);

    EndModal(wxID_OK);
}

References parameter_, paramValue_, ExplorerPluginParameter::setValue(), and WxConversion::toString().

Here is the call graph for this function:

setTexts()

void EditParameterDialog::setTexts ( )

private

Sets texts for widgets.

Definition at line 101 of file EditParameterDialog.cc.

                              {
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();

    // Dialog title
    format fmt = prodeTexts->text(
        ProDeTextGenerator::TXT_EDIT_PARAMETER_TITLE);
    SetTitle(WxConversion::toWxString(fmt.str()));

    paramName_->SetLabel(WxConversion::toWxString(parameter_->name()));
    paramType_->SetLabel(WxConversion::toWxString(parameter_->typeAsString()));
    paramValue_->Clear();
    paramValue_->AppendText(WxConversion::toWxString(parameter_->value()));
}

References ProDeTextGenerator::instance(), ExplorerPluginParameter::name(), parameter_, paramName_, paramType_, paramValue_, Texts::TextGenerator::text(), WxConversion::toWxString(), ProDeTextGenerator::TXT_EDIT_PARAMETER_TITLE, ExplorerPluginParameter::typeAsString(), and ExplorerPluginParameter::value().

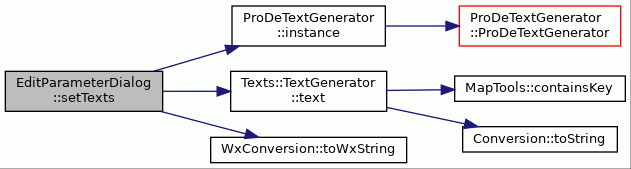

Here is the call graph for this function:

TransferDataToWindow()

bool EditParameterDialog::TransferDataToWindow ( )

privatevirtual

Transfers data from the AddressSpace object to the dialog widgets.

Returns

false, if an error occured in the transfer, true otherwise.

Definition at line 122 of file EditParameterDialog.cc.

                                          {
    return wxWindow::TransferDataToWindow();
}

Member Data Documentation

parameter_

ExplorerPluginParameter* EditParameterDialog::parameter_

private

Definition at line 72 of file EditParameterDialog.hh.

Referenced by onOk(), and setTexts().

paramName_

wxStaticText* EditParameterDialog::paramName_

private

name

Definition at line 66 of file EditParameterDialog.hh.

Referenced by setTexts().

paramType_

wxStaticText* EditParameterDialog::paramType_

private

name

Definition at line 68 of file EditParameterDialog.hh.

Referenced by setTexts().

paramValue_

wxTextCtrl* EditParameterDialog::paramValue_

private

name

Definition at line 70 of file EditParameterDialog.hh.

Referenced by onOk(), and setTexts().

---

The documentation for this class was generated from the following files:

• EditParameterDialog.hh
• EditParameterDialog.cc
