#include <ExecutionPipelineResourceTable.hh>

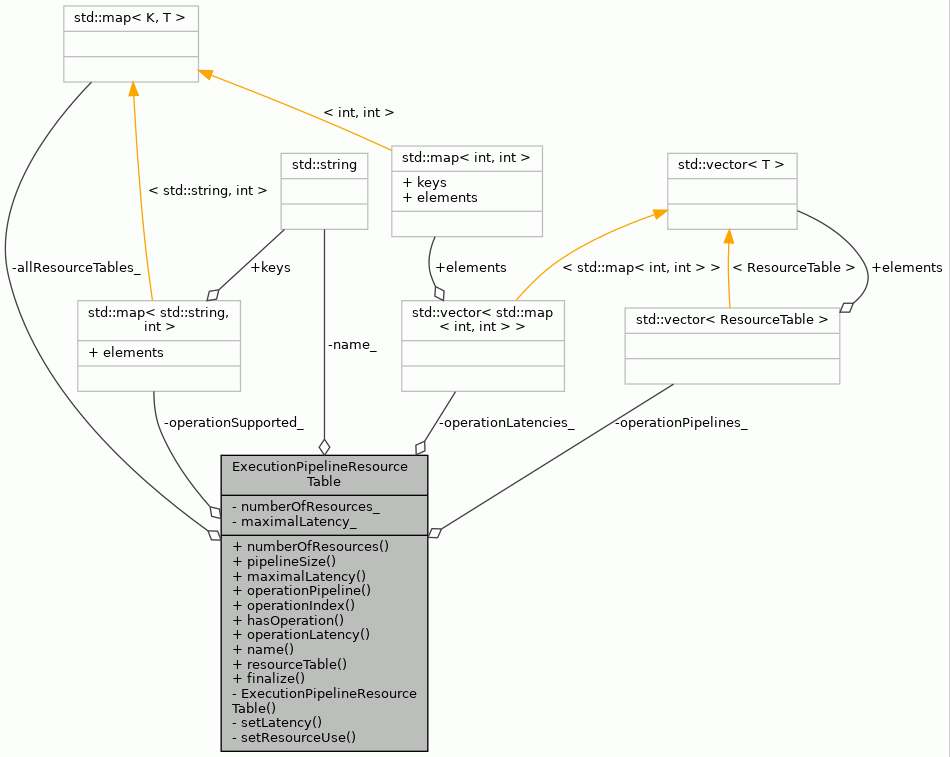

Collaboration diagram for ExecutionPipelineResourceTable:

Public Member Functions
unsigned int	numberOfResources () const

unsigned int	pipelineSize () const

unsigned int	maximalLatency () const

bool	operationPipeline (int op, int cycle, int res) const

int	operationIndex (const std::string &opName) const

bool	hasOperation (const std::string &opName) const

const std::map< int, int > &	operationLatency (unsigned int operationIndex) const

const std::string &	name () const

Static Public Member Functions
static const ExecutionPipelineResourceTable &	resourceTable (const TTAMachine::FunctionUnit &fu)

static void	finalize ()

Private Types
typedef std::vector< bool >	ResourceVector
	Type for resource vector, represents one cycle of use.

typedef std::vector< ResourceVector >	ResourceTable
	Type for resource reservation table, resource vector x latency.

typedef std::map< const TTAMachine::FunctionUnit , ExecutionPipelineResourceTable >	ResourceTableMap

Private Member Functions
	ExecutionPipelineResourceTable (const TTAMachine::FunctionUnit &fu)

void	setLatency (const std::string &opName, const int output, const int latency)

void	setResourceUse (const std::string &opName, const int cycle, const int resIndex)

Private Attributes
std::string	name_

int	numberOfResources_
	Resource and ports vector width, depends on particular FU.

unsigned int	maximalLatency_
	Maximal latency of operation in FU.

std::map< std::string, int >	operationSupported_
	Operations supported, name - index to operation pipeline vector.

std::vector< std::map< int, int > >	operationLatencies_

std::vector< ResourceTable >	operationPipelines_
	Pipelines for operations.

Static Private Attributes
static ResourceTableMap	allResourceTables_
	Contains these tables for all FU's.

Detailed Description

Definition at line 44 of file ExecutionPipelineResourceTable.hh.

Member Typedef Documentation

◆ ResourceTable

typedef std::vector<ResourceVector> ExecutionPipelineResourceTable::ResourceTable

private

Type for resource reservation table, resource vector x latency.

Definition at line 83 of file ExecutionPipelineResourceTable.hh.

◆ ResourceTableMap

typedef std::map<const TTAMachine::FunctionUnit*, ExecutionPipelineResourceTable*> ExecutionPipelineResourceTable::ResourceTableMap

private

Definition at line 86 of file ExecutionPipelineResourceTable.hh.

◆ ResourceVector

typedef std::vector<bool> ExecutionPipelineResourceTable::ResourceVector

private

Type for resource vector, represents one cycle of use.

Definition at line 80 of file ExecutionPipelineResourceTable.hh.

Constructor & Destructor Documentation

◆ ExecutionPipelineResourceTable()

ExecutionPipelineResourceTable::ExecutionPipelineResourceTable ( const TTAMachine::FunctionUnit & fu )

private

Definition at line 50 of file ExecutionPipelineResourceTable.cc.

                                      :
    name_(fu.name()),
    numberOfResources_(fu.pipelineElementCount() + fu.operationPortCount()),
    maximalLatency_(fu.maxLatency()) {

    for (int j = 0; j < fu.operationCount(); j++) {
        HWOperation& hwop = *fu.operation(j);
        ExecutionPipeline* ep = hwop.pipeline();
        std::string opName = StringTools::stringToUpper(
            fu.operation(j)->name());

        for (int l = 0; l < ep->latency(); l++ ) {
            for (int k = 0; k < fu.pipelineElementCount(); k++) {
                PipelineElement *pe = fu.pipelineElement(k);
                if (ep->isResourceUsed(pe->name(),l)){
                    setResourceUse(opName, l, k);
                }
            }
            for (int k = 0; k < fu.operationPortCount(); k++) {
                TTAMachine::FUPort* fuPort = fu.operationPort(k);
                if (ep->isPortWritten(*fuPort,l)) {
                    setResourceUse(
                        opName, l,fu.pipelineElementCount()+k);
                }
                if (ep->isPortRead(*fuPort,l)) {
                    setResourceUse(
                        opName, -1, fu.pipelineElementCount()+k);
                }
            }
        }

        // set operation latencies
        ExecutionPipeline::OperandSet writes = ep->writtenOperands();
        for (ExecutionPipeline::OperandSet::iterator iter =
                 writes.begin(); iter != writes.end(); iter++) {
            int index = *iter;
            int latency = hwop.latency(index);
            setLatency(opName, index, latency);
        }
    }
}

References TTAMachine::ExecutionPipeline::isPortRead(), TTAMachine::ExecutionPipeline::isPortWritten(), TTAMachine::ExecutionPipeline::isResourceUsed(), TTAMachine::ExecutionPipeline::latency(), TTAMachine::HWOperation::latency(), TTAMachine::HWOperation::name(), TTAMachine::PipelineElement::name(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::FunctionUnit::operationPortCount(), TTAMachine::HWOperation::pipeline(), TTAMachine::FunctionUnit::pipelineElement(), TTAMachine::FunctionUnit::pipelineElementCount(), setLatency(), setResourceUse(), StringTools::stringToUpper(), and TTAMachine::ExecutionPipeline::writtenOperands().

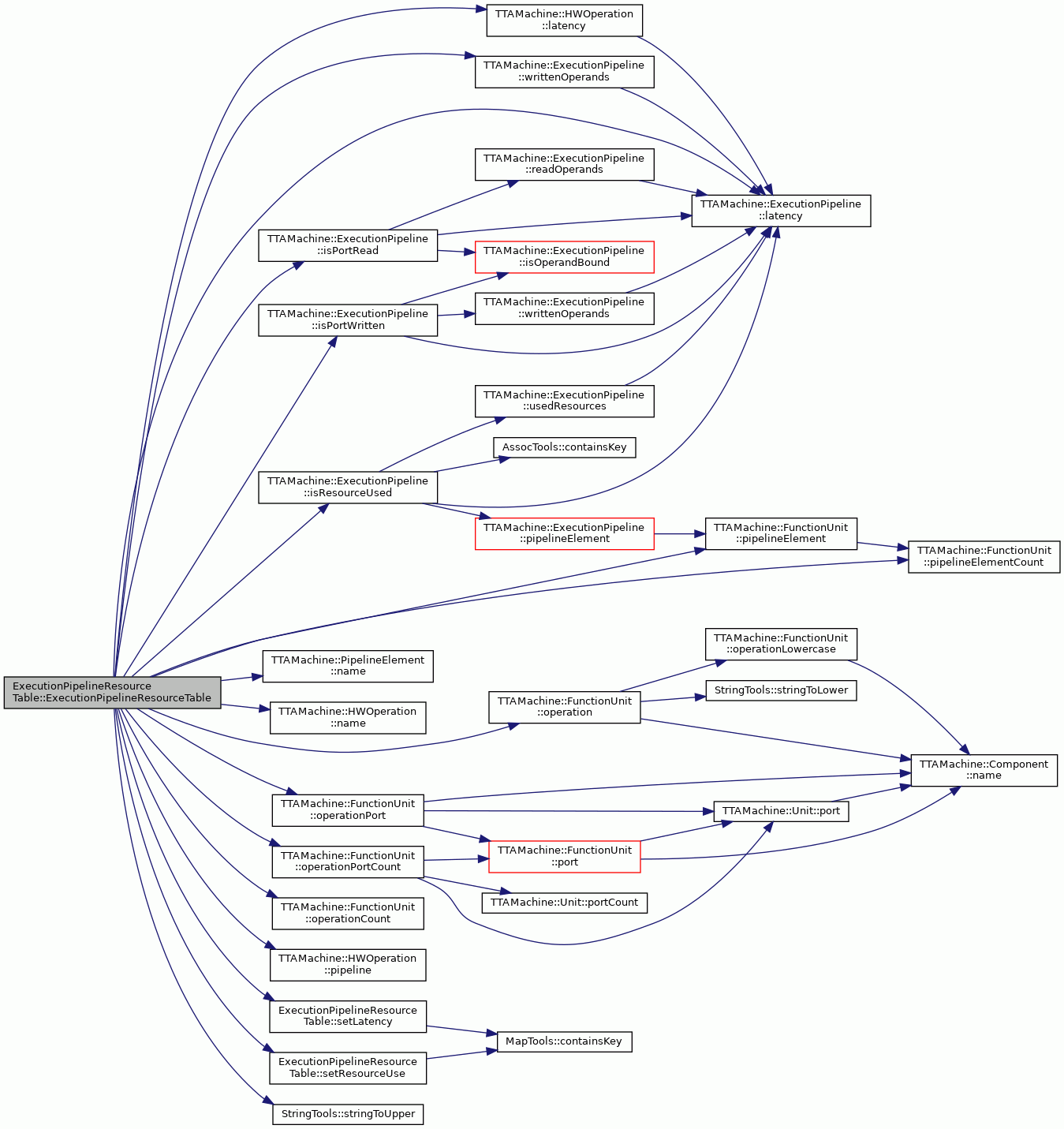

Here is the call graph for this function:

Member Function Documentation

◆ finalize()

void ExecutionPipelineResourceTable::finalize ( )

static

Delete all the resource tables. This can be called after scheduling is done, when resource managers are longer used.

Definition at line 185 of file ExecutionPipelineResourceTable.cc.

                                         {
    MapTools::deleteAllValues(allResourceTables_);
}

References allResourceTables_, and MapTools::deleteAllValues().

Referenced by SimpleResourceManager::disposeRM().

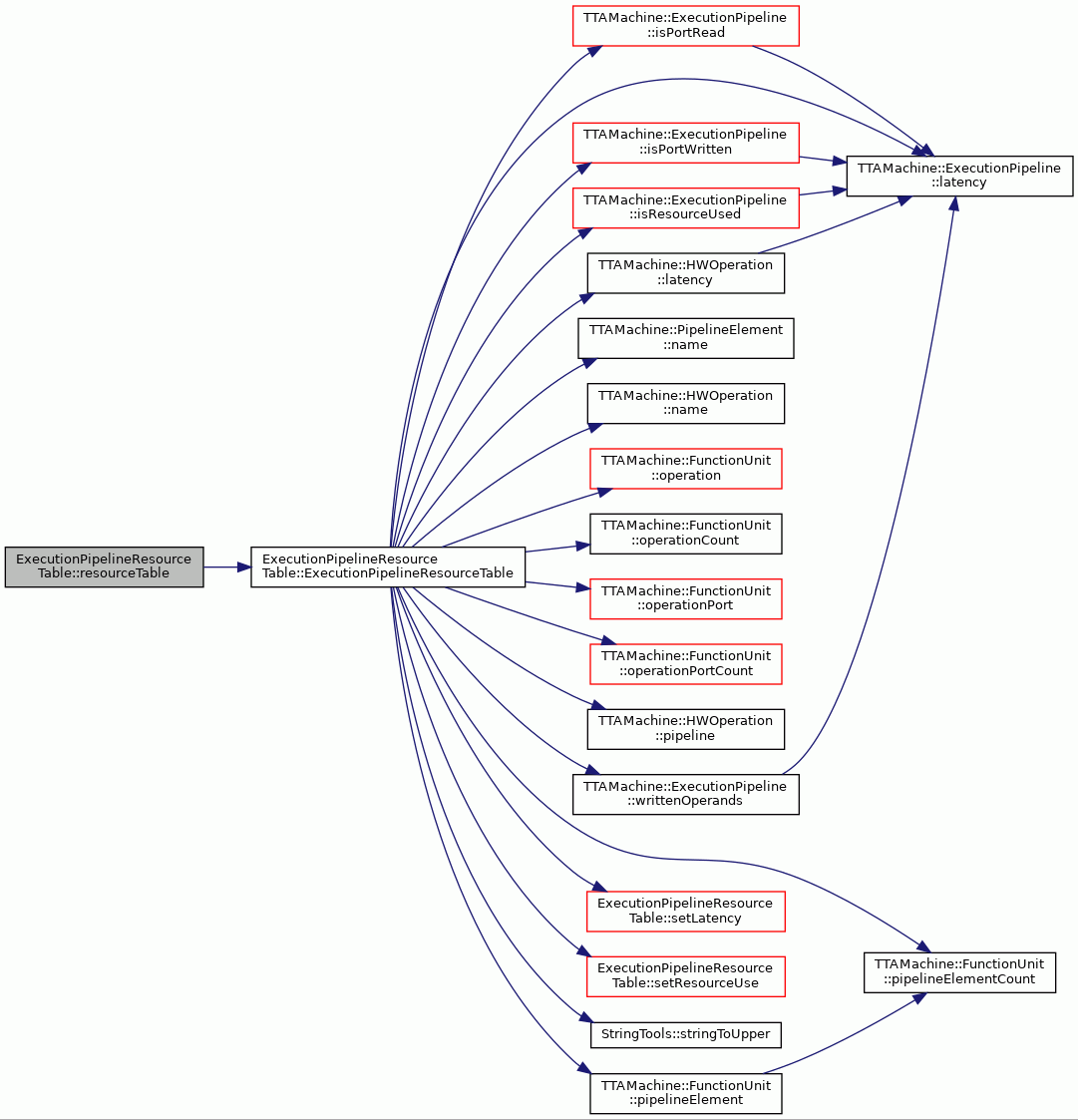

Here is the call graph for this function:

◆ hasOperation()

bool ExecutionPipelineResourceTable::hasOperation ( const std::string & opName ) const

inline

Referenced by ExecutionPipelineResource::resourcesAllowTrigger(), and ExecutionPipelineResource::unassignDestination().

◆ maximalLatency()

unsigned int ExecutionPipelineResourceTable::maximalLatency ( ) const

inline

Referenced by ExecutionPipelineResource::assignDestination(), ExecutionPipelineResource::resourcesAllowTrigger(), and ExecutionPipelineResource::unassignDestination().

◆ name()

const std::string & ExecutionPipelineResourceTable::name ( ) const

inline

◆ numberOfResources()

unsigned int ExecutionPipelineResourceTable::numberOfResources ( ) const

inline

Referenced by ExecutionPipelineResource::assignDestination(), ExecutionPipelineResource::isInUse(), ExecutionPipelineResource::resourcesAllowTrigger(), ExecutionPipelineResource::size(), and ExecutionPipelineResource::unassignDestination().

◆ operationIndex()

int ExecutionPipelineResourceTable::operationIndex ( const std::string & opName ) const

inline

Referenced by ExecutionPipelineResource::assignDestination(), ExecutionPipelineResource::resourcesAllowTrigger(), and ExecutionPipelineResource::unassignDestination().

◆ operationLatency()

const std::map< int, int > & ExecutionPipelineResourceTable::operationLatency ( unsigned int operationIndex ) const

inline

◆ operationPipeline()

bool ExecutionPipelineResourceTable::operationPipeline	(	int	op,
		int	cycle,
		int	res
	)		const

inline

Referenced by ExecutionPipelineResource::assignDestination(), ExecutionPipelineResource::resourcesAllowTrigger(), and ExecutionPipelineResource::unassignDestination().

◆ pipelineSize()

unsigned int ExecutionPipelineResourceTable::pipelineSize ( ) const

inline

◆ resourceTable()

const ExecutionPipelineResourceTable & ExecutionPipelineResourceTable::resourceTable ( const TTAMachine::FunctionUnit & fu )

static

Gives an resource table for given FU. If no existing found, creates a new one.

Parameters

fu	function unit whose resource table we are asking for.

Definition at line 164 of file ExecutionPipelineResourceTable.cc.

                                      {

    ResourceTableMap::iterator i = allResourceTables_.find(&fu);

    if (i != allResourceTables_.end()) {
        return *i->second;
    }

    ExecutionPipelineResourceTable* newTable =
        new ExecutionPipelineResourceTable(fu);
    allResourceTables_[&fu] = newTable;
    return *newTable;
}

References allResourceTables_.

◆ setLatency()

void ExecutionPipelineResourceTable::setLatency	(	const std::string &	opName,
		const int	output,
		const int	latency
	)

private

Sets latency of an output of an operation. The resource usage of the operation has to be set before calling this.

Parameters

opName	operation to set the latency
output	index of the output operand(stating from numberofinputoperand, not 0/1)
latency	latency of the output of the operation

Definition at line 139 of file ExecutionPipelineResourceTable.cc.

                       {

    if (!MapTools::containsKey(operationSupported_, opName)) {
        ResourceTable newOp(maximalLatency_, std::vector<bool>(0, false));
        operationPipelines_.push_back(newOp);
        operationSupported_[opName] = operationPipelines_.size() - 1;
    }

    int pIndex = MapTools::valueForKey<int>(operationSupported_, opName);
    while (static_cast<int>(operationLatencies_.size()) <= pIndex) {
        operationLatencies_.push_back(std::map<int,int>());
    }
    operationLatencies_[pIndex][output] = latency;
}

References MapTools::containsKey(), MapTools::keyForValue(), maximalLatency_, operationLatencies_, operationPipelines_, and operationSupported_.

Referenced by ExecutionPipelineResourceTable().

Here is the call graph for this function:

◆ setResourceUse()

void ExecutionPipelineResourceTable::setResourceUse	(	const std::string &	opName,
		const int	cycle,
		const int	resIndex
	)

private

Sets usage of resource/port to true for given cycle and resource number and particular pipeline.

Parameters

opName	Name of operation to set resource for
cycle	Cycle in which to set usage
index	Index of resource/port in resource vector

Definition at line 102 of file ExecutionPipelineResourceTable.cc.

                        {

    if (cycle > (signed)maximalLatency_) {
        throw InvalidData(__FILE__, __LINE__, __func__,
            "Trying to set resource use to cycle out of scope of "
            "FU pipeline!");
    }
    if (resIndex >= numberOfResources_ || resIndex < 0){
        throw InvalidData(__FILE__, __LINE__, __func__,
            "Trying to set resource use for resource out of scope of "
            "FU pipeline!");
    }

    if (!MapTools::containsKey(operationSupported_, opName)) {
        ResourceTable newOp(
            maximalLatency_, std::vector<bool>(numberOfResources_, false));
        operationPipelines_.push_back(newOp);
        operationSupported_[opName] = operationPipelines_.size() - 1;
    }
    int pIndex = MapTools::valueForKey<int>(operationSupported_, opName);
    if(cycle > -1) {
        operationPipelines_[pIndex][cycle][resIndex] = true;
    }
}
