FUImplementationDialog Class Reference

#include <FUImplementationDialog.hh>

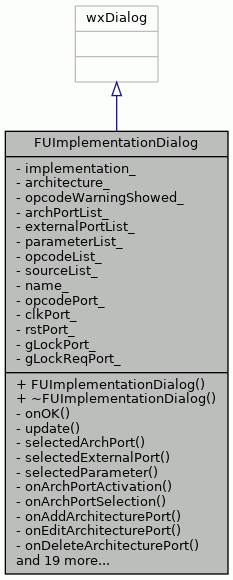

Inheritance diagram for FUImplementationDialog:
Inheritance graph

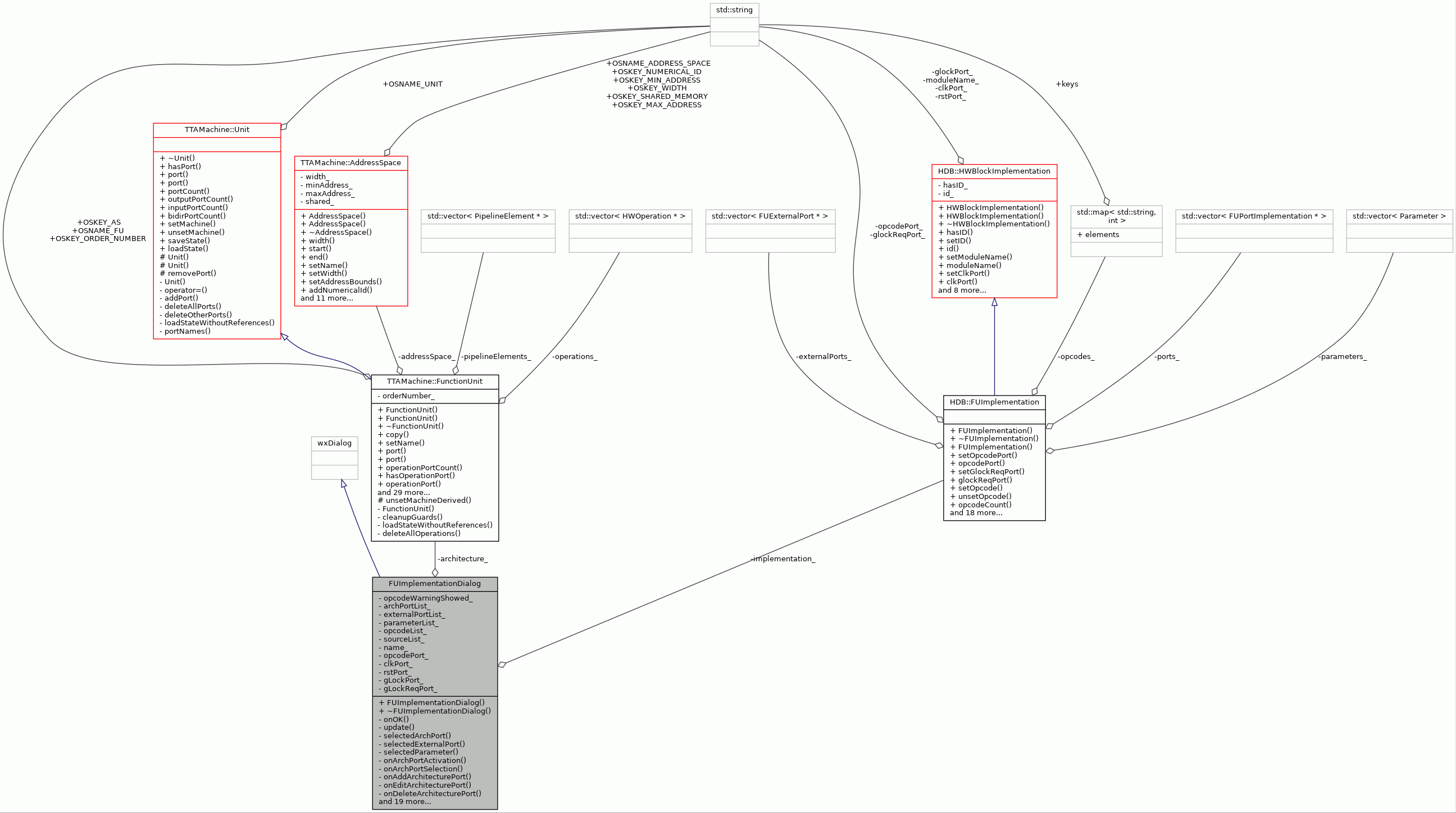

Collaboration diagram for FUImplementationDialog:
Collaboration graph

Public Member Functions

 FUImplementationDialog (wxWindow *parent, wxWindowID id, HDB::FUImplementation &implementation, const TTAMachine::FunctionUnit &architecture)

virtual ~FUImplementationDialog ()


Private Types

enum  {
  ID_LABEL_NAME = 10000 , ID_NAME , ID_LABEL_CLK_PORT , ID_CLK_PORT ,
  ID_LABEL_RST_PORT , ID_RST_PORT , ID_LABEL_GLOCK_PORT , ID_GLOCK_PORT ,
  ID_LABEL_GLOCK_REQ_PORT , ID_GLOCK_REQ_PORT , ID_OPCODE_LIST , ID_CLEAR_OPCODE ,
  ID_SET_OPCODE , ID_OPCODE , ID_EXTERNAL_PORT_LIST , ID_ADD_EXTERNAL_PORT ,
  ID_EDIT_EXTERNAL_PORT , ID_DELETE_EXTERNAL_PORT , ID_SOURCE_LIST , ID_ADD_SOURCE ,
  ID_DELETE_SOURCE , ID_PARAMETER_LIST , ID_EDIT_PARAMETER , ID_ADD_PARAMETER ,
  ID_DELETE_PARAMETER , ID_LABEL_OPCODE_PORT_NAME , ID_OPCODE_PORT , ID_ARCH_PORT_LIST ,
  ID_EDIT_ARCH_PORT , ID_LINE , ID_MOVE_SOURCE_UP , ID_MOVE_SOURCE_DOWN
}
 Window indentifiers for dialog widgets. More...


Private Member Functions

void onOK (wxCommandEvent &event)

void update (bool onInit=false)

HDB::FUPortImplementation * selectedArchPort ()

HDB::FUExternalPort * selectedExternalPort ()

HDB::FUImplementation::Parameter selectedParameter ()

void onArchPortActivation (wxListEvent &event)

void onArchPortSelection (wxListEvent &event)

void onAddArchitecturePort (wxCommandEvent &event)

void onEditArchitecturePort (wxCommandEvent &event)

void onDeleteArchitecturePort (wxCommandEvent &event)

void onExternalPortActivation (wxListEvent &event)

void onExternalPortSelection (wxListEvent &event)

void onAddExternalPort (wxCommandEvent &event)

void onEditExternalPort (wxCommandEvent &event)

void onDeleteExternalPort (wxCommandEvent &event)

void onParameterActivation (wxListEvent &event)

void onParameterSelection (wxListEvent &event)

void onAddParameter (wxCommandEvent &event)

void onEditParameter (wxCommandEvent &event)

void onDeleteParameter (wxCommandEvent &event)

void onSourceFileSelection (wxListEvent &event)

void onAddSourceFile (wxCommandEvent &event)

void onDeleteSourceFile (wxCommandEvent &event)

void onMoveSourceFileUp (wxCommandEvent &event)

void onMoveSourceFileDown (wxCommandEvent &event)

void onOpcodeSelection (wxListEvent &event)

void onSetOpcode (wxCommandEvent &event)

void onClearOpcode (wxCommandEvent &event)

wxSizer * createContents (wxWindow *parent, bool call_fit, bool set_sizer)


Private Attributes

HDB::FUImplementation & implementation_
 FU Implementation to modify.

const TTAMachine::FunctionUnit & architecture_
 Function unit architecture the FUImplementation implements.

bool opcodeWarningShowed_

wxListCtrl * archPortList_
 Pointer to the architecture port list widget.

wxListCtrl * externalPortList_
 Pointer to the external port list widget.

wxListCtrl * parameterList_
 Pointer to the parameter list widget.

wxListCtrl * opcodeList_
 Pointer to the opcode list widget.

wxListCtrl * sourceList_
 Pointer to the source file list widget.

wxString name_

wxString opcodePort_

wxString clkPort_

wxString rstPort_

wxString gLockPort_

wxString gLockReqPort_


Detailed Description

Dialog for editing FU implementations.

Definition at line 52 of file FUImplementationDialog.hh.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
private

Window indentifiers for dialog widgets.

Enumerator
ID_LABEL_NAME
ID_NAME
ID_LABEL_CLK_PORT
ID_CLK_PORT
ID_LABEL_RST_PORT
ID_RST_PORT
ID_LABEL_GLOCK_PORT
ID_GLOCK_PORT
ID_LABEL_GLOCK_REQ_PORT
ID_GLOCK_REQ_PORT
ID_OPCODE_LIST
ID_CLEAR_OPCODE
ID_SET_OPCODE
ID_OPCODE
ID_EXTERNAL_PORT_LIST
ID_ADD_EXTERNAL_PORT
ID_EDIT_EXTERNAL_PORT
ID_DELETE_EXTERNAL_PORT
ID_SOURCE_LIST
ID_ADD_SOURCE
ID_DELETE_SOURCE
ID_PARAMETER_LIST
ID_EDIT_PARAMETER
ID_ADD_PARAMETER
ID_DELETE_PARAMETER
ID_LABEL_OPCODE_PORT_NAME
ID_OPCODE_PORT
ID_ARCH_PORT_LIST
ID_EDIT_ARCH_PORT
ID_LINE
ID_MOVE_SOURCE_UP
ID_MOVE_SOURCE_DOWN

Definition at line 103 of file FUImplementationDialog.hh.

103 {
104 ID_LABEL_NAME = 10000,
105 ID_NAME,
106 ID_LABEL_CLK_PORT,
107 ID_CLK_PORT,
108 ID_LABEL_RST_PORT,
109 ID_RST_PORT,
110 ID_LABEL_GLOCK_PORT,
111 ID_GLOCK_PORT,
112 ID_LABEL_GLOCK_REQ_PORT,
113 ID_GLOCK_REQ_PORT,
114 ID_OPCODE_LIST,
115#ifdef ALLOW_OPCODE_EDITING
116 ID_CLEAR_OPCODE,
117 ID_SET_OPCODE,
118 ID_OPCODE,
119#endif
120 ID_EXTERNAL_PORT_LIST,
121 ID_ADD_EXTERNAL_PORT,
122 ID_EDIT_EXTERNAL_PORT,
123 ID_DELETE_EXTERNAL_PORT,
124 ID_SOURCE_LIST,
125 ID_ADD_SOURCE,
126 ID_DELETE_SOURCE,
127 ID_PARAMETER_LIST,
128 ID_EDIT_PARAMETER,
129 ID_ADD_PARAMETER,
130 ID_DELETE_PARAMETER,
131 ID_LABEL_OPCODE_PORT_NAME,
132 ID_OPCODE_PORT,
133 ID_ARCH_PORT_LIST,
134 ID_EDIT_ARCH_PORT,
135 ID_LINE,
136 ID_MOVE_SOURCE_UP,
137 ID_MOVE_SOURCE_DOWN
138 };

Constructor & Destructor Documentation

◆ FUImplementationDialog()

FUImplementationDialog::onAddExternalPort FUImplementationDialog::onDeleteExternalPort FUImplementationDialog::onArchPortSelection FUImplementationDialog::onArchPortActivation FUImplementationDialog::onExternalPortActivation FUImplementationDialog::onParameterSelection FUImplementationDialog::onParameterSelection FUImplementationDialog::onOpcodeSelection FUImplementationDialog::onSourceFileSelection FUImplementationDialog::FUImplementationDialog ( wxWindow *  parent,
wxWindowID  id,
HDB::FUImplementation &  implementation,
const TTAMachine::FunctionUnit &  architecture
)

The Constructor.

Parameters
parentParent window of the dialog.
idWindow identifier for the dialog window.
implementationFU implementation to modify.

Definition at line 139 of file FUImplementationDialog.cc.

141 :
142 wxDialog(parent, id, _T("Function Unit Implementation")),
143 implementation_(implementation), architecture_(architecture),
144 opcodeWarningShowed_(false) {
145
146 createContents(this, true, true);
147
148 // Initialize list widgets.
149 archPortList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_ARCH_PORT_LIST));
150 externalPortList_ =
151 dynamic_cast<wxListCtrl*>(FindWindow(ID_EXTERNAL_PORT_LIST));
152 parameterList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_PARAMETER_LIST));
153 sourceList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_SOURCE_LIST));
154 opcodeList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_OPCODE_LIST));
155
156 // Create columns in list widgets.
157 archPortList_->InsertColumn(0, _T("name"), wxLIST_FORMAT_LEFT, 130);
158
159 archPortList_->InsertColumn(
160 1, _T("architecture port"), wxLIST_FORMAT_LEFT, 130);
161
162 externalPortList_->InsertColumn(0, _T("name"), wxLIST_FORMAT_LEFT, 260);
163
164 parameterList_->InsertColumn(
165 0, _T("parameter"), wxLIST_FORMAT_LEFT, 180);
166
167 parameterList_->InsertColumn(
168 1, _T("value"), wxLIST_FORMAT_LEFT, 80);
169
170 opcodeList_->InsertColumn(
171 0, _T("operation"), wxLIST_FORMAT_LEFT, 180);
172
173 opcodeList_->InsertColumn(
174 1, _T("opcode"), wxLIST_FORMAT_LEFT, 80);
175
176 sourceList_->InsertColumn(
177 0, _T("source file"), wxLIST_FORMAT_LEFT, 260);
178
179 // Read string attributes from the FUImplementation object.
180 // If implementation attributes are empty, use default values
181 name_ = WxConversion::toWxString(implementation_.moduleName());
182 opcodePort_ = WxConversion::toWxString(implementation_.opcodePort());
183 if (implementation_.clkPort().empty()) {
184 clkPort_ = WxConversion::toWxString("clk");
185 } else {
186 clkPort_ = WxConversion::toWxString(implementation_.clkPort());
187 }
188 if (implementation_.rstPort().empty()) {
189 rstPort_ = WxConversion::toWxString("rstx");
190 } else {
191 rstPort_ = WxConversion::toWxString(implementation_.rstPort());
192 }
193 if (implementation_.glockPort().empty()) {
194 gLockPort_ = WxConversion::toWxString("glock");
195 } else {
196 gLockPort_ = WxConversion::toWxString(implementation_.glockPort());
197 }
198 gLockReqPort_ = WxConversion::toWxString(implementation_.glockReqPort());
199
200
201 // Set text field validators.
202 FindWindow(ID_NAME)->SetValidator(
203 wxTextValidator(wxFILTER_ASCII, &name_));
204 FindWindow(ID_OPCODE_PORT)->SetValidator(
205 wxTextValidator(wxFILTER_ASCII, &opcodePort_));
206 FindWindow(ID_CLK_PORT)->SetValidator(
207 wxTextValidator(wxFILTER_ASCII, &clkPort_));
208 FindWindow(ID_RST_PORT)->SetValidator(
209 wxTextValidator(wxFILTER_ASCII, &rstPort_));
210 FindWindow(ID_GLOCK_PORT)->SetValidator(
211 wxTextValidator(wxFILTER_ASCII, &gLockPort_));
212 FindWindow(ID_GLOCK_REQ_PORT)->SetValidator(
213 wxTextValidator(wxFILTER_ASCII, &gLockReqPort_));
214
215
216 // Disable conditional buttons initially.
217 FindWindow(ID_EDIT_ARCH_PORT)->Disable();
218 FindWindow(ID_EDIT_EXTERNAL_PORT)->Disable();
219 FindWindow(ID_DELETE_EXTERNAL_PORT)->Disable();
220 FindWindow(ID_EDIT_PARAMETER)->Disable();
221 FindWindow(ID_DELETE_PARAMETER)->Disable();
222#ifdef ALLOW_OPCODE_EDITING
223 FindWindow(ID_SET_OPCODE)->Disable();
224 FindWindow(ID_CLEAR_OPCODE)->Disable();
225#endif
226 FindWindow(ID_DELETE_SOURCE)->Disable();
227 FindWindow(ID_MOVE_SOURCE_UP)->Disable();
228 FindWindow(ID_MOVE_SOURCE_DOWN)->Disable();
229
230 update(true);
231}
implementation
IDF::MachineImplementation * implementation
the implementation definition of the estimated processor
Definition EstimatorCmdLineUI.cc:61
FUImplementationDialog::sourceList_
wxListCtrl * sourceList_
Pointer to the source file list widget.
Definition FUImplementationDialog.hh:156
FUImplementationDialog::architecture_
const TTAMachine::FunctionUnit & architecture_
Function unit architecture the FUImplementation implements.
Definition FUImplementationDialog.hh:143
FUImplementationDialog::opcodeList_
wxListCtrl * opcodeList_
Pointer to the opcode list widget.
Definition FUImplementationDialog.hh:154
FUImplementationDialog::parameterList_
wxListCtrl * parameterList_
Pointer to the parameter list widget.
Definition FUImplementationDialog.hh:152
FUImplementationDialog::update
void update(bool onInit=false)
Definition FUImplementationDialog.cc:247
FUImplementationDialog::externalPortList_
wxListCtrl * externalPortList_
Pointer to the external port list widget.
Definition FUImplementationDialog.hh:150
FUImplementationDialog::implementation_
HDB::FUImplementation & implementation_
FU Implementation to modify.
Definition FUImplementationDialog.hh:141
FUImplementationDialog::archPortList_
wxListCtrl * archPortList_
Pointer to the architecture port list widget.
Definition FUImplementationDialog.hh:148
FUImplementationDialog::createContents
wxSizer * createContents(wxWindow *parent, bool call_fit, bool set_sizer)
Definition FUImplementationDialog.cc:1064
HDB::FUImplementation::glockReqPort
std::string glockReqPort() const
Definition FUImplementation.cc:157
HDB::FUImplementation::opcodePort
std::string opcodePort() const
Definition FUImplementation.cc:135
WxConversion::toWxString
static wxString toWxString(const std::string &source)

References WxConversion::toWxString().

Here is the call graph for this function:

◆ ~FUImplementationDialog()

FUImplementationDialog::~FUImplementationDialog ( )
virtual

The Destructor.

Definition at line 236 of file FUImplementationDialog.cc.

236 {
237}

Member Function Documentation

◆ createContents()

wxSizer * FUImplementationDialog::createContents ( wxWindow *  parent,
bool  call_fit,
bool  set_sizer
)
private

Creates the dialog contents.

Definition at line 1064 of file FUImplementationDialog.cc.

1065 {
1066 wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );
1067
1068 wxFlexGridSizer *item1 = new wxFlexGridSizer( 2, 0, 0 );
1069
1070 wxFlexGridSizer *item2 = new wxFlexGridSizer( 2, 0, 0 );
1071
1072 wxStaticText *item3 = new wxStaticText( parent, ID_LABEL_NAME, wxT("Name:"), wxDefaultPosition, wxDefaultSize, 0 );
1073 item2->Add( item3, 0, wxALIGN_RIGHT|wxALL, 5 );
1074
1075 wxTextCtrl *item4 = new wxTextCtrl( parent, ID_NAME, wxT(""), wxDefaultPosition, wxSize(160,-1), 0 );
1076 item2->Add( item4, 0, wxGROW|wxALL, 5 );
1077
1078 wxStaticText *item5 = new wxStaticText( parent, ID_LABEL_OPCODE_PORT_NAME, wxT("Opcode port:"), wxDefaultPosition, wxDefaultSize, 0 );
1079 item2->Add( item5, 0, wxALIGN_RIGHT|wxALL, 5 );
1080
1081 wxTextCtrl *item6 = new wxTextCtrl( parent, ID_OPCODE_PORT, wxT(""), wxDefaultPosition, wxSize(160,-1), 0 );
1082 item2->Add( item6, 0, wxGROW|wxALL, 5 );
1083
1084 wxStaticText *item7 = new wxStaticText( parent, ID_LABEL_CLK_PORT, wxT("Clock port:"), wxDefaultPosition, wxDefaultSize, 0 );
1085 item2->Add( item7, 0, wxALIGN_RIGHT|wxALL, 5 );
1086
1087 wxTextCtrl *item8 = new wxTextCtrl( parent, ID_CLK_PORT, wxT(""), wxDefaultPosition, wxSize(80,-1), 0 );
1088 item2->Add( item8, 0, wxGROW|wxALL, 5 );
1089
1090 wxStaticText *item9 = new wxStaticText( parent, ID_LABEL_GLOCK_PORT, wxT("Global lock port:"), wxDefaultPosition, wxDefaultSize, 0 );
1091 item2->Add( item9, 0, wxALIGN_RIGHT|wxALL, 5 );
1092
1093 wxTextCtrl *item10 = new wxTextCtrl( parent, ID_GLOCK_PORT, wxT(""), wxDefaultPosition, wxSize(150,-1), 0 );
1094 item2->Add( item10, 0, wxGROW|wxALL, 5 );
1095
1096 wxStaticText *item11 = new wxStaticText( parent, ID_LABEL_RST_PORT, wxT("Reset port:"), wxDefaultPosition, wxDefaultSize, 0 );
1097 item2->Add( item11, 0, wxALIGN_RIGHT|wxALL, 5 );
1098
1099 wxTextCtrl *item12 = new wxTextCtrl( parent, ID_RST_PORT, wxT(""), wxDefaultPosition, wxSize(80,-1), 0 );
1100 item2->Add( item12, 0, wxGROW|wxALL, 5 );
1101
1102 wxStaticText *item13 = new wxStaticText( parent, ID_LABEL_GLOCK_REQ_PORT, wxT("Global lock req. port:"), wxDefaultPosition, wxDefaultSize, 0 );
1103 item2->Add( item13, 0, wxALIGN_RIGHT|wxALL, 5 );
1104
1105 wxTextCtrl *item14 = new wxTextCtrl( parent, ID_GLOCK_REQ_PORT, wxT(""), wxDefaultPosition, wxSize(80,-1), 0 );
1106 item2->Add( item14, 0, wxGROW|wxALL, 5 );
1107
1108 item1->Add( item2, 0, wxALL, 5 );
1109
1110 wxStaticBox *item16 = new wxStaticBox( parent, -1, wxT("Source files:") );
1111
1112 wxStaticBoxSizer *item15 = new wxStaticBoxSizer( item16, wxVERTICAL );
1113
1114 wxFlexGridSizer *item17_1 = new wxFlexGridSizer( 2, 0, 0 );
1115
1116 wxListCtrl *item17 = new wxListCtrl( parent, ID_SOURCE_LIST, wxDefaultPosition, wxSize(300,150), wxLC_REPORT|wxSUNKEN_BORDER );
1117 item17_1->Add( item17, 0, wxGROW|wxALL, 5 );
1118
1119 wxBoxSizer *item17_3 = new wxBoxSizer( wxVERTICAL );
1120
1121 wxButton *item60 = new wxButton( parent, ID_MOVE_SOURCE_UP, wxT("â–´"), wxDefaultPosition, wxSize(20, 20), 0 );
1122 item17_3->Add( item60, 0, wxALIGN_CENTER|wxALL, 5 );
1123
1124 wxButton *item61 = new wxButton( parent, ID_MOVE_SOURCE_DOWN, wxT("â–¾"), wxDefaultPosition, wxSize(20, 20), 0 );
1125 item17_3->Add( item61, 0, wxALIGN_CENTER|wxALL, 5 );
1126
1127 item17_1->Add( item17_3, 0, wxALIGN_RIGHT|wxALIGN_CENTER, 5 );
1128
1129 item15->Add( item17_1, 0, wxGROW|wxALL, 5 );
1130
1131 wxBoxSizer *item18 = new wxBoxSizer( wxHORIZONTAL );
1132
1133 wxButton *item19 = new wxButton( parent, ID_ADD_SOURCE, wxT("Add..."), wxDefaultPosition, wxDefaultSize, 0 );
1134 item18->Add( item19, 0, wxALL, 5 );
1135
1136 wxButton *item20 = new wxButton( parent, ID_DELETE_SOURCE, wxT("Delete"), wxDefaultPosition, wxDefaultSize, 0 );
1137 item18->Add( item20, 0, wxALIGN_CENTER|wxALL, 5 );
1138
1139 item15->Add( item18, 0, 0, 5 );
1140
1141 item1->Add( item15, 0, wxGROW|wxALL, 5 );
1142
1143 wxStaticBox *item22 = new wxStaticBox( parent, -1, wxT("Architecture ports:") );
1144 wxStaticBoxSizer *item21 = new wxStaticBoxSizer( item22, wxVERTICAL );
1145
1146 wxListCtrl *item23 = new wxListCtrl( parent, ID_ARCH_PORT_LIST, wxDefaultPosition, wxSize(200,120), wxLC_REPORT|wxSUNKEN_BORDER );
1147 item21->Add( item23, 0, wxGROW|wxALL, 5 );
1148
1149 wxBoxSizer *item24 = new wxBoxSizer( wxHORIZONTAL );
1150
1151 wxButton *item25 = new wxButton( parent, ID_EDIT_ARCH_PORT, wxT("Edit..."), wxDefaultPosition, wxDefaultSize, 0 );
1152 item24->Add( item25, 0, wxALIGN_CENTER|wxALL, 5 );
1153
1154 item21->Add( item24, 0, 0, 5 );
1155
1156 item1->Add( item21, 0, wxGROW|wxALL, 5 );
1157
1158 wxStaticBox *item27 = new wxStaticBox( parent, -1, wxT("Opcodes:") );
1159 wxStaticBoxSizer *item26 = new wxStaticBoxSizer( item27, wxVERTICAL );
1160
1161 wxListCtrl *item28 = new wxListCtrl( parent, ID_OPCODE_LIST, wxDefaultPosition, wxSize(260,120), wxLC_REPORT|wxSUNKEN_BORDER );
1162 item26->Add( item28, 0, wxGROW|wxALL, 5 );
1163
1164 wxBoxSizer *item29 = new wxBoxSizer( wxHORIZONTAL );
1165#ifdef ALLOW_OPCODE_EDITING
1166 wxSpinCtrl *item30 = new wxSpinCtrl( parent, ID_OPCODE, wxT("0"), wxDefaultPosition, wxSize(-1,-1), 0, 0, 100, 0 );
1167 item29->Add( item30, 0, wxALIGN_CENTER|wxALL, 5 );
1168
1169 wxButton *item31 = new wxButton( parent, ID_SET_OPCODE, wxT("Set"), wxDefaultPosition, wxDefaultSize, 0 );
1170 item29->Add( item31, 0, wxALIGN_CENTER|wxALL, 5 );
1171
1172 wxButton *item32 = new wxButton( parent, ID_CLEAR_OPCODE, wxT("Clear"), wxDefaultPosition, wxDefaultSize, 0 );
1173 item29->Add( item32, 0, wxALIGN_CENTER|wxALL, 5 );
1174#endif
1175 item26->Add( item29, 0, 0, 5 );
1176
1177 item1->Add( item26, 0, wxGROW|wxALL, 5 );
1178
1179 wxStaticBox *item34 = new wxStaticBox( parent, -1, wxT("External ports:") );
1180 wxStaticBoxSizer *item33 = new wxStaticBoxSizer( item34, wxVERTICAL );
1181
1182 wxListCtrl *item35 = new wxListCtrl( parent, ID_EXTERNAL_PORT_LIST, wxDefaultPosition, wxSize(200,120), wxLC_REPORT|wxSUNKEN_BORDER );
1183 item33->Add( item35, 0, wxGROW|wxALL, 5 );
1184
1185 wxBoxSizer *item36 = new wxBoxSizer( wxHORIZONTAL );
1186
1187 wxButton *item37 = new wxButton( parent, ID_ADD_EXTERNAL_PORT, wxT("Add..."), wxDefaultPosition, wxDefaultSize, 0 );
1188 item36->Add( item37, 0, wxALL, 5 );
1189
1190 wxButton *item38 = new wxButton( parent, ID_EDIT_EXTERNAL_PORT, wxT("Edit..."), wxDefaultPosition, wxDefaultSize, 0 );
1191 item36->Add( item38, 0, wxALIGN_CENTER|wxALL, 5 );
1192
1193 wxButton *item39 = new wxButton( parent, ID_DELETE_EXTERNAL_PORT, wxT("Delete"), wxDefaultPosition, wxDefaultSize, 0 );
1194 item36->Add( item39, 0, wxALIGN_CENTER|wxALL, 5 );
1195
1196 item33->Add( item36, 0, wxALIGN_CENTER, 5 );
1197
1198 item1->Add( item33, 0, wxGROW|wxALL, 5 );
1199
1200 wxStaticBox *item41 = new wxStaticBox( parent, -1, wxT("Parameters:") );
1201 wxStaticBoxSizer *item40 = new wxStaticBoxSizer( item41, wxVERTICAL );
1202
1203 wxListCtrl *item42 = new wxListCtrl( parent, ID_PARAMETER_LIST, wxDefaultPosition, wxSize(260,120), wxLC_REPORT|wxSUNKEN_BORDER );
1204 item40->Add( item42, 0, wxGROW|wxALL, 5 );
1205
1206 wxBoxSizer *item43 = new wxBoxSizer( wxHORIZONTAL );
1207
1208 wxButton *item44 = new wxButton( parent, ID_ADD_PARAMETER, wxT("Add..."), wxDefaultPosition, wxDefaultSize, 0 );
1209 item43->Add( item44, 0, wxALIGN_CENTER|wxALL, 5 );
1210
1211 wxButton *item45 = new wxButton( parent, ID_EDIT_PARAMETER, wxT("Edit..."), wxDefaultPosition, wxDefaultSize, 0 );
1212 item43->Add( item45, 0, wxALIGN_CENTER|wxALL, 5 );
1213
1214 wxButton *item46 = new wxButton( parent, ID_DELETE_PARAMETER, wxT("Delete"), wxDefaultPosition, wxDefaultSize, 0 );
1215 item43->Add( item46, 0, wxALIGN_CENTER|wxALL, 5 );
1216
1217 item40->Add( item43, 0, 0, 5 );
1218
1219 item1->Add( item40, 0, wxGROW|wxALL, 5 );
1220
1221 item0->Add( item1, 0, wxALIGN_CENTER|wxALL, 5 );
1222
1223 wxStaticLine *item47 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
1224 item0->Add( item47, 0, wxGROW|wxALL, 5 );
1225
1226 wxBoxSizer *item48 = new wxBoxSizer( wxHORIZONTAL );
1227
1228 wxButton *item49 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
1229 item48->Add( item49, 0, wxALIGN_CENTER|wxALL, 5 );
1230
1231 wxButton *item50 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
1232 item48->Add( item50, 0, wxALIGN_CENTER|wxALL, 5 );
1233
1234 item0->Add( item48, 0, wxALL, 5 );
1235
1236 if (set_sizer)
1237 {
1238 parent->SetSizer( item0 );
1239 if (call_fit)
1240 item0->SetSizeHints( parent );
1241 }
1242
1243 return item0;
1244}

References ID_ADD_EXTERNAL_PORT, ID_ADD_PARAMETER, ID_ADD_SOURCE, ID_ARCH_PORT_LIST, ID_CLEAR_OPCODE, ID_CLK_PORT, ID_DELETE_EXTERNAL_PORT, ID_DELETE_PARAMETER, ID_DELETE_SOURCE, ID_EDIT_ARCH_PORT, ID_EDIT_EXTERNAL_PORT, ID_EDIT_PARAMETER, ID_EXTERNAL_PORT_LIST, ID_GLOCK_PORT, ID_GLOCK_REQ_PORT, ID_LABEL_CLK_PORT, ID_LABEL_GLOCK_PORT, ID_LABEL_GLOCK_REQ_PORT, ID_LABEL_NAME, ID_LABEL_OPCODE_PORT_NAME, ID_LABEL_RST_PORT, ID_LINE, ID_MOVE_SOURCE_DOWN, ID_MOVE_SOURCE_UP, ID_NAME, ID_OPCODE, ID_OPCODE_LIST, ID_OPCODE_PORT, ID_PARAMETER_LIST, ID_RST_PORT, ID_SET_OPCODE, and ID_SOURCE_LIST.

◆ onAddArchitecturePort()

void FUImplementationDialog::onAddArchitecturePort ( wxCommandEvent &  event)
private

◆ onAddExternalPort()

void FUImplementationDialog::onAddExternalPort ( wxCommandEvent &  event)
private

Event handler for the add external port button.

Opens a FUExternalPortDialog for adding a new external port.

Definition at line 443 of file FUImplementationDialog.cc.

443 {
444
445 FUExternalPort* port = new FUExternalPort(
446 "", IN, "", "", implementation_);
447
448 FUExternalPortDialog dialog(this, -1, *port, implementation_);
449
450 if (dialog.ShowModal() != wxID_OK) {
451 implementation_.deleteExternalPort(port);
452 return;
453 }
454
455 update();
456}
HDB::FUImplementation::deleteExternalPort
void deleteExternalPort(FUExternalPort *port)
Definition FUImplementation.cc:313
HDB::IN
@ IN
Input port.
Definition HDBTypes.hh:41

References HDB::FUImplementation::deleteExternalPort(), implementation_, HDB::IN, and update().

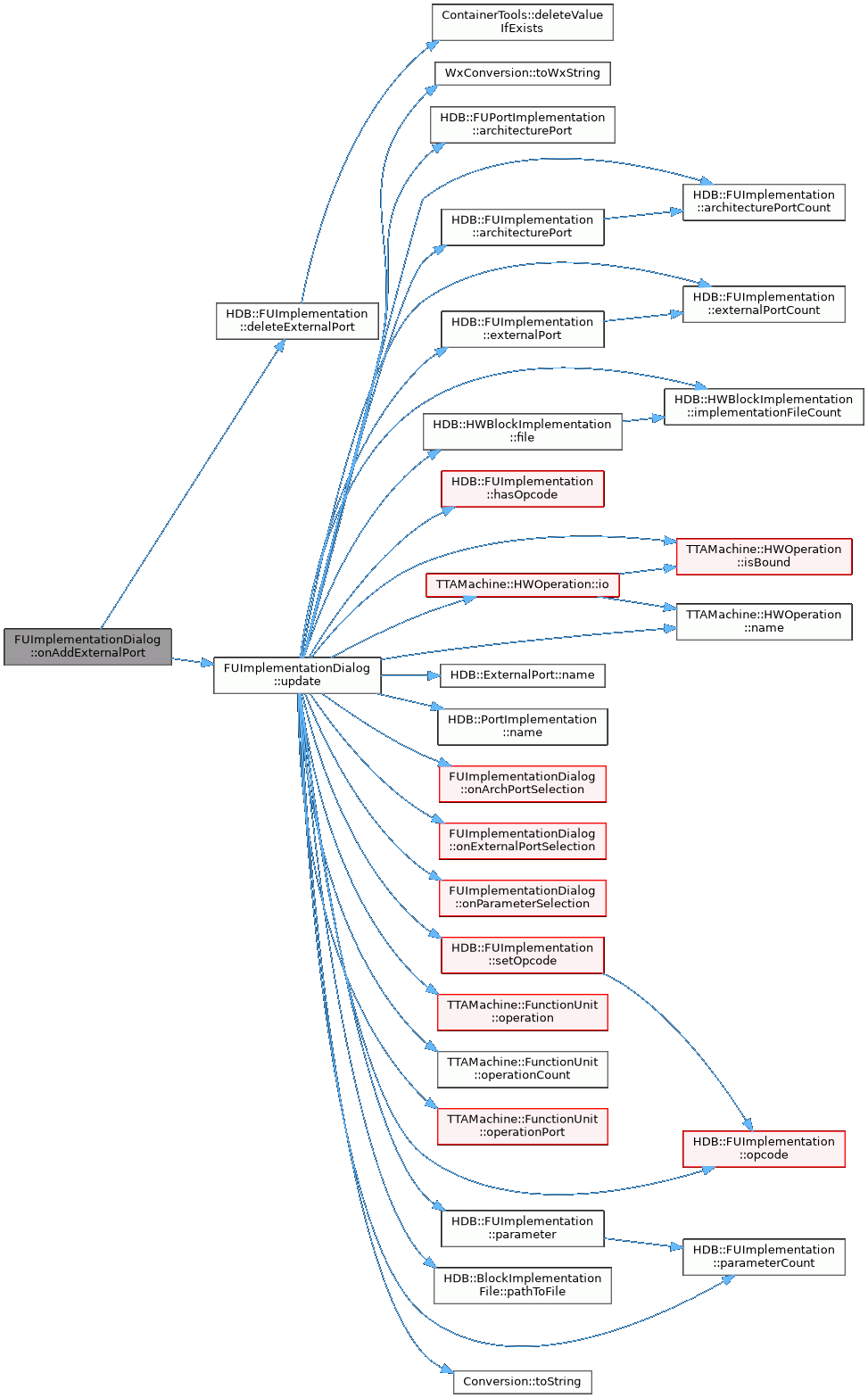

Here is the call graph for this function:

◆ onAddParameter()

void FUImplementationDialog::onAddParameter ( wxCommandEvent &  event)
private

Event handler for the add parameter button.

Opens a ImplementationParameterDialog for adding a new parameter.

Definition at line 539 of file FUImplementationDialog.cc.

539 {
540
541 FUImplementation::Parameter parameter;
542
543 ImplementationParameterDialog dialog(this, -1, parameter);
544
545 if (dialog.ShowModal() != wxID_OK) {
546 return;
547 }
548
549 try {
550 implementation_.addParameter(
551 parameter.name, parameter.type, parameter.value);
552 } catch (IllegalParameters& e) {
553 wxString message = _T("FU implementation already contains ");
554 message.Append(_T("a parameter\nwith name '"));
555 message.Append(WxConversion::toWxString(parameter.name));
556 message.Append(_T("'."));
557 ErrorDialog dialog(this, message);
558 dialog.ShowModal();
559 return;
560 }
561
562 update();
563}
HDB::FUImplementation::addParameter
void addParameter(const std::string &name, const std::string &type, const std::string &value)
Definition FUImplementation.cc:409
HDB::Parameter::value
std::string value
Value of the parameter.
Definition HDBTypes.hh:49
HDB::Parameter::type
std::string type
Type of the parameter.
Definition HDBTypes.hh:48
HDB::Parameter::name
std::string name
Name of the parameter.
Definition HDBTypes.hh:47

References HDB::FUImplementation::addParameter(), implementation_, HDB::Parameter::name, WxConversion::toWxString(), HDB::Parameter::type, update(), and HDB::Parameter::value.

Here is the call graph for this function:

◆ onAddSourceFile()

void FUImplementationDialog::onAddSourceFile ( wxCommandEvent &  event)
private

Event handler for the add source file button.

Opens a source file dialog for adding a new implementation file to the list.

Definition at line 813 of file FUImplementationDialog.cc.

813 {
814
815 BlockImplementationFile* file =
816 new BlockImplementationFile("", BlockImplementationFile::VHDL);
817
818 BlockImplementationFileDialog dialog(this, -1, *file);
819
820 if (dialog.ShowModal() == wxID_OK) {
821 implementation_.addImplementationFile(file);
822 update();
823 } else {
824 delete file;
825 }
826
827 FindWindow(ID_DELETE_SOURCE)->Disable();
828 FindWindow(ID_MOVE_SOURCE_UP)->Disable();
829 FindWindow(ID_MOVE_SOURCE_DOWN)->Disable();
830}
HDB::HWBlockImplementation::addImplementationFile
void addImplementationFile(BlockImplementationFile *file)
Definition HWBlockImplementation.cc:230

References HDB::HWBlockImplementation::addImplementationFile(), ID_DELETE_SOURCE, ID_MOVE_SOURCE_DOWN, ID_MOVE_SOURCE_UP, implementation_, update(), and HDB::BlockImplementationFile::VHDL.

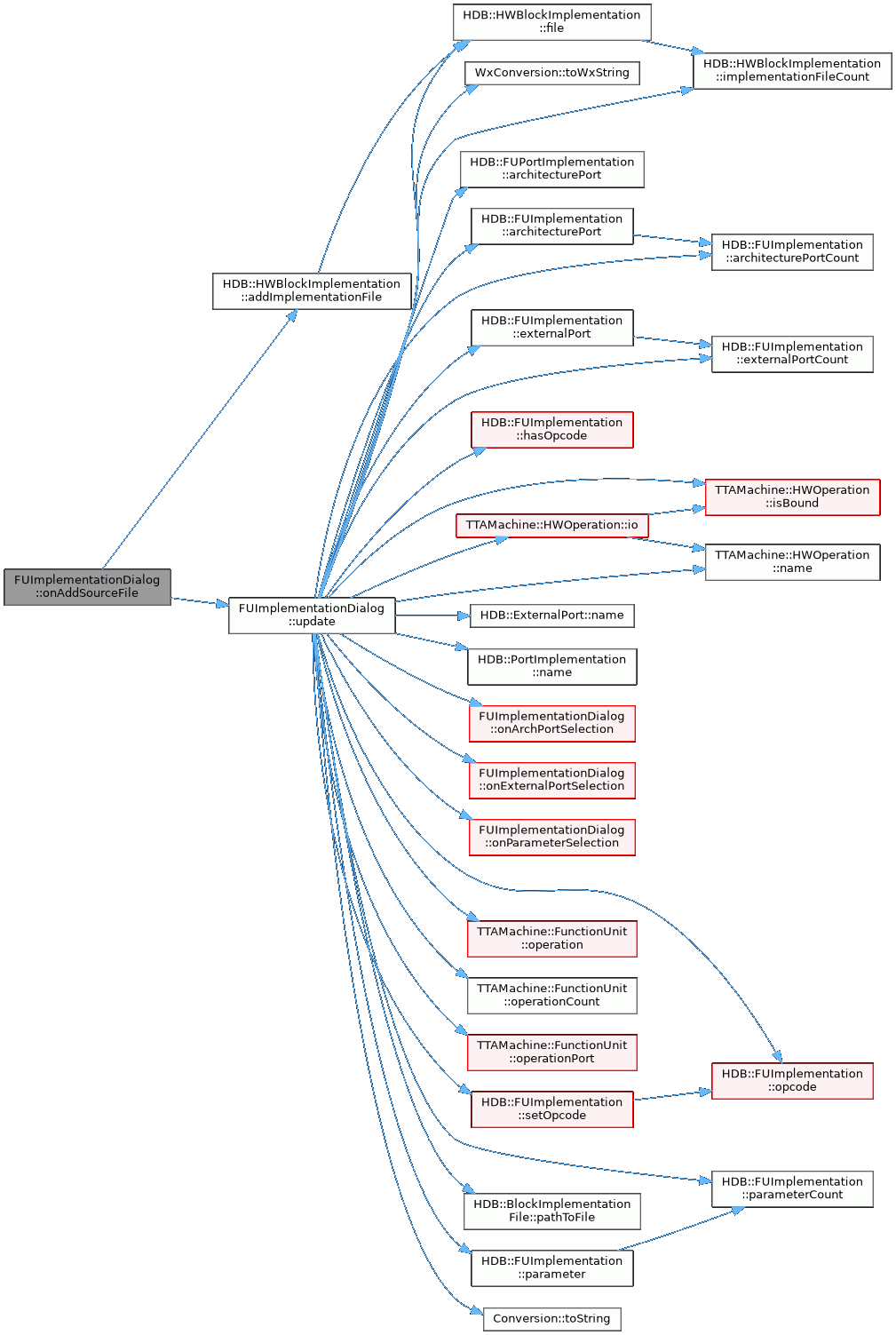

Here is the call graph for this function:

◆ onArchPortActivation()

void FUImplementationDialog::onArchPortActivation ( wxListEvent &  event)
private

Event handler for the architecture port list activateion

Opens a FUPortImplementationdialog for modifying the selected architecure port.

Definition at line 422 of file FUImplementationDialog.cc.

422 {
423 FUPortImplementation* port = selectedArchPort();
424
425 assert(port != NULL);
426
427 const BaseFUPort& archPort =
428 *architecture_.port(port->architecturePort());
429
430 FUPortImplementationDialog dialog(this, -1, *port, archPort);
431
432 dialog.ShowModal();
433 update();
434}
assert
#define assert(condition)
Definition Application.hh:86
FUImplementationDialog::selectedArchPort
HDB::FUPortImplementation * selectedArchPort()
Definition FUImplementationDialog.cc:675
HDB::FUPortImplementation::architecturePort
std::string architecturePort() const
Definition FUPortImplementation.cc:93
TTAMachine::FunctionUnit::port
virtual BaseFUPort * port(const std::string &name) const
Definition FunctionUnit.cc:145

References architecture_, HDB::FUPortImplementation::architecturePort(), assert, TTAMachine::FunctionUnit::port(), selectedArchPort(), and update().

Here is the call graph for this function:

◆ onArchPortSelection()

void FUImplementationDialog::onArchPortSelection ( wxListEvent &  event)
private

Event handler for the architecture port list selection changes.

Updates edit/delete architecture port enabeld/disabled states.

Definition at line 407 of file FUImplementationDialog.cc.

407 {
408 if (selectedArchPort() == NULL) {
409 FindWindow(ID_EDIT_ARCH_PORT)->Disable();
410 } else {
411 FindWindow(ID_EDIT_ARCH_PORT)->Enable();
412 }
413}

References ID_EDIT_ARCH_PORT, and selectedArchPort().

Referenced by update().

Here is the call graph for this function:

◆ onClearOpcode()

void FUImplementationDialog::onClearOpcode ( wxCommandEvent &  event)
private

Event handler for the clear opcode button.

Clears the opcode of the selected operation.

Definition at line 756 of file FUImplementationDialog.cc.

756 {
757
758 std::string operation = WidgetTools::lcStringSelection(opcodeList_, 0);
759
760 if (operation == "") {
761 return;
762 }
763
764 implementation_.unsetOpcode(operation);
765
766 update();
767}
HDB::FUImplementation::unsetOpcode
void unsetOpcode(const std::string &operation)
Definition FUImplementation.cc:182
WidgetTools::lcStringSelection
static std::string lcStringSelection(wxListCtrl *list, int column)
Definition WidgetTools.cc:108

References implementation_, WidgetTools::lcStringSelection(), opcodeList_, HDB::FUImplementation::unsetOpcode(), and update().

Here is the call graph for this function:

◆ onDeleteArchitecturePort()

void FUImplementationDialog::onDeleteArchitecturePort ( wxCommandEvent &  event)
private

◆ onDeleteExternalPort()

void FUImplementationDialog::onDeleteExternalPort ( wxCommandEvent &  event)
private

Event handler for the delete external port button.

Deletes the selected external port.

Definition at line 504 of file FUImplementationDialog.cc.

504 {
505
506 FUExternalPort* port = selectedExternalPort();
507
508 if (port == NULL) {
509 return;
510 }
511
512 implementation_.deleteExternalPort(port);
513 update();
514}
FUImplementationDialog::selectedExternalPort
HDB::FUExternalPort * selectedExternalPort()
Definition FUImplementationDialog.cc:694

References HDB::FUImplementation::deleteExternalPort(), implementation_, selectedExternalPort(), and update().

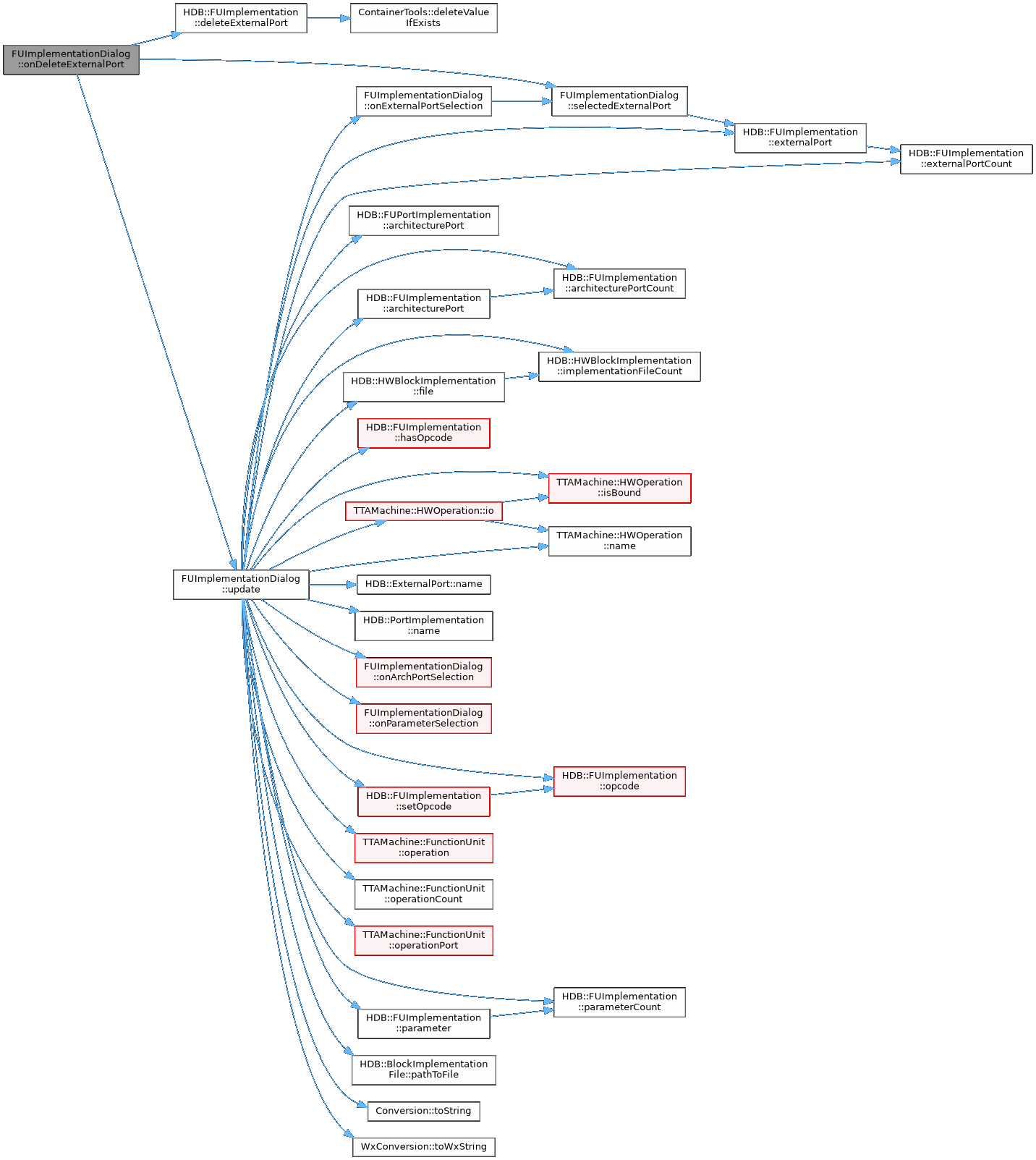

Here is the call graph for this function:

◆ onDeleteParameter()

void FUImplementationDialog::onDeleteParameter ( wxCommandEvent &  event)
private

Event handler for the delete parameter button.

Deletes the selected parameter.

Definition at line 634 of file FUImplementationDialog.cc.

634 {
635
636 FUImplementation::Parameter parameter = selectedParameter();
637
638 implementation_.removeParameter(parameter.name);
639
640 // update external port parameter dependencies
641 for (int i = 0; i < implementation_.externalPortCount(); i++) {
642 HDB::FUExternalPort& port = implementation_.externalPort(i);
643 port.unsetParameterDependency(parameter.name);
644 }
645
646 update();
647}
FUImplementationDialog::selectedParameter
HDB::FUImplementation::Parameter selectedParameter()
Definition FUImplementationDialog.cc:713
HDB::ExternalPort::unsetParameterDependency
bool unsetParameterDependency(const std::string &parameter)
Definition ExternalPort.cc:178
HDB::FUImplementation::removeParameter
void removeParameter(const std::string &name)
Definition FUImplementation.cc:426
HDB::FUImplementation::externalPort
FUExternalPort & externalPort(int index) const
Definition FUImplementation.cc:390

References HDB::FUImplementation::externalPort(), HDB::FUImplementation::externalPortCount(), implementation_, HDB::Parameter::name, HDB::FUImplementation::removeParameter(), selectedParameter(), HDB::ExternalPort::unsetParameterDependency(), and update().

Here is the call graph for this function:

◆ onDeleteSourceFile()

void FUImplementationDialog::onDeleteSourceFile ( wxCommandEvent &  event)
private

Event handler for the delete source file button.

Removes the selected source file.

Definition at line 838 of file FUImplementationDialog.cc.

838 {
839
840 std::string fileName = WidgetTools::lcStringSelection(sourceList_, 0);
841
842 for (int i = 0; i < implementation_.implementationFileCount(); i++) {
843 const HDB::BlockImplementationFile& file = implementation_.file(i);
844 if (file.pathToFile() == fileName) {
845 implementation_.removeImplementationFile(file);
846 }
847 }
848
849 FindWindow(ID_DELETE_SOURCE)->Disable();
850 FindWindow(ID_MOVE_SOURCE_UP)->Disable();
851 FindWindow(ID_MOVE_SOURCE_DOWN)->Disable();
852
853 update();
854}
HDB::HWBlockImplementation::removeImplementationFile
void removeImplementationFile(const BlockImplementationFile &file)
Definition HWBlockImplementation.cc:241
HDB::HWBlockImplementation::file
BlockImplementationFile & file(int index) const
Definition HWBlockImplementation.cc:267

References HDB::HWBlockImplementation::file(), ID_DELETE_SOURCE, ID_MOVE_SOURCE_DOWN, ID_MOVE_SOURCE_UP, implementation_, HDB::HWBlockImplementation::implementationFileCount(), WidgetTools::lcStringSelection(), HDB::BlockImplementationFile::pathToFile(), HDB::HWBlockImplementation::removeImplementationFile(), sourceList_, and update().

Here is the call graph for this function:

◆ onEditArchitecturePort()

void FUImplementationDialog::onEditArchitecturePort ( wxCommandEvent &  event)
private

Event handler for the edit architecture port button.

Opens a FUPortImplementationdialog for modifying the selected architecure port.

Definition at line 383 of file FUImplementationDialog.cc.

383 {
384
385 FUPortImplementation* port = selectedArchPort();
386
387 if (port == NULL) {
388 return;
389 }
390
391 const BaseFUPort& archPort =
392 *architecture_.port(port->architecturePort());
393
394 FUPortImplementationDialog dialog(this, -1, *port, archPort);
395
396 dialog.ShowModal();
397 update();
398}

References architecture_, HDB::FUPortImplementation::architecturePort(), TTAMachine::FunctionUnit::port(), selectedArchPort(), and update().

Here is the call graph for this function:

◆ onEditExternalPort()

void FUImplementationDialog::onEditExternalPort ( wxCommandEvent &  event)
private

Event handler for the edit external port button.

Opens a FUExternalPort for modifying the selected external port.

Definition at line 465 of file FUImplementationDialog.cc.

465 {
466
467 FUExternalPort* port = selectedExternalPort();
468
469 if (port == NULL) {
470 return;
471 }
472
473 FUExternalPortDialog dialog(this, -1, *port, implementation_);
474
475 dialog.ShowModal();
476 update();
477}

References implementation_, selectedExternalPort(), and update().

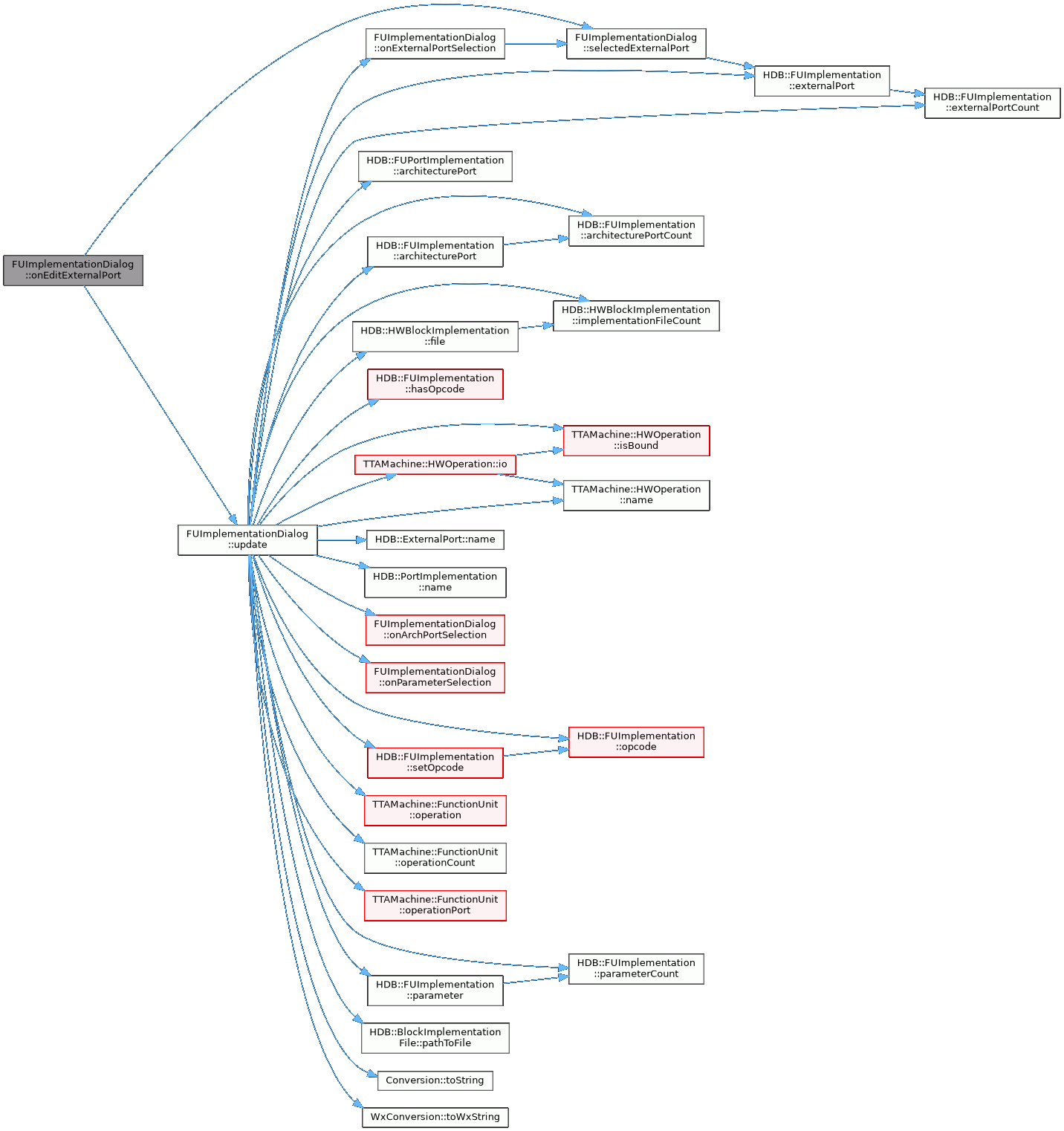

Here is the call graph for this function:

◆ onEditParameter()

void FUImplementationDialog::onEditParameter ( wxCommandEvent &  event)
private

Event handler for the edit parameter button.

Opens a FUImplementationParamaeterDialog for modifying the selected parameter.

Definition at line 573 of file FUImplementationDialog.cc.

573 {
574
575 FUImplementation::Parameter parameter = selectedParameter();
576 std::string oldName = parameter.name;
577
578 ImplementationParameterDialog dialog(this, -1, parameter);
579
580 if (dialog.ShowModal() == wxID_OK) {
581 implementation_.removeParameter(oldName);
582 implementation_.addParameter(
583 parameter.name, parameter.type, parameter.value);
584
585 // update external port parameter dependencies if needed
586 for (int i = 0; i < implementation_.externalPortCount(); i++) {
587 HDB::FUExternalPort& port = implementation_.externalPort(i);
588 if (port.unsetParameterDependency(oldName)) {
589 port.setParameterDependency(parameter.name);
590 }
591 }
592 }
593
594 update();
595}
HDB::ExternalPort::setParameterDependency
bool setParameterDependency(const std::string &parameter)
Definition ExternalPort.cc:162

References HDB::FUImplementation::addParameter(), HDB::FUImplementation::externalPort(), HDB::FUImplementation::externalPortCount(), implementation_, HDB::Parameter::name, HDB::FUImplementation::removeParameter(), selectedParameter(), HDB::ExternalPort::setParameterDependency(), HDB::Parameter::type, HDB::ExternalPort::unsetParameterDependency(), update(), and HDB::Parameter::value.

Here is the call graph for this function:

◆ onExternalPortActivation()

void FUImplementationDialog::onExternalPortActivation ( wxListEvent &  event)
private

Event handler for the activate external port list item

Opens a FUExternalPort for modifying the selected external port.

Definition at line 485 of file FUImplementationDialog.cc.

485 {
486
487 FUExternalPort* port = selectedExternalPort();
488 assert(port != NULL);
489
490 FUExternalPortDialog dialog(this, -1, *port, implementation_);
491
492 dialog.ShowModal();
493 update();
494}

References assert, implementation_, selectedExternalPort(), and update().

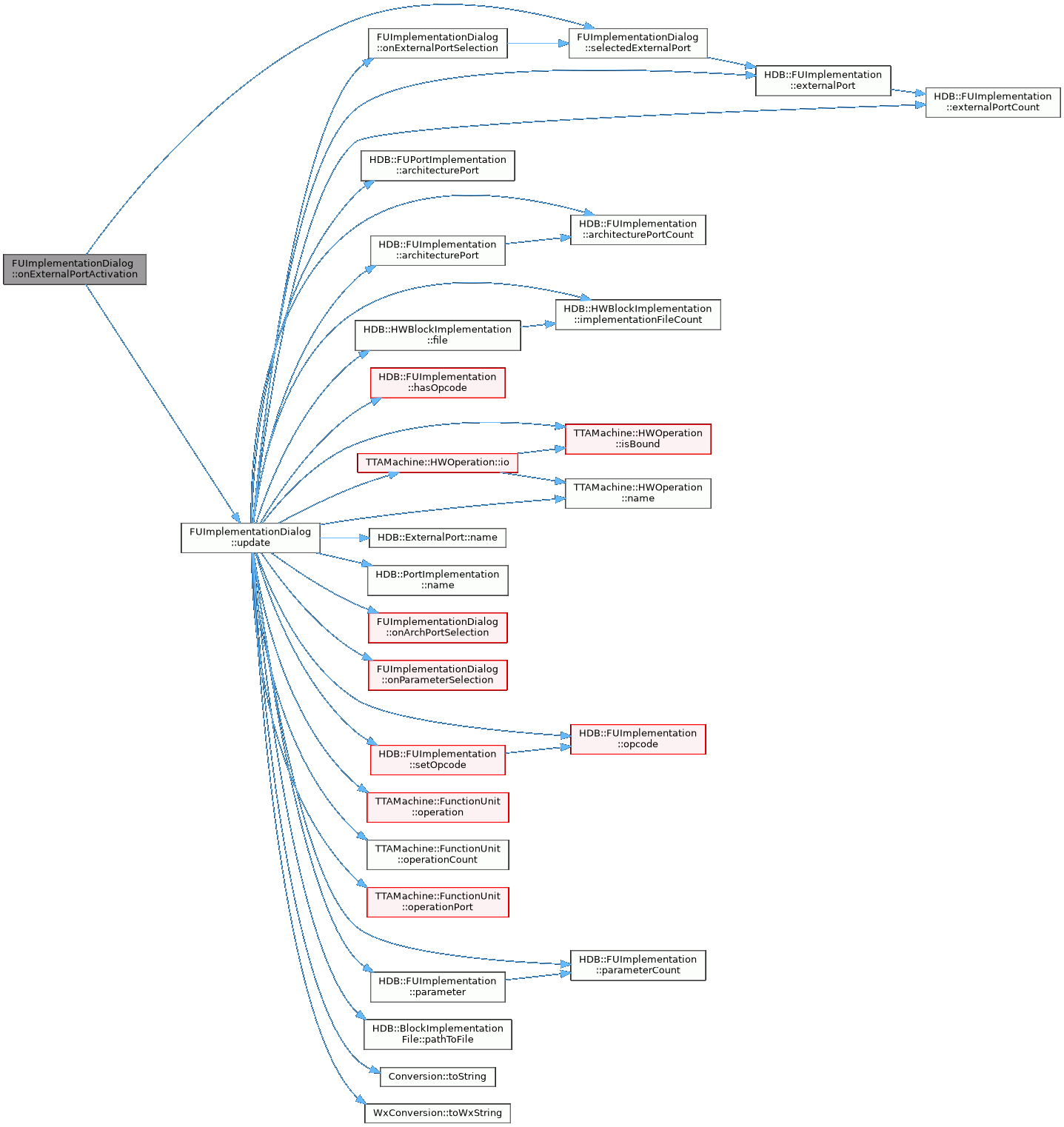

Here is the call graph for this function:

◆ onExternalPortSelection()

void FUImplementationDialog::onExternalPortSelection ( wxListEvent &  event)
private

Event handler for the external port list selection changes.

Updates edit/delete external port enabeld/disabled states.

Definition at line 522 of file FUImplementationDialog.cc.

522 {
523 if (selectedExternalPort() == NULL) {
524 FindWindow(ID_DELETE_EXTERNAL_PORT)->Disable();
525 FindWindow(ID_EDIT_EXTERNAL_PORT)->Disable();
526 } else {
527 FindWindow(ID_DELETE_EXTERNAL_PORT)->Enable();
528 FindWindow(ID_EDIT_EXTERNAL_PORT)->Enable();
529 }
530}

References ID_DELETE_EXTERNAL_PORT, ID_EDIT_EXTERNAL_PORT, and selectedExternalPort().

Referenced by update().

Here is the call graph for this function:

◆ onMoveSourceFileDown()

void FUImplementationDialog::onMoveSourceFileDown ( wxCommandEvent &  event)
private

Event handler for the move source file down button.

Moves the selected source file down on the files list.

Definition at line 911 of file FUImplementationDialog.cc.

911 {
912 if (implementation_.implementationFileCount() > 1) {
913 std::string fileName =
914 WidgetTools::lcStringSelection(sourceList_, 0);
915 std::vector<std::string> pathToFileList;
916
917 int originalImplementationFileCount =
918 implementation_.implementationFileCount();
919
920 for (int i = 0; i < originalImplementationFileCount; i++) {
921 HDB::BlockImplementationFile& file = implementation_.file(0);
922 pathToFileList.push_back(file.pathToFile());
923 implementation_.removeImplementationFile(file);
924 }
925
926 for (unsigned int i = 0; i < (pathToFileList.size() - 1); i++) {
927 if (pathToFileList.at(i) == fileName) {
928 pathToFileList.erase(pathToFileList.begin() + i);
929 pathToFileList.insert(
930 pathToFileList.begin() + i + 1, fileName);
931 break;
932 }
933 }
934
935 for (unsigned int i = 0; i < pathToFileList.size(); i++) {
936 BlockImplementationFile* file =
937 new BlockImplementationFile(pathToFileList.at(i),
938 BlockImplementationFile::VHDL);
939 implementation_.addImplementationFile(file);
940 }
941
942 pathToFileList.clear();
943 update();
944
945 for (int i = 0; i < implementation_.implementationFileCount(); i++) {
946 if (implementation_.file(i).pathToFile() == fileName) {
947 sourceList_->SetItemState(i, wxLIST_STATE_SELECTED,
948 wxLIST_STATE_SELECTED);
949 }
950 }
951 }
952}

References HDB::HWBlockImplementation::addImplementationFile(), HDB::HWBlockImplementation::file(), implementation_, HDB::HWBlockImplementation::implementationFileCount(), WidgetTools::lcStringSelection(), HDB::BlockImplementationFile::pathToFile(), HDB::HWBlockImplementation::removeImplementationFile(), sourceList_, update(), and HDB::BlockImplementationFile::VHDL.

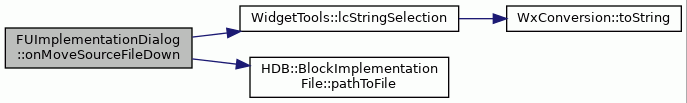

Here is the call graph for this function:

◆ onMoveSourceFileUp()

void FUImplementationDialog::onMoveSourceFileUp ( wxCommandEvent &  event)
private

Event handler for the move source file up button.

Moves the selected source file up on the files list.

Definition at line 862 of file FUImplementationDialog.cc.

862 {
863
864 if (implementation_.implementationFileCount() > 1) {
865 std::string fileName =
866 WidgetTools::lcStringSelection(sourceList_, 0);
867 std::vector<std::string> pathToFileList;
868 int originalImplementationFileCount =
869 implementation_.implementationFileCount();
870
871 for (int i = 0; i < originalImplementationFileCount; i++) {
872 HDB::BlockImplementationFile& file = implementation_.file(0);
873 pathToFileList.push_back(file.pathToFile());
874 implementation_.removeImplementationFile(file);
875 }
876
877 for (unsigned int i = 1; i < pathToFileList.size(); i++) {
878 if (pathToFileList.at(i) == fileName) {
879 pathToFileList.erase(pathToFileList.begin() + i);
880 pathToFileList.insert(
881 pathToFileList.begin() + i - 1, fileName);
882 break;
883 }
884 }
885
886 for (unsigned int i = 0; i < pathToFileList.size(); i++) {
887 BlockImplementationFile* file =
888 new BlockImplementationFile(pathToFileList.at(i),
889 BlockImplementationFile::VHDL);
890 implementation_.addImplementationFile(file);
891 }
892
893 pathToFileList.clear();
894 update();
895
896 for (int i = 0; i < implementation_.implementationFileCount(); i++) {
897 if (implementation_.file(i).pathToFile() == fileName) {
898 sourceList_->SetItemState(i, wxLIST_STATE_SELECTED,
899 wxLIST_STATE_SELECTED);
900 }
901 }
902 }
903}

References HDB::HWBlockImplementation::addImplementationFile(), HDB::HWBlockImplementation::file(), implementation_, HDB::HWBlockImplementation::implementationFileCount(), WidgetTools::lcStringSelection(), HDB::BlockImplementationFile::pathToFile(), HDB::HWBlockImplementation::removeImplementationFile(), sourceList_, update(), and HDB::BlockImplementationFile::VHDL.

Here is the call graph for this function:

◆ onOK()

void FUImplementationDialog::onOK ( wxCommandEvent &  event)
private

Event handler for the OK button.

Validates the dialog data and updates the FUImplementation object string attributes.

Definition at line 980 of file FUImplementationDialog.cc.

980 {
981
982 TransferDataFromWindow();
983
984 name_ = name_.Trim(true).Trim(false);
985 clkPort_ = clkPort_.Trim(true).Trim(false);
986 rstPort_ = rstPort_.Trim(true).Trim(false);
987 gLockPort_ = gLockPort_.Trim(true).Trim(false);
988 gLockReqPort_ = gLockReqPort_.Trim(true).Trim(false);
989 opcodePort_ = opcodePort_.Trim(true).Trim(false);
990
991 if (name_.IsEmpty()) {
992 wxString message = _T("Name field must not be empty.");
993 InformationDialog dialog(this, message);
994 dialog.ShowModal();
995 return;
996 }
997
998 for (int i = 0; i < implementation_.architecturePortCount(); i++) {
999 if (implementation_.architecturePort(i).name() == "") {
1000 wxString message =
1001 _T("No name specified for the architecture port '");
1002 std::string port =
1003 implementation_.architecturePort(i).architecturePort();
1004 message.Append(WxConversion::toWxString(port));
1005 message.Append(_T("'."));
1006 InformationDialog dialog(this, message);
1007 dialog.ShowModal();
1008 return;
1009 }
1010 for (int k = i+1; k < implementation_.architecturePortCount(); k++) {
1011 if (implementation_.architecturePort(i).name() ==
1012 implementation_.architecturePort(k).name()) {
1013 wxString message =
1014 _T("Ports '");
1015 std::string port =
1016 implementation_.architecturePort(i).architecturePort();
1017 message.Append(WxConversion::toWxString(port));
1018 message.Append(_T("' and '"));
1019 port =
1020 implementation_.architecturePort(k).architecturePort();
1021 message.Append(WxConversion::toWxString(port));
1022 message.Append(_T("' have the same name."));
1023 InformationDialog dialog(this, message);
1024 dialog.ShowModal();
1025 return;
1026 }
1027 }
1028 }
1029#ifdef ALLOW_OPCODE_EDITING
1030 if (architecture_.operationCount() > 1) {
1031 for (int i = 0; i < architecture_.operationCount(); i++) {
1032 if (!implementation_.hasOpcode(
1033 architecture_.operation(i)->name())) {
1034
1035 wxString message =
1036 _T("No opcode specified for the operation '");
1037 std::string operation = architecture_.operation(i)->name();
1038 message.Append(WxConversion::toWxString(operation));
1039 message.Append(_T("'."));
1040 InformationDialog dialog(this, message);
1041 dialog.ShowModal();
1042 return;
1043 }
1044 }
1045 }
1046#endif
1047
1048 implementation_.setModuleName(WxConversion::toString(name_));
1049 implementation_.setClkPort(WxConversion::toString(clkPort_));
1050 implementation_.setRstPort(WxConversion::toString(rstPort_));
1051 implementation_.setOpcodePort(WxConversion::toString(opcodePort_));
1052 implementation_.setGlockPort(WxConversion::toString(gLockPort_));
1053 implementation_.setGlockReqPort(WxConversion::toString(gLockReqPort_));
1054
1055 EndModal(wxID_OK);
1056
1057}
HDB::FUImplementation::architecturePort
FUPortImplementation & architecturePort(int index) const
Definition FUImplementation.cc:351
HDB::FUImplementation::setGlockReqPort
void setGlockReqPort(const std::string &name)
Definition FUImplementation.cc:146
HDB::FUImplementation::setOpcodePort
void setOpcodePort(const std::string &name)
Definition FUImplementation.cc:124
HDB::FUImplementation::hasOpcode
bool hasOpcode(const std::string &operation) const
Definition FUImplementation.cc:227
HDB::HWBlockImplementation::setModuleName
void setModuleName(const std::string &name)
Definition HWBlockImplementation.cc:142
HDB::HWBlockImplementation::setClkPort
void setClkPort(const std::string &name)
Definition HWBlockImplementation.cc:164
HDB::HWBlockImplementation::setRstPort
void setRstPort(const std::string &name)
Definition HWBlockImplementation.cc:186
HDB::HWBlockImplementation::setGlockPort
void setGlockPort(const std::string &name)
Definition HWBlockImplementation.cc:208
TTAMachine::FunctionUnit::operation
virtual HWOperation * operation(const std::string &name) const
Definition FunctionUnit.cc:363
TTAMachine::FunctionUnit::operationCount
virtual int operationCount() const
Definition FunctionUnit.cc:419
TTAMachine::HWOperation::name
const std::string & name() const
Definition HWOperation.cc:141
WxConversion::toString
static std::string toString(const wxString &source)

References architecture_, HDB::FUPortImplementation::architecturePort(), HDB::FUImplementation::architecturePort(), HDB::FUImplementation::architecturePortCount(), clkPort_, gLockPort_, gLockReqPort_, HDB::FUImplementation::hasOpcode(), implementation_, HDB::PortImplementation::name(), TTAMachine::HWOperation::name(), name_, opcodePort_, TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), rstPort_, HDB::HWBlockImplementation::setClkPort(), HDB::HWBlockImplementation::setGlockPort(), HDB::FUImplementation::setGlockReqPort(), HDB::HWBlockImplementation::setModuleName(), HDB::FUImplementation::setOpcodePort(), HDB::HWBlockImplementation::setRstPort(), WxConversion::toString(), and WxConversion::toWxString().

Here is the call graph for this function:

◆ onOpcodeSelection()

void FUImplementationDialog::onOpcodeSelection ( wxListEvent &  event)
private

Event handler for the opcode list selection changes.

Updates the enabled/disabled state of the set and clear opcode buttons.

Definition at line 734 of file FUImplementationDialog.cc.

734 {
735 std::string operation = WidgetTools::lcStringSelection(opcodeList_, 0);
736 if (operation == "") {
737 FindWindow(ID_SET_OPCODE)->Disable();
738 FindWindow(ID_CLEAR_OPCODE)->Disable();
739 } else {
740 FindWindow(ID_SET_OPCODE)->Enable();
741 if (implementation_.hasOpcode(operation)) {
742 FindWindow(ID_CLEAR_OPCODE)->Enable();
743 } else {
744 FindWindow(ID_CLEAR_OPCODE)->Disable();
745 }
746 }
747}

References HDB::FUImplementation::hasOpcode(), ID_CLEAR_OPCODE, ID_SET_OPCODE, implementation_, WidgetTools::lcStringSelection(), and opcodeList_.

Here is the call graph for this function:

◆ onParameterActivation()

void FUImplementationDialog::onParameterActivation ( wxListEvent &  event)
private

Event handler for the parameter list activateion.

Opens a FUImplementationParamaeterDialog for modifying the selected parameter.

Definition at line 604 of file FUImplementationDialog.cc.

604 {
605
606 FUImplementation::Parameter parameter = selectedParameter();
607 std::string oldName = parameter.name;
608
609 ImplementationParameterDialog dialog(this, -1, parameter);
610
611 if (dialog.ShowModal() == wxID_OK) {
612 implementation_.removeParameter(oldName);
613 implementation_.addParameter(
614 parameter.name, parameter.type, parameter.value);
615
616 // update external port parameter dependencies if needed
617 for (int i = 0; i < implementation_.externalPortCount(); i++) {
618 HDB::FUExternalPort& port = implementation_.externalPort(i);
619 if (port.unsetParameterDependency(oldName)) {
620 port.setParameterDependency(parameter.name);
621 }
622 }
623 }
624
625 update();
626}

References HDB::FUImplementation::addParameter(), HDB::FUImplementation::externalPort(), HDB::FUImplementation::externalPortCount(), implementation_, HDB::Parameter::name, HDB::FUImplementation::removeParameter(), selectedParameter(), HDB::ExternalPort::setParameterDependency(), HDB::Parameter::type, HDB::ExternalPort::unsetParameterDependency(), update(), and HDB::Parameter::value.

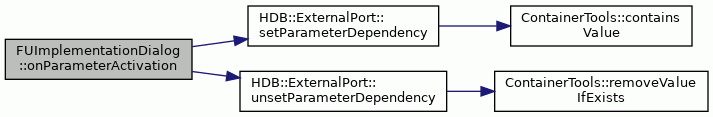

Here is the call graph for this function:

◆ onParameterSelection()

void FUImplementationDialog::onParameterSelection ( wxListEvent &  event)
private

Event handler for the parameter list selection changes.

Updates edit/delete parameter enabled/disabled states.

Definition at line 655 of file FUImplementationDialog.cc.

655 {
656 if (selectedParameter().name == "") {
657 FindWindow(ID_DELETE_PARAMETER)->Disable();
658 FindWindow(ID_EDIT_PARAMETER)->Disable();
659 } else {
660 FindWindow(ID_DELETE_PARAMETER)->Enable();
661 FindWindow(ID_EDIT_PARAMETER)->Enable();
662 }
663}

References ID_DELETE_PARAMETER, ID_EDIT_PARAMETER, and selectedParameter().

Referenced by update().

Here is the call graph for this function:

◆ onSetOpcode()

void FUImplementationDialog::onSetOpcode ( wxCommandEvent &  event)
private

Event handler for the set opcode button.

Sets the opcode for the selected operation.

Definition at line 775 of file FUImplementationDialog.cc.

775 {
776
777 std::string operation = WidgetTools::lcStringSelection(opcodeList_, 0);
778
779 if (operation == "") {
780 return;
781 }
782
783 int opcode = dynamic_cast<wxSpinCtrl*>(FindWindow(ID_OPCODE))->GetValue();
784
785 for (int i = 0; i < architecture_.operationCount(); i++) {
786 std::string operation = architecture_.operation(i)->name();
787 if (implementation_.hasOpcode(operation) &&
788 implementation_.opcode(operation) == opcode) {
789
790 wxString message = _T("Opcode ");
791 message.Append(WxConversion::toWxString(opcode));
792 message.Append(_T(" is already used by operation "));
793 message.Append(WxConversion::toWxString(operation));
794 message.Append(_T("."));
795 InformationDialog dialog(this, message);
796 dialog.ShowModal();
797 return;
798 }
799 }
800
801 implementation_.setOpcode(operation, opcode);
802
803 update();
804}
HDB::FUImplementation::opcode
int opcode(const std::string &operation) const
Definition FUImplementation.cc:242
HDB::FUImplementation::setOpcode
void setOpcode(const std::string &operation, int opcode)
Definition FUImplementation.cc:169

References architecture_, HDB::FUImplementation::hasOpcode(), ID_OPCODE, implementation_, WidgetTools::lcStringSelection(), TTAMachine::HWOperation::name(), HDB::FUImplementation::opcode(), opcodeList_, TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), HDB::FUImplementation::setOpcode(), WxConversion::toWxString(), and update().

Here is the call graph for this function:

◆ onSourceFileSelection()

void FUImplementationDialog::onSourceFileSelection ( wxListEvent &  event)
private

Event handler for the source file list selection changes.

Updates delete source file and move up/down buttons enabled/disabled states.

Definition at line 961 of file FUImplementationDialog.cc.

961 {
962 if (WidgetTools::lcStringSelection(sourceList_, 0) == "") {
963 FindWindow(ID_DELETE_SOURCE)->Disable();
964 FindWindow(ID_MOVE_SOURCE_UP)->Disable();
965 FindWindow(ID_MOVE_SOURCE_DOWN)->Disable();
966 } else {
967 FindWindow(ID_DELETE_SOURCE)->Enable();
968 FindWindow(ID_MOVE_SOURCE_UP)->Enable();
969 FindWindow(ID_MOVE_SOURCE_DOWN)->Enable();
970 }
971}

References ID_DELETE_SOURCE, ID_MOVE_SOURCE_DOWN, ID_MOVE_SOURCE_UP, WidgetTools::lcStringSelection(), and sourceList_.

Here is the call graph for this function:

◆ selectedArchPort()

HDB::FUPortImplementation * FUImplementationDialog::selectedArchPort ( )
private

Returns pointer to the architecture port selected in the architecture port list.

Returns
Selected architecture port.

Definition at line 675 of file FUImplementationDialog.cc.

675 {
676
677 long item = -1;
678 item = archPortList_->GetNextItem(
679 item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
680
681 if (item == -1) {
682 return NULL;
683 }
684
685 return &implementation_.architecturePort(item);
686}

References HDB::FUImplementation::architecturePort(), archPortList_, and implementation_.

Referenced by onArchPortActivation(), onArchPortSelection(), and onEditArchitecturePort().

Here is the call graph for this function:

◆ selectedExternalPort()

HDB::FUExternalPort * FUImplementationDialog::selectedExternalPort ( )
private

Returns pointer to the external port selected in the external port list.

Returns
Selected external port.

Definition at line 694 of file FUImplementationDialog.cc.

694 {
695
696 long item = -1;
697 item = externalPortList_->GetNextItem(
698 item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
699
700 if (item == -1) {
701 return NULL;
702 }
703
704 return &implementation_.externalPort(item);
705}

References HDB::FUImplementation::externalPort(), externalPortList_, and implementation_.

Referenced by onDeleteExternalPort(), onEditExternalPort(), onExternalPortActivation(), and onExternalPortSelection().

Here is the call graph for this function:

◆ selectedParameter()

FUImplementation::Parameter FUImplementationDialog::selectedParameter ( )
private

Returns copy of the selected parameter in the parameter list.

Returns
Selected parameter.

Definition at line 713 of file FUImplementationDialog.cc.

713 {
714
715 long item = -1;
716 item = parameterList_->GetNextItem(
717 item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
718
719 if (item == -1) {
720 FUImplementation::Parameter empty = {"", "", ""};
721 return empty;
722 }
723
724 return implementation_.parameter(item);
725}
HDB::FUImplementation::parameter
Parameter parameter(int index) const
Definition FUImplementation.cc:457

References implementation_, HDB::FUImplementation::parameter(), and parameterList_.

Referenced by onDeleteParameter(), onEditParameter(), onParameterActivation(), and onParameterSelection().

Here is the call graph for this function:

◆ update()

void FUImplementationDialog::update ( bool  onInit = false)
private

Update handler Updates UI values to reflect new state. If called from constructor, fills default values for opcodes.

Parameters
onInitSet true whe called from constructor

Definition at line 247 of file FUImplementationDialog.cc.

247 {
248
249 // Update architecture port list.
250 archPortList_->DeleteAllItems();
251 for (int i = 0; i < implementation_.architecturePortCount(); i++) {
252
253 wxString portName = WxConversion::toWxString(
254 implementation_.architecturePort(i).name());
255
256 std::string archPortName =
257 implementation_.architecturePort(i).architecturePort();
258
259 const FUPort* port = architecture_.operationPort(archPortName);
260
261 // Append operation operands bound to this port to the
262 // otherwise meaningless port name.
263 archPortName += ":";
264 for (int j = 0; j < architecture_.operationCount(); j++) {
265 const HWOperation* operation = architecture_.operation(j);
266 if (operation->isBound(*port)) {
267
268 std::string io = Conversion::toString(operation->io(*port));
269 std::string operationName = operation->name();
270 archPortName =
271 archPortName + " " + operationName + "[" + io + "]";
272 }
273 }
274 archPortList_->InsertItem(i, portName);
275 archPortList_->SetItem(i, 1, WxConversion::toWxString(archPortName));
276 }
277
278 // Update external port list.
279 externalPortList_->DeleteAllItems();
280 for (int i = 0; i < implementation_.externalPortCount(); i++) {
281 wxString portName = WxConversion::toWxString(
282 implementation_.externalPort(i).name());
283 externalPortList_->InsertItem(i, portName);
284 }
285
286 // Update parameter list.
287 parameterList_->DeleteAllItems();
288 for (int i = 0; i < implementation_.parameterCount(); i++) {
289 const FUImplementation::Parameter parameter =
290 implementation_.parameter(i);
291 wxString param = WxConversion::toWxString(parameter.type);
292 param.Append(_T(": "));
293 param.Append(WxConversion::toWxString(parameter.name));
294 parameterList_->InsertItem(i, param);
295 parameterList_->SetItem(
296 i, 1, WxConversion::toWxString(parameter.value));
297 }
298
299 // Update source file list.
300 sourceList_->DeleteAllItems();
301 for (int i = 0; i < implementation_.implementationFileCount(); i++) {
302 wxString fileName = WxConversion::toWxString(
303 implementation_.file(i).pathToFile());
304 sourceList_->InsertItem(i, fileName);
305 }
306 if (implementation_.implementationFileCount() != 0) {
307 sourceList_->SetColumnWidth(0, wxLIST_AUTOSIZE);
308 }
309
310 // Update operation list.
311 opcodeList_->DeleteAllItems();
312 // arrange operations in alphabetical order
313 std::set<std::string> opcodeSet;
314 for (int i = 0; i < architecture_.operationCount(); i++) {
315 std::string operation = architecture_.operation(i)->name();
316 opcodeSet.insert(operation);
317 }
318 // operation opcodes should be generated according to the alphabetical
319 // order
320 int index = 0;
321 for (std::set<std::string>::iterator i = opcodeSet.begin();
322 i != opcodeSet.end(); i++) {
323 std::string operation = *i;
324 wxString opcode = _T("");
325 if (implementation_.hasOpcode(operation)) {
326 int opcodeIndex = implementation_.opcode(operation);
327 if (opcodeIndex != index && !opcodeWarningShowed_) {
328#ifdef ALLOW_OPCODE_EDITING
329 // show warning about future incompatibility
330 wxMessageDialog errorDialog(
331 this,
332 _T("Illegal opcodes. Design might not work in future. "
333 "Opcode IDs must be generated according to the "
334 "alphabetical order of operation names. Please fix "
335 "FU's vhdl code and HDB entry"),
336 _T("Illegal opcodes"), wxOK);
337#else
338 // operations must be in alphaberical order
339 wxMessageDialog errorDialog(
340 this,
341 _T("Illegal opcodes. Design won't work. Opcode IDs must "
342 "be generated according to the alphabetical order of "
343 "operation names."),
344 _T("Illegal opcodes"), wxOK);
345#endif
346 opcodeWarningShowed_ = true;
347 errorDialog.ShowModal();
348 }
349 opcode =
350 WxConversion::toWxString(implementation_.opcode(operation));
351 }
352#ifndef ALLOW_OPCODE_EDITING
353 else {
354 // add default opcode (without ability to modify it)
355 opcode = WxConversion::toWxString(index);
356 }
357#else
358 else if (onInit) {
359 // add default opcode
360 opcode = WxConversion::toWxString(index);
361 implementation_.setOpcode(operation, index);
362 }
363#endif
364 wxString operationName = WxConversion::toWxString(operation);
365 opcodeList_->InsertItem(index, operationName);
366 opcodeList_->SetItem(index, 1, opcode);
367 ++index;
368 }
369
370 wxListEvent dummy;
371 onArchPortSelection(dummy);
372 onExternalPortSelection(dummy);
373 onParameterSelection(dummy);
374}
dummy
SimValue dummy(32)
a dummy simvalue which is given for operands that are not bound
Conversion::toString
static std::string toString(const T &source)
FUImplementationDialog::onArchPortSelection
void onArchPortSelection(wxListEvent &event)
Definition FUImplementationDialog.cc:407
FUImplementationDialog::onExternalPortSelection
void onExternalPortSelection(wxListEvent &event)
Definition FUImplementationDialog.cc:522
FUImplementationDialog::onParameterSelection
void onParameterSelection(wxListEvent &event)
Definition FUImplementationDialog.cc:655
HDB::ExternalPort::name
std::string name() const
Definition ExternalPort.cc:84
TTAMachine::FunctionUnit::operationPort
virtual FUPort * operationPort(const std::string &name) const
Definition FunctionUnit.cc:224
TTAMachine::HWOperation::io
int io(const FUPort &port) const
Definition HWOperation.cc:364
TTAMachine::HWOperation::isBound
bool isBound(const FUPort &port) const
Definition HWOperation.cc:338

References architecture_, HDB::FUPortImplementation::architecturePort(), HDB::FUImplementation::architecturePort(), HDB::FUImplementation::architecturePortCount(), archPortList_, dummy, HDB::FUImplementation::externalPort(), HDB::FUImplementation::externalPortCount(), externalPortList_, HDB::HWBlockImplementation::file(), HDB::FUImplementation::hasOpcode(), implementation_, HDB::HWBlockImplementation::implementationFileCount(), TTAMachine::HWOperation::io(), TTAMachine::HWOperation::isBound(), HDB::ExternalPort::name(), HDB::Parameter::name, HDB::PortImplementation::name(), TTAMachine::HWOperation::name(), onArchPortSelection(), onExternalPortSelection(), onParameterSelection(), HDB::FUImplementation::opcode(), opcodeList_, opcodeWarningShowed_, TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), TTAMachine::FunctionUnit::operationPort(), HDB::FUImplementation::parameter(), HDB::FUImplementation::parameterCount(), parameterList_, HDB::BlockImplementationFile::pathToFile(), HDB::FUImplementation::setOpcode(), sourceList_, Conversion::toString(), WxConversion::toWxString(), HDB::Parameter::type, and HDB::Parameter::value.

Referenced by onAddExternalPort(), onAddParameter(), onAddSourceFile(), onArchPortActivation(), onClearOpcode(), onDeleteExternalPort(), onDeleteParameter(), onDeleteSourceFile(), onEditArchitecturePort(), onEditExternalPort(), onEditParameter(), onExternalPortActivation(), onMoveSourceFileDown(), onMoveSourceFileUp(), onParameterActivation(), and onSetOpcode().

Here is the call graph for this function:

Member Data Documentation

◆ architecture_

const TTAMachine::FunctionUnit& FUImplementationDialog::architecture_
private

Function unit architecture the FUImplementation implements.

Definition at line 143 of file FUImplementationDialog.hh.

Referenced by onArchPortActivation(), onEditArchitecturePort(), onOK(), onSetOpcode(), and update().

◆ archPortList_

wxListCtrl* FUImplementationDialog::archPortList_
private

Pointer to the architecture port list widget.

Definition at line 148 of file FUImplementationDialog.hh.

Referenced by selectedArchPort(), and update().

◆ clkPort_

wxString FUImplementationDialog::clkPort_
private

Definition at line 160 of file FUImplementationDialog.hh.

Referenced by onOK().

◆ externalPortList_

wxListCtrl* FUImplementationDialog::externalPortList_
private

Pointer to the external port list widget.

Definition at line 150 of file FUImplementationDialog.hh.

Referenced by selectedExternalPort(), and update().

◆ gLockPort_

wxString FUImplementationDialog::gLockPort_
private

Definition at line 162 of file FUImplementationDialog.hh.

Referenced by onOK().

◆ gLockReqPort_

wxString FUImplementationDialog::gLockReqPort_
private

Definition at line 163 of file FUImplementationDialog.hh.

Referenced by onOK().

◆ implementation_

HDB::FUImplementation& FUImplementationDialog::implementation_
private

FU Implementation to modify.

Definition at line 141 of file FUImplementationDialog.hh.

Referenced by onAddExternalPort(), onAddParameter(), onAddSourceFile(), onClearOpcode(), onDeleteExternalPort(), onDeleteParameter(), onDeleteSourceFile(), onEditExternalPort(), onEditParameter(), onExternalPortActivation(), onMoveSourceFileDown(), onMoveSourceFileUp(), onOK(), onOpcodeSelection(), onParameterActivation(), onSetOpcode(), selectedArchPort(), selectedExternalPort(), selectedParameter(), and update().

◆ name_

wxString FUImplementationDialog::name_
private

Definition at line 158 of file FUImplementationDialog.hh.

Referenced by onOK().

◆ opcodeList_

wxListCtrl* FUImplementationDialog::opcodeList_
private

Pointer to the opcode list widget.

Definition at line 154 of file FUImplementationDialog.hh.

Referenced by onClearOpcode(), onOpcodeSelection(), onSetOpcode(), and update().

◆ opcodePort_

wxString FUImplementationDialog::opcodePort_
private

Definition at line 159 of file FUImplementationDialog.hh.

Referenced by onOK().

◆ opcodeWarningShowed_

bool FUImplementationDialog::opcodeWarningShowed_
private

Definition at line 145 of file FUImplementationDialog.hh.

Referenced by update().

◆ parameterList_

wxListCtrl* FUImplementationDialog::parameterList_
private

Pointer to the parameter list widget.

Definition at line 152 of file FUImplementationDialog.hh.

Referenced by selectedParameter(), and update().

◆ rstPort_

wxString FUImplementationDialog::rstPort_
private

Definition at line 161 of file FUImplementationDialog.hh.

Referenced by onOK().

◆ sourceList_

wxListCtrl* FUImplementationDialog::sourceList_
private

Pointer to the source file list widget.

Definition at line 156 of file FUImplementationDialog.hh.

Referenced by onDeleteSourceFile(), onMoveSourceFileDown(), onMoveSourceFileUp(), onSourceFileSelection(), and update().

The documentation for this class was generated from the following files:
Generated by doxygen 1.9.8
