Figure Class Reference

#include <Figure.hh>

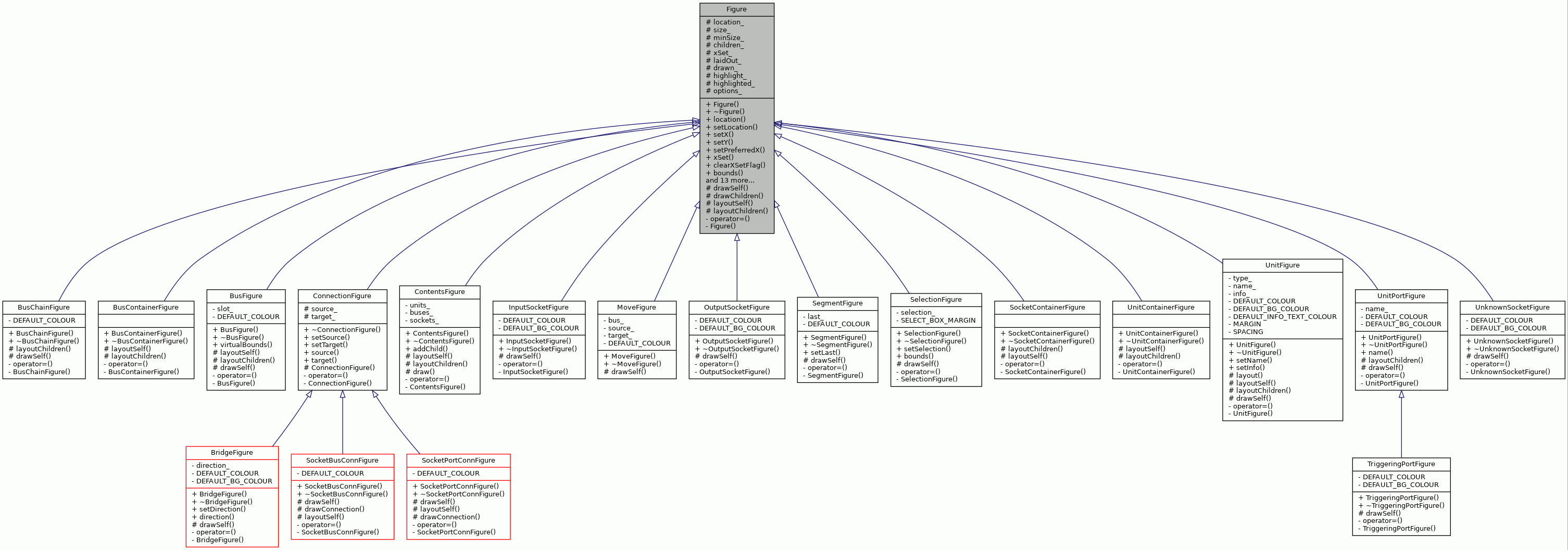

Inheritance diagram for Figure:

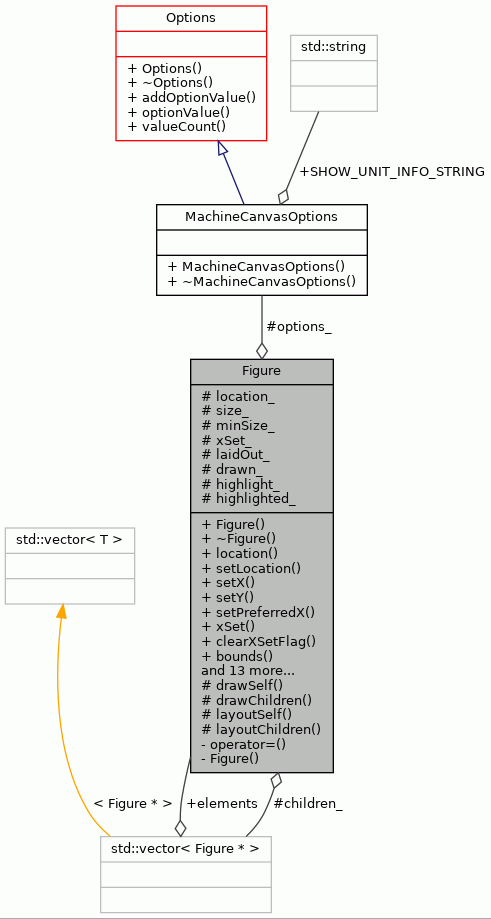

Collaboration diagram for Figure:

Public Member Functions
	Figure ()
virtual	~Figure ()
wxPoint	location () const
void	setLocation (wxPoint point)
void	setX (int x)
void	setY (int y)
void	setPreferredX (int x)
bool	xSet () const
void	clearXSetFlag ()
virtual wxRect	bounds () const
virtual wxRect	virtualBounds () const
void	setBounds (wxSize bounds)
void	setWidth (int width)
void	setHeight (int height)
virtual void	addChild (Figure *child)
int	childCount () const
Figure *	child (int index) const
virtual void	layout (wxDC *dc)
virtual void	draw (wxDC *dc)
void	highlight (const wxColour &colour)
void	clearHighlight ()
void	setOptions (MachineCanvasOptions *options)
MachineCanvasOptions *	options ()

Protected Member Functions
virtual void	drawSelf (wxDC *dc)
void	drawChildren (wxDC *dc)
virtual void	layoutSelf (wxDC *)
virtual void	layoutChildren (wxDC *)

Protected Attributes
wxPoint	location_
	Top-left location of the Figure's bounding rectangle.
wxSize	size_
	wxSize of the Figure's bounding rectangle.
wxSize	minSize_
	Figure's minimum size.
std::vector< Figure * >	children_
	Figure's children.
bool	xSet_
	Tells if x-coordinate has been fixed.
bool	laidOut_
	Tells whether the Figure and its children have been laid out or not.
bool	drawn_
	Tells whether the Figure and its children have been drawn or not.
wxColour	highlight_
	Highlight colour.
bool	highlighted_
	Tells if the figure is highlighted.
MachineCanvasOptions *	options_
	Options which are used for customizing figures.

Private Member Functions
Figure &	operator= (Figure &old)
	Assignment not allowed.
	Figure (Figure &old)
	Copying not allowed.

Detailed Description

Abstract base class for classes that represent the visuals of a machine block.

Can draw itself on the given device context. May contain other Figures as children, and in that case, knows also how to layout them.

Definition at line 50 of file Figure.hh.

Constructor & Destructor Documentation

Figure() [1/2]

Figure::Figure

(

)

The Constructor.

Definition at line 44 of file Figure.cc.

              :
    location_(wxPoint(0,0)), size_(wxSize(0,0)), minSize_(wxSize(0,0)),
    xSet_(false), laidOut_(false), drawn_(false), highlight_(*wxRED),
    highlighted_(false), options_(NULL) {
}

~Figure()

Figure::~Figure ( )

virtual

The Destructor.

Definition at line 53 of file Figure.cc.

                {
}

Figure() [2/2]

Figure::Figure ( Figure &  old )

private

Copying not allowed.

Member Function Documentation

addChild()

virtual void Figure::addChild ( Figure *  child )

virtual

Reimplemented in ContentsFigure.

Referenced by EditPart::addChild(), and ContentsFigure::addChild().

bounds()

virtual wxRect Figure::bounds ( ) const

virtual

Reimplemented in SelectionFigure.

Referenced by SelectionFigure::bounds(), SocketBusConnFigure::drawConnection(), SocketPortConnFigure::drawConnection(), MoveFigure::drawSelf(), SelectionFigure::drawSelf(), MachineCanvas::getFigureSize(), ContentsFigure::layoutChildren(), UnitFigure::layoutChildren(), BusContainerFigure::layoutSelf(), ContentsFigure::layoutSelf(), SocketContainerFigure::layoutSelf(), UnitContainerFigure::layoutSelf(), SocketBusConnFigure::layoutSelf(), SocketPortConnFigure::layoutSelf(), MachineCanvas::OnDraw(), MachineCanvas::refreshToolFigure(), and setBounds().

child()

Figure * Figure::child

(

int

index

)

const

Referenced by UnitFigure::layoutChildren().

childCount()

int Figure::childCount

(

)

const

Referenced by UnitFigure::layoutChildren(), and BusFigure::virtualBounds().

clearHighlight()

void Figure::clearHighlight

(

)

Clears highlighting of the figure.

The highlight is cleared next time the figure is drawn. This function has no effect if the figure isn't highlighted.

Definition at line 165 of file Figure.cc.

                       {
    highlighted_ = false;
    // Clear highlighting of child figures.
    vector<Figure*>::iterator i = children_.begin();
    for (; i != children_.end(); i++) {
    (*i)->clearHighlight();
    }
}

References children_, and highlighted_.

Referenced by MachineCanvas::clearHighlights().

clearXSetFlag()

void Figure::clearXSetFlag

(

)

draw()

void Figure::draw ( wxDC *  dc )

virtual

Draws the Figure and its children on the given device context.

Parameters

dc	The device context to draw the Figure on.

Note

The Figure must be laid out before drawing!

Reimplemented in ContentsFigure.

Definition at line 138 of file Figure.cc.

                     {
    assert(laidOut_ == true);
    drawSelf(dc);
    drawChildren(dc);
    drawn_ = true;
}

References assert, drawChildren(), drawn_, drawSelf(), and laidOut_.

Referenced by ContentsFigure::draw(), and MachineCanvas::OnDraw().

Here is the call graph for this function:

drawChildren()

void Figure::drawChildren ( wxDC *  dc )

protected

Draws the Figure's children.

Parameters

dc	The device context to draw the children on.

Definition at line 151 of file Figure.cc.

                             {
    vector<Figure*>::iterator i = children_.begin();
    for (; i != children_.end(); i++) {
    (*i)->draw(dc);
    }
}

References children_.

Referenced by draw().

drawSelf()

virtual void Figure::drawSelf ( wxDC *  dc )

protectedvirtual

Reimplemented in BusChainFigure, BusFigure, UnitFigure, BidirBridgeFigure, BridgeFigure, InputSocketFigure, MoveFigure, OutputSocketFigure, SegmentFigure, SelectionFigure, SocketBusConnFigure, SocketPortConnFigure, TriggeringPortFigure, UnitPortFigure, UnknownSocketFigure, SocketBusConnToolFigure, and SocketPortConnToolFigure.

Referenced by draw().

highlight()

void Figure::highlight

(

const wxColour &

colour

)

Highlights the figure with given colour.

The figure is highlighted next time it's drawn.

Parameters

colour

Highlight colour.

Definition at line 182 of file Figure.cc.

                                        {

    highlight_ = colour;
    highlighted_ = true;
    // Highlight child figures.
    vector<Figure*>::iterator i = children_.begin();
    for (; i != children_.end(); i++) {
    (*i)->highlight(colour);
    }
}

References children_, highlight_, and highlighted_.

Referenced by MachineCanvas::highlight().

layout()

void Figure::layout ( wxDC *  dc )

virtual

Lays out the Figure and its children.

Parameters

dc	The device context to layout children on.

Reimplemented in UnitFigure.

Definition at line 109 of file Figure.cc.

                       {
    layoutChildren(dc);
    layoutSelf(dc);
    laidOut_ = true;
}

References laidOut_, layoutChildren(), and layoutSelf().

Referenced by ContentsFigure::layoutChildren(), MachineCanvas::OnDraw(), and MachineCanvas::refreshToolFigure().

Here is the call graph for this function:

layoutChildren()

void Figure::layoutChildren ( wxDC *  dc )

protectedvirtual

Empty default implementation that can be used if no specific laying out needs to be done or the Figure doesn't have children.

Tells all children to layout themselves.

Parameters

dc	Device context.

Reimplemented in BidirBridgeFigure, BusChainFigure, BusContainerFigure, BusFigure, ContentsFigure, SocketContainerFigure, UnitContainerFigure, UnitFigure, and UnitPortFigure.

Definition at line 124 of file Figure.cc.

                               {
    vector<Figure*>::iterator i = children_.begin();
    for (; i != children_.end(); i++) {
    (*i)->layout(dc);
    }
}

References children_.

Referenced by layout().

layoutSelf()

virtual void Figure::layoutSelf ( wxDC *  )

protectedvirtual

Reimplemented in BusContainerFigure, BusFigure, ContentsFigure, SocketContainerFigure, UnitContainerFigure, UnitFigure, SocketBusConnFigure, and SocketPortConnFigure.

Referenced by layout().

location()

wxPoint Figure::location

(

)

const

Referenced by SocketBusConnFigure::drawConnection(), SocketPortConnFigure::drawConnection(), MoveFigure::drawSelf(), UnitPortFigure::layoutChildren(), SocketContainerFigure::layoutSelf(), UnitContainerFigure::layoutSelf(), SocketBusConnFigure::layoutSelf(), and SocketPortConnFigure::layoutSelf().

operator=()

Figure & Figure::operator= ( Figure &  old )

private

Assignment not allowed.

options()

MachineCanvasOptions * Figure::options

(

)

Returns the options object used by this figure and it's children.

Returns

Current figure options.

Definition at line 199 of file Figure.cc.

                {
    return options_;
}

References options_.

Referenced by UnitFigure::drawSelf(), UnitFigure::layoutSelf(), and setOptions().

setBounds()

void Figure::setBounds

(

wxSize

bounds

)

Sets the size of the Figure's bounding rectangle.

Parameters

bounds

New size.

Definition at line 62 of file Figure.cc.

                               {
    if (bounds.GetHeight() < size_.GetHeight()) {
    size_.SetHeight(minSize_.GetHeight());
    } else {
    size_.SetHeight(bounds.GetHeight());
    }
    if (bounds.GetWidth() < size_.GetWidth()) {
    size_.SetWidth(minSize_.GetWidth());
    } else {
    size_.SetWidth(bounds.GetWidth());
    }
}

References bounds(), minSize_, and size_.

Here is the call graph for this function:

setHeight()

void Figure::setHeight

(

int

height

)

Sets the height of the Figure.

Parameters

height

New height.

Definition at line 95 of file Figure.cc.

                            {
    if (height < minSize_.GetHeight()) {
    size_.SetHeight(minSize_.GetHeight());
    } else {
    size_.SetHeight(height);
    }
}

References minSize_, and size_.

Referenced by ContentsFigure::layoutChildren(), SocketBusConnFigure::layoutSelf(), and SocketPortConnFigure::layoutSelf().

setLocation()

void Figure::setLocation

(

wxPoint

point

)

Referenced by BusContainerFigure::layoutChildren(), ContentsFigure::layoutChildren(), UnitContainerFigure::layoutChildren(), SocketBusConnFigure::layoutSelf(), and SocketPortConnFigure::layoutSelf().

setOptions()

void Figure::setOptions

(

MachineCanvasOptions *

options

)

Sets the options object used for setting drawing options.

Options are set recursively for figure children.

Parameters

options

Options to set.

Definition at line 212 of file Figure.cc.

                                                {
    vector<Figure*>::iterator i = children_.begin();
    for (; i != children_.end(); i++) {
    (*i)->setOptions(options);
    }
    options_ = options;
}

References children_, options(), and options_.

Referenced by MachineCanvas::updateMachine().

Here is the call graph for this function:

setPreferredX()

void Figure::setPreferredX

(

int

x

)

setWidth()

void Figure::setWidth

(

int

width

)

Sets the width of the Figure.

Parameters

width

New width.

Definition at line 81 of file Figure.cc.

                          {
    if (width < minSize_.GetWidth()) {
    size_.SetWidth(minSize_.GetWidth());
    } else {
    size_.SetWidth(width);
    }
}

References minSize_, and size_.

Referenced by ContentsFigure::layoutChildren(), SocketBusConnFigure::layoutSelf(), and SocketPortConnFigure::layoutSelf().

setX()

void Figure::setX

(

int

x

)

Referenced by BidirBridgeFigure::layoutChildren(), and SocketContainerFigure::layoutChildren().

setY()

void Figure::setY

(

int

y

)

virtualBounds()

virtual wxRect Figure::virtualBounds ( ) const

virtual

Reimplemented in BusFigure.

Referenced by EditPart::find(), EditPart::findInRange(), and EditPart::findNearest().

xSet()

bool Figure::xSet

(

)

const

Referenced by UnitContainerFigure::layoutChildren(), and UnitPortFigure::layoutChildren().

Member Data Documentation

children_

std::vector<Figure*> Figure::children_

protected

Figure's children.

Definition at line 90 of file Figure.hh.

Referenced by clearHighlight(), drawChildren(), BusFigure::drawSelf(), highlight(), BidirBridgeFigure::layoutChildren(), BusChainFigure::layoutChildren(), BusContainerFigure::layoutChildren(), BusFigure::layoutChildren(), layoutChildren(), SocketContainerFigure::layoutChildren(), UnitContainerFigure::layoutChildren(), UnitFigure::layoutChildren(), UnitPortFigure::layoutChildren(), BusContainerFigure::layoutSelf(), BusFigure::layoutSelf(), SocketContainerFigure::layoutSelf(), UnitContainerFigure::layoutSelf(), UnitFigure::layoutSelf(), and setOptions().

drawn_

bool Figure::drawn_

protected

Tells whether the Figure and its children have been drawn or not.

Definition at line 97 of file Figure.hh.

Referenced by draw().

highlight_

wxColour Figure::highlight_

protected

Highlight colour.

Definition at line 99 of file Figure.hh.

Referenced by UnitFigure::drawSelf(), InputSocketFigure::drawSelf(), OutputSocketFigure::drawSelf(), SegmentFigure::drawSelf(), TriggeringPortFigure::drawSelf(), UnitPortFigure::drawSelf(), and highlight().

highlighted_

bool Figure::highlighted_

protected

Tells if the figure is highlighted.

Definition at line 101 of file Figure.hh.

Referenced by clearHighlight(), UnitFigure::drawSelf(), InputSocketFigure::drawSelf(), OutputSocketFigure::drawSelf(), SegmentFigure::drawSelf(), TriggeringPortFigure::drawSelf(), UnitPortFigure::drawSelf(), and highlight().

laidOut_

bool Figure::laidOut_

protected

Tells whether the Figure and its children have been laid out or not.

Definition at line 95 of file Figure.hh.

Referenced by draw(), UnitFigure::layout(), layout(), and MoveFigure::MoveFigure().

location_

wxPoint Figure::location_

protected

Top-left location of the Figure's bounding rectangle.

Definition at line 84 of file Figure.hh.

Referenced by BusChainFigure::drawSelf(), BusFigure::drawSelf(), UnitFigure::drawSelf(), BridgeFigure::drawSelf(), InputSocketFigure::drawSelf(), OutputSocketFigure::drawSelf(), SegmentFigure::drawSelf(), TriggeringPortFigure::drawSelf(), UnitPortFigure::drawSelf(), UnknownSocketFigure::drawSelf(), BidirBridgeFigure::layoutChildren(), BusChainFigure::layoutChildren(), BusContainerFigure::layoutChildren(), BusFigure::layoutChildren(), ContentsFigure::layoutChildren(), SocketContainerFigure::layoutChildren(), UnitContainerFigure::layoutChildren(), UnitFigure::layoutChildren(), UnitPortFigure::layoutChildren(), SocketContainerFigure::layoutSelf(), UnitContainerFigure::layoutSelf(), and BusFigure::virtualBounds().

minSize_

wxSize Figure::minSize_

protected

Figure's minimum size.

Definition at line 88 of file Figure.hh.

Referenced by BidirBridgeFigure::BidirBridgeFigure(), BusChainFigure::BusChainFigure(), BusFigure::BusFigure(), UnitFigure::layoutSelf(), SegmentFigure::SegmentFigure(), setBounds(), setHeight(), setWidth(), and UnitFigure::UnitFigure().

options_

MachineCanvasOptions* Figure::options_

protected

Options which are used for customizing figures.

Definition at line 104 of file Figure.hh.

Referenced by options(), and setOptions().

size_

wxSize Figure::size_

protected

wxSize of the Figure's bounding rectangle.

Definition at line 86 of file Figure.hh.

Referenced by BidirBridgeFigure::BidirBridgeFigure(), BridgeFigure::BridgeFigure(), BusChainFigure::BusChainFigure(), BusFigure::BusFigure(), SocketBusConnFigure::drawConnection(), BusChainFigure::drawSelf(), BusFigure::drawSelf(), UnitFigure::drawSelf(), BridgeFigure::drawSelf(), InputSocketFigure::drawSelf(), OutputSocketFigure::drawSelf(), SegmentFigure::drawSelf(), TriggeringPortFigure::drawSelf(), UnitPortFigure::drawSelf(), UnknownSocketFigure::drawSelf(), InputSocketFigure::InputSocketFigure(), BidirBridgeFigure::layoutChildren(), BusChainFigure::layoutChildren(), BusContainerFigure::layoutChildren(), BusFigure::layoutChildren(), SocketContainerFigure::layoutChildren(), UnitFigure::layoutChildren(), UnitPortFigure::layoutChildren(), BusContainerFigure::layoutSelf(), BusFigure::layoutSelf(), ContentsFigure::layoutSelf(), SocketContainerFigure::layoutSelf(), UnitContainerFigure::layoutSelf(), UnitFigure::layoutSelf(), OutputSocketFigure::OutputSocketFigure(), SegmentFigure::SegmentFigure(), setBounds(), setHeight(), setWidth(), UnitFigure::UnitFigure(), UnitPortFigure::UnitPortFigure(), UnknownSocketFigure::UnknownSocketFigure(), and BusFigure::virtualBounds().

xSet_

bool Figure::xSet_

protected

Tells if x-coordinate has been fixed.

Definition at line 93 of file Figure.hh.

---

The documentation for this class was generated from the following files:

• Figure.hh
• Figure.cc
