#include <UnitFigure.hh>

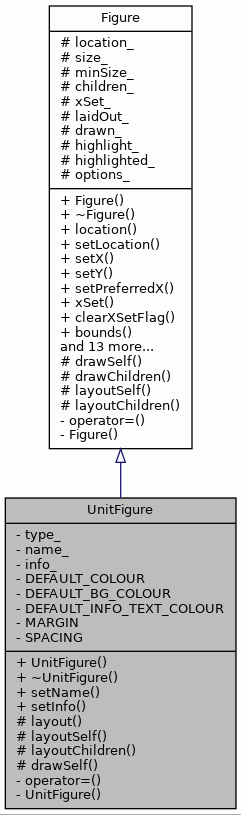

Inheritance diagram for UnitFigure:

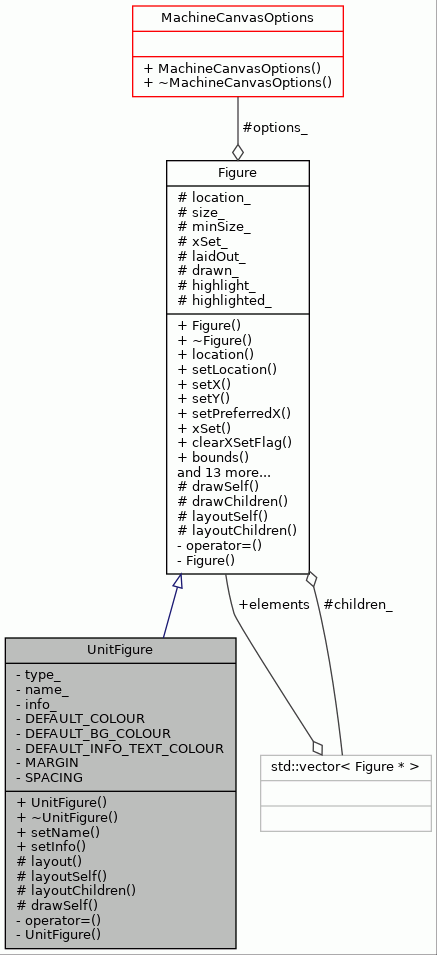

Collaboration diagram for UnitFigure:

Public Member Functions
	UnitFigure ()

virtual	~UnitFigure ()

void	setName (const wxString &name)

void	setInfo (const wxString &info)

Public Member Functions inherited from Figure
	Figure ()

virtual	~Figure ()

wxPoint	location () const

void	setLocation (wxPoint point)

void	setX (int x)

void	setY (int y)

void	setPreferredX (int x)

bool	xSet () const

void	clearXSetFlag ()

virtual wxRect	bounds () const

virtual wxRect	virtualBounds () const

void	setBounds (wxSize bounds)

void	setWidth (int width)

void	setHeight (int height)

virtual void	addChild (Figure *child)

int	childCount () const

Figure *	child (int index) const

virtual void	draw (wxDC *dc)

void	highlight (const wxColour &colour)

void	clearHighlight ()

void	setOptions (MachineCanvasOptions *options)

MachineCanvasOptions *	options ()

Protected Member Functions
virtual void	layout (wxDC *)

virtual void	layoutSelf (wxDC *)

virtual void	layoutChildren (wxDC *)

virtual void	drawSelf (wxDC *)

Protected Member Functions inherited from Figure
void	drawChildren (wxDC *dc)

Private Member Functions
UnitFigure &	operator= (UnitFigure &old)
	Assignment not allowed.

	UnitFigure (UnitFigure &old)
	Copying not allowed.

Private Attributes
wxString	type_
	Type identifier of the unit.

wxString	name_
	Name of the unit.

wxString	info_
	Extra information string describing the unit.

Static Private Attributes
static const wxColour	DEFAULT_COLOUR = wxColour(0, 0, 0)
	Default colour for the figure.

static const wxColour	DEFAULT_BG_COLOUR = wxColour(255, 255, 255)
	Default background colour for the figure.

static const wxColour	DEFAULT_INFO_TEXT_COLOUR = wxColour(150, 150, 150)
	Default info string colour for the figure.

static const int	MARGIN = 5
	Top and bottom margin in pixels.

static const int	SPACING = 5
	Space between text rows in pixels.

Additional Inherited Members
Protected Attributes inherited from Figure
wxPoint	location_
	Top-left location of the Figure's bounding rectangle.

wxSize	size_
	wxSize of the Figure's bounding rectangle.

wxSize	minSize_
	Figure's minimum size.

std::vector< Figure * >	children_
	Figure's children.

bool	xSet_
	Tells if x-coordinate has been fixed.

bool	laidOut_
	Tells whether the Figure and its children have been laid out or not.

bool	drawn_
	Tells whether the Figure and its children have been drawn or not.

wxColour	highlight_
	Highlight colour.

bool	highlighted_
	Tells if the figure is highlighted.

MachineCanvasOptions *	options_
	Options which are used for customizing figures.

Detailed Description

Figure of a unit.

Definition at line 46 of file UnitFigure.hh.

Constructor & Destructor Documentation

◆ UnitFigure() [1/2]

UnitFigure::UnitFigure ( )

The Constructor.

Definition at line 60 of file UnitFigure.cc.

                      : Figure() {
    minSize_ = wxSize(
        MachineCanvasLayoutConstraints::UNIT_WIDTH,
        MachineCanvasLayoutConstraints::UNIT_HEIGHT);
    size_ = minSize_;
}

References Figure::minSize_, Figure::size_, MachineCanvasLayoutConstraints::UNIT_HEIGHT, and MachineCanvasLayoutConstraints::UNIT_WIDTH.

◆ ~UnitFigure()

UnitFigure::~UnitFigure ( )

virtual

The Destructor.

Definition at line 70 of file UnitFigure.cc.

70 {

71}

◆ UnitFigure() [2/2]

UnitFigure::UnitFigure ( UnitFigure & old )

private

Copying not allowed.

Member Function Documentation

◆ drawSelf()

void UnitFigure::drawSelf ( wxDC * dc )

protectedvirtual

Draws the function unit's Figure on the given device context.

Parameters

dc	The device context.

Reimplemented from Figure.

Definition at line 80 of file UnitFigure.cc.

                             {

    wxPen pen = wxPen(DEFAULT_COLOUR, 1, wxSOLID);
    dc->SetPen(pen);
    wxBrush brush = wxBrush(DEFAULT_BG_COLOUR, wxSOLID);
    if (highlighted_) {
        brush = wxBrush(highlight_, wxSOLID);
    }
    dc->SetBrush(brush);

    const bool drawInfoRow =
        (options() != NULL &&
         options()->optionValue(
             MachineCanvasOptions::SHOW_UNIT_INFO_STRING).isFlagOn());

    if (type_ == _T("FU:")) {
        if (!highlighted_) {
            if (info_.StartsWith(_T("{ AS:"))) {
                dc->SetBrush(wxBrush(wxColour(170,255,170),wxSOLID));
            } else {
                dc->SetBrush(wxBrush(wxColour(205,205,255),wxSOLID));
            }
        } else {
            if (info_.StartsWith(_T("{ AS:"))) {
                dc->SetBrush(wxBrush(wxColour((53+highlight_.Red()*2)/3,
                                              (82+highlight_.Green()*2)/3,
                                              (53+highlight_.Blue()*2)/3),
                                     wxSOLID));
            } else {
                dc->SetBrush(wxBrush(wxColour((68+highlight_.Red()*2)/3,
                                              (68+highlight_.Green()*2)/3,
                                              (82+highlight_.Blue()*2)/3),
                                     wxSOLID));
            }
        }
        dc->DrawRoundedRectangle(
            location_.x, location_.y, size_.GetWidth(),
            size_.GetHeight(), size_.GetHeight()*0.25);
    } else if (type_ == _T("GCU:")) {
        dc->SetBrush(wxBrush(wxColour(250,145,255), wxSOLID));
        dc->DrawRoundedRectangle(
            location_.x, location_.y, size_.GetWidth(),
            size_.GetHeight(), size_.GetHeight()*0.4);
    } else if (type_ == _T("IMM:")) {
        dc->SetBrush(wxBrush(wxColour(255,168,140),wxSOLID));
        wxPoint points[4];
        points[0] = wxPoint(size_.GetWidth()/2-10, size_.GetHeight());
        points[1] = wxPoint(size_.GetWidth()/2+10, size_.GetHeight());
        points[2] = wxPoint(size_.GetWidth(),0);
        points[3] = wxPoint(0,0);
        dc->DrawPolygon(
            4, points,
            location_.x, location_.y,
            wxODDEVEN_RULE);
    } else { // register file
        dc->SetBrush(wxBrush(wxColour(240,230,150),wxSOLID));
        dc->DrawRectangle(
            location_.x, location_.y, size_.GetWidth(),
            size_.GetHeight());
    }

    dc->SetBackgroundMode(wxTRANSPARENT);
    dc->SetTextForeground(DEFAULT_COLOUR);

    int typeWidth = 0;
    int typeHeight = 0;
    if (drawInfoRow) {
        dc->GetTextExtent(type_, &typeWidth, &typeHeight);

        int typeX = location_.x + size_.GetWidth() / 2 - typeWidth / 2;
        int typeY = location_.y + MARGIN;

        dc->DrawText(type_, typeX, typeY);
    }

    int nameWidth;
    int nameHeight;

    wxFont oldFont = dc->GetFont();
    if (!drawInfoRow) {
        // In case we do not write the details (operation set) to the unit,
        // print the name of the unit larger.
        dc->SetFont(wxFont(16, wxDEFAULT, wxNORMAL, wxNORMAL));
    }
    dc->GetTextExtent(name_, &nameWidth, &nameHeight);

    int nameX = location_.x + size_.GetWidth() / 2 - nameWidth / 2;
    int nameY = location_.y + MARGIN + typeHeight + SPACING;
    dc->DrawText(name_, nameX, nameY);

    if (!drawInfoRow) {
        dc->SetFont(oldFont);
    }

    if (drawInfoRow) {

        int infoWidth;
        int infoHeight;

        dc->GetTextExtent(info_, &infoWidth, &infoHeight);

        int infoX = location_.x + size_.GetWidth() / 2 - infoWidth / 2;
        int infoY =
            location_.y + MARGIN + typeHeight + SPACING + nameHeight + SPACING;

        dc->SetTextForeground(DEFAULT_INFO_TEXT_COLOUR);
        dc->DrawText(info_, infoX, infoY);
    }
}

References DEFAULT_BG_COLOUR, DEFAULT_COLOUR, DEFAULT_INFO_TEXT_COLOUR, Figure::highlight_, Figure::highlighted_, info_, OptionValue::isFlagOn(), Figure::location_, MARGIN, name_, Figure::options(), Options::optionValue(), MachineCanvasOptions::SHOW_UNIT_INFO_STRING, Figure::size_, SPACING, and type_.

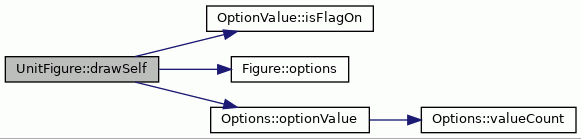

Here is the call graph for this function:

◆ layout()

void UnitFigure::layout ( wxDC * dc )

protectedvirtual

Lays the figure out.

Figure of the unit is laid out before it's children, so that the port Y-coordinate can be set correctly when laying out the ports.

Parameters

dc	Device cotnext to lay the figure out on.

Reimplemented from Figure.

Definition at line 336 of file UnitFigure.cc.

                           {
    layoutSelf(dc);
    layoutChildren(dc);
    laidOut_ = true;
}

References Figure::laidOut_, layoutChildren(), and layoutSelf().

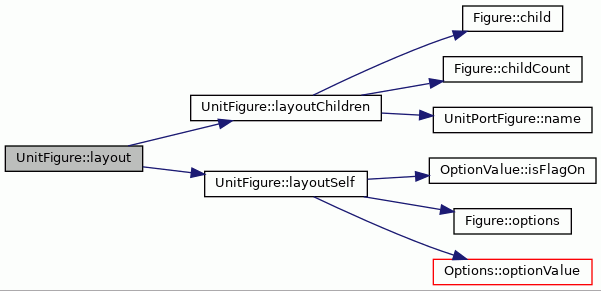

Here is the call graph for this function:

◆ layoutChildren()

void UnitFigure::layoutChildren ( wxDC * dc )

protectedvirtual

Lays out the ports to the bottom of the fu's Figure, spaced evenly.

Parameters

dc	Device context.

Reimplemented from Figure.

Definition at line 196 of file UnitFigure.cc.

                                   {

    // Sort port child figures to containers based on port directions.
    // Map with portname, figure pairs is used so that the ports
    // are automatically ordered by the port name.
    map<std::string, Figure*> inputPorts;
    map<std::string, Figure*> outputPorts;
    map<std::string, Figure*> bidirPorts;
    map<std::string, Figure*> trigPorts;
    map<std::string, Figure*> nodirPorts;

    vector<Figure*>::iterator i = children_.begin();
    for(; i != children_.end(); i++) {
        UnitPortFigure* fig = dynamic_cast<UnitPortFigure*>(*i);
        assert(fig != NULL);
        bool input = false;
        bool output = false;
        for (int j = 0; j < (fig->childCount()); j++) {
            Figure* socketFig = fig->child(j);
            if (dynamic_cast<InputSocketFigure*>(socketFig) != NULL) {
                input = true;
            } else if (dynamic_cast<OutputSocketFigure*>(socketFig) != NULL) {
                output = true;
            }
        }
        if (input && dynamic_cast<TriggeringPortFigure*>(fig) != NULL) {
            trigPorts[fig->name()] = fig;
        } else if (input && output) {
            bidirPorts[fig->name()] =  fig;
        } else if (input) {
            inputPorts[fig->name()]  = fig;
        } else if (output) {
            outputPorts[fig->name()] = fig;
        } else {
            nodirPorts[fig->name()] = fig;
        }
    }

    int portX = location_.x + MachineCanvasLayoutConstraints::PORT_SPACE;
    int portY = location_.y + size_.GetHeight();

    // if only single port, put it to middle.
    if (children_.size() == 1) {
        portX = location_.x + (size_.GetWidth()- children_[0]->bounds().GetWidth()) / 2;
    }

    // Layout input ports.
    map<std::string, Figure*>::iterator inIter = inputPorts.begin();
    for (; inIter != inputPorts.end(); inIter++) {
        portY -= (*inIter).second->bounds().GetHeight()/2;
        (*inIter).second->setLocation(wxPoint(portX, portY));
        (*inIter).second->layout(dc);
        portY = location_.y + size_.GetHeight();
        portX += (*inIter).second->bounds().GetWidth() +
            MachineCanvasLayoutConstraints::PORT_SPACE;
    }

    // Layout triggering ports.
    map<std::string, Figure*>::iterator trigIter = trigPorts.begin();
    for (; trigIter != trigPorts.end(); trigIter++) {
        portY -= (*trigIter).second->bounds().GetHeight()/2;
        (*trigIter).second->setLocation(wxPoint(portX, portY));
        (*trigIter).second->layout(dc);
        portY = location_.y + size_.GetHeight();
        portX += (*trigIter).second->bounds().GetWidth() +
            MachineCanvasLayoutConstraints::PORT_SPACE;
    }

    // Layout bidirectional ports.
    map<std::string, Figure*>::iterator bdIter = bidirPorts.begin();
    for (; bdIter != bidirPorts.end(); bdIter++) {
        portY -= (*bdIter).second->bounds().GetHeight()/2;
        (*bdIter).second->setLocation(wxPoint(portX, portY));
        (*bdIter).second->layout(dc);
        portY = location_.y + size_.GetHeight();
        portX += (*bdIter).second->bounds().GetWidth() +
            MachineCanvasLayoutConstraints::PORT_SPACE;
    }

    // Layout output ports.
    map<std::string, Figure*>::iterator outIter = outputPorts.begin();
    for (; outIter != outputPorts.end(); outIter++) {
        portY -= (*outIter).second->bounds().GetHeight()/2;
        (*outIter).second->setLocation(wxPoint(portX, portY));
        (*outIter).second->layout(dc);
        portY = location_.y + size_.GetHeight();
        portX += (*outIter).second->bounds().GetWidth() +
            MachineCanvasLayoutConstraints::PORT_SPACE;
    }

    // Layout ports w/ no direction.
    map<std::string, Figure*>::iterator ndIter = nodirPorts.begin();
    for (; ndIter != nodirPorts.end(); ndIter++) {
        portY -= (*ndIter).second->bounds().GetHeight()/2;
        (*ndIter).second->setLocation(wxPoint(portX, portY));
        (*ndIter).second->layout(dc);
        portY = location_.y + size_.GetHeight();
        portX += (*ndIter).second->bounds().GetWidth() +
            MachineCanvasLayoutConstraints::PORT_SPACE;
    }
}

References assert, Figure::bounds(), Figure::child(), Figure::childCount(), Figure::children_, Figure::location_, UnitPortFigure::name(), MachineCanvasLayoutConstraints::PORT_SPACE, and Figure::size_.

Referenced by layout().

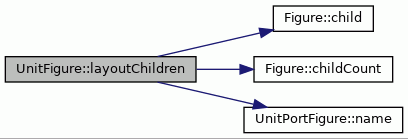

Here is the call graph for this function:

◆ layoutSelf()

void UnitFigure::layoutSelf ( wxDC * dc )

protectedvirtual

Calculates and sets the size of the unit.

Depends on its name and the amount of ports.

Parameters

dc	Device context.

Reimplemented from Figure.

Definition at line 350 of file UnitFigure.cc.

                               {

    bool showInfo = (options() != NULL) && options()->optionValue(
        MachineCanvasOptions::SHOW_UNIT_INFO_STRING).isFlagOn();

    int portsWidth = 0;

    vector<Figure*>::const_iterator i = children_.begin();
    for (; i != children_.end(); i++) {
        portsWidth += (*i)->bounds().GetWidth();
    }

    portsWidth +=
        (children_.size()+1) * MachineCanvasLayoutConstraints::PORT_SPACE;

    int nameWidth = 0;
    int nameHeight = 0;
    int infoWidth = 0;
    int infoHeight = 0;
    int typeWidth = 0;
    int typeHeight = 0;

    dc->GetTextExtent(name_, &nameWidth, &nameHeight);
    dc->GetTextExtent(type_, &typeWidth, &typeHeight);
    if (showInfo) {
        dc->GetTextExtent(info_, &infoWidth, &infoHeight);
    }
    nameWidth += MARGIN * 4;
    typeWidth += MARGIN * 4;
    infoWidth += MARGIN * 4;

    int maxWidth = MachineCanvasLayoutConstraints::MAX_UNIT_NAME_WIDTH;

    if (portsWidth > maxWidth) {
        maxWidth = portsWidth;
    }

    if ((nameWidth + 2 * MARGIN) > maxWidth) {

        unsigned int chars = 0;
        int charsExtent = 0;

        while ((charsExtent + 2 * MARGIN) < maxWidth) {
            int charWidth = 0;
            int charHeight = 0;
            dc->GetTextExtent(name_.GetChar(chars), &charWidth, &charHeight);
            charsExtent += charWidth;
            chars++;
            if (chars > name_.Len()) {
                break;
            }
        }

        name_.Truncate(chars - 5);
        name_.Append(_T("..."));
        dc->GetTextExtent(name_, &nameWidth, &nameHeight);
        nameWidth += 4 * MARGIN;
    }

    if (showInfo && (infoWidth + 2 * MARGIN) > maxWidth) {

        unsigned int chars = 0;
        int charsExtent = 0;

        while ((charsExtent + 2 * MARGIN) < maxWidth) {
            int charWidth = 0;
            int charHeight = 0;
            dc->GetTextExtent(info_.GetChar(chars), &charWidth, &charHeight);
            charsExtent += charWidth;
            chars++;
            if (chars > info_.Len()) {
                break;
            }
        }

        info_.Truncate(chars - 5);
        info_.Append(_T("..."));
        dc->GetTextExtent(info_, &infoWidth, &infoHeight);
        infoWidth += 4 * MARGIN;
    }

    if (infoWidth > size_.GetWidth() &&
        infoWidth >= nameWidth && infoWidth > portsWidth) {

        size_.SetWidth(infoWidth);

    } else if (nameWidth > size_.GetWidth() &&
               nameWidth > infoWidth && nameWidth > portsWidth) {

        size_.SetWidth(nameWidth);

    } else if (portsWidth > size_.GetWidth()) {
        size_.SetWidth(portsWidth);
    }

    // Set figure height.
    int height = 2 * MARGIN +  SPACING +  nameHeight +
        (MachineCanvasLayoutConstraints::PORT_WIDTH / 2);

    if (showInfo) {
        height += typeHeight + SPACING + infoHeight;
    }
    if (height > minSize_.GetHeight()) {
        size_.SetHeight(height);
    }
}

References Figure::children_, info_, OptionValue::isFlagOn(), MARGIN, MachineCanvasLayoutConstraints::MAX_UNIT_NAME_WIDTH, Figure::minSize_, name_, Figure::options(), Options::optionValue(), MachineCanvasLayoutConstraints::PORT_SPACE, MachineCanvasLayoutConstraints::PORT_WIDTH, MachineCanvasOptions::SHOW_UNIT_INFO_STRING, Figure::size_, SPACING, and type_.

Referenced by layout().

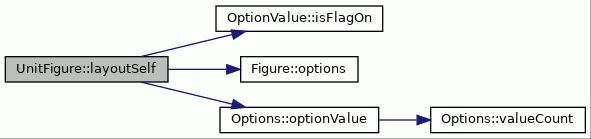

Here is the call graph for this function:

◆ operator=()

UnitFigure & UnitFigure::operator= ( UnitFigure & old )

private

Assignment not allowed.

◆ setInfo()

void UnitFigure::setInfo ( const wxString & info )

Sets the information string of the unit.

Parameters

info	New info string..

Definition at line 323 of file UnitFigure.cc.

                                        {
    info_ = info;
}

References info_.

Referenced by FUFactory::createEditPart(), GCUFactory::createEditPart(), IUFactory::createEditPart(), and RFFactory::createEditPart().

◆ setName()

void UnitFigure::setName ( const wxString & name )

Sets the name of the unit.

Parameters

name New name.

Definition at line 304 of file UnitFigure.cc.

                                        {
    int index = name.Find(':');
    if (index == -1) {
        type_ = _T("Unit:");
        name_ = name;
    } else {
        type_ = name.Mid(0, index + 1);
        type_.Trim();
        name_ = name.Mid(index + 2);
        name_.Trim();
    }
}

References name_, and type_.

Referenced by FUFactory::createEditPart(), GCUFactory::createEditPart(), IUFactory::createEditPart(), and RFFactory::createEditPart().

Member Data Documentation

◆ DEFAULT_BG_COLOUR

const wxColour UnitFigure::DEFAULT_BG_COLOUR = wxColour(255, 255, 255)

staticprivate

Default background colour for the figure.

Definition at line 76 of file UnitFigure.hh.

Referenced by drawSelf().

◆ DEFAULT_COLOUR

const wxColour UnitFigure::DEFAULT_COLOUR = wxColour(0, 0, 0)

staticprivate

Default colour for the figure.

Definition at line 74 of file UnitFigure.hh.

Referenced by drawSelf().

◆ DEFAULT_INFO_TEXT_COLOUR

const wxColour UnitFigure::DEFAULT_INFO_TEXT_COLOUR = wxColour(150, 150, 150)

staticprivate

Default info string colour for the figure.

Definition at line 78 of file UnitFigure.hh.

Referenced by drawSelf().

◆ info_

wxString UnitFigure::info_

private

Extra information string describing the unit.

Definition at line 71 of file UnitFigure.hh.

Referenced by drawSelf(), layoutSelf(), and setInfo().

◆ MARGIN

const int UnitFigure::MARGIN = 5

staticprivate

Top and bottom margin in pixels.

Definition at line 80 of file UnitFigure.hh.

Referenced by drawSelf(), and layoutSelf().

◆ name_

wxString UnitFigure::name_

private

Name of the unit.

Definition at line 69 of file UnitFigure.hh.

Referenced by drawSelf(), layoutSelf(), and setName().

◆ SPACING

const int UnitFigure::SPACING = 5

staticprivate

Space between text rows in pixels.

Definition at line 82 of file UnitFigure.hh.

Referenced by drawSelf(), and layoutSelf().

◆ type_

wxString UnitFigure::type_

private

Type identifier of the unit.

Definition at line 67 of file UnitFigure.hh.

Referenced by drawSelf(), layoutSelf(), and setName().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ UnitFigure() [1/2]

◆ ~UnitFigure()

◆ UnitFigure() [2/2]

Member Function Documentation

◆ drawSelf()

◆ layout()

◆ layoutChildren()

◆ layoutSelf()

◆ operator=()

◆ setInfo()

◆ setName()

Member Data Documentation

◆ DEFAULT_BG_COLOUR

◆ DEFAULT_COLOUR

◆ DEFAULT_INFO_TEXT_COLOUR

◆ info_

◆ MARGIN

◆ name_

◆ SPACING

◆ type_
