GhdlSimulator Class Reference

#include <GhdlSimulator.hh>

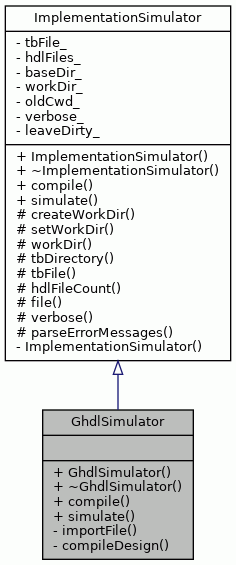

Inheritance diagram for GhdlSimulator:

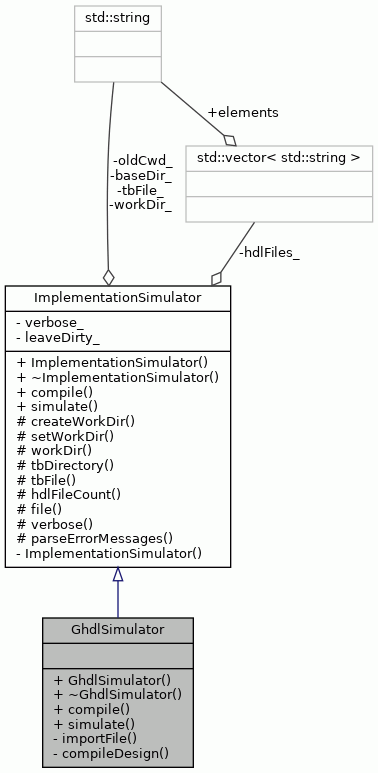

Collaboration diagram for GhdlSimulator:

Public Member Functions
	GhdlSimulator (std::string tbFile, std::vector< std::string > hdlFiles, bool verbose, bool leaveDirty)
virtual	~GhdlSimulator ()
virtual bool	compile (std::vector< std::string > &errors)
virtual bool	simulate (std::vector< std::string > &errors)
Public Member Functions inherited from ImplementationSimulator
	ImplementationSimulator (std::string tbFile, std::vector< std::string > hdlFiles, bool verbose, bool leaveDirty)
virtual	~ImplementationSimulator ()

Private Member Functions
bool	importFile (std::string file, std::vector< std::string > &errors)
bool	compileDesign (std::vector< std::string > &errors)

Additional Inherited Members
Protected Member Functions inherited from ImplementationSimulator
virtual std::string	createWorkDir ()
void	setWorkDir (std::string dir)
std::string	workDir () const
std::string	tbDirectory () const
std::string	tbFile () const
int	hdlFileCount () const
std::string	file (int index) const
bool	verbose ()
void	parseErrorMessages (std::vector< std::string > &inputMsg, std::vector< std::string > &errors)

Detailed Description

Definition at line 40 of file GhdlSimulator.hh.

Constructor & Destructor Documentation

GhdlSimulator()

GhdlSimulator::GhdlSimulator	(	std::string	tbFile,
		std::vector< std::string >	hdlFiles,
		bool	verbose,
		bool	leaveDirty
	)

Definition at line 44 of file GhdlSimulator.cc.

                    :
    ImplementationSimulator(tbFile, hdlFiles, verbose, leaveDirty) {
}

~GhdlSimulator()

GhdlSimulator::~GhdlSimulator ( )

virtual

Definition at line 52 of file GhdlSimulator.cc.

                              {
}

Member Function Documentation

compile()

bool GhdlSimulator::compile ( std::vector< std::string > &  errors )

virtual

Implements ImplementationSimulator.

Definition at line 55 of file GhdlSimulator.cc.

                                                        {
    string workDir = createWorkDir();
    if (workDir.empty()) {
        errors.push_back("Couldn't create work dir");
        return false;
    }
    string baseDir = tbDirectory();
    if (!FileSystem::changeWorkingDir(baseDir)) {
        errors.push_back("Couldn't change directory to " + baseDir);
        return false;
    }
    for (int i = 0; i < hdlFileCount(); i++) {
        if (!importFile(file(i), errors)) {
            return false;
        } else {
            errors.clear();
        }
    }
    if (!importFile(tbFile(), errors)) {
        return false;
    }
    errors.clear();
    return compileDesign(errors);
}

References FileSystem::changeWorkingDir(), compileDesign(), ImplementationSimulator::createWorkDir(), ImplementationSimulator::file(), ImplementationSimulator::hdlFileCount(), importFile(), ImplementationSimulator::tbDirectory(), ImplementationSimulator::tbFile(), and ImplementationSimulator::workDir().

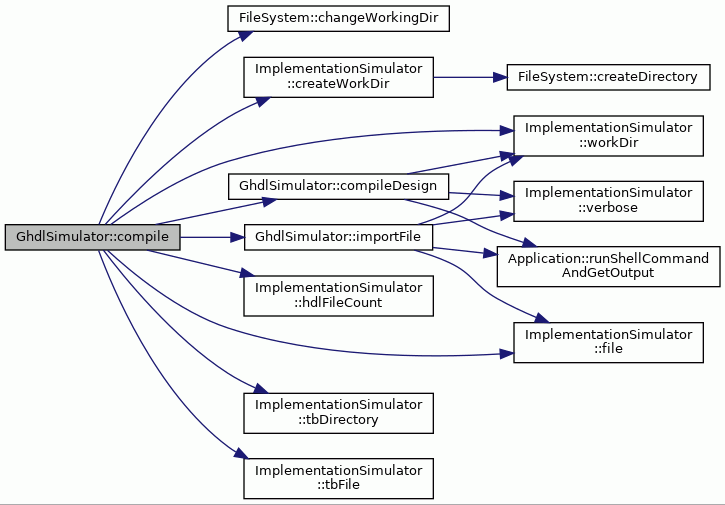

Here is the call graph for this function:

compileDesign()

bool GhdlSimulator::compileDesign ( std::vector< std::string > &  errors )

private

Definition at line 120 of file GhdlSimulator.cc.

                                                              {
    string command = "ghdl  -m -Wno-hide --std=08 --ieee=synopsys --workdir="
        + workDir() + " testbench 2>&1";
    if (verbose()) {
        // TODO: get output stream
        std::cout << command << std::endl;
    }
    int rv = Application::runShellCommandAndGetOutput(command, errors);
    return rv == 0;
}

References Application::runShellCommandAndGetOutput(), ImplementationSimulator::verbose(), and ImplementationSimulator::workDir().

Referenced by compile().

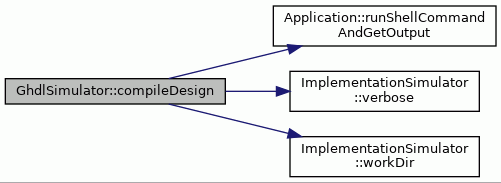

Here is the call graph for this function:

importFile()

bool GhdlSimulator::importFile ( std::string  file, std::vector< std::string > &  errors  )

private

Definition at line 108 of file GhdlSimulator.cc.

                                                  {
    string command = "ghdl  -i --std=08 --ieee=synopsys --workdir="
        + workDir() + " " + file + " 2>&1";
    if (verbose()) {
        // TODO: get output stream
        std::cout << command << std::endl;
    }
    int rv = Application::runShellCommandAndGetOutput(command, errors);
    return rv == 0;
}

References ImplementationSimulator::file(), Application::runShellCommandAndGetOutput(), ImplementationSimulator::verbose(), and ImplementationSimulator::workDir().

Referenced by compile().

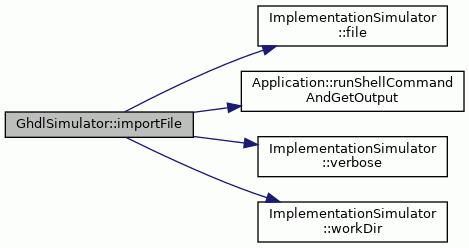

Here is the call graph for this function:

simulate()

bool GhdlSimulator::simulate ( std::vector< std::string > &  errors )

virtual

Implements ImplementationSimulator.

Definition at line 80 of file GhdlSimulator.cc.

                                                         {
    errors.clear();
    string baseDir = tbDirectory();
    if (!FileSystem::changeWorkingDir(baseDir)) {
        errors.push_back("Couldn't change directory to " + baseDir);
        return false;
    }

    string command;
    if (FileSystem::fileExists("testbench")) {
        command = "./testbench 2>&1";
    } else {
        // In the latest GHDL no executable is produces, thus the simulation
        // command is different.
        command = string("ghdl -r --std=08 --ieee=synopsys --workdir=") + workDir()
            + " testbench  2>&1";
    }
    if (verbose()) {
        std::cout << command << std::endl;
    }
    vector<string> messages;
    int rv = Application::runShellCommandAndGetOutput(command, messages);
    // call parse
    parseErrorMessages(messages, errors);
    return rv == 0 && errors.size() == 0;
}

References FileSystem::changeWorkingDir(), FileSystem::fileExists(), ImplementationSimulator::parseErrorMessages(), Application::runShellCommandAndGetOutput(), ImplementationSimulator::tbDirectory(), ImplementationSimulator::verbose(), and ImplementationSimulator::workDir().

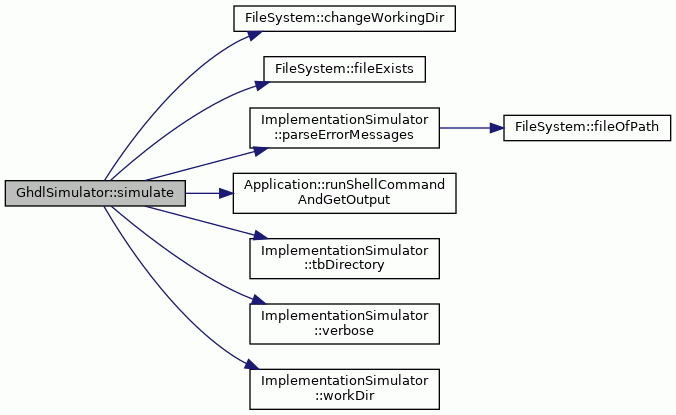

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• GhdlSimulator.hh
• GhdlSimulator.cc
