GuardEncoding Class Reference

#include <GuardEncoding.hh>

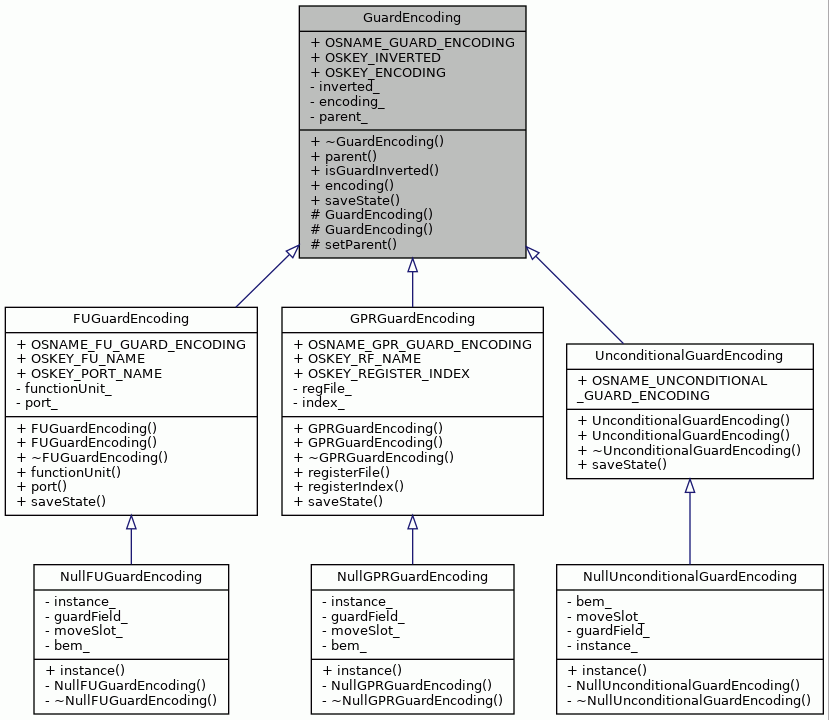

Inheritance diagram for GuardEncoding:

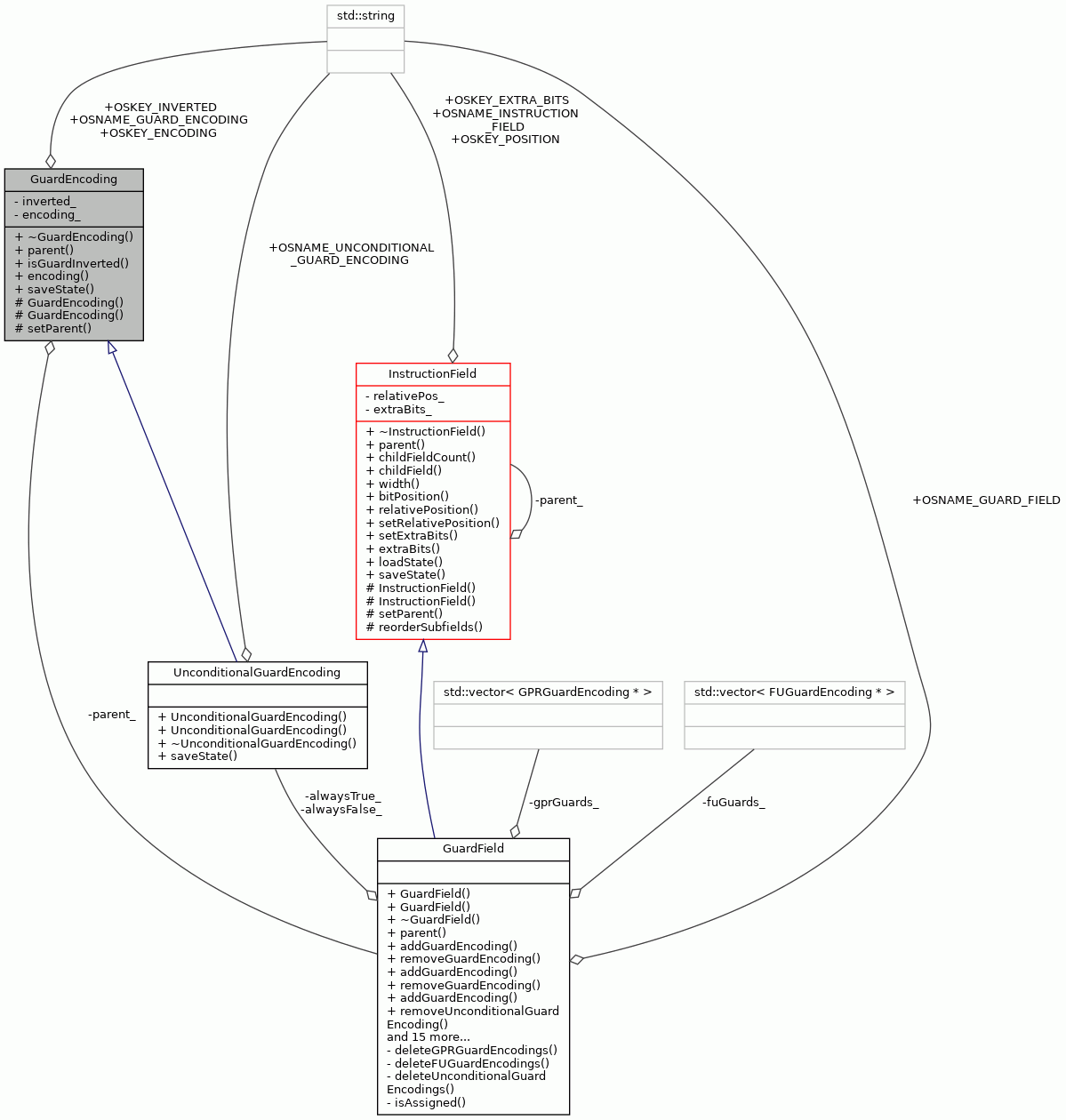

Collaboration diagram for GuardEncoding:

Public Member Functions
virtual	~GuardEncoding ()
GuardField *	parent () const
bool	isGuardInverted () const
unsigned int	encoding () const
virtual ObjectState *	saveState () const

Static Public Attributes
static const std::string	OSNAME_GUARD_ENCODING = "guard_encoding"
	ObjectState name for guard encoding.
static const std::string	OSKEY_INVERTED = "inverted"
	ObjectState attribute key for invert flag.
static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for encoding.

Protected Member Functions
	GuardEncoding (bool inverted, unsigned int encoding)
	GuardEncoding (const ObjectState *state)
void	setParent (GuardField *parent)

Private Attributes
bool	inverted_
	The "invert" flag.
unsigned int	encoding_
	The encoding.
GuardField *	parent_
	The parent guard field.

Detailed Description

GuardEncoding class captures the properties shared by all types of guard encoding.

Definition at line 45 of file GuardEncoding.hh.

Constructor & Destructor Documentation

~GuardEncoding()

GuardEncoding::~GuardEncoding ( )

virtual

The destructor

Definition at line 80 of file GuardEncoding.cc.

                              {
}

GuardEncoding() [1/2]

GuardEncoding::GuardEncoding ( bool  inverted, unsigned int  encoding  )

protected

The constructor.

Parameters

inverted	The "invert" flag.
encoding	The control code.

Definition at line 51 of file GuardEncoding.cc.

                                                                 :
    inverted_(inverted), encoding_(encoding), parent_(NULL) {
}

GuardEncoding() [2/2]

GuardEncoding::GuardEncoding ( const ObjectState *  state )

protected

The constructor.

Loads the state of the object from the given ObjectState instance.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If an error occurs while loading the state.

Definition at line 65 of file GuardEncoding.cc.

    : inverted_(false), encoding_(0), parent_(NULL) {
    try {
    inverted_ = state->boolAttribute(OSKEY_INVERTED);
    encoding_ = state->intAttribute(OSKEY_ENCODING);
    } catch (const Exception& exception) {
    const string procName = "GuardEncoding::GuardEncoding";
    throw ObjectStateLoadingException(
        __FILE__, __LINE__, procName, exception.errorMessage());
    }
}

References ObjectState::boolAttribute(), encoding_, Exception::errorMessage(), ObjectState::intAttribute(), inverted_, OSKEY_ENCODING, and OSKEY_INVERTED.

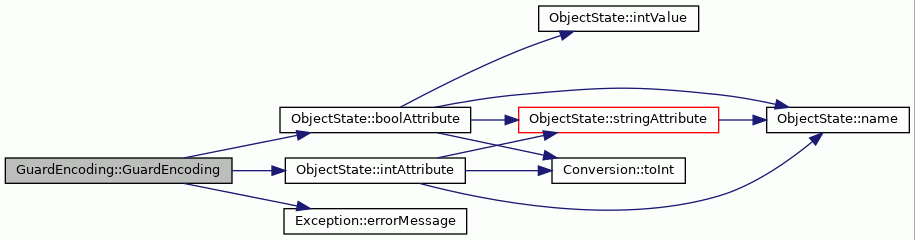

Here is the call graph for this function:

Member Function Documentation

encoding()

unsigned int GuardEncoding::encoding

(

)

const

Returns the control code of the guard expression.

Returns

The control code.

Definition at line 112 of file GuardEncoding.cc.

                              {
    return encoding_;
}

References encoding_.

Referenced by CodeCompressorPlugin::addBitsForGuardField(), GuardField::addGuardEncoding(), GuardField::addGuardEncoding(), GuardField::addGuardEncoding(), BEMTester::conflictsWithGuardEncoding(), CodeCompressorPlugin::encodeNOP(), GuardField::isAssigned(), printGuardFieldEncodings(), saveState(), GuardField::width(), DefaultDecoderGenerator::writeSquashSignalGenerationProcess(), and DefaultDecoderGenerator::writeSquashSignalSubstitution().

isGuardInverted()

bool GuardEncoding::isGuardInverted

(

)

const

Tells whether the guard expression is inverted.

Returns

True if the guard expression is inverted, otherwise false.

Definition at line 101 of file GuardEncoding.cc.

                                     {
    return inverted_;
}

References inverted_.

Referenced by GuardField::addGuardEncoding(), GuardField::addGuardEncoding(), GuardField::addGuardEncoding(), DefaultDecoderGenerator::findGuard(), DefaultDecoderGenerator::findGuard(), GuardField::fuGuardEncoding(), GuardField::gprGuardEncoding(), GuardField::hasFUGuardEncoding(), GuardField::hasGPRGuardEncoding(), printGuardFieldEncodings(), GuardField::removeUnconditionalGuardEncoding(), and saveState().

parent()

GuardField * GuardEncoding::parent

(

)

const

Returns the parent guard field.

Returns

The parent guard field.

Definition at line 90 of file GuardEncoding.cc.

                            {
    return parent_;
}

References parent_.

Referenced by GuardField::addGuardEncoding(), GuardField::addGuardEncoding(), GuardField::addGuardEncoding(), DefaultDecoderGenerator::findGuard(), DefaultDecoderGenerator::findGuard(), FUGuardEncoding::FUGuardEncoding(), FUGuardEncoding::FUGuardEncoding(), GPRGuardEncoding::GPRGuardEncoding(), GPRGuardEncoding::GPRGuardEncoding(), GuardField::removeGuardEncoding(), GuardField::removeGuardEncoding(), GuardField::removeUnconditionalGuardEncoding(), setParent(), UnconditionalGuardEncoding::UnconditionalGuardEncoding(), UnconditionalGuardEncoding::UnconditionalGuardEncoding(), FUGuardEncoding::~FUGuardEncoding(), GPRGuardEncoding::~GPRGuardEncoding(), and UnconditionalGuardEncoding::~UnconditionalGuardEncoding().

saveState()

ObjectState * GuardEncoding::saveState ( ) const

virtual

Saves the state of the object to an ObjectState instance.

Returns

The newly created ObjectState instance.

Reimplemented in FUGuardEncoding, GPRGuardEncoding, and UnconditionalGuardEncoding.

Definition at line 123 of file GuardEncoding.cc.

                               {
    ObjectState* state = new ObjectState(OSNAME_GUARD_ENCODING);
    state->setAttribute(OSKEY_INVERTED, isGuardInverted());
    state->setAttribute(OSKEY_ENCODING, encoding());
    return state;
}

References encoding(), isGuardInverted(), OSKEY_ENCODING, OSKEY_INVERTED, OSNAME_GUARD_ENCODING, and ObjectState::setAttribute().

Referenced by FUGuardEncoding::saveState(), GPRGuardEncoding::saveState(), and UnconditionalGuardEncoding::saveState().

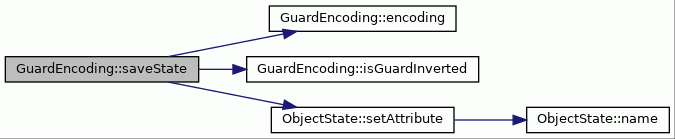

Here is the call graph for this function:

setParent()

void GuardEncoding::setParent ( GuardField *  parent )

protected

Sets the parent pointer.

Parameters

parent

The parent.

Definition at line 137 of file GuardEncoding.cc.

                                           {
    parent_ = parent;
}

References parent(), and parent_.

Referenced by FUGuardEncoding::FUGuardEncoding(), FUGuardEncoding::FUGuardEncoding(), GPRGuardEncoding::GPRGuardEncoding(), GPRGuardEncoding::GPRGuardEncoding(), UnconditionalGuardEncoding::UnconditionalGuardEncoding(), UnconditionalGuardEncoding::UnconditionalGuardEncoding(), FUGuardEncoding::~FUGuardEncoding(), GPRGuardEncoding::~GPRGuardEncoding(), and UnconditionalGuardEncoding::~UnconditionalGuardEncoding().

Here is the call graph for this function:

Member Data Documentation

encoding_

unsigned int GuardEncoding::encoding_

private

The encoding.

Definition at line 71 of file GuardEncoding.hh.

Referenced by encoding(), and GuardEncoding().

inverted_

bool GuardEncoding::inverted_

private

The "invert" flag.

Definition at line 69 of file GuardEncoding.hh.

Referenced by GuardEncoding(), and isGuardInverted().

OSKEY_ENCODING

const std::string GuardEncoding::OSKEY_ENCODING = "encoding"

static

ObjectState attribute key for encoding.

Definition at line 60 of file GuardEncoding.hh.

Referenced by GuardEncoding(), BEMSerializer::guardFieldToFile(), BEMSerializer::guardFieldToOM(), and saveState().

OSKEY_INVERTED

const std::string GuardEncoding::OSKEY_INVERTED = "inverted"

static

ObjectState attribute key for invert flag.

Definition at line 58 of file GuardEncoding.hh.

Referenced by GuardEncoding(), BEMSerializer::guardFieldToFile(), BEMSerializer::guardFieldToOM(), and saveState().

OSNAME_GUARD_ENCODING

const std::string GuardEncoding::OSNAME_GUARD_ENCODING = "guard_encoding"

static

ObjectState name for guard encoding.

Definition at line 56 of file GuardEncoding.hh.

Referenced by saveState().

parent_

GuardField* GuardEncoding::parent_

private

The parent guard field.

Definition at line 73 of file GuardEncoding.hh.

Referenced by parent(), and setParent().

---

The documentation for this class was generated from the following files:

• GuardEncoding.hh
• GuardEncoding.cc
