#include <ObjectState.hh>

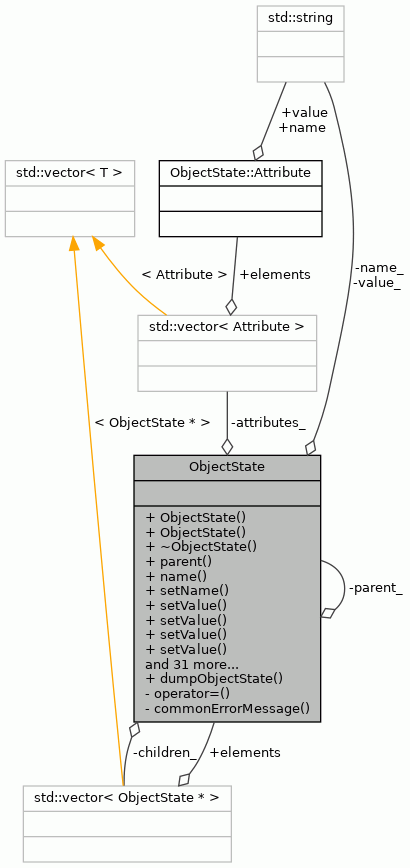

Collaboration diagram for ObjectState:

Classes
struct	Attribute
	Struct for describing an attribute of the XML element. More...

Public Member Functions
	ObjectState (const std::string &name, ObjectState *parent=NULL)

	ObjectState (const ObjectState &old)

	~ObjectState ()

ObjectState *	parent () const

std::string	name () const

void	setName (const std::string &name)

void	setValue (const std::string &value)

void	setValue (int value)

void	setValue (double value)

void	setValue (bool value)

void	setValue (UIntWord value)

std::string	stringValue () const

int	intValue () const

unsigned int	unsignedIntValue () const

double	doubleValue () const

bool	boolValue () const

int	UIntWordValue () const

void	setAttribute (const std::string &name, const std::string &value)

void	setAttribute (const std::string &name, int value)

void	setAttribute (const std::string &name, unsigned int value)

void	setAttribute (const std::string &name, double value)

void	setAttribute (const std::string &name, bool value)

void	setAttribute (const std::string &name, ULongWord value)

int	attributeCount () const

Attribute *	attribute (int index) const

bool	hasAttribute (const std::string &name) const

std::string	stringAttribute (const std::string &name) const

int	intAttribute (const std::string &name) const

unsigned int	unsignedIntAttribute (const std::string &name) const

double	doubleAttribute (const std::string &name) const

bool	boolAttribute (const std::string &name) const

UIntWord	UIntWordAttribute (const std::string &name) const

ULongWord	uLongAttribute (const std::string &name) const

bool	hasChild (const std::string &name) const

void	addChild (ObjectState *child)

void	removeChild (ObjectState *child)

void	replaceChild (ObjectState old, ObjectState newChild)

int	childCount () const

ObjectState *	childByName (const std::string &name) const

ObjectState *	child (int index) const

bool	operator!= (const ObjectState &object)

Static Public Member Functions
static void	dumpObjectState (const ObjectState &state, std::ostream &output, const std::string &identation="")

Private Types
typedef std::vector< ObjectState * >	ChildTable
	Table of child ObjectState.

typedef std::vector< Attribute >	AttributeTable
	Table of attributes.

Private Member Functions
ObjectState &	operator= (const ObjectState &old)
	Assingment forbidden.

std::string	commonErrorMessage () const

Private Attributes
std::string	name_
	Name of the element.

std::string	value_
	The value of a leaf element.

ObjectState *	parent_
	The parent element.

ChildTable	children_
	The child elements.

AttributeTable	attributes_
	Contains all the attributes of the element.

Detailed Description

Class ObjectState represents state of an object.

It may contain attribute-value pairs of the object and a main value. It may be used as a node in tree structure or alone. If a class is going to be serialized to a file, it must be able to create an ObjectState object of itself. It must be able to create itself from an ObjectState object too. That is, it must implement the Serializable interface. ObjectState tree is a general structure which can be handled by many different kind of serializers, for example XMLSerializer. Serializers can read a file create an ObjectState tree according to it and they can write a file of a certain format according to a ObjectState tree. ObjectState enables an easy way to serialize an object model to different kinds of file formats.

Definition at line 59 of file ObjectState.hh.

Member Typedef Documentation

◆ AttributeTable

typedef std::vector<Attribute> ObjectState::AttributeTable

private

Table of attributes.

Definition at line 127 of file ObjectState.hh.

◆ ChildTable

typedef std::vector<ObjectState*> ObjectState::ChildTable

private

Table of child ObjectState.

Definition at line 125 of file ObjectState.hh.

Constructor & Destructor Documentation

◆ ObjectState() [1/2]

ObjectState::ObjectState	(	const std::string &	name,
		ObjectState *	parent = `NULL`
	)

Constructor.

Parameters

name	Name of the ObjectState.
parent	Parent of this object. If non-NULL, this object is added to the parent with addChild().

Definition at line 51 of file ObjectState.cc.

                                                                   :
    name_(name), value_(""), parent_(parent) {
    if (parent != NULL) {
        parent->addChild(this);
    }
}

References addChild(), and parent().

Here is the call graph for this function:

◆ ObjectState() [2/2]

ObjectState::ObjectState ( const ObjectState & old )

Copy constructor.

Makes a deep copy.

Parameters

old	The ObjectState tree to copy.

Definition at line 65 of file ObjectState.cc.

                                               :
    name_(old.name_), value_(old.value_), parent_(NULL),
    attributes_(old.attributes_) {

    for (int i = 0; i < old.childCount(); i++) {
        ObjectState* newChild = new ObjectState(*old.child(i));
        addChild(newChild);
    }
}

References addChild(), child(), and childCount().

Here is the call graph for this function:

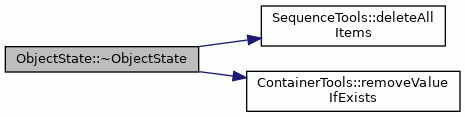

◆ ~ObjectState()

ObjectState::~ObjectState ( )

Destructor.

Deletes all the children as well and removes itself from the list of child objects of the parent object. That is, the parent object will stay valid.

Definition at line 81 of file ObjectState.cc.

                          {
    if (parent_ != NULL) {
        bool removed = ContainerTools::removeValueIfExists(
            parent_->children_, this);
        assert(removed);
    }
    SequenceTools::deleteAllItems(children_);
}

References assert, children_, SequenceTools::deleteAllItems(), parent_, and ContainerTools::removeValueIfExists().

Here is the call graph for this function:

Member Function Documentation

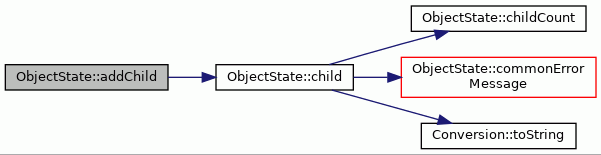

◆ addChild()

void ObjectState::addChild ( ObjectState * child )

Adds a child object.

Parameters

child ObjectState object to be added as a child.

Definition at line 376 of file ObjectState.cc.

                                        {
    children_.push_back(child);
    child->parent_ = this;
}

References child(), children_, and parent_.

Referenced by IPXactModel::addAddressSpaceObject(), IPXactModel::addBusInterfaceObject(), IPXactModel::addFileObject(), IPXactModel::addModelParamsObject(), ADFSerializer::addressSpaceToMachine(), ADFSerializer::addressSpaceToMDF(), IPXactModel::addSignalObject(), ADFSerializer::bridgeToMDF(), ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), ADFSerializer::controlUnitToMachine(), ADFSerializer::controlUnitToMDF(), GUIOptionsSerializer::convertToConfigFileFormat(), ProDeOptionsSerializer::convertToConfigFileFormat(), BEMSerializer::convertToFileFormat(), IDF::IDFSerializer::convertToFileFormat(), ADFSerializer::convertToMDFFormat(), BEMSerializer::convertToOMFormat(), IDF::IDFSerializer::convertToOMFormat(), OperationSerializer::convertToOperationFormat(), OperationSerializer::convertToXMLFormat(), XMLSerializer::createState(), OSEdAddOperationCmd::Do(), ADFSerializer::functionUnitToMachine(), ADFSerializer::functionUnitToMDF(), BEMSerializer::guardFieldToFile(), BEMSerializer::guardFieldToOM(), BEMSerializer::immediateSlotToFile(), ADFSerializer::immediateUnitToMachine(), ADFSerializer::immediateUnitToMDF(), ADFSerializer::instructionTemplateToMachine(), ADFSerializer::instructionTemplateToMDF(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmDstRegisterFieldToFile(), BEMSerializer::longImmTagToFile(), BEMSerializer::longImmTagToOM(), ADFSerializer::machineOperation(), ADFSerializer::machinePipeline(), ADFSerializer::mdfFUPort(), ADFSerializer::mdfOperation(), ADFSerializer::mdfPipeline(), ADFSerializer::mdfPort(), ADFSerializer::mdfSRPort(), BEMSerializer::moveSlotToFile(), BEMSerializer::moveSlotToOM(), ObjectState(), ObjectState(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), InstructionField::reorderSubfields(), TTAMachine::Machine::saveComponentStates(), TTAMachine::ExecutionPipeline::saveOperandUse(), OperationPropertyDialog::saveOperation(), TTAMachine::ExecutionPipeline::saveResourceUse(), IPXactModel::saveState(), GUIOptions::saveState(), BinaryEncoding::saveState(), GuardField::saveState(), ImmediateControlField::saveState(), InstructionFormat::saveState(), LImmDstRegisterField::saveState(), MoveSlot::saveState(), OperationTriggeredEncoding::saveState(), SlotField::saveState(), SocketCodeTable::saveState(), SourceField::saveState(), IDF::MachineImplementation::saveState(), TTAMachine::Bus::saveState(), TTAMachine::FunctionUnit::saveState(), TTAMachine::HWOperation::saveState(), TTAMachine::InstructionTemplate::saveState(), TTAMachine::Machine::saveState(), TTAMachine::OperationTriggeredFormat::saveState(), TTAMachine::Socket::saveState(), TTAMachine::Unit::saveState(), Operand::saveState(), OperationPimpl::saveState(), OSEdOptions::saveState(), IDF::FUGenerated::saveState(), OperationSerializer::setOperandProperties(), BEMSerializer::slotFieldToFile(), BEMSerializer::slotFieldToOM(), BEMSerializer::socketCodeTableToFile(), BEMSerializer::socketCodeTableToOM(), ADFSerializer::socketToMachine(), ADFSerializer::socketToMDF(), BEMSerializer::sourceFieldToFile(), BEMSerializer::sourceFieldToOM(), OperationSerializer::toOperation(), OperationSerializer::toXMLFormat(), InputOperandDialog::updateOperand(), and DataDependenceGraph::writeToXMLFile().

Here is the call graph for this function:

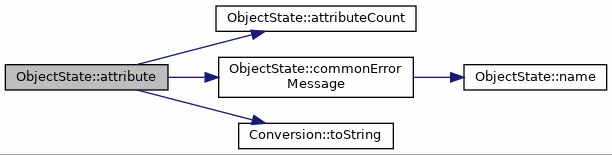

◆ attribute()

ObjectState::Attribute * ObjectState::attribute ( int index ) const

Returns an attribute by the given index.

The value of index must be greater or equal to 0 and less than the number of attributes.

Parameters

index The index of the requested attribute.

Returns: Attribute by the given index.

Exceptions

OutOfRange If the given index is out of range.

Definition at line 228 of file ObjectState.cc.

                                      {
    if (index < 0 || index >= attributeCount()) {
        const string procName = "ObjectState::attribute";
        string errorMsg = commonErrorMessage();
        errorMsg += "Requested attribute by index '";
        errorMsg += Conversion::toString(index);
        errorMsg += "' which is out of range.";
        throw OutOfRange(__FILE__, __LINE__, procName, errorMsg);
    } else {
        return const_cast<Attribute*>(&attributes_[index]);
    }
}

References attributeCount(), attributes_, commonErrorMessage(), and Conversion::toString().

Referenced by XMLSerializer::createDOM(), XMLSerializer::createDOMDocument(), and dumpObjectState().

Here is the call graph for this function:

◆ attributeCount()

int ObjectState::attributeCount ( ) const

Referenced by attribute(), XMLSerializer::createDOM(), XMLSerializer::createDOMDocument(), and dumpObjectState().

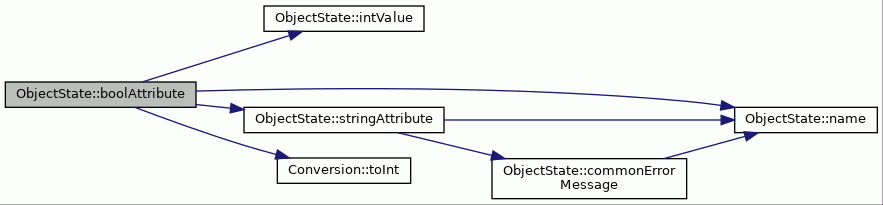

◆ boolAttribute()

bool ObjectState::boolAttribute ( const std::string & name ) const

Returns the value of the requested attribute.

Parameters

name	Name of the attribute.

Returns: Value of the requested attribute.

Exceptions

KeyNotFound	If no attribute called the given name is found.
TypeMismatch	If the value of the requested attribute can't be converted to bool.

Definition at line 338 of file ObjectState.cc.

                                                      {
    string value = stringAttribute(name);

    int intValue;
    try {
        intValue = Conversion::toInt(value);
    } catch (const NumberFormatException&) {
        const string procName = "ObjectState::boolAttribute";
        throw TypeMismatch(__FILE__, __LINE__, procName);
    }

    return intValue;
}

References intValue(), name(), stringAttribute(), and Conversion::toInt().

Referenced by ADFSerializer::addressSpaceToMDF(), ADFSerializer::busToMDF(), ADFSerializer::convertToMDFFormat(), GuardEncoding::GuardEncoding(), BEMSerializer::guardFieldToFile(), TTAMachine::AddressSpace::loadState(), TTAMachine::Machine::loadState(), Operand::loadState(), OperationPimpl::loadState(), TTAMachine::FUPort::loadStateWithoutReferences(), TTAMachine::RegisterFile::loadStateWithoutReferences(), ADFSerializer::registerFileToMDF(), and OperationSerializer::toXMLFormat().

Here is the call graph for this function:

◆ boolValue()

bool ObjectState::boolValue ( ) const

Referenced by ADFSerializer::addressSpaceToMachine(), and ADFSerializer::registerFileToMachine().

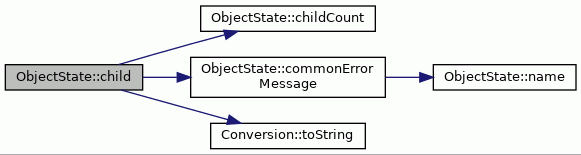

◆ child()

ObjectState * ObjectState::child ( int index ) const

Returns a child by the given index.

The index must be greater or equal to 0 and less than the number of children.

Parameters

index The index.

Returns: Child by the given index.

Exceptions

OutOfRange If the given index is out of range.

Definition at line 471 of file ObjectState.cc.

                                  {
    if (index < 0 || index >= childCount()) {
        const string procName = "ObjectState::child";
        string errorMsg = commonErrorMessage();
        errorMsg += "Requested child by index '";
        errorMsg += Conversion::toString(index);
        errorMsg += "' which is out of range.";
        throw OutOfRange(__FILE__, __LINE__, procName, errorMsg);
    } else {
        return children_[index];
    }
}

References childCount(), children_, commonErrorMessage(), and Conversion::toString().

Here is the call graph for this function:

◆ childByName()

ObjectState * ObjectState::childByName ( const std::string & name ) const

Returns the child of the requested name.

If there are many children of that name, returns the first of them.

Parameters

name	Name of the child.

Returns: First child of the requested name.

Exceptions

InstanceNotFound If the requested child is not found.

Definition at line 443 of file ObjectState.cc.

                                                    {
    ChildTable::const_iterator iter = children_.begin();
    while (iter != children_.end()) {
        if ((*iter)->name() == name) {
            return *iter;
        }
        iter++;
    }

    string procName = "ObjectState::childByName";
    string errorMsg = commonErrorMessage();
    errorMsg += "Requested child by name '";
    errorMsg += name;
    errorMsg += "' which doesn't exist.";
    throw InstanceNotFound(__FILE__, __LINE__, procName, errorMsg);
}

References children_, commonErrorMessage(), and name().

Referenced by GUIOptionsSerializer::addKeyboardShortcut(), ADFSerializer::addressSpaceToMachine(), ADFSerializer::bridgeToMachine(), ADFSerializer::busToMachine(), ADFSerializer::controlUnitToMachine(), IDF::IDFSerializer::convertToFileFormat(), IDF::IDFSerializer::convertToOMFormat(), GUIOptionsSerializer::convertToOptionsObjectFormat(), ProDeOptionsSerializer::convertToOptionsObjectFormat(), BEMSerializer::convertZeroEncExtraBits(), IPXactModel::extractAddressSpace(), IPXactModel::extractBusInterface(), IPXactModel::extractFiles(), IPXactModel::extractModelParam(), IPXactModel::extractPortMap(), IPXactModel::extractSignals(), IPXactModel::extractVLNV(), ADFSerializer::functionUnitToMachine(), BEMSerializer::guardFieldToOM(), BEMSerializer::immediateSlotToOM(), ADFSerializer::immediateUnitToMachine(), ADFSerializer::instructionTemplateToMachine(), BlocksModel::LoadModelFromXml(), IPXactModel::loadState(), BinaryEncoding::loadState(), IDF::MachineImplementation::loadState(), TTAMachine::HWOperation::loadState(), IDF::FUGenerated::loadState(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmTagToOM(), ADFSerializer::machineFUPort(), ADFSerializer::machineOperation(), ADFSerializer::machinePipeline(), ADFSerializer::machineSRPort(), ADFSerializer::mdfOperation(), BEMSerializer::moveSlotToFile(), BEMSerializer::moveSlotToOM(), BEMSerializer::readRegisterFilePortCode(), ADFSerializer::registerFileToMachine(), ADFSerializer::setIUExtensionMode(), GUIOptionsSerializer::setToolbarProperties(), GUIOptionsSerializer::setWindowProperties(), BEMSerializer::slotFieldToFile(), BEMSerializer::slotFieldToOM(), BEMSerializer::socketCodeTableToOM(), ADFSerializer::socketToMachine(), BEMSerializer::sourceFieldToFile(), and BEMSerializer::sourceFieldToOM().

Here is the call graph for this function:

◆ childCount()

int ObjectState::childCount ( ) const

Referenced by ADFSerializer::addressSpaceToMachine(), ADFSerializer::addressSpaceToMDF(), TTAMachine::Bus::adjustSegmentChain(), ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), child(), OSEdTreeView::constructTree(), ADFSerializer::controlUnitToMachine(), ADFSerializer::controlUnitToMDF(), BEMSerializer::convertToFileFormat(), IDF::IDFSerializer::convertToFileFormat(), ADFSerializer::convertToMachineFormat(), ADFSerializer::convertToMDFFormat(), BEMSerializer::convertToOMFormat(), IDF::IDFSerializer::convertToOMFormat(), OperationSerializer::convertToOperationFormat(), GUIOptionsSerializer::convertToOptionsObjectFormat(), OperationSerializer::convertToXMLFormat(), BEMSerializer::convertZeroEncExtraBits(), XMLSerializer::createDOM(), XMLSerializer::createDOMDocument(), OSEdPropertiesCmd::Do(), OSEdRemoveOperationCmd::Do(), dumpObjectState(), OperationIndex::effectiveOperation(), IPXactModel::extractAddressSpaces(), IPXactModel::extractBusInterfaces(), IPXactModel::extractFiles(), IPXactModel::extractModelParams(), IPXactModel::extractPortMappings(), IPXactModel::extractSignals(), ADFSerializer::functionUnitToMachine(), ADFSerializer::functionUnitToMDF(), BEMSerializer::guardFieldToFile(), BEMSerializer::guardFieldToOM(), ADFSerializer::hasEmptyInstructionTemplate(), ADFSerializer::immediateUnitToMachine(), ADFSerializer::immediateUnitToMDF(), ADFSerializer::instructionTemplateToMachine(), ADFSerializer::instructionTemplateToMDF(), BlocksModel::LoadModelFromXml(), OperationPropertyLoader::loadModule(), GUIOptions::loadState(), BinaryEncoding::loadState(), GuardField::loadState(), ImmediateControlField::loadState(), InstructionFormat::loadState(), LImmDstRegisterField::loadState(), MoveSlot::loadState(), OperationTriggeredEncoding::loadState(), SlotField::loadState(), SocketCodeTable::loadState(), SourceField::loadState(), IDF::MachineImplementation::loadState(), TTAMachine::AddressSpace::loadState(), TTAMachine::Bus::loadState(), TTAMachine::HWOperation::loadState(), TTAMachine::InstructionTemplate::loadState(), TTAMachine::Machine::loadState(), TTAMachine::OperationTriggeredFormat::loadState(), TTAMachine::Socket::loadState(), TTAMachine::Unit::loadState(), Operand::loadState(), OperationPimpl::loadState(), OSEdOptions::loadState(), IDF::FUGenerated::loadState(), TTAMachine::FunctionUnit::loadStateWithoutReferences(), TTAMachine::Bus::loadStateWithoutReferences(), TTAMachine::Unit::loadStateWithoutReferences(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmDstRegisterFieldToFile(), BEMSerializer::longImmTagToFile(), BEMSerializer::longImmTagToOM(), ADFSerializer::machineFUPort(), ADFSerializer::machineOperation(), ADFSerializer::machinePipeline(), ADFSerializer::machineRFPort(), ADFSerializer::machineSRPort(), ADFSerializer::mdfOperation(), ADFSerializer::mdfPipeline(), OperationIndex::moduleOf(), ADFSerializer::momTemplateSlot(), ObjectState(), OperationContainer::operation(), OperationIndex::operationCount(), TTAMachine::Unit::portNames(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), InstructionField::reorderSubfields(), TTAMachine::ExecutionPipeline::saveOperandUse(), TTAMachine::ExecutionPipeline::saveResourceUse(), OperationSerializer::setOperandProperties(), GUIOptionsSerializer::setToolbarProperties(), BEMSerializer::slotFieldToFile(), BEMSerializer::slotFieldToOM(), BEMSerializer::socketCodeTableToFile(), BEMSerializer::socketCodeTableToOM(), ADFSerializer::socketToMachine(), ADFSerializer::socketToMDF(), TTAMachine::ExecutionPipeline::sortResourceUsages(), BEMSerializer::sourceFieldToFile(), BEMSerializer::sourceFieldToOM(), OperationSerializer::toOperation(), OperationSerializer::toXMLFormat(), and OperationPropertyDialog::updateSwapLists().

◆ commonErrorMessage()

std::string ObjectState::commonErrorMessage ( ) const

private

Generates a common beginning of error messages.

Returns: The generated error message.

Definition at line 529 of file ObjectState.cc.

                                      {
    string errorMsg = "ObjectState ";
    errorMsg += name();
    errorMsg += ": ";
    return errorMsg;
}

References name().

Referenced by attribute(), child(), childByName(), and stringAttribute().

Here is the call graph for this function:

◆ doubleAttribute()

double ObjectState::doubleAttribute ( const std::string & name ) const

Returns the value of the requested attribute.

Parameters

name	Name of the attribute.

Returns: Value of the requested attribute.

Exceptions

KeyNotFound	If no attribute called the given name is found.
NumberFormatException	If the value of the requested attribute can't be converted to double.

Definition at line 323 of file ObjectState.cc.

                                                        {
    string value = stringAttribute(name);
    return Conversion::toDouble(value);
}

References name(), stringAttribute(), and Conversion::toDouble().

Referenced by BEMSerializer::readState().

Here is the call graph for this function:

◆ doubleValue()

double ObjectState::doubleValue ( ) const

◆ dumpObjectState()

void ObjectState::dumpObjectState	(	const ObjectState &	state,
		std::ostream &	output,
		const std::string &	identation = `""`
	)

static

Prints object state structure for debug purposes into the stream.

Definition at line 540 of file ObjectState.cc.

                                 {

    using std::cout;
    using std::endl;

    cout << identation << "Name: "<< state.name() << " ";
    if (!state.stringValue().empty()) {
        cout << "Value: " << state.stringValue() << " ";
    }
    cout << endl;
    for (int i = 0; i < state.attributeCount(); i++) {
        cout << identation << "Attr: " << state.attribute(i)->name << " = "
             << state.attribute(i)->value << endl;
    }
    for (int i = 0; i < state.childCount(); i++) {
        dumpObjectState(*state.child(i), output, identation + "  ");
    }
}

References attribute(), attributeCount(), child(), childCount(), dumpObjectState(), ObjectState::Attribute::name, name(), stringValue(), and ObjectState::Attribute::value.

Referenced by dumpObjectState().

Here is the call graph for this function:

◆ hasAttribute()

bool ObjectState::hasAttribute ( const std::string & name ) const

Returns true if the ObjectState has an attribute with the given name.

Parameters

name	Name of the attribute.

Returns: True if the ObjectState has an attribute with the given name.

Definition at line 205 of file ObjectState.cc.

                                                     {
    AttributeTable::const_iterator iter = attributes_.begin();
    while (iter != attributes_.end()) {
        if ((*iter).name == name) {
            return true;
        }
        iter++;
    }
    return false;
}

References attributes_, and name().

Referenced by ADFSerializer::addressSpaceToMDF(), TTAMachine::Bus::adjustSegmentChain(), ADFSerializer::busToMDF(), ADFSerializer::controlUnitToMDF(), GUIOptionsSerializer::convertToConfigFileFormat(), IDF::IDFSerializer::convertToFileFormat(), ADFSerializer::convertToMDFFormat(), BEMSerializer::convertZeroEncExtraBits(), IPXactModel::extractModelParam(), IPXactModel::extractVlnvFromAttr(), ADFSerializer::functionUnitToMDF(), FUPortCode::FUPortCode(), KeyboardShortcut::loadState(), IDF::MachineImplementation::loadState(), TTAMachine::AddressSpace::loadState(), TTAMachine::FunctionUnit::loadState(), TTAMachine::Machine::loadState(), TTAMachine::Port::loadState(), Operand::loadState(), TTAMachine::FunctionUnit::loadStateWithoutReferences(), TTAMachine::ControlUnit::loadStateWithoutReferences(), TTAMachine::RegisterFile::loadStateWithoutReferences(), ADFSerializer::machineFUPort(), ADFSerializer::mdfPort(), ADFSerializer::mdfSRPort(), operator!=(), PortCode::PortCode(), BEMSerializer::readState(), ADFSerializer::registerFileToMDF(), InstructionField::reorderSubfields(), BEMSerializer::slotFieldToFile(), BEMSerializer::slotFieldToOM(), BEMSerializer::socketCodeTableToFile(), BEMSerializer::socketCodeTableToOM(), SocketEncoding::SocketEncoding(), ADFSerializer::socketToMDF(), OperationSerializer::toOperation(), and OperationSerializer::toXMLFormat().

Here is the call graph for this function:

◆ hasChild()

bool ObjectState::hasChild ( const std::string & name ) const

Returns true if there is a child element called the given name.

Returns: True if there is a child element called the given name.

Definition at line 358 of file ObjectState.cc.

                                                 {
    ChildTable::const_iterator iter = children_.begin();
    while (iter != children_.end()) {
        if ((*iter)->name() == name) {
            return true;
        }
        iter++;
    }
    return false;
}

References children_, and name().

Here is the call graph for this function:

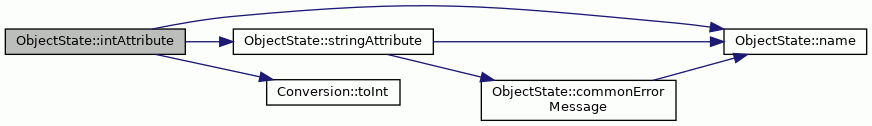

◆ intAttribute()

int ObjectState::intAttribute ( const std::string & name ) const

Returns the value of the requested attribute.

Parameters

name	Name of the attribute.

Returns: Value of the requested attribute.

Exceptions

KeyNotFound	If no attribute called the given name is found.
NumberFormatException	If the value of the requested attribute can't be converted to int.

Definition at line 276 of file ObjectState.cc.

                                                     {
    string value = stringAttribute(name);
    return Conversion::toInt(value);
}

References name(), stringAttribute(), and Conversion::toInt().

Referenced by GUIOptionsSerializer::addKeyboardShortcut(), TTAMachine::ExecutionPipeline::addResourceUsage(), ADFSerializer::busToMDF(), GUIOptionsSerializer::convertToConfigFileFormat(), BEMSerializer::convertZeroEncExtraBits(), Encoding::Encoding(), GPRGuardEncoding::GPRGuardEncoding(), GuardEncoding::GuardEncoding(), BEMSerializer::guardFieldToOM(), ImmediateEncoding::ImmediateEncoding(), ADFSerializer::immediateUnitToMDF(), GUIOptions::loadState(), KeyboardShortcut::loadState(), ToolbarButton::loadState(), ImmediateControlField::loadState(), ImmediateSlotField::loadState(), InstructionField::loadState(), InstructionFormat::loadState(), LImmDstRegisterField::loadState(), OperationTriggeredField::loadState(), SlotField::loadState(), SocketCodeTable::loadState(), IDF::UnitImplementationLocation::loadState(), TTAMachine::AddressSpace::loadState(), TTAMachine::ExecutionPipeline::loadState(), TTAMachine::Guard::loadState(), TTAMachine::RegisterGuard::loadState(), TTAMachine::HWOperation::loadState(), TTAMachine::InstructionTemplate::loadState(), Operand::loadState(), OperationPimpl::loadState(), ProDeOptions::loadState(), TTAMachine::FunctionUnit::loadStateWithoutReferences(), TTAMachine::BaseFUPort::loadStateWithoutReferences(), TTAMachine::BaseRegisterFile::loadStateWithoutReferences(), TTAMachine::Bus::loadStateWithoutReferences(), TTAMachine::ControlUnit::loadStateWithoutReferences(), TTAMachine::FUPort::loadStateWithoutReferences(), TTAMachine::ImmediateUnit::loadStateWithoutReferences(), TTAMachine::RegisterFile::loadStateWithoutReferences(), ADFSerializer::mdfFUPort(), PortCode::PortCode(), ADFSerializer::registerFileToMDF(), InstructionField::reorderSubfields(), TTAMachine::ExecutionPipeline::saveOperandUse(), TTAMachine::ExecutionPipeline::saveResourceUse(), BEMSerializer::slotFieldToFile(), BEMSerializer::socketCodeTableToFile(), OperationSerializer::toOperation(), OperationSerializer::toXMLFormat(), and OperationPropertyDialog::updateSwapLists().

Here is the call graph for this function:

◆ intValue()

int ObjectState::intValue ( ) const

Referenced by ADFSerializer::addressSpaceToMachine(), ADFSerializer::addressSpaceToMDF(), boolAttribute(), BEMSerializer::convertZeroEncExtraBits(), IPXactModel::extractAddressSpace(), IPXactModel::extractSignals(), BinaryEncoding::loadState(), TTAMachine::AddressSpace::loadState(), IDF::FUGenerated::loadState(), OperationSerializer::setOperandProperties(), BEMSerializer::socketCodeTableToOM(), and OperationSerializer::toOperation().

◆ name()

std::string ObjectState::name ( ) const

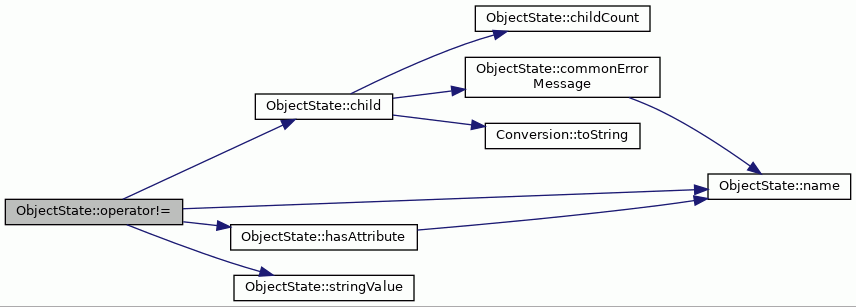

◆ operator!=()

bool ObjectState::operator!= ( const ObjectState & object )

Inequality comparison operator.

Parameters

object Object in which this object is compared to.

Returns: True if objects are inequal, false otherwise.

Definition at line 491 of file ObjectState.cc.

                                                 {

    if (name_ != object.name() ||
        value_ != object.stringValue() ||
        children_.size() != static_cast<unsigned int>(object.childCount()) ||
        static_cast<int>(attributes_.size()) != object.attributeCount()) {

        return true;
    }

    for (size_t i = 0; i < attributes_.size(); i++) {
        Attribute attr = attributes_[i];
        if (!object.hasAttribute(attr.name)) {
            return true;
        } else {
            if (attr.value != object.stringAttribute(attr.name)) {
                return true;
            }
        }
    }

    for (size_t i = 0; i < children_.size(); i++) {
        ObjectState& child = *children_[i];
        ObjectState& compare = *object.child(i);
        if (child != compare) {
            return true;
        }
    }

    return false;
}

References attributes_, child(), children_, hasAttribute(), ObjectState::Attribute::name, name(), name_, stringValue(), ObjectState::Attribute::value, and value_.

Here is the call graph for this function:

◆ operator=()

ObjectState & ObjectState::operator= ( const ObjectState & old )

private

Assingment forbidden.

◆ parent()

ObjectState * ObjectState::parent ( ) const

Referenced by ObjectState(), and replaceChild().

◆ removeChild()

void ObjectState::removeChild ( ObjectState * child )

Removes the given child object.

Parameters

child The child object to be removed.

Exceptions

InstanceNotFound If the object does not have the given child object.

Definition at line 389 of file ObjectState.cc.

                                           {
    bool removed = ContainerTools::removeValueIfExists(children_, child);
    if (removed) {
        child->parent_ = NULL;
    } else {
        const string procName = "ObjectState::removeChild";
        throw InstanceNotFound(__FILE__, __LINE__, procName);
    }
}

References child(), children_, parent_, and ContainerTools::removeValueIfExists().

Referenced by InstructionField::reorderSubfields(), and BEMSerializer::sourceFieldToFile().

Here is the call graph for this function:

◆ replaceChild()

void ObjectState::replaceChild	(	ObjectState *	old,
		ObjectState *	newChild
	)

Replaces a child with a new child.

Parameters

old	Child to be replaced.
newChild	Child to be added in the place of the old child.

Exceptions

InvalidData If the new child given already has a parent object.

Definition at line 408 of file ObjectState.cc.

                                                                 {
    if (newChild->parent() != NULL) {
        const string procName = "ObjectState::replaceChild";
        throw InvalidData(__FILE__, __LINE__, procName);
    }

    ChildTable::iterator it = children_.begin();
    while (it != children_.end()) {
        if (*it == old) {
            ObjectState* toBeRemoved = *it;
            ChildTable::iterator pt = it;
            pt++;
            if (pt == children_.end()) {
                children_.push_back(newChild);
            } else {
                children_.insert(pt, newChild);
            }
            newChild->parent_ = this;
            delete toBeRemoved;
            break;
        }
        it++;
    }
}

References children_, parent(), and parent_.

Referenced by OSEdPropertiesCmd::Do().

Here is the call graph for this function:

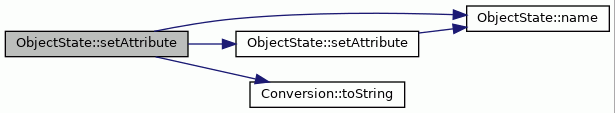

◆ setAttribute() [1/6]

void ObjectState::setAttribute	(	const std::string &	name,
		bool	value
	)

Sets an attribute.

If there is an attribute called the given name, its value is changed according to the given value. Otherwise a new attribute is created.

Parameters

name	Name of the attribute.
value	Value of the attribute.

Definition at line 192 of file ObjectState.cc.

                                                           {
    string valueAsString = Conversion::toString(value);
    setAttribute(name, valueAsString);
}

References name(), setAttribute(), and Conversion::toString().

Here is the call graph for this function:

◆ setAttribute() [2/6]

void ObjectState::setAttribute	(	const std::string &	name,
		const std::string &	value
	)

Sets an attribute.

If there is an attribute called the given name, its value is changed according to the given value. Otherwise a new attribute is created.

Parameters

name	Name of the attribute.
value	Value of the attribute.

Definition at line 100 of file ObjectState.cc.

                            {

    AttributeTable::iterator iter = attributes_.begin();
    while (iter != attributes_.end()) {
        if ((*iter).name == name) {
            (*iter).value = value;
            return;
        }
        iter++;
    }
    Attribute newAttribute;
    newAttribute.name = name;
    newAttribute.value = value;
    attributes_.push_back(newAttribute);
}

References attributes_, ObjectState::Attribute::name, name(), and ObjectState::Attribute::value.

Here is the call graph for this function:

◆ setAttribute() [3/6]

void ObjectState::setAttribute	(	const std::string &	name,
		double	value
	)

Sets an attribute.

If there is an attribute called the given name, its value is changed according to the given value. Otherwise a new attribute is created.

Parameters

name	Name of the attribute.
value	Value of the attribute.

Definition at line 176 of file ObjectState.cc.

                                                             {
    string valueAsString = Conversion::toString(value);
    setAttribute(name, valueAsString);
}

References name(), setAttribute(), and Conversion::toString().

Here is the call graph for this function:

◆ setAttribute() [4/6]

void ObjectState::setAttribute	(	const std::string &	name,
		int	value
	)

Sets an attribute.

If there is an attribute called the given name, its value is changed according to the given value. Otherwise a new attribute is created.

Parameters

name	Name of the attribute.
value	Value of the attribute.

Definition at line 129 of file ObjectState.cc.

                                                          {
    string valueAsString = Conversion::toString(value);
    setAttribute(name, valueAsString);
}

References name(), setAttribute(), and Conversion::toString().

Here is the call graph for this function:

◆ setAttribute() [5/6]

void ObjectState::setAttribute	(	const std::string &	name,
		ULongWord	value
	)

Sets an attribute.

If there is an attribute called the given name, its value is changed according to the given value. Otherwise a new attribute is created.

Parameters

name	Name of the attribute.
value	Value of the attribute.

Definition at line 160 of file ObjectState.cc.

                                                                {
    string valueAsString = Conversion::toString(value);
    setAttribute(name, valueAsString);
}

References name(), setAttribute(), and Conversion::toString().

Here is the call graph for this function:

◆ setAttribute() [6/6]

void ObjectState::setAttribute	(	const std::string &	name,
		unsigned int	value
	)

Sets an attribute.

If there is an attribute called the given name, its value is changed according to the given value. Otherwise a new attribute is created.

Parameters

name	Name of the attribute.
value	Value of the attribute.

Definition at line 145 of file ObjectState.cc.

                                                                   {
    string valueAsString = Conversion::toString(value);
    setAttribute(name, valueAsString);
}

References name(), setAttribute(), and Conversion::toString().

Here is the call graph for this function:

◆ setName()

void ObjectState::setName ( const std::string & name )

◆ setValue() [1/5]

void ObjectState::setValue ( bool value )

◆ setValue() [2/5]

void ObjectState::setValue ( const std::string & value )

Referenced by IPXactModel::addAddressSpaceObject(), IPXactModel::addBusInterfaceObject(), IPXactModel::addFileObject(), IPXactModel::addModelParamsObject(), ADFSerializer::addressSpaceToMachine(), ADFSerializer::addressSpaceToMDF(), IPXactModel::addSignalObject(), ADFSerializer::bridgeToMDF(), ADFSerializer::busToMDF(), ADFSerializer::controlUnitToMDF(), GUIOptionsSerializer::convertToConfigFileFormat(), IDF::IDFSerializer::convertToFileFormat(), BEMSerializer::convertZeroEncExtraBits(), XMLSerializer::createState(), ADFSerializer::functionUnitToMDF(), BEMSerializer::guardFieldToFile(), BEMSerializer::immediateSlotToFile(), ADFSerializer::immediateUnitToMDF(), ADFSerializer::instructionTemplateToMDF(), BEMSerializer::longImmDstRegisterFieldToFile(), BEMSerializer::longImmTagToFile(), ADFSerializer::mdfFUPort(), ADFSerializer::mdfOperation(), ADFSerializer::mdfPipeline(), ADFSerializer::mdfPort(), ADFSerializer::mdfSRPort(), BEMSerializer::moveSlotToFile(), ADFSerializer::registerFileToMDF(), OperationPropertyDialog::saveOperation(), IPXactModel::saveState(), BinaryEncoding::saveState(), TTAMachine::AddressSpace::saveState(), TTAMachine::OperationTriggeredFormat::saveState(), OperationPimpl::saveState(), IDF::FUGenerated::saveState(), DataDependenceEdge::saveState(), BEMSerializer::slotFieldToFile(), BEMSerializer::socketCodeTableToFile(), ADFSerializer::socketToMDF(), BEMSerializer::sourceFieldToFile(), OperationSerializer::toXMLFormat(), and DataDependenceGraph::writeToXMLFile().

◆ setValue() [3/5]

void ObjectState::setValue ( double value )

◆ setValue() [4/5]

void ObjectState::setValue ( int value )

◆ setValue() [5/5]

void ObjectState::setValue ( UIntWord value )

◆ stringAttribute()

std::string ObjectState::stringAttribute ( const std::string & name ) const

Returns the value of the requested attribute.

Parameters

name	Name of the attribute.

Returns: Value of the requested attribute.

Exceptions

KeyNotFound If no attribute called the given name is found.

Definition at line 249 of file ObjectState.cc.

                                                        {
    AttributeTable::const_iterator iter = attributes_.begin();
    while (iter != attributes_.end()) {
        if ((*iter).name == name) {
            return (*iter).value;
        }
        iter++;
    }

    string procName = "ObjectState::stringAttribute";
    string errorMsg = commonErrorMessage();
    errorMsg += "Requested attribute by name '";
    errorMsg += name;
    errorMsg += "' which doesn't exist.";
    throw KeyNotFound(__FILE__, __LINE__, procName, errorMsg);
}

References attributes_, commonErrorMessage(), name(), and ObjectState::Attribute::value.

Here is the call graph for this function:

◆ stringValue()

std::string ObjectState::stringValue ( ) const

Referenced by GUIOptionsSerializer::addKeyboardShortcut(), ADFSerializer::addressSpaceToMachine(), ADFSerializer::bridgeToMachine(), ADFSerializer::busToMachine(), ADFSerializer::controlUnitToMachine(), IDF::IDFSerializer::convertToOMFormat(), XMLSerializer::createDOM(), XMLSerializer::createDOMDocument(), dumpObjectState(), IPXactModel::extractAddressSpace(), IPXactModel::extractBusInterface(), IPXactModel::extractFiles(), IPXactModel::extractModelParam(), IPXactModel::extractPortMap(), IPXactModel::extractSignals(), IPXactModel::extractVLNV(), ADFSerializer::functionUnitToMachine(), BEMSerializer::guardFieldToOM(), BEMSerializer::immediateSlotToOM(), ADFSerializer::immediateUnitToMachine(), ADFSerializer::instructionTemplateToMachine(), BinaryEncoding::loadState(), TTAMachine::OperationTriggeredFormat::loadState(), OperationPimpl::loadState(), OSEdOptions::loadState(), IDF::FUGenerated::loadState(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmTagToOM(), ADFSerializer::machineFUPort(), ADFSerializer::machineOperation(), ADFSerializer::machinePipeline(), ADFSerializer::machineRFPort(), ADFSerializer::machineSRPort(), BEMSerializer::moveSlotToOM(), operator!=(), BEMSerializer::readRegisterFilePortCode(), ADFSerializer::registerFileToMachine(), ADFSerializer::setIUExtensionMode(), GUIOptionsSerializer::setToolbarProperties(), GUIOptionsSerializer::setWindowProperties(), BEMSerializer::slotFieldToOM(), BEMSerializer::socketCodeTableToOM(), ADFSerializer::socketToMachine(), BEMSerializer::sourceFieldToOM(), and OperationSerializer::toOperation().

◆ UIntWordAttribute()

UIntWord ObjectState::UIntWordAttribute ( const std::string & name ) const

◆ UIntWordValue()

int ObjectState::UIntWordValue ( ) const

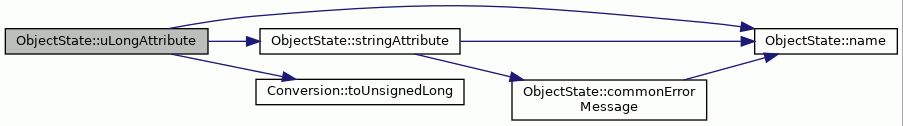

◆ uLongAttribute()

ULongWord ObjectState::uLongAttribute ( const std::string & name ) const

Returns the value of the requested attribute.

Parameters

name	Name of the attribute.

Returns: Value of the requested attribute.

Exceptions

KeyNotFound	If no attribute called the given name is found.
NumberFormatException	If the value of the requested attribute can't be converted to int.

Definition at line 291 of file ObjectState.cc.

                                                       {

    string value = stringAttribute(name);
    return Conversion::toUnsignedLong(value);
}

References name(), stringAttribute(), and Conversion::toUnsignedLong().

Referenced by TTAMachine::AddressSpace::loadState().

Here is the call graph for this function:

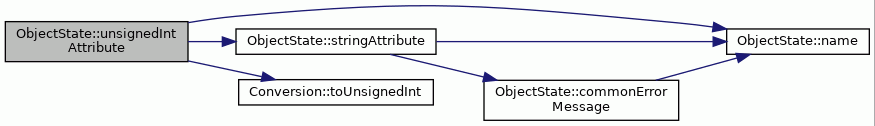

◆ unsignedIntAttribute()

unsigned int ObjectState::unsignedIntAttribute ( const std::string & name ) const

Returns the value of the requested attribute.

Parameters

name	Name of the attribute.

Returns: Value of the requested attribute.

Exceptions

KeyNotFound	If no attribute called the given name is found.
NumberFormatException	If the value of the requested attribute can't be converted to unsigned int.

Definition at line 308 of file ObjectState.cc.

                                                             {
    string value = stringAttribute(name);
    return Conversion::toUnsignedInt(value);
}

References name(), stringAttribute(), and Conversion::toUnsignedInt().

Here is the call graph for this function:

◆ unsignedIntValue()

unsigned int ObjectState::unsignedIntValue ( ) const

Member Data Documentation

◆ attributes_

AttributeTable ObjectState::attributes_

private

Contains all the attributes of the element.

Definition at line 146 of file ObjectState.hh.

Referenced by attribute(), hasAttribute(), operator!=(), setAttribute(), and stringAttribute().

◆ children_

ChildTable ObjectState::children_

private

The child elements.

Definition at line 143 of file ObjectState.hh.

Referenced by addChild(), child(), childByName(), hasChild(), operator!=(), removeChild(), replaceChild(), and ~ObjectState().

◆ name_

std::string ObjectState::name_

private

Name of the element.

Definition at line 134 of file ObjectState.hh.

Referenced by operator!=().

◆ parent_

ObjectState* ObjectState::parent_

private

The parent element.

Definition at line 140 of file ObjectState.hh.

Referenced by addChild(), removeChild(), replaceChild(), and ~ObjectState().

◆ value_

std::string ObjectState::value_

private

The value of a leaf element.

Definition at line 137 of file ObjectState.hh.

Referenced by operator!=().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ AttributeTable

◆ ChildTable

Constructor & Destructor Documentation

◆ ObjectState() [1/2]

◆ ObjectState() [2/2]

◆ ~ObjectState()

Member Function Documentation

◆ addChild()

◆ attribute()

◆ attributeCount()

◆ boolAttribute()

◆ boolValue()

◆ child()

◆ childByName()

◆ childCount()

◆ commonErrorMessage()

◆ doubleAttribute()

◆ doubleValue()

◆ dumpObjectState()

◆ hasAttribute()

◆ hasChild()

◆ intAttribute()

◆ intValue()

◆ name()

◆ operator!=()

◆ operator=()

◆ parent()

◆ removeChild()

◆ replaceChild()

◆ setAttribute() [1/6]

◆ setAttribute() [2/6]

◆ setAttribute() [3/6]

◆ setAttribute() [4/6]

◆ setAttribute() [5/6]

◆ setAttribute() [6/6]

◆ setName()

◆ setValue() [1/5]

◆ setValue() [2/5]

◆ setValue() [3/5]

◆ setValue() [4/5]

◆ setValue() [5/5]

◆ stringAttribute()

◆ stringValue()

◆ UIntWordAttribute()

◆ UIntWordValue()

◆ uLongAttribute()

◆ unsignedIntAttribute()

◆ unsignedIntValue()

Member Data Documentation

◆ attributes_

◆ children_

◆ name_

◆ parent_

◆ value_
