Public Member Functions | Private Member Functions | Private Attributes | List of all members
HDBTester Class Reference

#include <HDBTester.hh>

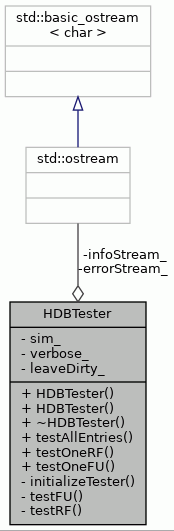

Collaboration diagram for HDBTester:
Collaboration graph

Public Member Functions

 HDBTester ()

 HDBTester (std::ostream &infoStream, std::ostream &errorStream, VhdlSim simulator, bool verbose, bool leaveDirty)

virtual ~HDBTester ()

bool testAllEntries (std::string hdbFile)

bool testOneRF (std::string hdbFile, int entryId)

bool testOneFU (std::string hdbFile, int entryId)


Private Member Functions

ImplementationTesterinitializeTester (std::string hdbFile)

bool testFU (int id, ImplementationTester *tester)

bool testRF (int id, ImplementationTester *tester)


Private Attributes

std::ostream * infoStream_

std::ostream * errorStream_

VhdlSim sim_

bool verbose_

bool leaveDirty_


Detailed Description

Definition at line 39 of file HDBTester.hh.

Constructor & Destructor Documentation

◆ HDBTester() [1/2]

HDBTester::HDBTester ( )

Definition at line 43 of file HDBTester.cc.

43 : infoStream_(NULL), errorStream_(NULL), sim_(SIM_GHDL),
44 verbose_(false), leaveDirty_(false) {
45}
std::ostream * errorStream_
Definition HDBTester.hh:65
std::ostream * infoStream_
Definition HDBTester.hh:64
VhdlSim sim_
Definition HDBTester.hh:66
bool verbose_
Definition HDBTester.hh:67
bool leaveDirty_
Definition HDBTester.hh:68

◆ HDBTester() [2/2]

HDBTester::HDBTester ( std::ostream &  infoStream,
std::ostream &  errorStream,
VhdlSim  simulator,
bool  verbose,
bool  leaveDirty
)

Definition at line 47 of file HDBTester.cc.

50 :
51 infoStream_(&infoStream), errorStream_(&errorStream), sim_(simulator),
52 verbose_(verbose), leaveDirty_(leaveDirty) {
53}

◆ ~HDBTester()

HDBTester::~HDBTester ( )
virtual

Definition at line 55 of file HDBTester.cc.

55 {
56 // clear hdb cache
58 delete registry;
59}
static HDBRegistry & instance()

References HDB::HDBRegistry::instance().

Here is the call graph for this function:

Member Function Documentation

◆ initializeTester()

ImplementationTester * HDBTester::initializeTester ( std::string  hdbFile)
private

Definition at line 128 of file HDBTester.cc.

128 {
129
130 ImplementationTester* tester = NULL;
131 try {
132 tester =
134 } catch (Exception& e) {
135 if (errorStream_ != NULL) {
136 *errorStream_ << "Failed to create implementation tester: "
137 << e.errorMessage() << std::endl;
138 }
139 return NULL;
140 }
141 return tester;
142}
std::string errorMessage() const
Definition Exception.cc:123

References Exception::errorMessage(), errorStream_, leaveDirty_, sim_, and verbose_.

Referenced by testAllEntries(), testOneFU(), and testOneRF().

Here is the call graph for this function:

◆ testAllEntries()

bool HDBTester::testAllEntries ( std::string  hdbFile)

Definition at line 62 of file HDBTester.cc.

62 {
63
64 ImplementationTester* implTester = initializeTester(hdbFile);
65 if (implTester == NULL) {
66 return false;
67 }
68
69 bool noFailures = true;
70 set<int> fus = implTester->fuEntryIDs();
71 for (set<int>::iterator iter = fus.begin(); iter != fus.end(); iter++) {
72 if (!testFU(*iter, implTester)) {
73 noFailures = false;
74 std::cerr << "FU Entry " << *iter << " from " << hdbFile
75 << " failed." << std::endl;
76 }
77 }
78
79 set<int> rfs = implTester->rfEntryIDs();
80 for (set<int>::iterator iter = rfs.begin(); iter != rfs.end(); iter++) {
81 if (!testRF(*iter, implTester)) {
82 noFailures = false;
83 std::cerr << "RF Entry " << *iter << " from " << hdbFile
84 << " failed." << std::endl;
85 }
86 }
87 delete implTester;
88 return noFailures;
89}
ImplementationTester * initializeTester(std::string hdbFile)
Definition HDBTester.cc:128
bool testRF(int id, ImplementationTester *tester)
Definition HDBTester.cc:179
bool testFU(int id, ImplementationTester *tester)
Definition HDBTester.cc:145
std::set< int > fuEntryIDs() const
std::set< int > rfEntryIDs() const

References ImplementationTester::fuEntryIDs(), initializeTester(), ImplementationTester::rfEntryIDs(), testFU(), and testRF().

Referenced by main().

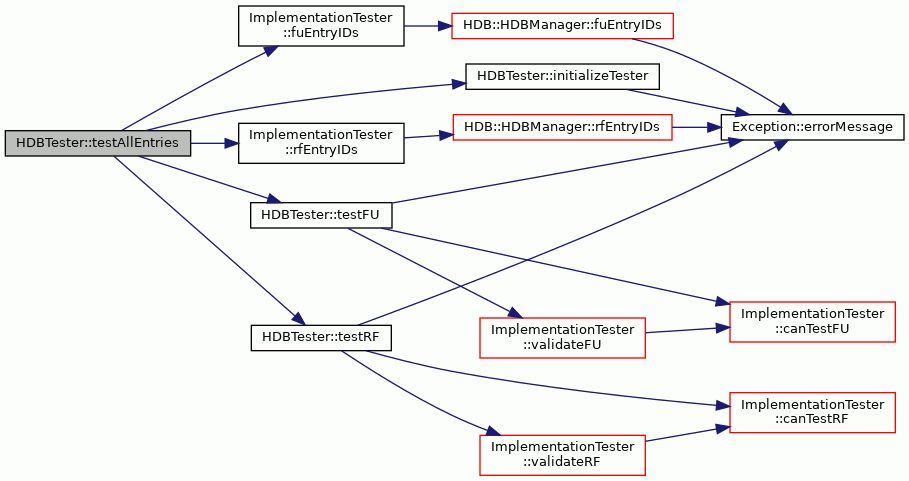

Here is the call graph for this function:

◆ testFU()

bool HDBTester::testFU ( int  id,
ImplementationTester tester
)
private

Definition at line 145 of file HDBTester.cc.

145 {
146
147 string reason = "";
148 if (!tester->canTestFU(id, reason)) {
149 if (infoStream_ != NULL) {
150 *infoStream_ << "Cannot test FU id " << id << " because: "
151 << reason << std::endl;
152 }
153 // this is not failure
154 return true;
155 }
156 vector<string> errors;
157 bool success = false;
158 try {
159 success = tester->validateFU(id, errors);
160 } catch (Exception& e) {
161 if (errorStream_ != NULL) {
163 << "Runtime error: " << e.errorMessage() << std::endl;
164 }
165 return false;
166 }
167 if (!errors.empty()) {
168 if (errorStream_ != NULL) {
169 for (unsigned int i = 0; i < errors.size(); i++) {
170 *errorStream_ << errors.at(i);
171 }
172 }
173 success = false;
174 }
175 return success;
176}
bool canTestFU(const int entryID, std::string &reason)
bool validateFU(const int entryID, std::vector< std::string > &errors)

References ImplementationTester::canTestFU(), Exception::errorMessage(), errorStream_, infoStream_, and ImplementationTester::validateFU().

Referenced by testAllEntries(), and testOneFU().

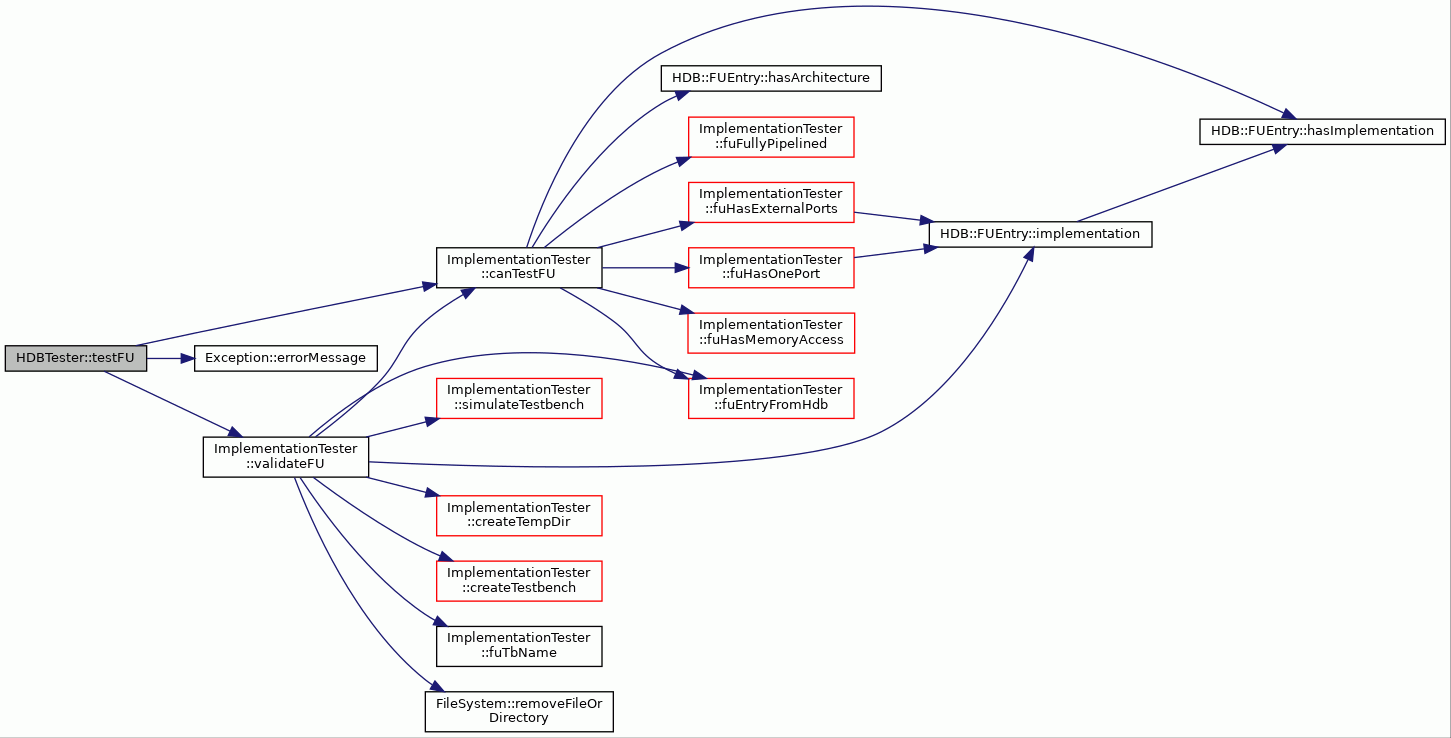

Here is the call graph for this function:

◆ testOneFU()

bool HDBTester::testOneFU ( std::string  hdbFile,
int  entryId
)

Definition at line 110 of file HDBTester.cc.

110 {
111
112 ImplementationTester* implTester = initializeTester(hdbFile);
113 if (implTester == NULL) {
114 return false;
115 }
116 bool success = testFU(entryId, implTester);
117 delete implTester;
118
119 if (!success) {
120 std::cerr << "FU Entry " << entryId << " from " << hdbFile
121 << " failed." << std::endl;
122 }
123
124 return success;
125}

References initializeTester(), and testFU().

Referenced by main(), and testUnits().

Here is the call graph for this function:

◆ testOneRF()

bool HDBTester::testOneRF ( std::string  hdbFile,
int  entryId
)

Definition at line 92 of file HDBTester.cc.

92 {
93
94 ImplementationTester* implTester = initializeTester(hdbFile);
95 if (implTester == NULL) {
96 return false;
97 }
98 bool success = testRF(entryId, implTester);
99 delete implTester;
100
101 if (!success) {
102 std::cerr << "RF Entry " << entryId << " from " << hdbFile
103 << " failed." << std::endl;
104 }
105
106 return success;
107}

References initializeTester(), and testRF().

Referenced by main(), and testUnits().

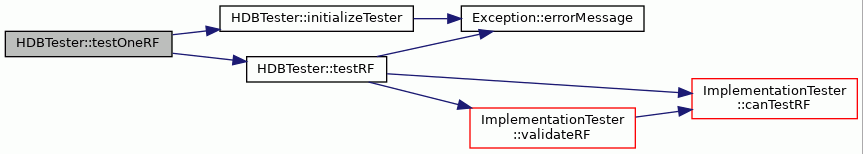

Here is the call graph for this function:

◆ testRF()

bool HDBTester::testRF ( int  id,
ImplementationTester tester
)
private

Definition at line 179 of file HDBTester.cc.

179 {
180
181 string reason = "";
182 if (!tester->canTestRF(id, reason)) {
183 if (infoStream_ != NULL) {
184 *infoStream_ << "Cannot test RF id " << id << " because: "
185 << reason << std::endl;
186 }
187 // this is not failure
188 return true;
189 }
190 vector<string> errors;
191 bool success = false;
192 try {
193 success = tester->validateRF(id, errors);
194 } catch (Exception& e) {
195 if (errorStream_ != NULL) {
197 << "Runtime error: " << e.errorMessage() << std::endl;
198 }
199 return false;
200 }
201 if (!errors.empty()) {
202 if (errorStream_ != NULL) {
203 for (unsigned int i = 0; i < errors.size(); i++) {
204 *errorStream_ << errors.at(i);
205 }
206 }
207 success = false;
208 }
209 return success;
210}
bool canTestRF(const int entryID, std::string &reason)
bool validateRF(const int entryID, std::vector< std::string > &errors)

References ImplementationTester::canTestRF(), Exception::errorMessage(), errorStream_, infoStream_, and ImplementationTester::validateRF().

Referenced by testAllEntries(), and testOneRF().

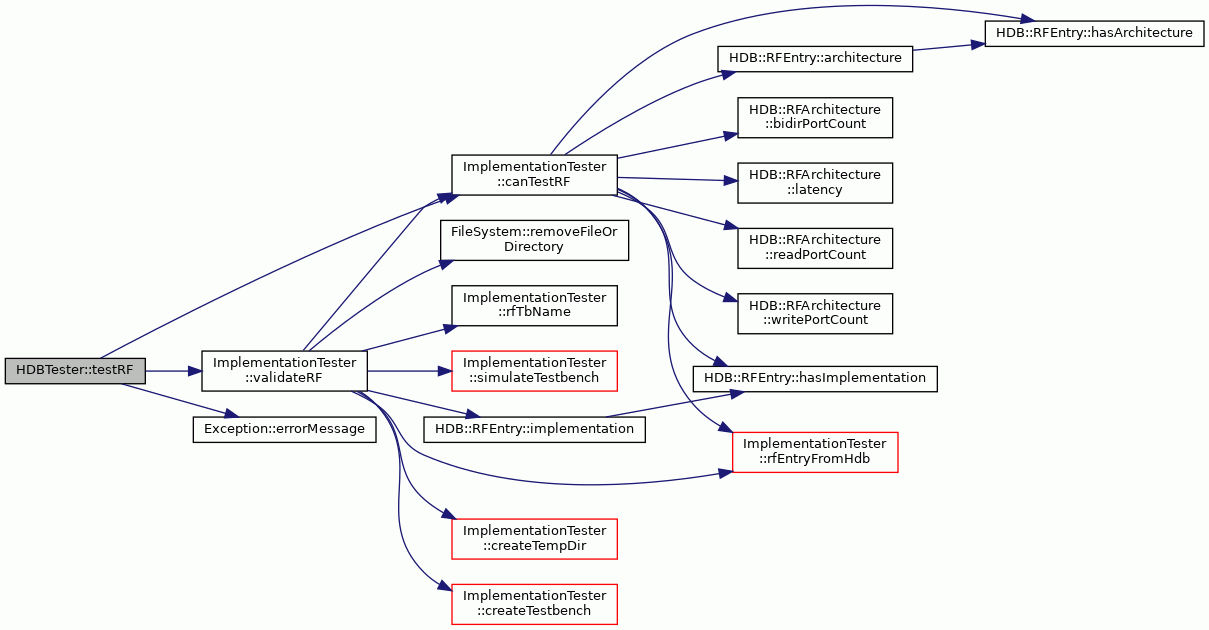

Here is the call graph for this function:

Member Data Documentation

◆ errorStream_

std::ostream* HDBTester::errorStream_
private

Definition at line 65 of file HDBTester.hh.

Referenced by initializeTester(), testFU(), and testRF().

◆ infoStream_

std::ostream* HDBTester::infoStream_
private

Definition at line 64 of file HDBTester.hh.

Referenced by testFU(), and testRF().

◆ leaveDirty_

bool HDBTester::leaveDirty_
private

Definition at line 68 of file HDBTester.hh.

Referenced by initializeTester().

◆ sim_

VhdlSim HDBTester::sim_
private

Definition at line 66 of file HDBTester.hh.

Referenced by initializeTester().

◆ verbose_

bool HDBTester::verbose_
private

Definition at line 67 of file HDBTester.hh.

Referenced by initializeTester().


The documentation for this class was generated from the following files:
