HDB::HDBRegistry Class Reference

#include <HDBRegistry.hh>

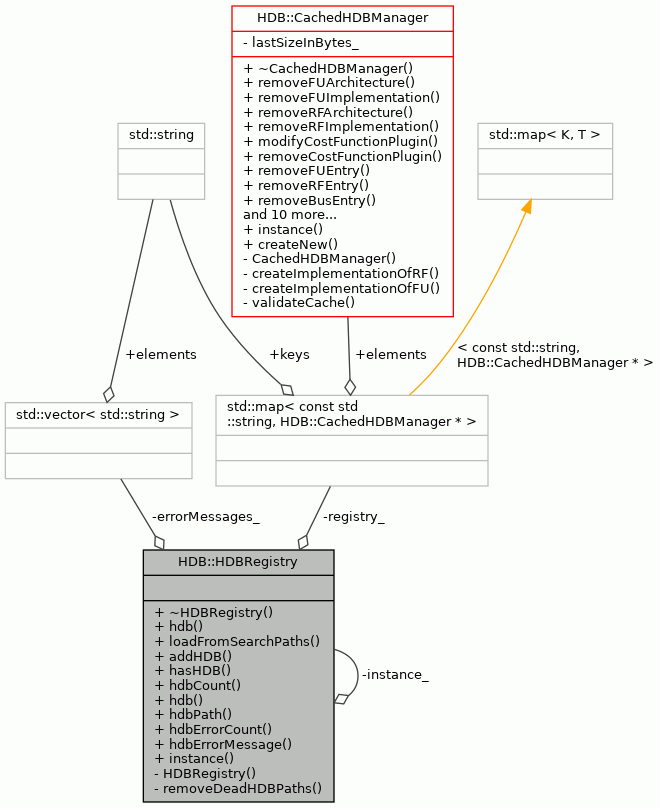

Collaboration diagram for HDB::HDBRegistry:

Public Member Functions
virtual	~HDBRegistry ()
CachedHDBManager &	hdb (const std::string fileName)
void	loadFromSearchPaths ()
void	addHDB (CachedHDBManager *hdbManager)
bool	hasHDB (const std::string &hdbFile)
int	hdbCount ()
CachedHDBManager &	hdb (unsigned int index)
std::string	hdbPath (unsigned int index)
int	hdbErrorCount ()
std::string	hdbErrorMessage (unsigned int index)

Static Public Member Functions
static HDBRegistry &	instance ()

Private Member Functions
	HDBRegistry ()
	HDB registry must be created with instance() method.
void	removeDeadHDBPaths ()
	Deletes nonexistent HDB paths from registry.

Private Attributes
std::map< const std::string, CachedHDBManager * >	registry_
	all opened HDBs are stored in this map
std::vector< std::string >	errorMessages_
	errors found during loading HDBs are strored in this vector

Static Private Attributes
static HDBRegistry *	instance_ = NULL
	Unique instance of the class.

Detailed Description

Registry for multiple HDBs.

Definition at line 46 of file HDBRegistry.hh.

Constructor & Destructor Documentation

~HDBRegistry()

HDB::HDBRegistry::~HDBRegistry ( )

virtual

Destructor.

Definition at line 52 of file HDBRegistry.cc.

                          {
    AssocTools::deleteAllValues(registry_);
}

References AssocTools::deleteAllValues(), and registry_.

Here is the call graph for this function:

HDBRegistry()

HDB::HDBRegistry::HDBRegistry ( )

private

HDB registry must be created with instance() method.

Constructor.

Definition at line 46 of file HDBRegistry.cc.

                         {
}

Referenced by instance().

Member Function Documentation

addHDB()

void HDB::HDBRegistry::addHDB

(

CachedHDBManager *

hdbManager

)

Adds HDBManager in to the registry.

Takes responsibility of deleting the given HDBManager.

Parameters

hdb	The HDBManager to be added in to the registry.

Definition at line 100 of file HDBRegistry.cc.

                                                {

    if (AssocTools::containsKey(
            registry_, FileSystem::absolutePathOf(hdbManager->fileName()))) {

        delete hdbManager;
        hdbManager = NULL;
        return;
    }
    registry_[FileSystem::absolutePathOf(hdbManager->fileName())] = hdbManager;
}

References FileSystem::absolutePathOf(), AssocTools::containsKey(), HDB::HDBManager::fileName(), and registry_.

Referenced by HDB::CachedHDBManager::instance().

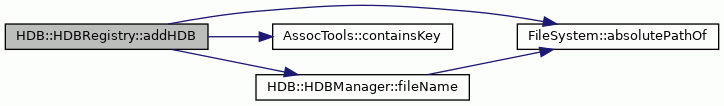

Here is the call graph for this function:

hasHDB()

bool HDB::HDBRegistry::hasHDB

(

const std::string &

hdbFile

)

Returns true if the registry contains a HDBManager of the given HDB file.

Parameters

hdbFile

The HDB file managed by the HDBManager.

Returns

True if the registry contains a HDBManager of the given HDB file.

Definition at line 119 of file HDBRegistry.cc.

                                            {

    if (AssocTools::containsKey(
            registry_, FileSystem::absolutePathOf(hdbFile))) {
        return true;
    } else {
        return false;
    }
}

References FileSystem::absolutePathOf(), AssocTools::containsKey(), and registry_.

Referenced by HDB::CachedHDBManager::instance().

Here is the call graph for this function:

hdb() [1/2]

CachedHDBManager & HDB::HDBRegistry::hdb

(

const std::string

fileName

)

Returns the HDB at given path.

In case the HDB is not found in registry, tries to open it.

Parameters

fileName

File name of the HDB.

Returns

The HDB associated with the file name.

Exceptions

Exception

In case there was a problem while opening the HDB.

Definition at line 80 of file HDBRegistry.cc.

                                         {
    if (AssocTools::containsKey(
            registry_, FileSystem::absolutePathOf(fileName))) {
        return *registry_[FileSystem::absolutePathOf(fileName)];
    }
    CachedHDBManager* manager = &CachedHDBManager::instance(
        FileSystem::absolutePathOf(fileName));

    registry_[FileSystem::absolutePathOf(fileName)] = manager;
    return *manager;
}

References FileSystem::absolutePathOf(), AssocTools::containsKey(), HDB::CachedHDBManager::instance(), and registry_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::NetlistGenerator::addFUToNetlist(), ProGe::ProcessorGenerator::checkIULatencies(), ProGe::BlockSourceCopier::copyBaseRFFiles(), ProGe::BlockSourceCopier::copyShared(), DefaultICDecoderEstimator::delayOfBus(), DefaultICDecoderEstimator::delayOfSocket(), DefaultICDecoderEstimator::estimateICArea(), DefaultICDecoderEstimator::estimateICDelayOfPath(), DefaultICDecoderEstimator::estimateICEnergy(), ComponentImplementationSelector::fuArchsByOpSetWithMinLatency(), CostEstimator::Estimator::fuCostFunctionPluginOfImplementation(), ComponentImplementationSelector::fuImplementations(), CostEstimator::Estimator::functionUnitArea(), CostEstimator::Estimator::functionUnitEnergy(), CostEstimator::Estimator::functionUnitMaximumComputationDelay(), CostEstimator::Estimator::functionUnitPortReadDelay(), CostEstimator::Estimator::functionUnitPortWriteDelay(), ProGeTestBenchGenerator::generate(), ProGeScriptGenerator::getBlockOrder(), HDB::CachedHDBManager::instance(), ComponentImplementationSelector::iuImplementations(), PlatformIntegrator::loadFUExternalPorts(), AddIUFromHDBDialog::loadHDB(), main(), AutoSelectImplementationsDialog::onFind(), BlockImplementationDialog::onHDBSelection(), CostEstimator::Estimator::registerFileArea(), CostEstimator::Estimator::registerFileEnergy(), CostEstimator::Estimator::registerFileMaximumComputationDelay(), CostEstimator::Estimator::registerFilePortReadDelay(), CostEstimator::Estimator::registerFilePortWriteDelay(), CostEstimator::Estimator::rfCostFunctionPluginOfImplementation(), ComponentImplementationSelector::rfImplementations(), ComponentImplementationSelector::selectComponents(), HDBEditorMainFrame::setHDB(), ImplementationSelector::setupSelector(), AddFUFromHDBDialog::TransferDataToWindow(), and AddRFFromHDBDialog::TransferDataToWindow().

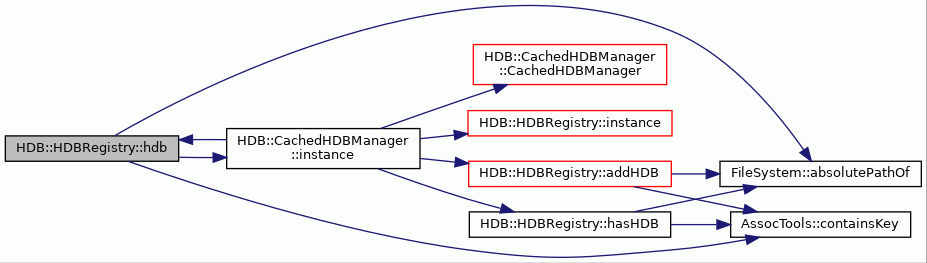

Here is the call graph for this function:

hdb() [2/2]

CachedHDBManager & HDB::HDBRegistry::hdb

(

unsigned int

index

)

Returns the HDB from given index.

Returns

The HDB from the given index.

Exceptions

OutOfRange

Is thrown if index is bigger than the HDB count.

Definition at line 192 of file HDBRegistry.cc.

                                   {
    if (index > (registry_.size() - 1)) {
        throw OutOfRange(__FILE__, __LINE__,
                         "HDBRegistry::hdb(unsigned int)");
    }
    std::map<const std::string, CachedHDBManager*>::const_iterator
        mapIterator = registry_.begin();
    for (unsigned int counter = 0; mapIterator != registry_.end();
         mapIterator++) {
        if (counter == index) {
            break;
        } else {
            counter++;
        }
    }
    return *(*mapIterator).second;
}

References registry_.

hdbCount()

int HDB::HDBRegistry::hdbCount

(

)

Returns the total number of stored HDBs.

Returns

Count of stored HDBs.

Definition at line 135 of file HDBRegistry.cc.

                      {

    return registry_.size();
}

References registry_.

Referenced by AutoSelectImplementationsDialog::AutoSelectImplementationsDialog(), BlockImplementationDialog::BlockImplementationDialog(), FrequencySweepExplorer::openHDBs(), ComponentImplementationSelector::selectComponents(), ImplementationSelector::setupSelector(), AddFUFromHDBDialog::TransferDataToWindow(), and AddRFFromHDBDialog::TransferDataToWindow().

hdbErrorCount()

int HDB::HDBRegistry::hdbErrorCount

(

)

Returns the number of error messages created during HDB loading.

Returns

The number of error messages created during HDB loading.

Definition at line 238 of file HDBRegistry.cc.

                           {

    return errorMessages_.size();
}

References errorMessages_.

Referenced by AddFUFromHDBDialog::TransferDataToWindow(), and AddRFFromHDBDialog::TransferDataToWindow().

hdbErrorMessage()

std::string HDB::HDBRegistry::hdbErrorMessage

(

unsigned int

index

)

Returns the error message from given index.

Returns

The error message in given index.

Exceptions

OutOfRange

Is thrown if index is bigger than the HDB error count.

Definition at line 251 of file HDBRegistry.cc.

                                               {
    if (index > (errorMessages_.size() - 1)) {
        throw OutOfRange(__FILE__, __LINE__,
                         "HDBRegistry::hdbErrorMessage(unsigned int)");
    }
    return errorMessages_[index];
}

References errorMessages_.

Referenced by AddFUFromHDBDialog::TransferDataToWindow(), and AddRFFromHDBDialog::TransferDataToWindow().

hdbPath()

std::string HDB::HDBRegistry::hdbPath

(

unsigned int

index

)

Returns the full path of the HDB with given index.

Returns

The HDB file path.

Exceptions

OutOfRange

Is thrown if index is out of range.

Definition at line 217 of file HDBRegistry.cc.

                                   {
    if (index > (registry_.size() - 1)) {
        throw OutOfRange(__FILE__, __LINE__,
                         "HDBRegistry::hdb(unsigned int)");
    }
    std::map<const std::string, CachedHDBManager*>::const_iterator iter =
        registry_.begin();

    for (unsigned c = 0; iter != registry_.end(); iter++) {
        if (c == index) return (*iter).first;
        c++;
    }
    assert(false);
}

References assert, and registry_.

Referenced by AutoSelectImplementationsDialog::AutoSelectImplementationsDialog(), and BlockImplementationDialog::BlockImplementationDialog().

instance()

HDBRegistry & HDB::HDBRegistry::instance ( )

static

Creates and returns an instance of HDB registry.

Returns

An instance of HDB registry.

Definition at line 62 of file HDBRegistry.cc.

                      {

    if (instance_ == NULL) {
        instance_ = new HDBRegistry();
    }
    return *instance_;
}

References HDBRegistry(), and instance_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::NetlistGenerator::addFUToNetlist(), AutoSelectImplementationsDialog::AutoSelectImplementationsDialog(), BlockImplementationDialog::BlockImplementationDialog(), ProGe::ProcessorGenerator::checkIULatencies(), ProGe::BlockSourceCopier::copyBaseRFFiles(), ProGe::BlockSourceCopier::copyShared(), CostEstimator::Estimator::estimateSocketToSocketDelayOfPath(), ComponentImplementationSelector::fuArchsByOpSetWithMinLatency(), CostEstimator::Estimator::fuCostFunctionPluginOfImplementation(), ComponentImplementationSelector::fuImplementations(), CostEstimator::Estimator::functionUnitArea(), CostEstimator::Estimator::functionUnitEnergy(), CostEstimator::Estimator::functionUnitMaximumComputationDelay(), CostEstimator::Estimator::functionUnitPortReadDelay(), CostEstimator::Estimator::functionUnitPortWriteDelay(), ProGeTestBenchGenerator::generate(), ProGeScriptGenerator::getBlockOrder(), CostEstimator::Estimator::icArea(), CostEstimator::Estimator::icEnergy(), HDB::CachedHDBManager::instance(), ComponentImplementationSelector::iuImplementations(), PlatformIntegrator::loadFUExternalPorts(), AddIUFromHDBDialog::loadHDB(), main(), AutoSelectImplementationsDialog::onFind(), BlockImplementationDialog::onHDBSelection(), FrequencySweepExplorer::openHDBs(), CostEstimator::Estimator::registerFileArea(), CostEstimator::Estimator::registerFileEnergy(), CostEstimator::Estimator::registerFileMaximumComputationDelay(), CostEstimator::Estimator::registerFilePortReadDelay(), CostEstimator::Estimator::registerFilePortWriteDelay(), CostEstimator::Estimator::rfCostFunctionPluginOfImplementation(), ComponentImplementationSelector::rfImplementations(), ComponentImplementationSelector::selectComponents(), HDBEditorMainFrame::setHDB(), ImplementationSelector::setupSelector(), AddFUFromHDBDialog::TransferDataToWindow(), AddRFFromHDBDialog::TransferDataToWindow(), and HDBTester::~HDBTester().

Here is the call graph for this function:

loadFromSearchPaths()

void HDB::HDBRegistry::loadFromSearchPaths

(

)

Definition at line 146 of file HDBRegistry.cc.

                                 {

    // check every HDB path exists, and if doesn't, remove from registry
    removeDeadHDBPaths();

    const std::vector<std::string> hdbPaths = Environment::hdbPaths();
    std::vector<std::string>::const_iterator hdbIter = hdbPaths.begin();
    for(; hdbIter != hdbPaths.end(); hdbIter++) {
        if (!FileSystem::fileExists(*hdbIter) ||
            !FileSystem::fileIsDirectory(*hdbIter) ||
            !FileSystem::fileIsReadable(*hdbIter)) {
            // Directory doesn't exist or can't be read.
            continue;
        }
        std::vector<std::string> dir =
            FileSystem::directoryContents(*hdbIter);
        std::vector<std::string>::const_iterator dirIter = dir.begin();
        for (; dirIter != dir.end(); dirIter++) {
            std::string file = (*dirIter);
            if (file.rfind(".hdb", file.size()) != std::string::npos &&
                file.rfind(".hdb", file.size()) == (file.size() - 4)) {
                if (!AssocTools::containsKey(registry_, file)) {
                    try {
                        CachedHDBManager* manager =
                            &CachedHDBManager::instance(
                                FileSystem::absolutePathOf(file));

                        registry_[FileSystem::absolutePathOf(file)] = manager;
                    } catch (IOException& e) {
                        std::string errorMessage = "Error in '" + file +
                            "': " + e.errorMessage() + ".";
                        errorMessages_.push_back(errorMessage);
                    }
                }
            }
        }
    }
}

References FileSystem::absolutePathOf(), AssocTools::containsKey(), FileSystem::directoryContents(), Exception::errorMessage(), errorMessages_, FileSystem::fileExists(), FileSystem::fileIsDirectory(), FileSystem::fileIsReadable(), Environment::hdbPaths(), HDB::CachedHDBManager::instance(), registry_, and removeDeadHDBPaths().

Referenced by AutoSelectImplementationsDialog::AutoSelectImplementationsDialog(), BlockImplementationDialog::BlockImplementationDialog(), FrequencySweepExplorer::openHDBs(), ImplementationSelector::setupSelector(), AddFUFromHDBDialog::TransferDataToWindow(), and AddRFFromHDBDialog::TransferDataToWindow().

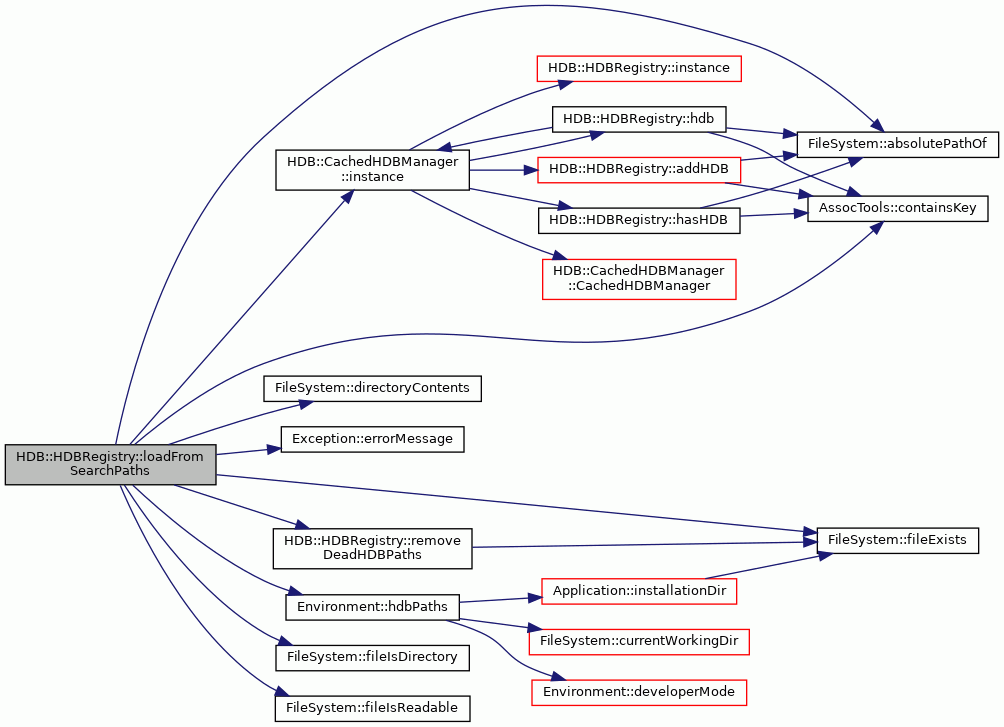

Here is the call graph for this function:

removeDeadHDBPaths()

void HDB::HDBRegistry::removeDeadHDBPaths ( )

private

Deletes nonexistent HDB paths from registry.

Removes nonexistent HDB files from registry.

Definition at line 263 of file HDBRegistry.cc.

                                {

    std::map<const std::string, CachedHDBManager*>::iterator it;
    for (it = registry_.begin(); it != registry_.end(); ) {
        if (!FileSystem::fileExists(it->first)) {
            registry_.erase(it->first);
            ++it;
        } else {
            ++it;
        }
    }
}

References FileSystem::fileExists(), and registry_.

Referenced by loadFromSearchPaths().

Here is the call graph for this function:

Member Data Documentation

errorMessages_

std::vector<std::string> HDB::HDBRegistry::errorMessages_

private

errors found during loading HDBs are strored in this vector

Definition at line 69 of file HDBRegistry.hh.

Referenced by hdbErrorCount(), hdbErrorMessage(), and loadFromSearchPaths().

instance_

HDBRegistry * HDB::HDBRegistry::instance_ = NULL

staticprivate

Unique instance of the class.

Definition at line 71 of file HDBRegistry.hh.

Referenced by instance().

registry_

std::map<const std::string, CachedHDBManager*> HDB::HDBRegistry::registry_

private

all opened HDBs are stored in this map

Definition at line 67 of file HDBRegistry.hh.

Referenced by addHDB(), hasHDB(), hdb(), hdb(), hdbCount(), hdbPath(), loadFromSearchPaths(), removeDeadHDBPaths(), and ~HDBRegistry().

---

The documentation for this class was generated from the following files:

• HDBRegistry.hh
• HDBRegistry.cc
