HDB::RFEntry Class Reference

#include <RFEntry.hh>

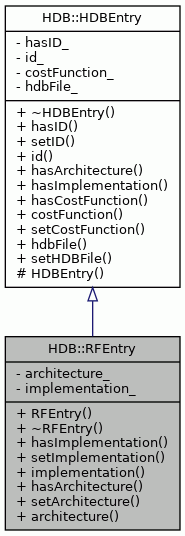

Inheritance diagram for HDB::RFEntry:

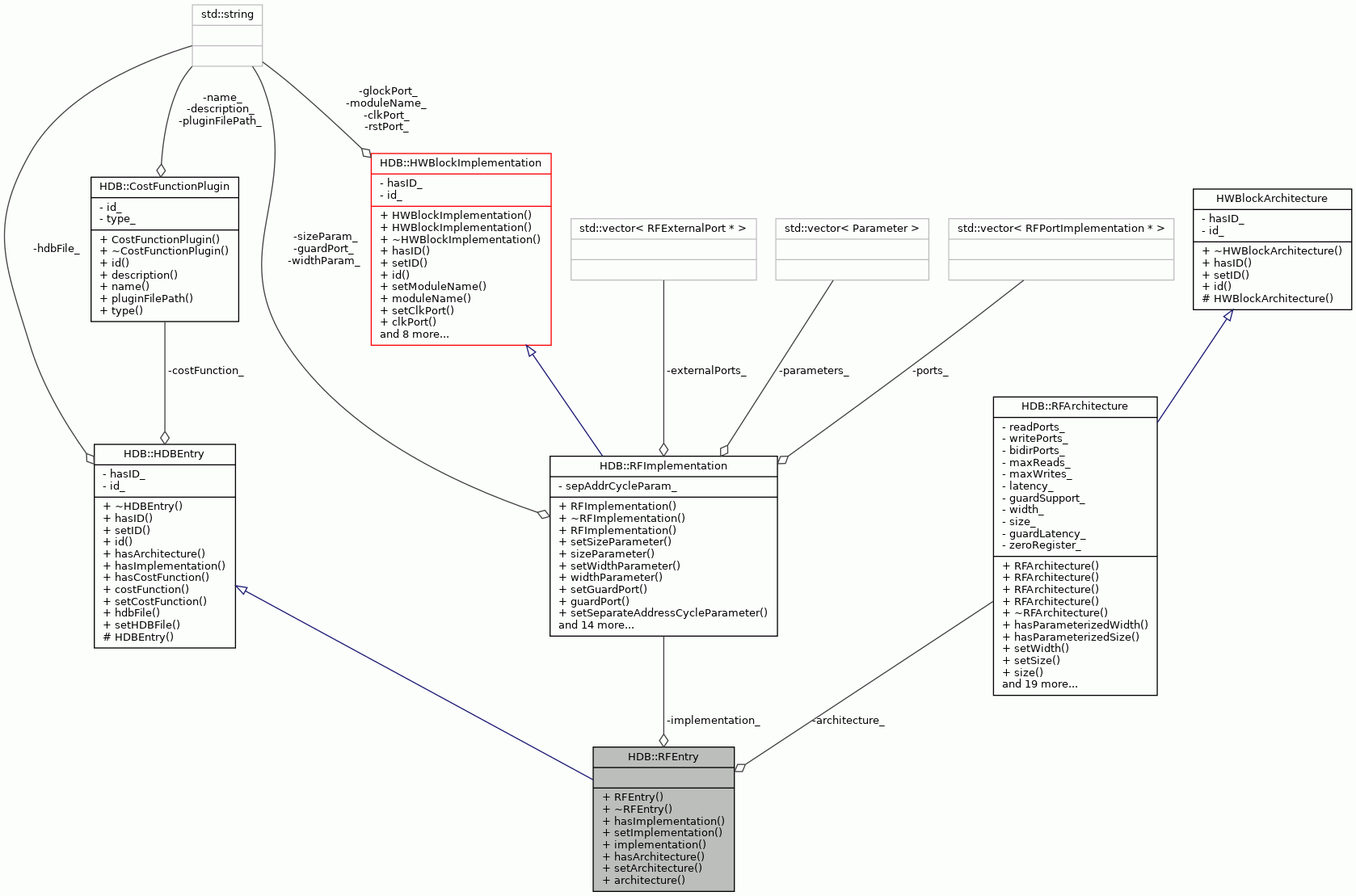

Collaboration diagram for HDB::RFEntry:

Public Member Functions
	RFEntry ()
virtual	~RFEntry ()
virtual bool	hasImplementation () const
void	setImplementation (RFImplementation *implementation)
RFImplementation &	implementation () const
virtual bool	hasArchitecture () const
void	setArchitecture (RFArchitecture *architecture)
RFArchitecture &	architecture () const
Public Member Functions inherited from HDB::HDBEntry
virtual	~HDBEntry ()
bool	hasID () const
void	setID (RowID id)
RowID	id () const
bool	hasCostFunction () const
CostFunctionPlugin &	costFunction () const
void	setCostFunction (CostFunctionPlugin *costFunction)
std::string	hdbFile () const
void	setHDBFile (const std::string &file)

Private Attributes
RFArchitecture *	architecture_
	Architecture of the entry.
RFImplementation *	implementation_
	Implementation of the entry.

Additional Inherited Members
Protected Member Functions inherited from HDB::HDBEntry
	HDBEntry ()

Detailed Description

Represents an RF entry in HDB.

Definition at line 47 of file RFEntry.hh.

Constructor & Destructor Documentation

RFEntry()

HDB::RFEntry::RFEntry

(

)

The constructor.

Creates an empty RF entry without ID, architecture, implementation and cost function.

Definition at line 50 of file RFEntry.cc.

                 :
    HDBEntry(), architecture_(NULL), implementation_(NULL) {
}

~RFEntry()

HDB::RFEntry::~RFEntry ( )

virtual

The destructor.

Definition at line 58 of file RFEntry.cc.

                  {
    if (hasArchitecture()) {
        delete architecture_;
    }
    if (hasImplementation()) {
        delete implementation_;
    }
}

References architecture_, hasArchitecture(), hasImplementation(), and implementation_.

Here is the call graph for this function:

Member Function Documentation

architecture()

RFArchitecture & HDB::RFEntry::architecture

(

)

const

Returns the architecture of the entry.

Returns

The architecture.

Exceptions

NotAvailable

If the entry doesn't have an architecture.

Definition at line 145 of file RFEntry.cc.

                            {
    if (!hasArchitecture()) {
        const string procName = "RFEntry::architecture";
        throw NotAvailable(__FILE__, __LINE__, procName);
    }

    return *architecture_;
}

References architecture_, and hasArchitecture().

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), CostDatabase::buildRegisterFiles(), ImplementationTester::canTestRF(), ProGeTools::checkForSelectableIU(), Automagic::checkForSelectableIU(), ProGeTools::checkForSelectableRF(), Automagic::checkForSelectableRF(), ProGe::ProcessorGenerator::checkIULatencies(), RFTestbenchGenerator::generateTestbench(), BlockImplementationDialog::onHDBSelection(), HDBToHtml::rfEntryToHtml(), setArchitecture(), and HDBBrowserWindow::update().

Here is the call graph for this function:

hasArchitecture()

bool HDB::RFEntry::hasArchitecture ( ) const

virtual

Tells whether the RF entry has an architecture.

Returns

True if the RF entry has an architecture, otherwise false.

Implements HDB::HDBEntry.

Definition at line 117 of file RFEntry.cc.

                               {
    return architecture_ != NULL;
}

References architecture_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), architecture(), CostDatabase::buildRegisterFiles(), ImplementationTester::canTestRF(), ProGe::ProcessorGenerator::checkIULatencies(), AddRFImplementationCmd::isEnabled(), HDBToHtml::rfEntryToHtml(), setArchitecture(), HDB::HDBManager::setArchitectureForRF(), HDBBrowserWindow::update(), and ~RFEntry().

hasImplementation()

bool HDB::RFEntry::hasImplementation ( ) const

virtual

Tells whether the entry has a hardware implementation.

Returns

True if the entry has a hardware implementation, otherwise false.

Implements HDB::HDBEntry.

Definition at line 74 of file RFEntry.cc.

                                 {
    return implementation_ != NULL;
}

References implementation_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), HDB::HDBManager::addRFImplementation(), ImplementationTester::canTestRF(), ProGe::BlockSourceCopier::copyBaseRFFiles(), HDBEditorModifyCmd::Do(), implementation(), AddRFImplementationCmd::isEnabled(), BlockImplementationDialog::onHDBSelection(), HDBToHtml::rfEntryToHtml(), setImplementation(), HDBBrowserWindow::update(), and ~RFEntry().

implementation()

RFImplementation & HDB::RFEntry::implementation

(

)

const

Returns the implementation of the entry.

Returns

The implementation.

Exceptions

NotAvailable

If there is no implementation.

Definition at line 102 of file RFEntry.cc.

                              {
    if (!hasImplementation()) {
        const string procName = "RFEntry::implementation";
        throw NotAvailable(__FILE__, __LINE__, procName);
    }

    return *implementation_;
}

References hasImplementation(), and implementation_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::BlockSourceCopier::copyBaseRFFiles(), HDBEditorModifyCmd::Do(), RFTestbenchGenerator::generateTestbench(), ProGeScriptGenerator::getBlockOrder(), BlockImplementationDialog::onHDBSelection(), HDBToHtml::rfEntryToHtml(), HDBToHtml::rfImplToHtml(), DefaultDecoderGenerator::sacEnabled(), setImplementation(), HDBBrowserWindow::update(), and ImplementationTester::validateRF().

Here is the call graph for this function:

setArchitecture()

void HDB::RFEntry::setArchitecture

(

RFArchitecture *

architecture

)

Sets new architecture for the entry.

Deletes the old architecture if one exists.

Parameters

architecture

The new architecture.

Definition at line 130 of file RFEntry.cc.

                                                     {
    if (hasArchitecture()) {
        delete architecture_;
    }
    architecture_ = architecture;
}

References architecture(), architecture_, and hasArchitecture().

Referenced by HDB::HDBManager::rfByEntryID().

Here is the call graph for this function:

setImplementation()

void HDB::RFEntry::setImplementation

(

RFImplementation *

implementation

)

Sets implementation for the entry.

Deletes the old implementation if one exists.

Parameters

implementation

The new implementation.

Definition at line 87 of file RFEntry.cc.

                                                           {
    if (hasImplementation()) {
        delete implementation_;
    }
    implementation_ = implementation;
}

References hasImplementation(), implementation(), and implementation_.

Referenced by HDB::HDBManager::rfByEntryID().

Here is the call graph for this function:

Member Data Documentation

architecture_

RFArchitecture* HDB::RFEntry::architecture_

private

Architecture of the entry.

Definition at line 62 of file RFEntry.hh.

Referenced by architecture(), hasArchitecture(), setArchitecture(), and ~RFEntry().

implementation_

RFImplementation* HDB::RFEntry::implementation_

private

Implementation of the entry.

Definition at line 64 of file RFEntry.hh.

Referenced by hasImplementation(), implementation(), setImplementation(), and ~RFEntry().

---

The documentation for this class was generated from the following files:

• RFEntry.hh
• RFEntry.cc
