#include <RFArchitecture.hh>

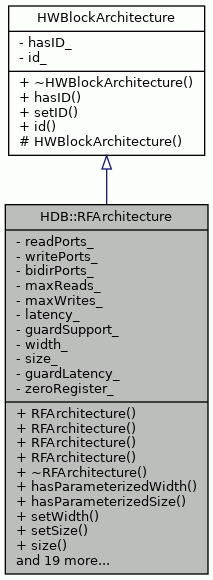

Inheritance diagram for HDB::RFArchitecture:

Collaboration diagram for HDB::RFArchitecture:

Public Member Functions
	RFArchitecture (int readPorts, int writePorts, int bidirPorts, int maxReads, int maxWrites, int latency, bool guardSupport, int guardLatency=0, bool zeroRegister=false)

	RFArchitecture (const TTAMachine::RegisterFile *rf)

	RFArchitecture (const TTAMachine::BaseRegisterFile *rf)

	RFArchitecture (const TTAMachine::ImmediateUnit *rf)

virtual	~RFArchitecture ()

bool	hasParameterizedWidth () const

bool	hasParameterizedSize () const

void	setWidth (int width)

void	setSize (int size)

int	size () const

int	width () const

void	setReadPortCount (int portCount)

int	readPortCount () const

void	setWritePortCount (int portCount)

int	writePortCount () const

void	setBidirPortCount (int portCount)

int	bidirPortCount () const

void	setMaxReads (int maxReads)

int	maxReads () const

void	setMaxWrites (int maxWrites)

int	maxWrites () const

void	setLatency (int latency)

int	latency () const

void	setGuardSupport (bool supported)

bool	hasGuardSupport () const

void	setZeroRegister (bool zeroRegister)

bool	zeroRegister () const

int	guardLatency () const

bool	operator== (const RFArchitecture &rightHand) const

Public Member Functions inherited from HWBlockArchitecture
virtual	~HWBlockArchitecture ()

bool	hasID () const

void	setID (RowID id)

RowID	id () const

Private Attributes
int	readPorts_
	Number of read ports.

int	writePorts_
	Number of write ports.

int	bidirPorts_
	Number of bidir ports.

int	maxReads_
	Maximum number of simultaneous reads.

int	maxWrites_
	Maximum number of ports that can read a register in the same cycle in which another port writes the same register.

int	latency_
	The latency.

bool	guardSupport_
	The guard support.

int	width_
	Width of the register file.

int	size_
	Size of the register file.

int	guardLatency_
	Guard latency.

bool	zeroRegister_
	Zero register.

Additional Inherited Members
Protected Member Functions inherited from HWBlockArchitecture
	HWBlockArchitecture ()

Detailed Description

Represents the architecture of an RF in HDB.

Definition at line 50 of file RFArchitecture.hh.

Constructor & Destructor Documentation

◆ RFArchitecture() [1/4]

HDB::RFArchitecture::RFArchitecture	(	int	readPorts,
		int	writePorts,
		int	bidirPorts,
		int	maxReads,
		int	maxWrites,
		int	latency,
		bool	guardSupport,
		int	guardLatency = `0`,
		bool	zeroRegister = `false`
	)

The constructor.

Creates an architecture that has parameterized width and size. To set fixed size or width, use setWidth or setSize method.

Parameters

readPorts	The number of read ports.
writePorts	The number of write ports.
bidirPorts	The number of bidirectional ports.
maxReads	The maximum number of simultaneous reads.
maxWrites	The maximum number of simultaneous writes.
latency	Latency of the register file.
guardSupport	Tells whether the RF architecture supports guards.
guardLatency	Latency between writing a register and updating the value of guard port.
zeroRegister	Tells whether RF architecture has a zero register.

Exceptions

OutOfRange If some of the arguments is out of range.

Definition at line 63 of file RFArchitecture.cc.

    : readPorts_(readPorts),
      writePorts_(writePorts),
      bidirPorts_(bidirPorts),
      maxReads_(maxReads),
      maxWrites_(maxWrites),
      latency_(latency),
      guardSupport_(guardSupport),
      width_(0),
      size_(0),
      guardLatency_(guardLatency),
      zeroRegister_(zeroRegister) {
    if (readPorts < 0 || writePorts < 0 || bidirPorts < 0 || maxReads < 0 ||
        maxWrites < 0 || latency < 0 || guardLatency < 0) {
        const string procName = "RFArchitecture::RFArchitecture";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
}

References guardLatency(), latency(), maxReads(), and maxWrites().

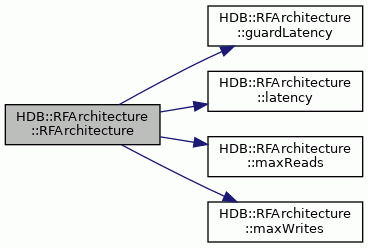

Here is the call graph for this function:

◆ RFArchitecture() [2/4]

HDB::RFArchitecture::RFArchitecture ( const TTAMachine::RegisterFile * rf )

Builds RFArchitecture from RegisterFile*.

Parameters

rf	RegisterFile*.

Definition at line 90 of file RFArchitecture.cc.

                                                              {

    int readPorts = 0;
    int writePorts = 0;
    int bidirPorts = 0;
    for (int i = 0; i < rf->portCount(); i++) {
        TTAMachine::Socket* input = rf->port(i)->inputSocket();
        TTAMachine::Socket* output = rf->port(i)->outputSocket();
        if (input != NULL && output != NULL) {
            bidirPorts++;
        } else if (input != NULL) {
            readPorts++;
        } else if (output != NULL) {
            writePorts++;
        }
    }

    bool guardSupport = false;
    if (rf->isRegistered()) {
        TTAMachine::Machine::BusNavigator navigator =
            rf->machine()->busNavigator();
        for (int i = 0; i < navigator.count(); i++) {
            TTAMachine::Bus* bus = navigator.item(i);
            for (int n = 0; n < bus->guardCount(); n++) {
                TTAMachine::Guard* guard = bus->guard(n);
                TTAMachine::RegisterGuard* registerGuard =
                    dynamic_cast<TTAMachine::RegisterGuard*>(guard);
                if (registerGuard != NULL) {
                    if (registerGuard->registerFile() == rf) {
                        guardSupport = true;
                    }
                }
            }
        }
    }
    readPorts_ = readPorts;
    writePorts_ = writePorts;
    bidirPorts_ = bidirPorts;
    maxReads_ = rf->maxReads();
    maxWrites_ = rf->maxWrites();
    latency_ = 1;
    guardSupport_ = guardSupport;
    width_ = rf->width();
    size_ = rf->numberOfRegisters();
    guardLatency_ = rf->guardLatency();
}

References bidirPorts_, TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Bus::guard(), TTAMachine::Bus::guardCount(), TTAMachine::RegisterFile::guardLatency(), guardLatency_, guardSupport_, TTAMachine::Port::inputSocket(), TTAMachine::Component::isRegistered(), TTAMachine::Machine::Navigator< ComponentType >::item(), latency_, TTAMachine::Component::machine(), TTAMachine::RegisterFile::maxReads(), maxReads_, TTAMachine::RegisterFile::maxWrites(), maxWrites_, TTAMachine::BaseRegisterFile::numberOfRegisters(), TTAMachine::Port::outputSocket(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), readPorts_, TTAMachine::RegisterGuard::registerFile(), size_, TTAMachine::BaseRegisterFile::width(), width_, and writePorts_.

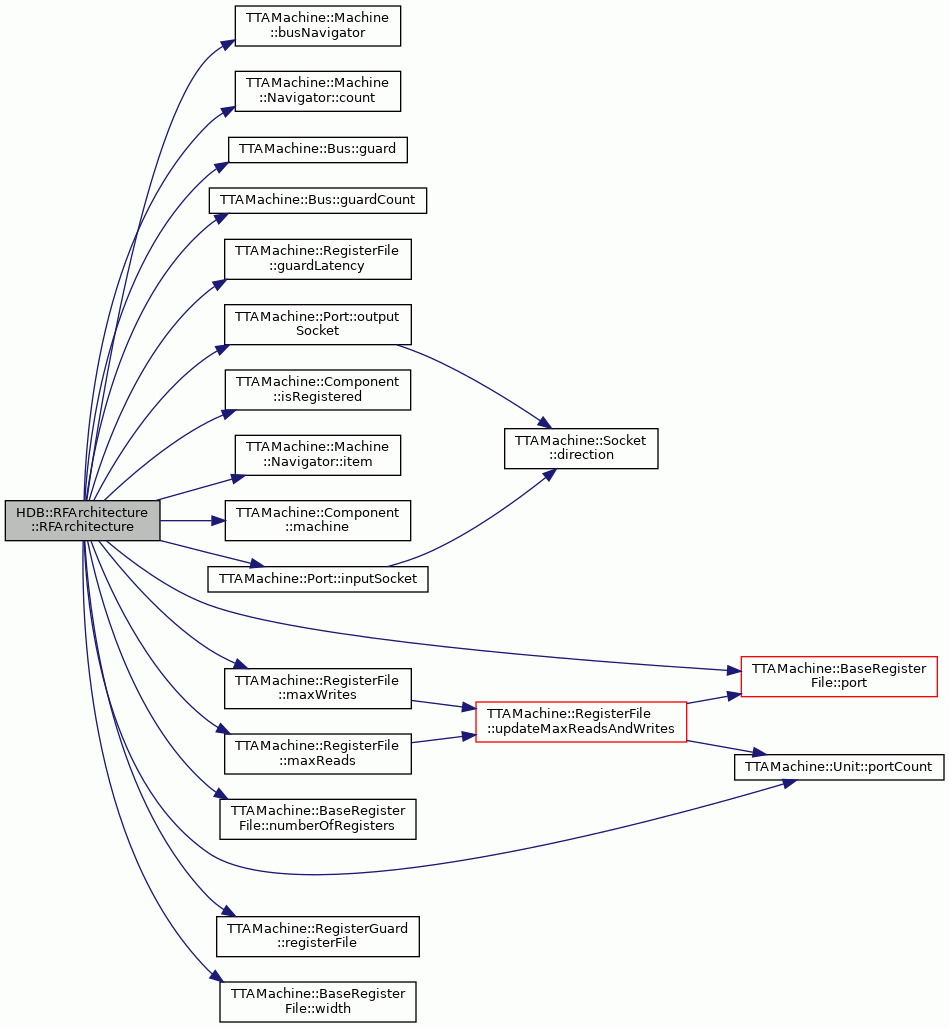

Here is the call graph for this function:

◆ RFArchitecture() [3/4]

HDB::RFArchitecture::RFArchitecture ( const TTAMachine::BaseRegisterFile * baseRF )

Builds RFArchitecture from BaseRegisterFile*.

Parameters

baseRF BaseRegisterfile*.

Definition at line 177 of file RFArchitecture.cc.

                                                                       {

    const TTAMachine::ImmediateUnit* imm =
        dynamic_cast<const TTAMachine::ImmediateUnit*>(baseRF);
    const TTAMachine::RegisterFile* rf =
        dynamic_cast<const TTAMachine::RegisterFile*>(baseRF);
    if (imm != NULL) {
        int readPorts = 0;
        int writePorts = 0;
        int bidirPorts = 0;
        for (int i = 0; i < imm->portCount(); i++) {
            TTAMachine::Socket* input = imm->port(i)->inputSocket();
            TTAMachine::Socket* output = imm->port(i)->outputSocket();
            if (input != NULL && output != NULL) {
                bidirPorts++;
            } else if (input != NULL) {
                readPorts++;
            } else if (output != NULL) {
                writePorts++;
            }
        }

        // immediate unit has no MaxReadWrite, no MaxReads and no guard support
        readPorts_ = readPorts;
        writePorts_ = writePorts;
        bidirPorts_ = bidirPorts;
        maxReads_ = 0;
        maxWrites_ = 0;
        latency_ = 1;
        guardSupport_ = false;
        width_ = imm->width();
        size_ = imm->numberOfRegisters();
        guardLatency_ = 0;
    }
    if (rf != NULL) {
        int readPorts = 0;
        int writePorts = 0;
        int bidirPorts = 0;
        for (int i = 0; i < rf->portCount(); i++) {
            TTAMachine::Socket* input = rf->port(i)->inputSocket();
            TTAMachine::Socket* output = rf->port(i)->outputSocket();
            if (input != NULL && output != NULL) {
                bidirPorts++;
            } else if (input != NULL) {
                readPorts++;
            } else if (output != NULL) {
                writePorts++;
            }
        }

        bool guardSupport = false;
        if (rf->isRegistered()) {
            TTAMachine::Machine::BusNavigator navigator =
                rf->machine()->busNavigator();
            for (int i = 0; i < navigator.count(); i++) {
                TTAMachine::Bus* bus = navigator.item(i);
                for (int n = 0; n < bus->guardCount(); n++) {
                    TTAMachine::Guard* guard = bus->guard(n);
                    TTAMachine::RegisterGuard* registerGuard =
                        dynamic_cast<TTAMachine::RegisterGuard*>(guard);
                    if (registerGuard != NULL) {
                        if (registerGuard->registerFile() == rf) {
                            guardSupport = true;
                        }
                    }
                }
            }
        }
        readPorts_ = readPorts;
        writePorts_ = writePorts;
        bidirPorts_ = bidirPorts;
        maxReads_ = rf->maxReads();
        maxWrites_ = rf->maxWrites();
        latency_ = 1;
        guardSupport_ = guardSupport;
        width_ = rf->width();
        size_ = rf->numberOfRegisters();
        guardLatency_ = rf->guardLatency();
    }
}

References bidirPorts_, TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Bus::guard(), TTAMachine::Bus::guardCount(), TTAMachine::RegisterFile::guardLatency(), guardLatency_, guardSupport_, TTAMachine::Port::inputSocket(), TTAMachine::Component::isRegistered(), TTAMachine::Machine::Navigator< ComponentType >::item(), latency_, TTAMachine::Component::machine(), TTAMachine::RegisterFile::maxReads(), maxReads_, TTAMachine::RegisterFile::maxWrites(), maxWrites_, TTAMachine::BaseRegisterFile::numberOfRegisters(), TTAMachine::Port::outputSocket(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), readPorts_, TTAMachine::RegisterGuard::registerFile(), size_, TTAMachine::BaseRegisterFile::width(), width_, and writePorts_.

Here is the call graph for this function:

◆ RFArchitecture() [4/4]

HDB::RFArchitecture::RFArchitecture ( const TTAMachine::ImmediateUnit * imm )

Builds RFArchitecture from ImmediateUnit*.

Parameters

imm	ImmediateUnit*.

Definition at line 142 of file RFArchitecture.cc.

                                                                 {

    int readPorts = 0;
    int writePorts = 0;
    int bidirPorts = 0;
    for (int i = 0; i < imm->portCount(); i++) {
        TTAMachine::Socket* input = imm->port(i)->inputSocket();
        TTAMachine::Socket* output = imm->port(i)->outputSocket();
        if (input != NULL && output != NULL) {
            bidirPorts++;
        } else if (input != NULL) {
            readPorts++;
        } else if (output != NULL) {
            writePorts++;
        }
    }

    // immediate unit has no MaxReadWrite, no MaxReads and no guard support
    readPorts_ = readPorts;
    writePorts_ = writePorts;
    bidirPorts_ = bidirPorts;
    maxReads_ = 0;
    maxWrites_ = 0;
    latency_ = 1;
    guardSupport_ = false;
    width_ = imm->width();
    size_ = imm->numberOfRegisters();
    guardLatency_ = 0;
}

References bidirPorts_, guardLatency_, guardSupport_, TTAMachine::Port::inputSocket(), latency_, maxReads_, maxWrites_, TTAMachine::BaseRegisterFile::numberOfRegisters(), TTAMachine::Port::outputSocket(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), readPorts_, size_, TTAMachine::BaseRegisterFile::width(), width_, and writePorts_.

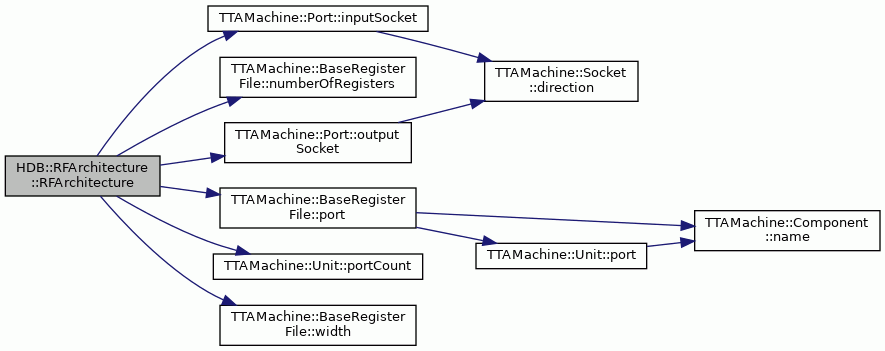

Here is the call graph for this function:

◆ ~RFArchitecture()

HDB::RFArchitecture::~RFArchitecture ( )

virtual

The destructor.

Definition at line 261 of file RFArchitecture.cc.

261 {

262}

Member Function Documentation

◆ bidirPortCount()

int HDB::RFArchitecture::bidirPortCount ( ) const

Returns the number of bidirectional ports.

Returns: The number of bidirectional ports.

Definition at line 422 of file RFArchitecture.cc.

                                     {
    return bidirPorts_;
}

References bidirPorts_.

Referenced by HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), ImplementationTester::canTestRF(), InterpolatingRFEstimator::createSearch(), AddRFFromHDBDialog::loadHDB(), AddIUFromHDBDialog::loadHDB(), AddRFFromHDBDialog::onAdd(), operator==(), and HDBToHtml::rfArchToHtml().

◆ guardLatency()

int HDB::RFArchitecture::guardLatency ( ) const

Returns the guard latency.

Returns: The guard latency.

Definition at line 551 of file RFArchitecture.cc.

                                   {
    return guardLatency_;
}

References guardLatency_.

Referenced by HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), RFTestbenchGenerator::createMachineState(), InterpolatingRFEstimator::createSearch(), AddIUFromHDBDialog::onAdd(), AddRFFromHDBDialog::onAdd(), operator==(), RFArchitecture(), and HDBToHtml::rfArchToHtml().

◆ hasGuardSupport()

bool HDB::RFArchitecture::hasGuardSupport ( ) const

Tells whether the RF supports guards.

Returns: True if the RF supports guards, otherwise false.

Definition at line 519 of file RFArchitecture.cc.

                                      {
    return guardSupport_;
}

References guardSupport_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), InterpolatingRFEstimator::createSearch(), operator==(), and HDBToHtml::rfArchToHtml().

◆ hasParameterizedSize()

bool HDB::RFArchitecture::hasParameterizedSize ( ) const

Tells whether the RF has parameterized size.

Returns: True if the RF has parameterized size, otherwise false.

Definition at line 282 of file RFArchitecture.cc.

                                           {
    return size_ == 0;
}

References size_.

Referenced by HDB::HDBManager::addRFArchitecture(), RFTestbenchGenerator::createMachineState(), AddRFFromHDBDialog::loadHDB(), AddIUFromHDBDialog::loadHDB(), AddIUFromHDBDialog::onAdd(), AddRFFromHDBDialog::onAdd(), BlockImplementationDialog::onHDBSelection(), operator==(), HDBToHtml::rfArchToHtml(), and size().

◆ hasParameterizedWidth()

bool HDB::RFArchitecture::hasParameterizedWidth ( ) const

Tells whether the RF has parameterized width.

Returns: True if the RF has parameterized width, otherwise false.

Definition at line 271 of file RFArchitecture.cc.

                                            {
    return width_ == 0;
}

References width_.

Referenced by HDB::HDBManager::addRFArchitecture(), RFTestbenchGenerator::createMachineState(), AddRFFromHDBDialog::loadHDB(), AddIUFromHDBDialog::loadHDB(), AddIUFromHDBDialog::onAdd(), AddRFFromHDBDialog::onAdd(), BlockImplementationDialog::onHDBSelection(), operator==(), HDBToHtml::rfArchToHtml(), and width().

◆ latency()

int HDB::RFArchitecture::latency ( ) const

Returns the latency of the register file.

Returns: The latency of the register file.

Definition at line 497 of file RFArchitecture.cc.

                              {
    return latency_;
}

References latency_.

Referenced by HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), ImplementationTester::canTestRF(), ProGe::ProcessorGenerator::checkIULatencies(), InterpolatingRFEstimator::createSearch(), RFTestbenchGenerator::createStimulus(), AddRFFromHDBDialog::loadHDB(), AddIUFromHDBDialog::loadHDB(), operator==(), RFArchitecture(), HDBToHtml::rfArchToHtml(), and setLatency().

◆ maxReads()

int HDB::RFArchitecture::maxReads ( ) const

Returns the maximum number of simultaneous reads.

Returns: The maximum number of simultaneous reads.

Definition at line 447 of file RFArchitecture.cc.

                               {
    return maxReads_;
}

References maxReads_.

Referenced by HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), RFTestbenchGenerator::createMachineState(), InterpolatingRFEstimator::createSearch(), AddRFFromHDBDialog::loadHDB(), AddIUFromHDBDialog::onAdd(), AddRFFromHDBDialog::onAdd(), operator==(), RFArchitecture(), HDBToHtml::rfArchToHtml(), and setMaxReads().

◆ maxWrites()

int HDB::RFArchitecture::maxWrites ( ) const

Returns the maximum number of simultaneous writes.

Returns: The maximum number of simultaneous writes.

Definition at line 472 of file RFArchitecture.cc.

                                {
    return maxWrites_;
}

References maxWrites_.

Referenced by HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), RFTestbenchGenerator::createMachineState(), InterpolatingRFEstimator::createSearch(), AddRFFromHDBDialog::loadHDB(), AddRFFromHDBDialog::onAdd(), operator==(), RFArchitecture(), HDBToHtml::rfArchToHtml(), and setMaxWrites().

◆ operator==()

bool HDB::RFArchitecture::operator== ( const RFArchitecture & rightHand ) const

Checks whether the given RF has a mathing architecture with the given RF architecture instance.

Parameters

rightHand Right hand operand.

Returns: True if the architectures match, otherwise false.

Definition at line 564 of file RFArchitecture.cc.

                                                                {

    if (rightHand.readPortCount() != readPortCount()) {
        return false;
    }
    if (rightHand.writePortCount() != writePortCount()) {
        return false;
    }
    if (rightHand.bidirPortCount() != bidirPortCount()) {
        return false;
    }
    if (rightHand.maxReads() != maxReads()) {
        return false;
    }
    if (rightHand.maxWrites() != maxWrites()) {
        return false;
    }
    if (rightHand.latency() != latency()) {
        return false;
    }
    if (rightHand.hasGuardSupport() != hasGuardSupport()) {
        return false;
    }
    if (rightHand.guardLatency() != guardLatency()) {
        return false;
    }
    if (rightHand.hasParameterizedSize() != hasParameterizedSize()) {
        return false;
    }
    if (!hasParameterizedSize()) {
        if (rightHand.size() != size()) {
            return false;
        }
    }
    if (rightHand.hasParameterizedWidth() != hasParameterizedWidth()) {
        return false;
    }
    if (!hasParameterizedWidth()) {
        if (rightHand.width() != width()) {
            return false;
        }
    }
    return true;
}

References bidirPortCount(), guardLatency(), hasGuardSupport(), hasParameterizedSize(), hasParameterizedWidth(), latency(), maxReads(), maxWrites(), readPortCount(), size(), width(), and writePortCount().

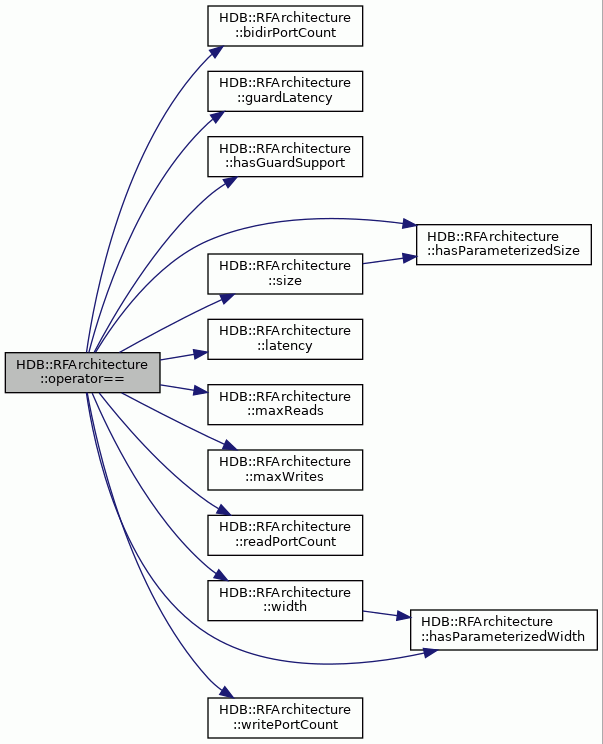

Here is the call graph for this function:

◆ readPortCount()

int HDB::RFArchitecture::readPortCount ( ) const

Returns the number of read ports.

Returns: The number of read ports.

Definition at line 372 of file RFArchitecture.cc.

                                    {
    return readPorts_;
}

References readPorts_.

Referenced by HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), ImplementationTester::canTestRF(), InterpolatingRFEstimator::createSearch(), RFTestbenchGenerator::createStimulus(), RFTestbenchGenerator::createTbCode(), RFTestbenchGenerator::createTbInstantiation(), AddRFFromHDBDialog::loadHDB(), AddIUFromHDBDialog::loadHDB(), AddIUFromHDBDialog::onAdd(), AddRFFromHDBDialog::onAdd(), operator==(), and HDBToHtml::rfArchToHtml().

◆ setBidirPortCount()

void HDB::RFArchitecture::setBidirPortCount ( int portCount )

Sets the number of bidirectional ports.

Parameters

portCount The number of bidirectional ports.

Exceptions

OutOfRange If the given port count is negative.

Definition at line 409 of file RFArchitecture.cc.

                                               {
    if (portCount < 0) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
    bidirPorts_ = portCount;
}

References __func__, and bidirPorts_.

Referenced by RFArchitectureDialog::onOK().

◆ setGuardSupport()

void HDB::RFArchitecture::setGuardSupport ( bool supported )

Sets the guard support of the register file.

Parameters

supported True if supported, otherwise false.

Definition at line 508 of file RFArchitecture.cc.

                                              {
    guardSupport_ = supported;
}

References guardSupport_.

Referenced by RFArchitectureDialog::onOK().

◆ setLatency()

void HDB::RFArchitecture::setLatency ( int latency )

Sets the latency of the register file.

Parameters

latency The new latency.

Exceptions

OutOfRange If the given latency is smaller than 1.

Definition at line 484 of file RFArchitecture.cc.

                                      {
    if (latency < 1) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
    latency_ = latency;
}

References __func__, latency(), and latency_.

Referenced by RFArchitectureDialog::onOK().

Here is the call graph for this function:

◆ setMaxReads()

void HDB::RFArchitecture::setMaxReads ( int maxReads )

Sets the maximum number of simultaneous reads.

Parameters

maxReads The new value.

Exceptions

OutOfRange If the given value is negative.

Definition at line 434 of file RFArchitecture.cc.

                                        {
    if (maxReads < 0) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
    maxReads_ = maxReads;
}

References __func__, maxReads(), and maxReads_.

Referenced by RFArchitectureDialog::onOK().

Here is the call graph for this function:

◆ setMaxWrites()

void HDB::RFArchitecture::setMaxWrites ( int maxWrites )

Sets the maximum number of simultaneous writes.

Parameters

maxWrites The new value.

Exceptions

OutOfRange If the given value is negative.

Definition at line 459 of file RFArchitecture.cc.

                                          {
    if (maxWrites < 0) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
    maxWrites_ = maxWrites;
}

References __func__, maxWrites(), and maxWrites_.

Referenced by RFArchitectureDialog::onOK().

Here is the call graph for this function:

◆ setReadPortCount()

void HDB::RFArchitecture::setReadPortCount ( int portCount )

Sets the number of read ports.

Parameters

portCount The number of read ports.

Exceptions

OutOfRange If the given port count is negative.

Definition at line 359 of file RFArchitecture.cc.

                                              {
    if (portCount < 0) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
    readPorts_ = portCount;
}

References __func__, and readPorts_.

Referenced by RFArchitectureDialog::onOK().

◆ setSize()

void HDB::RFArchitecture::setSize ( int size )

Sets the size of the register file.

Parameters

size	The new size.

Exceptions

OutOfRange If the size is less than 1.

Definition at line 310 of file RFArchitecture.cc.

                                {
    if (size < 1) {
        const string procName = "RFArchitecture::setSize";
        throw OutOfRange(__FILE__, __LINE__, procName);
    } else {
        size_ = size;
    }
}

References size(), and size_.

Referenced by RFTestbenchGenerator::createMachineState(), RFArchitectureDialog::onOK(), and HDB::HDBManager::rfArchitectureByID().

Here is the call graph for this function:

◆ setWidth()

void HDB::RFArchitecture::setWidth ( int width )

Sets the width of the register file.

Parameters

width The new width.

Exceptions

OutOfRange If the width is less than 1.

Definition at line 294 of file RFArchitecture.cc.

                                  {
    if (width < 1) {
        const string procName = "RFArchitecture::setWidth";
        throw OutOfRange(__FILE__, __LINE__, procName);
    } else {
        width_ = width;
    }
}

References width(), and width_.

Referenced by RFTestbenchGenerator::createMachineState(), RFArchitectureDialog::onOK(), and HDB::HDBManager::rfArchitectureByID().

Here is the call graph for this function:

◆ setWritePortCount()

void HDB::RFArchitecture::setWritePortCount ( int portCount )

Sets the number of write ports.

Parameters

portCount The number of write ports.

Exceptions

OutOfRange If the given port count is smaller than 1.

Definition at line 384 of file RFArchitecture.cc.

                                               {
    if (portCount < 0) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
    writePorts_ = portCount;
}

References __func__, and writePorts_.

Referenced by RFArchitectureDialog::onOK().

◆ setZeroRegister()

void HDB::RFArchitecture::setZeroRegister ( bool zeroRegister )

Sets the zero register flag of the register file

Parameters

zeroRegister True if has a zero register, otherwise false

Definition at line 530 of file RFArchitecture.cc.

                                                 {
    zeroRegister_ = zeroRegister;
}

References zeroRegister(), and zeroRegister_.

Referenced by RFArchitectureDialog::onOK().

Here is the call graph for this function:

◆ size()

int HDB::RFArchitecture::size ( ) const

Returns the size of the register file.

Returns: The size of the register file.

Exceptions

NotAvailable If the size is parameterized.

Definition at line 326 of file RFArchitecture.cc.

                           {
    if (hasParameterizedSize()) {
        const string procName = "RFArchitecture::size";
        throw NotAvailable(__FILE__, __LINE__, procName);
    } else {
        return size_;
    }
}

References hasParameterizedSize(), and size_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), RFTestbenchGenerator::createMachineState(), InterpolatingRFEstimator::createSearch(), RFTestbenchGenerator::createStimulus(), RFTestbenchGenerator::createTbInstantiation(), AddRFFromHDBDialog::loadHDB(), AddIUFromHDBDialog::loadHDB(), AddIUFromHDBDialog::onAdd(), AddRFFromHDBDialog::onAdd(), RFTestbenchGenerator::opcodePortWidth(), operator==(), HDBToHtml::rfArchToHtml(), and setSize().

Here is the call graph for this function:

◆ width()

int HDB::RFArchitecture::width ( ) const

Returns the width of the register file.

Returns: The width of the register file.

Exceptions

NotAvailable If the width of the register file is parameterized.

Definition at line 343 of file RFArchitecture.cc.

                            {
    if (hasParameterizedWidth()) {
        const string procName = "RFArchitecture::width";
        throw NotAvailable(__FILE__, __LINE__, procName);
    } else {
        return width_;
    }
}

References hasParameterizedWidth(), and width_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), RFTestbenchGenerator::createMachineState(), InterpolatingRFEstimator::createSearch(), RFTestbenchGenerator::createStimulus(), RFTestbenchGenerator::createStimulusArrays(), RFTestbenchGenerator::createTbInstantiation(), AddRFFromHDBDialog::loadHDB(), AddIUFromHDBDialog::loadHDB(), AddIUFromHDBDialog::onAdd(), AddRFFromHDBDialog::onAdd(), operator==(), HDBToHtml::rfArchToHtml(), and setWidth().

Here is the call graph for this function:

◆ writePortCount()

int HDB::RFArchitecture::writePortCount ( ) const

Returns the number of write ports.

Returns: The number of write ports.

Definition at line 397 of file RFArchitecture.cc.

                                     {
    return writePorts_;
}

References writePorts_.

Referenced by HDB::HDBManager::addRFArchitecture(), CostDatabase::buildRegisterFiles(), ImplementationTester::canTestRF(), InterpolatingRFEstimator::createSearch(), RFTestbenchGenerator::createStimulus(), RFTestbenchGenerator::createTbCode(), RFTestbenchGenerator::createTbInstantiation(), AddRFFromHDBDialog::loadHDB(), AddIUFromHDBDialog::loadHDB(), AddRFFromHDBDialog::onAdd(), operator==(), and HDBToHtml::rfArchToHtml().

◆ zeroRegister()

bool HDB::RFArchitecture::zeroRegister ( ) const

Tells whether the RF has a zero register

Returns: True if RF has a zero register

Definition at line 541 of file RFArchitecture.cc.

                                   {
    return zeroRegister_;
}

References zeroRegister_.

Referenced by HDB::HDBManager::addRFArchitecture(), RFTestbenchGenerator::createMachineState(), AddRFFromHDBDialog::onAdd(), HDBToHtml::rfArchToHtml(), and setZeroRegister().

Member Data Documentation

◆ bidirPorts_

int HDB::RFArchitecture::bidirPorts_

private

Number of bidir ports.

Definition at line 104 of file RFArchitecture.hh.

Referenced by bidirPortCount(), RFArchitecture(), RFArchitecture(), RFArchitecture(), and setBidirPortCount().

◆ guardLatency_

int HDB::RFArchitecture::guardLatency_

private

Guard latency.

Definition at line 119 of file RFArchitecture.hh.

Referenced by guardLatency(), RFArchitecture(), RFArchitecture(), and RFArchitecture().

◆ guardSupport_

bool HDB::RFArchitecture::guardSupport_

private

The guard support.

Definition at line 113 of file RFArchitecture.hh.

Referenced by hasGuardSupport(), RFArchitecture(), RFArchitecture(), RFArchitecture(), and setGuardSupport().

◆ latency_

int HDB::RFArchitecture::latency_

private

The latency.

Definition at line 111 of file RFArchitecture.hh.

Referenced by latency(), RFArchitecture(), RFArchitecture(), RFArchitecture(), and setLatency().

◆ maxReads_

int HDB::RFArchitecture::maxReads_

private

Maximum number of simultaneous reads.

Definition at line 106 of file RFArchitecture.hh.

Referenced by maxReads(), RFArchitecture(), RFArchitecture(), RFArchitecture(), and setMaxReads().

◆ maxWrites_

int HDB::RFArchitecture::maxWrites_

private

Maximum number of ports that can read a register in the same cycle in which another port writes the same register.

Definition at line 109 of file RFArchitecture.hh.

Referenced by maxWrites(), RFArchitecture(), RFArchitecture(), RFArchitecture(), and setMaxWrites().

◆ readPorts_

int HDB::RFArchitecture::readPorts_

private

Number of read ports.

Definition at line 100 of file RFArchitecture.hh.

Referenced by readPortCount(), RFArchitecture(), RFArchitecture(), RFArchitecture(), and setReadPortCount().

◆ size_

int HDB::RFArchitecture::size_

private

Size of the register file.

Definition at line 117 of file RFArchitecture.hh.

Referenced by hasParameterizedSize(), RFArchitecture(), RFArchitecture(), RFArchitecture(), setSize(), and size().

◆ width_

int HDB::RFArchitecture::width_

private

Width of the register file.

Definition at line 115 of file RFArchitecture.hh.

Referenced by hasParameterizedWidth(), RFArchitecture(), RFArchitecture(), RFArchitecture(), setWidth(), and width().

◆ writePorts_

int HDB::RFArchitecture::writePorts_

private

Number of write ports.

Definition at line 102 of file RFArchitecture.hh.

Referenced by RFArchitecture(), RFArchitecture(), RFArchitecture(), setWritePortCount(), and writePortCount().

◆ zeroRegister_

bool HDB::RFArchitecture::zeroRegister_

private

Zero register.

Definition at line 121 of file RFArchitecture.hh.

Referenced by setZeroRegister(), and zeroRegister().

The documentation for this class was generated from the following files:

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ RFArchitecture() [1/4]

◆ RFArchitecture() [2/4]

◆ RFArchitecture() [3/4]

◆ RFArchitecture() [4/4]

◆ ~RFArchitecture()

Member Function Documentation

◆ bidirPortCount()

◆ guardLatency()

◆ hasGuardSupport()

◆ hasParameterizedSize()

◆ hasParameterizedWidth()

◆ latency()

◆ maxReads()

◆ maxWrites()

◆ operator==()

◆ readPortCount()

◆ setBidirPortCount()

◆ setGuardSupport()

◆ setLatency()

◆ setMaxReads()

◆ setMaxWrites()

◆ setReadPortCount()

◆ setSize()

◆ setWidth()

◆ setWritePortCount()

◆ setZeroRegister()

◆ size()

◆ width()

◆ writePortCount()

◆ zeroRegister()

Member Data Documentation

◆ bidirPorts_

◆ guardLatency_

◆ guardSupport_

◆ latency_

◆ maxReads_

◆ maxWrites_

◆ readPorts_

◆ size_

◆ width_

◆ writePorts_

◆ zeroRegister_
