MemDumpCommand Class Reference

#include <MemDumpCommand.hh>

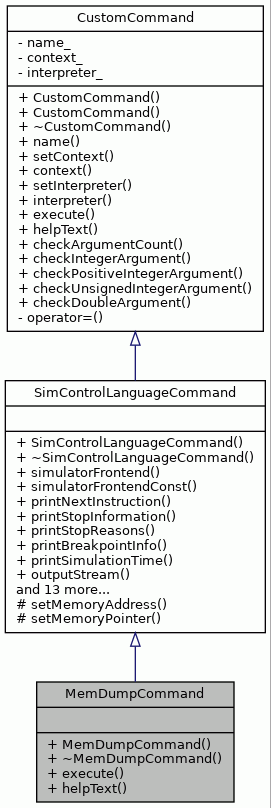

Inheritance diagram for MemDumpCommand:
Inheritance graph

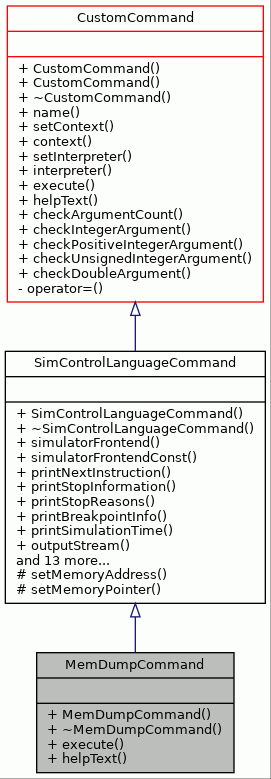

Collaboration diagram for MemDumpCommand:
Collaboration graph

Public Member Functions

 MemDumpCommand ()

virtual ~MemDumpCommand ()

virtual bool execute (const std::vector< DataObject > &arguments)

virtual std::string helpText () const

- Public Member Functions inherited from SimControlLanguageCommand
 SimControlLanguageCommand (const std::string &name)

virtual ~SimControlLanguageCommand ()

SimulatorFrontend & simulatorFrontend ()

const SimulatorFrontend & simulatorFrontendConst ()

virtual void printNextInstruction ()

virtual void printStopInformation ()

virtual void printStopReasons ()

virtual bool printBreakpointInfo (unsigned int breakpointHandle)

virtual void printSimulationTime ()

virtual std::ostream & outputStream ()

bool checkSimulationInitialized ()

bool checkSimulationNotAlreadyRunning ()

bool checkSimulationStopped ()

bool checkSimulationEnded ()

bool checkProgramLoaded ()

bool checkMachineLoaded ()

InstructionAddress parseInstructionAddressExpression (const std::string &expression)

TTAProgram::Address parseDataAddressExpression (const std::string &expression)

bool parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)

bool askConditionFromUser (TclConditionScript &target)

bool askExpressionFromUser (ExpressionScript &target)

bool verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)

void setErrorMessage (const TCEString &errorMsg)

- Public Member Functions inherited from CustomCommand
 CustomCommand (std::string name)

 CustomCommand (const CustomCommand &cmd)

virtual ~CustomCommand ()

std::string name () const

void setContext (InterpreterContext *context)

InterpreterContext * context () const

void setInterpreter (ScriptInterpreter *si)

ScriptInterpreter * interpreter () const

bool checkArgumentCount (int argumentCount, int minimum, int maximum)

bool checkIntegerArgument (const DataObject &argument)

bool checkPositiveIntegerArgument (const DataObject &argument)

bool checkUnsignedIntegerArgument (const DataObject &argument)

bool checkDoubleArgument (const DataObject &argument)


Additional Inherited Members

- Protected Member Functions inherited from SimControlLanguageCommand
bool setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)

bool setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)


Detailed Description

Implementation of the "x" command of the Simulator Control Language.

Definition at line 47 of file MemDumpCommand.hh.

Constructor & Destructor Documentation

◆ MemDumpCommand()

MemDumpCommand::MemDumpCommand ( )

Constructor.

Sets the name of the command to the base class.

Definition at line 52 of file MemDumpCommand.cc.

52 :
53 SimControlLanguageCommand("x") {
54}

◆ ~MemDumpCommand()

MemDumpCommand::~MemDumpCommand ( )
virtual

Destructor.

Does nothing.

Definition at line 61 of file MemDumpCommand.cc.

61 {
62}

Member Function Documentation

◆ execute()

bool MemDumpCommand::execute ( const std::vector< DataObject > &  arguments)
virtual

Executes the "x" command.

This low-level command prints the data in memory starting at specified addresses addr.

Parameters
argumentsThe address to print.
Returns
True in case simulation is initialized and arguments are ok.
Exceptions
NumberFormatExceptionIs never thrown by this command.

Implements CustomCommand.

Definition at line 75 of file MemDumpCommand.cc.

75 {
76 static size_t displayedCount = 1;
77 static size_t lastDisplayedAddress = 0;
78 static size_t MAUsToDisplay = 1;
79
80 const int argumentCount = arguments.size() - 1;
81 if (!checkArgumentCount(argumentCount, 0, 9)) {
82 return false;
83 }
84
85 if (!checkProgramLoaded()) {
86 return false;
87 }
88
89 bool illegalArguments = false;
90 size_t newDisplayedCount = displayedCount;
91 size_t newMAUCount = MAUsToDisplay;
92 size_t newDisplayedAddress = lastDisplayedAddress + MAUsToDisplay;
93 std::string addressSpaceName = "";
94 std::string fileName = "";
95 for (size_t i = 1; i < arguments.size(); ++i) {
96 if (StringTools::ciEqual(arguments.at(i).stringValue(), "/n")) {
97 if (i == arguments.size() - 1 ||
98 !checkUnsignedIntegerArgument(arguments.at(i + 1))) {
99 illegalArguments = true;
100 break;
101 }
102 newDisplayedCount =
103 static_cast<size_t>(arguments.at(i + 1).integerValue());
104 ++i;
105 } else if (StringTools::ciEqual(arguments.at(i).stringValue(), "/u")) {
106 if (i == arguments.size() - 1) {
107 illegalArguments = true;
108 break;
109 }
110 const std::string size = arguments.at(i + 1).stringValue();
111 if (StringTools::ciEqual(size, "b")) {
112 newMAUCount = 1;
113 } else if (StringTools::ciEqual(size, "h")) {
114 newMAUCount = 2;
115 } else if (StringTools::ciEqual(size, "w")) {
116 newMAUCount = 4;
117 } else {
118 illegalArguments = true;
119 break;
120 }
121 ++i;
122 } else if (StringTools::ciEqual(arguments.at(i).stringValue(), "/a")) {
123 if (i == arguments.size() - 1) {
124 illegalArguments = true;
125 break;
126 }
127 addressSpaceName = arguments.at(i + 1).stringValue();
128 ++i;
129 } else if (StringTools::ciEqual(arguments.at(i).stringValue(), "/f")) {
130 if (i == arguments.size() - 1) {
131 illegalArguments = true;
132 break;
133 }
134 fileName = arguments.at(i + 1).stringValue();
135 ++i;
136 } else if (i == arguments.size() - 1) {
137 const std::string addressString = arguments.at(i).stringValue();
138 if (!setMemoryAddress(
139 addressString, addressSpaceName, newDisplayedAddress)) {
140 return false;
141 }
142 } else {
143 illegalArguments = true;
144 break;
145 }
146 }
147
148 if (illegalArguments) {
149 interpreter()->setResult(
150 SimulatorToolbox::textGenerator().text(
151 Texts::TXT_ILLEGAL_ARGUMENTS).str());
152 interpreter()->setError(true);
153 return false;
154 }
155
156 displayedCount = newDisplayedCount;
157 lastDisplayedAddress = newDisplayedAddress;
158
159 MemorySystem::MemoryPtr memory;
160 if (!setMemoryPointer(memory, addressSpaceName)) {
161 return false;
162 }
163
164 size_t MAUSize;
165 if (simulatorFrontend().memorySystem().memoryCount() == 1) {
166 MAUSize = simulatorFrontend().memorySystem().addressSpace(0).width();
167 } else {
168 MAUSize =
169 simulatorFrontend().memorySystem().
170 addressSpace(addressSpaceName).width();
171 }
172
173 if (MAUSize*newMAUCount > SIMULATOR_MAX_INTWORD_BITWIDTH) {
174 interpreter()->setResult(
175 (boost::format("Maximum printable integer size %d.") %
176 SIMULATOR_MAX_INTWORD_BITWIDTH).str());
177 interpreter()->setError(true);
178 return false;
179 }
180
181 std::ofstream* out = NULL;
182 const bool dumpToFile = fileName != "";
183 if (dumpToFile) {
184 if (MAUSize != sizeof(char)*8) {
185 interpreter()->setResult(
186 (boost::format(
187 "Can only dump 8 bit memories to files. The given "
188 "address space is %d.") % MAUSize).str());
189 interpreter()->setError(true);
190 return false;
191 }
192 newMAUCount = 1;
193 out = new std::ofstream(fileName.c_str(), std::ios::binary);
194 }
195
196 MAUsToDisplay = newMAUCount;
197 DataObject* result = new DataObject("");
198 // read the wanted number (given with /n) of chunks of data to the result
199 while (newDisplayedCount > 0) {
200
201 ULongWord data = 0;
202 try {
203 memory->read(newDisplayedAddress, MAUsToDisplay, data);
204 } catch (const OutOfRange&) {
205 interpreter()->setResult(
206 SimulatorToolbox::textGenerator().text(
207 Texts::TXT_ADDRESS_OUT_OF_RANGE).str());
208 interpreter()->setError(true);
209 return false;
210 }
211
212
213 newDisplayedCount--;
214 newDisplayedAddress += MAUsToDisplay;
215
216 if (!dumpToFile) {
217 const int HEX_DIGITS = MAUSize*newMAUCount/4;
218 result->setString(
219 result->stringValue() +
220 Conversion::toHexString(data, HEX_DIGITS));
221
222 if (newDisplayedCount > 0) {
223 result->setString(result->stringValue() + " ");
224 }
225 } else {
226 *out << (char)data;
227 }
228 }
229
230 if (dumpToFile) {
231 out->close();
232 delete out;
233 out = NULL;
234 }
235 interpreter()->setResult(result);
236 return true;
237}
ULongWord
unsigned long ULongWord
Definition BaseType.hh:51
SIMULATOR_MAX_INTWORD_BITWIDTH
#define SIMULATOR_MAX_INTWORD_BITWIDTH
Definition SimValue.hh:248
Conversion::toHexString
static std::string toHexString(T source, std::size_t digits=0, bool include0x=true)
CustomCommand::checkArgumentCount
bool checkArgumentCount(int argumentCount, int minimum, int maximum)
Definition CustomCommand.cc:82
CustomCommand::checkUnsignedIntegerArgument
bool checkUnsignedIntegerArgument(const DataObject &argument)
Definition CustomCommand.cc:164
CustomCommand::interpreter
ScriptInterpreter * interpreter() const
DataObject::stringValue
virtual std::string stringValue() const
Definition DataObject.cc:344
DataObject::setString
virtual void setString(std::string value)
Definition DataObject.cc:130
MemorySystem::MemoryPtr
boost::shared_ptr< Memory > MemoryPtr
Definition MemorySystem.hh:57
MemorySystem::addressSpace
const TTAMachine::AddressSpace & addressSpace(unsigned int i)
Definition MemorySystem.cc:261
ScriptInterpreter::setError
virtual void setError(bool state)
Definition ScriptInterpreter.cc:205
ScriptInterpreter::setResult
virtual void setResult(DataObject *result)
Definition ScriptInterpreter.cc:128
SimControlLanguageCommand::setMemoryPointer
bool setMemoryPointer(MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)
Definition SimControlLanguageCommand.cc:780
SimControlLanguageCommand::setMemoryAddress
bool setMemoryAddress(const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)
Definition SimControlLanguageCommand.cc:753
SimulatorFrontend::memorySystem
MemorySystem & memorySystem(int coreId=-1)
Definition SimulatorFrontend.cc:2121
SimulatorToolbox::textGenerator
static SimulatorTextGenerator & textGenerator()
Definition SimulatorToolbox.cc:75
StringTools::ciEqual
static bool ciEqual(const std::string &a, const std::string &b)
Definition StringTools.cc:240
TTAMachine::AddressSpace::width
virtual int width() const
Definition AddressSpace.cc:155
Texts::TXT_ILLEGAL_ARGUMENTS
@ TXT_ILLEGAL_ARGUMENTS
Definition TextGenerator.hh:67

References MemorySystem::addressSpace(), CustomCommand::checkArgumentCount(), SimControlLanguageCommand::checkProgramLoaded(), CustomCommand::checkUnsignedIntegerArgument(), StringTools::ciEqual(), CustomCommand::interpreter(), SimulatorFrontend::memorySystem(), ScriptInterpreter::setError(), SimControlLanguageCommand::setMemoryAddress(), SimControlLanguageCommand::setMemoryPointer(), ScriptInterpreter::setResult(), DataObject::setString(), SIMULATOR_MAX_INTWORD_BITWIDTH, SimControlLanguageCommand::simulatorFrontend(), DataObject::stringValue(), SimulatorToolbox::textGenerator(), Conversion::toHexString(), Texts::TXT_ADDRESS_OUT_OF_RANGE, Texts::TXT_ILLEGAL_ARGUMENTS, and TTAMachine::AddressSpace::width().

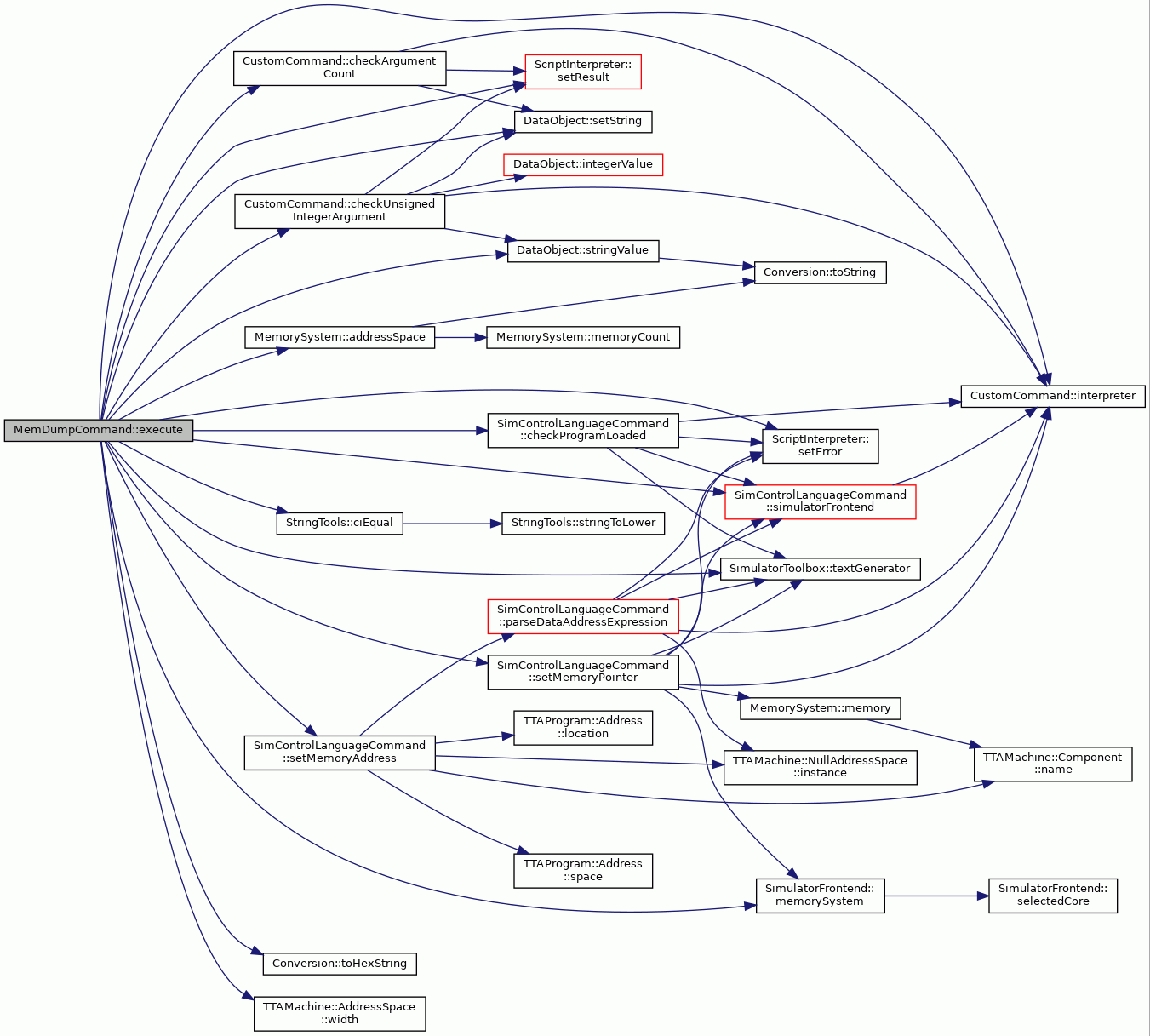

Here is the call graph for this function:

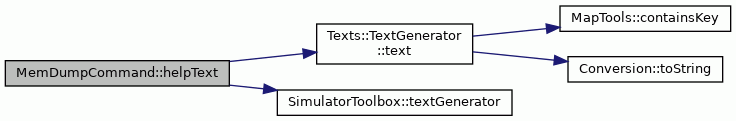

◆ helpText()

std::string MemDumpCommand::helpText ( ) const
virtual

Returns the help text for this command.

Help text is searched from SimulatorTextGenerator.

Returns
The help text.

Implements CustomCommand.

Definition at line 247 of file MemDumpCommand.cc.

247 {
248 return SimulatorToolbox::textGenerator().text(
249 Texts::TXT_INTERP_HELP_X).str();
250}
Texts::TextGenerator::text
virtual boost::format text(int textId)
Definition TextGenerator.cc:94
Texts::TXT_INTERP_HELP_X
@ TXT_INTERP_HELP_X
Help text for command "x" of the CLI.
Definition SimulatorTextGenerator.hh:105

References Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_INTERP_HELP_X.

Here is the call graph for this function:
The documentation for this class was generated from the following files:
Generated by doxygen 1.9.8
