MemWriteCommand Class Reference

#include <MemWriteCommand.hh>

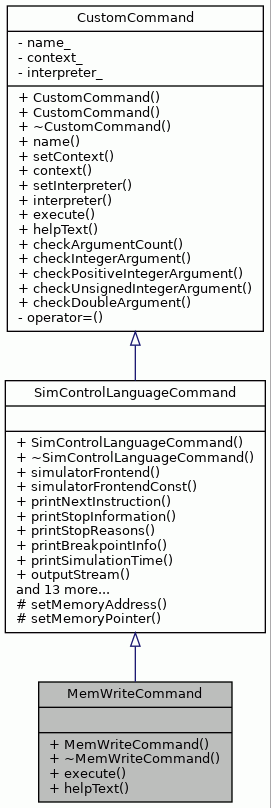

Inheritance diagram for MemWriteCommand:

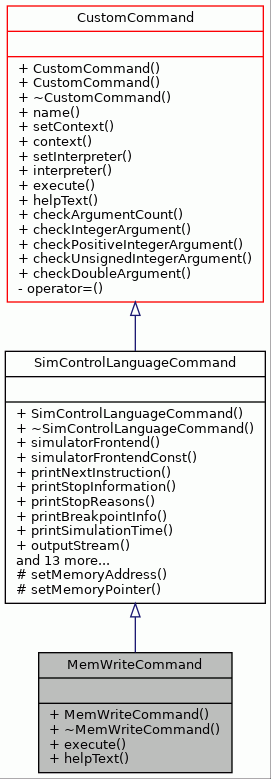

Collaboration diagram for MemWriteCommand:

Public Member Functions
	MemWriteCommand ()
virtual	~MemWriteCommand ()
virtual bool	execute (const std::vector< DataObject > &arguments)
virtual std::string	helpText () const
Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)
virtual	~SimControlLanguageCommand ()
SimulatorFrontend &	simulatorFrontend ()
const SimulatorFrontend &	simulatorFrontendConst ()
virtual void	printNextInstruction ()
virtual void	printStopInformation ()
virtual void	printStopReasons ()
virtual bool	printBreakpointInfo (unsigned int breakpointHandle)
virtual void	printSimulationTime ()
virtual std::ostream &	outputStream ()
bool	checkSimulationInitialized ()
bool	checkSimulationNotAlreadyRunning ()
bool	checkSimulationStopped ()
bool	checkSimulationEnded ()
bool	checkProgramLoaded ()
bool	checkMachineLoaded ()
InstructionAddress	parseInstructionAddressExpression (const std::string &expression)
TTAProgram::Address	parseDataAddressExpression (const std::string &expression)
bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)
bool	askConditionFromUser (TclConditionScript &target)
bool	askExpressionFromUser (ExpressionScript &target)
bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)
void	setErrorMessage (const TCEString &errorMsg)
Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)
	CustomCommand (const CustomCommand &cmd)
virtual	~CustomCommand ()
std::string	name () const
void	setContext (InterpreterContext *context)
InterpreterContext *	context () const
void	setInterpreter (ScriptInterpreter *si)
ScriptInterpreter *	interpreter () const
bool	checkArgumentCount (int argumentCount, int minimum, int maximum)
bool	checkIntegerArgument (const DataObject &argument)
bool	checkPositiveIntegerArgument (const DataObject &argument)
bool	checkUnsignedIntegerArgument (const DataObject &argument)
bool	checkDoubleArgument (const DataObject &argument)

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)
bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the "load_data" command of the Simulator Control Language.

Definition at line 48 of file MemWriteCommand.hh.

Constructor & Destructor Documentation

MemWriteCommand()

MemWriteCommand::MemWriteCommand

(

)

Definition at line 49 of file MemWriteCommand.cc.

                                 :
    SimControlLanguageCommand("load_data") {
}

~MemWriteCommand()

MemWriteCommand::~MemWriteCommand ( )

virtual

Definition at line 54 of file MemWriteCommand.cc.

                                  {
}

Member Function Documentation

execute()

bool MemWriteCommand::execute ( const std::vector< DataObject > &  arguments )

virtual

Executes the "load_data" command.

This low-level command reads binary data from file and loads it to memory starting at specified address.

Parameters

arguments

Memory address to be written, file to read from, read size.

Returns

True in case simulation is initialized and arguments are ok.

Exceptions

NumberFormatException

Is never thrown by this command.

Implements CustomCommand.

Definition at line 68 of file MemWriteCommand.cc.

                                                               {
    const int argumentCount = arguments.size() - 1;
    if (!checkArgumentCount(argumentCount, 2, 5)) {
        return false;
    }

    if (!checkProgramLoaded()) {
        return false;
    }

    size_t nextArg = 1;
    size_t writeAddress;
    std::string addressSpaceName = "";

    if (StringTools::ciEqual(arguments.at(nextArg).stringValue(), "/a")) {
        addressSpaceName = arguments.at(2).stringValue();
        nextArg = 3;
    }

    const std::string addressString = arguments.at(nextArg).stringValue();
    if (!setMemoryAddress(addressString, addressSpaceName, writeAddress)) {
        return false;
    }

    std::string fileName = arguments.at(nextArg + 1).stringValue();
    if (!FileSystem::fileExists(fileName) ||
        !FileSystem::fileIsReadable(fileName)) {
        interpreter()->setResult("Error reading input file.");
        interpreter()->setError(true);
        return false;
    }

    size_t readSize = FileSystem::sizeInBytes(fileName);
    if (argumentCount == 3 || argumentCount == 5) {
        readSize = arguments.at(nextArg + 2).integerValue();
    }

    MemorySystem::MemoryPtr memory;
    if (!setMemoryPointer(memory, addressSpaceName)) {
        return false;
    }

    std::ifstream inputFile(fileName.c_str(), std::ios::binary);
    char dataByte;

    while (inputFile.get(dataByte) && readSize > 0) {
        try {
            memory->write(writeAddress, 1, (UIntWord)dataByte);
        } catch (const OutOfRange&) {
            interpreter()->setResult(
                SimulatorToolbox::textGenerator().text(
                    Texts::TXT_ADDRESS_OUT_OF_RANGE).str());
            interpreter()->setError(true);
            return false;
        }
        writeAddress++;
        readSize--;
    }
    memory->advanceClock();
    inputFile.close();

    return true;
}

References CustomCommand::checkArgumentCount(), SimControlLanguageCommand::checkProgramLoaded(), StringTools::ciEqual(), FileSystem::fileExists(), FileSystem::fileIsReadable(), CustomCommand::interpreter(), ScriptInterpreter::setError(), SimControlLanguageCommand::setMemoryAddress(), SimControlLanguageCommand::setMemoryPointer(), ScriptInterpreter::setResult(), FileSystem::sizeInBytes(), SimulatorToolbox::textGenerator(), and Texts::TXT_ADDRESS_OUT_OF_RANGE.

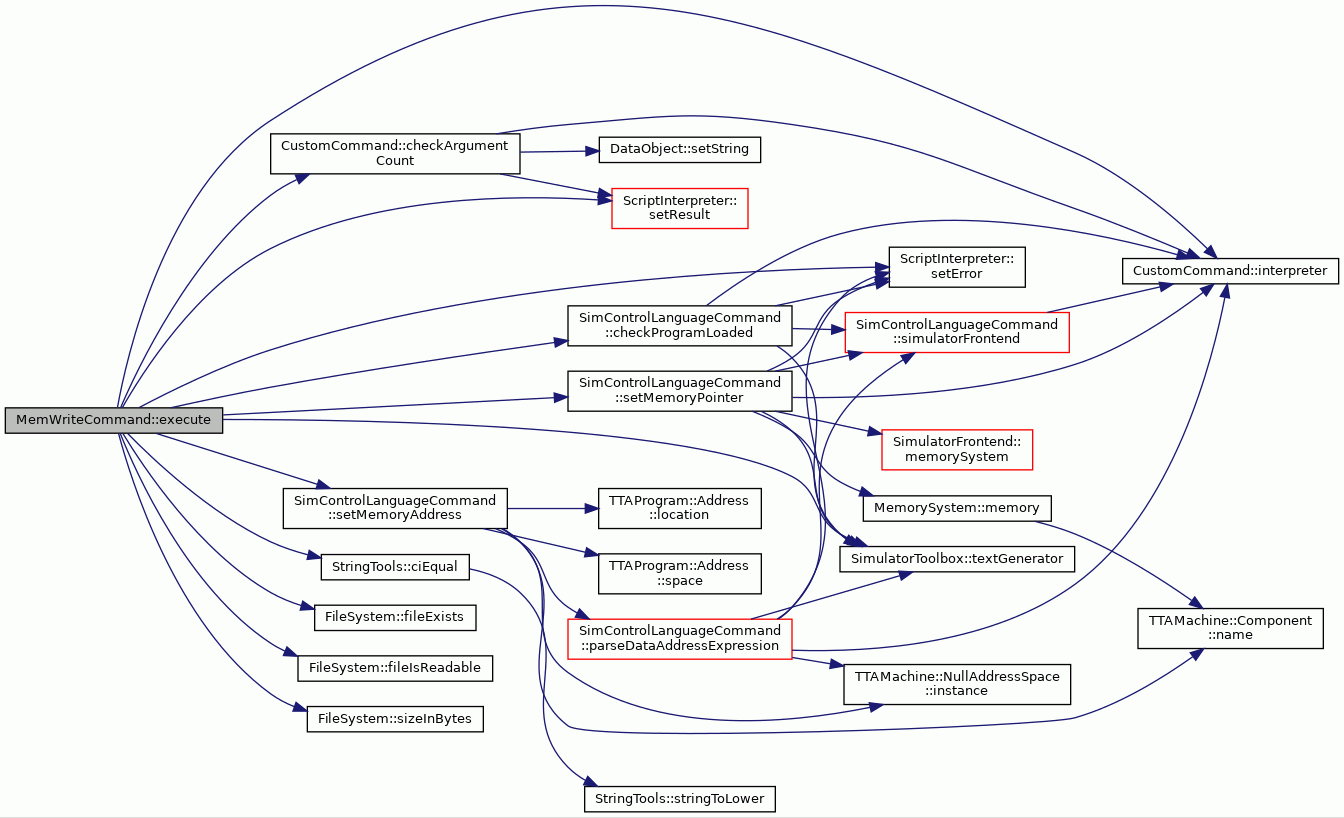

Here is the call graph for this function:

helpText()

std::string MemWriteCommand::helpText ( ) const

virtual

Implements CustomCommand.

Definition at line 133 of file MemWriteCommand.cc.

                                {
    return SimulatorToolbox::textGenerator().text(
        Texts::TXT_INTERP_HELP_LOADDATA).str();
}

References Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_INTERP_HELP_LOADDATA.

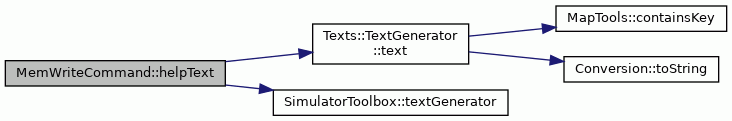

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• MemWriteCommand.hh
• MemWriteCommand.cc
