#include <ModifyBusCmd.hh>

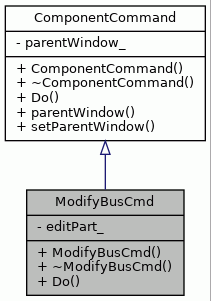

Inheritance diagram for ModifyBusCmd:

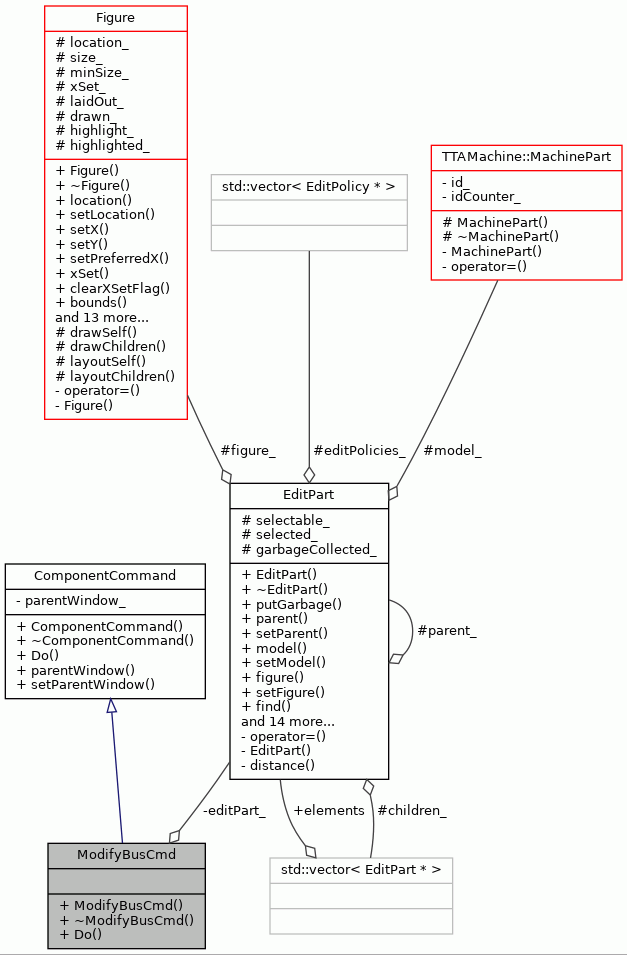

Collaboration diagram for ModifyBusCmd:

Public Member Functions
	ModifyBusCmd (EditPart *editPart)

virtual	~ModifyBusCmd ()

virtual bool	Do ()

Public Member Functions inherited from ComponentCommand
	ComponentCommand ()

virtual	~ComponentCommand ()

wxWindow *	parentWindow ()

void	setParentWindow (wxWindow *window)

Private Attributes
EditPart *	editPart_
	Bus to modify.

Detailed Description

Command which displays a bus dialog with precompleted values for modifying a bus.

Definition at line 43 of file ModifyBusCmd.hh.

Constructor & Destructor Documentation

◆ ModifyBusCmd()

ModifyBusCmd::ModifyBusCmd ( EditPart * editPart )

The Constructor.

Definition at line 45 of file ModifyBusCmd.cc.

                                            :
    ComponentCommand(),
    editPart_(editPart) {

}

◆ ~ModifyBusCmd()

ModifyBusCmd::~ModifyBusCmd ( )

virtual

The Destructor.

Definition at line 55 of file ModifyBusCmd.cc.

55 {

56}

Member Function Documentation

◆ Do()

bool ModifyBusCmd::Do ( )

virtual

Executes the command.

Returns: true, if the command was succesfully executed, false otherwise.

Implements ComponentCommand.

Definition at line 65 of file ModifyBusCmd.cc.

                 {

    Bus* bus = dynamic_cast<Bus*>(editPart_->model());
    assert (bus != NULL);

    assert (parentWindow() != NULL);

    BusDialog dialog(parentWindow(), bus);

    if (dialog.ShowModal() == wxID_OK) {
    // bus was modified
    return true;
    } else {
    // modification was cancelled
    return false;
    }
    return false;
}

References assert, editPart_, EditPart::model(), and ComponentCommand::parentWindow().

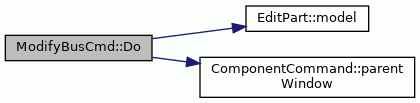

Here is the call graph for this function:

Member Data Documentation

◆ editPart_

EditPart* ModifyBusCmd::editPart_

private

Bus to modify.

Definition at line 51 of file ModifyBusCmd.hh.

Referenced by Do().

The documentation for this class was generated from the following files:
