#include <Bus.hh>

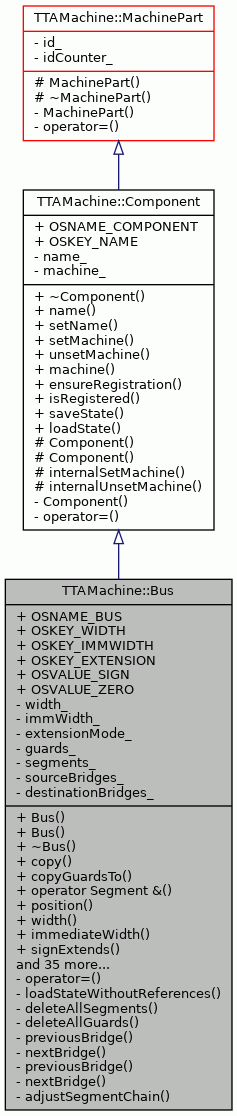

Inheritance diagram for TTAMachine::Bus:

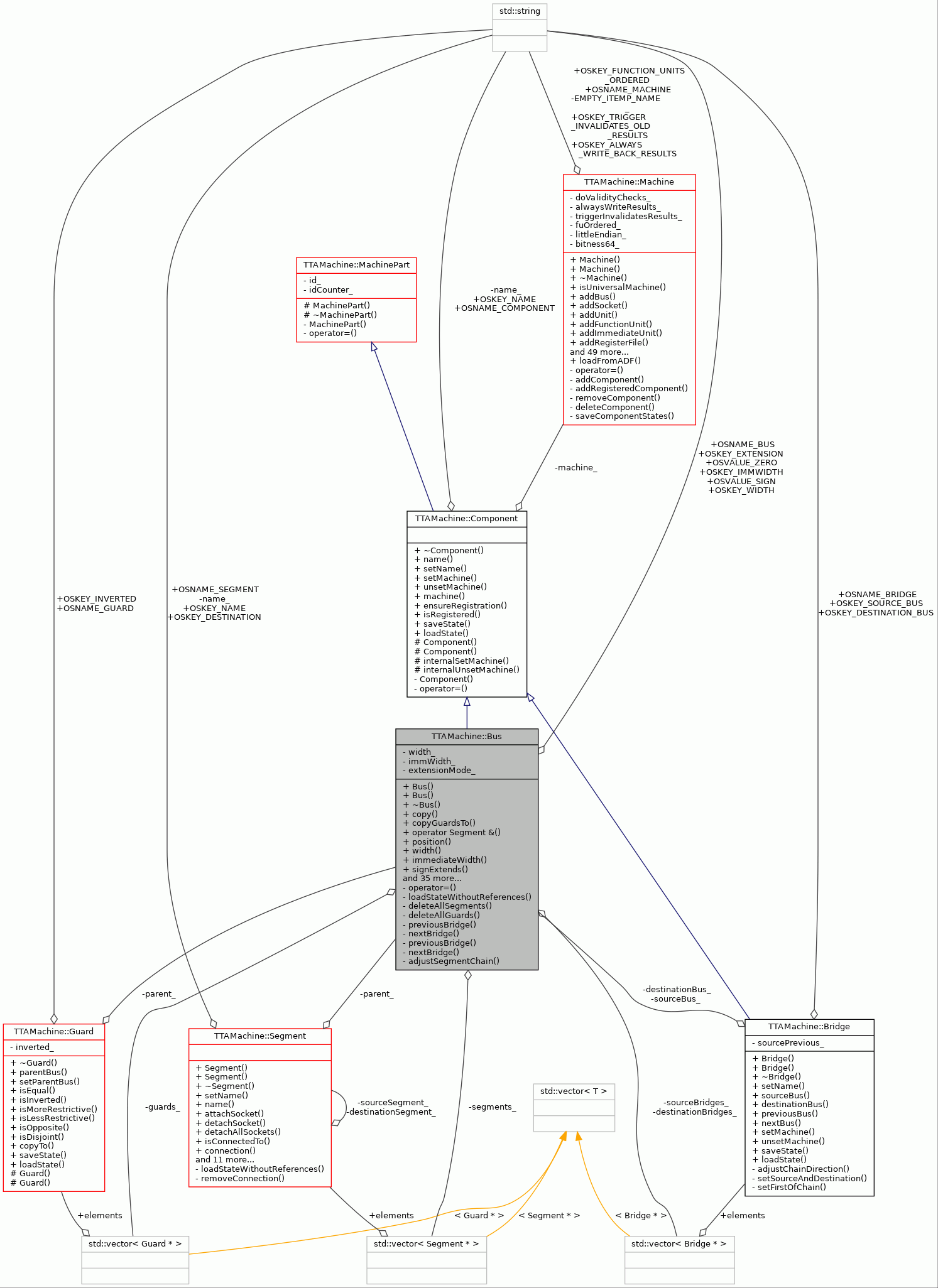

Collaboration diagram for TTAMachine::Bus:

Public Member Functions
	Bus (const std::string &name, int width, int immWidth, Machine::Extension extensionMode)

	Bus (const ObjectState *state)

virtual	~Bus ()

virtual Bus *	copy () const

virtual void	copyGuardsTo (Bus &other) const

	operator Segment & ()

virtual int	position () const

int	width () const

int	immediateWidth () const

bool	signExtends () const

bool	zeroExtends () const

virtual void	setName (const std::string &name)

virtual void	setWidth (int width)

virtual void	setImmediateWidth (int width)

virtual void	setZeroExtends ()

virtual void	setSignExtends ()

virtual void	setExtensionMode (const Machine::Extension extension)

virtual void	addSegment (Segment &segment)

virtual void	removeSegment (Segment &segment)

virtual bool	hasSegment (const std::string &name) const

virtual Segment *	segment (int index) const

virtual Segment *	segment (const std::string &name) const

virtual int	segmentCount () const

virtual bool	isConnectedTo (const Socket &socket) const

bool	hasGuard (const Guard &guard) const

void	addGuard (Guard &guard)

virtual void	removeGuard (Guard &guard)

int	guardCount () const

Guard *	guard (int index) const

virtual bool	hasNextBus () const

virtual bool	hasPreviousBus () const

virtual Bus *	nextBus () const

virtual Bus *	previousBus () const

virtual bool	canRead (const Bus &bus) const

virtual bool	canWrite (const Bus &bus) const

virtual bool	canReadWrite (const Bus &bus) const

virtual void	setSourceBridge (Bridge &bridge)

virtual void	setDestinationBridge (Bridge &bridge)

virtual void	clearSourceBridge (Bridge &bridge)

virtual void	clearDestinationBridge (Bridge &bridge)

virtual void	setMachine (Machine &mach)

virtual void	unsetMachine ()

virtual ObjectState *	saveState () const

virtual void	loadState (const ObjectState *state)

virtual bool	isArchitectureEqual (const Bus &bus) const

Public Member Functions inherited from TTAMachine::Component
virtual	~Component ()

virtual TCEString	name () const

virtual Machine *	machine () const

virtual void	ensureRegistration (const Component &component) const

virtual bool	isRegistered () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_BUS = "bus"
	ObjectState name for Bus ObjectState.

static const std::string	OSKEY_WIDTH = "width"
	ObjectState attribute key for bus width.

static const std::string	OSKEY_IMMWIDTH = "immwidth"
	ObjectState attribute key for immediate width.

static const std::string	OSKEY_EXTENSION = "extension"
	ObjectState attribute key for extension mode.

static const std::string	OSVALUE_SIGN = "sign"
	ObjectState attribute value for sign extension.

static const std::string	OSVALUE_ZERO = "zero"
	ObjectState attribute key for zero extension.

Static Public Attributes inherited from TTAMachine::Component
static const std::string	OSNAME_COMPONENT = "component"
	ObjectState name for component.

static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for the name of the component.

Private Types
typedef std::vector< Guard * >	GuardTable
	Vector of Guard pointers.

typedef std::vector< Segment * >	SegmentTable
	Vector of Segment pointers.

typedef std::vector< Bridge * >	BridgeTable

Private Member Functions
Bus &	operator= (const Bus &)
	Assingment forbidden.

void	loadStateWithoutReferences (const ObjectState *state)

void	deleteAllSegments ()

void	deleteAllGuards ()

Bridge *	previousBridge () const

Bridge *	nextBridge () const

Bridge *	previousBridge (const BridgeTable &bridges) const

Bridge *	nextBridge (const BridgeTable &bridges) const

void	adjustSegmentChain (const ObjectState *busState)

Private Attributes
int	width_
	Bit width of the bus.

int	immWidth_
	Bit width of the inline immediate word.

Machine::Extension	extensionMode_
	Extension mode applied to the inline immediate word.

GuardTable	guards_
	Contains all guards of the bus.

SegmentTable	segments_
	Contains all the segments of the bus.

BridgeTable	sourceBridges_
	Contains the source bridges (max 2).

BridgeTable	destinationBridges_
	Contains the destination bridges (max 2).

Additional Inherited Members
Protected Member Functions inherited from TTAMachine::Component
	Component (const std::string &name)

	Component (const ObjectState *state)

void	internalSetMachine (Machine &machine)

void	internalUnsetMachine ()

Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()

virtual	~MachinePart ()

Detailed Description

Represents a bus in TTA-processor.

Definition at line 53 of file Bus.hh.

Member Typedef Documentation

◆ BridgeTable

typedef std::vector<Bridge*> TTAMachine::Bus::BridgeTable

private

Definition at line 134 of file Bus.hh.

◆ GuardTable

typedef std::vector<Guard*> TTAMachine::Bus::GuardTable

private

Vector of Guard pointers.

Definition at line 130 of file Bus.hh.

◆ SegmentTable

typedef std::vector<Segment*> TTAMachine::Bus::SegmentTable

private

Vector of Segment pointers.

Definition at line 132 of file Bus.hh.

Constructor & Destructor Documentation

◆ Bus() [1/2]

TTAMachine::Bus::Bus	(	const std::string &	name,
		int	width,
		int	immWidth,
		Machine::Extension	extensionMode
	)

Constructor.

Parameters

name	Name of the bus.
width	Bit width of the bus.
immWidth	Bit width of the inline immediate word.
extensionMode	Extension mode applied to the inline immediate word when it is narrower than the bus on which it is transported.

Exceptions

OutOfRange	If the given width or immediate width is invalid.
InvalidName	If the given name is not a valid component name.

Definition at line 74 of file Bus.cc.

    : Component(name),
      width_(width),
      immWidth_(immWidth),
      extensionMode_(extensionMode) {
    if (width <= 0 || immWidth < 0 || immWidth > width) {
        string procName = "Bus::Bus";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
}

References width().

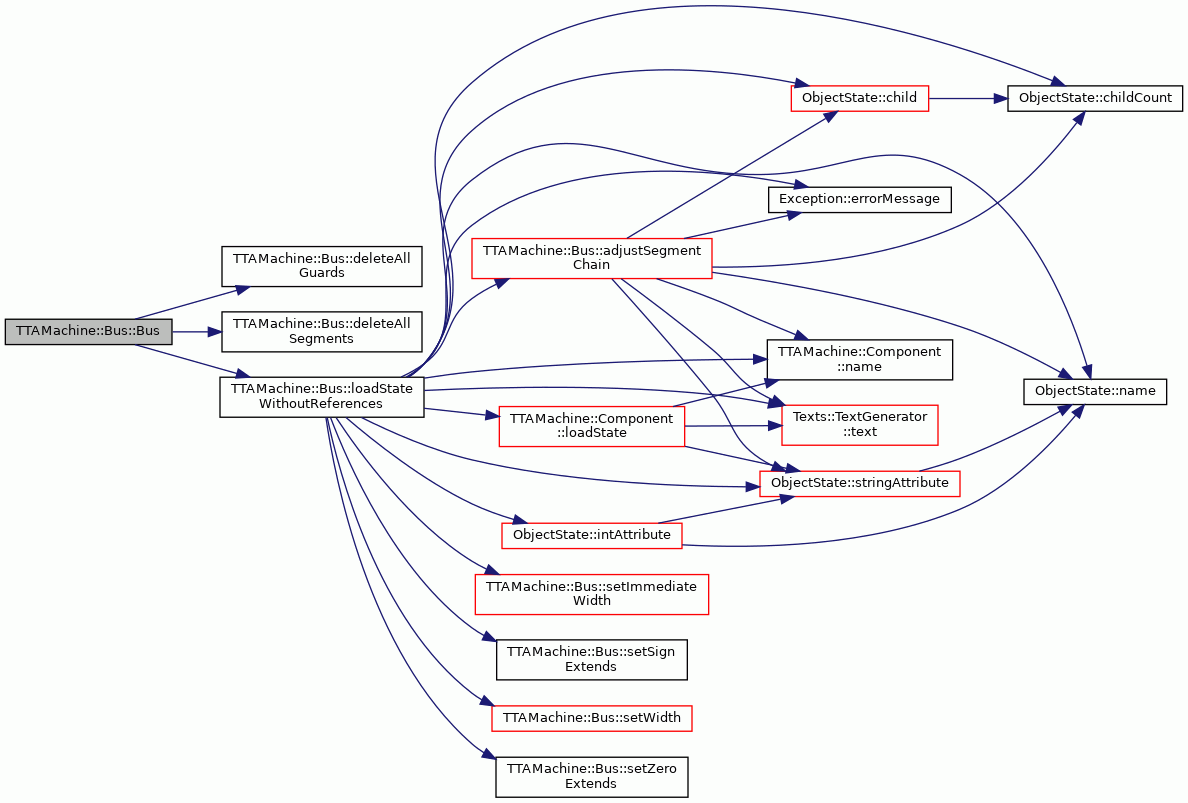

Here is the call graph for this function:

◆ Bus() [2/2]

TTAMachine::Bus::Bus ( const ObjectState * state )

Constructor.

Loads the state of the bus from the given ObjectState instance. Does not load connections to sockets.

Parameters

state Root node of the ObjectState tree from which the state is loaded.

Exceptions

ObjectStateLoadingException If the given ObjectState instance is invalid.

Definition at line 98 of file Bus.cc.

                                 : Component(state) {
    try {
        loadStateWithoutReferences(state);
    } catch (Exception&) {
        deleteAllSegments();
        deleteAllGuards();
        throw;
    }
}

References deleteAllGuards(), deleteAllSegments(), and loadStateWithoutReferences().

Here is the call graph for this function:

◆ ~Bus()

TTAMachine::Bus::~Bus ( )

virtual

Destructor.

Before destruction detaches all sockets from the bus.

Definition at line 113 of file Bus.cc.

          {
    unsetMachine();
    deleteAllSegments();
    deleteAllGuards();
}

References deleteAllGuards(), deleteAllSegments(), and unsetMachine().

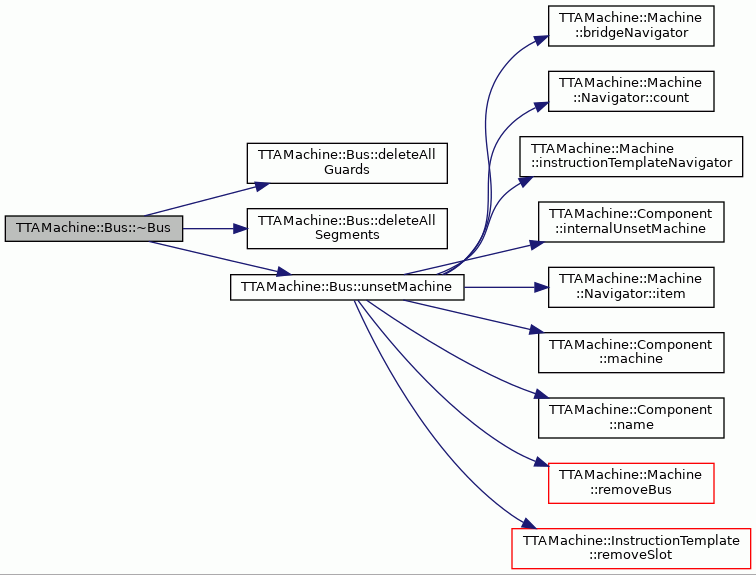

Here is the call graph for this function:

Member Function Documentation

◆ addGuard()

void TTAMachine::Bus::addGuard ( Guard & guard )

Adds guard to the bus.

Parameters

guard Pointer to the Guard object to be added.

Exceptions

ComponentAlreadyExists If there is an equal guard already.

Definition at line 410 of file Bus.cc.

                          {
    if (hasGuard(guard)) {
        string procName = "Bus::addGuard";
        throw ComponentAlreadyExists(__FILE__, __LINE__, __func__,
                                     "Bus already has the given guard!");
    }

    guards_.push_back(&guard);
}

References __func__, guard(), guards_, and hasGuard().

Referenced by TTAMachine::PortGuard::PortGuard(), TTAMachine::PortGuard::PortGuard(), TTAMachine::RegisterGuard::RegisterGuard(), TTAMachine::RegisterGuard::RegisterGuard(), TTAMachine::UnconditionalGuard::UnconditionalGuard(), and TTAMachine::UnconditionalGuard::UnconditionalGuard().

Here is the call graph for this function:

◆ addSegment()

void TTAMachine::Bus::addSegment ( Segment & segment )

virtual

Adds the given segment to this bus.

This method should be called by Segment constructor only.

Parameters

segment Segment to be added.

Exceptions

ComponentAlreadyExists If a segment with the same name as the given segment is already existing in this bus.

Definition at line 737 of file Bus.cc.

                                {
    // run time check: can be called from Segment constructor only
    assert(segment.parentBus() == NULL);

    if (hasSegment(segment.name())) {
        string procname = "Bus::addSegment";
        throw ComponentAlreadyExists(__FILE__, __LINE__, procname);
    } else {
        segments_.push_back(&segment);
    }
}

References assert, hasSegment(), TTAMachine::Segment::name(), TTAMachine::Segment::parentBus(), segment(), and segments_.

Referenced by TTAMachine::Segment::Segment(), and TTAMachine::Segment::Segment().

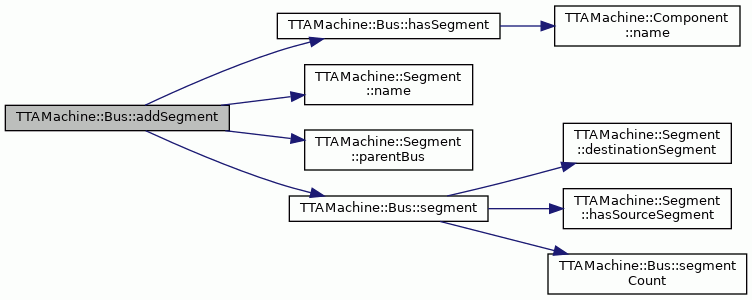

Here is the call graph for this function:

◆ adjustSegmentChain()

void TTAMachine::Bus::adjustSegmentChain ( const ObjectState * busState )

private

Adjusts the order of segments according to the order represented by the given ObjectState tree.

Parameters

busState ObjectState tree representing the state of this bus.

Exceptions

ObjectStateLoadingException If the segment chain is erroneus in the given ObjectState tree.

Definition at line 1027 of file Bus.cc.

                                                   {
    const string procName = "Bus::adjustSegmentChain";

    if (segmentCount() == 0) {
        assert(!busState->hasChild(Segment::OSNAME_SEGMENT));
        return;
    }

    MOMTextGenerator textGenerator;

    try {
        // find the last segment, the segment that has no destination
        Segment* lastSegment = NULL;
        for (int i = 0; i < busState->childCount(); i++) {
            ObjectState* childState = busState->child(i);
            if (childState->name() == Segment::OSNAME_SEGMENT &&
                !childState->hasAttribute(Segment::OSKEY_DESTINATION)) {
                string lastSegmentName =
                    childState->stringAttribute(Segment::OSKEY_NAME);
                lastSegment = segment(lastSegmentName);
                break;
            }
        }

        // if last segment was not found, throw
        if (lastSegment == NULL) {
            format errorMsg = textGenerator.text(
                MOMTextGenerator::TXT_NO_LAST_SEGMENT);
            errorMsg % name();
            throw ObjectStateLoadingException(
                __FILE__, __LINE__, procName, errorMsg.str());
        }

        Segment* destSegment = lastSegment;
        int modifications = 0;

        // in the following loop, find a segment whose destination should be
        // lastSegment and set it in front of that segment
        while (modifications < segmentCount() - 1) {
            bool chainModified = false;
            for (int i = 0; i < busState->childCount(); i++) {
                ObjectState* childState = busState->child(i);
                if (childState->name() == Segment::OSNAME_SEGMENT &&
                    childState->hasAttribute(Segment::OSKEY_DESTINATION)) {
                    string destName = childState->stringAttribute(
                        Segment::OSKEY_DESTINATION);
                    if (destName == destSegment->name()) {
                        string thisName = childState->
                            stringAttribute(Segment::OSKEY_NAME);
                        Segment* thisSegment = segment(thisName);
                        thisSegment->moveBefore(*destSegment);
                        destSegment = thisSegment;
                        modifications++;
                        chainModified = true;
                    }
                }
            }

            // if the source segment was not found and the segment chain is not
            // set completely yet, throw
            if (!chainModified && modifications < segmentCount() - 1) {
                format errorMsg = textGenerator.text(
                    MOMTextGenerator::TXT_NO_SOURCE_SEGMENT);
                errorMsg % name() % destSegment->name();
                throw ObjectStateLoadingException(
                    __FILE__, __LINE__, procName, errorMsg.str());
            }
        }
    } catch (Exception& exception) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, exception.errorMessage());
    }
}

References assert, ObjectState::child(), ObjectState::childCount(), Exception::errorMessage(), ObjectState::hasAttribute(), ObjectState::hasChild(), TTAMachine::Segment::moveBefore(), TTAMachine::Component::name(), TTAMachine::Segment::name(), ObjectState::name(), TTAMachine::Segment::OSKEY_DESTINATION, TTAMachine::Segment::OSKEY_NAME, TTAMachine::Segment::OSNAME_SEGMENT, segment(), segmentCount(), ObjectState::stringAttribute(), Texts::TextGenerator::text(), MOMTextGenerator::TXT_NO_LAST_SEGMENT, and MOMTextGenerator::TXT_NO_SOURCE_SEGMENT.

Referenced by loadStateWithoutReferences().

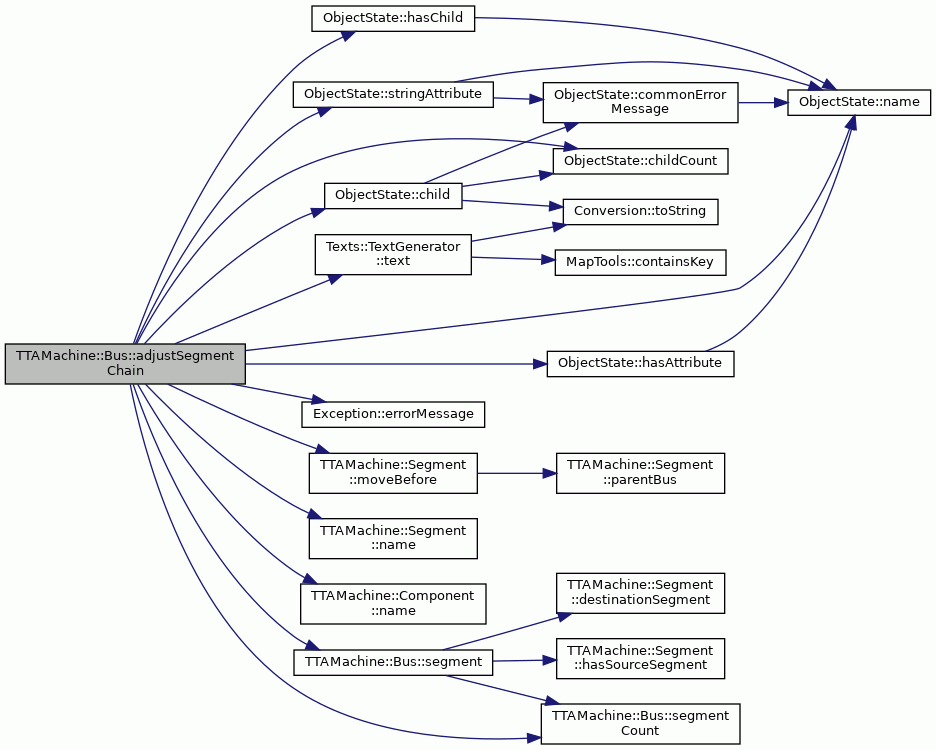

Here is the call graph for this function:

◆ canRead()

bool TTAMachine::Bus::canRead ( const Bus & bus ) const

virtual

Checks if the bus can read from the given bus.

That is, checks if the given bus is source bus of this bus.

Parameters

bus The bus.

Returns: True if this bus can read from the given bus.

Definition at line 537 of file Bus.cc.

                                 {
    BridgeTable::const_iterator iter = sourceBridges_.begin();
    while (iter != sourceBridges_.end()) {
        if ((*iter)->sourceBus() == &bus) {
            return true;
        }
        iter++;
    }
    return false;
}

References sourceBridges_.

Referenced by canReadWrite(), BEMValidator::needsSourceField(), and TTAMachine::Bridge::setSourceAndDestination().

◆ canReadWrite()

bool TTAMachine::Bus::canReadWrite ( const Bus & bus ) const

virtual

Check if the bus can both read from and write to the given bus.

That is, checks if the given bus is joined by a bidirectional bridge to this bus.

Parameters

bus The bus.

Returns: True if this bus can both read from and write to the given bus.

Definition at line 580 of file Bus.cc.

                                      {
    return canWrite(bus) && canRead(bus);
}

References canRead(), and canWrite().

Here is the call graph for this function:

◆ canWrite()

bool TTAMachine::Bus::canWrite ( const Bus & bus ) const

virtual

Checks if the bus can write to the given bus.

That is, checks if the given bus is destination bus of this bus.

Parameters

bus The bus.

Returns: True if this bus can write to the given bus.

Definition at line 558 of file Bus.cc.

                                  {
    BridgeTable::const_iterator iter = destinationBridges_.begin();
    while (iter != destinationBridges_.end()) {
        if ((*iter)->destinationBus() == &bus) {
            return true;
        }
        iter++;
    }
    return false;
}

References destinationBridges_.

Referenced by MachineTester::canBridge(), canReadWrite(), and TTAMachine::Bridge::setSourceAndDestination().

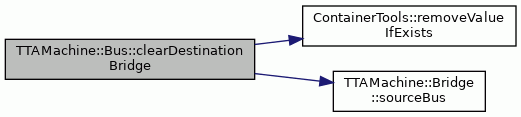

◆ clearDestinationBridge()

void TTAMachine::Bus::clearDestinationBridge ( Bridge & bridge )

virtual

Removes a destination bridge from the bus.

This method can be called from Bridge destructor only. Do not call this method.

Parameters

bridge The destination bridge to remove.

Definition at line 652 of file Bus.cc.

                                          {

    // run time check: can be called from Bridge destructor only
    assert(bridge.sourceBus() == NULL);

    bool removed = ContainerTools::removeValueIfExists(
        destinationBridges_, &bridge);
    assert(removed);
}

References assert, destinationBridges_, ContainerTools::removeValueIfExists(), and TTAMachine::Bridge::sourceBus().

Referenced by TTAMachine::Bridge::unsetMachine().

Here is the call graph for this function:

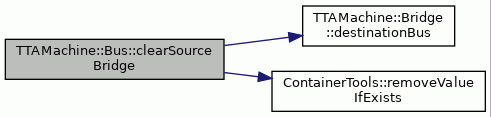

◆ clearSourceBridge()

void TTAMachine::Bus::clearSourceBridge ( Bridge & bridge )

virtual

Removes a source bridge from the bus.

This method can be called from Bridge destructor only. Do not call this method.

Parameters

bridge The source bridge to remove.

Definition at line 632 of file Bus.cc.

                                     {

    // run time check: can be called from Bridge destructor only
    assert(bridge.destinationBus() == NULL);

    bool removed = ContainerTools::removeValueIfExists(
        sourceBridges_, &bridge);
    assert(removed);
}

References assert, TTAMachine::Bridge::destinationBus(), ContainerTools::removeValueIfExists(), and sourceBridges_.

Referenced by TTAMachine::Bridge::unsetMachine().

Here is the call graph for this function:

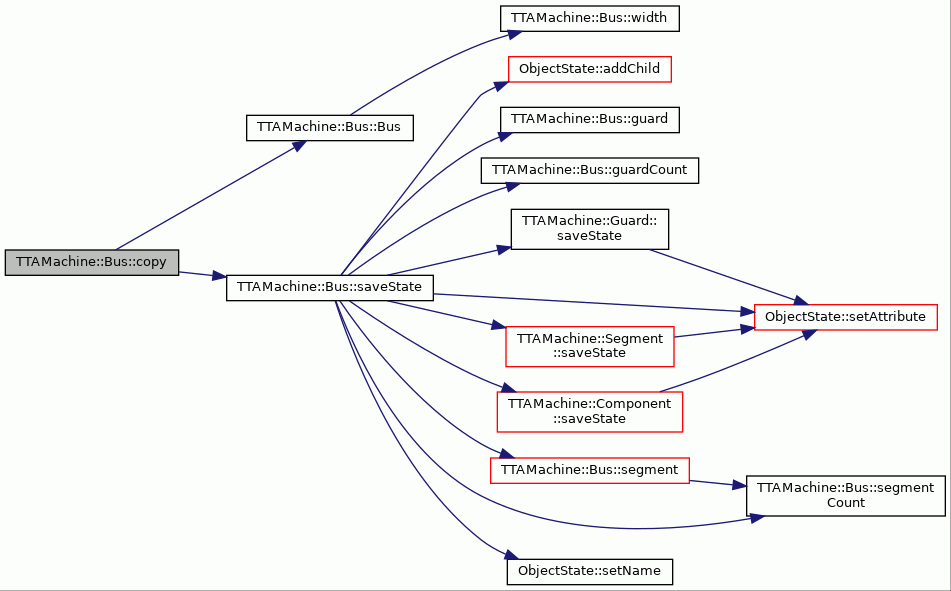

◆ copy()

Bus * TTAMachine::Bus::copy ( ) const

virtual

Copies the bus.

Returns: Copy of the Bus.

Definition at line 1145 of file Bus.cc.

                {
    ObjectState* newBusState = saveState();
    Bus* newBus = new Bus(newBusState);

    delete newBusState;
    newBusState = NULL;
    return newBus;
}

References saveState().

Referenced by MachineResourceModifier::addBusesByAmount().

Here is the call graph for this function:

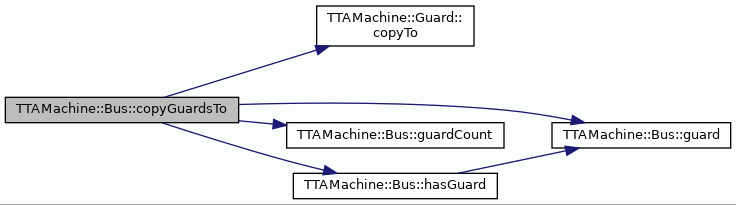

◆ copyGuardsTo()

void TTAMachine::Bus::copyGuardsTo ( Bus & other ) const

virtual

Definition at line 1155 of file Bus.cc.

                                  {
    for (int i = 0; i < guardCount(); ++i) {
        if (!other.hasGuard(*guard(i)))
            guard(i)->copyTo(other);
    }
}

References TTAMachine::Guard::copyTo(), guard(), guardCount(), and hasGuard().

Referenced by ADFCombiner::addAllGuardsToConnectionBuses(), and MachineResourceModifier::addBusesByAmount().

Here is the call graph for this function:

◆ deleteAllGuards()

void TTAMachine::Bus::deleteAllGuards ( )

private

Deletes all the guards.

Definition at line 930 of file Bus.cc.

                     {
    // guard destructor removes the pointer from the table
    while (guards_.size() > 0) {
        delete guards_[0];
    }
}

References guards_.

Referenced by Bus(), loadState(), and ~Bus().

◆ deleteAllSegments()

void TTAMachine::Bus::deleteAllSegments ( )

private

Deletes all the segments.

Definition at line 918 of file Bus.cc.

                       {
    // segment destructor removes the pointer from the table
    while (segments_.size() > 0) {
        delete segments_[0];
    }
}

References segments_.

Referenced by Bus(), loadState(), and ~Bus().

◆ guard()

Guard * TTAMachine::Bus::guard ( int index ) const

Returns the guard by the given index.

The index must be between 0 and the return value of numberOfGuards() - 1.

Parameters

index Index.

Returns: The guard by the given index.

Exceptions

OutOfRange If the given index is out of range.

Definition at line 456 of file Bus.cc.

                          {
    if (index < 0 || static_cast<size_t>(index) >= guards_.size()) {
        string procName = "Bus::guard";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
    return guards_[index];
}

References guards_.

Referenced by BEMGenerator::addEncodings(), BEMGenerator::addEncodings(), BEMGenerator::addEncodings(), addGuard(), BusBroker::allAvailableResources(), TDGen::analyzeRegisters(), BusBroker::assign(), MachineStateBuilder::buildMachineState(), BusBroker::canTransportImmediate(), ProgrammabilityValidator::checkBooleanRegister(), BEMValidator::checkGuardField(), TTAMachine::FunctionUnit::cleanupGuards(), TTAMachine::FUPort::cleanupGuards(), CompiledSimCodeGenerator::CompiledSimCodeGenerator(), DefaultDecoderGenerator::completeDecoderBlock(), ADFCombiner::copyGuards(), copyGuardsTo(), llvm::LLVMTCEBuilder::createGuard(), TTAProgram::CodeGenerator::createInverseGuard(), ProgramDependenceGraph::createJump(), TTAMachine::RegisterFile::deleteGuards(), PasteComponentCmd::Do(), findBooleanGuard(), DefaultDecoderGenerator::findGuard(), DefaultDecoderGenerator::findGuard(), TTAProgram::TPEFProgramFactory::findGuard(), RegisterRenamer::findGuardRegisters(), RegisterQuantityCheck::findGuardRegisters(), ProgrammabilityValidator::findRegisterGuard(), RegisterCopyAdder::findTempRegisters(), MachineConnectivityCheck::hasBothGuards(), MachineConnectivityCheck::hasConditionalMoves(), hasGuard(), BusBroker::hasGuard(), TTAMachine::ControlUnit::hasLocalGuardLatencyOfZero(), BEMGenerator::hasUnconditionalGuard(), isArchitectureEqual(), BusBroker::isAvailable(), TTAMachine::RegisterFile::isUsedAsGuard(), MachineInfo::longestGuardLatency(), RFGuardDialog::onOK(), BusDialog::onUnconditionalGuard(), BFLateBypassGuard::operator()(), MachineResourceManager::registerFileIndexReference(), removeGuard(), RegisterRenamer::renameLiveRange(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), MachineResourceManager::rFPortOrFUIndexReference(), saveState(), BFRenameLiveRange::setGuard(), BusDialog::updateGuardLists(), and DefaultDecoderGenerator::writeSquashSignalGenerationProcess().

◆ guardCount()

int TTAMachine::Bus::guardCount ( ) const

Returns the number of guards in the bus.

Returns: The number of guards in the bus.

Definition at line 441 of file Bus.cc.

                      {
    return guards_.size();
}

References guards_.

Referenced by BEMGenerator::addEncodings(), BEMGenerator::addEncodings(), BEMGenerator::addEncodings(), BEMGenerator::addSubfields(), BusBroker::allAvailableResources(), TDGen::analyzeRegisters(), BusBroker::assign(), MachineStateBuilder::buildMachineState(), BusBroker::buildResources(), BusBroker::canTransportImmediate(), ProgrammabilityValidator::checkBooleanRegister(), BEMValidator::checkGuardField(), CompiledSimCodeGenerator::CompiledSimCodeGenerator(), DefaultDecoderGenerator::completeDecoderBlock(), ADFCombiner::copyGuards(), copyGuardsTo(), llvm::LLVMTCEBuilder::createGuard(), TTAProgram::CodeGenerator::createInverseGuard(), ProgramDependenceGraph::createJump(), PasteComponentCmd::Do(), findBooleanGuard(), DefaultDecoderGenerator::findGuard(), DefaultDecoderGenerator::findGuard(), TTAProgram::TPEFProgramFactory::findGuard(), RegisterRenamer::findGuardRegisters(), RegisterQuantityCheck::findGuardRegisters(), ProgrammabilityValidator::findRegisterGuard(), RegisterCopyAdder::findTempRegisters(), MachineConnectivityCheck::hasBothGuards(), MachineConnectivityCheck::hasConditionalMoves(), BusBroker::hasGuard(), TTAMachine::ControlUnit::hasLocalGuardLatencyOfZero(), BEMGenerator::hasUnconditionalGuard(), isArchitectureEqual(), BusBroker::isAvailable(), MachineInfo::longestGuardLatency(), MachineAnalysis::MachineAnalysis(), RFGuardDialog::onOK(), BusDialog::onUnconditionalGuard(), BFLateBypassGuard::operator()(), MachineResourceManager::registerFileIndexReference(), RegisterRenamer::renameLiveRange(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), MachineResourceManager::rFPortOrFUIndexReference(), saveState(), BFRenameLiveRange::setGuard(), BusDialog::updateGuardLists(), and DefaultDecoderGenerator::writeSquashSignalGenerationProcess().

◆ hasGuard()

bool TTAMachine::Bus::hasGuard ( const Guard & guard ) const

Checks whether the bus has the given guard.

Definition at line 393 of file Bus.cc.

                                      {
    for (GuardTable::const_iterator iter = guards_.begin();
         iter != guards_.end(); iter++) {
        if ((*iter)->isEqual(guard)) {
            return true;
        }
    }
    return false;
}

References guard(), and guards_.

Referenced by addGuard(), MachineConnectivityCheck::canTransportImmediate(), ADFCombiner::connectRegisterFiles(), and copyGuardsTo().

Here is the call graph for this function:

◆ hasNextBus()

bool TTAMachine::Bus::hasNextBus ( ) const

virtual

Checks if the bus has next bus.

Next does not mean destination bus in that case but the next bus from location point of view.

Returns: True if the bus has next bus, otherwise false.

Definition at line 488 of file Bus.cc.

                      {
    Bridge* nextBridge = this->nextBridge();
    return nextBridge != NULL;
}

References nextBridge().

Referenced by TTAMachine::Bridge::adjustChainDirection(), MachineTester::areInSameChain(), MachineTester::canBridge(), MachineEditPartFactory::getBusChains(), BEMValidator::needsSourceField(), and TTAMachine::Bridge::setFirstOfChain().

Here is the call graph for this function:

◆ hasPreviousBus()

bool TTAMachine::Bus::hasPreviousBus ( ) const

virtual

Checks if the bus has previous bus.

Previous does not mean source in that case but the previous bus from location point of view.

Returns: True if the bus has previous bus, otherwise false.

Definition at line 473 of file Bus.cc.

                          {
    Bridge* prevBridge = previousBridge();
    return prevBridge != NULL;
}

References previousBridge().

Referenced by MachineTester::areInSameChain(), MachineTester::canBridge(), MachineEditPartFactory::getBusChains(), BEMValidator::needsSourceField(), and TTAMachine::Bridge::setFirstOfChain().

Here is the call graph for this function:

◆ hasSegment()

bool TTAMachine::Bus::hasSegment ( const std::string & name ) const

virtual

Returns true if the bus has a segment with the given name.

Parameters

name	Name of the segment.

Returns: True if the bus has a segment with the given name, otherwise false.

Definition at line 284 of file Bus.cc.

                                           {
    SegmentTable::const_iterator iter = segments_.begin();
    while (iter != segments_.end()) {
        if ((*iter)->name() == name) {
            return true;
        }
        iter++;
    }
    return false;
}

References TTAMachine::Component::name(), and segments_.

Referenced by addSegment(), ADFCombiner::createBus(), TTAMachine::Segment::loadStateWithoutReferences(), and BusDialog::onAddSegment().

Here is the call graph for this function:

◆ immediateWidth()

int TTAMachine::Bus::immediateWidth ( ) const

Returns the bit width of the inline immediate word.

Returns: Bit width of the inline immediate word.

Definition at line 160 of file Bus.cc.

                          {
    return immWidth_;
}

References immWidth_.

Referenced by BEMGenerator::addEncodings(), DefaultICGenerator::addICToNetlist(), BusBroker::buildResources(), MachineInfo::canEncodeImmediateInteger(), MachineConnectivityCheck::canTransportImmediate(), MachineConnectivityCheck::canWriteAllImmediates(), BEMValidator::checkSourceField(), DefaultDecoderGenerator::completeDecoderBlock(), TTAProgram::ProgramWriter::createCodeSection(), DefaultICGenerator::createSignalsForIC(), TTAProgram::TPEFProgramFactory::createTerminal(), ProGe::RV32MicroCodeGenerator::findConnectedBusses(), DefaultICGenerator::generateSocketsAndMuxes(), ProDeBusEditPolicy::getCommand(), isArchitectureEqual(), CompiledSimSymbolGenerator::moveOperandSymbol(), BEMValidator::needsSourceField(), SimProgramBuilder::processMove(), BusBroker::setupResourceLinks(), DefaultDecoderGenerator::simmPortWidth(), DefaultICGenerator::simmPortWidth(), BusDialog::TransferDataToWindow(), DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus(), DefaultDecoderGenerator::writeControlRegisterMappings(), DefaultICGenerator::writeInterconnectionNetwork(), DefaultDecoderGenerator::writeRulesForSourceControlSignals(), and DefaultDecoderGenerator::writeSocketCntrlSignals().

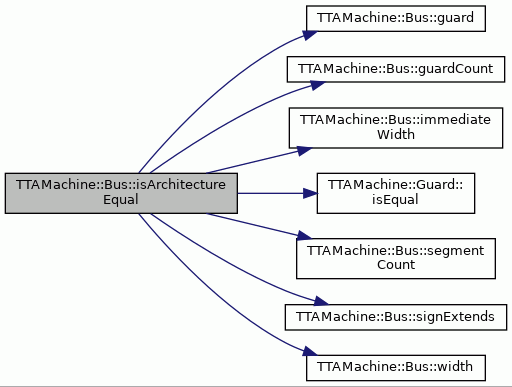

◆ isArchitectureEqual()

bool TTAMachine::Bus::isArchitectureEqual ( const Bus & bus ) const

virtual

Checks is this bus architecture equal with the given bus.

Architecture equality means that buses have same widths, immediate widths, extension modes, number of segments and same guards. Bridges are not checked.

Parameters

bus	Bus to compare with.

Returns: True if the buses are architecture equal.

Definition at line 1111 of file Bus.cc.

                                             {

    if (width() != bus.width() ||
        immediateWidth() != bus.immediateWidth() ||
        signExtends() != bus.signExtends() ||
        segmentCount() != bus.segmentCount()) {
        return false;
    }
    for (int i = 0; i < guardCount(); i++) {
        bool match = false;

        // check if there is matching guard in another bus
        for (int j = 0; j < bus.guardCount(); j++) {
            if (guard(i)->isEqual(*bus.guard(j))) {
                match = true;
                break;
            }
        }

        // if no matching guard was not found buses are not equal
        if (match == false) {
            return false;
        }
        // otherwise continue to next guard
    }
    return true;
}

References guard(), guardCount(), immediateWidth(), TTAMachine::Guard::isEqual(), segmentCount(), signExtends(), and width().

Referenced by MachineResourceModifier::analyzeBuses().

Here is the call graph for this function:

◆ isConnectedTo()

bool TTAMachine::Bus::isConnectedTo ( const Socket & socket ) const

virtual

Returns true if the bus is connected to the given socket, otherwise false.

Parameters

socket Socket.

Returns: True if the bus is connected to the given socket, otherwise false.

Definition at line 303 of file Bus.cc.

                                             {

    SegmentTable::const_iterator iter = segments_.begin();
    while (iter != segments_.end()) {
        if ((*iter)->isConnectedTo(socket)) {
            return true;
        }
        iter++;
    }
    return false;
}

References segments_.

Referenced by DefaultICDecoderEstimator::busParameters().

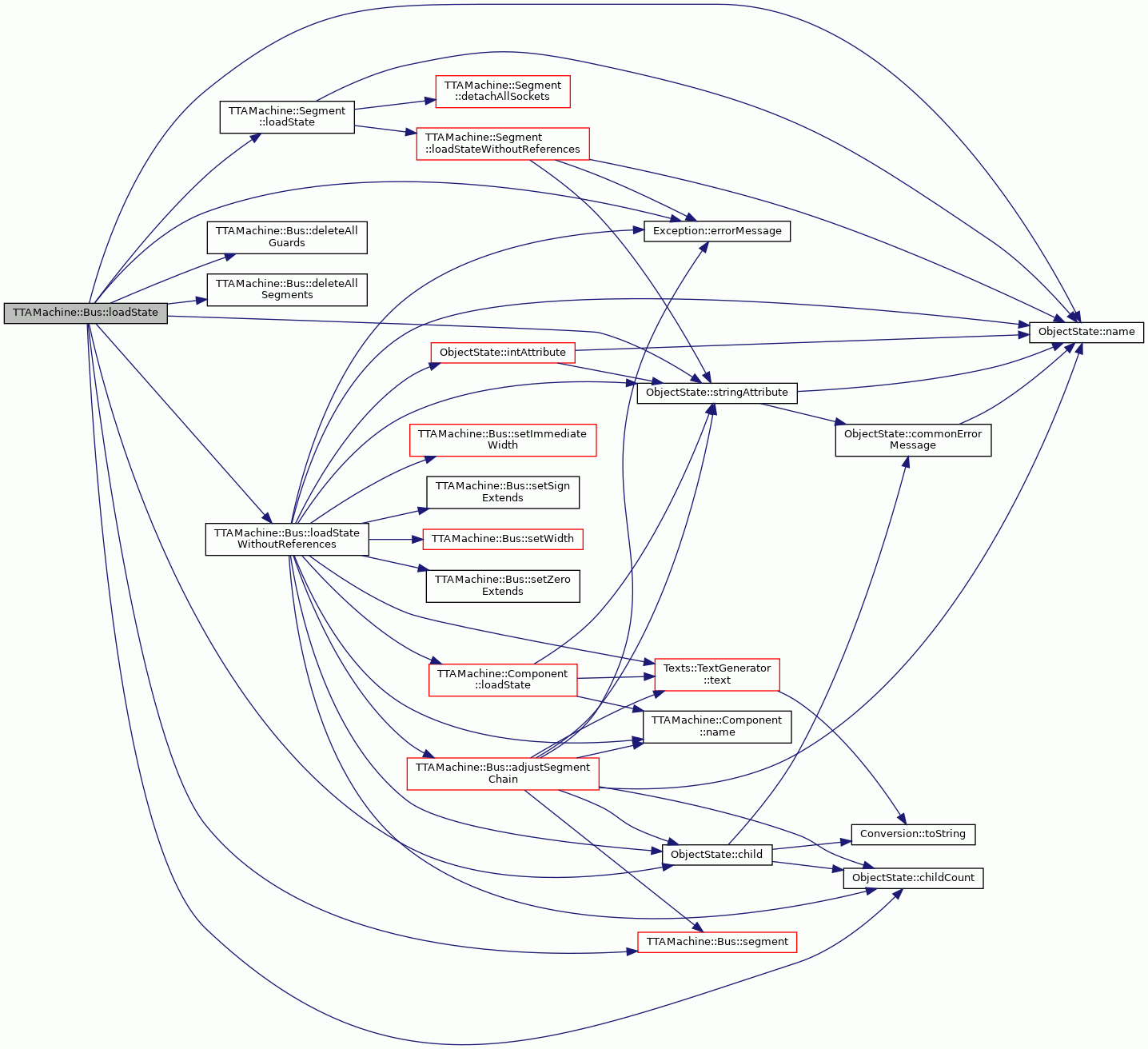

◆ loadState()

void TTAMachine::Bus::loadState ( const ObjectState * state )

virtual

Loads the state of the object from the given ObjectState instance.

Parameters

state The ObjectState instance.

Exceptions

ObjectStateLoadingException If the name of this bus becomes the same as an existing bus in the same machine or if generating references to other components did not succeed.

Reimplemented from TTAMachine::Component.

Definition at line 816 of file Bus.cc.

                                       {
    deleteAllSegments();
    deleteAllGuards();

    // load state without references to other machine parts
    try {
        loadStateWithoutReferences(state);

        // create guards and load states of segments
        for (int i = 0; i < state->childCount(); i++) {
            ObjectState* childState = state->child(i);
            if (childState->name() == PortGuard::OSNAME_PORT_GUARD) {
                // guard is registered automatically
                new PortGuard(childState, *this);
            } else if (childState->name() ==
                       RegisterGuard::OSNAME_REGISTER_GUARD) {
                // guard is registered automatically
                new RegisterGuard(childState, *this);
            } else if (childState->name() ==
                       UnconditionalGuard::OSNAME_UNCONDITIONAL_GUARD) {
                // guard is registered automatically.
                new UnconditionalGuard(childState, *this);
            } else if (childState->name() == Segment::OSNAME_SEGMENT) {
                string segmentName =
                    childState->stringAttribute(Segment::OSKEY_NAME);
                Segment* segment = this->segment(segmentName);
                segment->loadState(childState);
            }
        }
    } catch (Exception& exception) {
        const string procName = "Bus::loadState";
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, exception.errorMessage());
    }
}

References ObjectState::child(), ObjectState::childCount(), deleteAllGuards(), deleteAllSegments(), Exception::errorMessage(), TTAMachine::Segment::loadState(), loadStateWithoutReferences(), ObjectState::name(), TTAMachine::Segment::OSKEY_NAME, TTAMachine::PortGuard::OSNAME_PORT_GUARD, TTAMachine::RegisterGuard::OSNAME_REGISTER_GUARD, TTAMachine::Segment::OSNAME_SEGMENT, TTAMachine::UnconditionalGuard::OSNAME_UNCONDITIONAL_GUARD, segment(), and ObjectState::stringAttribute().

Referenced by TTAMachine::Machine::loadState().

Here is the call graph for this function:

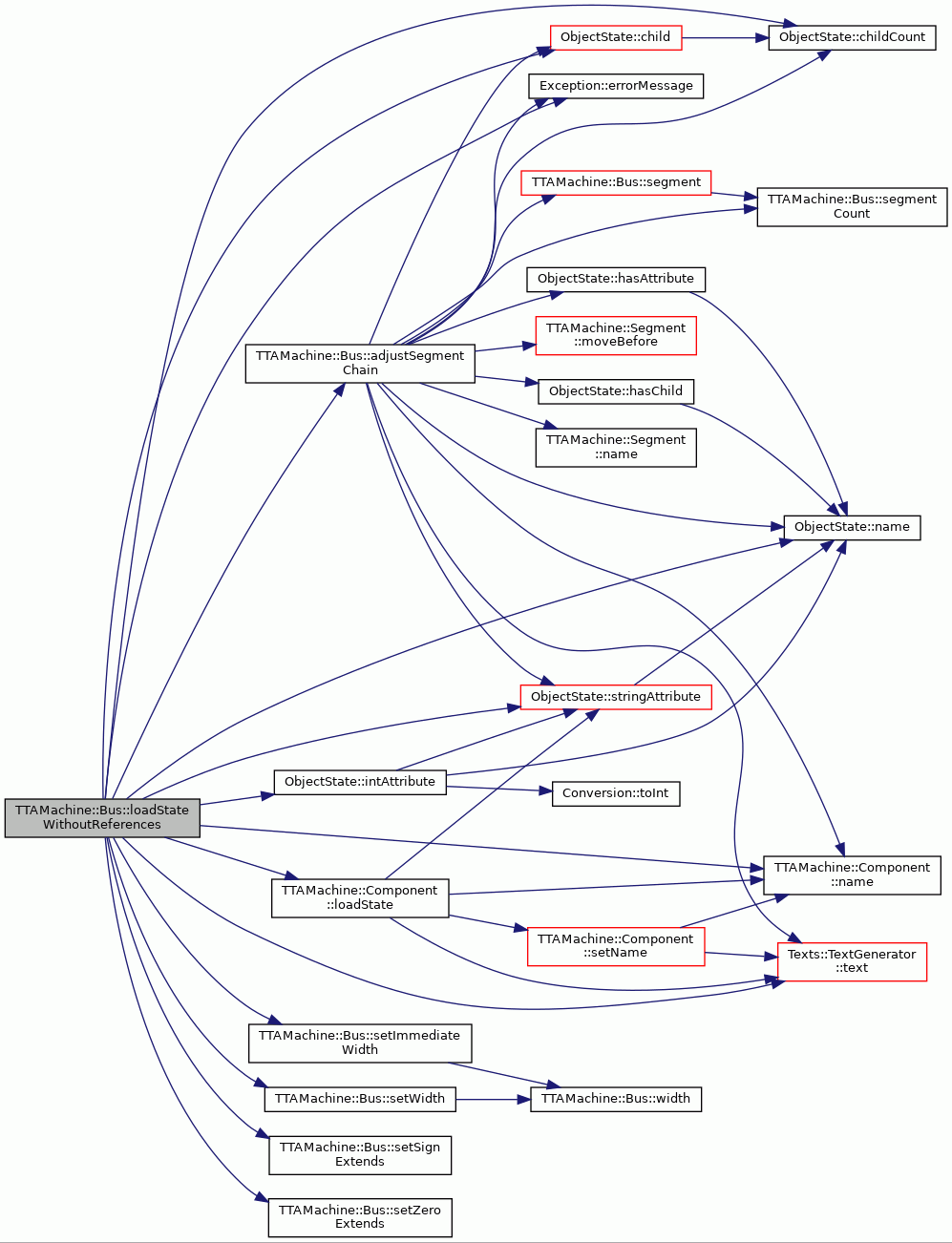

◆ loadStateWithoutReferences()

void TTAMachine::Bus::loadStateWithoutReferences ( const ObjectState * state )

private

Loads the state of the object from the given ObjectState tree without references to other components/subcomponents.

Parameters

state Root node of the ObjectState tree.

Exceptions

ObjectStateLoadingException If a bus by the same name is already registered to the same machine or if the given ObjectState tree is invalid.

Definition at line 863 of file Bus.cc.

                                                        {
    const string procName = "Bus::loadStateWithoutReferences";

    if (state->name() != OSNAME_BUS) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName,
            "Invalid XML object state for a bus, name: " + state->name());
    }

    Component::loadState(state);

    // read attributes
    try {
        setWidth(state->intAttribute(OSKEY_WIDTH));
        setImmediateWidth(state->intAttribute(OSKEY_IMMWIDTH));
        string extensionMode = state->stringAttribute(OSKEY_EXTENSION);
        if (extensionMode == OSVALUE_SIGN) {
            setSignExtends();
        } else if (extensionMode == OSVALUE_ZERO) {
            setZeroExtends();
        } else {
            throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
        }
    } catch (Exception& e) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName,
                                          e.errorMessage());
    }

    // create all segments, guards are not created because they are
    // completely useless without references
    for (int i = 0; i < state->childCount(); i++) {
        ObjectState* child = state->child(i);
        if (child->name() == Segment::OSNAME_SEGMENT) {
            try {
                // segment is attached automatically
                new Segment(child, *this);
            } catch (const ComponentAlreadyExists&) {
                MOMTextGenerator textGen;
                format errorMsg = textGen.text(
                    MOMTextGenerator::TXT_SEGMENT_WITH_SAME_NAME);
                errorMsg % child->stringAttribute(Segment::OSKEY_NAME) %
                    name();
                throw ObjectStateLoadingException(
                    __FILE__, __LINE__, procName, errorMsg.str());
            }
        }
    }

    adjustSegmentChain(state);
}

References adjustSegmentChain(), ObjectState::child(), ObjectState::childCount(), Exception::errorMessage(), ObjectState::intAttribute(), TTAMachine::Component::loadState(), TTAMachine::Component::name(), ObjectState::name(), OSKEY_EXTENSION, OSKEY_IMMWIDTH, TTAMachine::Segment::OSKEY_NAME, OSKEY_WIDTH, OSNAME_BUS, TTAMachine::Segment::OSNAME_SEGMENT, OSVALUE_SIGN, OSVALUE_ZERO, setImmediateWidth(), setSignExtends(), setWidth(), setZeroExtends(), ObjectState::stringAttribute(), Texts::TextGenerator::text(), and MOMTextGenerator::TXT_SEGMENT_WITH_SAME_NAME.

Referenced by Bus(), and loadState().

Here is the call graph for this function:

◆ nextBridge() [1/2]

Bridge * TTAMachine::Bus::nextBridge ( ) const

private

Returns a bridge that joins this bus and the next bus of this bus.

If there is two such bridges, returns one of them. If there is no such a bridge, returns NULL.

Returns: Next bridge or NULL.

Definition at line 965 of file Bus.cc.

                      {
    Bridge* nextBridge = this->nextBridge(sourceBridges_);
    if (nextBridge == NULL) {
        nextBridge = this->nextBridge(destinationBridges_);
    }
    return nextBridge;
}

References destinationBridges_, nextBridge(), and sourceBridges_.

Referenced by hasNextBus(), nextBridge(), and nextBus().

Here is the call graph for this function:

◆ nextBridge() [2/2]

Bridge * TTAMachine::Bus::nextBridge ( const BridgeTable & bridges ) const

private

Returns a bridge that joins this bus and the next bus of this bus.

Returns NULL if such a bridge does not exist.

Parameters

bridge The bridge table to look for the bridge.

Returns: The next bridge.

Definition at line 1005 of file Bus.cc.

                                                {
    BridgeTable::const_iterator iter = bridges.begin();
    while (iter != bridges.end()) {
        Bridge* bridge = *iter;
        if (bridge->previousBus() == this) {
            return bridge;
        }
        iter++;
    }
    return NULL;
}

References TTAMachine::Bridge::previousBus().

Here is the call graph for this function:

◆ nextBus()

Bus * TTAMachine::Bus::nextBus ( ) const

virtual

Returns the next bus from the location point of view.

Returns: The next bus.

Exceptions

InstanceNotFound If the bus is the last in the chain.

Definition at line 501 of file Bus.cc.

                   {
    Bridge* nextBridge = this->nextBridge();
    if (nextBridge != NULL) {
        return nextBridge->nextBus();
    } else {
        string procName = "Bus::nextBus";
        throw InstanceNotFound(__FILE__, __LINE__, procName);
    }
}

References nextBridge(), and TTAMachine::Bridge::nextBus().

Referenced by TTAMachine::Bridge::adjustChainDirection(), MachineTester::areInSameChain(), MachineTester::canBridge(), MachineEditPartFactory::findConnectedBridges(), MachineEditPartFactory::getBusChains(), and BEMValidator::needsSourceField().

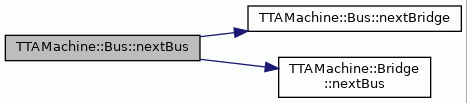

Here is the call graph for this function:

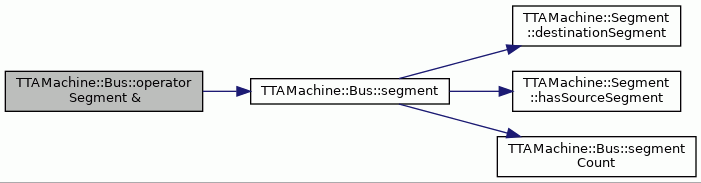

◆ operator Segment &()

TTAMachine::Bus::operator Segment & ( )

inline

Definition at line 62 of file Bus.hh.

62{ return *this->segment(0); }

References segment().

Here is the call graph for this function:

◆ operator=()

Bus & TTAMachine::Bus::operator= ( const Bus & )

private

Assingment forbidden.

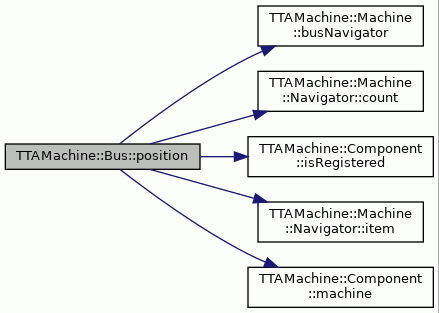

◆ position()

int TTAMachine::Bus::position ( ) const

virtual

Returns the position of the bus in move slot order.

Returns: The position (0 is the first position).

Exceptions

NotAvailable If the bus is not registered to a machine.

Definition at line 127 of file Bus.cc.

                    {
    if (!isRegistered()) {
        throw NotAvailable(__FILE__, __LINE__, __func__);
    }

    Machine::BusNavigator busNav = machine()->busNavigator();
    for (int i = 0; i < busNav.count(); i++) {
        if (busNav.item(i) == this) {
            return i;
        }
    }

    assert(false);
    return 0;
}

References __func__, assert, TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Component::isRegistered(), TTAMachine::Machine::Navigator< ComponentType >::item(), and TTAMachine::Component::machine().

Referenced by BusFactory::createEditPart().

Here is the call graph for this function:

◆ previousBridge() [1/2]

Bridge * TTAMachine::Bus::previousBridge ( ) const

private

Returns a bridge that joins this bus and the previous bus of this bus.

If there is two such bridges, returns one of them. If there is no such a bridge, returns NULL.

Returns: Previous bridge or NULL.

Definition at line 947 of file Bus.cc.

                          {
    Bridge* prevBridge = previousBridge(sourceBridges_);
    if (prevBridge == NULL) {
        prevBridge = previousBridge(destinationBridges_);
    }
    return prevBridge;
}

References destinationBridges_, previousBridge(), and sourceBridges_.

Referenced by hasPreviousBus(), previousBridge(), and previousBus().

Here is the call graph for this function:

◆ previousBridge() [2/2]

Bridge * TTAMachine::Bus::previousBridge ( const BridgeTable & bridges ) const

private

Returns a bridge that joins this bus and the previous bus of this bus.

Returns NULL if such a bridge does not exist.

Parameters

bridge The bridge table to look for the bridge.

Returns: The previous bridge.

Definition at line 983 of file Bus.cc.

                                                    {
    BridgeTable::const_iterator iter = bridges.begin();
    while (iter != bridges.end()) {
        Bridge* bridge = *iter;
        if (bridge->nextBus() == this) {
            return bridge;
        }
        iter++;
    }
    return NULL;
}

References TTAMachine::Bridge::nextBus().

Here is the call graph for this function:

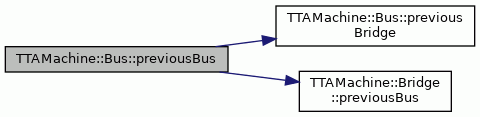

◆ previousBus()

Bus * TTAMachine::Bus::previousBus ( ) const

virtual

Returns the previous bus from the location point of view.

Returns: The previous bus.

Exceptions

InstanceNotFound If the bus is the first in the chain.

Definition at line 518 of file Bus.cc.

                       {
    Bridge* prevBridge = previousBridge();
    if (prevBridge != NULL) {
        return prevBridge->previousBus();
    } else {
        string procName = "Bus::previousBus";
        throw InstanceNotFound(__FILE__, __LINE__, procName);
    }
}

References previousBridge(), and TTAMachine::Bridge::previousBus().

Referenced by MachineTester::areInSameChain(), MachineTester::canBridge(), MachineEditPartFactory::getBusChains(), BEMValidator::needsSourceField(), and TTAMachine::Bridge::setFirstOfChain().

Here is the call graph for this function:

◆ removeGuard()

void TTAMachine::Bus::removeGuard ( Guard & guard )

virtual

Removes the given guard from the bus.

This method should be called by Guard destructor only.

Parameters

guard Guard to be removed.

Definition at line 428 of file Bus.cc.

                             {
    // run time check: can be called from Guard destructor only
    assert(guard.parentBus() == NULL);
    ContainerTools::removeValueIfExists(guards_, &guard);
}

References assert, guard(), guards_, TTAMachine::Guard::parentBus(), and ContainerTools::removeValueIfExists().

Referenced by TTAMachine::Guard::~Guard().

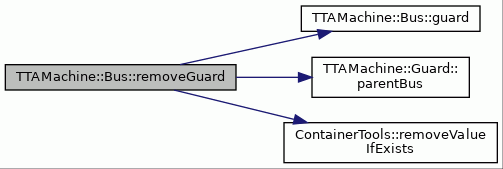

Here is the call graph for this function:

◆ removeSegment()

void TTAMachine::Bus::removeSegment ( Segment & segment )

virtual

Removes the given segment from the bus.

This method should be called by Segment destructor only.

Parameters

segment Segment to be removed.

Definition at line 757 of file Bus.cc.

                                   {

    // run time check: can be called from Segment destructor only
    assert(segment.parentBus() == NULL);

    bool removed = ContainerTools::removeValueIfExists(segments_, &segment);
    assert(removed);
}

References assert, TTAMachine::Segment::parentBus(), ContainerTools::removeValueIfExists(), segment(), and segments_.

Referenced by TTAMachine::Segment::~Segment().

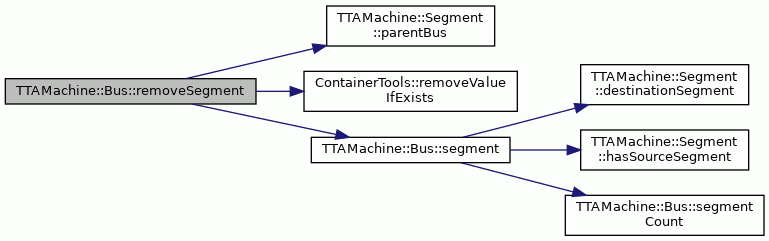

Here is the call graph for this function:

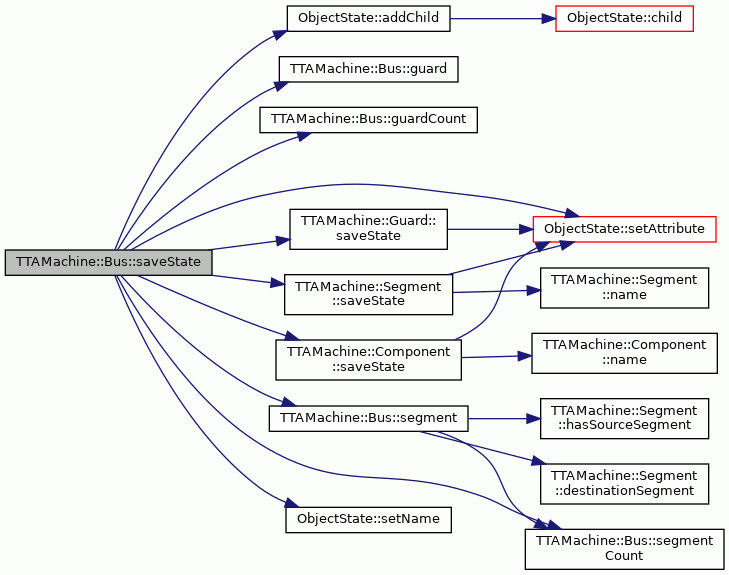

◆ saveState()

ObjectState * TTAMachine::Bus::saveState ( ) const

virtual

Saves the contents to an ObjectState tree.

Returns: Root of the created tree.

Reimplemented from TTAMachine::Component.

Definition at line 773 of file Bus.cc.

                     {

    ObjectState* busState = Component::saveState();

    // change the name of the ObjectState
    busState->setName(OSNAME_BUS);

    // set attributes
    busState->setAttribute(OSKEY_WIDTH, width_);
    busState->setAttribute(OSKEY_IMMWIDTH, immWidth_);
    if (extensionMode_ == Machine::SIGN) {
        busState->setAttribute(OSKEY_EXTENSION, OSVALUE_SIGN);
    } else if (extensionMode_ == Machine::ZERO) {
        busState->setAttribute(OSKEY_EXTENSION, OSVALUE_ZERO);
    }

    // add segments
    for (int i = 0; i < segmentCount(); i++) {
        Segment* seg = segment(i);
        busState->addChild(seg->saveState());
    }

    // save guards
    for (int i = 0; i < guardCount(); i++) {
        Guard* currentGuard = guard(i);
        busState->addChild(currentGuard->saveState());
    }

    return busState;
}

References ObjectState::addChild(), extensionMode_, guard(), guardCount(), immWidth_, OSKEY_EXTENSION, OSKEY_IMMWIDTH, OSKEY_WIDTH, OSNAME_BUS, OSVALUE_SIGN, OSVALUE_ZERO, TTAMachine::Guard::saveState(), TTAMachine::Component::saveState(), TTAMachine::Segment::saveState(), segment(), segmentCount(), ObjectState::setAttribute(), ObjectState::setName(), TTAMachine::Machine::SIGN, width_, and TTAMachine::Machine::ZERO.

Referenced by copy().

Here is the call graph for this function:

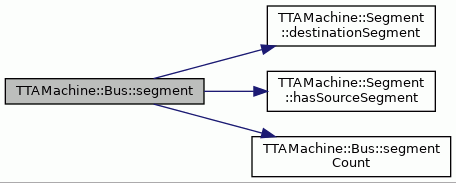

◆ segment() [1/2]

Segment * TTAMachine::Bus::segment ( const std::string & name ) const

virtual

Returns the segment which has the given name.

Parameters

name	Name of the segment.

Returns: Segment which has the given name.

Exceptions

InstanceNotFound If the bus does not contain a segment by the given name.

Definition at line 365 of file Bus.cc.

                                        {
    SegmentTable::const_iterator iter = segments_.begin();
    while (iter != segments_.end()) {
        if ((*iter)->name() == name) {
            return *iter;
        }
        iter++;
    }

    // requested segment not found
    string procName = "Bus::segment";
    throw InstanceNotFound(__FILE__, __LINE__, procName);
}

References TTAMachine::Component::name(), and segments_.

Here is the call graph for this function:

◆ segment() [2/2]

Segment * TTAMachine::Bus::segment ( int index ) const

virtual

Returns the bus segment at a given index.

The index must be greater or equal to 0 and less than the number of segments. The segments are returned in the correct order. Thus, index 0 returns the first segment in the segment chain, index 1 returns its destination segment and so on.

Parameters

index Index.

Returns: The segment found on the given index.

Exceptions

OutOfRange If the given index is out of range.

Definition at line 329 of file Bus.cc.

                            {
    if (index < 0 || index >= segmentCount()) {
        string procName = "Bus::segment";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }

    // find the first segment of the chain
    Segment* firstSegment = NULL;
    SegmentTable::const_iterator iter = segments_.begin();
    while (iter != segments_.end()) {
        Segment* segment = *iter;
        if (!segment->hasSourceSegment()) {
            firstSegment = segment;
            break;
        }
        iter++;
    }

    // follow the segment chain until the requested segment is reached
    Segment* nextSegment = firstSegment;
    for (int i = 0; i < index; i++) {
        nextSegment = nextSegment->destinationSegment();
    }

    return nextSegment;
}

References TTAMachine::Segment::destinationSegment(), TTAMachine::Segment::hasSourceSegment(), segment(), segmentCount(), and segments_.

Referenced by ADFCombiner::addBuses(), SimpleICOptimizer::addConnections(), addSegment(), adjustSegmentChain(), FullyConnectedCheck::attachSocketToAllBusses(), BusBroker::buildResources(), DefaultDecoderGenerator::busCntrlSignalPinOfSocket(), BEMValidator::checkDestinationField(), BEMValidator::checkSourceField(), BusFactory::createEditPart(), ADFCombiner::createPortsAndSockets(), BlocksTranslator::Deinitialize(), TTAMachine::Socket::detachBus(), InfoBussesCommand::execute(), VLIWConnectIC::explore(), CostEstimator::Estimator::findAllICPaths(), DefaultICGenerator::inputSockets(), DefaultICGenerator::isBusConnected(), TTAMachine::Socket::isConnectedTo(), ProgrammabilityValidator::listConnections(), loadState(), TTAMachine::Socket::loadState(), CostEstimator::Estimator::longestPath(), BEMValidator::needsSourceField(), operator Segment &(), DefaultICGenerator::outputSockets(), removeSegment(), saveState(), TTAMachine::Segment::Segment(), segment(), BusDialog::selectedSegment(), TTAMachine::Segment::setName(), BusBroker::setupResourceLinks(), BEMGenerator::socket(), FullyConnectedCheck::socketAttachedToAllBusses(), BEMGenerator::socketCount(), ConnectionSweeper::sweepBypasses(), ConnectionSweeper::sweepRFs(), SocketDialog::updateConnected(), BusDialog::updateSegmentList(), DefaultDecoderGenerator::writeControlRulesOfFUInputPort(), and DefaultDecoderGenerator::writeControlRulesOfRFWritePort().

Here is the call graph for this function:

◆ segmentCount()

int TTAMachine::Bus::segmentCount ( ) const

virtual

Returns the number of segments in this bus.

Returns: Number of segments in this bus.

Definition at line 385 of file Bus.cc.

                        {
    return segments_.size();
}

References segments_.

Referenced by ADFCombiner::addBuses(), SimpleICOptimizer::addConnections(), adjustSegmentChain(), FullyConnectedCheck::attachSocketToAllBusses(), BusBroker::buildResources(), BEMValidator::checkDestinationField(), BEMValidator::checkSourceField(), BusFactory::createEditPart(), TTAMachine::Socket::detachBus(), InfoBussesCommand::execute(), CostEstimator::Estimator::findAllICPaths(), DefaultICGenerator::inputSockets(), isArchitectureEqual(), DefaultICGenerator::isBusConnected(), TTAMachine::Socket::isConnectedTo(), ProgrammabilityValidator::listConnections(), BEMValidator::needsSourceField(), DefaultICGenerator::outputSockets(), saveState(), TTAMachine::Segment::Segment(), segment(), TTAMachine::Segment::setName(), BusBroker::setupResourceLinks(), BEMGenerator::socket(), FullyConnectedCheck::socketAttachedToAllBusses(), BEMGenerator::socketCount(), SocketDialog::updateConnected(), BusDialog::updateSegmentList(), and DefaultICGenerator::verifyCompatibility().

◆ setDestinationBridge()

void TTAMachine::Bus::setDestinationBridge ( Bridge & bridge )

virtual

Adds a destination bridge for the bus.

This method can be called from methods of Bridge only. Do not call this method.

Parameters

bridge The destination bridge to add.

Definition at line 613 of file Bus.cc.

                                        {

    // run time check: can be called from Bridge methods only
    assert(bridge.sourceBus() == NULL);

    assert(destinationBridges_.size() < 2);
    destinationBridges_.push_back(&bridge);
}

References assert, destinationBridges_, and TTAMachine::Bridge::sourceBus().

Referenced by TTAMachine::Bridge::setSourceAndDestination().

Here is the call graph for this function:

◆ setExtensionMode()

void TTAMachine::Bus::setExtensionMode ( const Machine::Extension extension )

virtual

Sets the extension mode.

Definition at line 271 of file Bus.cc.

                                                      {
    extensionMode_ = extension;
}

References extensionMode_.

◆ setImmediateWidth()

void TTAMachine::Bus::setImmediateWidth ( int width )

virtual

Sets the number of bits of inline immediates.

Parameters

width The bit width of inline immediates.

Exceptions

OutOfRange If the given width is negative or greater than the bit width of the bus.

Definition at line 241 of file Bus.cc.

                                {
    if (width < 0 || width > this->width()) {
        string procName = "Bus::setImmediateWidth";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
    immWidth_ = width;
}

References immWidth_, and width().

Referenced by VLIWConnectIC::explore(), loadStateWithoutReferences(), and BusDialog::onOK().

Here is the call graph for this function:

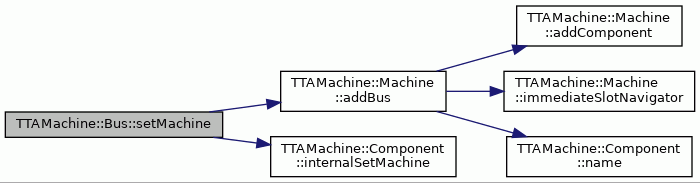

◆ setMachine()

void TTAMachine::Bus::setMachine ( Machine & mach )

virtual

Registers the bus to a machine.

Parameters

mach	Machine to which the bus is going to be registered.

Exceptions

ComponentAlreadyExists If the given machine already has another bus by the same name.

Implements TTAMachine::Component.

Definition at line 671 of file Bus.cc.

                             {
    internalSetMachine(mach);
    mach.addBus(*this);
}

References TTAMachine::Machine::addBus(), and TTAMachine::Component::internalSetMachine().

Referenced by AddBusCmd::Do().

Here is the call graph for this function:

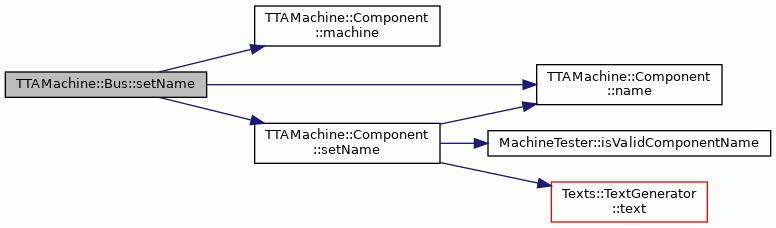

◆ setName()

void TTAMachine::Bus::setName ( const std::string & name )

virtual

Sets the name of the bus.

Parameters

name	Name of the bus.

Exceptions

ComponentAlreadyExists	If a bus with the given name is already in the same machine.
InvalidName	If the given name is not a valid component name.

Reimplemented from TTAMachine::Component.

Definition at line 196 of file Bus.cc.

                                  {
    if (name == this->name()) {
        return;
    }

    if (machine() != NULL) {
        if (machine()->busNavigator().hasItem(name) ||
            machine()->immediateSlotNavigator().hasItem(name)) {
            string procName = "Bus::setName";
            throw ComponentAlreadyExists(__FILE__, __LINE__, procName);
        } else {
            Component::setName(name);
        }
    } else {
        Component::setName(name);
    }
}

References TTAMachine::Component::machine(), TTAMachine::Component::name(), and TTAMachine::Component::setName().

Referenced by ADFCombiner::addBuses(), MachineResourceModifier::addBusesByAmount(), and BusDialog::onOK().

Here is the call graph for this function:

◆ setSignExtends()

void TTAMachine::Bus::setSignExtends ( )

virtual

Sets the sign extension mode.

Definition at line 262 of file Bus.cc.

                    {
    extensionMode_ = Machine::SIGN;
}

References extensionMode_, and TTAMachine::Machine::SIGN.

Referenced by loadStateWithoutReferences(), and BusDialog::onOK().

◆ setSourceBridge()

void TTAMachine::Bus::setSourceBridge ( Bridge & bridge )

virtual

Adds a source bridge for the bus.

This method can be called from methods of Bridge only. Do not call this method.

Parameters

bridge The source bridge to add.

Definition at line 594 of file Bus.cc.

                                   {

    // run time check: can be called from Bridge methods only
    assert(bridge.destinationBus() == NULL);

    assert(sourceBridges_.size() < 2);
    sourceBridges_.push_back(&bridge);
}

References assert, TTAMachine::Bridge::destinationBus(), and sourceBridges_.

Referenced by TTAMachine::Bridge::setSourceAndDestination().

Here is the call graph for this function:

◆ setWidth()

void TTAMachine::Bus::setWidth ( int width )

virtual

Sets the bit width of the bus.

Parameters

width The new bit width of the bus.

Exceptions

OutOfRange If the given width is less or equal to zero or if there is an instruction template that has greater bit width for this slot.

Definition at line 223 of file Bus.cc.

                       {
    const string procName = "Bus::setWidth";

    if (width <= 0) {
        throw OutOfRange(__FILE__, __LINE__, procName);
    }

    width_ = width;
}

References width(), and width_.

Referenced by loadStateWithoutReferences(), and BusDialog::onOK().

Here is the call graph for this function:

◆ setZeroExtends()

void TTAMachine::Bus::setZeroExtends ( )

virtual

Sets the zero extension mode.

Definition at line 253 of file Bus.cc.

                    {
    extensionMode_ = Machine::ZERO;
}

References extensionMode_, and TTAMachine::Machine::ZERO.

Referenced by loadStateWithoutReferences(), and BusDialog::onOK().

◆ signExtends()

bool TTAMachine::Bus::signExtends ( ) const

Returns true if the bus uses sign extension.

Returns: True if the bus uses sign extension.

Definition at line 171 of file Bus.cc.

                       {
    return extensionMode_ == Machine::SIGN;
}

References extensionMode_, and TTAMachine::Machine::SIGN.

Referenced by MachineInfo::canEncodeImmediateInteger(), MachineConnectivityCheck::canTransportImmediate(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createMove(), ProDeBusEditPolicy::getCommand(), isArchitectureEqual(), CompiledSimSymbolGenerator::moveOperandSymbol(), SimProgramBuilder::processMove(), BusBroker::setupResourceLinks(), DefaultDecoderGenerator::simmPortWidth(), DefaultICGenerator::simmPortWidth(), BusDialog::TransferDataToWindow(), DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus(), DefaultICGenerator::writeInterconnectionNetwork(), and DefaultDecoderGenerator::writeSimmDataSignal().

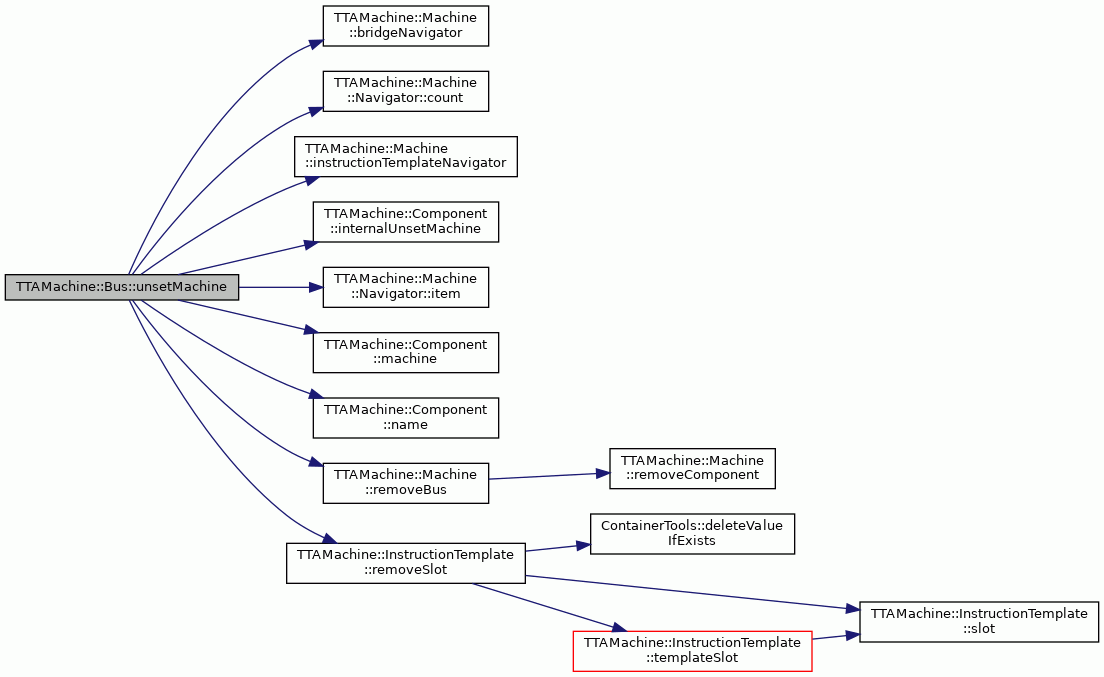

◆ unsetMachine()

void TTAMachine::Bus::unsetMachine ( )

virtual

Removes registration of the bus from its current machine.

Detaches all the sockets attached to the bus and deletes all the guards and modifies instruction templates to not use this bus.

Implements TTAMachine::Component.

Definition at line 683 of file Bus.cc.

                  {

    Machine* mach = machine();

    if (mach == NULL) {
        return;
    }

    internalUnsetMachine();

    // detach all sockets
    SegmentTable::iterator iter = segments_.begin();
    while (iter != segments_.end()) {
        (*iter)->detachAllSockets();
        iter++;
    }

    // delete bridges
    Machine::BridgeNavigator bNavigator = mach->bridgeNavigator();
    for (int i = 0; i < bNavigator.count();) {
        if (bNavigator.item(i)->sourceBus() == this ||
            bNavigator.item(i)->destinationBus() == this) {
            // deleting bridge removes it automatically from the container,
            // no iterator increment needed
            delete bNavigator.item(i);
        } else {
            i++;
        }
    }

    // delete the template slot that uses the bus
    Machine::InstructionTemplateNavigator itNav =
        mach->instructionTemplateNavigator();
    for (int i = 0; i < itNav.count(); i++) {
        InstructionTemplate* it = itNav.item(i);
        it->removeSlot(name());
    }

    mach->removeBus(*this);
}

References TTAMachine::Machine::bridgeNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::instructionTemplateNavigator(), TTAMachine::Component::internalUnsetMachine(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), TTAMachine::Component::name(), TTAMachine::Machine::removeBus(), TTAMachine::InstructionTemplate::removeSlot(), and segments_.

Referenced by ~Bus().

Here is the call graph for this function:

◆ width()

int TTAMachine::Bus::width ( ) const

Returns the bit width of the bus.

Returns: Bit width of the bus.

Definition at line 149 of file Bus.cc.

                 {
    return width_;
}

References width_.

Referenced by ImmediateGenerator::addSplitInsTemplate(), MachineStateBuilder::buildMachineState(), BusBroker::buildResources(), Bus(), MachineInfo::canEncodeImmediateInteger(), ProGe::RV32MicroCodeGenerator::constructBInstructions(), ProGe::RV32MicroCodeGenerator::constructIInstructions(), ProGe::RV32MicroCodeGenerator::constructSInstructions(), ProGe::RV32MicroCodeGenerator::constructUJInstructions(), SegmentFactory::createEditPart(), DefaultICGenerator::createSignalsForIC(), MachineResourceManager::findBusWidth(), ProgrammabilityValidator::findGlobalConnectionRegister(), CompiledSimCodeGenerator::generateHeaderAndMainCode(), ProDeBusEditPolicy::getCommand(), isArchitectureEqual(), SimProgramBuilder::processMove(), setImmediateWidth(), setWidth(), DefaultDecoderGenerator::simmPortWidth(), DefaultICGenerator::simmPortWidth(), DefaultICDecoderEstimator::socketParameters(), BusDialog::TransferDataToWindow(), PostpassOperandSharer::tryRemoveOperandWrite(), DefaultICGenerator::writeBusDumpCode(), and DefaultICGenerator::writeInterconnectionNetwork().

◆ zeroExtends()

bool TTAMachine::Bus::zeroExtends ( ) const

Returns true if the bus uses zero extension.

Returns: True if the bus uses zero extension.

Definition at line 182 of file Bus.cc.

                       {
    return extensionMode_ == Machine::ZERO;
}

Contains the source bridges (max 2).

Definition at line 160 of file Bus.hh.

Referenced by canRead(), clearSourceBridge(), nextBridge(), previousBridge(), and setSourceBridge().

◆ width_

int TTAMachine::Bus::width_

private

Bit width of the bus.

Definition at line 148 of file Bus.hh.

Referenced by saveState(), setWidth(), and width().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BridgeTable

◆ GuardTable

◆ SegmentTable

Constructor & Destructor Documentation

◆ Bus() [1/2]

◆ Bus() [2/2]

◆ ~Bus()

Member Function Documentation

◆ addGuard()

◆ addSegment()

◆ adjustSegmentChain()

◆ canRead()

◆ canReadWrite()

◆ canWrite()

◆ clearDestinationBridge()

◆ clearSourceBridge()

◆ copy()

◆ copyGuardsTo()

◆ deleteAllGuards()

◆ deleteAllSegments()

◆ guard()

◆ guardCount()

◆ hasGuard()

◆ hasNextBus()

◆ hasPreviousBus()

◆ hasSegment()

◆ immediateWidth()

◆ isArchitectureEqual()

◆ isConnectedTo()

◆ loadState()

◆ loadStateWithoutReferences()

◆ nextBridge() [1/2]

◆ nextBridge() [2/2]

◆ nextBus()

◆ operator Segment &()

◆ operator=()

◆ position()

◆ previousBridge() [1/2]

◆ previousBridge() [2/2]

◆ previousBus()

◆ removeGuard()

◆ removeSegment()

◆ saveState()

◆ segment() [1/2]

◆ segment() [2/2]

◆ segmentCount()

◆ setDestinationBridge()

◆ setExtensionMode()

◆ setImmediateWidth()

◆ setMachine()

◆ setName()

◆ setSignExtends()

◆ setSourceBridge()

◆ setWidth()

◆ setZeroExtends()

◆ signExtends()

◆ unsetMachine()

◆ width()

◆ zeroExtends()

Member Data Documentation

◆ destinationBridges_

◆ extensionMode_

◆ guards_

◆ immWidth_

◆ OSKEY_EXTENSION

◆ OSKEY_IMMWIDTH

◆ OSKEY_WIDTH

◆ OSNAME_BUS

◆ OSVALUE_SIGN

◆ OSVALUE_ZERO

◆ segments_

◆ sourceBridges_
