Serializable Class Reference

#include <Serializable.hh>

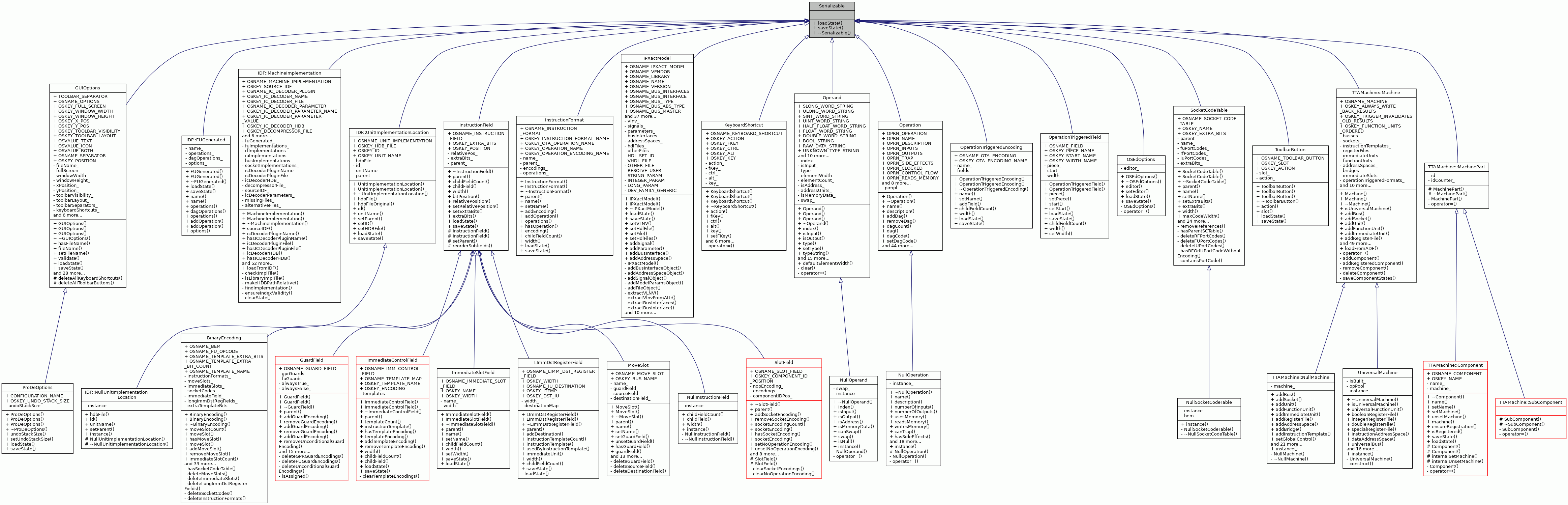

Inheritance diagram for Serializable:

Collaboration diagram for Serializable:

Public Member Functions
virtual void	loadState (const ObjectState *state)=0
virtual ObjectState *	saveState () const =0
virtual	~Serializable ()

Detailed Description

Objects which are going to be serialized using XMLSerializer or any other serializer must implement this interface.

Definition at line 44 of file Serializable.hh.

Constructor & Destructor Documentation

~Serializable()

virtual Serializable::~Serializable ( )

inlinevirtual

Definition at line 61 of file Serializable.hh.

{}

Member Function Documentation

loadState()

virtual void Serializable::loadState ( const ObjectState *  state )

pure virtual

Loads the state of the object from the given ObjectState object.

Parameters

state

ObjectState object from which (and the children of which) the state is loaded.

Implemented in IPXactModel, GUIOptions, KeyboardShortcut, ToolbarButton, BinaryEncoding, GuardField, ImmediateControlField, ImmediateSlotField, InstructionField, InstructionFormat, LImmDstRegisterField, MoveSlot, OperationTriggeredEncoding, OperationTriggeredField, SlotField, SocketCodeTable, SourceField, IDF::MachineImplementation, IDF::UnitImplementationLocation, TTAMachine::AddressSpace, TTAMachine::BaseFUPort, TTAMachine::BaseRegisterFile, TTAMachine::Bridge, TTAMachine::Bus, TTAMachine::ControlUnit, TTAMachine::ExecutionPipeline, TTAMachine::FunctionUnit, TTAMachine::FUPort, TTAMachine::Guard, TTAMachine::PortGuard, TTAMachine::RegisterGuard, TTAMachine::UnconditionalGuard, TTAMachine::HWOperation, TTAMachine::ImmediateSlot, TTAMachine::ImmediateUnit, TTAMachine::InstructionTemplate, TTAMachine::Machine, TTAMachine::Component, TTAMachine::NullAddressSpace, TTAMachine::NullInstructionTemplate, TTAMachine::NullMachine, TTAMachine::NullRegisterFile, TTAMachine::OperationTriggeredFormat, TTAMachine::OperationTriggeredOperand, TTAMachine::Port, TTAMachine::RegisterFile, TTAMachine::RFPort, TTAMachine::Segment, TTAMachine::Socket, TTAMachine::SpecialRegisterPort, TTAMachine::Unit, Operand, Operation, SmartHWOperation, UnboundedRegisterFile, UniversalFunctionUnit, UniversalFUPort, UniversalMachine, OSEdOptions, ProDeOptions, and IDF::FUGenerated.

saveState()

virtual ObjectState * Serializable::saveState ( ) const

pure virtual

Saves the objects state into an ObjectState object and maybe its child objects.

Returns

The root of the ObjectState tree created.

Implemented in IPXactModel, GUIOptions, KeyboardShortcut, ToolbarButton, BinaryEncoding, DestinationField, GuardField, ImmediateControlField, ImmediateSlotField, InstructionField, InstructionFormat, LImmDstRegisterField, MoveSlot, OperationTriggeredEncoding, OperationTriggeredField, SlotField, SocketCodeTable, SourceField, IDF::MachineImplementation, IDF::UnitImplementationLocation, TTAMachine::AddressSpace, TTAMachine::BaseFUPort, TTAMachine::BaseRegisterFile, TTAMachine::Bridge, TTAMachine::Bus, TTAMachine::ControlUnit, TTAMachine::ExecutionPipeline, TTAMachine::FunctionUnit, TTAMachine::FUPort, TTAMachine::Guard, TTAMachine::PortGuard, TTAMachine::RegisterGuard, TTAMachine::UnconditionalGuard, TTAMachine::HWOperation, TTAMachine::ImmediateSlot, TTAMachine::ImmediateUnit, TTAMachine::InstructionTemplate, TTAMachine::Machine, TTAMachine::Component, TTAMachine::NullAddressSpace, TTAMachine::NullInstructionTemplate, TTAMachine::NullMachine, TTAMachine::NullRegisterFile, TTAMachine::OperationTriggeredFormat, TTAMachine::OperationTriggeredOperand, TTAMachine::Port, TTAMachine::RegisterFile, TTAMachine::RFPort, TTAMachine::Segment, TTAMachine::Socket, TTAMachine::SpecialRegisterPort, TTAMachine::Unit, Operand, Operation, OSEdOptions, ProDeOptions, and IDF::FUGenerated.

Referenced by TTAMachine::Machine::saveComponentStates().

---

The documentation for this class was generated from the following file:

• Serializable.hh
