OperationDAGConverter Class Reference

#include <OperationDAGConverter.hh>

Collaboration diagram for OperationDAGConverter:

Static Public Member Functions
static OperationDAG *	createDAG (const OperationPimpl &operation, std::string sourceCode)
static std::string	createOsalCode (const OperationDAG &dag)
static std::string	createSimulationCode (const OperationDAG &dag, std::vector< std::string > *varReplacements=NULL)

Private Types
typedef std::pair< const OperationDAGNode *, int >	VariableKey

Static Private Member Functions
static std::string	castedVar (std::string var, Operand::OperandType type)
static bool	writeNode (std::string &retVal, const OperationDAG &dag, const OperationDAGNode &node, std::map< VariableKey, std::string > &varBindings, std::set< const OperationDAGNode * > &alreadyHandled, int &tempVarCount, std::set< const OperationDAGNode * > &currentlyHandling, std::map< std::string, std::string > *opReplace=NULL, std::vector< std::string > *varReplacements=NULL)

Detailed Description

Parser for creating Operation DAG from Operation DAG Language and for writing Operation DAG back to language form.

Definition at line 51 of file OperationDAGConverter.hh.

Member Typedef Documentation

VariableKey

typedef std::pair<const OperationDAGNode*,int> OperationDAGConverter::VariableKey

private

Definition at line 60 of file OperationDAGConverter.hh.

Member Function Documentation

castedVar()

std::string OperationDAGConverter::castedVar ( std::string  var, Operand::OperandType  type  )

staticprivate

Cast variable to be correct type.

Definition at line 479 of file OperationDAGConverter.cc.

                                            {

    switch (type) {
    case Operand::SINT_WORD:
        return var + ".sIntWordValue()";
    case Operand::UINT_WORD:
        return var + ".uIntWordValue()";
    case Operand::FLOAT_WORD:
        return var + ".floatWordValue()";
    case Operand::HALF_FLOAT_WORD:
        return var + ".halfFloatWordValue()";
    case Operand::DOUBLE_WORD:
        return var + ".doubleWordValue()";
    case Operand::ULONG_WORD:
        return var + ".uLongWordValue()";
    case Operand::SLONG_WORD:
        return var + ".sLongWordValue()";
    default:
        return var;
    }
}

References Operand::DOUBLE_WORD, Operand::FLOAT_WORD, Operand::HALF_FLOAT_WORD, Operand::SINT_WORD, Operand::SLONG_WORD, Operand::UINT_WORD, and Operand::ULONG_WORD.

Referenced by writeNode().

createDAG()

POP_CLANG_DIAGS OperationDAG * OperationDAGConverter::createDAG ( const OperationPimpl &  operation, std::string  sourceCode  )

static

Creates OperationDAG out of OSAL DAG language source code.

Parameters

sourceCode

OSAL DAG Language source code.

Returns

Dynamically allocated OperationDAG instance.

Exceptions

IllegalParameters

There was an error during parsing.

Definition at line 61 of file OperationDAGConverter.cc.

                                                                                      {
    OperationDAGLanguageGrammar g;
    skip_grammar skip;

    // lets add semicolon to end of file to make boost 1.34 happy
    sourceCode += "\n;";

    const char *orig = sourceCode.c_str();

    //std::cerr << "source code" << std::endl << sourceCode << std::endl;

    parse_info<const char*> result =
        parse(orig, g, skip);

    if (result.full) {
        const TokenizerData::TokenTreeNode* root = g.tokenData_.tokenTree();
        OperationDAG* retVal = new OperationDAG(operation);
        OperationDAGBuilder builder(operation, *retVal, *root);

        //    std::cerr << g.tokenData_.tokenTree()->toStr() << std::endl;

        builder.parse();
        return retVal;

    } else {
        for (unsigned int i = 0; i < skip.strippedParts.size(); i++) {
            skip.strippedParts[i].second -=
                reinterpret_cast<long int>(skip.strippedParts[i].first);

            skip.strippedParts[i].first -= reinterpret_cast<long int>(orig);

            //std::cerr << "Skipped " << int(skip.strippedParts[i].second)
            //<< " chars at pos " << int(skip.strippedParts[i].first)
            //<< " line: \""
            //<< sourceCode.substr(int(skip.strippedParts[i].first),
            //int(skip.strippedParts[i].second)) << "\"" << std::endl;
        }

        // find character count in original code
        unsigned int charsToPos = 0;
        for (unsigned int i = 0; i < result.length ; i++) {

            for (unsigned int j = 0; j < skip.strippedParts.size(); j++) {
                if ((unsigned long int)skip.strippedParts[j].first
                    == charsToPos) {
                    charsToPos +=
                        reinterpret_cast<long int>(skip.strippedParts[j].second);

                    //std::cerr << std::endl << "Added at position: "
                    //<<  int(skip.strippedParts[j].first)
                    //<< " to char length: "
                    //<< int(skip.strippedParts[j].second);
                }
            }

            charsToPos++;
        }

        // find line number
        int lineNumber = 1;
        for (unsigned int i = 0; i < charsToPos; i++) {
            if (sourceCode.at(i) == '\n') {
                lineNumber++;
            }
        }

        // get logical line
        int lineStart = sourceCode.rfind(';', charsToPos);
        int lineEnd = sourceCode.find(';', charsToPos);

        std::string errorLine =
            boost::algorithm::trim_copy(
                sourceCode.substr(lineStart + 1, lineEnd - lineStart));

        //     std::cerr << "result.stop: " << result.stop << std::endl
        //        << "result.hit: " << result.hit << std::endl
        //        << "result.full: " << result.full << std::endl
        //        << "result.length: " << result.length << std::endl;

        std::string message  = "Parsing failed at the position " +
            Conversion::toString(result.length) + " in the code.\n" +
            "line  " + Conversion::toString(lineNumber) + ": " + errorLine;

        //std::cerr << message << std::endl;

        throw IllegalParameters(__FILE__, __LINE__, __func__, message);
    }
    return NULL;
}

References __func__, OperationDAGBuilder::parse(), skip_grammar::strippedParts, OperationDAGLanguageGrammar::tokenData_, TokenizerData::tokenTree(), and Conversion::toString().

Referenced by OperationPimpl::dag().

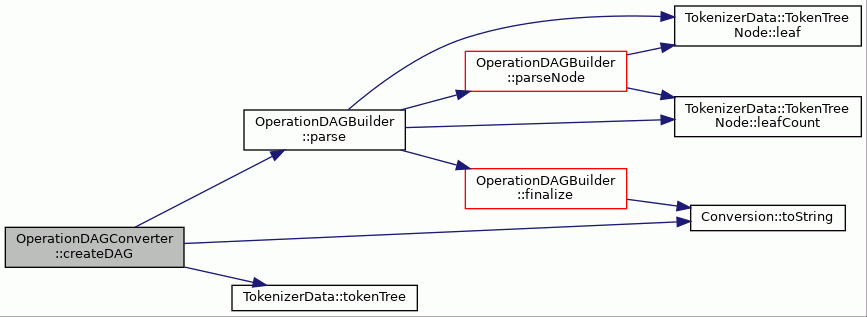

Here is the call graph for this function:

createOsalCode()

std::string OperationDAGConverter::createOsalCode ( const OperationDAG &  dag )

static

Write OSAL DAG code for graph.

Parameters

dag	Graph to write as OSAL code (basically C subset)

Definition at line 509 of file OperationDAGConverter.cc.

                                                             {
    std::string retVal;
    std::map<VariableKey, std::string> varBindings;
    std::set<const OperationDAGNode*> alreadyHandled;
    std::set<const OperationDAGNode*> currentlyHandling;
    int tempVarCount = 0;

    if (dag.nodeCount() == 0) {
        return retVal;
    }

    // Writes recursively all the DAG from node(0)
    writeNode(retVal, dag, dag.node(0), varBindings,
              alreadyHandled, tempVarCount, currentlyHandling);

    return retVal;
}

References BoostGraph< GraphNode, GraphEdge >::node(), BoostGraph< GraphNode, GraphEdge >::nodeCount(), and writeNode().

Here is the call graph for this function:

createSimulationCode()

std::string OperationDAGConverter::createSimulationCode ( const OperationDAG &  dag, std::vector< std::string > *  varReplacements = NULL  )

static

Optimizations, when compiled simulation code is created from DAG.

OSAL implementations of operantions will not be called for calculating basic C operations.

Definition at line 534 of file OperationDAGConverter.cc.

                                           {
    std::string retVal;
    std::map<VariableKey, std::string> varBindings;
    std::set<const OperationDAGNode*> alreadyHandled;
    std::set<const OperationDAGNode*> currentlyHandling;
    int tempVarCount = 0;
    std::map<std::string, std::string> opReplacements;

    opReplacements["ADD"] = "+";
    opReplacements["SUB"] = "-";
    opReplacements["MUL"] = "*";
    opReplacements["DIV"] = "/";
    opReplacements["DIVU"] = "/";
    opReplacements["EQ"] = "==";
    opReplacements["GT"] = ">";
    opReplacements["GTU"] = ">";
    opReplacements["SHL"] = "<<";
    opReplacements["SHR"] = ">>";
    opReplacements["SHRU"] = ">>";
    opReplacements["AND"] = "&";
    opReplacements["IOR"] = "|";
    opReplacements["XOR"] = "^";
    opReplacements["NEG"] = "-";
    opReplacements["NEGF"] = "-";
    opReplacements["ADDF"] = "+";
    opReplacements["SUBF"] = "-";
    opReplacements["MULF"] = "*";
    opReplacements["DIVF"] = "/";
    opReplacements["EQF"] = "==";
    opReplacements["GTF"] = ">";
    opReplacements["CFI"] = "(UIntWord)";
    opReplacements["CIF"] = "(FloatWord)";
    opReplacements["CFD"] = "(DoubleWord)";
    opReplacements["CDF"] = "(FloatWord)";
    opReplacements["MOD"] = "%";
    opReplacements["MODU"] = "%";
    opReplacements["MULH"] = "*";

    opReplacements["ADD64"] = "+";
    opReplacements["SUB64"] = "-";
    opReplacements["MUL64"] = "*";
    opReplacements["DIV64"] = "/";
    opReplacements["DIVU64"] = "/";
    opReplacements["EQ64"] = "==";
    opReplacements["GT64"] = ">";
    opReplacements["GTU64"] = ">";
    opReplacements["SHL64"] = "<<";
    opReplacements["SHR64"] = ">>";
    opReplacements["SHRU64"] = ">>";
    opReplacements["AND64"] = "&";
    opReplacements["IOR64"] = "|";
    opReplacements["XOR64"] = "^";
    opReplacements["NEG64"] = "-";
    opReplacements["NEGF64"] = "-";
    opReplacements["ADDF64"] = "+";
    opReplacements["SUBF64"] = "-";
    opReplacements["MULF64"] = "*";
    opReplacements["DIVF64"] = "/";
    opReplacements["EQF64"] = "==";
    opReplacements["GTF64"] = ">";
    opReplacements["CFI64"] = "(UIntWord)";
    opReplacements["CIF64"] = "(FloatWord)";
    opReplacements["CFD64"] = "(DoubleWord)";
    opReplacements["CDF64"] = "(FloatWord)";
    opReplacements["MOD64"] = "%";
    opReplacements["MODU64"] = "%";

    // Writes recursively all the DAG from node(0)
    // But this recursion does not work so added the loop
    // to make sure all nodes get processed.
    OperationDAGNode* node;
    for (int i = 0; i < dag.nodeCount(); i++) {
        node = &dag.node(i);
        if (alreadyHandled.find(node) == alreadyHandled.end()) {
            writeNode(retVal, dag, *node, varBindings,
                      alreadyHandled, tempVarCount, currentlyHandling,
                      &opReplacements, varReplacements);
        }
    }
    return retVal;
}

References BoostGraph< GraphNode, GraphEdge >::node(), BoostGraph< GraphNode, GraphEdge >::nodeCount(), and writeNode().

Referenced by CompiledSimCodeGenerator::generateTriggerCode().

Here is the call graph for this function:

writeNode()

bool OperationDAGConverter::writeNode ( std::string &  retVal, const OperationDAG &  dag, const OperationDAGNode &  node, std::map< VariableKey, std::string > &  varBindings, std::set< const OperationDAGNode * > &  alreadyHandled, int &  tempVarCount, std::set< const OperationDAGNode * > &  currentlyHandling, std::map< std::string, std::string > *  opReplace = NULL, std::vector< std::string > *  varReplacements = NULL  )

staticprivate

Definition at line 171 of file OperationDAGConverter.cc.

                                           {

    static int tmpCounter = 0;

    DEBUG_CODE(static std::string recursion_level = ""; recursion_level += "----";);

    int currentStepsToRoot = dag.stepsToRoot(node);

    if (currentlyHandling.find(&node) != currentlyHandling.end()) {
        DEBUG_CODE(recursion_level = recursion_level.erase(0,4););
        return false;
    }

    if (alreadyHandled.find(&node) == alreadyHandled.end()) {

        currentlyHandling.insert(&node);

        const TerminalNode* termNode =
            dynamic_cast<const TerminalNode*>(&node);
        const ConstantNode* constNode =
            dynamic_cast<const ConstantNode*>(&node);

        if (constNode != NULL) {
            currentlyHandling.erase(constNode);
            alreadyHandled.insert(constNode);
            VariableKey termKey(constNode, 0);
            varBindings[termKey] = constNode->toString();
            return true;
        } else if (termNode != NULL) {
            // Node is input or output terminal or a const. Either set
            // variablename e.g. IO(1) to node to varBindings or
            // write variable
            // value to output node e.g. "IO(4) = tmp12;\n"

            std::string ioName = "";
            if (!varReplacements ||
                (termNode->operandIndex() - 1) > (int)varReplacements->size()) {
                ioName = "IO(" +
                    Conversion::toString(termNode->operandIndex()) + ")";
            } else {
                ioName = varReplacements->at(termNode->operandIndex() - 1);
            }

            VariableKey termKey(termNode, termNode->operandIndex());

            DEBUG_CODE(std::cerr << recursion_level
                       << "**** Started handling term node " << long(&node)
                       << ":" << currentStepsToRoot << ":" + ioName + "\n";);

            const bool inputTerminalNode = dag.inDegree(*termNode) == 0;
            if (inputTerminalNode) {
                // TODO: should only do extension here if different bit widths
                TCEString tmpName = "inTmp_"; tmpName << tmpCounter++;
                retVal += "SimValue " + tmpName + ";\n";
                retVal += tmpName + " = " +
                    castedVar(ioName, dag.operation().operand(
                                  termNode->operandIndex()).type()) + ";\n";

                // set veriable binding for reading (the extended) terminal value
                varBindings[termKey] = tmpName;
                DEBUG_CODE(std::cerr << recursion_level
                           << "Added input terminal: " + ioName + "\n";);

            } else {

                assert(dag.outDegree(*termNode) == 0);

                OperationDAGEdge& srcEdge = dag.inEdge(*termNode, 0);
                OperationDAGNode& tail = dag.tailNode(srcEdge);

                DEBUG_CODE(std::cerr << recursion_level
                           << "** Read input of terminal " << ioName << "\n";);

                writeNode(
                    retVal, dag, tail, varBindings, alreadyHandled,
                    tempVarCount, currentlyHandling, opReplace, varReplacements);
                DEBUG_CODE(std::cerr << recursion_level
                           << "** Ready reading input of terminal " << ioName << "\n";);
                VariableKey srcKey(&tail, srcEdge.srcOperand());

                // write result to output terminal
                retVal += ioName + " = " + varBindings[srcKey] + ";\n";
            }

            DEBUG_CODE(std::cerr << recursion_level
                       << "added terminal " << long (&node)
                       << "to already handled nodes\n";);

            currentlyHandling.erase(termNode);
            alreadyHandled.insert(termNode);

        } else {
            // Node is operation node. Read inputs and create destination
            // variables for outputs. In the end write EXEC_OPERATION
            // line to code.

            const OperationNode* opNode =
                dynamic_cast<const OperationNode*>(&node);

            if (opNode == NULL) {
                abortWithError(
                    (boost::format(
                        "Must be either OperationNode or Terminal Node. "
                        "Got: %s.") % node.toString()).str());
            }

            Operation &refOp = opNode->referencedOperation();

            DEBUG_CODE(std::cerr << recursion_level
                      << "Started handling opnode " << long(&node) << ":"
                       << currentStepsToRoot << ": " + refOp.name() + "\n";);

            // go through in edges, copy bindings and create input string for
            // EXEC_OPERATION

            std::vector<std::string> operandVec(
                refOp.numberOfInputs() + refOp.numberOfOutputs());

            // kludge: this vector has 'true' in the operand's
            // position only if the operand is a constant and
            // thus needs not to be casted to IntWord with
            // castedVar later when generating the operation
            // parameters
            std::vector<bool> isConstOperand(
                refOp.numberOfInputs() + refOp.numberOfOutputs());

            // input parameters
            for (int i = 0; i < dag.inDegree(node); i++) {
                OperationDAGEdge& edge = dag.inEdge(node, i);
                OperationDAGNode& tail = dag.tailNode(edge);

                const TerminalNode* termTail =
                    dynamic_cast<const TerminalNode*>(&tail);

                int srcOperand;
                if (termTail != 0) {
                    srcOperand = termTail->operandIndex();
                } else {
                    srcOperand = edge.srcOperand();
                }

                VariableKey sourceKey;
                if (dynamic_cast<const ConstantNode*>(&tail) != NULL) {
                    sourceKey = VariableKey(&tail, 0);
                    isConstOperand[edge.dstOperand()-1] = true;
                } else {
                    sourceKey = VariableKey(&tail, srcOperand);
                    isConstOperand[edge.dstOperand()-1] = false;
                }

                // if input not already handled, treat it first.
                DEBUG_CODE(std::cerr << recursion_level
                           << "** Read input op: " << refOp.name() << ":" << i << "\n";);

                if (!writeNode(retVal, dag, tail, varBindings,
                               alreadyHandled, tempVarCount, currentlyHandling, opReplace, varReplacements)) {

                    DEBUG_CODE(std::cerr << recursion_level
                               << "Input can't be read yet: " << refOp.name() << ":" << i << "\n";);

                    currentlyHandling.erase(&node);

                    DEBUG_CODE(recursion_level = recursion_level.erase(0,4););
                    return false;
                }

                DEBUG_CODE(std::cerr << recursion_level
                           << "** Ready reading input of op: " << refOp.name() << ":" << i << "\n";);

                // add input to correct place in EXEC_OPERATION parameter list
                if (varBindings[sourceKey].empty()) {
                    throw IllegalParameters(
                        __FILE__, __LINE__, __func__,
                        std::string(
                            "DAG cannot be written to OSAL code, because illegal output edge. "
                            "Edge srcOperand: ") + Conversion::toString(srcOperand));
                }

                operandVec[edge.dstOperand()-1] = varBindings[sourceKey];

                DEBUG_CODE(std::cerr << recursion_level
                           << "Added operand: " << varBindings[sourceKey]
                           << " key: (" << sourceKey.first << ":" << sourceKey.second << ")"
                           << " to " << refOp.name() << " paramer vector index: "
                           << edge.dstOperand() - 1 <<  std::endl;);
            }

            // and outputs
            for (int i = 0; i < refOp.numberOfOutputs(); i++) {
                int opNumber = i + refOp.numberOfInputs() + 1;
                VariableKey operandKey(&node, opNumber);
                tempVarCount++;
                std::string tempVarName = "tmp" +
                    Conversion::toString(tempVarCount);
                retVal = "SimValue " + tempVarName + ";\n" + retVal;
                varBindings[operandKey] = tempVarName;

                DEBUG_CODE(std::cerr << recursion_level
                           << "Created variable: " << tempVarName
                           << " key: (" << operandKey.first << ":" << operandKey.second << ")"
                           << " for " << refOp.name() << ":" << opNumber << std::endl;);

                // add output to  EXEC_OPERATION parameter list
                operandVec[opNumber-1] = varBindings[operandKey];
                DEBUG_CODE(std::cerr << recursion_level
                          << "Added operand: " << varBindings[operandKey]
                          << " to " << refOp.name() << " paramer vector index: "
                           << opNumber -1 <<  std::endl;);
            }

            // this node is processed.
            DEBUG_CODE(std::cerr << recursion_level << "added node "
                       << long (&node) << "to already handled nodes\n" ;);

            currentlyHandling.erase(&node);
            alreadyHandled.insert(&node);

            // Write the execute operation code
            if (opReplace != NULL &&
                opReplace->find(refOp.name()) != opReplace->end()) {
                std::string simOp = (*opReplace)[refOp.name()];

                std::string rightSide = "";
                if (isConstOperand[0]) {
                    // the consts need not to be casted
                    rightSide = operandVec[0];
                } else {
                    rightSide = castedVar(operandVec[0], refOp.operand(1).type());
                }

                // if unary operator
                if (refOp.numberOfInputs() == 1) {
                    rightSide = simOp + rightSide;
                } else {
                    for (int i = 1; i < refOp.numberOfInputs(); i++) {
                        if (isConstOperand[i]) {
                            rightSide +=
                                " " + simOp + " " + operandVec[i];
                        } else {
                            rightSide +=
                                " " + simOp + " " +
                                castedVar(
                                    operandVec[i],
                                    refOp.operand(i+1).type());
                        }
                    }
                }

                assert(refOp.numberOfOutputs() == 1 &&
                       "Cant write simulation replacement code only"
                       "for singleoutput operations.");

                // assing right side to first outputoperand.
                retVal += operandVec[refOp.numberOfInputs()] +
                    " = " + rightSide + ";\n";

            } else {
                retVal += "{ EXEC_OPERATION(" + std::string(refOp.name());
                for (unsigned int i = 0; i < operandVec.size(); i++) {
                    retVal += ", " + operandVec[i];
                }
                retVal +=  "); } \n";

                DEBUG_CODE(std::cerr << recursion_level
                           << "Added EXEC: " + refOp.name() << std::endl;);
            }

            // write outgoing nodes
            for (int i = 0; i < dag.outDegree(node); i++) {
                OperationDAGNode& headNode =
                    dag.headNode(dag.outEdge(node,i));

                // handle only those nodes, which are one step away from
                // curren node.
                if (dag.stepsToRoot(headNode) == currentStepsToRoot + 1) {
                    DEBUG_CODE(std::cerr << recursion_level
                               << "** Goto output op: " << refOp.name()
                               << ":" << i << "\n";);

                    writeNode(retVal, dag, headNode, varBindings,
                              alreadyHandled, tempVarCount, currentlyHandling, opReplace, varReplacements);

                    DEBUG_CODE(std::cerr << recursion_level
                               << recursion_level
                               << "** Ready going output op: " << refOp.name()
                               << ":" << i << "\n";);
                }
            }
        }
    }

    DEBUG_CODE(recursion_level = recursion_level.erase(0,4););
    return true;
}

References __func__, abortWithError, assert, castedVar(), DEBUG_CODE, OperationDAGEdge::dstOperand(), BoostGraph< GraphNode, GraphEdge >::headNode(), BoostGraph< GraphNode, GraphEdge >::inDegree(), BoostGraph< GraphNode, GraphEdge >::inEdge(), Operation::name(), Operation::numberOfInputs(), Operation::numberOfOutputs(), Operation::operand(), OperationPimpl::operand(), TerminalNode::operandIndex(), OperationDAG::operation(), BoostGraph< GraphNode, GraphEdge >::outDegree(), BoostGraph< GraphNode, GraphEdge >::outEdge(), OperationNode::referencedOperation(), OperationDAGEdge::srcOperand(), OperationDAG::stepsToRoot(), BoostGraph< GraphNode, GraphEdge >::tailNode(), GraphNode::toString(), ConstantNode::toString(), Conversion::toString(), Operand::type(), and writeNode().

Referenced by createOsalCode(), createSimulationCode(), and writeNode().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• OperationDAGConverter.hh
• OperationDAGConverter.cc
