ProGe::CUOpcodeGenerator Class Reference

#include <CUOpcodeGenerator.hh>

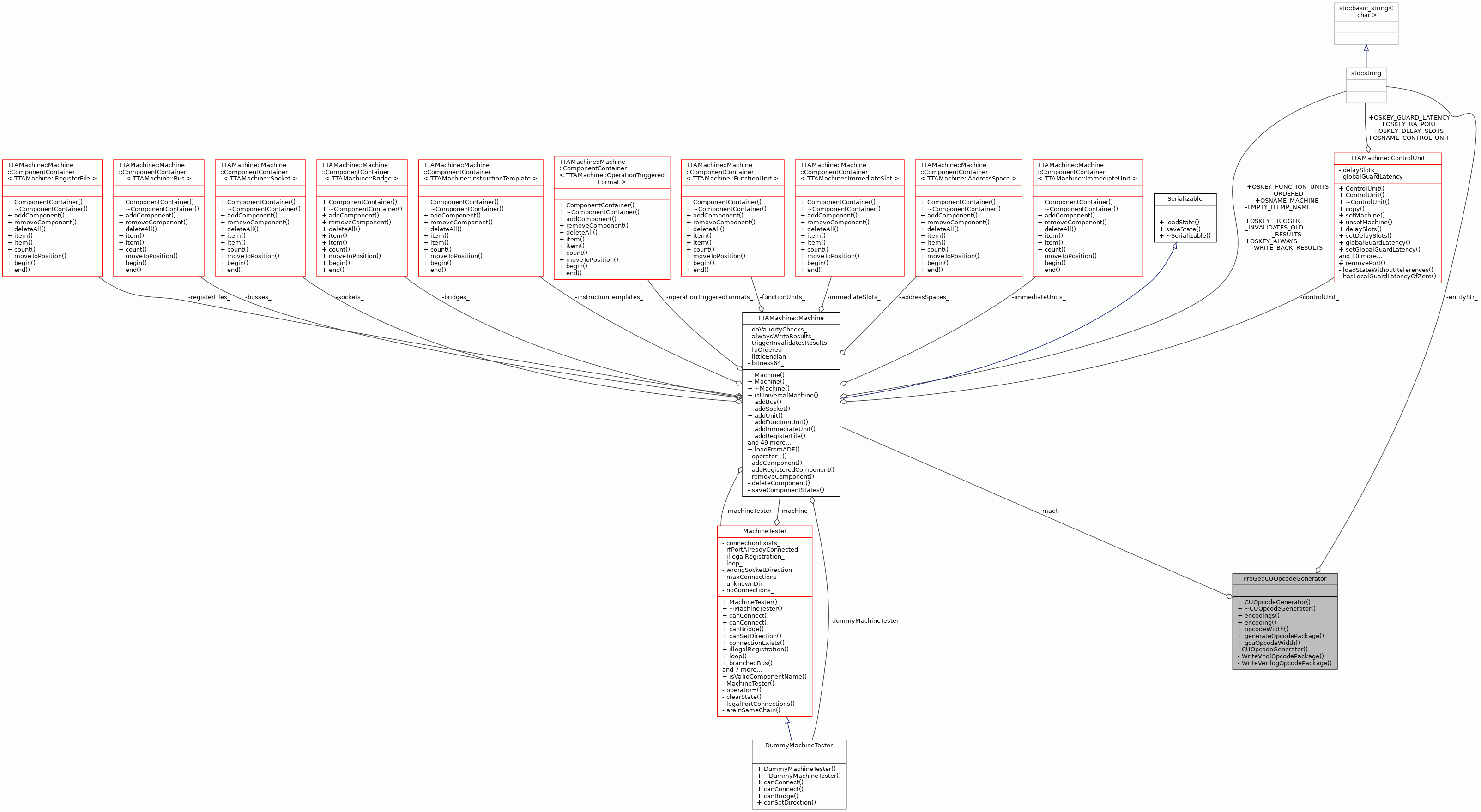

Collaboration diagram for ProGe::CUOpcodeGenerator:

Public Types
typedef std::string	OperationType
typedef size_t	EncodingType
typedef std::map< OperationType, EncodingType, TCEString::ICLess >	OperationEncodingMapType

Public Member Functions
	CUOpcodeGenerator (const TTAMachine::Machine &mach, const std::string &entityName="tta0")
virtual	~CUOpcodeGenerator ()
OperationEncodingMapType	encodings () const
size_t	encoding (const std::string &operName) const
size_t	opcodeWidth () const
void	generateOpcodePackage (HDL language, std::ofstream &stream) const

Static Public Member Functions
static size_t	gcuOpcodeWidth (const TTAMachine::Machine &mach)

Private Member Functions
	CUOpcodeGenerator ()
void	WriteVhdlOpcodePackage (const OperationEncodingMapType &encodings, std::ofstream &stream) const
void	WriteVerilogOpcodePackage (const OperationEncodingMapType &encodings, std::ofstream &stream) const

Private Attributes
const TTAMachine::Machine *	mach_
const std::string	entityStr_

Detailed Description

Class that for given ADF generates encodings for Global Control Unit and RTL package that holds encoding information for CU RTL source codes.

Definition at line 57 of file CUOpcodeGenerator.hh.

Member Typedef Documentation

EncodingType

typedef size_t ProGe::CUOpcodeGenerator::EncodingType

Definition at line 61 of file CUOpcodeGenerator.hh.

OperationEncodingMapType

typedef std::map<OperationType, EncodingType, TCEString::ICLess> ProGe::CUOpcodeGenerator::OperationEncodingMapType

Definition at line 63 of file CUOpcodeGenerator.hh.

OperationType

typedef std::string ProGe::CUOpcodeGenerator::OperationType

Definition at line 60 of file CUOpcodeGenerator.hh.

Constructor & Destructor Documentation

CUOpcodeGenerator() [1/2]

ProGe::CUOpcodeGenerator::CUOpcodeGenerator	(	const TTAMachine::Machine &	mach,
		const std::string &	entityName = "tta0"
	)

Definition at line 55 of file CUOpcodeGenerator.cc.

    : mach_(&mach), entityStr_(entityName) {}

~CUOpcodeGenerator()

ProGe::CUOpcodeGenerator::~CUOpcodeGenerator ( )

virtual

Definition at line 61 of file CUOpcodeGenerator.cc.

{}

CUOpcodeGenerator() [2/2]

ProGe::CUOpcodeGenerator::CUOpcodeGenerator ( )

private

Definition at line 59 of file CUOpcodeGenerator.cc.

: mach_(NULL), entityStr_() {}

Member Function Documentation

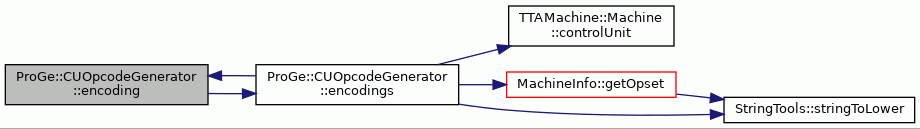

encoding()

size_t ProGe::CUOpcodeGenerator::encoding

(

const std::string &

operName

)

const

Definition at line 84 of file CUOpcodeGenerator.cc.

                                                           {
    OperationEncodingMapType encMap = encodings();
    if (encMap.count(operName)) {
        return encMap.at(operName);
    } else {
        THROW_EXCEPTION(
            InstanceNotFound, "CU does not have operation" + operName + ".");
    }
}

References encodings(), and THROW_EXCEPTION.

Referenced by encodings(), and DefaultDecoderGenerator::opcode().

Here is the call graph for this function:

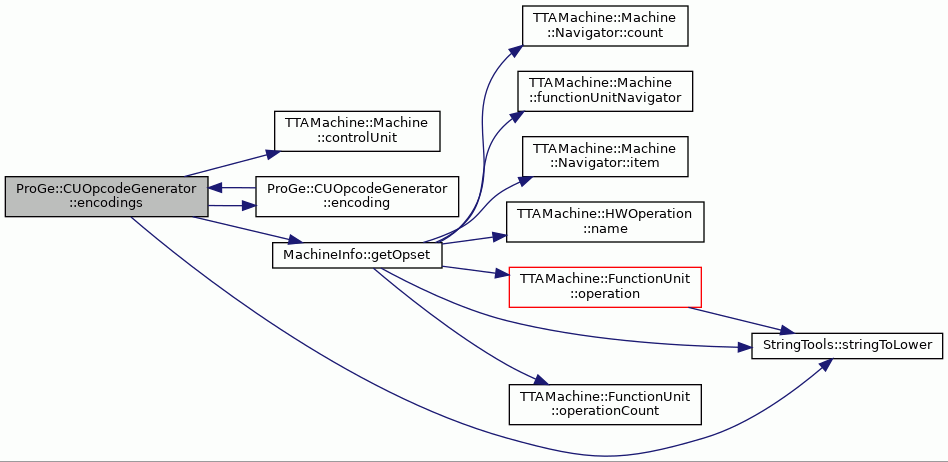

encodings()

CUOpcodeGenerator::OperationEncodingMapType ProGe::CUOpcodeGenerator::encodings

(

)

const

Definition at line 67 of file CUOpcodeGenerator.cc.

                                   {
    assert(mach_ != NULL);

    MachineInfo::OperationSet gcuOps =
        MachineInfo::getOpset(*(mach_->controlUnit()));
    size_t encoding = 0;
    OperationEncodingMapType encMap;

    MachineInfo::OperationSet::iterator it;
    for (it = gcuOps.begin(); it != gcuOps.end(); it++) {
        encMap.insert(make_pair(StringTools::stringToLower(*it), encoding));
        encoding++;
    }
    return encMap;
}

References assert, TTAMachine::Machine::controlUnit(), encoding(), MachineInfo::getOpset(), mach_, and StringTools::stringToLower().

Referenced by encoding(), generateOpcodePackage(), WriteVerilogOpcodePackage(), and WriteVhdlOpcodePackage().

Here is the call graph for this function:

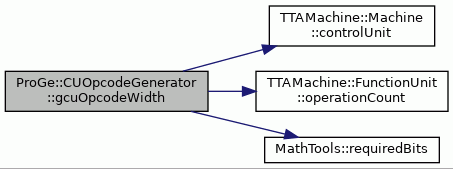

gcuOpcodeWidth()

size_t ProGe::CUOpcodeGenerator::gcuOpcodeWidth ( const TTAMachine::Machine &  mach )

static

Definition at line 140 of file CUOpcodeGenerator.cc.

                                                               {
    const TTAMachine::ControlUnit* gcu = mach.controlUnit();
    size_t opCount = gcu->operationCount();
    if (opCount == 0) {
        return 0;
    } else {
        return std::max(MathTools::requiredBits(opCount - 1), 1);
    }
}

References TTAMachine::Machine::controlUnit(), TTAMachine::FunctionUnit::operationCount(), and MathTools::requiredBits().

Referenced by DefaultICDecoderGenerator::generate(), and opcodeWidth().

Here is the call graph for this function:

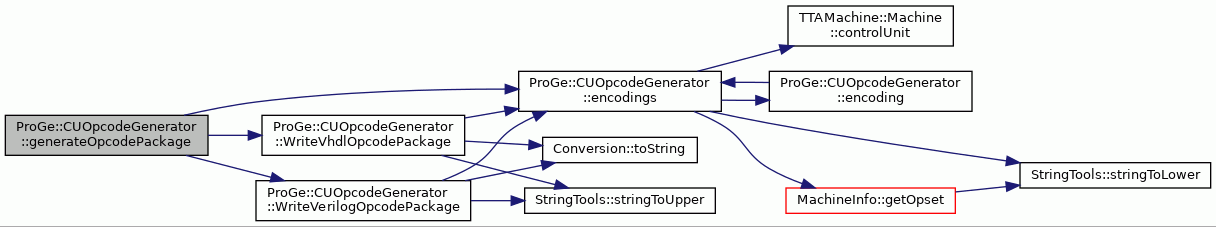

generateOpcodePackage()

void ProGe::CUOpcodeGenerator::generateOpcodePackage	(	HDL	language,
		std::ofstream &	stream
	)		const

Definition at line 114 of file CUOpcodeGenerator.cc.

                                             {
    OperationEncodingMapType gcuEncodings = encodings();

    // Add dummy operations for missing CALL and JUMP operations since ifetch
    // templates refers to them.
    gcuEncodings.insert(
        make_pair(OperationType("call"), gcuEncodings.size()));
    gcuEncodings.insert(
        make_pair(OperationType("jump"), gcuEncodings.size()));

    if (language == VHDL) {
        WriteVhdlOpcodePackage(gcuEncodings, stream);
    } else if (language == Verilog) {
        WriteVerilogOpcodePackage(gcuEncodings, stream);
    } else {
        assert(false && "Unsupported HDL.");
    }
}

References assert, encodings(), ProGe::Verilog, ProGe::VHDL, WriteVerilogOpcodePackage(), and WriteVhdlOpcodePackage().

Referenced by ProGe::ProcessorGenerator::generateGCUOpcodesPackage().

Here is the call graph for this function:

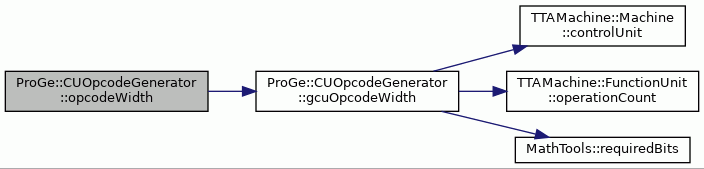

opcodeWidth()

size_t ProGe::CUOpcodeGenerator::opcodeWidth

(

)

const

Definition at line 98 of file CUOpcodeGenerator.cc.

                                     {
    return CUOpcodeGenerator::gcuOpcodeWidth(*mach_);
}

References gcuOpcodeWidth(), and mach_.

Here is the call graph for this function:

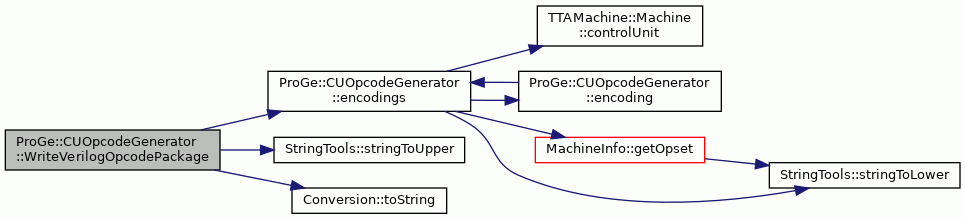

WriteVerilogOpcodePackage()

void ProGe::CUOpcodeGenerator::WriteVerilogOpcodePackage ( const OperationEncodingMapType &  encodings, std::ofstream &  stream  ) const

private

Definition at line 173 of file CUOpcodeGenerator.cc.

                                                                          {
    if (encodings.empty()) {
        return;
    }

    OperationEncodingMapType::const_iterator it;
    for (it = encodings.begin(); it != encodings.end(); it++) {
        stream << "parameter IFE_" << StringTools::stringToUpper(it->first)
               << "=" << Conversion::toString(it->second);
        if (it != --encodings.end()) {
            stream << "," << endl;
        } else {
            stream << endl;
        }
    }
}

References encodings(), StringTools::stringToUpper(), and Conversion::toString().

Referenced by generateOpcodePackage().

Here is the call graph for this function:

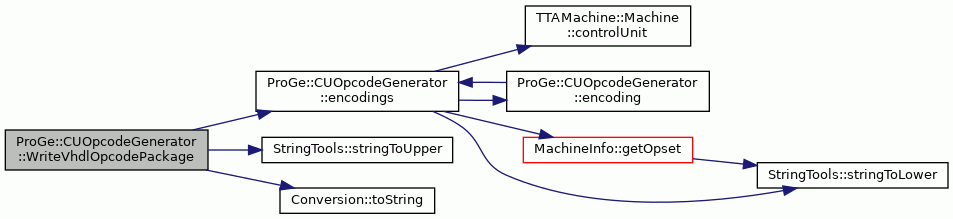

WriteVhdlOpcodePackage()

void ProGe::CUOpcodeGenerator::WriteVhdlOpcodePackage ( const OperationEncodingMapType &  encodings, std::ofstream &  stream  ) const

private

Definition at line 154 of file CUOpcodeGenerator.cc.

                                                                          {
    stream << "library IEEE;" << endl
           << "use IEEE.std_logic_1164.all;" << endl
           << endl
           << "package " + entityStr_ + "_gcu_opcodes is" << endl;
    OperationEncodingMapType::const_iterator it;
    for (it = encodings.begin(); it != encodings.end(); it++) {
        stream << "  constant IFE_" << StringTools::stringToUpper(it->first)
               << " : natural := " << Conversion::toString(it->second) << ";"
               << endl;
    }
    stream << "end " + entityStr_ + "_gcu_opcodes;" << endl;
}

References encodings(), entityStr_, StringTools::stringToUpper(), and Conversion::toString().

Referenced by generateOpcodePackage().

Here is the call graph for this function:

Member Data Documentation

entityStr_

const std::string ProGe::CUOpcodeGenerator::entityStr_

private

Definition at line 86 of file CUOpcodeGenerator.hh.

Referenced by WriteVhdlOpcodePackage().

mach_

const TTAMachine::Machine* ProGe::CUOpcodeGenerator::mach_

private

Definition at line 85 of file CUOpcodeGenerator.hh.

Referenced by encodings(), and opcodeWidth().

---

The documentation for this class was generated from the following files:

• CUOpcodeGenerator.hh
• CUOpcodeGenerator.cc
