ProximDebuggerWindow Class Reference

#include <ProximDebuggerWindow.hh>

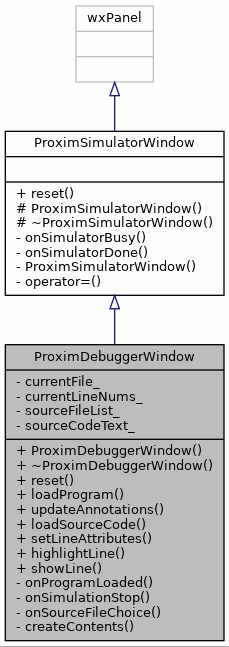

Inheritance diagram for ProximDebuggerWindow:

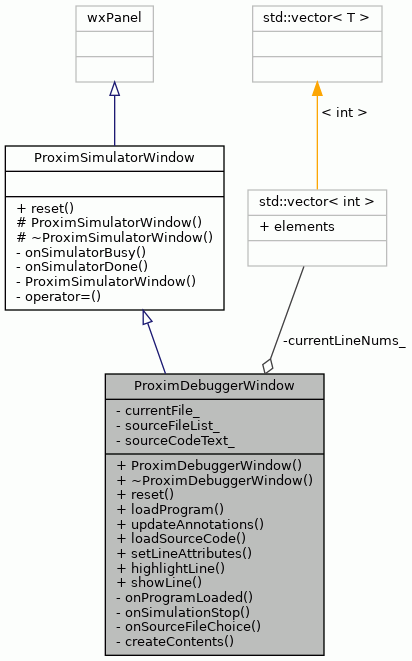

Collaboration diagram for ProximDebuggerWindow:

Public Member Functions
	ProximDebuggerWindow (ProximMainFrame *parent, int id)
virtual	~ProximDebuggerWindow ()
virtual void	reset ()
void	loadProgram (const TTAProgram::Program &program)
void	updateAnnotations ()
void	loadSourceCode (wxString sourceFile)
void	setLineAttributes (int lineNum, wxTextAttr style)
void	highlightLine (int lineNum)
void	showLine (int lineNum)

Private Types
enum	{ ID_SOURCEFILE_CHOICE = 19000 , ID_SOURCECODE }

Private Member Functions
void	onProgramLoaded (const SimulatorEvent &event)
void	onSimulationStop (const SimulatorEvent &event)
void	onSourceFileChoice (wxCommandEvent &event)
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)

Private Attributes
wxString	currentFile_
std::vector< int >	currentLineNums_
wxChoice *	sourceFileList_
wxTextCtrl *	sourceCodeText_

Additional Inherited Members
Protected Member Functions inherited from ProximSimulatorWindow
	ProximSimulatorWindow (ProximMainFrame *mainFrame, wxWindowID id=-1, wxPoint pos=wxDefaultPosition, wxSize size=wxDefaultSize, long style=wxTAB_TRAVERSAL)
virtual	~ProximSimulatorWindow ()

Detailed Description

Proxim subwindow which displays program source code annotations.

This window listens to SimulatorEvents and updates the window contents automatically.

Definition at line 54 of file ProximDebuggerWindow.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ID_SOURCEFILE_CHOICE
ID_SOURCECODE

Definition at line 82 of file ProximDebuggerWindow.hh.

         {
        ID_SOURCEFILE_CHOICE = 19000,
        ID_SOURCECODE
    };

Constructor & Destructor Documentation

ProximDebuggerWindow()

ProximDebuggerWindow::ProximDebuggerWindow	(	ProximMainFrame *	parent,
		int	id
	)

Definition at line 58 of file ProximDebuggerWindow.cc.

                                    :
    ProximSimulatorWindow(parent, id, wxDefaultPosition, wxSize(800,600)),
    currentFile_() {

    createContents(this, true, true);
    loadProgram(ProximToolbox::program());
}

References ProximToolbox::program().

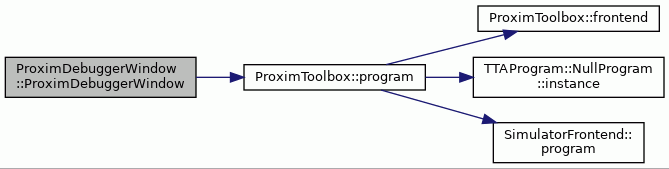

Here is the call graph for this function:

~ProximDebuggerWindow()

ProximDebuggerWindow::~ProximDebuggerWindow ( )

virtual

Definition at line 68 of file ProximDebuggerWindow.cc.

                                            {
}

Member Function Documentation

createContents()

wxSizer * ProximDebuggerWindow::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the window contents.

Code generated by wxDesigner.

Definition at line 250 of file ProximDebuggerWindow.cc.

                                                     {

    wxBoxSizer *mainSizer = new wxBoxSizer(wxVERTICAL);

    wxBoxSizer *upperSizer = new wxBoxSizer(wxHORIZONTAL);
    sourceFileList_ = new wxChoice(
        parent, ID_SOURCEFILE_CHOICE, wxDefaultPosition, wxDefaultSize);

    upperSizer->Add(sourceFileList_, 1, wxGROW|wxALL, 5);
    mainSizer->Add(upperSizer, 0, wxGROW|wxALL, 5);

    sourceCodeText_ = new wxTextCtrl(
        parent, ID_SOURCECODE, wxEmptyString, wxDefaultPosition,
        wxSize(640, 600), wxTE_MULTILINE | wxTE_READONLY | wxTE_DONTWRAP);

    mainSizer->Add(sourceCodeText_, 1, wxGROW|wxALL, 5);

    if (set_sizer)
    {
        parent->SetSizer( mainSizer );
        if (call_fit)
            mainSizer->SetSizeHints( parent );
    }

    return mainSizer;
}

References ID_SOURCECODE, ID_SOURCEFILE_CHOICE, sourceCodeText_, and sourceFileList_.

highlightLine()

void ProximDebuggerWindow::highlightLine

(

int

lineNum

)

Highlights line of code in the sourceCodeText_ widget

Parameters

lineNum

Source code line number.

Definition at line 185 of file ProximDebuggerWindow.cc.

                                               {

    if (std::find(currentLineNums_.begin(), currentLineNums_.end(), lineNum) ==
        currentLineNums_.end()) {

        currentLineNums_.push_back(lineNum);
        setLineAttributes(lineNum, wxTextAttr(*wxWHITE, *wxBLUE));
    }
}

References currentLineNums_, and setLineAttributes().

Referenced by updateAnnotations().

Here is the call graph for this function:

loadProgram()

void ProximDebuggerWindow::loadProgram

(

const TTAProgram::Program &

program

)

Loads a program model to the window.

Parameters

program

Program to load.

Definition at line 91 of file ProximDebuggerWindow.cc.

                                                        {
    // get list of used source code files for drop-down list
    for (int i = 0; i < program.moveCount(); i++) {

        const TTAProgram::Move& m = program.moveAt(i);

        if (m.hasSourceFileName()) {
            wxString sourceFile = WxConversion::toWxString(m.sourceFileName());

            if (sourceFileList_->FindString(sourceFile) == -1) {
                sourceFileList_->Append(sourceFile);
            }
        }
    }

    // load first file from drop-down list and set hilights
    if (sourceFileList_->GetCount() > 0) {
        loadSourceCode(sourceFileList_->GetString(0));
        updateAnnotations();
    } else {
        ErrorDialog dialog(
            this, _T("No debugging information available."));
        dialog.ShowModal();
    }
}

References TTAProgram::Move::hasSourceFileName(), loadSourceCode(), program, sourceFileList_, TTAProgram::Move::sourceFileName(), WxConversion::toWxString(), and updateAnnotations().

Referenced by onProgramLoaded().

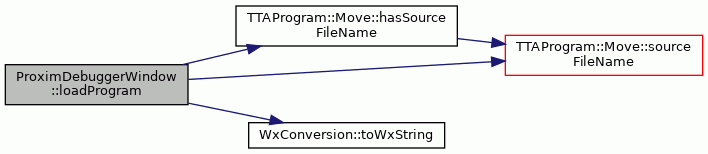

Here is the call graph for this function:

loadSourceCode()

void ProximDebuggerWindow::loadSourceCode

(

wxString

sourceFile

)

Loads source code into the sourceCodeText_ widget

Parameters

sourceFile

Absolute file location as wxString.

Definition at line 155 of file ProximDebuggerWindow.cc.

                                                        {

    sourceCodeText_->LoadFile(sourceFile);
    currentFile_ = sourceFile;
    sourceFileList_->SetSelection(sourceFileList_->FindString(sourceFile));
}

References currentFile_, sourceCodeText_, and sourceFileList_.

Referenced by loadProgram(), and onSourceFileChoice().

onProgramLoaded()

void ProximDebuggerWindow::onProgramLoaded ( const SimulatorEvent &  event )

private

Event handler which is called when a new program is loaded in the simulator.

Definition at line 211 of file ProximDebuggerWindow.cc.

                                                           {
    loadProgram(ProximToolbox::program());
}

References loadProgram(), and ProximToolbox::program().

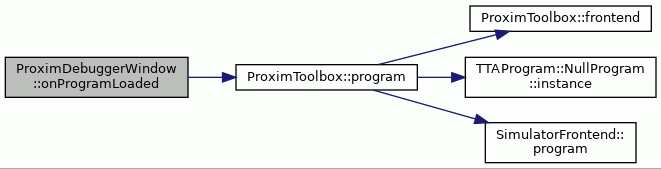

Here is the call graph for this function:

onSimulationStop()

void ProximDebuggerWindow::onSimulationStop ( const SimulatorEvent &  event )

private

Event handler which is called when simulation step ends.

Definition at line 220 of file ProximDebuggerWindow.cc.

                                                            {
    // unhilight old lines
    for (int lineNum : currentLineNums_) {
        setLineAttributes(lineNum, wxTextAttr(*wxBLACK, *wxWHITE));
    }
    currentLineNums_.clear();

    updateAnnotations();
}

References currentLineNums_, setLineAttributes(), and updateAnnotations().

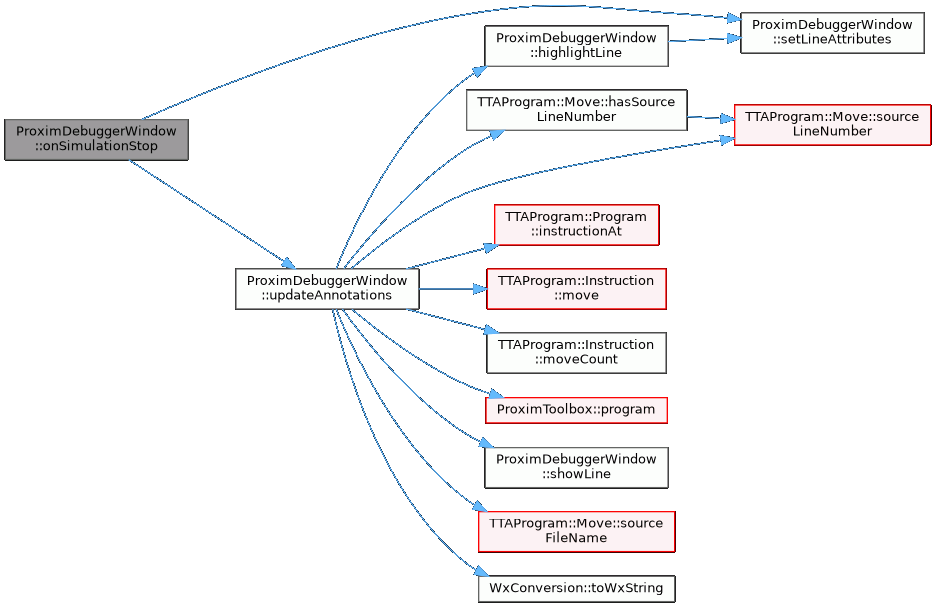

Here is the call graph for this function:

onSourceFileChoice()

void ProximDebuggerWindow::onSourceFileChoice ( wxCommandEvent &  event )

private

Event handler for drop-down list selection.

Loads selected source code from the drop-down list.

Definition at line 237 of file ProximDebuggerWindow.cc.

                                                        {
    loadSourceCode(sourceFileList_->GetString(sourceFileList_->GetSelection()));
    currentLineNums_.clear();
    updateAnnotations();
}

References currentLineNums_, loadSourceCode(), sourceFileList_, and updateAnnotations().

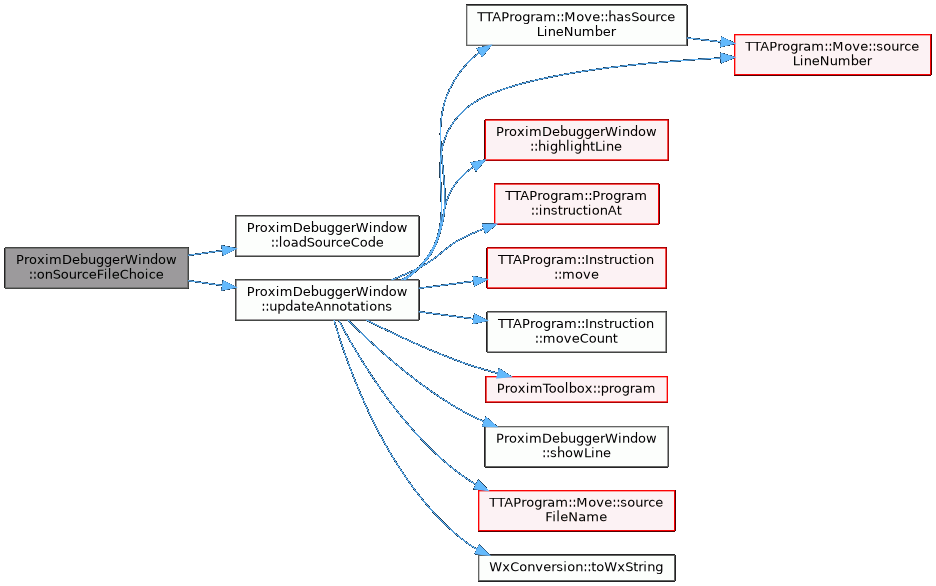

Here is the call graph for this function:

reset()

void ProximDebuggerWindow::reset ( )

virtual

Resets the window when a new program or machine is being loaded in the simulator.

Reimplemented from ProximSimulatorWindow.

Definition at line 77 of file ProximDebuggerWindow.cc.

                            {
    sourceFileList_->Clear();
    sourceCodeText_->Clear();
    currentFile_.clear();
    currentLineNums_.clear();
}

References currentFile_, currentLineNums_, sourceCodeText_, and sourceFileList_.

setLineAttributes()

void ProximDebuggerWindow::setLineAttributes	(	int	lineNum,
		wxTextAttr	style
	)

Sets certain style attributes to the line in sourceCodeText_ widget

Parameters

lineNum	Line number
style	Style attributes (text color, background color, font, alignment)

Definition at line 170 of file ProximDebuggerWindow.cc.

                                                                     {

    long lineStart = sourceCodeText_->XYToPosition(0, lineNum - 1);
    long lineEnd = lineStart + sourceCodeText_->GetLineLength(lineNum - 1);

    sourceCodeText_->SetStyle(lineStart, lineEnd, style);
}

References sourceCodeText_.

Referenced by highlightLine(), and onSimulationStop().

showLine()

void ProximDebuggerWindow::showLine

(

int

lineNum

)

Makes line visible in the sourceCodeText_ widget

Parameters

lineNum

Source code line number.

Definition at line 202 of file ProximDebuggerWindow.cc.

                                          {
    sourceCodeText_->ShowPosition(sourceCodeText_->XYToPosition(0,lineNum - 1));
}

References sourceCodeText_.

Referenced by updateAnnotations().

updateAnnotations()

void ProximDebuggerWindow::updateAnnotations

(

)

Parses possible annotations in the current instruction and hilights source code lines.

Definition at line 123 of file ProximDebuggerWindow.cc.

                                        {

    Word pc = wxGetApp().simulation()->frontend()->programCounter();

    const TTAProgram::Instruction& instruction =
        ProximToolbox::program().instructionAt(pc);

    // check annotations and hilight possible lines
    for (int i = 0; i < instruction.moveCount(); i++) {
        const TTAProgram::Move& m = instruction.move(i);

        if (m.hasSourceLineNumber()) {
            wxString sourceFile = WxConversion::toWxString(m.sourceFileName());
            if (sourceFile == currentFile_) {
                highlightLine(m.sourceLineNumber());
            }
        }
    }
    // make last higlighted line visible
    if (currentLineNums_.size() > 0) {
        showLine(currentLineNums_.back());
    }
}

References currentFile_, currentLineNums_, TTAProgram::Move::hasSourceLineNumber(), highlightLine(), TTAProgram::Program::instructionAt(), TTAProgram::Instruction::move(), TTAProgram::Instruction::moveCount(), ProximToolbox::program(), showLine(), TTAProgram::Move::sourceFileName(), TTAProgram::Move::sourceLineNumber(), and WxConversion::toWxString().

Referenced by loadProgram(), onSimulationStop(), and onSourceFileChoice().

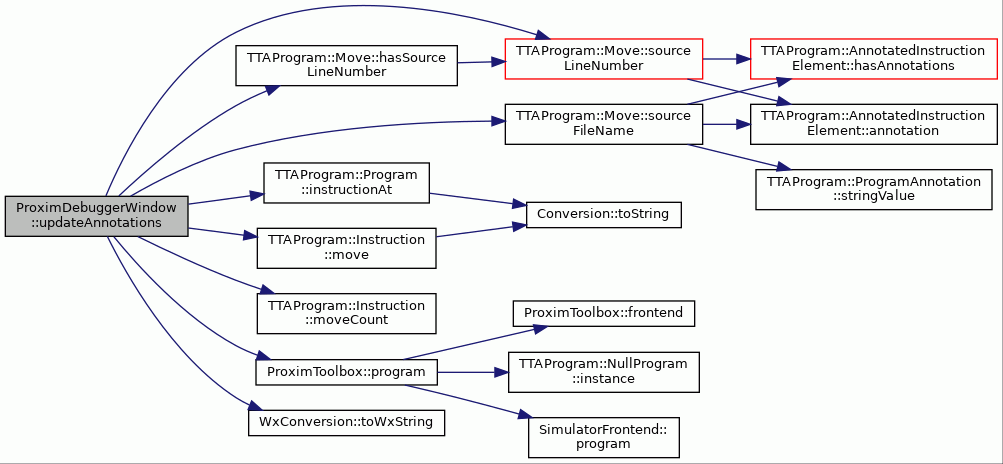

Here is the call graph for this function:

Member Data Documentation

currentFile_

wxString ProximDebuggerWindow::currentFile_

private

Definition at line 73 of file ProximDebuggerWindow.hh.

Referenced by loadSourceCode(), reset(), and updateAnnotations().

currentLineNums_

std::vector<int> ProximDebuggerWindow::currentLineNums_

private

Definition at line 75 of file ProximDebuggerWindow.hh.

Referenced by highlightLine(), onSimulationStop(), onSourceFileChoice(), reset(), and updateAnnotations().

sourceCodeText_

wxTextCtrl* ProximDebuggerWindow::sourceCodeText_

private

Definition at line 79 of file ProximDebuggerWindow.hh.

Referenced by createContents(), loadSourceCode(), reset(), setLineAttributes(), and showLine().

sourceFileList_

wxChoice* ProximDebuggerWindow::sourceFileList_

private

Definition at line 77 of file ProximDebuggerWindow.hh.

Referenced by createContents(), loadProgram(), loadSourceCode(), onSourceFileChoice(), and reset().

---

The documentation for this class was generated from the following files:

• ProximDebuggerWindow.hh
• ProximDebuggerWindow.cc
