TTAProgram::Move Class Reference

#include <Move.hh>

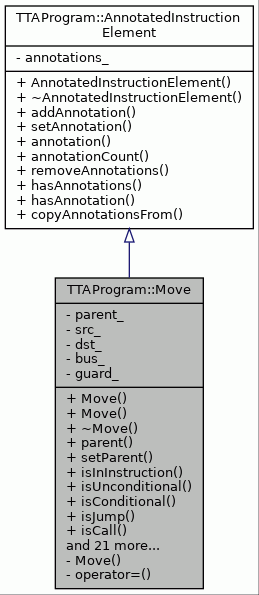

Inheritance diagram for TTAProgram::Move:

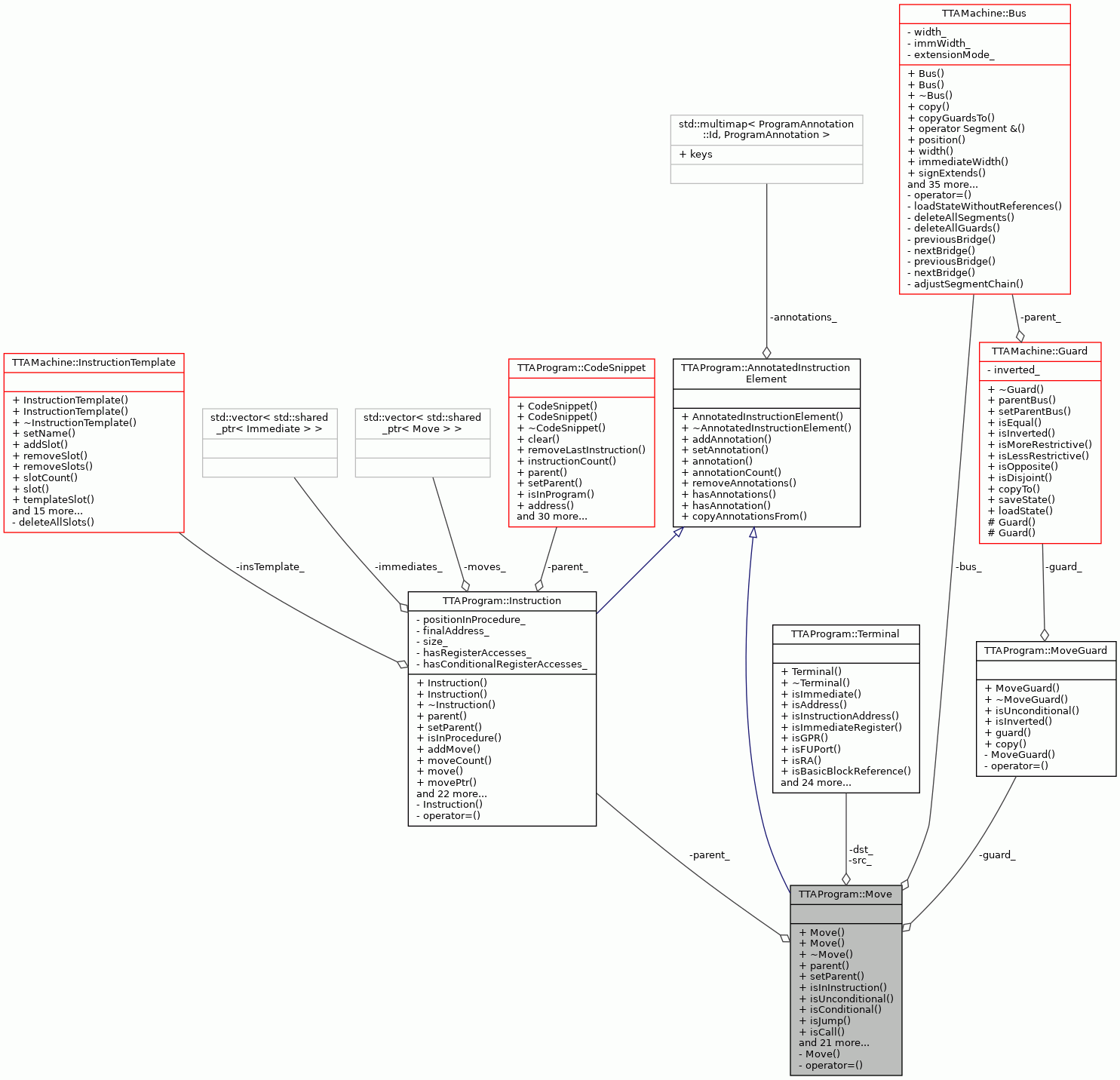

Collaboration diagram for TTAProgram::Move:

Public Member Functions
	Move (Terminal *src, Terminal *dst, const TTAMachine::Bus &bus, MoveGuard *guard)
	Move (Terminal *src, Terminal *dst, const TTAMachine::Bus &bus)
	~Move ()
Instruction &	parent () const
void	setParent (Instruction &ins)
bool	isInInstruction () const
bool	isUnconditional () const
bool	isConditional () const
bool	isJump () const
bool	isCall () const
bool	isControlFlowMove () const
bool	isReturn () const
bool	isFunctionCall () const
bool	isTriggering () const
Terminal &	source () const
void	setSource (Terminal *src)
Terminal &	destination () const
void	setDestination (Terminal *dst)
MoveGuard &	guard () const
void	setGuard (MoveGuard *guard)
const TTAMachine::Bus &	bus () const
void	setBus (const TTAMachine::Bus &bus)
TTAMachine::Socket &	destinationSocket () const
TTAMachine::Socket &	sourceSocket () const
int	guardLatency () const
std::shared_ptr< Move >	copy () const
std::string	toString () const
bool	hasSourceLineNumber () const
int	sourceLineNumber () const
bool	hasSourceFileName () const
std::string	sourceFileName () const
Public Member Functions inherited from TTAProgram::AnnotatedInstructionElement
	AnnotatedInstructionElement ()
	~AnnotatedInstructionElement ()
void	addAnnotation (const ProgramAnnotation &annotation)
void	setAnnotation (const ProgramAnnotation &annotation)
ProgramAnnotation	annotation (int index, ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const
int	annotationCount (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const
void	removeAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID)
bool	hasAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const
bool	hasAnnotation (ProgramAnnotation::Id id, const TCEString &data) const
void	copyAnnotationsFrom (const AnnotatedInstructionElement &other)

Private Member Functions
	Move (const Move &)
	Copying not allowed.
Move &	operator= (const Move &)
	Assignment not allowed.

Private Attributes
Instruction *	parent_
	Parent instruction of the move.
Terminal *	src_
	The source of the move.
Terminal *	dst_
	The destination of the move.
const TTAMachine::Bus *	bus_
	The bus where the transport is carried.
MoveGuard *	guard_
	The boolean expression that predicates the move.

Detailed Description

Represents a data transport through the TTA programmable interconnection network.

Definition at line 55 of file Move.hh.

Constructor & Destructor Documentation

Move() [1/3]

TTAProgram::Move::Move	(	Terminal *	src,
		Terminal *	dst,
		const TTAMachine::Bus &	bus,
		MoveGuard *	guard
	)

The constructor.

Creates a guarded move.

The ownership of the source and destination terminal objects and the guard will be passed to the move.

Parameters

src	The source of the move.
dst	The destination of the move.
bus	The bus on which the transport is carried.
guard	The Boolean expression the move is predicated with.

Definition at line 73 of file Move.cc.

                                     :
    parent_(NULL), src_(src), dst_(dst), bus_(&bus), guard_(guard) {
}

Move() [2/3]

TTAProgram::Move::Move	(	Terminal *	src,
		Terminal *	dst,
		const TTAMachine::Bus &	bus
	)

The constructor.

Creates an unguarded move.

Parameters

src	The source of the move.
dst	The destination of the move.
bus	The bus on which the transport is carried.

Definition at line 88 of file Move.cc.

                                                 :
    parent_(NULL), src_(src), dst_(dst), bus_(&bus),
    guard_(NULL) {
}

~Move()

TTAProgram::Move::~Move

(

)

The destructor.

Definition at line 97 of file Move.cc.

            {
    delete dst_;
    dst_ = NULL;

    delete src_;
    src_ = NULL;

    if (guard_ != NULL) {
        delete guard_;
        guard_ = NULL;
    }
}

References dst_, guard_, and src_.

Move() [3/3]

TTAProgram::Move::Move ( const Move &  )

private

Copying not allowed.

Member Function Documentation

bus()

const Bus & TTAProgram::Move::bus

(

)

const

Returns the bus on which the move is carried.

Returns

the bus on which the move is carried.

Definition at line 373 of file Move.cc.

                {
    return *bus_;
}

References bus_.

Referenced by CodeCompressorPlugin::addBitsForDestinationField(), CodeCompressorPlugin::addBitsForSourceField(), SimpleICOptimizer::addConnections(), TTAProgram::Instruction::addMove(), ProximMachineStateWindow::addMoves(), BusBroker::allAvailableResources(), BFOptimization::assign(), SimpleBrokerDirector::assign(), BusBroker::assign(), BFOptimization::assignCopyToPrologEpilog(), ControlFlowGraph::buildMBBFromBB(), CycleLookBackSoftwareBypasser::bypassNode(), UtilizationStats::calculateForInstruction(), SimpleBrokerDirector::canAssign(), POMValidator::checkConnectivity(), CopyingDelaySlotFiller::collectMoves(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createInstruction(), POMDisassembler::createMove(), POMDisassembler::disassemble(), CodeCompressorPlugin::encodeMove(), CopyingDelaySlotFiller::getMoveNode(), CodeCompressorPlugin::immediateTerminal(), DisasmExecPercentageAttrProvider::moveCellAttr(), CompiledSimSymbolGenerator::moveOperandSymbol(), BFLateBypass::operator()(), BFLateBypassGuard::operator()(), BFPushAntidepDown::operator()(), BFScheduleBU::operator()(), BFScheduleTD::operator()(), BFShareOperandLate::operator()(), BFShareOperandWithScheduled::operator()(), SimProgramBuilder::processMove(), ControlFlowGraph::removeJumpToTarget(), RegisterRenamer::renameLiveRange(), AssignmentPlan::resetAssignments(), BFUnscheduleFromBody::returnOriginal(), BFUnscheduleMove::returnOriginal(), BFShareOperandLate::revert(), setBus(), PostpassOperandSharer::tryRemoveOperandWrite(), PreOptimizer::tryToRemoveGuardInversingOp(), BusBroker::unassign(), BFRescheduleMove::undoOnlyMe(), BFScheduleBU::undoOnlyMe(), BFScheduleTD::undoOnlyMe(), BFUnscheduleFromBody::unscheduleOriginal(), BFUnscheduleMove::unscheduleOriginal(), and DataDependenceGraph::writeToXMLFile().

copy()

std::shared_ptr< Move > TTAProgram::Move::copy

(

)

const

Makes a copy of the move.

The copy is identical, except that it is not registered to the instruction of the original move (and therefore, any address it refers to is not meaningful).

Returns

A copy of the move.

Definition at line 413 of file Move.cc.

                 {

    std::shared_ptr<Move> newMove = NULL;
    if (isUnconditional()) {
        newMove = std::make_shared<Move>(src_->copy(), dst_->copy(), *bus_);
    } else {
        newMove = std::make_shared<Move>(
            src_->copy(), dst_->copy(), *bus_, guard_->copy());
    }

    for (int i = 0; i < annotationCount(); i++ ) {
        newMove->addAnnotation(annotation(i));
    }

    newMove->setParent(NullInstruction::instance());

    return newMove;
}

References TTAProgram::AnnotatedInstructionElement::annotation(), TTAProgram::AnnotatedInstructionElement::annotationCount(), bus_, TTAProgram::MoveGuard::copy(), TTAProgram::Terminal::copy(), dst_, guard_, TTAProgram::NullInstruction::instance(), isUnconditional(), and src_.

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), Peel2BBLoops::appendBB(), SimpleIfConverter::appendBB(), TTAProgram::Instruction::copy(), MoveNodeDuplicator::duplicateMove(), CopyingDelaySlotFiller::getMove(), and BFRegCopy::operator()().

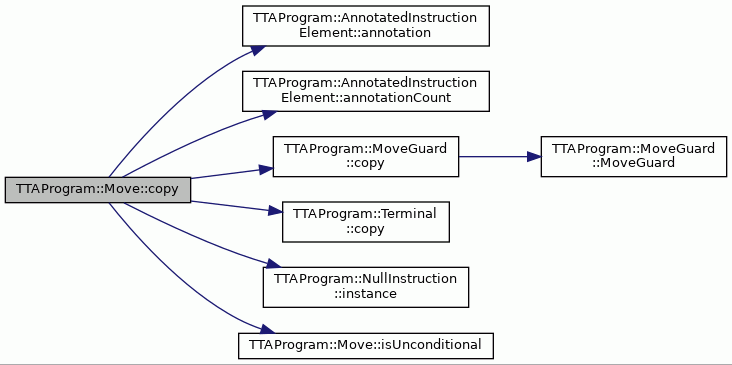

Here is the call graph for this function:

destination()

Terminal & TTAProgram::Move::destination

(

)

const

Returns the destination of this move.

Returns

the destination of this move.

Definition at line 323 of file Move.cc.

                        {
    return *dst_;
}

References dst_.

Referenced by CodeCompressorPlugin::addBitsForDestinationField(), llvm::LLVMTCEBuilder::addCandidateLSUAnnotations(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), ProgramOperation::addInputNode(), TTAProgram::Instruction::addMove(), ProximMachineStateWindow::addMoves(), ProgramOperation::addNode(), StaticProgramAnalyzer::addProgram(), BusBroker::allAvailableResources(), InputFUBroker::allAvailableResources(), InputPSocketBroker::allAvailableResources(), CopyingDelaySlotFiller::allowedToSpeculate(), ResourceConstraintAnalyzer::analyzeMoveNode(), ResourceConstraintAnalyzer::analyzeRegisterAntideps(), SimpleBrokerDirector::assign(), InputFUBroker::assign(), InputPSocketBroker::assign(), ExecutionPipelineResource::assignDestination(), BFSwapOperands::BFSwapOperands(), MoveNodeGroupBuilder::build(), ControlFlowGraph::buildMBBFromBB(), llvm::LLVMTCEIRBuilder::buildTCECFG(), MachineConnectivityCheck::busConnectedToAnyFU(), MachineConnectivityCheck::busConnectedToDestination(), UtilizationStats::calculateForInstruction(), BusResource::canAssign(), SimpleBrokerDirector::canAssign(), ExecutionPipelineResource::canAssignDestination(), POMValidator::checkCompiledSimulatability(), POMValidator::checkConnectivity(), ExecutionPipelineResource::checkOperandAllowed(), POMValidator::checkSimulatability(), DataDependenceGraphBuilder::constructIndividualBB(), ProcedurePass::copyCfgToProcedure(), RegisterCopyAdder::countAndAddConnectionRegisterCopiesToRR(), TTAProgram::ProgramWriter::createCodeSection(), TTAProgram::CodeGenerator::createForLoopBufferInit(), ControlFlowGraph::createJumps(), POMDisassembler::createMove(), DataDependenceGraph::createRegisterAntiDependenciesBetweenNodes(), BFOptimization::destinationFU(), DataDependenceGraph::destRenamed(), POMDisassembler::disassemble(), MoveNodeDuplicator::duplicateMove(), ExecutionPipelineBroker::earliestFromDestination(), ExecutionPipelineBroker::earliestFromSource(), MoveNode::earliestResultReadCycle(), ControlFlowEdge::edgePredicateFromMove(), BUBasicBlockScheduler::finalizeSchedule(), BUBasicBlockScheduler::findBypassDestinations(), FUBroker::findDstFUOfMove(), CopyingDelaySlotFiller::findJumpImmediate(), ControlFlowGraph::findNextIndex(), MachineConnectivityCheck::findPossibleDestinationPorts(), DataDependenceGraphBuilder::findStaticRegisters(), DataDependenceGraph::firstRegisterCycle(), DataDependenceGraph::firstScheduledRegisterKill(), DataDependenceGraph::firstScheduledRegisterWrite(), DataDependenceGraph::firstScheduledRegisterWrites(), DataDependenceGraph::fixInterBBAntiEdges(), CompiledSimCodeGenerator::generateAddFUResult(), CompiledSimCodeGenerator::generateInstruction(), BF2Scheduler::getDstUnit(), CopyingDelaySlotFiller::getMove(), DataDependenceGraph::guardRenamed(), DataDependenceGraph::guardRestored(), SequentialScheduler::handleBasicBlock(), BUBasicBlockScheduler::handleDDG(), BasicBlockScheduler::handleDDG(), ProcedureTransferTracker::handleEvent(), RFAccessTracker::handleEvent(), BasicBlockScheduler::handleLoopDDG(), BUBasicBlockScheduler::handleLoopDDG(), BasicBlockScheduler::handleRemovedResultMoves(), llvm::LLVMTCEBuilder::hasAmbiguousASpaceRefs(), BFOptimization::immCountPreventsScheduling(), RegisterRenamer::initializeFreeRegisters(), BUMoveNodeSelector::initializeReadylist(), CriticalPathBBMoveNodeSelector::initializeReadylist(), InputFUBroker::isApplicable(), BusBroker::isAvailable(), BF2Scheduler::isDestinationUniversalReg(), ExecutionPipelineBroker::isMoveTrigger(), BF2Scheduler::isTrigger(), DataDependenceGraphBuilder::isTriggering(), BFOptimization::jumpGuardAvailableCycle(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraph::lastScheduledRegisterKill(), DataDependenceGraph::lastScheduledRegisterWrites(), DataDependenceEdge::latencySt(), ExecutionPipelineBroker::latestFromDestination(), ExecutionPipelineBroker::latestFromSource(), main(), DataDependenceGraph::mergeAndKeepSource(), DataDependenceGraph::mergeAndKeepUser(), BUMoveNodeSelector::mightBeReady(), CriticalPathBBMoveNodeSelector::mightBeReady(), BF2Scheduler::mustBeTrigger(), ExecutionPipelineResource::operandOverwritten(), ExecutionPipelineResource::operandPort(), ExecutionPipelineResource::operandTooLate(), BFDropPreShared::operator()(), BFLateBypasses::operator()(), BFLateBypassGuard::operator()(), BFPushMoveUp::operator()(), BFScheduleBU::operator()(), BFShareOperand::operator()(), BFShareOperands::operator()(), BFShareOperandsLate::operator()(), BFShareOperandWithScheduled::operator()(), BFPostpassBypass::operator()(), ExecutionPipelineResource::poConflictsWithInputPort(), DataDependenceGraphBuilder::processDestination(), SimProgramBuilder::processMove(), DataDependenceGraphBuilder::processOperand(), ProgramDependenceGraph::processPredicate(), DataDependenceGraphBuilder::processTriggerPO(), CycleLookBackSoftwareBypasser::removeDeadResults(), ProgramOperation::removeInputNode(), RegisterRenamer::renameDestinationRegister(), RegisterRenamer::renameLiveRange(), ExecutionPipelineResource::resourcesAllowTrigger(), ExecutionPipelineResource::resultCausesTriggerBetweenOperandSharing(), BF2Scheduler::revertBBLiveRangeBookkeepingForDestination(), BFOptimization::RFReadPortCountPreventsScheduling(), DataDependenceGraph::sanityCheck(), DataDependenceEdge::saveState(), BasicBlockScheduler::scheduleInputOperandTempMoves(), BUBasicBlockScheduler::scheduleInputOperandTempMoves(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleOperandWrites(), SequentialScheduler::scheduleOperandWrites(), BUBasicBlockScheduler::scheduleOperandWrites(), BasicBlockScheduler::scheduleResultReads(), BUBasicBlockScheduler::scheduleResultReads(), BasicBlockScheduler::scheduleResultReadTempMoves(), BUBasicBlockScheduler::scheduleResultReadTempMoves(), BUBasicBlockScheduler::scheduleRRMove(), BasicBlockScheduler::scheduleRRTempMoves(), BUBasicBlockScheduler::scheduleRRTempMoves(), ProgramOperation::setOperation(), BFOptimization::setPrologDstFUAnno(), DataDependenceGraph::sourceRenamed(), TTAProgram::BasicBlock::statistics(), ProgramOperation::switchInputs(), ProgramOperation::triggeringMove(), ExecutionPipelineResource::triggerTooEarly(), PostpassOperandSharer::tryRemoveOperandWrite(), PreOptimizer::tryToOptimizeAddressReg(), PreOptimizer::tryToRemoveGuardInversingOp(), BasicBlockScheduler::tryToSwitchInputs(), BUBasicBlockScheduler::tryToSwitchInputs(), InputFUBroker::unassign(), InputPSocketBroker::unassign(), SimpleBrokerDirector::unassign(), ExecutionPipelineResource::unassignDestination(), BFUpdateMoveOnBypass::undoOnlyMe(), BFRegCopyAfter::undoSplit(), DataDependenceGraph::unMergeUser(), BFUnscheduleFromBody::unscheduleOriginal(), BFUnscheduleMove::unscheduleOriginal(), BFMergeAndKeepUser::updateEdges(), SimpleIfConverter::writesRegister(), and CopyingDelaySlotFiller::writesRegister().

destinationSocket()

Socket & TTAProgram::Move::destinationSocket

(

)

const

Definition at line 388 of file Move.cc.

                              {
    return *dst_->port().inputSocket();
}

References dst_, TTAMachine::Port::inputSocket(), and TTAProgram::Terminal::port().

Referenced by SimpleICOptimizer::addConnections(), and UtilizationStats::calculateForInstruction().

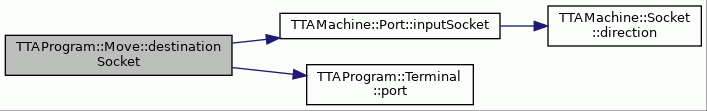

Here is the call graph for this function:

guard()

MoveGuard & TTAProgram::Move::guard

(

)

const

Returns the Boolean expression that guards this move.

Returns

the Boolean expression that guards this move.

Exceptions

InvalidData

if the move is not predicated.

Definition at line 345 of file Move.cc.

                  {
    if (guard_ != NULL) {
        return *guard_;
    } else {
        throw InvalidData(
            __FILE__, __LINE__, "Move::guard()", "Move is not predicated.");
    }
}

References guard_.

Referenced by CodeCompressorPlugin::addBitsForGuardField(), BusBroker::allAvailableResources(), LoopAnalyzer::analyze(), ResourceConstraintAnalyzer::analyzeRegisterAntideps(), SimpleBrokerDirector::assign(), BusBroker::assign(), UtilizationStats::calculateForInstruction(), InputPSocketResource::canAssign(), OutputPSocketResource::canAssign(), PSocketResource::canAssign(), SimpleBrokerDirector::canAssign(), MachineConnectivityCheck::canBypass(), MachineConnectivityCheck::canBypassOpToDst(), SimpleIfConverter::canConvert(), MachineConnectivityCheck::canSourceWriteToAnyDestinationPort(), BusBroker::canTransportImmediate(), CopyingDelaySlotFiller::collectMoves(), MachineConnectivityCheck::copyOpFUs(), TTAProgram::CodeGenerator::createBreakOperation(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createMove(), DataDependenceGraph::destRenamed(), ControlFlowGraph::directJump(), MoveNodeDuplicator::duplicateMove(), ControlFlowEdge::edgePredicateFromMove(), DataDependenceGraph::exclusingGuards(), ExecutionPipelineResource::exclusiveMoves(), CopyingDelaySlotFiller::fillDelaySlots(), RegisterRenamer::findGuardRegisters(), CopyingDelaySlotFiller::findJump(), DataDependenceGraph::findLoopLimitAndIndex(), MachineConnectivityCheck::findPossibleDestinationPorts(), DataDependenceGraph::firstRegisterCycle(), DataDependenceGraph::fixInterBBAntiEdges(), CompiledSimCodeGenerator::generateGuardCondition(), CompiledSimCodeGenerator::generateGuardRead(), CopyingDelaySlotFiller::getMove(), guardLatency(), DataDependenceGraph::guardRenamed(), DataDependenceGraph::guardsAllowBypass(), CallsToJumps::handleControlFlowGraph(), BusBroker::hasGuard(), ControlFlowGraph::indirectJump(), PreOptimizer::inverseGuardsOfHeads(), OutputFUBroker::isApplicable(), BusBroker::isAvailable(), DataDependenceGraph::isNotAvoidable(), BF2Scheduler::jumpGuard(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraph::lastScheduledRegisterGuardReads(), BFLateBypassGuard::operator()(), BFScheduleExact::operator()(), BFEarlyGuardBypass::operator()(), BFRemoveGuard::operator()(), BFRemoveGuardFromSucc::operator()(), ProgramOperation::outputIndexFromGuardOfMove(), BF2Scheduler::possibleTempRegRFs(), DataDependenceGraphBuilder::processGuard(), SimProgramBuilder::processMove(), ProgramDependenceGraph::removeGuardedJump(), ControlFlowGraph::removeJumpToTarget(), RegisterRenamer::renameLiveRange(), ExecutionPipelineResource::resultPort(), DataDependenceGraph::sameGuards(), DataDependenceGraph::sanityCheck(), SequentialScheduler::scheduleMove(), setGuard(), BFRenameLiveRange::setGuard(), SimpleIfConverter::successors(), PostpassOperandSharer::tryRemoveOperandWrite(), BasicBlockScheduler::tryToOptimizeWaw(), and BUBasicBlockScheduler::tryToOptimizeWaw().

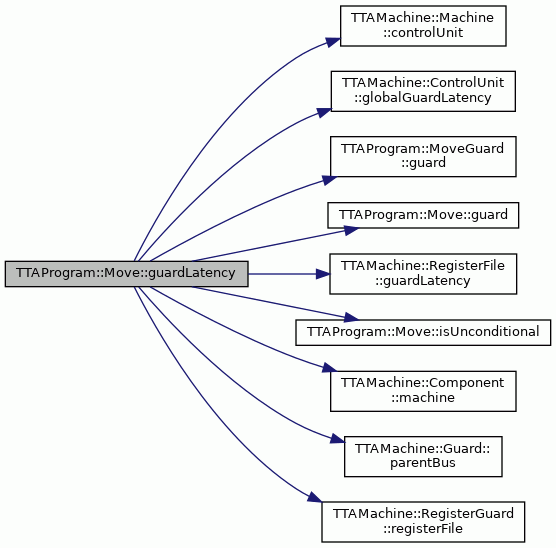

guardLatency()

int TTAProgram::Move::guardLatency

(

)

const

Returns the total guard latency of the guard of given move, or 0 if the move is unconditional.

Definition at line 503 of file Move.cc.

                         {
    if (!isUnconditional()) {

        const TTAMachine::Guard& g = guard().guard();
        const TTAMachine::RegisterGuard* rg =
        dynamic_cast<const TTAMachine::RegisterGuard*>(&g);
        if (rg != NULL) {
            const TTAMachine::RegisterFile& rf =
            *rg->registerFile();
            return rf.guardLatency() +
            rf.machine()->controlUnit()->globalGuardLatency();
        } else {
            return g.parentBus()->machine()->controlUnit()->globalGuardLatency();
        }
    } else {
        return 0;
    }
}

References TTAMachine::Machine::controlUnit(), TTAMachine::ControlUnit::globalGuardLatency(), guard(), TTAProgram::MoveGuard::guard(), TTAMachine::RegisterFile::guardLatency(), isUnconditional(), TTAMachine::Component::machine(), TTAMachine::Guard::parentBus(), and TTAMachine::RegisterGuard::registerFile().

Referenced by PostpassOperandSharer::tryRemoveOperandWrite(), and SimpleBrokerDirector::unassign().

Here is the call graph for this function:

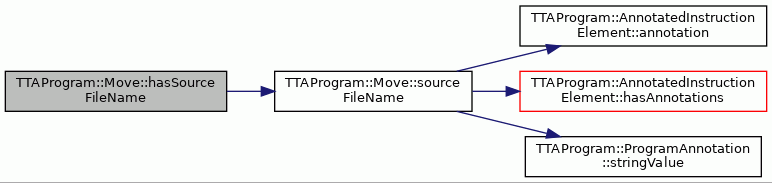

hasSourceFileName()

bool TTAProgram::Move::hasSourceFileName

(

)

const

Returns true in case at least one source code filename is known for this move.

Definition at line 478 of file Move.cc.

                              {
    return sourceFileName() != "";
}

References sourceFileName().

Referenced by POMDisassembler::disassemble(), and ProximDebuggerWindow::loadProgram().

Here is the call graph for this function:

hasSourceLineNumber()

bool TTAProgram::Move::hasSourceLineNumber

(

)

const

Returns true in case at least one source code line number is known for this move.

Definition at line 445 of file Move.cc.

                                {
    return sourceLineNumber() != -1;
}

References sourceLineNumber().

Referenced by PRegionAliasAnalyzer::analyze(), POMDisassembler::disassemble(), DataDependenceGraph::dotString(), BasicBlockNode::toString(), and ProximDebuggerWindow::updateAnnotations().

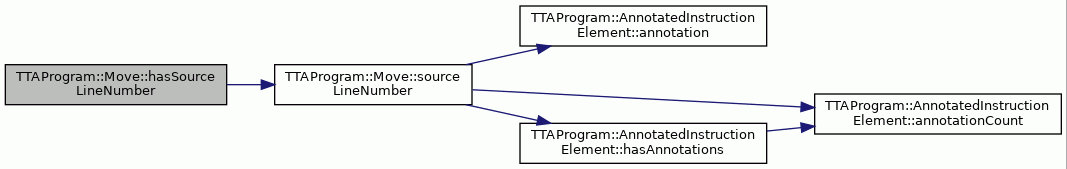

Here is the call graph for this function:

isCall()

bool TTAProgram::Move::isCall

(

)

const

Tells whether the move triggers a call operation.

Returns

true if this move triggers a call operation.

Definition at line 190 of file Move.cc.

                   {

    if (dst_->isFUPort()) {
        // there is already check. no need for double-check.
        const TerminalFUPort* tfup = static_cast<const TerminalFUPort*>(dst_);
        if (tfup->isOpcodeSetting()) {
            if (tfup->operation().isCall()) {
                return true;
            }
        } else {
            Operation* tmpOp = &tfup->hintOperation();
            if (tmpOp != &NullOperation::instance() &&
                tfup->hintOperation().isCall()) {
                return true;
            }
        }
    }
    return false;
}

References dst_, TTAProgram::TerminalFUPort::hintOperation(), NullOperation::instance(), Operation::isCall(), TTAProgram::Terminal::isFUPort(), TTAProgram::TerminalFUPort::isOpcodeSetting(), and TTAProgram::TerminalFUPort::operation().

Referenced by ControlFlowGraph::createBBEdges(), POMDisassembler::disassemble(), TTAProgram::Instruction::hasCall(), isFunctionCall(), and ProgramDependenceGraph::processRegion().

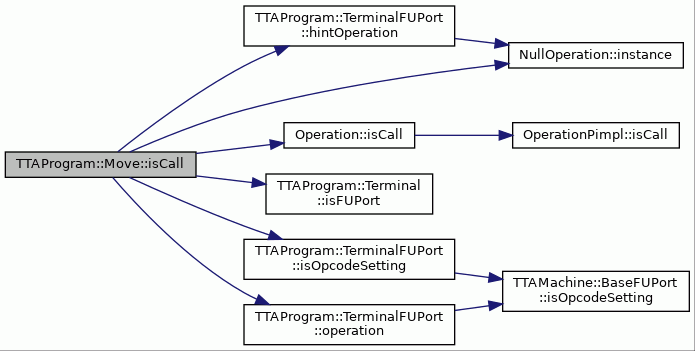

Here is the call graph for this function:

isConditional()

bool TTAProgram::Move::isConditional ( ) const

inline

Definition at line 69 of file Move.hh.

{ return !isUnconditional(); }

References isUnconditional().

Here is the call graph for this function:

isControlFlowMove()

bool TTAProgram::Move::isControlFlowMove

(

)

const

Tells whether the move triggers an operation that controls the program flow.

Returns

true if this move triggers a jump/call operation.

Definition at line 233 of file Move.cc.

                              {

    if (dst_->isFUPort()) {
        const TerminalFUPort* tfup = dynamic_cast<const TerminalFUPort*>(dst_);
        if (tfup->isOpcodeSetting()) {
            if (tfup->operation().isControlFlowOperation()) {
                return true;
            }
        } else {
            Operation* tmpOp = &tfup->hintOperation();
            if (tmpOp != &NullOperation::instance() &&
                tfup->hintOperation().isControlFlowOperation()) {
                return true;
            }
        }
    }
    return false;
}

References dst_, TTAProgram::TerminalFUPort::hintOperation(), NullOperation::instance(), Operation::isControlFlowOperation(), TTAProgram::Terminal::isFUPort(), TTAProgram::TerminalFUPort::isOpcodeSetting(), and TTAProgram::TerminalFUPort::operation().

Referenced by LoopPrologAndEpilogBuilder::build(), CycleLookBackSoftwareBypasser::bypass(), CopyingDelaySlotFiller::collectMoves(), ControlFlowGraph::computeLeadersFromJumpSuccessors(), DataDependenceGraph::edgeWeight(), BF2ScheduleFront::getPreferredLimits(), BasicBlockScheduler::handleLoopDDG(), TTAProgram::Instruction::hasControlFlowMove(), CriticalPathBBMoveNodeSelector::isReadyToBeScheduled(), BFLateBypass::operator()(), BFPushAntidepDown::operator()(), BFPushMoveUp::operator()(), BFPushMoveUp2::operator()(), BFRescheduleResultClose::operator()(), BFScheduleBU::operator()(), BFPostpassBypass::operator()(), RLBUPriorityCriticalPath::operator()(), DataDependenceGraphBuilder::processDestination(), SimProgramBuilder::processMove(), DataDependenceGraph::sanityCheck(), BF2ScheduleFront::scheduleFrontFromMove(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), BFOptimization::usePrologMove(), and MoveNodeGroup::writesJumpGuard().

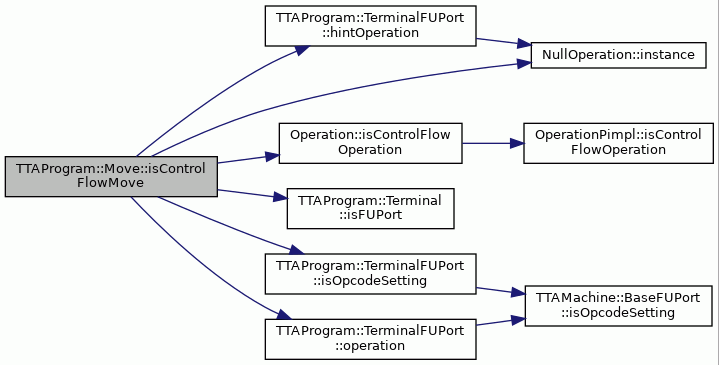

Here is the call graph for this function:

isFunctionCall()

bool TTAProgram::Move::isFunctionCall

(

)

const

Returns true in case the move performs a function call.

Currently two ways of calling functions are supported: the separate CALL operation, and regular JUMP with a separate RA save move. The latter is detected using an annotation in the JUMP move.

Definition at line 219 of file Move.cc.

                           {
    if (isCall()) return true;
    if (!isJump()) return false;

    return hasAnnotations(ProgramAnnotation::ANN_JUMP_FUNCTION_CALL);
}

References TTAProgram::ProgramAnnotation::ANN_JUMP_FUNCTION_CALL, TTAProgram::AnnotatedInstructionElement::hasAnnotations(), isCall(), and isJump().

Referenced by DataDependenceGraph::firstRegisterCycle(), ConstantAliasAnalyzer::getConstantAddress(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraphBuilder::processTriggerMemoryAndFUStates(), DataDependenceGraphBuilder::processTriggerRegistersAndOperations(), and DataDependenceGraph::sanityCheck().

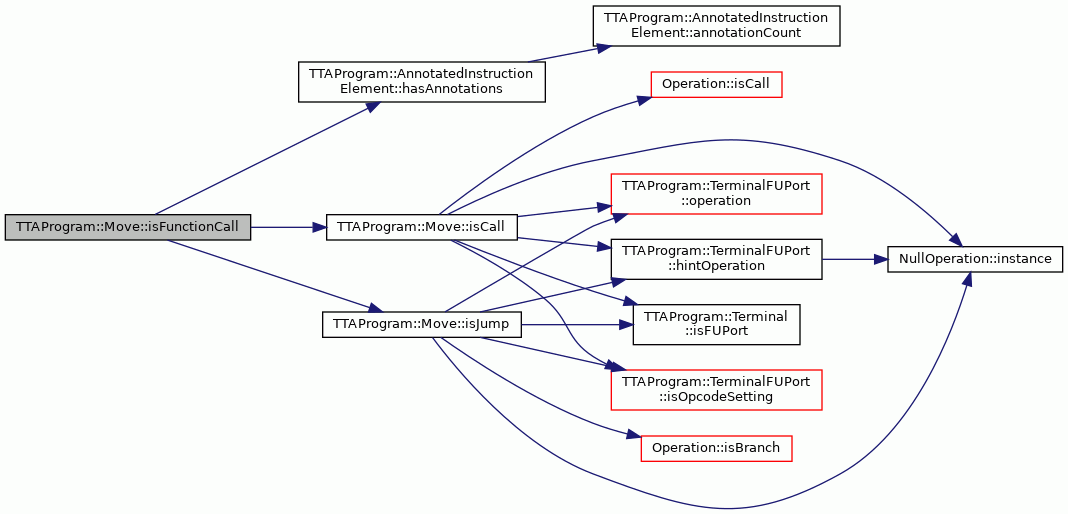

Here is the call graph for this function:

isInInstruction()

bool TTAProgram::Move::isInInstruction

(

)

const

Return true if this move belongs to an instruction.

Returns

True if this move belongs to an instruction.

Definition at line 144 of file Move.cc.

                            {
    return parent_ != NULL && parent_ != &NullInstruction::instance();
}

References TTAProgram::NullInstruction::instance(), and parent_.

Referenced by ITemplateBroker::assign(), POMDisassembler::createMove(), DataDependenceGraph::createSubgraph(), and ITemplateBroker::isAlreadyAssigned().

Here is the call graph for this function:

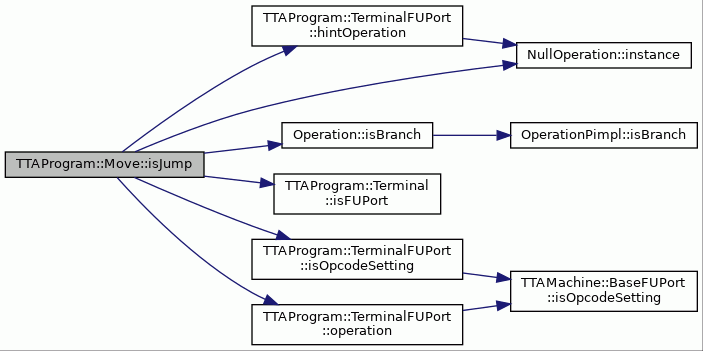

isJump()

bool TTAProgram::Move::isJump

(

)

const

Tells whether the move triggers a jump operation.

Returns

true if this move triggers a jump operation.

Definition at line 164 of file Move.cc.

                   {

    if (dst_->isFUPort()) {
        // there is already check. no need for double-check.
        const TerminalFUPort* tfup = static_cast<const TerminalFUPort*>(dst_);
        if (tfup->isOpcodeSetting()) {
            if (tfup->operation().isBranch()) {
                return true;
            }
        } else {
            Operation* tmpOp = &tfup->hintOperation();
            if (tmpOp != &NullOperation::instance() &&
                tfup->hintOperation().isBranch()) {
                return true;
            }
        }
    }
    return false;
}

References dst_, TTAProgram::TerminalFUPort::hintOperation(), NullOperation::instance(), Operation::isBranch(), TTAProgram::Terminal::isFUPort(), TTAProgram::TerminalFUPort::isOpcodeSetting(), and TTAProgram::TerminalFUPort::operation().

Referenced by LoopAnalyzer::analyze(), ResourceConstraintAnalyzer::analyzeMoveNode(), SimpleIfConverter::appendBB(), BusBroker::canTransportImmediate(), CopyingDelaySlotFiller::collectMoves(), SimpleIfConverter::combineBlocks(), ControlFlowGraph::computeLeadersFromJumpSuccessors(), ProcedurePass::copyCfgToProcedure(), ControlFlowGraph::createBBEdges(), POMDisassembler::disassemble(), DataDependenceGraph::edgeWeight(), BF2Scheduler::findJump(), CopyingDelaySlotFiller::findJump(), BasicBlockNode::findJumps(), ProcedureTransferTracker::handleEvent(), ControlFlowGraph::hasInstructionAnotherJump(), TTAProgram::Instruction::hasJump(), PreOptimizer::inverseGuardsOfHeads(), isFunctionCall(), isReturn(), BFRemoveLoopChecksAndJump::operator()(), ProgramDependenceGraph::ProgramDependenceGraph(), ControlFlowGraph::removeJumpToTarget(), SimpleIfConverter::successors(), and BFOptimization::usePrologMove().

Here is the call graph for this function:

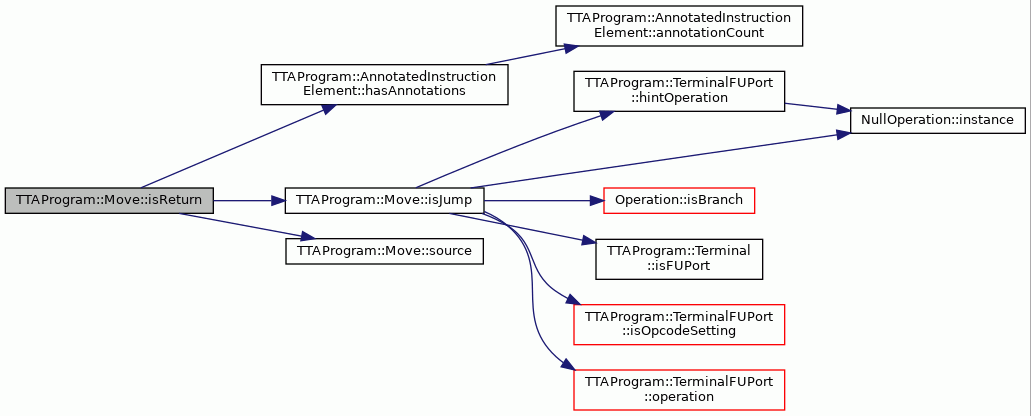

isReturn()

bool TTAProgram::Move::isReturn

(

)

const

Tells whether the move is used to return from a procedure.

Note: the detection is not always reliable, this method can return false even in case the move actually is a return in some cases.

Definition at line 259 of file Move.cc.

                     {

    if (!isJump()) {
        return false;
    }

    // direct gcu.ra -> gcu.jump.1 is considered a return
    if (source().isRA()) {
        return true;
    }

    if (hasAnnotations(ProgramAnnotation::ANN_STACKFRAME_PROCEDURE_RETURN)) {
        return true;
    }

    return false;
}

References TTAProgram::ProgramAnnotation::ANN_STACKFRAME_PROCEDURE_RETURN, TTAProgram::AnnotatedInstructionElement::hasAnnotations(), isJump(), and source().

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), TTASimulationController::findProgramExitPoints(), TTAProgram::Instruction::hasReturn(), BFRegCopy::operator()(), DataDependenceGraphBuilder::processSource(), SequentialScheduler::scheduleMove(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), and CopyingDelaySlotFiller::updateJumpsAndCfg().

Here is the call graph for this function:

isTriggering()

bool TTAProgram::Move::isTriggering

(

)

const

Tells whether the move triggers an operation.

Returns

true if this move triggers an operation.

Definition at line 284 of file Move.cc.

                         {

    if (dst_->isFUPort()) {
        const TerminalFUPort* tfup = dynamic_cast<const TerminalFUPort*>(dst_);
        if (tfup->isTriggering()) {
            return true;
        }
    }
    return false;
}

References dst_, TTAProgram::Terminal::isFUPort(), and TTAProgram::TerminalFUPort::isTriggering().

Referenced by CopyingDelaySlotFiller::allowedToSpeculate(), ResourceConstraintAnalyzer::analyzeMoveNode(), ControlFlowGraph::buildMBBFromBB(), CycleLookBackSoftwareBypasser::bypass(), DataDependenceGraph::dotString(), ExecutionPipelineBroker::earliestFromDestination(), ExecutionPipelineBroker::earliestFromSource(), ControlFlowEdge::edgePredicateFromMove(), CompiledSimCodeGenerator::generateAddFUResult(), CompiledSimCodeGenerator::generateInstruction(), ExecutionPipelineBroker::isMoveTrigger(), DataDependenceEdge::latencySt(), ExecutionPipelineBroker::latestFromDestination(), ExecutionPipelineBroker::latestFromSource(), BFLateBypass::operator()(), DataDependenceEdge::saveState(), BasicBlockScheduler::tryToDelayOperands(), BasicBlockNode::updateHWloopLength(), and DataDependenceGraph::writeToXMLFile().

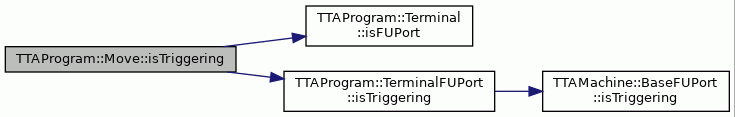

Here is the call graph for this function:

isUnconditional()

bool TTAProgram::Move::isUnconditional

(

)

const

Tells whether the move is predicated or not.

Returns

true if this move is not predicated.

Definition at line 154 of file Move.cc.

                            {
    return (guard_ == NULL);
}

References guard_.

Referenced by CodeCompressorPlugin::addBitsForGuardField(), BFOptimization::addJumpGuardIfNeeded(), TTAProgram::Instruction::addMove(), BusBroker::allAvailableResources(), CopyingDelaySlotFiller::allowedToSpeculate(), SimpleBrokerDirector::assign(), BusBroker::assign(), CycleLookBackSoftwareBypasser::bypass(), CycleLookBackSoftwareBypasser::bypassNode(), UtilizationStats::calculateForInstruction(), InputPSocketResource::canAssign(), OutputPSocketResource::canAssign(), PSocketResource::canAssign(), BFOptimization::canAssign(), SimpleBrokerDirector::canAssign(), MachineConnectivityCheck::canBypass(), MachineConnectivityCheck::canBypassOpToDst(), SimpleIfConverter::canConvert(), MachineConnectivityCheck::canSourceWriteToAnyDestinationPort(), BusBroker::canTransportImmediate(), DataDependenceGraphBuilder::checkAndCreateMemAntideps(), CopyingDelaySlotFiller::collectMoves(), SimpleIfConverter::combineBlocks(), DataDependenceGraphBuilder::constructIndividualBB(), copy(), MachineConnectivityCheck::copyOpFUs(), RegisterCopyAdder::createAntidepsForReg(), BFRegCopy::createAntidepsForReg(), TTAProgram::CodeGenerator::createBreakOperation(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createMove(), DataDependenceGraph::createRegisterAntiDependenciesBetweenNodes(), DataDependenceGraphBuilder::createTriggerDependencies(), DataDependenceGraph::destRenamed(), ControlFlowGraph::directJump(), MoveNodeDuplicator::duplicateMove(), ControlFlowEdge::edgePredicateFromMove(), DataDependenceGraph::exclusingGuards(), ExecutionPipelineResource::exclusiveMoves(), CopyingDelaySlotFiller::fillDelaySlots(), RegisterRenamer::findGuardRegisters(), BF2Scheduler::findJump(), CopyingDelaySlotFiller::findJump(), DataDependenceGraph::findLiveRange(), DataDependenceGraph::firstRegisterCycle(), DataDependenceGraph::firstScheduledRegisterKill(), DataDependenceGraph::fixInterBBAntiEdges(), CompiledSimCodeGenerator::generateInstruction(), CopyingDelaySlotFiller::getMove(), guardLatency(), DataDependenceGraph::guardRenamed(), DataDependenceGraph::guardsAllowBypass(), CallsToJumps::handleControlFlowGraph(), SimpleIfConverter::hasConditionals(), SimpleBrokerDirector::hasGuard(), ControlFlowGraph::indirectJump(), PreOptimizer::inverseGuardsOfHeads(), OutputFUBroker::isApplicable(), BusBroker::isAvailable(), isConditional(), DataDependenceGraph::isNotAvoidable(), BF2Scheduler::jumpGuard(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraph::lastScheduledRegisterGuardReads(), DataDependenceGraph::lastScheduledRegisterKill(), CompiledSimulation::moveExecutionCount(), ExecutionPipelineResource::operandAllowedAtCycle(), BFLateBypassGuard::operator()(), BFScheduleExact::operator()(), BFSchedulePreLoopShared::operator()(), BFShareOperands::operator()(), BFShareOperandsLate::operator()(), BFRemoveGuard::operator()(), BFRemoveGuardsFromSuccs::operator()(), BFTryRemoveGuard::operator()(), ProgramOperation::outputIndexFromGuardOfMove(), BF2Scheduler::possibleTempRegRFs(), DataDependenceGraphBuilder::processMemWrite(), SimProgramBuilder::processMove(), DataDependenceGraphBuilder::processRegWrite(), ControlFlowGraph::removeJumpToTarget(), ExecutionPipelineResource::resultAllowedAtCycle(), DataDependenceGraph::resultUsed(), BFOptimization::rmEC(), BFOptimization::rmLC(), DataDependenceGraph::rWawRawEdgesOutUncond(), DataDependenceGraph::sameGuards(), DataDependenceGraph::sanityCheck(), SequentialScheduler::scheduleMove(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), BFOptimization::setJumpGuard(), SimpleIfConverter::successors(), PostpassOperandSharer::tryRemoveOperandWrite(), CopyingDelaySlotFiller::tryToAssignNodes(), CopyingDelaySlotFiller::tryToAssignOtherMovesOfOp(), BasicBlockScheduler::tryToOptimizeWaw(), and BUBasicBlockScheduler::tryToOptimizeWaw().

operator=()

Move & TTAProgram::Move::operator= ( const Move &  )

private

Assignment not allowed.

parent()

Instruction & TTAProgram::Move::parent

(

)

const

Returns

The parent instruction of the move.

Exceptions

IllegalRegistration

if the move is independent.

Definition at line 115 of file Move.cc.

                   {
    if (parent_ != NULL && parent_ != &NullInstruction::instance()) {
        return *parent_;
    } else {
        throw IllegalRegistration(__FILE__, __LINE__, __func__,
                                  "Move is not registered.");
    }
}

References __func__, TTAProgram::NullInstruction::instance(), and parent_.

Referenced by ITemplateBroker::assign(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createMove(), DataDependenceGraph::createSubgraph(), DataDependenceGraph::createSubgraph(), CopyingDelaySlotFiller::findJumpImmediate(), ITemplateBroker::isAlreadyAssigned(), TTAProgram::Instruction::removeMove(), PreOptimizer::tryToPrecalcConstantAdd(), PreOptimizer::tryToRemoveGuardInversingOp(), ITemplateBroker::unassign(), and CopyingDelaySlotFiller::updateJumpsAndCfg().

Here is the call graph for this function:

setBus()

void TTAProgram::Move::setBus

(

const TTAMachine::Bus &

bus

)

Sets a new bus for the move.

Parameters

bus	The new bus.

Definition at line 383 of file Move.cc.

                                     {
    bus_ = &bus;
}

References bus(), and bus_.

Referenced by BusBroker::assign(), CycleLookBackSoftwareBypasser::bypassNode(), SimpleBrokerDirector::canAssign(), BFLateBypassGuard::operator()(), BFScheduleBU::operator()(), BFScheduleTD::operator()(), CycleLookBackSoftwareBypasser::removeBypass(), BusBroker::unassign(), SimpleBrokerDirector::unassign(), BUBasicBlockScheduler::undoBypass(), BFLateBypassGuard::undoOnlyMe(), BFScheduleBU::undoOnlyMe(), and BFScheduleTD::undoOnlyMe().

Here is the call graph for this function:

setDestination()

void TTAProgram::Move::setDestination

(

Terminal *

dst

)

Sets a new destination for the move and deletes the old one.

Parameters

dst	The new destination.

Definition at line 333 of file Move.cc.

                                  {
    delete dst_;
    dst_ = dst;
}

References dst_.

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), InputFUBroker::assign(), InputPSocketBroker::assign(), SimpleBrokerDirector::canAssign(), DataDependenceGraph::mergeAndKeepSource(), RegisterRenamer::renameLiveRange(), BFRenameLiveRange::setTerminals(), BFCopyRegWithOp::splitMove(), BFRegCopyAfter::splitMove(), BFRegCopyBefore::splitMove(), ProgramOperation::switchInputs(), PreOptimizer::tryToOptimizeAddressReg(), SimpleBrokerDirector::unassign(), BFRenameLiveRange::undoSetTerminal(), and BFRegCopyAfter::undoSplit().

setGuard()

void TTAProgram::Move::setGuard

(

MoveGuard *

guard

)

Sets a new guard for the move and deletes the old one.

Parameters

guard

The new guard.

Definition at line 360 of file Move.cc.

                               {
    if (guard_ != NULL) {
        delete guard_;
    }
    guard_ = guard;
}

References guard(), and guard_.

Referenced by BusBroker::assign(), LoopPrologAndEpilogBuilder::build(), SimpleBrokerDirector::canAssign(), CopyingDelaySlotFiller::collectMoves(), PreOptimizer::inverseGuardsOfHeads(), BFLateBypassGuard::operator()(), BFSchedulePreLoopShared::operator()(), BFEarlyGuardBypass::operator()(), BFRemoveGuard::operator()(), BFRemoveGuardFromSucc::operator()(), ControlFlowGraph::removeJumpToTarget(), RegisterRenamer::renameLiveRange(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), BFRenameLiveRange::setGuard(), BFOptimization::setJumpGuard(), CopyingDelaySlotFiller::tryToAssignNodes(), CopyingDelaySlotFiller::tryToAssignOtherMovesOfOp(), BasicBlockScheduler::tryToOptimizeWaw(), BUBasicBlockScheduler::tryToOptimizeWaw(), SimpleBrokerDirector::unassign(), BFLateBypassGuard::undoOnlyMe(), BFEarlyGuardBypass::undoOnlyMe(), BFRemoveGuard::undoOnlyMe(), BFRemoveGuardFromSucc::undoOnlyMe(), and BFOptimization::unsetJumpGuard().

Here is the call graph for this function:

setParent()

void TTAProgram::Move::setParent

(

Instruction &

ins

)

Set a new parent for the move.

Parameters

ins	The new parent.

Definition at line 130 of file Move.cc.

                                {
    if (&ins == &NullInstruction::instance()) {
        parent_ = NULL;
    } else {
        parent_ = &ins;
    }
}

References TTAProgram::NullInstruction::instance(), and parent_.

Referenced by TTAProgram::Instruction::addMove(), and TTAProgram::Instruction::removeMove().

Here is the call graph for this function:

setSource()

void TTAProgram::Move::setSource

(

Terminal *

src

)

Sets a new source for the move and deletes the old one.

Parameters

src	The new source.

Definition at line 312 of file Move.cc.

                             {
    delete src_;
    src_ = src;
}

References src_.

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), OutputFUBroker::assign(), OutputPSocketBroker::assign(), IUBroker::assign(), CycleLookBackSoftwareBypasser::bypassNode(), SimpleBrokerDirector::canAssign(), CopyingDelaySlotFiller::collectMoves(), ControlFlowGraph::convertBBRefsToInstRefs(), TTAProgram::Program::convertSymbolRefsToInsRefs(), BUBasicBlockScheduler::handleLoopDDG(), DataDependenceGraph::mergeAndKeepUser(), BFUpdateMoveOnBypass::operator()(), RegisterRenamer::renameLiveRange(), TTAProgram::Program::replaceUniversalAddressSpaces(), BasicBlockScheduler::scheduleMove(), BFRenameLiveRange::setTerminals(), BFCopyRegWithOp::splitMove(), BFRegCopyAfter::splitMove(), BFRegCopyBefore::splitMove(), PreOptimizer::tryToOptimizeAddressReg(), PreOptimizer::tryToPrecalcConstantAdd(), IUResource::unassign(), SimpleBrokerDirector::unassign(), BFScheduleExact::undoOnlyMe(), BFUpdateMoveOnBypass::undoOnlyMe(), BFRenameLiveRange::undoSetTerminal(), BFCopyRegWithOp::undoSplit(), BFRegCopyBefore::undoSplit(), DataDependenceGraph::unMergeUser(), BasicBlockNode::updateHWloopLength(), and CopyingDelaySlotFiller::updateJumpsAndCfg().

source()

Terminal & TTAProgram::Move::source

(

)

const

Returns the source of this move.

Returns

the source of this move.

Definition at line 302 of file Move.cc.

                   {
    return *src_;
}

References src_.

Referenced by CodeCompressorPlugin::addBitsForSourceField(), llvm::LLVMTCEBuilder::addCandidateLSUAnnotations(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), SimpleICOptimizer::addConnections(), TTAProgram::Instruction::addMove(), ProximMachineStateWindow::addMoves(), ProgramOperation::addNode(), ProgramOperation::addOutputNode(), StaticProgramAnalyzer::addProgram(), BusBroker::allAvailableResources(), OutputFUBroker::allAvailableResources(), OutputPSocketBroker::allAvailableResources(), IUBroker::allAvailableResources(), LoopAnalyzer::analyze(), OffsetAliasAnalyzer::analyze(), ResourceConstraintAnalyzer::analyzeMoveNode(), ResourceConstraintAnalyzer::analyzeRegisterAntideps(), IUResource::assign(), OutputPSocketResource::assign(), IUResource::assign(), SimpleBrokerDirector::assign(), ITemplateBroker::assign(), OutputFUBroker::assign(), OutputPSocketBroker::assign(), IUBroker::assign(), BFOptimization::assignCopyToPrologEpilog(), BFSwapOperands::BFSwapOperands(), MoveNodeGroupBuilder::build(), LLVMTCEDataDependenceGraphBuilder::buildLocalDDG(), ControlFlowGraph::buildMBBFromBB(), CycleLookBackSoftwareBypasser::bypassNode(), UtilizationStats::calculateForInstruction(), OutputPSocketResource::canAssign(), BusResource::canAssign(), IUResource::canAssign(), BFOptimization::canAssign(), SimpleBrokerDirector::canAssign(), ExecutionPipelineResource::canAssignSource(), MachineConnectivityCheck::canBypass(), SimpleIfConverter::canConvert(), MachineConnectivityCheck::canSourceWriteToAnyDestinationPort(), BusBroker::canTransportImmediate(), POMValidator::checkConnectivity(), CopyingDelaySlotFiller::checkImmediatesAfter(), CopyingDelaySlotFiller::collectMoves(), ControlFlowGraph::computeLeadersFromJumpSuccessors(), DataDependenceGraphBuilder::constructIndividualBB(), ControlFlowGraph::convertBBRefsToInstRefs(), TTAProgram::Program::convertSymbolRefsToInsRefs(), ProcedurePass::copyCfgToProcedure(), RegisterCopyAdder::countAndAddConnectionRegisterCopiesToRR(), BF2Scheduler::countLoopInvariantValueUsages(), ControlFlowGraph::createBBEdges(), TTAProgram::ProgramWriter::createCodeSection(), TTAProgram::CodeGenerator::createForLoopBufferInit(), ControlFlowGraph::createJumps(), POMDisassembler::createMove(), DataDependenceGraph::createRegisterAntiDependenciesBetweenNodes(), DataDependenceGraph::destRenamed(), MemoryAliasAnalyzer::detectConstantScale(), POMDisassembler::disassemble(), MoveNodeDuplicator::duplicateMove(), ExecutionPipelineBroker::earliestFromSource(), CopyingDelaySlotFiller::fillDelaySlots(), BUBasicBlockScheduler::finalizeSchedule(), LoopAnalyzer::findEndCond(), MemoryAliasAnalyzer::findIncrement(), LoopAnalyzer::findInitAndUpdate(), CopyingDelaySlotFiller::findJumpImmediate(), ControlFlowGraph::findLimmWrite(), DataDependenceGraph::findLoopIndexUpdate(), DataDependenceGraph::findLoopLimitAndIndex(), MachineConnectivityCheck::findPossibleDestinationPorts(), MachineConnectivityCheck::findPossibleSourcePorts(), DataDependenceGraphBuilder::findStaticRegisters(), DataDependenceGraph::firstRegisterCycle(), DataDependenceGraph::firstScheduledRegisterRead(), DataDependenceGraph::firstScheduledRegisterReads(), TTAProgram::Program::fixInstructionReferences(), DataDependenceGraph::fixInterBBAntiEdges(), CompiledSimCodeGenerator::generateAddFUResult(), CompiledSimCodeGenerator::generateInstruction(), ProgramImageGenerator::generateProgramImage(), ConstantAliasAnalyzer::getConstantAddress(), getInstructionReferenceTerminals(), CopyingDelaySlotFiller::getMove(), StackAliasAnalyzer::getStackOffset(), CallsToJumps::handleControlFlowGraph(), BasicBlockScheduler::handleDDG(), RFAccessTracker::handleEvent(), BUBasicBlockScheduler::handleLoopDDG(), CodeCompressorPlugin::immediateTerminal(), IUResource::immediateValue(), IUResource::immediateWriteCycle(), ControlFlowGraph::indirectJump(), RegisterRenamer::initializeFreeRegisters(), OffsetAliasAnalyzer::isAddressTraceable(), OutputPSocketBroker::isAnyResourceAvailable(), OutputPSocketBroker::isApplicable(), OutputFUBroker::isApplicable(), BusBroker::isAvailable(), isReturn(), MoveNode::isSourceReg(), BF2Scheduler::isSourceUniversalReg(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraph::lastScheduledRegisterRead(), DataDependenceGraph::lastScheduledRegisterReads(), ExecutionPipelineBroker::latestFromDestination(), ExecutionPipelineBroker::latestFromSource(), MoveNode::latestTriggerWriteCycle(), main(), DataDependenceGraph::mergeAndKeepSource(), DataDependenceGraph::mergeAndKeepUser(), BUMoveNodeSelector::mightBeReady(), CriticalPathBBMoveNodeSelector::mightBeReady(), LoopPrologAndEpilogBuilder::moveJumpDestination(), ExecutionPipelineResource::operandSharePreventsTriggerForScheduledResult(), BFLateBypassGuard::operator()(), BFRenameSource::operator()(), BFShareOperandLate::operator()(), BFShareOperandsLate::operator()(), BFShareOperandWithScheduled::operator()(), BFEarlyGuardBypass::operator()(), BFPostpassBypass::operator()(), ResourceConstraintAnalyzer::optimalScheduleResourceUsage(), LoopPrologAndEpilogBuilder::optimizeProlog(), ProgramOperation::outputIndexOfMove(), BF2Scheduler::preAllocateFunctionUnits(), BF2ScheduleFront::prefResultCycle(), SimProgramBuilder::processMove(), DataDependenceGraphBuilder::processSource(), CycleLookBackSoftwareBypasser::removeDeadResults(), ControlFlowGraph::removeJumpToTarget(), ProgramOperation::removeOutputNode(), RegisterRenamer::renameLiveRange(), RegisterRenamer::renameSourceRegister(), TTAProgram::Program::replaceUniversalAddressSpaces(), ExecutionPipelineResource::resultPort(), BF2Scheduler::revertBBLiveRangeBookkeepingForSource(), BFOptimization::RFReadPortCountPreventsScheduling(), BFOptimization::rmEC(), BFOptimization::rmLC(), DataDependenceGraph::sanityCheck(), BasicBlockScheduler::scheduleMove(), BUBasicBlockScheduler::scheduleOperand(), BUBasicBlockScheduler::scheduleRRMove(), MemoryAliasAnalyzer::searchLoopIndexBasedIncrement(), ProgramOperation::setOperation(), BFOptimization::setPrologSrcFUAnno(), BFOptimization::sourceFU(), DataDependenceGraph::sourceRenamed(), TTAProgram::BasicBlock::statistics(), ExecutionPipelineResource::testTriggerResult(), PostpassOperandSharer::tryRemoveOperandWrite(), CopyingDelaySlotFiller::tryToAssignNodes(), PreOptimizer::tryToOptimizeAddressReg(), PreOptimizer::tryToPrecalcConstantAdd(), PreOptimizer::tryToRemoveEq(), PreOptimizer::tryToRemoveGuardInversingOp(), PreOptimizer::tryToRemoveXor(), LoopAnalyzer::tryTrackCommonAncestor(), IUResource::unassign(), OutputFUBroker::unassign(), SimpleBrokerDirector::unassign(), BFCopyRegWithOp::undoSplit(), BFRegCopyBefore::undoSplit(), DataDependenceGraph::unMergeUser(), BFUnscheduleFromBody::unscheduleOriginal(), BFUnscheduleMove::unscheduleOriginal(), BFMergeAndKeepUser::updateEdges(), BasicBlockNode::updateHWloopLength(), and CopyingDelaySlotFiller::updateJumpsAndCfg().

sourceFileName()

std::string TTAProgram::Move::sourceFileName

(

)

const

Returns one source code filename for this move.

Returns "" if no source code line info has been set.

Definition at line 488 of file Move.cc.

                           {
    std::string fileName = "";
    const TTAProgram::ProgramAnnotation::Id id =
        TTAProgram::ProgramAnnotation::ANN_DEBUG_SOURCE_CODE_PATH;
    if (hasAnnotations(id)) {
        fileName=annotation(0,id).stringValue();
    }
    return fileName;

}

References TTAProgram::ProgramAnnotation::ANN_DEBUG_SOURCE_CODE_PATH, TTAProgram::AnnotatedInstructionElement::annotation(), TTAProgram::AnnotatedInstructionElement::hasAnnotations(), and TTAProgram::ProgramAnnotation::stringValue().

Referenced by POMDisassembler::disassemble(), hasSourceFileName(), ProximDebuggerWindow::loadProgram(), and ProximDebuggerWindow::updateAnnotations().

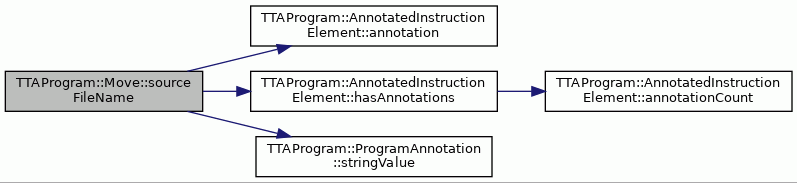

Here is the call graph for this function:

sourceLineNumber()

int TTAProgram::Move::sourceLineNumber

(

)

const

Returns one source code line number for this move.

There can be at most two source code line numbers associated to a move in case it's bypassed. This method returns the smaller of them.

Returns -1 if no source code line info has been set.

Definition at line 459 of file Move.cc.

                             {
    int lineNumber =  -1;
    const TTAProgram::ProgramAnnotation::Id id =
        TTAProgram::ProgramAnnotation::ANN_DEBUG_SOURCE_CODE_LINE;
    if (hasAnnotations(id)) {
        lineNumber = INT_MAX;
        for (int i = 0; i < annotationCount(id); ++i) {
            lineNumber = std::min(lineNumber, annotation(i, id).intValue());
        }
    }
    return lineNumber;
}

References TTAProgram::ProgramAnnotation::ANN_DEBUG_SOURCE_CODE_LINE, TTAProgram::AnnotatedInstructionElement::annotation(), TTAProgram::AnnotatedInstructionElement::annotationCount(), and TTAProgram::AnnotatedInstructionElement::hasAnnotations().

Referenced by PRegionAliasAnalyzer::analyze(), POMDisassembler::disassemble(), DataDependenceGraph::dotString(), hasSourceLineNumber(), BasicBlockNode::toString(), and ProximDebuggerWindow::updateAnnotations().

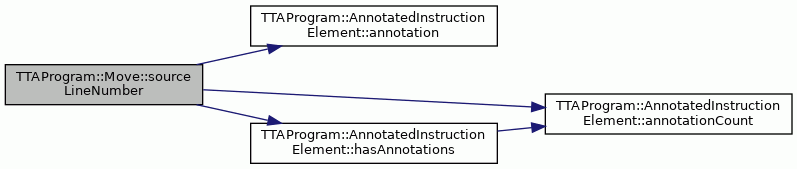

Here is the call graph for this function:

sourceSocket()

Socket & TTAProgram::Move::sourceSocket

(

)

const

Definition at line 393 of file Move.cc.

                         {
    if (src_->isImmediate()) {
        throw WrongSubclass(
            __FILE__, __LINE__, "Move::sourceSocket()",
            "Move source is an immediate.");
    } else {
        return *src_->port().outputSocket();
    }
}

References TTAProgram::Terminal::isImmediate(), TTAMachine::Port::outputSocket(), TTAProgram::Terminal::port(), and src_.

Referenced by SimpleICOptimizer::addConnections(), and UtilizationStats::calculateForInstruction().

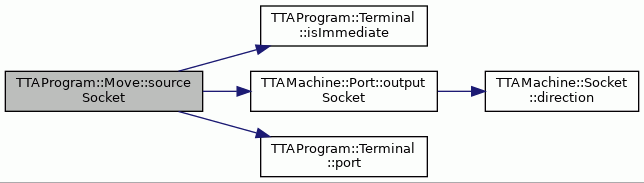

Here is the call graph for this function:

toString()

std::string TTAProgram::Move::toString

(

)

const

Returns the disassembly of the move.

Definition at line 436 of file Move.cc.

                     {
    return POMDisassembler::disassemble(*this);
}

References POMDisassembler::disassemble().

Referenced by llvm::LLVMTCEBuilder::addCandidateLSUAnnotations(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), llvm::LLVMTCEBuilder::addPointerAnnotations(), ResourceConstraintAnalyzer::analyze(), PRegionAliasAnalyzer::analyze(), ResourceConstraintAnalyzer::analyzeMoveNode(), ResourceConstraintAnalyzer::analyzeRegisterAntideps(), MoveNodeGroupBuilder::build(), FindWindow::find(), CallsToJumps::handleControlFlowGraph(), BasicBlockScheduler::handleRemovedResultMoves(), SimProgramBuilder::processMove(), DataDependenceGraphBuilder::processResultRead(), BFRescheduleMove::undoOnlyMe(), and BasicBlockNode::updateHWloopLength().

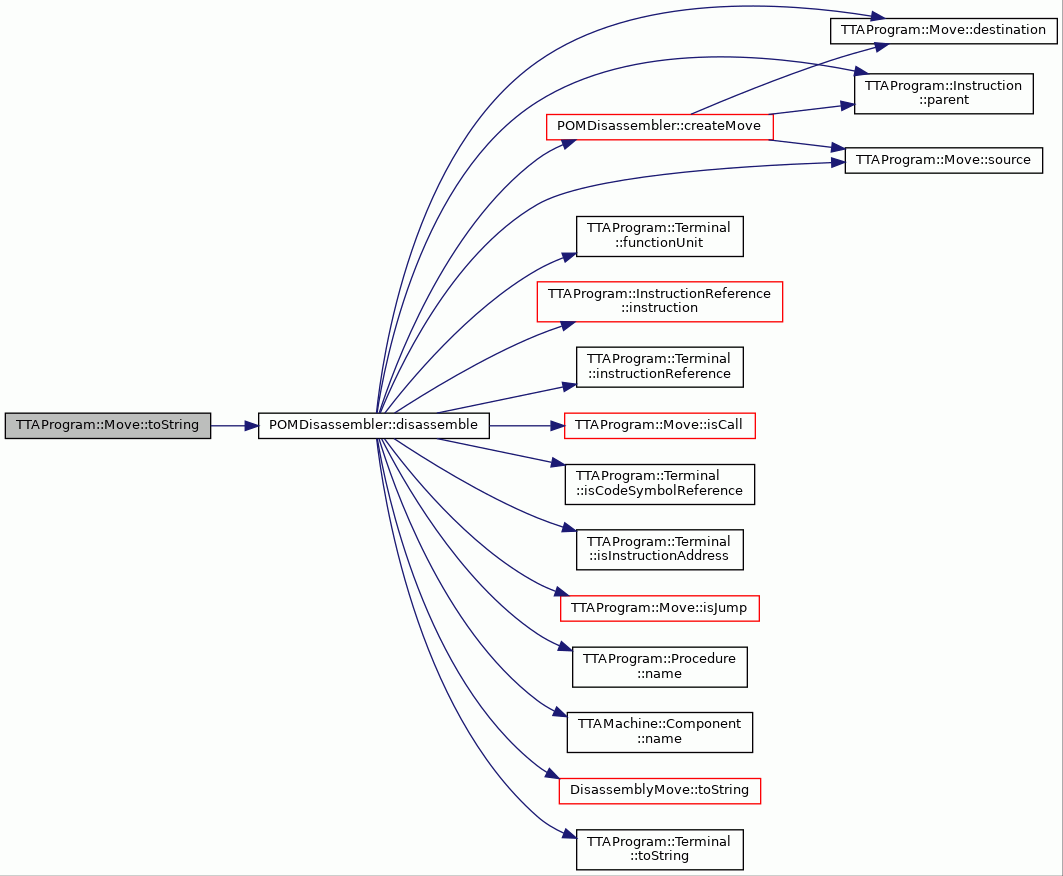

Here is the call graph for this function:

Member Data Documentation

bus_

const TTAMachine::Bus* TTAProgram::Move::bus_

private

The bus where the transport is carried.

Definition at line 112 of file Move.hh.

Referenced by bus(), copy(), and setBus().

dst_

Terminal* TTAProgram::Move::dst_

private

The destination of the move.

Definition at line 110 of file Move.hh.

Referenced by copy(), destination(), destinationSocket(), isCall(), isControlFlowMove(), isJump(), isTriggering(), setDestination(), and ~Move().

guard_

MoveGuard* TTAProgram::Move::guard_

private

The boolean expression that predicates the move.

Definition at line 114 of file Move.hh.

Referenced by copy(), guard(), isUnconditional(), setGuard(), and ~Move().

parent_

Instruction* TTAProgram::Move::parent_

private

Parent instruction of the move.

Definition at line 106 of file Move.hh.

Referenced by isInInstruction(), parent(), and setParent().

src_

Terminal* TTAProgram::Move::src_

private

The source of the move.

Definition at line 108 of file Move.hh.

Referenced by copy(), setSource(), source(), sourceSocket(), and ~Move().

---

The documentation for this class was generated from the following files:

• Move.hh
• Move.cc
