#include <ProximDisassemblyGridTable.hh>

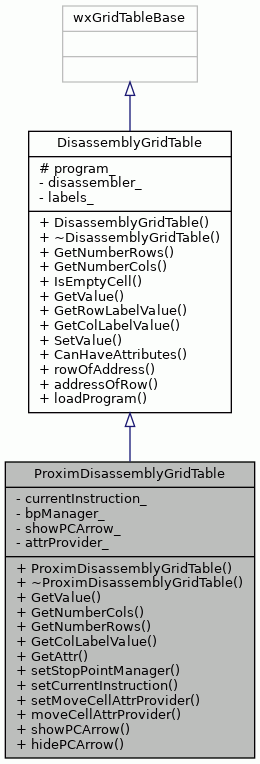

Inheritance diagram for ProximDisassemblyGridTable:

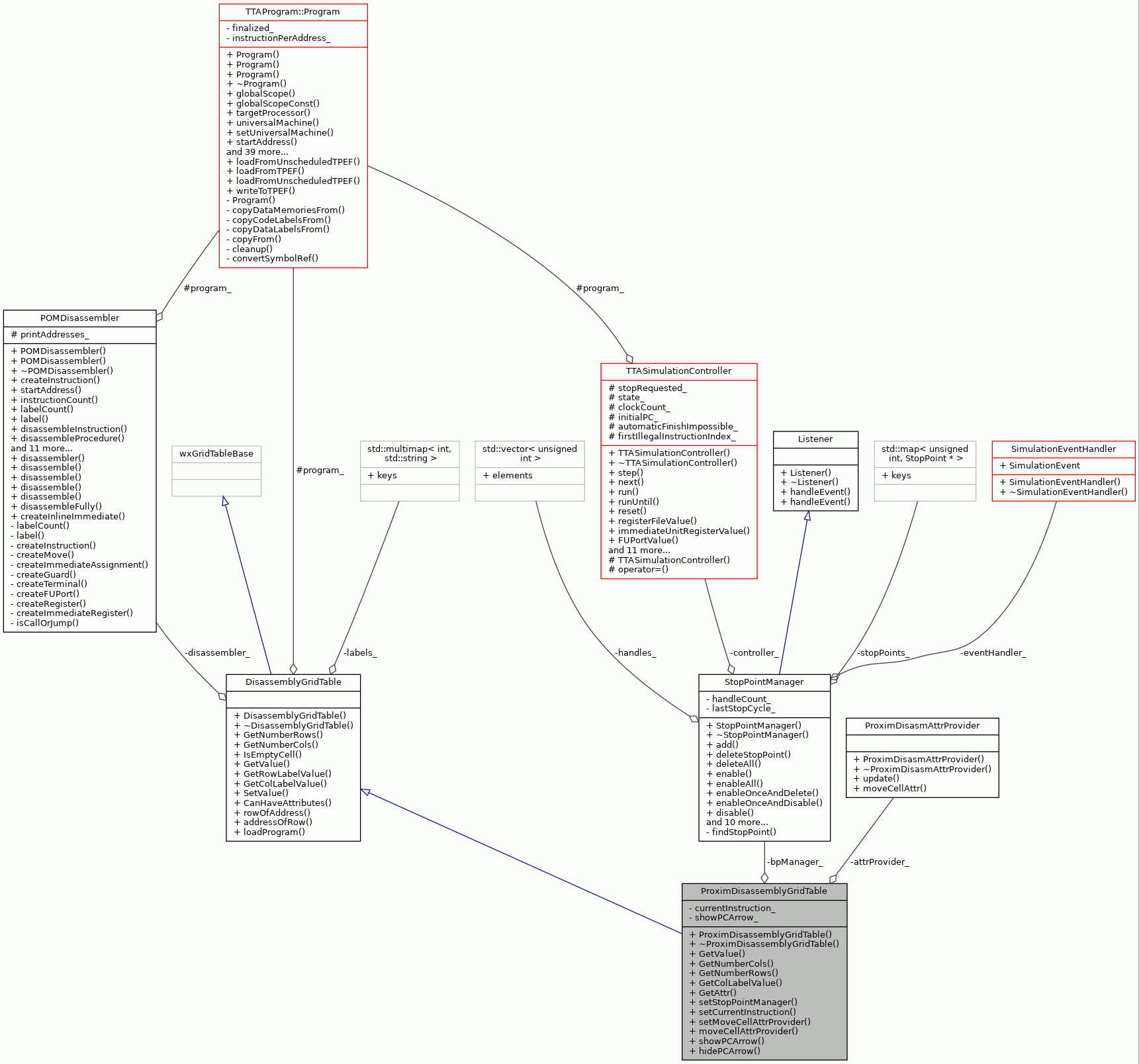

Collaboration diagram for ProximDisassemblyGridTable:

Public Member Functions
	ProximDisassemblyGridTable ()

	~ProximDisassemblyGridTable ()

virtual wxString	GetValue (int row, int col)

virtual int	GetNumberCols ()

virtual int	GetNumberRows ()

virtual wxString	GetColLabelValue (int col)

virtual wxGridCellAttr *	GetAttr (int row, int col, wxGridCellAttr::wxAttrKind kind)

void	setStopPointManager (StopPointManager &manager)

void	setCurrentInstruction (Word address)

void	setMoveCellAttrProvider (ProximDisasmAttrProvider *attrProvider)

ProximDisasmAttrProvider *	moveCellAttrProvider () const

void	showPCArrow ()

void	hidePCArrow ()

Public Member Functions inherited from DisassemblyGridTable
	DisassemblyGridTable ()

virtual	~DisassemblyGridTable ()

virtual bool	IsEmptyCell (int row, int col)

virtual wxString	GetRowLabelValue (int row)

virtual void	SetValue (int row, int col, const wxString &value)

virtual bool	CanHaveAttributes ()

int	rowOfAddress (Word address)

Word	addressOfRow (int row)

void	loadProgram (const TTAProgram::Program &program)

Private Attributes
Word	currentInstruction_
	Program counter value.

StopPointManager *	bpManager_
	Stoppoint manager managing program breakpoints.

bool	showPCArrow_
	True, if the current istrcution arrow should be displayed.

ProximDisasmAttrProvider *	attrProvider_

Additional Inherited Members
Protected Attributes inherited from DisassemblyGridTable
const TTAProgram::Program *	program_
	Program loaded in the table.

Detailed Description

A specialized DisassemblyGridTable class, which adds a column with breakpoint labels and arrow displaying the current instruction to the disassembly grid.

Definition at line 47 of file ProximDisassemblyGridTable.hh.

Constructor & Destructor Documentation

◆ ProximDisassemblyGridTable()

ProximDisassemblyGridTable::ProximDisassemblyGridTable ( )

The Constructor.

Definition at line 49 of file ProximDisassemblyGridTable.cc.

                                                      :
    DisassemblyGridTable(), bpManager_(NULL),
    attrProvider_(NULL) {

}

◆ ~ProximDisassemblyGridTable()

ProximDisassemblyGridTable::~ProximDisassemblyGridTable ( )

The Destructor.

Definition at line 59 of file ProximDisassemblyGridTable.cc.

                                                        {
    if (attrProvider_ != NULL) {
        delete attrProvider_;
    }
}

References attrProvider_.

Member Function Documentation

◆ GetAttr()

wxGridCellAttr * ProximDisassemblyGridTable::GetAttr	(	int	row,
		int	col,
		wxGridCellAttr::wxAttrKind	kind
	)

virtual

Returns cell style attributes for a cell with given row and column.

@paran row Row of the grid cell.

Parameters

col	Column of the grid cell.

Returns: Cell's style attribute.

Definition at line 232 of file ProximDisassemblyGridTable.cc.

                                                   {

    wxGridCellAttr* attr = new wxGridCellAttr();

    if (ProximToolbox::frontend()->isProgramLoaded() &&  row >= 0 && col > 1) {
        if (attrProvider_ != NULL) {
            return attrProvider_->moveCellAttr(addressOfRow(row), col - 2);
        }
    } else {
        attr->SetBackgroundColour(wxColour(180, 180, 180));
    }

    return attr;
}

References DisassemblyGridTable::addressOfRow(), attrProvider_, ProximToolbox::frontend(), and ProximDisasmAttrProvider::moveCellAttr().

Here is the call graph for this function:

◆ GetColLabelValue()

wxString ProximDisassemblyGridTable::GetColLabelValue ( int col )

virtual

Returns label for a column.

Parameters

col	Column index.

Returns: Column label.

Reimplemented from DisassemblyGridTable.

Definition at line 160 of file ProximDisassemblyGridTable.cc.

                                                    {
    if (col > 1) {
        return DisassemblyGridTable::GetColLabelValue(col - 1);
    } else {
        return _T("");
    }
}

References DisassemblyGridTable::GetColLabelValue().

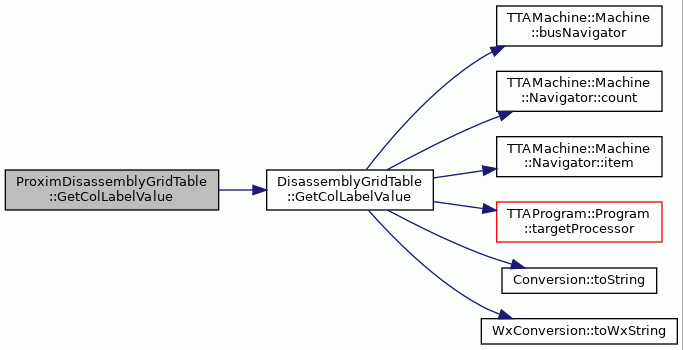

Here is the call graph for this function:

◆ GetNumberCols()

int ProximDisassemblyGridTable::GetNumberCols ( )

virtual

Returns number of columns in the grid.

Returns: Number of columns.

Reimplemented from DisassemblyGridTable.

Definition at line 128 of file ProximDisassemblyGridTable.cc.

                                          {

    if (!ProximToolbox::frontend()->isProgramLoaded()) {
        return 0;
    }

    return DisassemblyGridTable::GetNumberCols() + 1;
}

References ProximToolbox::frontend(), and DisassemblyGridTable::GetNumberCols().

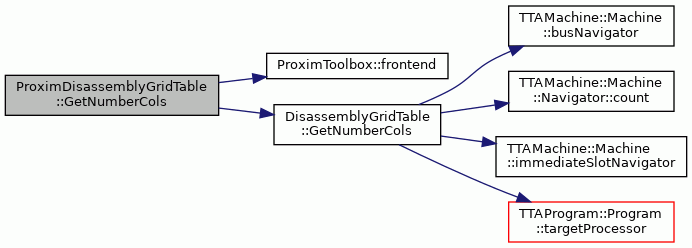

Here is the call graph for this function:

◆ GetNumberRows()

int ProximDisassemblyGridTable::GetNumberRows ( )

virtual

Returns number of rows in the grid.

Returns: Number of rows.

Reimplemented from DisassemblyGridTable.

Definition at line 144 of file ProximDisassemblyGridTable.cc.

                                          {

    if (!ProximToolbox::frontend()->isProgramLoaded()) {
        return 0;
    }

    return DisassemblyGridTable::GetNumberRows();
}

References ProximToolbox::frontend(), and DisassemblyGridTable::GetNumberRows().

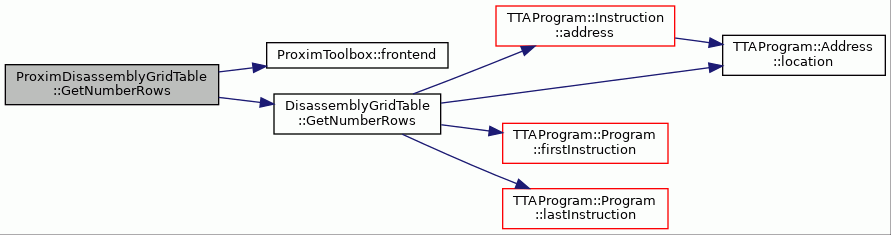

Here is the call graph for this function:

◆ GetValue()

wxString ProximDisassemblyGridTable::GetValue	(	int	row,
		int	col
	)

virtual

Returns text value of a cell.

Parameters

row	Row of the cell.
col	Column of the cell.

Returns: Value of the cell as wxString.

Reimplemented from DisassemblyGridTable.

Definition at line 86 of file ProximDisassemblyGridTable.cc.

                                                     {

    if (!ProximToolbox::frontend()->isProgramLoaded()) {
        return _T("");
    }

    wxString value;

    if (col == 0 && bpManager_ != NULL) {
        for (unsigned i = 0; i < bpManager_->stopPointCount(); i++) {
            unsigned handle = bpManager_->stopPointHandle(i);

            const Breakpoint* bp =
                dynamic_cast<const Breakpoint*>(
                      &bpManager_->stopPointWithHandleConst(handle));

            if (bp != NULL) {
                Word address = bp->address();
                if (address == (Word)row) {
                    value.Append(WxConversion::toWxString(handle));
                    value.Append(_T(" "));
                }
            }
        }
    }

    if (col == 0 && showPCArrow_ && (Word)row == currentInstruction_) {
        value.Append(_T("next>"));
    }

    if (col > 0) {
        value = DisassemblyGridTable::GetValue(row, col - 1);
    }
    return value;
}

References Breakpoint::address(), bpManager_, currentInstruction_, ProximToolbox::frontend(), DisassemblyGridTable::GetValue(), showPCArrow_, StopPointManager::stopPointCount(), StopPointManager::stopPointHandle(), StopPointManager::stopPointWithHandleConst(), and WxConversion::toWxString().

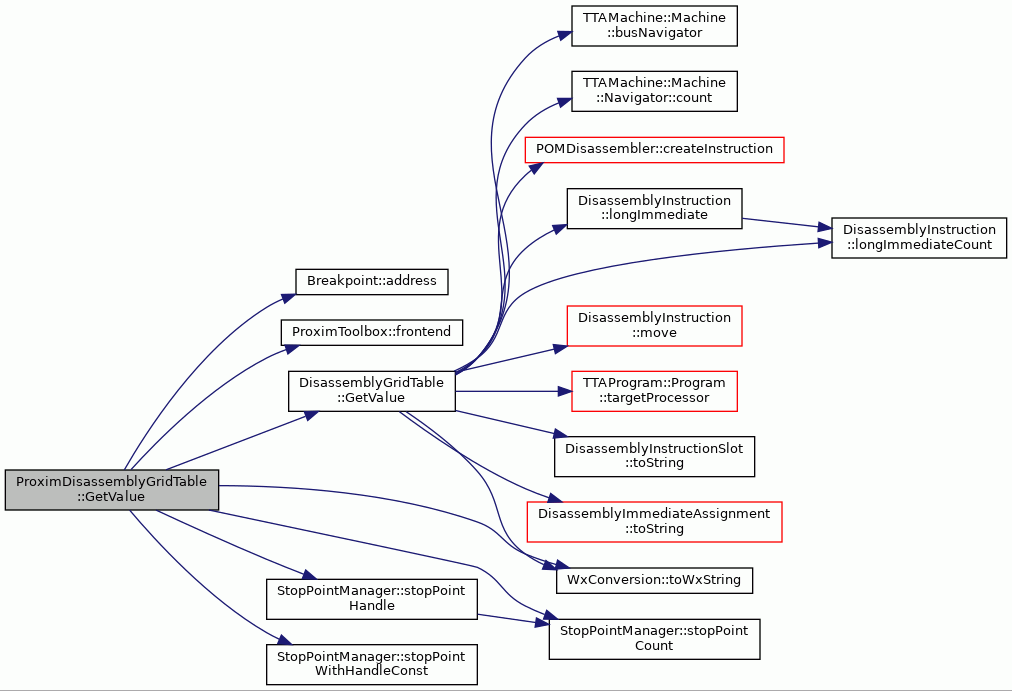

Here is the call graph for this function:

◆ hidePCArrow()

void ProximDisassemblyGridTable::hidePCArrow ( )

Turns off showing of the arrow displaying the current instruction.

Definition at line 180 of file ProximDisassemblyGridTable.cc.

                                        {
    showPCArrow_ = false;
}

References showPCArrow_.

◆ moveCellAttrProvider()

ProximDisasmAttrProvider * ProximDisassemblyGridTable::moveCellAttrProvider ( ) const

Returns the move cell attribute provider.

Returns: Move cell attribute provider, or NULL is it's not set.

Definition at line 219 of file ProximDisassemblyGridTable.cc.

                                                       {
    return attrProvider_;
}

References attrProvider_.

Referenced by ProximDisassemblyWindow::onSimulatorStop().

◆ setCurrentInstruction()

void ProximDisassemblyGridTable::setCurrentInstruction ( Word address )

Sets address of the current instruction.

Parameters

address Address of the current instruction.

Definition at line 191 of file ProximDisassemblyGridTable.cc.

                                                              {
    currentInstruction_ = address;
}

References currentInstruction_.

Referenced by ProximDisassemblyWindow::loadProgram(), and ProximDisassemblyWindow::onSimulatorStop().

◆ setMoveCellAttrProvider()

void ProximDisassemblyGridTable::setMoveCellAttrProvider ( ProximDisasmAttrProvider * attrProvider )

Sets the cell attribute provider for cell's containing move disassembly.

ProximDisassemblyGridTable take ownership of the pointer and deletes the object when it's no longer needed.

Parameters

attrProvider New move cell attribute provider.

Definition at line 204 of file ProximDisassemblyGridTable.cc.

                                            {

    if (attrProvider_ != NULL) {
        delete attrProvider_;
    }
    attrProvider_ = attrProvider;
}

References attrProvider_.

Referenced by ProximDisassemblyWindow::setMoveAttrProvider().

◆ setStopPointManager()

void ProximDisassemblyGridTable::setStopPointManager ( StopPointManager & bpManager )

Sets the breakpoint manager containing program breakpoints to display.

Parameters

bpManager Breakpoint manager of the program.

Definition at line 71 of file ProximDisassemblyGridTable.cc.

                                 {

    bpManager_ = &bpManager;
}

References bpManager_.

Referenced by ProximDisassemblyWindow::loadProgram().

◆ showPCArrow()

void ProximDisassemblyGridTable::showPCArrow ( )

Turns on showing of the arrow displaying the current instruction.

Definition at line 172 of file ProximDisassemblyGridTable.cc.

                                        {
    showPCArrow_ = true;
}

References showPCArrow_.

Referenced by ProximDisassemblyWindow::loadProgram().

Member Data Documentation

◆ attrProvider_

ProximDisasmAttrProvider* ProximDisassemblyGridTable::attrProvider_

private

Definition at line 74 of file ProximDisassemblyGridTable.hh.

Referenced by GetAttr(), moveCellAttrProvider(), setMoveCellAttrProvider(), and ~ProximDisassemblyGridTable().

◆ bpManager_

StopPointManager* ProximDisassemblyGridTable::bpManager_

private

Stoppoint manager managing program breakpoints.

Definition at line 70 of file ProximDisassemblyGridTable.hh.

Referenced by GetValue(), and setStopPointManager().

◆ currentInstruction_

Word ProximDisassemblyGridTable::currentInstruction_

private

Program counter value.

Definition at line 68 of file ProximDisassemblyGridTable.hh.

Referenced by GetValue(), and setCurrentInstruction().

◆ showPCArrow_

bool ProximDisassemblyGridTable::showPCArrow_

private

True, if the current istrcution arrow should be displayed.

Definition at line 72 of file ProximDisassemblyGridTable.hh.

Referenced by GetValue(), hidePCArrow(), and showPCArrow().

The documentation for this class was generated from the following files:
