#include <DisassemblyGridTable.hh>

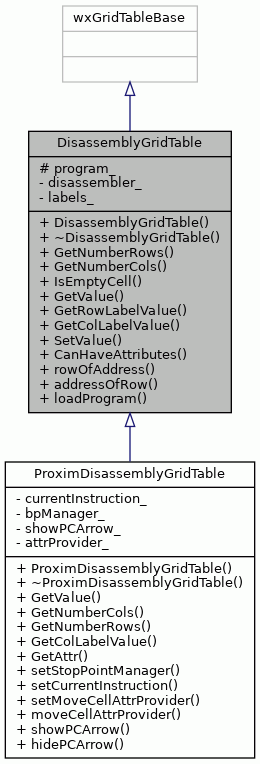

Inheritance diagram for DisassemblyGridTable:

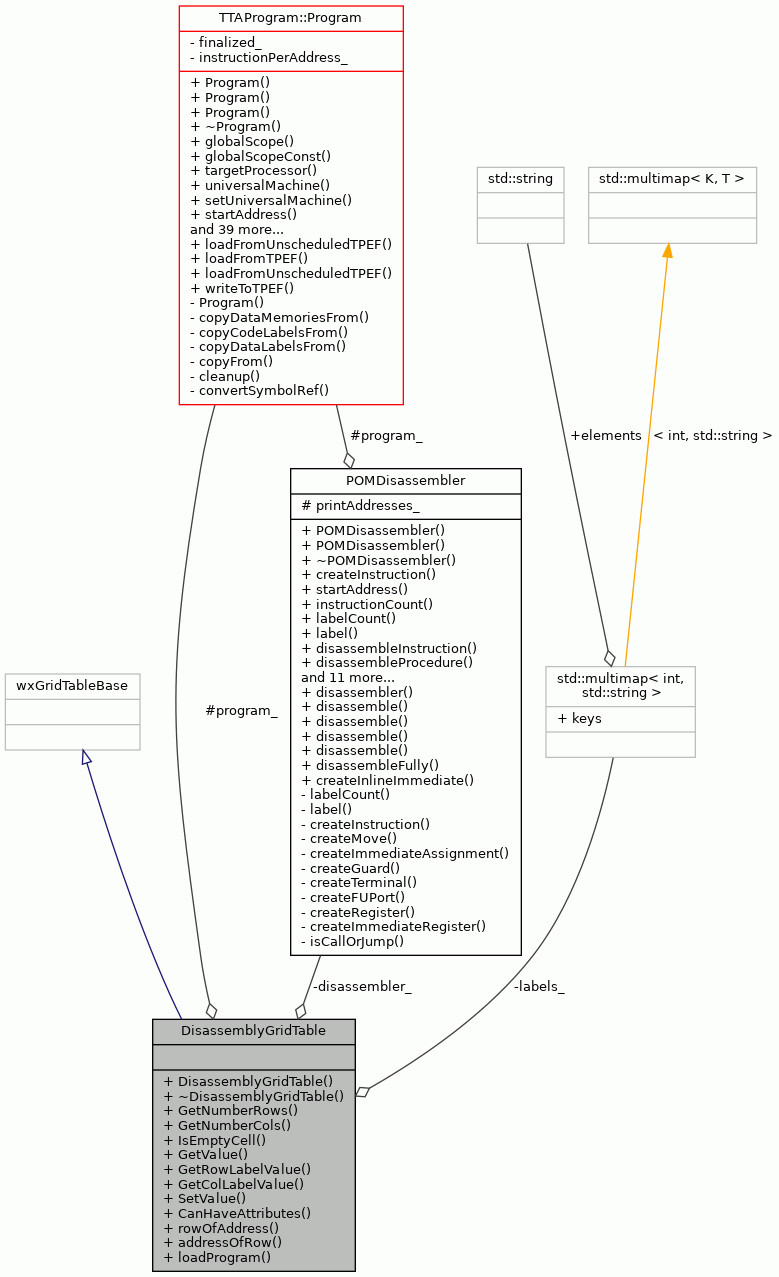

Collaboration diagram for DisassemblyGridTable:

Public Member Functions
	DisassemblyGridTable ()

virtual	~DisassemblyGridTable ()

virtual int	GetNumberRows ()

virtual int	GetNumberCols ()

virtual bool	IsEmptyCell (int row, int col)

virtual wxString	GetValue (int row, int col)

virtual wxString	GetRowLabelValue (int row)

virtual wxString	GetColLabelValue (int col)

virtual void	SetValue (int row, int col, const wxString &value)

virtual bool	CanHaveAttributes ()

int	rowOfAddress (Word address)

Word	addressOfRow (int row)

void	loadProgram (const TTAProgram::Program &program)

Protected Attributes
const TTAProgram::Program *	program_
	Program loaded in the table.

Private Types
typedef std::multimap< int, std::string >	LabelMap
	Type for the labels multimap.

Private Attributes
POMDisassembler *	disassembler_
	Disassembler for generating instruction disassemblies.

LabelMap	labels_
	Program labels.

Detailed Description

Grid table class which allows wxGrid to display disassembly of a tta program by disassembling only the currently visible instructions. Purpose of the 'lazy' disasembling is to conserve memory and processing time when the program is very large.

Definition at line 54 of file DisassemblyGridTable.hh.

Member Typedef Documentation

◆ LabelMap

typedef std::multimap<int, std::string> DisassemblyGridTable::LabelMap

private

Type for the labels multimap.

Definition at line 77 of file DisassemblyGridTable.hh.

Constructor & Destructor Documentation

◆ DisassemblyGridTable()

DisassemblyGridTable::DisassemblyGridTable ( )

The Constructor.

Definition at line 55 of file DisassemblyGridTable.cc.

                                          :
    wxGridTableBase(), program_(NULL), disassembler_(NULL) {

}

◆ ~DisassemblyGridTable()

DisassemblyGridTable::~DisassemblyGridTable ( )

virtual

The Destructor.

Definition at line 64 of file DisassemblyGridTable.cc.

                                            {
    if (disassembler_ != NULL) {
        delete disassembler_;
    }
}

References disassembler_.

Member Function Documentation

◆ addressOfRow()

Word DisassemblyGridTable::addressOfRow ( int row )

Returns address of the instruction on a row.

Parameters

row	Row of the instruction.

Returns: Address of the instruction.

Definition at line 254 of file DisassemblyGridTable.cc.

                                          {
    return (Word)row;
}

Referenced by ProximDisassemblyGridTable::GetAttr(), ProximDisassemblyWindow::onRightClick(), ProximDisassemblyWindow::onRunUntil(), ProximDisassemblyWindow::onSetBreakpoint(), and ProximDisassemblyWindow::onSetTempBp().

◆ CanHaveAttributes()

bool DisassemblyGridTable::CanHaveAttributes ( )

virtual

Returns true if the grid cells can have attributes.

Returns: Always true.

Definition at line 204 of file DisassemblyGridTable.cc.

                                        {
    return true;
}

◆ GetColLabelValue()

wxString DisassemblyGridTable::GetColLabelValue ( int col )

virtual

Returns column label of a grid column.

Parameters

col	Column number.

Returns: Label for the grid column.

Reimplemented in ProximDisassemblyGridTable.

Definition at line 180 of file DisassemblyGridTable.cc.

                                              {

    int busCount = program_->targetProcessor().busNavigator().count();

    if (col > 0 && col < (busCount + 1)) {
        const TTAMachine::Machine::BusNavigator& navigator =
            program_->targetProcessor().busNavigator();

        string label = Conversion::toString(col - 1);
        label += ": ";
        label += navigator.item(col - 1)->name();
        return WxConversion::toWxString(label);
    } else {
        return _T("");
    }
}

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::Navigator< ComponentType >::item(), program_, TTAProgram::Program::targetProcessor(), Conversion::toString(), and WxConversion::toWxString().

Referenced by ProximDisassemblyGridTable::GetColLabelValue().

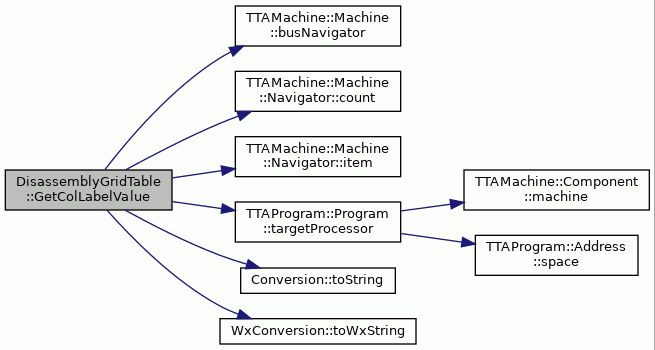

Here is the call graph for this function:

◆ GetNumberCols()

int DisassemblyGridTable::GetNumberCols ( )

virtual

Returns column count of the grid.

Returns: Number of coulmns in the table.

Reimplemented in ProximDisassemblyGridTable.

Definition at line 92 of file DisassemblyGridTable.cc.

                                    {
    int busCount = program_->targetProcessor().busNavigator().count();
    int immSlotCount =
        program_->targetProcessor().immediateSlotNavigator().count();
    return busCount + immSlotCount + 1;
}

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::immediateSlotNavigator(), program_, and TTAProgram::Program::targetProcessor().

Referenced by ProximDisassemblyGridTable::GetNumberCols().

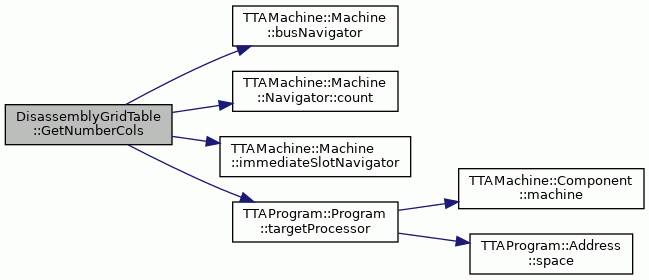

Here is the call graph for this function:

◆ GetNumberRows()

int DisassemblyGridTable::GetNumberRows ( )

virtual

Returns row count of the grid.

The row count is limited to MAX_ROWS due to limtiations of wxGrid.

Returns: Number of rows in the table.

Reimplemented in ProximDisassemblyGridTable.

Definition at line 79 of file DisassemblyGridTable.cc.

                                    {
    Word firstAddress = program_->firstInstruction().address().location();
    Word lastAddress = program_->lastInstruction().address().location();
    return lastAddress - firstAddress + 1;
}

References TTAProgram::Instruction::address(), TTAProgram::Program::firstInstruction(), TTAProgram::Program::lastInstruction(), TTAProgram::Address::location(), and program_.

Referenced by ProximDisassemblyGridTable::GetNumberRows().

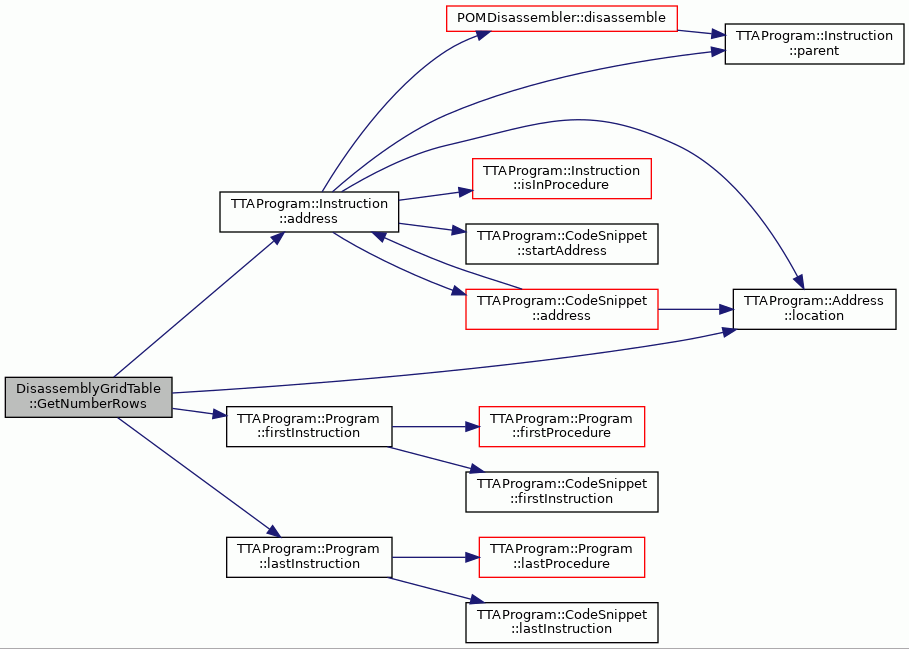

Here is the call graph for this function:

◆ GetRowLabelValue()

wxString DisassemblyGridTable::GetRowLabelValue ( int row )

virtual

Returns row label of a grid row.

Parameters

row	Row number.

Returns: Label for the grid row.

Definition at line 168 of file DisassemblyGridTable.cc.

                                              {
    return WxConversion::toWxString(row);
}

References WxConversion::toWxString().

Here is the call graph for this function:

◆ GetValue()

wxString DisassemblyGridTable::GetValue	(	int	row,
		int	col
	)

virtual

Returns cell value as a wxString.

Parameters

row	Row of the cell.
col	Column of the cell.

Returns: Cell contents as a wxString.

Reimplemented in ProximDisassemblyGridTable.

Definition at line 121 of file DisassemblyGridTable.cc.

                                               {

    int busCount = program_->targetProcessor().busNavigator().count();

    if (col == 0) {
        wxString labels = WxConversion::toWxString("");
        std::pair<LabelMap::iterator, LabelMap::iterator> range =
            labels_.equal_range(row);
        LabelMap::iterator firstEqual = range.first;
        LabelMap::iterator lastEqual = range.second;
        while (firstEqual != lastEqual) {
                labels += WxConversion::toWxString(firstEqual->second)
                       + WxConversion::toWxString(" ");
                firstEqual++;
            }
            return labels;
    } else if (col > 0) {
        Word address = (Word) row;
        DisassemblyInstruction* disassembly =
            disassembler_->createInstruction(address);

        wxString disasm;
        if (col < (busCount + 1)) {
            disasm = WxConversion::toWxString(
                disassembly->move(col - 1).toString());
        } else {
            int immCount = static_cast<int>(disassembly->longImmediateCount());
            if (col < (busCount + 1 + immCount)) {
                disasm = WxConversion::toWxString(
                    disassembly->longImmediate(col - 1 - busCount).toString());
            }
        }
        delete disassembly;
        return disasm;
    }

    return _T("");
}

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), POMDisassembler::createInstruction(), disassembler_, labels_, DisassemblyInstruction::longImmediate(), DisassemblyInstruction::longImmediateCount(), DisassemblyInstruction::move(), program_, TTAProgram::Program::targetProcessor(), DisassemblyImmediateAssignment::toString(), DisassemblyInstructionSlot::toString(), and WxConversion::toWxString().

Referenced by ProximDisassemblyGridTable::GetValue().

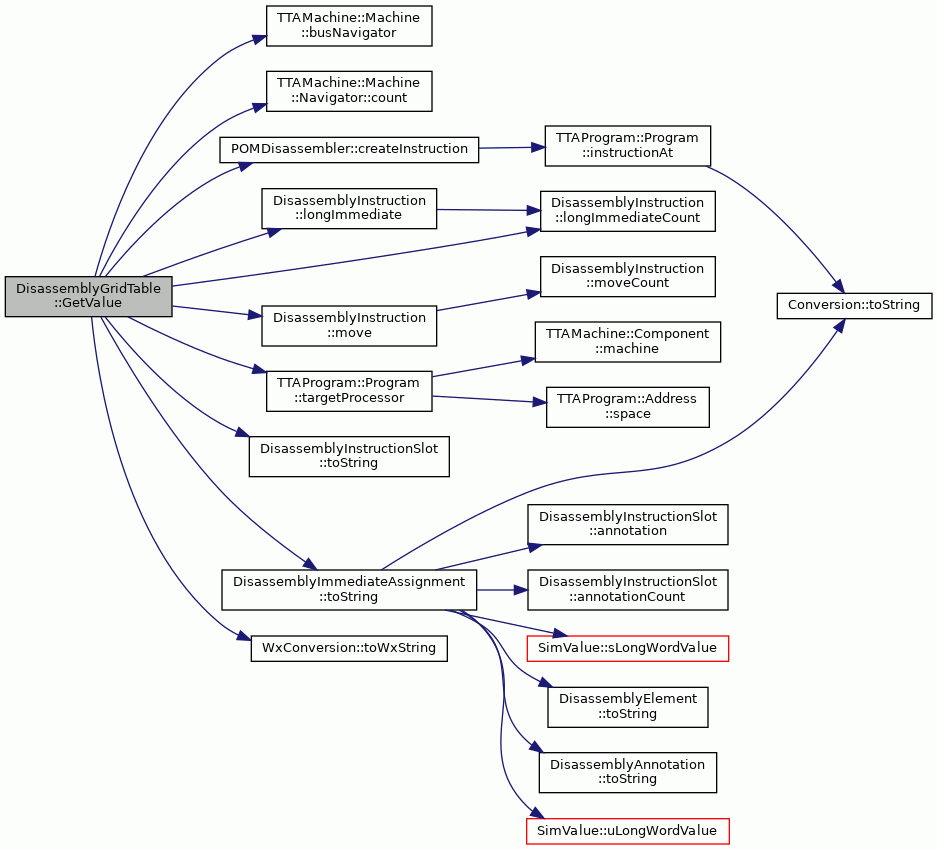

Here is the call graph for this function:

◆ IsEmptyCell()

bool DisassemblyGridTable::IsEmptyCell	(	int	row,
		int	col
	)

virtual

Returns true, if the given cell is empty, false otherwise.

Parameters

row	Row of the cell.
col	Column of the cell.

Returns: True, if the column is empty.

Definition at line 108 of file DisassemblyGridTable.cc.

                                              {
    return false;
}

◆ loadProgram()

void DisassemblyGridTable::loadProgram ( const TTAProgram::Program & program )

Loads a new program in the grid table.

Parameters

program Program to load.

Definition at line 224 of file DisassemblyGridTable.cc.

                                                        {

    program_ = &program;

    if (disassembler_ != NULL) {
        delete disassembler_;
    }

    disassembler_ = new POMDisassembler(program);

    labels_.clear();

    const GlobalScope& gScope = program_->globalScopeConst();
    int labelCount = gScope.globalCodeLabelCount();

    for (int i = 0; i < labelCount; i++) {
        const CodeLabel& codeLabel = gScope.globalCodeLabel(i);
        unsigned address = codeLabel.address().location();
        std::string label = codeLabel.name();
        labels_.insert(std::pair<unsigned, string>(address, label));
    }
}

References TTAProgram::CodeLabel::address(), disassembler_, TTAProgram::GlobalScope::globalCodeLabel(), TTAProgram::GlobalScope::globalCodeLabelCount(), TTAProgram::Program::globalScopeConst(), labels_, TTAProgram::Address::location(), TTAProgram::Label::name(), program, and program_.

Referenced by ProximDisassemblyWindow::loadProgram().

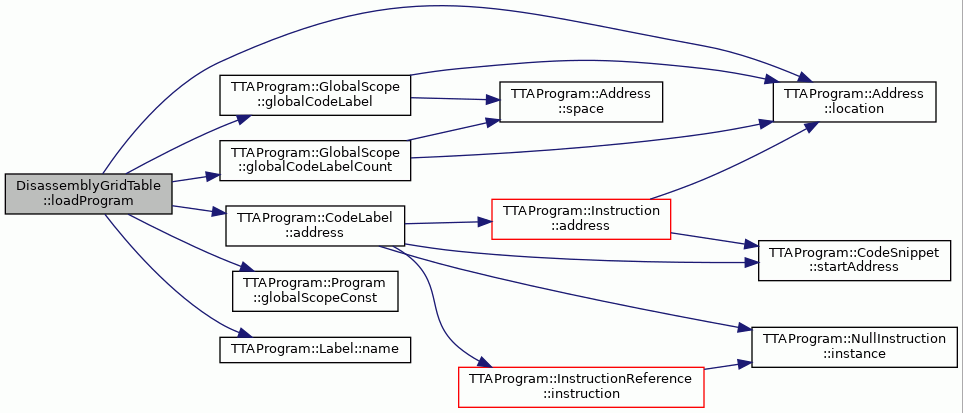

Here is the call graph for this function:

◆ rowOfAddress()

int DisassemblyGridTable::rowOfAddress ( Word address )

Returns row of the instruction with given address.

Parameters

address Address of the instruction.

Returns: Row of the instruction.

Definition at line 266 of file DisassemblyGridTable.cc.

                                               {
    return (int)address;
}

Referenced by ProximDisassemblyWindow::showAddress().

◆ SetValue()

void DisassemblyGridTable::SetValue	(	int	row,
		int	col,
		const wxString &	value
	)

virtual

Not implemented, use setCellValue() instead.

Definition at line 213 of file DisassemblyGridTable.cc.

                                                        {
    // Do nothing.
}

Member Data Documentation

◆ disassembler_

POMDisassembler* DisassemblyGridTable::disassembler_

private

Disassembler for generating instruction disassemblies.

Definition at line 74 of file DisassemblyGridTable.hh.

Referenced by GetValue(), loadProgram(), and ~DisassemblyGridTable().

◆ labels_

LabelMap DisassemblyGridTable::labels_

private

Program labels.

Definition at line 80 of file DisassemblyGridTable.hh.

Referenced by GetValue(), and loadProgram().

◆ program_

const TTAProgram::Program* DisassemblyGridTable::program_

protected

Program loaded in the table.

Definition at line 71 of file DisassemblyGridTable.hh.

Referenced by GetColLabelValue(), GetNumberCols(), GetNumberRows(), GetValue(), and loadProgram().

The documentation for this class was generated from the following files:
