ResourceBuildDirector Class Reference

#include <ResourceBuildDirector.hh>

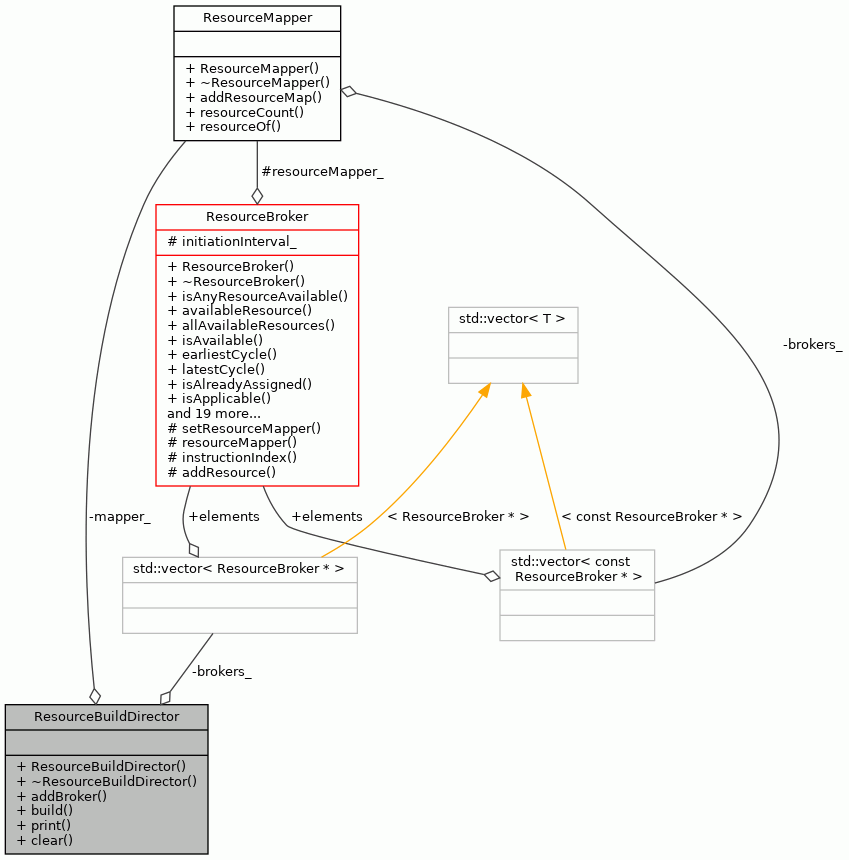

Collaboration diagram for ResourceBuildDirector:

Public Member Functions
	ResourceBuildDirector ()
virtual	~ResourceBuildDirector ()
void	addBroker (ResourceBroker &broker)
void	build (const TTAMachine::Machine &machine)
void	print (std::ostream &target_, unsigned int cycles) const
void	clear ()

Private Attributes
std::vector< ResourceBroker * >	brokers_
	Resource brokers.
ResourceMapper	mapper_
	Resource mapper.

Detailed Description

Handles resource model construction.

Definition at line 51 of file ResourceBuildDirector.hh.

Constructor & Destructor Documentation

ResourceBuildDirector()

ResourceBuildDirector::ResourceBuildDirector

(

)

Constructor.

Definition at line 42 of file ResourceBuildDirector.cc.

                                             {
}

~ResourceBuildDirector()

ResourceBuildDirector::~ResourceBuildDirector ( )

virtual

Destructor.

Definition at line 48 of file ResourceBuildDirector.cc.

                                             {
    SequenceTools::deleteAllItems(brokers_);
}

References brokers_, and SequenceTools::deleteAllItems().

Here is the call graph for this function:

Member Function Documentation

addBroker()

void ResourceBuildDirector::addBroker

(

ResourceBroker &

broker

)

Add given broker to the list of brokers responsible for resource construction.

The order in which brokers are added is irrelevant.

Parameters

broker

Broker to add.

Definition at line 61 of file ResourceBuildDirector.cc.

                                                       {
    if (ContainerTools::containsValue(brokers_, &broker)) {
        throw ObjectAlreadyExists(__FILE__, __LINE__, __func__);
    } else {
        brokers_.push_back(&broker);
    }
}

References __func__, brokers_, and ContainerTools::containsValue().

Referenced by SimpleResourceManager::buildResourceModel().

Here is the call graph for this function:

build()

void ResourceBuildDirector::build

(

const TTAMachine::Machine &

machine

)

Build a complete resource object model for given target processor.

@machine Machine to build from.

Definition at line 75 of file ResourceBuildDirector.cc.

                                                             {

    // build primary resources
    for (unsigned int i = 0; i < brokers_.size(); i++) {
        brokers_[i]->buildResources(machine);
        mapper_.addResourceMap(*brokers_[i]);
    }

    // setup dependent and related resource links
    for (unsigned int i = 0; i < brokers_.size(); i++) {
        brokers_[i]->setupResourceLinks(mapper_);
    }
    for (unsigned int i = 0; i < brokers_.size(); i++) {
        // broker throws in case problem is found
        brokers_[i]->validateResources();
    }
}

References ResourceMapper::addResourceMap(), brokers_, machine, and mapper_.

Referenced by SimpleResourceManager::buildResourceModel().

Here is the call graph for this function:

clear()

void ResourceBuildDirector::clear

(

)

Clears all resources of the resouce manager so that the RM can be reused.

Definition at line 178 of file ResourceBuildDirector.cc.

                             {
    for (size_t i = 0; i < brokers_.size(); i++) {
        brokers_[i]->clear();
    }
}

References brokers_.

Referenced by SimpleResourceManager::clear().

print()

void ResourceBuildDirector::print	(	std::ostream &	target_,
		unsigned int	cycles
	)		const

Print resource manager's contents.

Parameters

target_	Output stream to pring (eg. std::cout).
cycles	How many cycles to print.

@machine Machine to build from.

Definition at line 102 of file ResourceBuildDirector.cc.

{
    std::vector<ResourceBroker::ResourceSet> contents;
    std::vector<ResourceBroker::ResourceSet::iterator> contentIterators;

    bool finished = false;
    unsigned int k = 0;
    unsigned int minWidth = cycles;

    // determine minimum width for field, it is constrained by cycle count or broker's name
    for (std::vector<ResourceBroker*>::const_iterator i = brokers_.begin(); i != brokers_.end(); ++i) {

        std::string name =  (*i)->brokerName();

        if(name.length() > minWidth) {
            minWidth = name.length();
        }
    }
    minWidth += 1;

    // print broker names
    for (std::vector<ResourceBroker*>::const_iterator i = brokers_.begin(); i != brokers_.end(); ++i) {
        target_ << std::left << std::setw(minWidth);
        target_ << (*i)->brokerName();
    }
    target_ << std::endl;

    // print broker reservation tables
    while (!finished) {

        finished = true;
        for (std::vector<ResourceBroker*>::const_iterator i = brokers_.begin(); i != brokers_.end(); ++i) {

            ResourceBroker::ResourceSet c;
            (*i)->resources(c);
            ResourceBroker::ResourceSet::iterator j = c.begin();

            if(k >= c.size()) {
                target_ << std::left << std::setw(minWidth) << ' ';
                //<<
//                    std::string(cycles, ' ');
                continue;
            }

            std::advance(j, k);

            if(j == c.end()) {
//                target_ << std::left << std::setw(minWidth) <<
//                    std::string(cycles, ' ');
                continue;
            }

            finished = false;

            std::string table = "";
            for (unsigned int cycle = 0; cycle < cycles; ++cycle)
            {
                if((*j)->isAvailable(cycle)) {
                    table += '-';
                }
                else {
                    table += '#';
                    std::cerr << (*j) << " " << (*j)->name() << std::endl;
                }
            }
            target_ << std::left << std::setw(minWidth) << table;
        }
        target_ << std::endl;
        k += 1;
    }
}

References brokers_.

Referenced by SimpleResourceManager::print(), and SimpleResourceManager::toString().

Member Data Documentation

brokers_

std::vector<ResourceBroker*> ResourceBuildDirector::brokers_

private

Resource brokers.

Definition at line 63 of file ResourceBuildDirector.hh.

Referenced by addBroker(), build(), clear(), print(), and ~ResourceBuildDirector().

mapper_

ResourceMapper ResourceBuildDirector::mapper_

private

Resource mapper.

Definition at line 65 of file ResourceBuildDirector.hh.

Referenced by build().

---

The documentation for this class was generated from the following files:

• ResourceBuildDirector.hh
• ResourceBuildDirector.cc
