#include <ResourceBroker.hh>

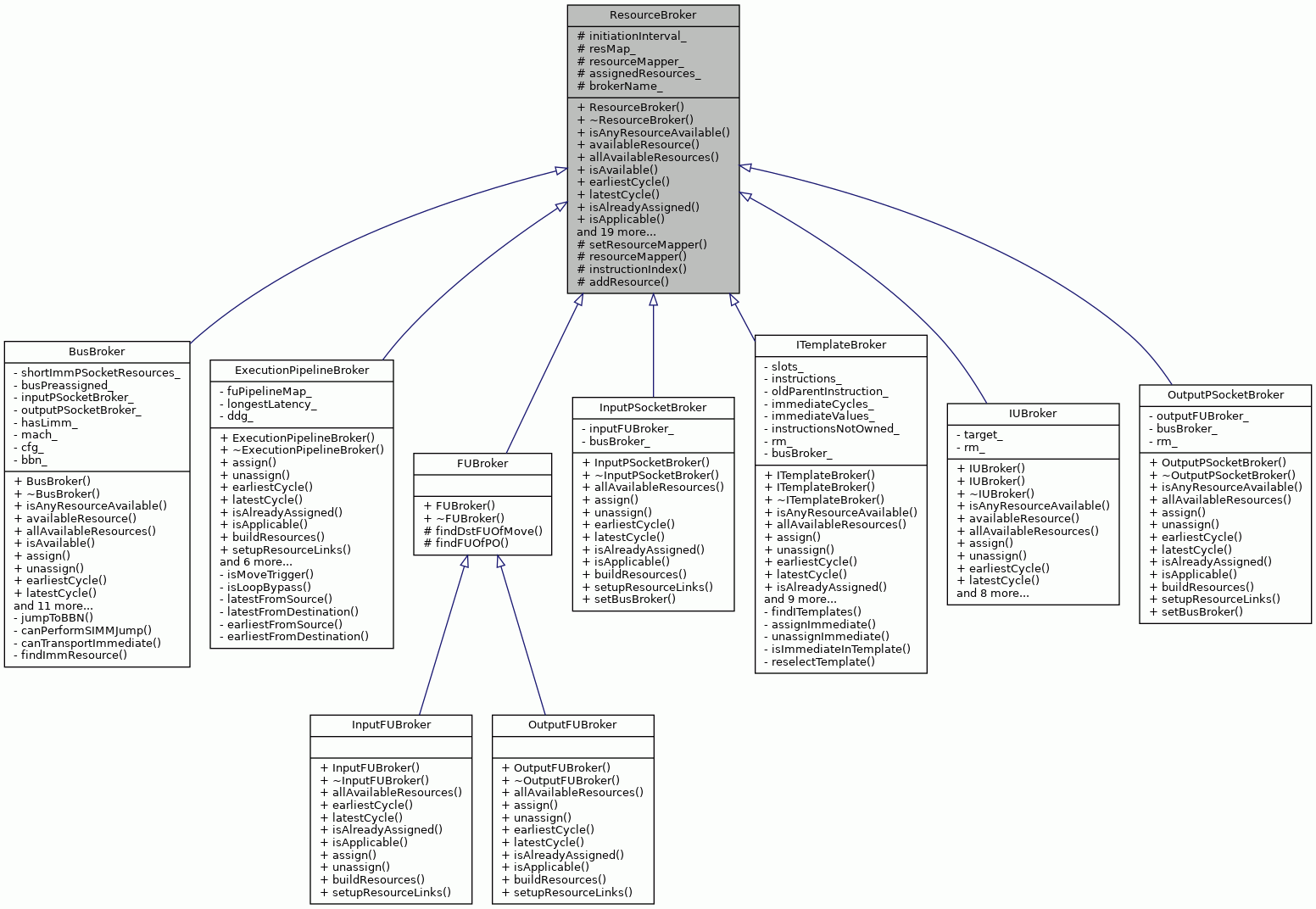

Inheritance diagram for ResourceBroker:

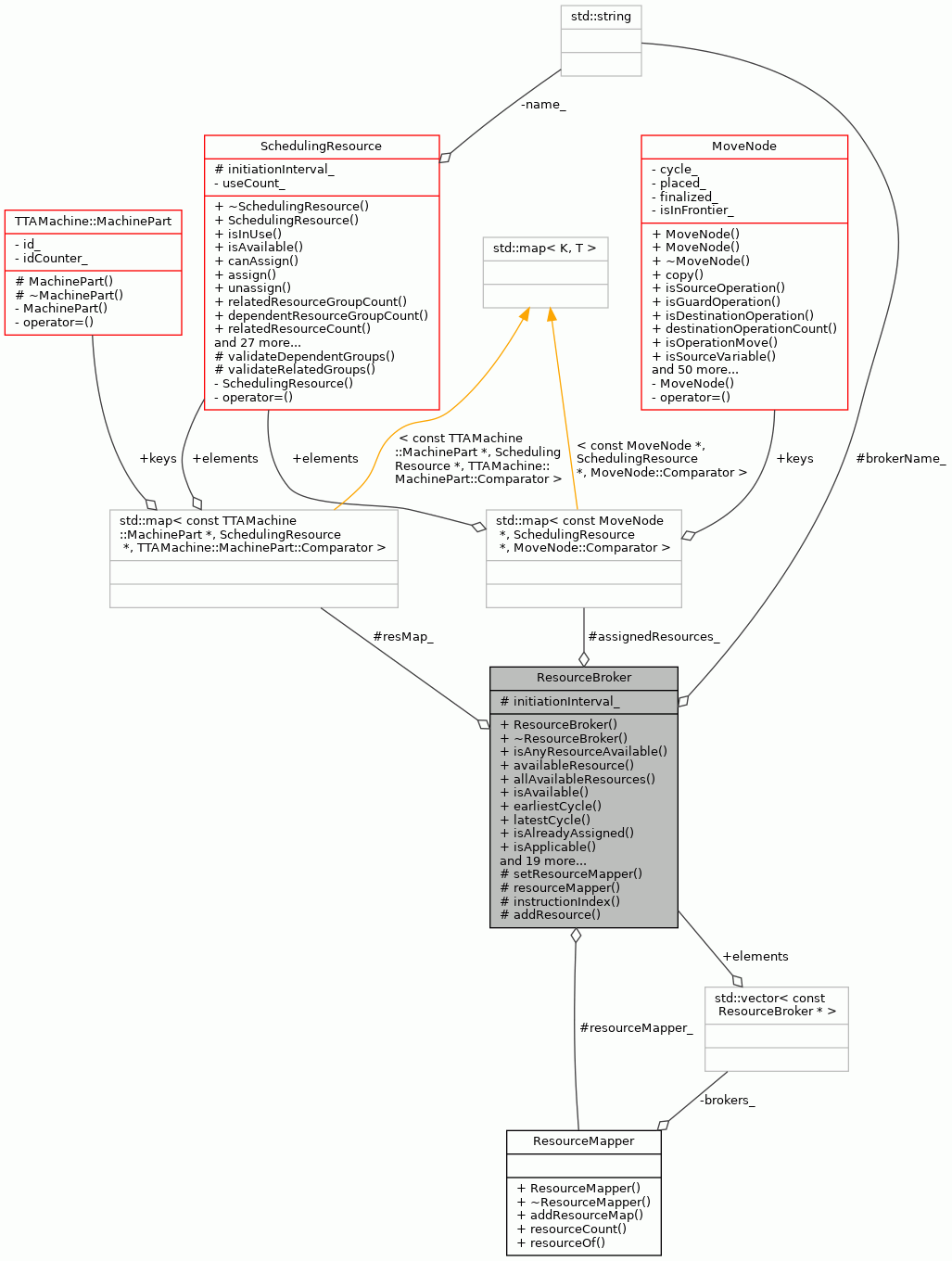

Collaboration diagram for ResourceBroker:

Public Types
typedef std::set< SchedulingResource * >	ResourceSet

Public Member Functions
	ResourceBroker (std::string, unsigned int initiationInterval=0)

virtual	~ResourceBroker ()

virtual bool	isAnyResourceAvailable (int cycle, const MoveNode &node, const TTAMachine::Bus bus, const TTAMachine::FunctionUnit srcFU, const TTAMachine::FunctionUnit dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit immu, int immRegIndex) const

virtual SchedulingResource &	availableResource (int cycle, const MoveNode &node, const TTAMachine::Bus bus, const TTAMachine::FunctionUnit srcFU, const TTAMachine::FunctionUnit dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit immu, int immRegIndex) const

virtual SchedulingResourceSet	allAvailableResources (int cycle, const MoveNode &node, const TTAMachine::Bus bus, const TTAMachine::FunctionUnit srcFU, const TTAMachine::FunctionUnit dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit immu, int immRegIndex) const

virtual bool	isAvailable (SchedulingResource &des, const MoveNode &node, int cycle, const TTAMachine::Bus bus, const TTAMachine::FunctionUnit srcFU, const TTAMachine::FunctionUnit dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit immu, int immRegIndex) const

virtual int	earliestCycle (int cycle, const MoveNode &node, const TTAMachine::Bus bus, const TTAMachine::FunctionUnit srcFU, const TTAMachine::FunctionUnit dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit immu, int immRegIndex) const =0

virtual int	latestCycle (int cycle, const MoveNode &node, const TTAMachine::Bus bus, const TTAMachine::FunctionUnit srcFU, const TTAMachine::FunctionUnit dstFU, int immWriteCycle, const TTAMachine::ImmediateUnit immu, int immRegIndex) const =0

virtual bool	isAlreadyAssigned (int cycle, const MoveNode &node, const TTAMachine::Bus *preassignedBus) const =0

virtual bool	isApplicable (const MoveNode &node, const TTAMachine::Bus *preassignedBus) const =0

virtual void	assign (int cycle, MoveNode &node, SchedulingResource &res, int immWriteCycle, int immRegIndex)=0

virtual void	unassign (MoveNode &node)=0

virtual void	buildResources (const TTAMachine::Machine &target)=0

virtual void	setupResourceLinks (const ResourceMapper &mapper)=0

SchedulingResource *	resourceOf (const TTAMachine::MachinePart &mp) const

virtual const TTAMachine::MachinePart &	machinePartOf (const SchedulingResource &r) const

bool	hasResourceOf (const TTAMachine::MachinePart &mp) const

bool	hasResource (const SchedulingResource &r) const

int	resourceCount () const

virtual bool	isBusBroker () const

virtual bool	isITemplateBroker () const

virtual bool	isIUBroker () const

virtual bool	isExecutionPipelineBroker () const

void	validateResources () const

virtual std::string	brokerName () const

void	resources (ResourceSet &contents)

virtual void	setInitiationInterval (unsigned int cycles)

virtual void	clear ()

virtual void	setMaxCycle (unsigned int)

Protected Types
typedef std::map< const TTAMachine::MachinePart , SchedulingResource , TTAMachine::MachinePart::Comparator >	ResourceMap

typedef std::map< const MoveNode , SchedulingResource , MoveNode::Comparator >	MoveResMap

Protected Member Functions
void	setResourceMapper (const ResourceMapper &mapper)

const ResourceMapper &	resourceMapper () const

unsigned int	instructionIndex (unsigned int) const

void	addResource (const TTAMachine::MachinePart &mp, SchedulingResource *res)

Protected Attributes
unsigned int	initiationInterval_

ResourceMap	resMap_

const ResourceMapper *	resourceMapper_

MoveResMap	assignedResources_

std::string	brokerName_

Detailed Description

Base interface for resource brokers.

Definition at line 61 of file ResourceBroker.hh.

Member Typedef Documentation

◆ MoveResMap

typedef std::map<const MoveNode*, SchedulingResource*, MoveNode::Comparator> ResourceBroker::MoveResMap

protected

Definition at line 154 of file ResourceBroker.hh.

◆ ResourceMap

typedef std::map< const TTAMachine::MachinePart*, SchedulingResource*, TTAMachine::MachinePart::Comparator> ResourceBroker::ResourceMap

protected

Definition at line 151 of file ResourceBroker.hh.

◆ ResourceSet

typedef std::set<SchedulingResource*> ResourceBroker::ResourceSet

Definition at line 66 of file ResourceBroker.hh.

Constructor & Destructor Documentation

◆ ResourceBroker()

ResourceBroker::ResourceBroker	(	std::string	name,
		unsigned int	initiationInterval = `0`
	)

Constructor.

Definition at line 49 of file ResourceBroker.cc.

                                        :
    initiationInterval_(initiationInterval),
    resourceMapper_(NULL),
    brokerName_(name){
}

◆ ~ResourceBroker()

ResourceBroker::~ResourceBroker ( )

virtual

Destructor.

Definition at line 59 of file ResourceBroker.cc.

                                {
    MapTools::deleteAllValues(resMap_);
}

References MapTools::deleteAllValues(), and resMap_.

Here is the call graph for this function:

Member Function Documentation

◆ addResource()

void ResourceBroker::addResource	(	const TTAMachine::MachinePart &	mp,
		SchedulingResource *	res
	)

protected

Add resource - machine part pair to the broker.

Parameters

mp	Machine part.
res	Corresponding resource.

Definition at line 265 of file ResourceBroker.cc.

                             {

    resMap_.insert(
        pair<const TTAMachine::MachinePart*, SchedulingResource*>(&mp, res));
}

References resMap_.

Referenced by BusBroker::buildResources(), ExecutionPipelineBroker::buildResources(), InputFUBroker::buildResources(), InputPSocketBroker::buildResources(), ITemplateBroker::buildResources(), IUBroker::buildResources(), OutputFUBroker::buildResources(), and OutputPSocketBroker::buildResources().

◆ allAvailableResources()

SchedulingResourceSet ResourceBroker::allAvailableResources	(	int	cycle,
		const MoveNode &	node,
		const TTAMachine::Bus *	bus,
		const TTAMachine::FunctionUnit *	srcFU,
		const TTAMachine::FunctionUnit *	dstFU,
		int	immWriteCycle,
		const TTAMachine::ImmediateUnit *	immu,
		int	immRegIndex
	)		const

virtual

Return all resources managed by this broker that can be assigned to the given node in the given cycle.

Returns: All resources managed by this broker that can be assigned to the given node in the given cycle.

Parameters

cycle	Cycle.
node	Node.

Note: This default implementation always returns an empty set.

Reimplemented in BusBroker, InputFUBroker, InputPSocketBroker, OutputFUBroker, OutputPSocketBroker, IUBroker, and ITemplateBroker.

Definition at line 143 of file ResourceBroker.cc.

                                                 {
    SchedulingResourceSet resourceSet;
    return resourceSet;
}

Referenced by PendingAssignment::isAssignmentPossible(), and isAvailable().

◆ assign()

virtual void ResourceBroker::assign	(	int	cycle,
		MoveNode &	node,
		SchedulingResource &	res,
		int	immWriteCycle,
		int	immRegIndex
	)

pure virtual

Implemented in BusBroker, ExecutionPipelineBroker, InputFUBroker, InputPSocketBroker, ITemplateBroker, OutputFUBroker, OutputPSocketBroker, and IUBroker.

Referenced by PendingAssignment::tryNext().

◆ availableResource()

SchedulingResource & ResourceBroker::availableResource	(	int	cycle,
		const MoveNode &	node,
		const TTAMachine::Bus *	bus,
		const TTAMachine::FunctionUnit *	srcFU,
		const TTAMachine::FunctionUnit *	dstFU,
		int	immWriteCycle,
		const TTAMachine::ImmediateUnit *	immu,
		int	immRegIndex
	)		const

virtual

Return one (any) resource managed by this broker that can be assigned to the given node in the given cycle.

If no change occurs to the state of the resources, the broker should always return the same object. If a resource of the type managed by this broker is already assigned to the node, it is returned.

Parameters

cycle	Cycle.
node	Node.

Returns: One (any) resource managed by this broker that can be assigned to the given node in the given cycle.

Exceptions

InstanceNotFound If no available resource is found.

Reimplemented in BusBroker, and IUBroker.

Definition at line 111 of file ResourceBroker.cc.

          {

    for (ResourceMap::const_iterator resIter = resMap_.begin();
         resIter != resMap_.end(); resIter++) {

        SchedulingResource* res = (*resIter).second;
        if (res->isAvailable(cycle)
        && res->canAssign(cycle, node)) {
            return *res;
        }
    }

    string msg = "No available resource found.";
    throw InstanceNotFound(__FILE__, __LINE__, __func__, msg);
}

References __func__, SchedulingResource::canAssign(), SchedulingResource::isAvailable(), and resMap_.

Here is the call graph for this function:

◆ brokerName()

std::string ResourceBroker::brokerName ( ) const

virtual

Returns the name of particular broker. Used for debugging mainly.

Returns: Name of a broker.

Definition at line 356 of file ResourceBroker.cc.

                                 {
    return brokerName_;
}

References brokerName_.

Referenced by validateResources().

◆ buildResources()

virtual void ResourceBroker::buildResources ( const TTAMachine::Machine & target )

pure virtual

Implemented in BusBroker, ExecutionPipelineBroker, InputFUBroker, InputPSocketBroker, ITemplateBroker, IUBroker, OutputFUBroker, and OutputPSocketBroker.

◆ clear()

void ResourceBroker::clear ( )

virtual

Clears all resources managed by the broker so that the broker can be reused.

Reimplemented in BusBroker, and ITemplateBroker.

Definition at line 365 of file ResourceBroker.cc.

                      {
    // Call clear for all resources.
    for (ResourceMap::iterator i = resMap_.begin(); i != resMap_.end(); i++) {
        i->second->clear();
    }
    assignedResources_.clear();
}

References assignedResources_, and resMap_.

Referenced by BusBroker::clear(), and ITemplateBroker::clear().

◆ earliestCycle()

virtual int ResourceBroker::earliestCycle	(	int	cycle,
		const MoveNode &	node,
		const TTAMachine::Bus *	bus,
		const TTAMachine::FunctionUnit *	srcFU,
		const TTAMachine::FunctionUnit *	dstFU,
		int	immWriteCycle,
		const TTAMachine::ImmediateUnit *	immu,
		int	immRegIndex
	)		const

pure virtual

Implemented in BusBroker, ExecutionPipelineBroker, InputFUBroker, InputPSocketBroker, IUBroker, OutputFUBroker, OutputPSocketBroker, and ITemplateBroker.

◆ hasResource()

bool ResourceBroker::hasResource ( const SchedulingResource & r ) const

Return true if this broker holds given resource instance.

Parameters

r	Scheduling resource.

Returns: True if this broker holds given resource instance.

Definition at line 214 of file ResourceBroker.cc.

                                                             {
    return MapTools::containsValue(resMap_, &r);
}

References MapTools::containsValue(), and resMap_.

Referenced by BusBroker::assign(), InputFUBroker::assign(), InputPSocketBroker::assign(), OutputFUBroker::assign(), OutputPSocketBroker::assign(), and IUBroker::assign().

Here is the call graph for this function:

◆ hasResourceOf()

bool ResourceBroker::hasResourceOf ( const TTAMachine::MachinePart & mp ) const

Return true if this broker holds a resource instance that models given machine part.

Parameters

mp	Machine part.

Returns: True if this broker holds a resource instance that models given machine part.

Definition at line 203 of file ResourceBroker.cc.

                                                                   {
    return MapTools::containsKey(resMap_, &mp);
}

References MapTools::containsKey(), and resMap_.

Referenced by FUBroker::findDstFUOfMove(), FUBroker::findFUOfPO(), InputFUBroker::isAlreadyAssigned(), OutputFUBroker::isAlreadyAssigned(), and BusBroker::isInUse().

Here is the call graph for this function:

◆ instructionIndex()

unsigned int ResourceBroker::instructionIndex ( unsigned int cycle ) const

protected

Return the instruction index corresponding to cycle.

If modulo scheduling is not used (ie. initiation interval is 0), then index is equal to cycle.

Parameters

cycle Cycle to get instruction index.

Returns: Return the instruction index for cycle.

Definition at line 249 of file ResourceBroker.cc.

                                                         {

    if (initiationInterval_ != 0) {
        return cycle % initiationInterval_;
    } else {
        return cycle;
    }
}

References initiationInterval_.

Referenced by BusBroker::allAvailableResources(), InputPSocketBroker::allAvailableResources(), OutputFUBroker::allAvailableResources(), OutputPSocketBroker::allAvailableResources(), ITemplateBroker::allAvailableResources(), BusBroker::assign(), InputPSocketBroker::assign(), ITemplateBroker::assign(), OutputPSocketBroker::assign(), ITemplateBroker::assignImmediate(), BusBroker::availableResource(), ITemplateBroker::findITemplates(), ITemplateBroker::instruction(), InputPSocketBroker::isAlreadyAssigned(), BusBroker::isAlreadyAssigned(), InputFUBroker::isAlreadyAssigned(), ITemplateBroker::isAlreadyAssigned(), OutputFUBroker::isAlreadyAssigned(), OutputPSocketBroker::isAlreadyAssigned(), BusBroker::isAnyResourceAvailable(), OutputPSocketBroker::isAnyResourceAvailable(), ITemplateBroker::isAnyResourceAvailable(), BusBroker::isAvailable(), BusBroker::isInUse(), and ITemplateBroker::unassignImmediate().

◆ isAlreadyAssigned()

virtual bool ResourceBroker::isAlreadyAssigned	(	int	cycle,
		const MoveNode &	node,
		const TTAMachine::Bus *	preassignedBus
	)		const

pure virtual

Implemented in InputPSocketBroker, BusBroker, ExecutionPipelineBroker, InputFUBroker, ITemplateBroker, IUBroker, OutputFUBroker, and OutputPSocketBroker.

Referenced by AssignmentPlan::backtrack(), PendingAssignment::forget(), AssignmentPlan::tryNextAssignment(), and PendingAssignment::undoAssignment().

◆ isAnyResourceAvailable()

bool ResourceBroker::isAnyResourceAvailable	(	int	cycle,
		const MoveNode &	node,
		const TTAMachine::Bus *	bus,
		const TTAMachine::FunctionUnit *	srcFU,
		const TTAMachine::FunctionUnit *	dstFU,
		int	immWriteCycle,
		const TTAMachine::ImmediateUnit *	immu,
		int	immRegIndex
	)		const

virtual

Return true if one of the resources managed by this broker is suitable for the request contained in the node and can be assigned to it in given cycle.

Parameters

cycle	Cycle.
node	Node.

Returns: True if one of the resources managed by this broker is suitable for the request contained in the node and can be assigned to it in given cycle.

Reimplemented in BusBroker, OutputPSocketBroker, IUBroker, and ITemplateBroker.

Definition at line 75 of file ResourceBroker.cc.

                                                  {

    for (ResourceMap::const_iterator resIter = resMap_.begin();
         resIter != resMap_.end(); resIter++) {

        // IUBroker overrides this so no need for immu check
        const SchedulingResource* res = (*resIter).second;
        if (res->isAvailable(cycle) && res->canAssign(cycle, node)) {
            return true;
        }
    }

    return false;
}

References SchedulingResource::canAssign(), SchedulingResource::isAvailable(), and resMap_.

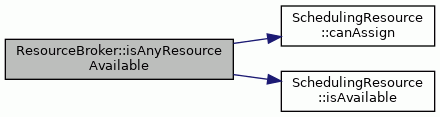

Here is the call graph for this function:

◆ isApplicable()

virtual bool ResourceBroker::isApplicable	(	const MoveNode &	node,
		const TTAMachine::Bus *	preassignedBus
	)		const

pure virtual

Implemented in BusBroker, ExecutionPipelineBroker, ITemplateBroker, OutputPSocketBroker, OutputFUBroker, InputFUBroker, IUBroker, and InputPSocketBroker.

Referenced by AssignmentPlan::tryCachedAssignment().

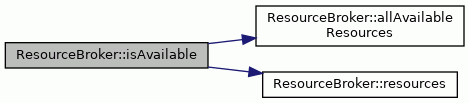

◆ isAvailable()

bool ResourceBroker::isAvailable	(	SchedulingResource &	res,
		const MoveNode &	node,
		int	cycle,
		const TTAMachine::Bus *	bus,
		const TTAMachine::FunctionUnit *	srcFU,
		const TTAMachine::FunctionUnit *	dstFU,
		int	immWriteCycle,
		const TTAMachine::ImmediateUnit *	immu,
		int	immRegIndex
	)		const

virtual

Tells whether the given resource is available for given node at given cycle.

Reimplemented in BusBroker.

Definition at line 158 of file ResourceBroker.cc.

                           {
    SchedulingResourceSet resources =
      allAvailableResources(cycle, node, bus, srcFU, dstFU,
                immWriteCycle, immu, immRegIndex);
    return resources.hasResource(res);
}

References allAvailableResources(), and resources().

Here is the call graph for this function:

◆ isBusBroker()

bool ResourceBroker::isBusBroker ( ) const

virtual

Reimplemented in BusBroker.

Definition at line 303 of file ResourceBroker.cc.

                                  {
    return false;
}

Referenced by SimpleBrokerDirector::busBroker().

◆ isExecutionPipelineBroker()

bool ResourceBroker::isExecutionPipelineBroker ( ) const

virtual

Reimplemented in ExecutionPipelineBroker.

Definition at line 318 of file ResourceBroker.cc.

                                                {
    return false;
}

Referenced by SimpleBrokerDirector::executionPipelineBroker().

◆ isITemplateBroker()

bool ResourceBroker::isITemplateBroker ( ) const

virtual

Reimplemented in ITemplateBroker.

Definition at line 308 of file ResourceBroker.cc.

                                        {
    return false;
}

Referenced by SimpleBrokerDirector::instructionTemplateBroker().

◆ isIUBroker()

bool ResourceBroker::isIUBroker ( ) const

virtual

Reimplemented in IUBroker.

Definition at line 313 of file ResourceBroker.cc.

                                 {
    return false;
}

Referenced by SimpleBrokerDirector::immediateUnitBroker().

◆ latestCycle()

virtual int ResourceBroker::latestCycle	(	int	cycle,
		const MoveNode &	node,
		const TTAMachine::Bus *	bus,
		const TTAMachine::FunctionUnit *	srcFU,
		const TTAMachine::FunctionUnit *	dstFU,
		int	immWriteCycle,
		const TTAMachine::ImmediateUnit *	immu,
		int	immRegIndex
	)		const

pure virtual

Implemented in BusBroker, ExecutionPipelineBroker, InputFUBroker, InputPSocketBroker, IUBroker, OutputFUBroker, OutputPSocketBroker, and ITemplateBroker.

◆ machinePartOf()

const TTAMachine::MachinePart & ResourceBroker::machinePartOf ( const SchedulingResource & r ) const

virtual

Return the machine part that models the given resource.

Parameters

r	Scheduling resource.

Returns: The machine part that models the given resource.

Exceptions

KeyNotFound If no corresponding machine part is found or r is not one of the primary resources of this broker.

Definition at line 181 of file ResourceBroker.cc.

                                                               {
    const TTAMachine::MachinePart* machinePart = NULL;
    try {
        machinePart = MapTools::keyForValue<const MachinePart*>(resMap_, &r);
    } catch (const Exception& e) {
        string msg = "Machine part of for resource ";
        msg += r.name();
        msg += " not found!";
        throw KeyNotFound(__FILE__, __LINE__, __func__, msg);
    }
    return *machinePart;
}

References __func__, MapTools::keyForValue(), SchedulingResource::name(), and resMap_.

Referenced by BusBroker::allAvailableResources(), IUBroker::allAvailableResources(), BusBroker::assign(), InputFUBroker::assign(), InputPSocketBroker::assign(), ITemplateBroker::assign(), OutputFUBroker::assign(), OutputPSocketBroker::assign(), IUBroker::assign(), ITemplateBroker::assignImmediate(), BusBroker::hasGuard(), ITemplateBroker::instruction(), BusBroker::isAvailable(), ITemplateBroker::reselectTemplate(), and OutputFUBroker::unassign().

Here is the call graph for this function:

◆ resourceCount()

int ResourceBroker::resourceCount ( ) const

Definition at line 298 of file ResourceBroker.cc.

                                    {
    return resMap_.size();
}

References resMap_.

◆ resourceMapper()

const ResourceMapper & ResourceBroker::resourceMapper ( ) const

protected

Return the resource mapper set for this broker.

Returns: The resource mapper set for this broker.

Definition at line 234 of file ResourceBroker.cc.

                                     {
    return *resourceMapper_;
}

References resourceMapper_.

Referenced by InputFUBroker::allAvailableResources().

◆ resourceOf()

SchedulingResource * ResourceBroker::resourceOf ( const TTAMachine::MachinePart & mp ) const

inline

Referenced by BusBroker::allAvailableResources(), InputFUBroker::allAvailableResources(), InputPSocketBroker::allAvailableResources(), OutputFUBroker::allAvailableResources(), OutputPSocketBroker::allAvailableResources(), IUBroker::allAvailableResources(), ITemplateBroker::assign(), IUBroker::assign(), ITemplateBroker::assignImmediate(), ExecutionPipelineBroker::earliestFromSource(), ITemplateBroker::findITemplates(), InputPSocketBroker::isAlreadyAssigned(), ITemplateBroker::isAlreadyAssigned(), OutputPSocketBroker::isAlreadyAssigned(), OutputPSocketBroker::isAnyResourceAvailable(), BusBroker::isAvailable(), BusBroker::isInUse(), ExecutionPipelineBroker::latestFromSource(), BusBroker::setupResourceLinks(), InputPSocketBroker::setupResourceLinks(), OutputPSocketBroker::setupResourceLinks(), BusBroker::unassign(), InputFUBroker::unassign(), InputPSocketBroker::unassign(), OutputFUBroker::unassign(), and ITemplateBroker::unassignImmediate().

◆ resources()

void ResourceBroker::resources ( ResourceSet & contents )

Get resources

Parameters

contents Set to which resources are copied to.

Definition at line 279 of file ResourceBroker.cc.

                                                               {
    for (ResourceMap::iterator i = resMap_.begin(); i != resMap_.end(); ++i ) {
        contents.insert(i->second);
    }
}

References resMap_.

Referenced by ITemplateBroker::assignImmediate(), isAvailable(), and ITemplateBroker::reselectTemplate().

◆ setInitiationInterval()

void ResourceBroker::setInitiationInterval ( unsigned int ii )

virtual

Set initiation interval, if ii = 0 then initiation interval is not used.

Parameters

ii	initiation interval

Reimplemented in ExecutionPipelineBroker.

Definition at line 292 of file ResourceBroker.cc.

{
    initiationInterval_ = ii;
}

References initiationInterval_.

Referenced by ExecutionPipelineBroker::ExecutionPipelineBroker().

◆ setMaxCycle()

virtual void ResourceBroker::setMaxCycle ( unsigned int )

inlinevirtual

Reimplemented in ExecutionPipelineBroker.

Definition at line 147 of file ResourceBroker.hh.

147{};

◆ setResourceMapper()

void ResourceBroker::setResourceMapper ( const ResourceMapper & mapper )

protected

Set the resource mapper for this broker.

Parameters

mapper Resource mapper.

Definition at line 224 of file ResourceBroker.cc.

                                                              {
    resourceMapper_ = &mapper;
}

References resourceMapper_.

Referenced by BusBroker::setupResourceLinks(), ExecutionPipelineBroker::setupResourceLinks(), InputFUBroker::setupResourceLinks(), InputPSocketBroker::setupResourceLinks(), ITemplateBroker::setupResourceLinks(), IUBroker::setupResourceLinks(), OutputFUBroker::setupResourceLinks(), and OutputPSocketBroker::setupResourceLinks().

◆ setupResourceLinks()

virtual void ResourceBroker::setupResourceLinks ( const ResourceMapper & mapper )

pure virtual

Implemented in BusBroker, ExecutionPipelineBroker, InputFUBroker, InputPSocketBroker, ITemplateBroker, IUBroker, OutputFUBroker, and OutputPSocketBroker.

◆ unassign()

virtual void ResourceBroker::unassign ( MoveNode & node )

pure virtual

Implemented in BusBroker, ExecutionPipelineBroker, InputFUBroker, InputPSocketBroker, ITemplateBroker, IUBroker, OutputFUBroker, and OutputPSocketBroker.

Referenced by PendingAssignment::forget(), and PendingAssignment::undoAssignment().

◆ validateResources()

void ResourceBroker::validateResources ( ) const

Tests if is each resource has correct related and dependent groups.

Exceptions

ModuleRunTimeError in case resource does not have correct related or dependent resources.

Definition at line 329 of file ResourceBroker.cc.

                                        {
    ResourceMap::const_iterator itr = resMap_.begin();
    while (itr != resMap_.end()) {
        if (!(*itr).second->validateDependentGroups()) {
            std::string msg = (boost::format(
                "Broker '%s' failed to validate DependentGroup for '%s'!") %
                brokerName() % (*itr).second->name()).str();
            throw ModuleRunTimeError(__FILE__, __LINE__, __func__, msg);
        }
        if (!(*itr).second->validateRelatedGroups()){
            std::string msg = (boost::format(
                "Broker '%s' failed to validate RelatedGroup for '%s'!") %
                brokerName() % (*itr).second->name()).str();
            throw ModuleRunTimeError(__FILE__, __LINE__, __func__, msg);
        }
        ++itr;
    }
    return;
}

References __func__, brokerName(), and resMap_.

Here is the call graph for this function:

Member Data Documentation

◆ assignedResources_

◆ brokerName_

std::string ResourceBroker::brokerName_

protected

Definition at line 168 of file ResourceBroker.hh.

Referenced by brokerName().

◆ initiationInterval_

unsigned int ResourceBroker::initiationInterval_

protected

Definition at line 158 of file ResourceBroker.hh.

Referenced by IUBroker::allAvailableResources(), BusBroker::buildResources(), ExecutionPipelineBroker::buildResources(), InputFUBroker::buildResources(), InputPSocketBroker::buildResources(), ITemplateBroker::buildResources(), IUBroker::buildResources(), OutputPSocketBroker::buildResources(), ExecutionPipelineBroker::earliestFromDestination(), ExecutionPipelineBroker::earliestFromSource(), instructionIndex(), ExecutionPipelineBroker::latestFromDestination(), ExecutionPipelineBroker::latestFromSource(), setInitiationInterval(), ExecutionPipelineBroker::setInitiationInterval(), and BusBroker::setupResourceLinks().

◆ resMap_

ResourceMap ResourceBroker::resMap_

protected

Definition at line 165 of file ResourceBroker.hh.

◆ resourceMapper_

const ResourceMapper* ResourceBroker::resourceMapper_

protected

Definition at line 166 of file ResourceBroker.hh.

Referenced by resourceMapper(), and setResourceMapper().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ MoveResMap

◆ ResourceMap

◆ ResourceSet

Constructor & Destructor Documentation

◆ ResourceBroker()

◆ ~ResourceBroker()

Member Function Documentation

◆ addResource()

◆ allAvailableResources()

◆ assign()

◆ availableResource()

◆ brokerName()

◆ buildResources()

◆ clear()

◆ earliestCycle()

◆ hasResource()

◆ hasResourceOf()

◆ instructionIndex()

◆ isAlreadyAssigned()

◆ isAnyResourceAvailable()

◆ isApplicable()

◆ isAvailable()

◆ isBusBroker()

◆ isExecutionPipelineBroker()

◆ isITemplateBroker()

◆ isIUBroker()

◆ latestCycle()

◆ machinePartOf()

◆ resourceCount()

◆ resourceMapper()

◆ resourceOf()

◆ resources()

◆ setInitiationInterval()

◆ setMaxCycle()

◆ setResourceMapper()

◆ setupResourceLinks()

◆ unassign()

◆ validateResources()

Member Data Documentation

◆ assignedResources_

◆ brokerName_

◆ initiationInterval_

◆ resMap_

◆ resourceMapper_
