SchedulingResourceSet Class Reference

#include <SchedulingResource.hh>

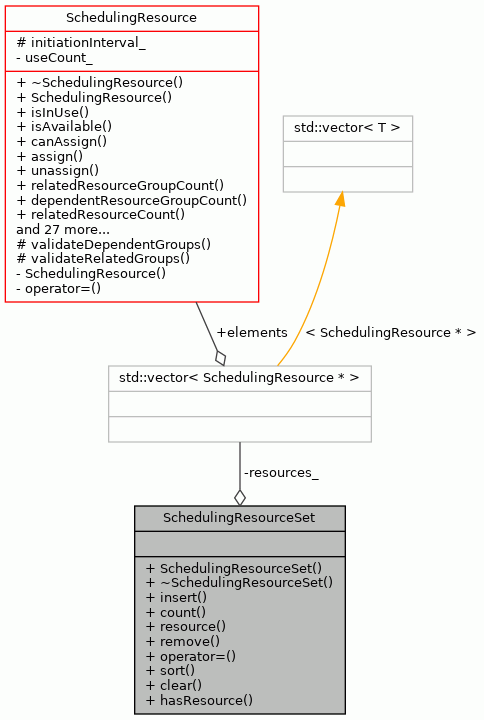

Collaboration diagram for SchedulingResourceSet:

Classes
struct	less_name

Public Member Functions
	SchedulingResourceSet ()
	~SchedulingResourceSet ()
void	insert (SchedulingResource &resource)
int	count () const
SchedulingResource &	resource (int index) const
void	remove (SchedulingResource &resource)
SchedulingResourceSet &	operator= (const SchedulingResourceSet &newSet)
void	sort ()
void	clear ()
bool	hasResource (SchedulingResource &res)

Private Types
typedef std::vector< SchedulingResource * >	ResourceList

Private Attributes
ResourceList	resources_

Detailed Description

Set of scheduling resources.

Definition at line 161 of file SchedulingResource.hh.

Member Typedef Documentation

ResourceList

typedef std::vector<SchedulingResource*> SchedulingResourceSet::ResourceList

private

Definition at line 175 of file SchedulingResource.hh.

Constructor & Destructor Documentation

SchedulingResourceSet()

SchedulingResourceSet::SchedulingResourceSet

(

)

Constructor.

Definition at line 222 of file SchedulingResource.cc.

{}

~SchedulingResourceSet()

SchedulingResourceSet::~SchedulingResourceSet

(

)

Destructor.

Definition at line 227 of file SchedulingResource.cc.

{}

Member Function Documentation

clear()

void SchedulingResourceSet::clear

(

)

Clears the scheduling resource set.

Definition at line 336 of file SchedulingResource.cc.

                             {
    resources_.clear();
}

References resources_.

Referenced by PendingAssignment::clear(), and operator=().

count()

int SchedulingResourceSet::count

(

)

const

Return the number of resources in the set.

Returns

The number of resources in the set.

Definition at line 251 of file SchedulingResource.cc.

                                   {
    return resources_.size();
}

References resources_.

Referenced by BusBroker::allAvailableResources(), InputFUBroker::allAvailableResources(), BusBroker::availableResource(), ITemplateBroker::instruction(), BusBroker::isAnyResourceAvailable(), PendingAssignment::isAssignmentPossible(), ITemplateBroker::isTemplateAvailable(), operator=(), and PendingAssignment::tryNext().

hasResource()

bool SchedulingResourceSet::hasResource

(

SchedulingResource &

resource

)

Tells whether the set has the given resource.

Definition at line 297 of file SchedulingResource.cc.

                                                               {
    ResourceList::iterator iter = resources_.begin();
    while (iter != resources_.end()) {
        if ((*iter) == &resource) {
            return true;
        }
        iter++;
    }
    return false;
}

References resource(), and resources_.

Here is the call graph for this function:

insert()

void SchedulingResourceSet::insert

(

SchedulingResource &

resource

)

Insert a scheduling resource in the set.

Parameters

resource

Resource to insert.

Exceptions

ObjectAlreadyExists

if the resource is already in the set.

Definition at line 236 of file SchedulingResource.cc.

                                                          {

    if (ContainerTools::containsValue(resources_, &resource)) {
        throw ObjectAlreadyExists(__FILE__, __LINE__, __func__);
    } else {
        resources_.push_back(&resource);
    }
}

References __func__, ContainerTools::containsValue(), resource(), and resources_.

Referenced by BusBroker::allAvailableResources(), InputFUBroker::allAvailableResources(), InputPSocketBroker::allAvailableResources(), OutputFUBroker::allAvailableResources(), OutputPSocketBroker::allAvailableResources(), IUBroker::allAvailableResources(), ITemplateBroker::findITemplates(), and operator=().

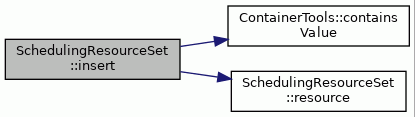

Here is the call graph for this function:

operator=()

SchedulingResourceSet & SchedulingResourceSet::operator=

(

const SchedulingResourceSet &

newSet

)

Assignment operator.

Parameters

newSet

Set to assign resources from.

Returns

This set with newly assigned contents.

Definition at line 315 of file SchedulingResource.cc.

                                                                    {
    resources_.clear();
    for (int i = 0; i < newSet.count(); i++) {
        insert(newSet.resource(i));
    }
    return *this;
}

References clear(), count(), insert(), resource(), and resources_.

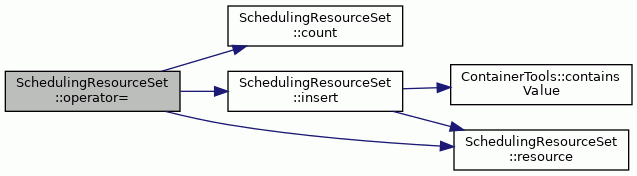

Here is the call graph for this function:

remove()

void SchedulingResourceSet::remove

(

SchedulingResource &

resource

)

Remove a resource from the set.

Parameters

resource

Scheduling resource to be removed.

Exceptions

KeyNotFound

If given resource is not found in the set.

Definition at line 279 of file SchedulingResource.cc.

                                                          {

    ResourceList::iterator iter = resources_.begin();
    while (iter != resources_.end()) {
        if ((*iter) == &resource) {
            resources_.erase(iter);
            return;
        }
        iter++;
    }
    string msg = "Resource not found in resource set.";
    throw KeyNotFound(__FILE__, __LINE__, __func__, msg);
}

References __func__, resource(), and resources_.

Referenced by BusBroker::allAvailableResources().

Here is the call graph for this function:

resource()

SchedulingResource & SchedulingResourceSet::resource

(

int

index

)

const

Return the resource at the given position.

Parameters

index

Position of resource.

Returns

The resource at the given position.

Exceptions

OutOfRange

If the given position exceeds number of resources.

Definition at line 263 of file SchedulingResource.cc.

                                               {

    if (index < 0 || index >= static_cast<int>(resources_.size())) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    } else {
        return *resources_.at(index);
    }
}

References __func__, and resources_.

Referenced by BusBroker::allAvailableResources(), BusBroker::availableResource(), hasResource(), insert(), ITemplateBroker::instruction(), operator=(), remove(), PendingAssignment::resource(), and PendingAssignment::tryNext().

sort()

void SchedulingResourceSet::sort

(

)

Sort the content of Scheduling Resource Set by the names of the resources.

Definition at line 328 of file SchedulingResource.cc.

                            {
    std::sort(resources_.begin(), resources_.end(), less_name());
}

References resources_.

Referenced by ITemplateBroker::findITemplates(), and PendingAssignment::isAssignmentPossible().

Member Data Documentation

resources_

ResourceList SchedulingResourceSet::resources_

private

Definition at line 184 of file SchedulingResource.hh.

Referenced by clear(), count(), hasResource(), insert(), operator=(), remove(), resource(), and sort().

---

The documentation for this class was generated from the following files:

• SchedulingResource.hh
• SchedulingResource.cc
