SchedulingResource Class Reference

#include <SchedulingResource.hh>

Inheritance diagram for SchedulingResource:

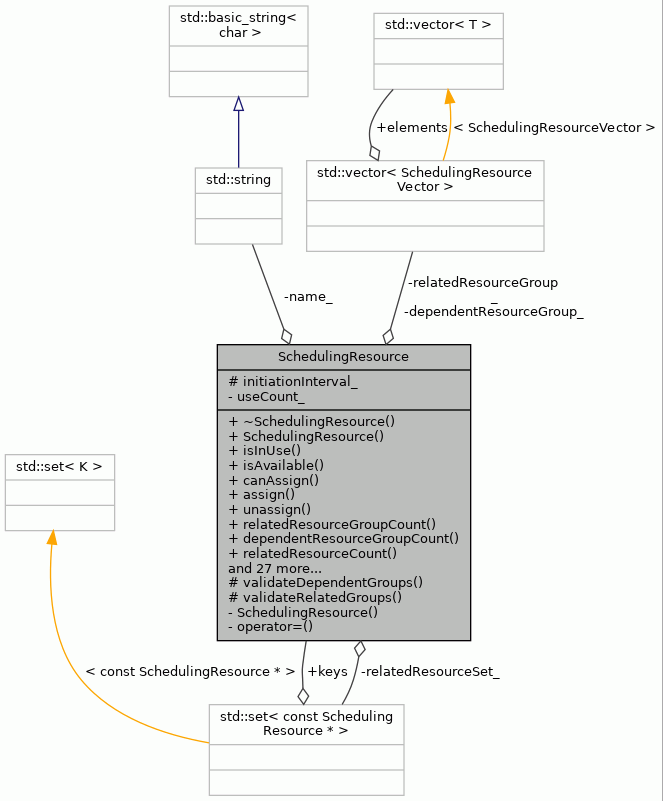

Collaboration diagram for SchedulingResource:

Public Member Functions
virtual	~SchedulingResource ()
	SchedulingResource (const std::string &name, const unsigned int ii=0)
virtual bool	isInUse (const int cycle) const =0
virtual bool	isAvailable (const int cycle) const =0
virtual bool	canAssign (const int cycle, const MoveNode &node) const =0
virtual void	assign (const int cycle, MoveNode &node)=0
virtual void	unassign (const int cycle, MoveNode &node)=0
virtual int	relatedResourceGroupCount () const
virtual int	dependentResourceGroupCount () const
int	relatedResourceCount (const int group) const
int	dependentResourceCount (const int group) const
virtual void	addToRelatedGroup (const int group, SchedulingResource &resource)
virtual void	addToDependentGroup (const int group, SchedulingResource &resource)
virtual SchedulingResource &	relatedResource (const int group, const int index) const
virtual SchedulingResource &	dependentResource (const int group, const int index) const
virtual bool	hasRelatedResource (const SchedulingResource &sResource) const
virtual bool	hasDependentResource (const SchedulingResource &sResource) const
virtual const std::string &	name () const
virtual int	useCount () const
virtual void	increaseUseCount ()
virtual void	decreaseUseCount ()
virtual bool	isInputPSocketResource () const
virtual bool	isOutputPSocketResource () const
virtual bool	isShortImmPSocketResource () const
virtual bool	isInputFUResource () const
virtual bool	isOutputFUResource () const
virtual bool	isExecutionPipelineResource () const
virtual bool	isBusResource () const
virtual bool	isSegmentResource () const
virtual bool	isIUResource () const
virtual bool	isITemplateResource () const
int	instructionIndex (int cycle) const
void	setInitiationInterval (unsigned int ii)
int	initiationInterval () const
virtual bool	operator< (const SchedulingResource &other) const
virtual void	clear ()
virtual void	setMaxCycle (unsigned int)

Protected Member Functions
virtual bool	validateDependentGroups ()
virtual bool	validateRelatedGroups ()

Protected Attributes
int	initiationInterval_

Private Types
typedef std::vector< SchedulingResource * >	SchedulingResourceVector
typedef std::vector< SchedulingResourceVector >	SchedulingResourceGroup
typedef std::set< const SchedulingResource * >	SchedulingResourceSet

Private Member Functions
	SchedulingResource (const SchedulingResource &)
SchedulingResource &	operator= (const SchedulingResource &)

Private Attributes
SchedulingResourceGroup	relatedResourceGroup_
SchedulingResourceGroup	dependentResourceGroup_
std::string	name_
SchedulingResourceSet	relatedResourceSet_
int	useCount_

Friends
class	ResourceBroker

Detailed Description

An interface for scheduling resources of Resource Model The base class SchedulingResource

Definition at line 52 of file SchedulingResource.hh.

Member Typedef Documentation

SchedulingResourceGroup

typedef std::vector<SchedulingResourceVector> SchedulingResource::SchedulingResourceGroup

private

Definition at line 138 of file SchedulingResource.hh.

SchedulingResourceSet

typedef std::set<const SchedulingResource*> SchedulingResource::SchedulingResourceSet

private

Definition at line 151 of file SchedulingResource.hh.

SchedulingResourceVector

typedef std::vector<SchedulingResource*> SchedulingResource::SchedulingResourceVector

private

Definition at line 136 of file SchedulingResource.hh.

Constructor & Destructor Documentation

~SchedulingResource()

SchedulingResource::~SchedulingResource ( )

virtual

Destructor.

Definition at line 43 of file SchedulingResource.cc.

                                        {
}

SchedulingResource() [1/2]

SchedulingResource::SchedulingResource	(	const std::string &	name,
		const unsigned int	ii = 0
	)

Constructor.

Parameters

name	Name of resource.

Definition at line 51 of file SchedulingResource.cc.

                                                                                   :
    initiationInterval_(ii), name_(name), useCount_(0) {
}

SchedulingResource() [2/2]

SchedulingResource::SchedulingResource ( const SchedulingResource &  )

private

Member Function Documentation

addToDependentGroup()

void SchedulingResource::addToDependentGroup ( const int  group, SchedulingResource &  resource  )

virtual

Add resource to group of dependent resources.

Parameters

group	Group to which resource add.
resource	Resource to add to group.

Definition at line 101 of file SchedulingResource.cc.

                                  {

    if (group >= dependentResourceGroupCount()) {
        dependentResourceGroup_.resize(group+1);
    }
    dependentResourceGroup_.at(group).push_back(&resource);
}

References dependentResourceGroup_, and dependentResourceGroupCount().

Referenced by InputFUBroker::setupResourceLinks(), ITemplateBroker::setupResourceLinks(), and OutputFUBroker::setupResourceLinks().

Here is the call graph for this function:

addToRelatedGroup()

void SchedulingResource::addToRelatedGroup ( const int  group, SchedulingResource &  resource  )

virtual

Add resource to group of related resources.

Parameters

group	Group to which resource add.
resource	Resource to add to group.

Definition at line 82 of file SchedulingResource.cc.

                                  {

    relatedResourceSet_.insert(&resource);

    if (group >= relatedResourceGroupCount()) {
        relatedResourceGroup_.resize(group+1);
    }
    relatedResourceGroup_.at(group).push_back(&resource);
}

References relatedResourceGroup_, relatedResourceGroupCount(), and relatedResourceSet_.

Referenced by BusBroker::setupResourceLinks(), ExecutionPipelineBroker::setupResourceLinks(), InputPSocketBroker::setupResourceLinks(), IUBroker::setupResourceLinks(), and OutputPSocketBroker::setupResourceLinks().

Here is the call graph for this function:

assign()

virtual void SchedulingResource::assign ( const int  cycle, MoveNode &  node  )

pure virtual

Implemented in BusResource, ExecutionPipelineResource, FUResource, InputFUResource, ITemplateResource, IUResource, OutputFUResource, OutputPSocketResource, and PSocketResource.

Referenced by InputPSocketBroker::assign(), and OutputPSocketBroker::assign().

canAssign()

virtual bool SchedulingResource::canAssign ( const int  cycle, const MoveNode &  node  ) const

pure virtual

Implemented in BusResource, ExecutionPipelineResource, FUResource, InputFUResource, InputPSocketResource, ITemplateResource, OutputFUResource, OutputPSocketResource, PSocketResource, and IUResource.

Referenced by InputPSocketBroker::allAvailableResources(), OutputPSocketBroker::allAvailableResources(), ResourceBroker::availableResource(), ResourceBroker::isAnyResourceAvailable(), and OutputPSocketBroker::isAnyResourceAvailable().

clear()

void SchedulingResource::clear ( )

virtual

Clears bookkeeping of the scheduling resource.

After this call the state of the resource should be identical to a newly-created and initialized resource.

Reimplemented in BusResource, ExecutionPipelineResource, ITemplateResource, IUResource, OutputPSocketResource, and PSocketResource.

Definition at line 397 of file SchedulingResource.cc.

                          {
    useCount_ = 0;
}

References useCount_.

Referenced by BusResource::clear(), ExecutionPipelineResource::clear(), ITemplateResource::clear(), IUResource::clear(), and PSocketResource::clear().

decreaseUseCount()

void SchedulingResource::decreaseUseCount ( )

virtual

Decrease use count of Schedulign Resource by 1

Definition at line 364 of file SchedulingResource.cc.

                                     {
    useCount_--;
}

References useCount_.

Referenced by InputFUResource::unassign(), OutputFUResource::unassign(), and PSocketResource::unassign().

dependentResource()

SchedulingResource & SchedulingResource::dependentResource ( const int  group, const int  index  ) const

virtual

Return dependent resource from group with position.

Parameters

group	Group from which to return resource.
index	Index of resource in particular group.

Returns

Reference to SchedulingResource [group][index].

Exceptions

OutOfRange

When group or index requested does not exist.

Definition at line 158 of file SchedulingResource.cc.

                           {

    if (group < dependentResourceGroupCount()) {
        if (index < dependentResourceCount(group)) {
            return *dependentResourceGroup_.at(group).at(index);
        } else {
            std::string msg = "Requested dependent resource [";
            msg += Conversion::toString(index);
            msg += "] does not exists";
            msg += " in group [";
            msg += Conversion::toString(group);
            msg += "] of ";
            msg += name();
            msg += ". Group count is: ";
            msg += Conversion::toString(dependentResourceGroupCount());
            msg += ".";
            throw OutOfRange(__FILE__, __LINE__, __func__, msg);
        }
    } else {
        std::string msg = "Requested dependent resource group ";
        msg += Conversion::toString(group);
        msg += " does not exists in ";
        msg += name();
        throw OutOfRange(__FILE__, __LINE__, __func__, msg);
    }
}

References __func__, dependentResourceCount(), dependentResourceGroup_, dependentResourceGroupCount(), name(), and Conversion::toString().

Referenced by InputFUResource::assign(), OutputFUResource::assign(), InputFUResource::canAssign(), OutputFUResource::canAssign(), hasDependentResource(), FUResource::isAvailable(), InputFUResource::isAvailable(), FUResource::isInUse(), InputFUResource::isInUse(), FUResource::operator<(), InputFUResource::unassign(), OutputFUResource::unassign(), InputFUResource::validateDependentGroups(), ITemplateResource::validateDependentGroups(), and OutputFUResource::validateDependentGroups().

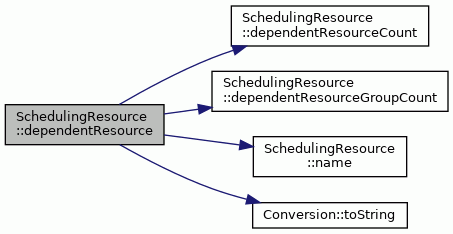

Here is the call graph for this function:

dependentResourceCount()

int SchedulingResource::dependentResourceCount ( const int  group ) const

inline

Referenced by InputFUResource::assign(), OutputFUResource::assign(), InputFUResource::canAssign(), OutputFUResource::canAssign(), dependentResource(), hasDependentResource(), FUResource::isAvailable(), InputFUResource::isAvailable(), FUResource::isInUse(), InputFUResource::isInUse(), FUResource::operator<(), InputFUResource::unassign(), OutputFUResource::unassign(), InputFUResource::validateDependentGroups(), InputPSocketResource::validateDependentGroups(), ITemplateResource::validateDependentGroups(), OutputFUResource::validateDependentGroups(), and OutputPSocketResource::validateDependentGroups().

dependentResourceGroupCount()

int SchedulingResource::dependentResourceGroupCount ( ) const

virtual

Return number of groups of dependent resources.

Returns

Number of groups of dependent resources.

Definition at line 71 of file SchedulingResource.cc.

                                                      {
    return dependentResourceGroup_.size();
}

References dependentResourceGroup_.

Referenced by addToDependentGroup(), InputFUResource::assign(), OutputFUResource::assign(), InputFUResource::canAssign(), OutputFUResource::canAssign(), dependentResource(), hasDependentResource(), FUResource::isAvailable(), InputFUResource::isAvailable(), FUResource::isInUse(), InputFUResource::isInUse(), InputFUResource::unassign(), OutputFUResource::unassign(), InputFUResource::validateDependentGroups(), InputPSocketResource::validateDependentGroups(), ITemplateResource::validateDependentGroups(), OutputFUResource::validateDependentGroups(), and OutputPSocketResource::validateDependentGroups().

hasDependentResource()

bool SchedulingResource::hasDependentResource ( const SchedulingResource &  sResource ) const

virtual

Return true if resource contains given dependent resource.

Parameters

sResource

Resource to test.

Returns

True if resource contains given dependent resource.

Definition at line 207 of file SchedulingResource.cc.

                                               {
    for (int i = 0; i < dependentResourceGroupCount();i++) {
        for (int j = 0, count = dependentResourceCount(i); j < count; j++) {
            if (dependentResource(i, j).name() == sResource.name()) {
                return true;
            }
        }
    }
    return false;
}

References dependentResource(), dependentResourceCount(), dependentResourceGroupCount(), and name().

Referenced by InputFUResource::canAssign().

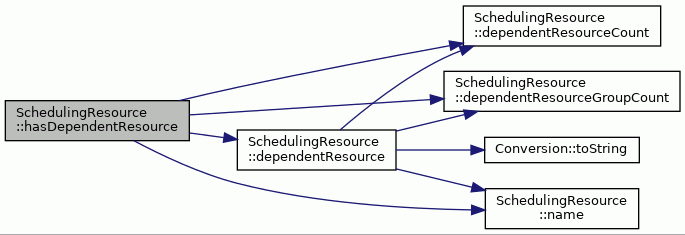

Here is the call graph for this function:

hasRelatedResource()

bool SchedulingResource::hasRelatedResource ( const SchedulingResource &  sResource ) const

virtual

Return true if resource contains given related resource.

Parameters

sResource

Resource to test.

Returns

True if resource contains given related resource.

Definition at line 194 of file SchedulingResource.cc.

                                               {
    return relatedResourceSet_.find(&sResource) !=
        relatedResourceSet_.end();
}

References relatedResourceSet_.

Referenced by BusResource::canAssign(), and BusResource::isAvailable().

increaseUseCount()

void SchedulingResource::increaseUseCount ( )

virtual

Increases use count of Scheduling Resource by 1

Definition at line 355 of file SchedulingResource.cc.

                                     {
    useCount_++;
}

References useCount_.

Referenced by BusResource::assign(), InputFUResource::assign(), OutputFUResource::assign(), and PSocketResource::assign().

initiationInterval()

int SchedulingResource::initiationInterval

(

)

const

Get initiation interval, if ii = 0 then initiation interval is not used.

Returns

initiation interval

Definition at line 385 of file SchedulingResource.cc.

{
    return initiationInterval_;
}

References initiationInterval_.

Referenced by ExecutionPipelineResource::operandAllowedAtCycle(), and ExecutionPipelineResource::resourcesAllowTrigger().

instructionIndex()

int SchedulingResource::instructionIndex ( int  cycle ) const

inline

Referenced by ITemplateResource::assign(), BusResource::assign(), OutputPSocketResource::assign(), PSocketResource::assign(), ExecutionPipelineResource::assignDestination(), ExecutionPipelineResource::assignSource(), OutputPSocketResource::canAssign(), IUResource::canAssign(), IUResource::canAssignUse(), ExecutionPipelineResource::checkOperandAllowed(), ExecutionPipelineResource::cyclesOverlap(), IUResource::findAvailable(), ExecutionPipelineResource::hasConflictingResultsOnCycle(), ExecutionPipelineResource::isAvailable(), PSocketResource::isAvailable(), IUResource::isAvailable(), BusResource::isInUse(), ExecutionPipelineResource::isInUse(), ITemplateResource::isInUse(), IUResource::isInUse(), PSocketResource::isInUse(), ExecutionPipelineResource::nextResultCycle(), ExecutionPipelineResource::operandAllowedAtCycle(), ExecutionPipelineResource::operandOverwritten(), ExecutionPipelineResource::operandPossibleAtCycle(), ExecutionPipelineResource::operandSharePreventsTriggerForScheduledResult(), ExecutionPipelineResource::otherTriggerBeforeMyTrigger(), ExecutionPipelineResource::resourcesAllowTrigger(), ExecutionPipelineResource::resultAllowedAtCycle(), ExecutionPipelineResource::resultCausesTriggerBetweenOperandSharing(), ExecutionPipelineResource::resultNotOverWritten(), ExecutionPipelineResource::setOperandUsed(), ExecutionPipelineResource::setResultWriten(), ITemplateResource::unassign(), BusResource::unassign(), OutputPSocketResource::unassign(), PSocketResource::unassign(), ExecutionPipelineResource::unassignDestination(), ExecutionPipelineResource::unassignSource(), ExecutionPipelineResource::unsetOperandUsed(), and ExecutionPipelineResource::unsetResultWriten().

isAvailable()

virtual bool SchedulingResource::isAvailable ( const int  cycle ) const

pure virtual

Implemented in BusResource, ExecutionPipelineResource, FUResource, InputFUResource, ITemplateResource, IUResource, OutputPSocketResource, and PSocketResource.

Referenced by ResourceBroker::availableResource(), ResourceBroker::isAnyResourceAvailable(), FUResource::isAvailable(), and InputFUResource::isAvailable().

isBusResource()

virtual bool SchedulingResource::isBusResource ( ) const

virtual

Reimplemented in BusResource.

Referenced by ITemplateResource::validateDependentGroups(), ShortImmPSocketResource::validateRelatedGroups(), InputPSocketResource::validateRelatedGroups(), and OutputPSocketResource::validateRelatedGroups().

isExecutionPipelineResource()

virtual bool SchedulingResource::isExecutionPipelineResource ( ) const

virtual

Reimplemented in ExecutionPipelineResource.

Referenced by InputFUResource::assign(), OutputFUResource::assign(), InputFUResource::canAssign(), OutputFUResource::canAssign(), InputFUResource::isAvailable(), InputFUResource::isInUse(), InputFUBroker::setupResourceLinks(), OutputFUBroker::setupResourceLinks(), InputFUResource::unassign(), OutputFUResource::unassign(), InputFUResource::validateDependentGroups(), and OutputFUResource::validateDependentGroups().

isInputFUResource()

virtual bool SchedulingResource::isInputFUResource ( ) const

virtual

Reimplemented in InputFUResource.

Referenced by InputFUBroker::allAvailableResources(), and InputPSocketResource::validateRelatedGroups().

isInputPSocketResource()

virtual bool SchedulingResource::isInputPSocketResource ( ) const

virtual

Reimplemented in InputPSocketResource.

Referenced by BusResource::canAssign(), FUResource::isAvailable(), InputFUResource::validateDependentGroups(), OutputFUResource::validateDependentGroups(), BusResource::validateRelatedGroups(), ExecutionPipelineResource::validateRelatedGroups(), and IUResource::validateRelatedGroups().

isInUse()

virtual bool SchedulingResource::isInUse ( const int  cycle ) const

pure virtual

Implemented in BusResource, ExecutionPipelineResource, FUResource, InputFUResource, ITemplateResource, IUResource, and PSocketResource.

Referenced by IUResource::canAssign(), IUResource::canAssignUse(), InputPSocketBroker::isAlreadyAssigned(), ITemplateBroker::isAlreadyAssigned(), OutputPSocketBroker::isAlreadyAssigned(), FUResource::isInUse(), and InputFUResource::isInUse().

isITemplateResource()

virtual bool SchedulingResource::isITemplateResource ( ) const

virtual

Reimplemented in ITemplateResource.

Referenced by IUResource::validateRelatedGroups().

isIUResource()

virtual bool SchedulingResource::isIUResource ( ) const

virtual

Reimplemented in IUResource.

Referenced by ITemplateResource::validateDependentGroups(), and OutputPSocketResource::validateRelatedGroups().

isOutputFUResource()

virtual bool SchedulingResource::isOutputFUResource ( ) const

virtual

Reimplemented in OutputFUResource.

Referenced by OutputPSocketResource::validateRelatedGroups().

isOutputPSocketResource()

virtual bool SchedulingResource::isOutputPSocketResource ( ) const

virtual

Reimplemented in OutputPSocketResource.

Referenced by BusResource::canAssign(), IUResource::canAssign(), IUResource::canAssignUse(), FUResource::isAvailable(), InputFUResource::validateDependentGroups(), OutputFUResource::validateDependentGroups(), BusResource::validateRelatedGroups(), and IUResource::validateRelatedGroups().

isSegmentResource()

virtual bool SchedulingResource::isSegmentResource ( ) const

virtual

isShortImmPSocketResource()

virtual bool SchedulingResource::isShortImmPSocketResource ( ) const

virtual

Reimplemented in ShortImmPSocketResource.

Referenced by BusBroker::findImmResource().

name()

virtual const std::string & SchedulingResource::name ( ) const

virtual

Referenced by IUResource::assign(), ExecutionPipelineResource::assignDestination(), InputFUResource::canAssign(), dependentResource(), hasDependentResource(), ResourceBroker::machinePartOf(), FUResource::operator<(), relatedResource(), ExecutionPipelineBroker::setupResourceLinks(), and BusResource::unassign().

operator<()

virtual bool SchedulingResource::operator< ( const SchedulingResource &  other ) const

virtual

Reimplemented in BusResource, FUResource, InputPSocketResource, ITemplateResource, and OutputPSocketResource.

Referenced by ITemplateResource::operator<().

operator=()

SchedulingResource & SchedulingResource::operator= ( const SchedulingResource &  )

private

relatedResource()

SchedulingResource & SchedulingResource::relatedResource ( const int  group, const int  index  ) const

virtual

Return related resource from group with position.

Parameters

group	Group from which to return resource.
index	Index of resource in particular group.

Returns

Reference to SchedulingResource [group][index].

Exceptions

OutOfRange

When group or index requested does not exist.

Definition at line 120 of file SchedulingResource.cc.

                           {

    if (group < relatedResourceGroupCount()) {
        if (index < relatedResourceCount(group)) {
            return *relatedResourceGroup_.at(group).at(index);
        } else {
            std::string msg = "Requested related resource [";
            msg += Conversion::toString(index);
            msg += "] does not exists";
            msg += " in group [";
            msg += Conversion::toString(group);
            msg += "] of ";
            msg += name();
            msg += ". Group count is: ";
            msg += Conversion::toString(relatedResourceGroupCount());
            msg += ".";
            throw OutOfRange(__FILE__, __LINE__, __func__, msg);
        }
    } else {
        std::string msg = "Requested related resource group ";
        msg += Conversion::toString(group);
        msg += " does not exists in ";
        msg += name();
        throw OutOfRange(__FILE__, __LINE__, __func__, msg);
    }
}

References __func__, name(), relatedResourceCount(), relatedResourceGroup_, relatedResourceGroupCount(), and Conversion::toString().

Referenced by IUResource::canAssign(), IUResource::canAssignUse(), BusBroker::findImmResource(), InputPSocketResource::operator<(), OutputPSocketResource::operator<(), ShortImmPSocketResource::validateRelatedGroups(), BusResource::validateRelatedGroups(), ExecutionPipelineResource::validateRelatedGroups(), InputPSocketResource::validateRelatedGroups(), IUResource::validateRelatedGroups(), and OutputPSocketResource::validateRelatedGroups().

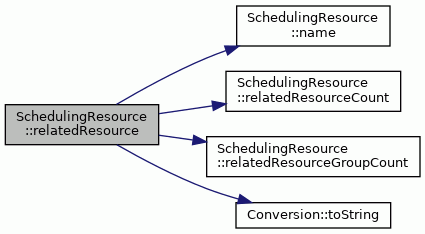

Here is the call graph for this function:

relatedResourceCount()

int SchedulingResource::relatedResourceCount ( const int  group ) const

inline

Referenced by IUResource::canAssign(), IUResource::canAssignUse(), BusBroker::findImmResource(), FUResource::operator<(), InputPSocketResource::operator<(), OutputPSocketResource::operator<(), relatedResource(), ShortImmPSocketResource::validateRelatedGroups(), BusResource::validateRelatedGroups(), ExecutionPipelineResource::validateRelatedGroups(), InputFUResource::validateRelatedGroups(), InputPSocketResource::validateRelatedGroups(), ITemplateResource::validateRelatedGroups(), IUResource::validateRelatedGroups(), OutputFUResource::validateRelatedGroups(), and OutputPSocketResource::validateRelatedGroups().

relatedResourceGroupCount()

int SchedulingResource::relatedResourceGroupCount ( ) const

virtual

Return number of groups of related resources.

Returns

Number of groups of related resources.

Definition at line 61 of file SchedulingResource.cc.

                                                    {
    return relatedResourceGroup_.size();
}

References relatedResourceGroup_.

Referenced by addToRelatedGroup(), IUResource::canAssign(), IUResource::canAssignUse(), relatedResource(), ShortImmPSocketResource::validateRelatedGroups(), BusResource::validateRelatedGroups(), ExecutionPipelineResource::validateRelatedGroups(), InputFUResource::validateRelatedGroups(), InputPSocketResource::validateRelatedGroups(), ITemplateResource::validateRelatedGroups(), IUResource::validateRelatedGroups(), OutputFUResource::validateRelatedGroups(), and OutputPSocketResource::validateRelatedGroups().

setInitiationInterval()

void SchedulingResource::setInitiationInterval

(

unsigned int

ii

)

Set initiation interval, if ii = 0 then initiation interval is not used.

Parameters

ii	initiation interval

Definition at line 374 of file SchedulingResource.cc.

{
    initiationInterval_ = ii;
}

References initiationInterval_.

setMaxCycle()

virtual void SchedulingResource::setMaxCycle ( unsigned int  )

inlinevirtual

Reimplemented in ExecutionPipelineResource.

Definition at line 122 of file SchedulingResource.hh.

{};

unassign()

virtual void SchedulingResource::unassign ( const int  cycle, MoveNode &  node  )

pure virtual

Implemented in BusResource, ExecutionPipelineResource, FUResource, InputFUResource, ITemplateResource, IUResource, OutputFUResource, OutputPSocketResource, and PSocketResource.

Referenced by InputPSocketBroker::unassign(), OutputFUBroker::unassign(), and OutputPSocketBroker::unassign().

useCount()

int SchedulingResource::useCount ( ) const

virtual

Returns how many times particular scheduling resource was used

Returns

number of times resource was already used

Definition at line 346 of file SchedulingResource.cc.

                                   {
    return useCount_;
}

References useCount_.

Referenced by FUResource::operator<().

validateDependentGroups()

virtual bool SchedulingResource::validateDependentGroups ( )

protectedvirtual

Reimplemented in BusResource, ExecutionPipelineResource, InputFUResource, InputPSocketResource, ITemplateResource, IUResource, OutputFUResource, and OutputPSocketResource.

validateRelatedGroups()

virtual bool SchedulingResource::validateRelatedGroups ( )

protectedvirtual

Reimplemented in ShortImmPSocketResource, BusResource, ExecutionPipelineResource, InputFUResource, InputPSocketResource, ITemplateResource, IUResource, OutputFUResource, and OutputPSocketResource.

Friends And Related Symbol Documentation

ResourceBroker

friend class ResourceBroker

friend

Definition at line 118 of file SchedulingResource.hh.

Member Data Documentation

dependentResourceGroup_

SchedulingResourceGroup SchedulingResource::dependentResourceGroup_

private

Definition at line 147 of file SchedulingResource.hh.

Referenced by addToDependentGroup(), dependentResource(), and dependentResourceGroupCount().

initiationInterval_

int SchedulingResource::initiationInterval_

protected

Definition at line 132 of file SchedulingResource.hh.

Referenced by ExecutionPipelineResource::assignSource(), ExecutionPipelineResource::canAssignDestination(), ExecutionPipelineResource::canAssignSource(), ExecutionPipelineResource::highestKnownCycle(), initiationInterval(), ExecutionPipelineResource::latestTriggerWriteCycle(), ExecutionPipelineResource::nextResultCycle(), ExecutionPipelineResource::operandOverwritten(), ExecutionPipelineResource::resultAllowedAtCycle(), ExecutionPipelineResource::resultCausesTriggerBetweenOperandSharing(), ExecutionPipelineResource::resultNotOverWritten(), setInitiationInterval(), ExecutionPipelineResource::testTriggerResult(), ExecutionPipelineResource::unassignDestination(), and ExecutionPipelineResource::unassignSource().

name_

std::string SchedulingResource::name_

private

Definition at line 149 of file SchedulingResource.hh.

relatedResourceGroup_

SchedulingResourceGroup SchedulingResource::relatedResourceGroup_

private

Definition at line 145 of file SchedulingResource.hh.

Referenced by addToRelatedGroup(), relatedResource(), and relatedResourceGroupCount().

relatedResourceSet_

SchedulingResourceSet SchedulingResource::relatedResourceSet_

private

Definition at line 152 of file SchedulingResource.hh.

Referenced by addToRelatedGroup(), and hasRelatedResource().

useCount_

int SchedulingResource::useCount_

private

Definition at line 155 of file SchedulingResource.hh.

Referenced by clear(), decreaseUseCount(), increaseUseCount(), and useCount().

---

The documentation for this class was generated from the following files:

• SchedulingResource.hh
• SchedulingResource.cc
